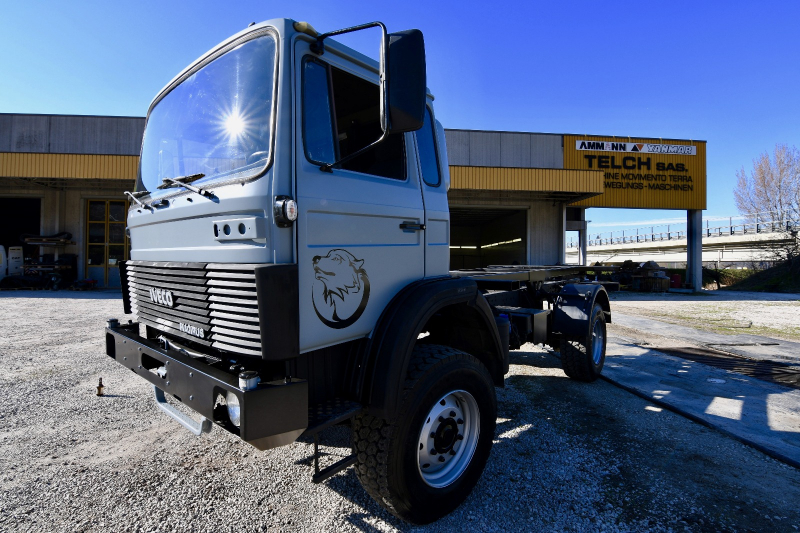

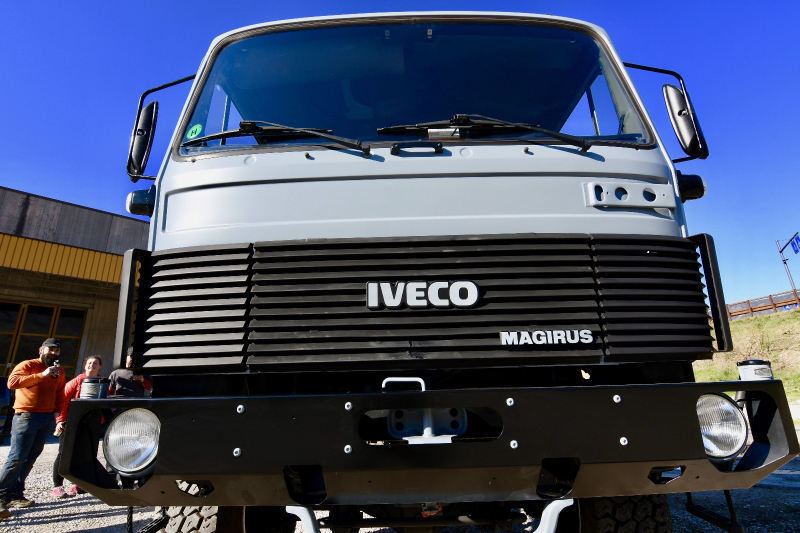

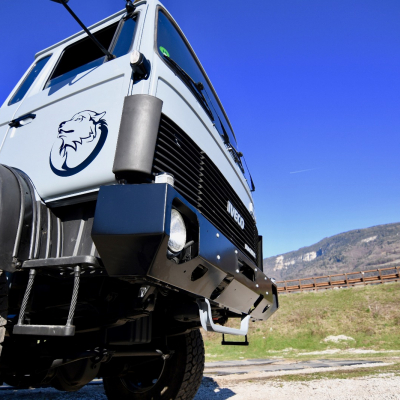

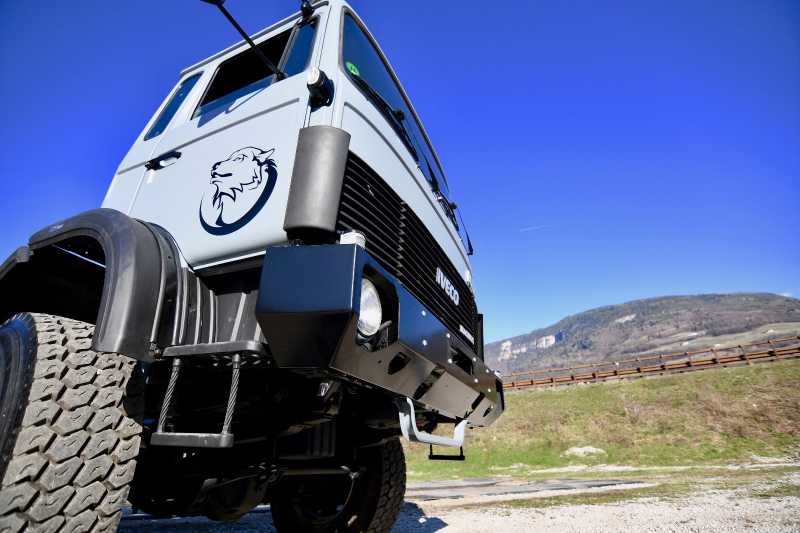

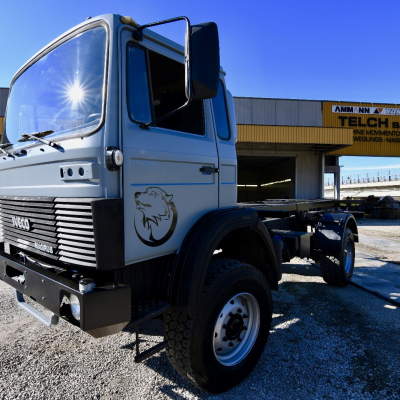

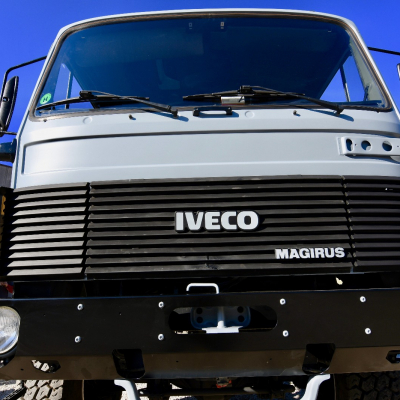

Iveco 110-17 AW der Bundeswehr wird zum Weltreisemobil
| Manufacturer and model | Iveco 110-17 AW |
|---|---|
| Name | Andreas Hirte-Muhs |
| Country | Deutschland |
| Website | www.hexenkind.com |
| Year of manufacture | 1988 Fahrzeug / 2018 Koffer |
| For sale? | no |
| Asking price? | Unverkäuflich |
| Engine type | Klöckner Humbold Deutz AG BF 6 L 913 |
|---|---|
| Cubic capacity | 6128 |
| Number of cylinders | 6 |
| Horsepower | 169 |
| Torque | 515 Nm |
| Other | |
| Folgt | |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 365 |
| Number of seats | 3 |
| Tyre size | 385/65 R 22,5 |
| Rim size | 385/65 R 22,5 |
| Type of tyre | Baustellenprofil |
| Tank capacity | 500 |

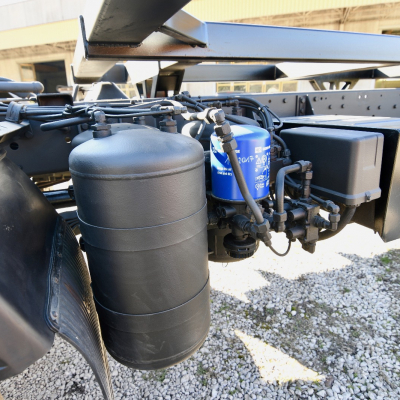

| Diesel filter | yes |
| Other | |
| Folgt | |
| Permanent or manually selectable 4-wheel drive | Permanent plus Sperren etc. |
| Diff locks | ja |
| Manufacturer of the cabin | www.hexenkind.com und jungwolf.design |
|---|---|
| Inner dimensions (LxWxH) | 450 x 228 x 200 |
| Outer dimensions (LxWxH) | 460 x 238 x 215 |
| Cabin material | Monopan und Aluminium |
| Kind and thickness of insulation | Wände 50 mm Boden 100 mm Decke 75 mm |
| Number of beds | 4 |
| Windows | 4 Seutz Dometic S 4 mit Glasscheiben statt Kunststoff |
| Subframe | 4 Punkt Lagerung |
| Other | |
| Folgt | |

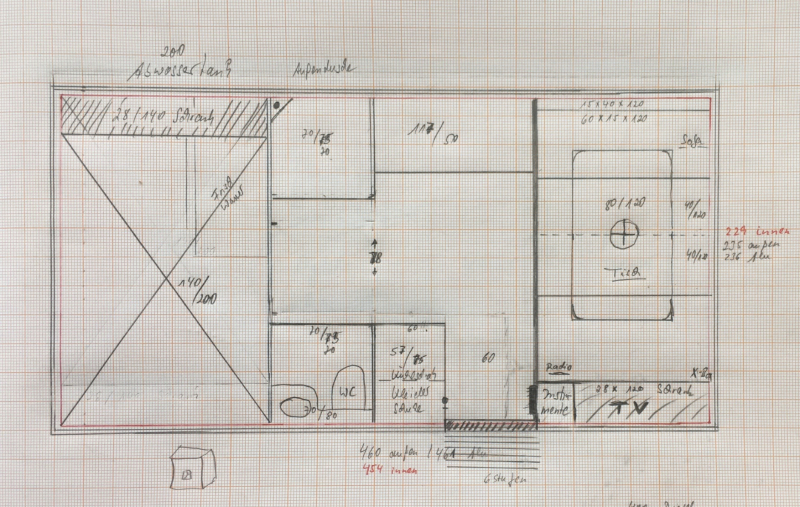

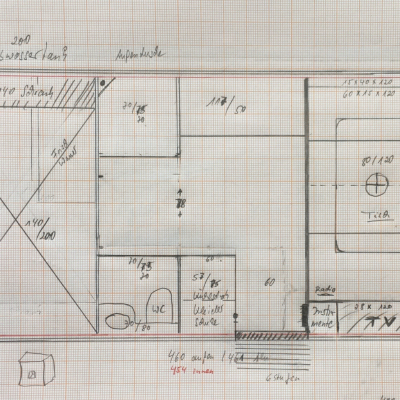

| Explanation of floor plan | |
|---|---|
| Folgt |
| Material of furniture | Vöhinger V Block beidseitiig beschichtet mit Dekor |
|---|---|
| Other | |
| Folgt | |
| Cooking stove | Seitz Dometic (Gas) + Dieselkocher |
|---|---|
| Gas installation | 1 Gasflasche betankbar ausschließlich für Kocher |
| Other | |
| Dieselheizung und Diesel Warm Wasser | |
| Manufacturer and type of fridge / cooler | Waeco Dometic 55er |
|---|---|
| Other | |
| Folgt | |
| Voltage in the chassis | 24 v |
|---|---|
| Voltage in the cabin | 12 V 24 V 220 V |
| Charging converter 24V-12V | Victron VCC24/12-45A |
| 110V / 230V in the cabin? | yes |
| Inverter | Phoenix MultiPlus Wechselrichter/Lader C 12/2000/80-30 |
| Other | |
| Folgt | |
| Capacity of batteries in the cabin | 2 x 240 |
|---|---|
| Battery charger for cabin batteries | Phoenix MultiPlus Wechselrichter/Lader C 12/2000/80-30 und Victron BMV-700S Batterie-Monitor 6,5-95V DC |
| Battery management | Victron BMV-700S Batterie-Monitor 6,5-95V DC |
| Other | |
| Folgt | |
| Solar capacity | 465 Wp |
|---|---|
| Solar controller | BlueSolar MPPT 100/30 12V/24V, Solarregler |
| Fuel cell | no |
| Power generator | Honda i30 |
| Other | |
| Folgt | |
| Manufacturer and type of heating system | Webasto Dual Top Evo 8 |
|---|---|
| Warm water processing | Webasto Dual Top Evo 8 |
| Other | |
| Folgt | |
| Explanation of gas system | |
|---|---|
| Verzicht auf Gasanlage ausser Kochstelle |
| water flow | komplette Verrohrung in Karbon |
|---|---|
| Water filtration system | Lilie / Shurflo |
| Capacity of fresh water tank(s) | 385 |
| Capacity of waste water tank(s) | 150 |
| Other | |
| komplett kälteisoliert bis minus 30 | |
| Manufacturer and type of toilet | Dometik Keramik WC |
|---|---|
| Capacity of black water tank | 18 L |
| Other | |
| Folgt | |
| Rear carrier | Eigenbau |
|---|---|
| Roof rack | Eigenbau (Rhino Rack Land Rover Defender) |
| Storage boxes | 4 x staukasten-4you.de 800 mm Breite |
| Outside cooking facilities | Gasanschluss für Weber Grill und Multi-Fuel-Kocher |
| Awning | Nakatanenga |
| Other | |
| Folgt | |
