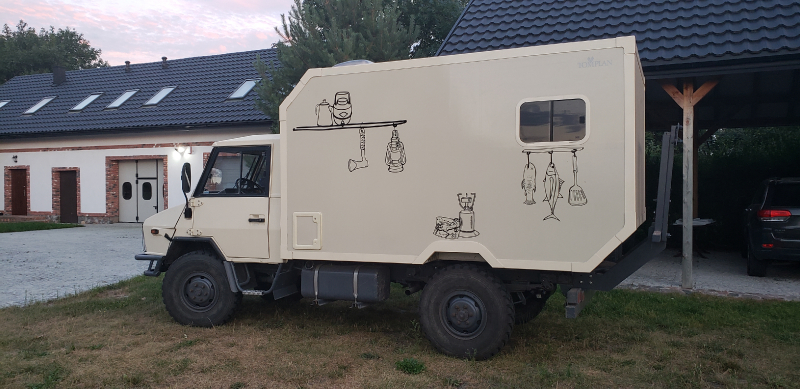

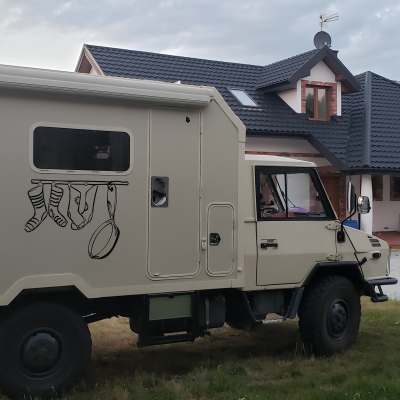

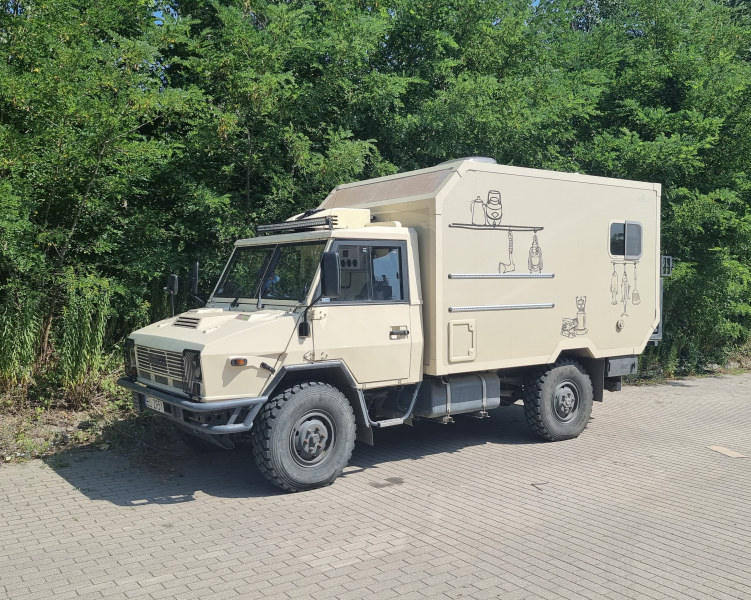

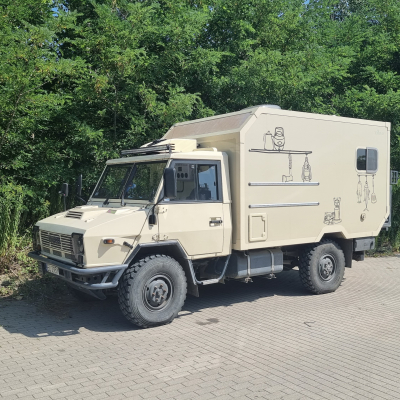

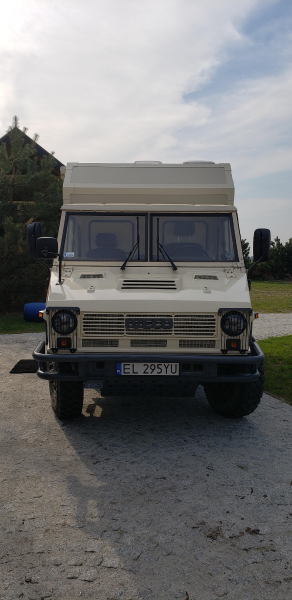

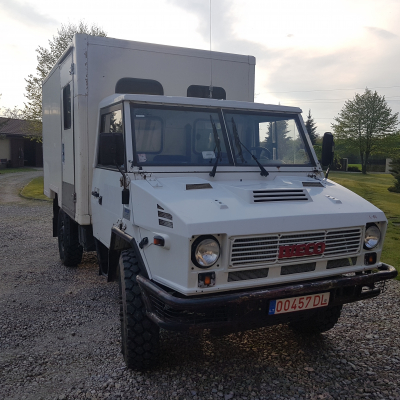

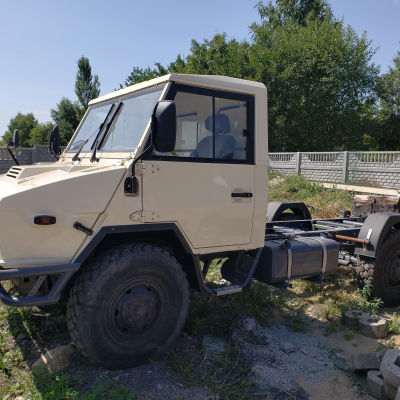

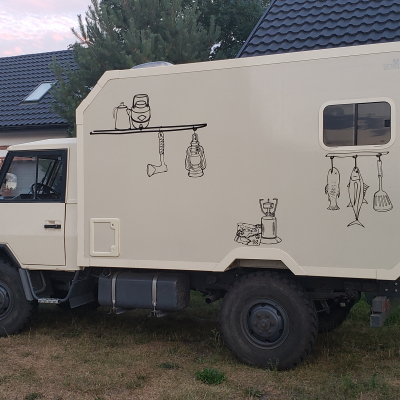

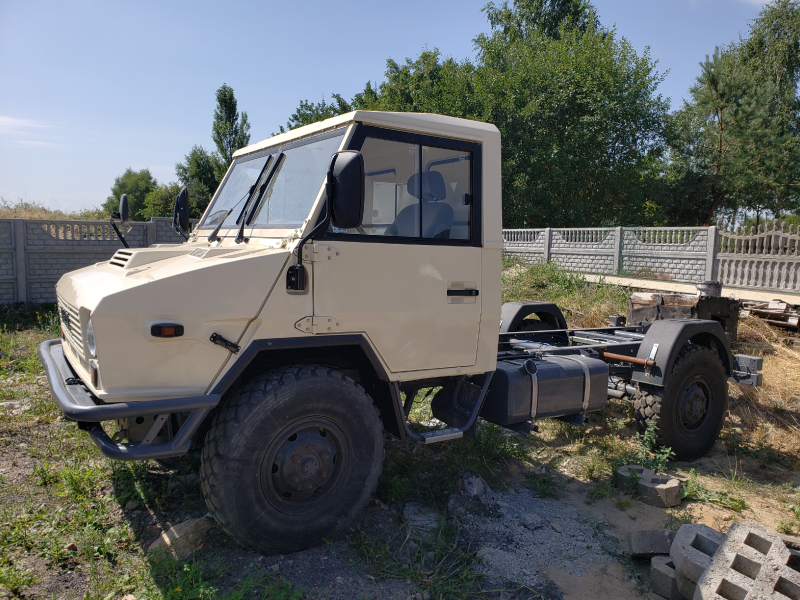

The project was begun on May 2017 when I bought Iveco 40e13 vm which was used earlier by Lithuanian electricity supplier. The first inspiration were my friends, who have a camper which was built on military version of Iveco 40e10. Then I have been inspired by Ulrich with his book with detailed instruction how build my own motorhome. All topics and consideration included in English version Ulrich's book gave me basic to look for my own solutions. Project isn't finished yet but I'm sure I will go on my first travel soon.

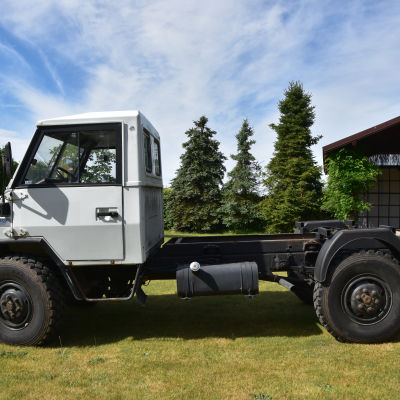

| Manufacturer and model | Iveco 40e13 VM |
|---|---|
| Name | Bruno |
| Country | Poland |
| Year of manufacture | 2005 |
| For sale? | no |

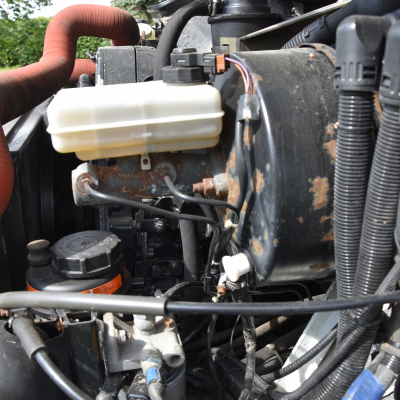

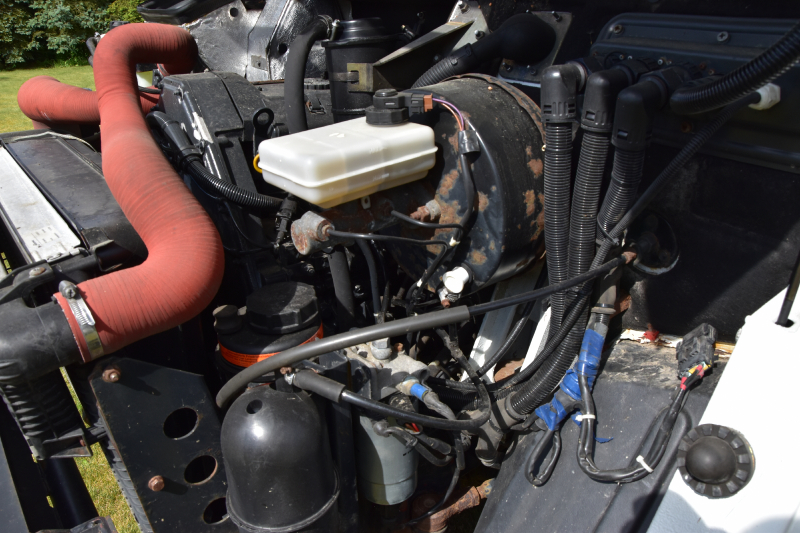

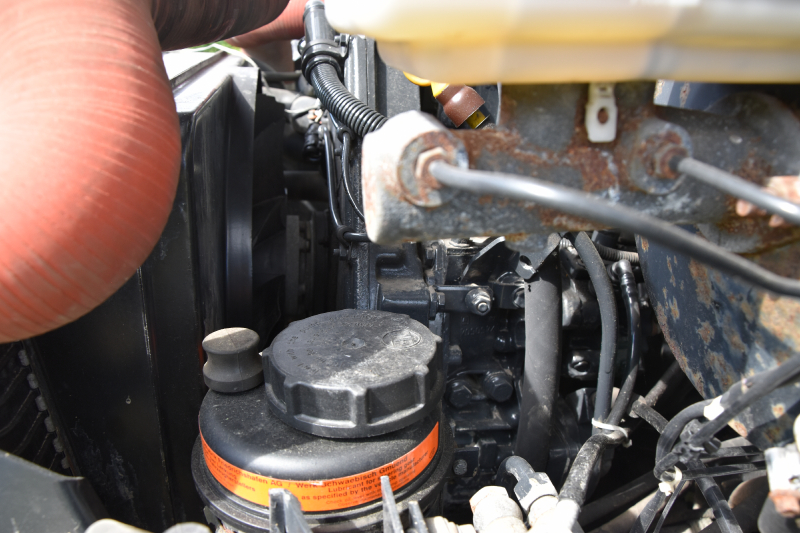

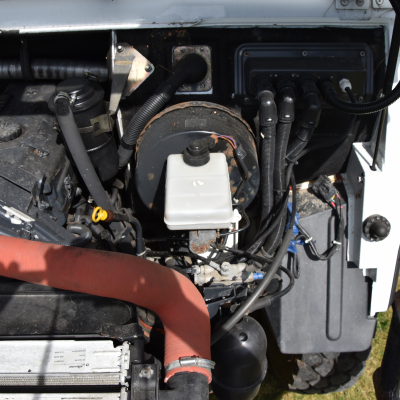

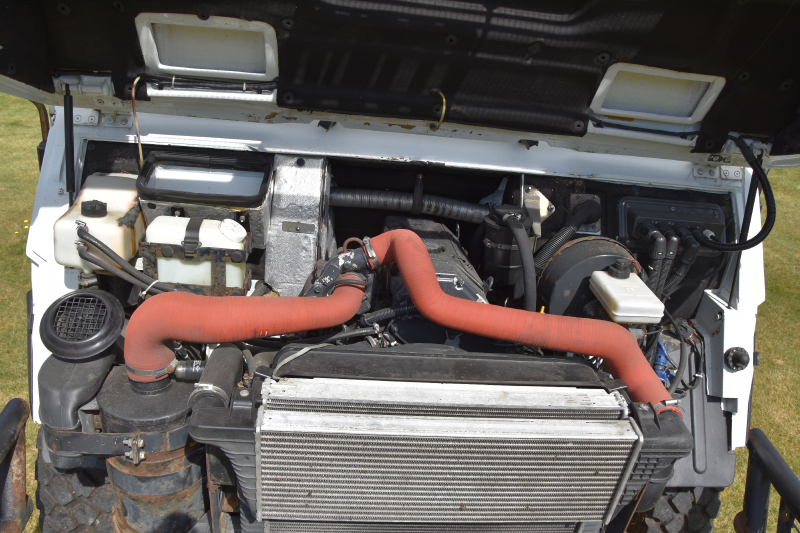

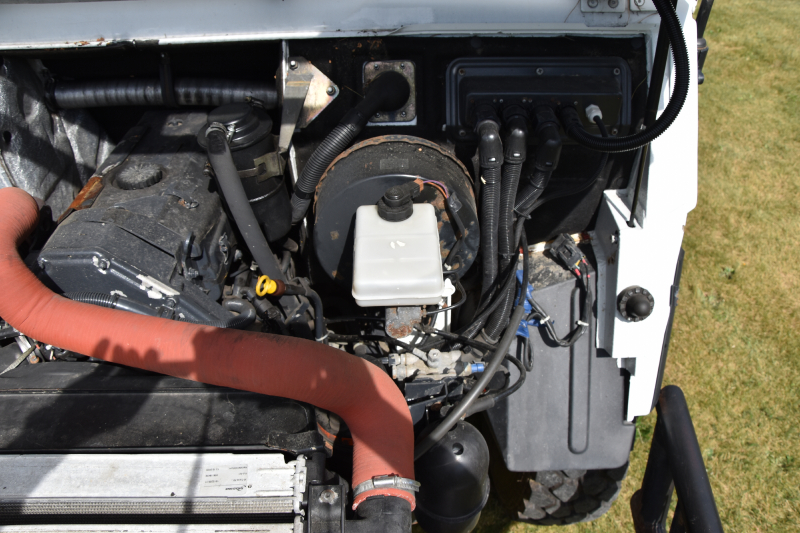

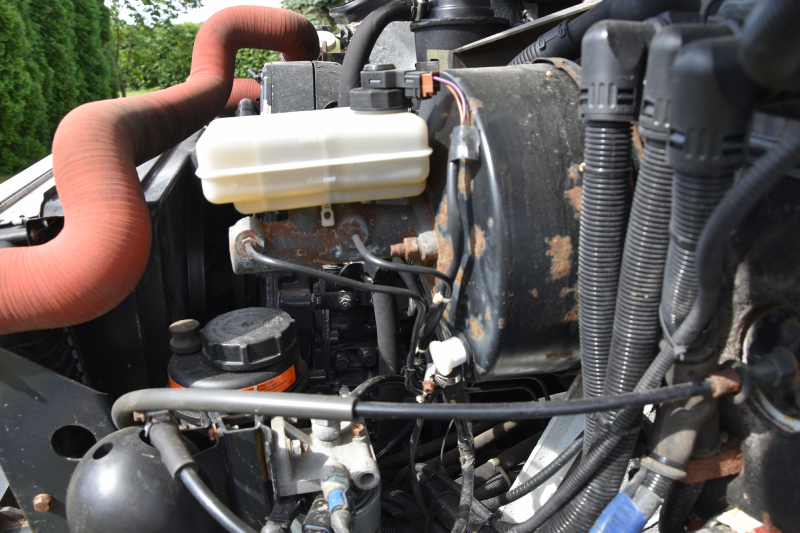

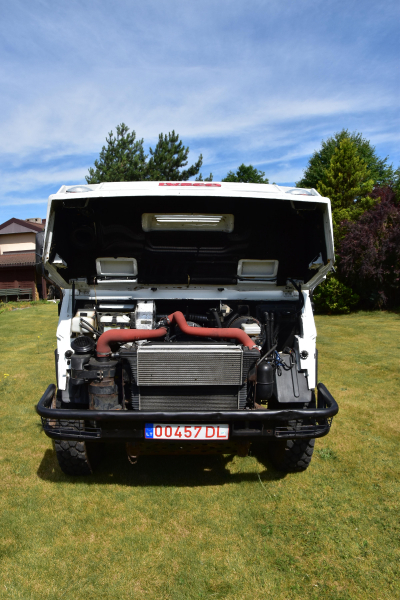

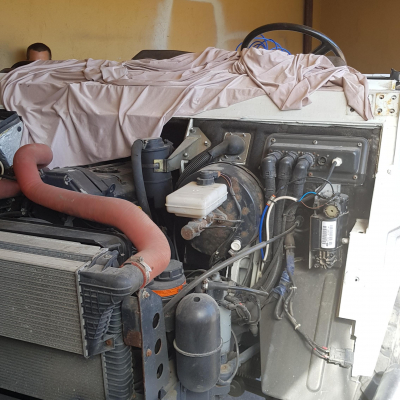

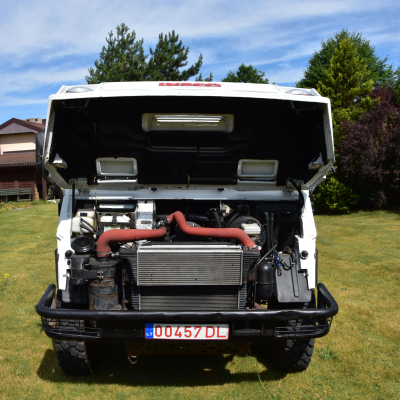

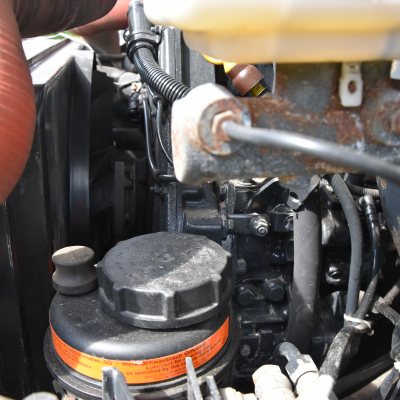

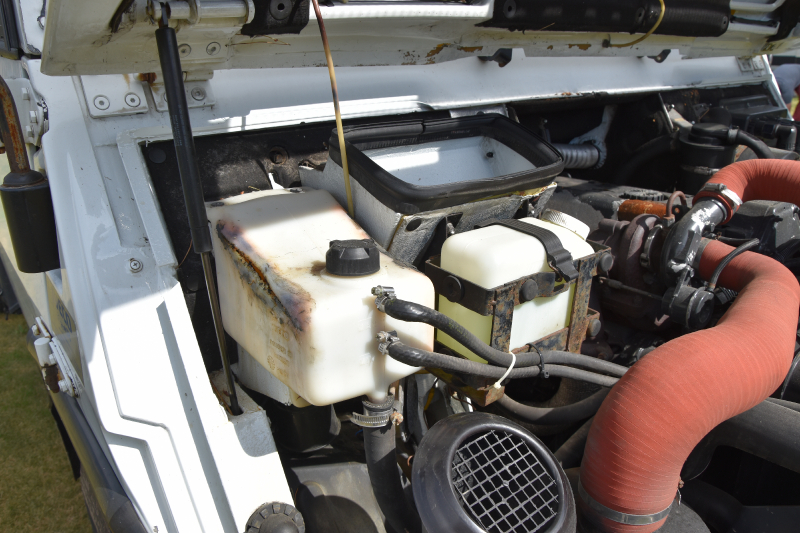

| Engine type | IVECO SOFIM 8142.23 Diesel Engine for Vehicle |
|---|---|
| Cubic capacity | 2826.5 |
| Number of cylinders | 4 |
| Horsepower | 102 |
| Torque | 240 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3200 |

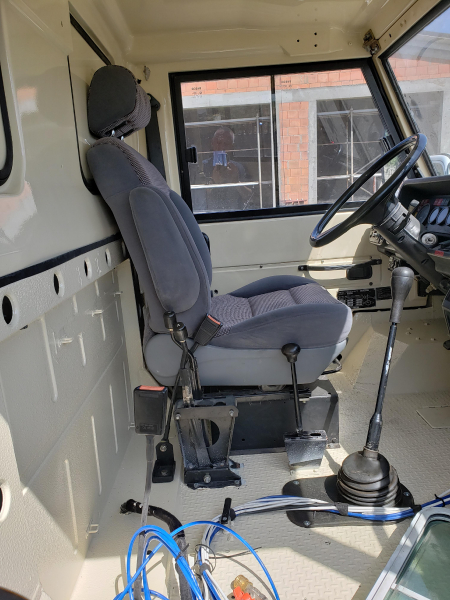

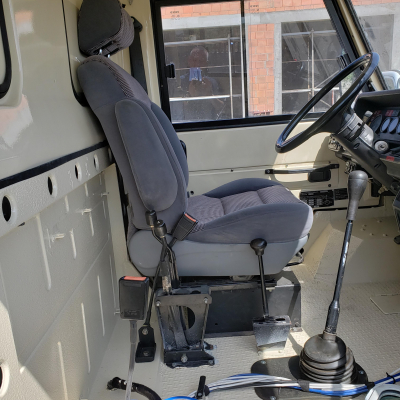

| Number of seats | 3 oryginal, now 2 |

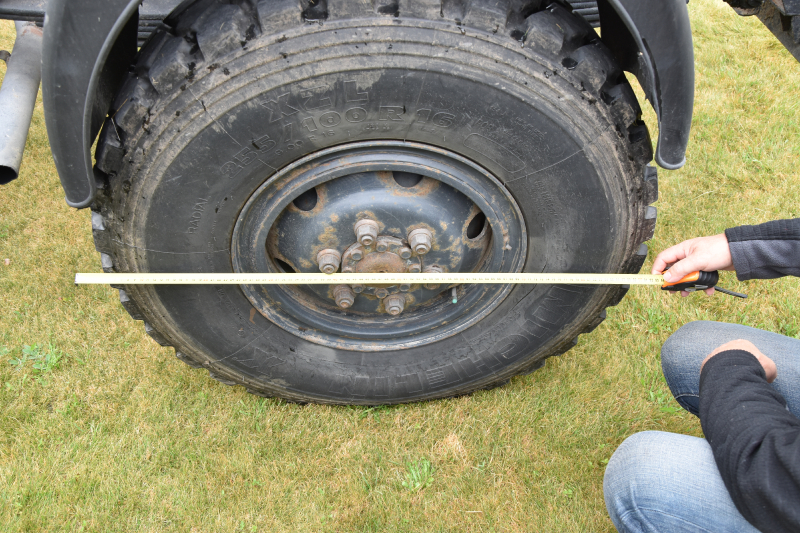

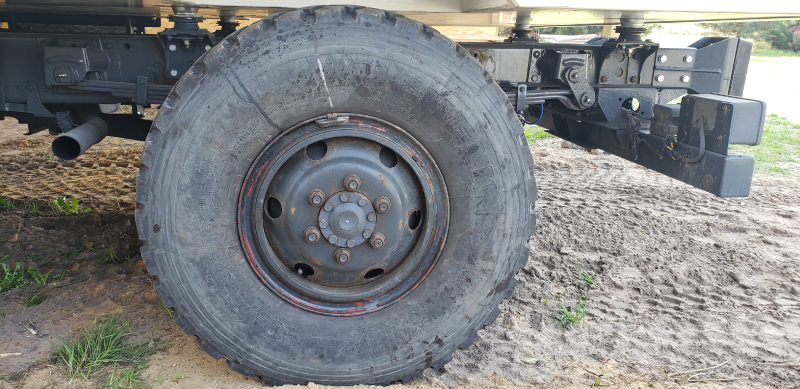

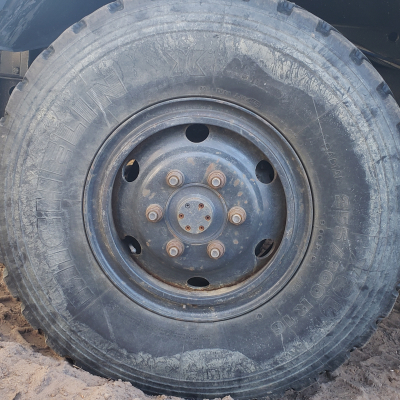

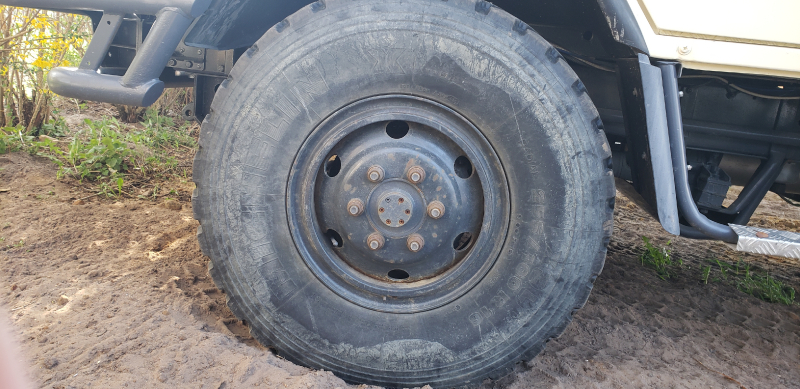

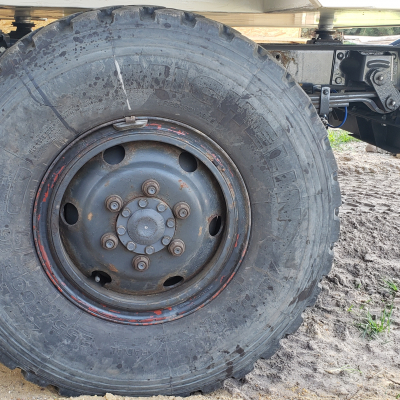

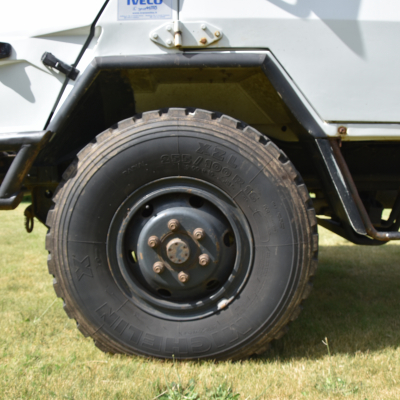

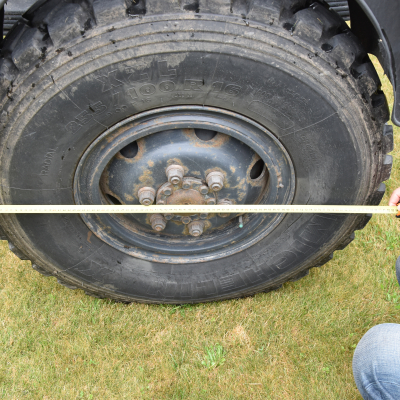

| Tyre size | 255x100R16 |
| Rim size | 16 |
| Type of tyre | Michelin |

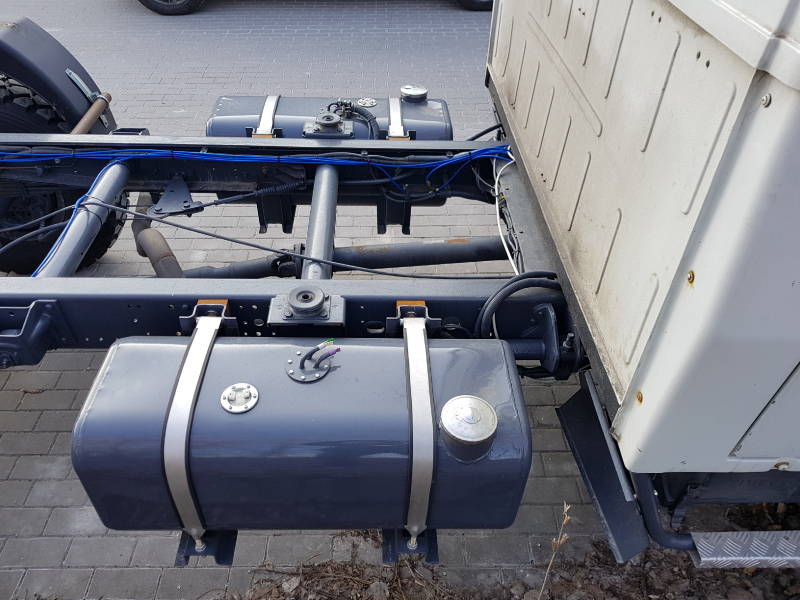

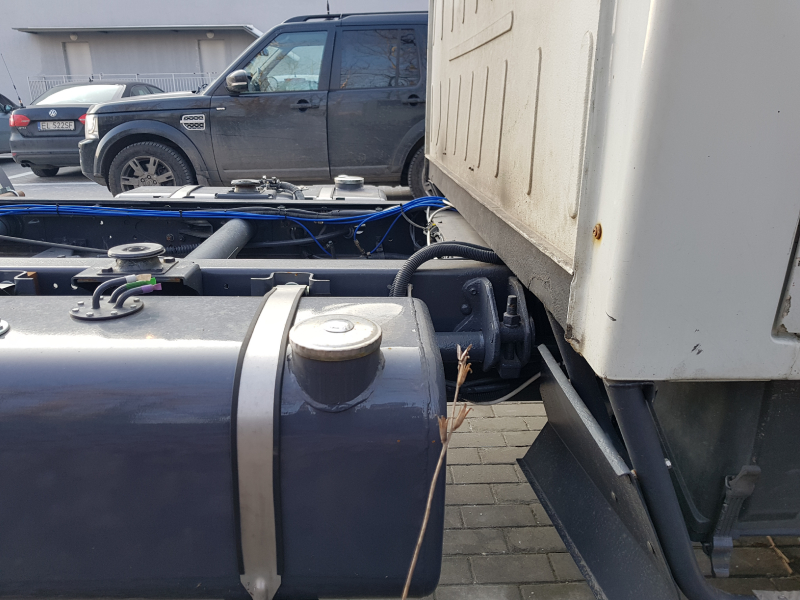

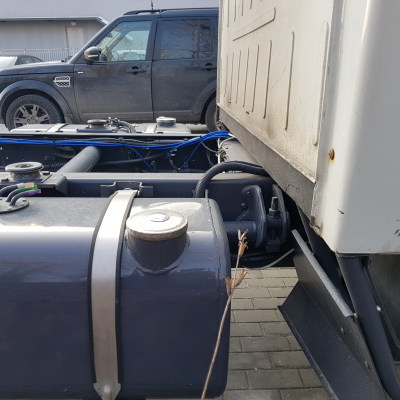

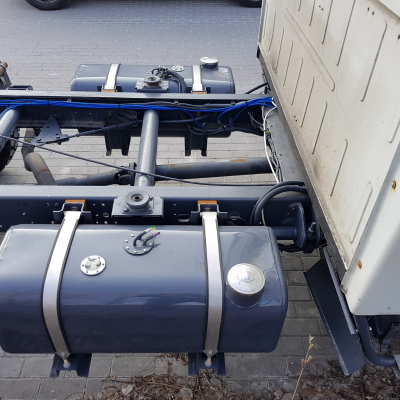

| Tank capacity | 2 x 100 |
| Diesel filter | yes |
| Other | |

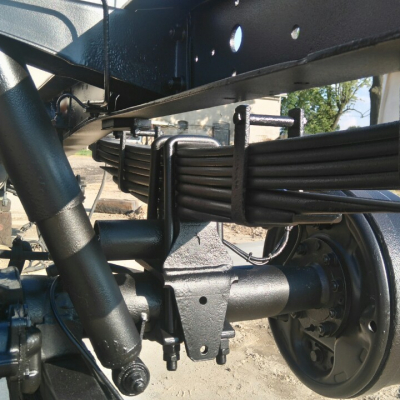

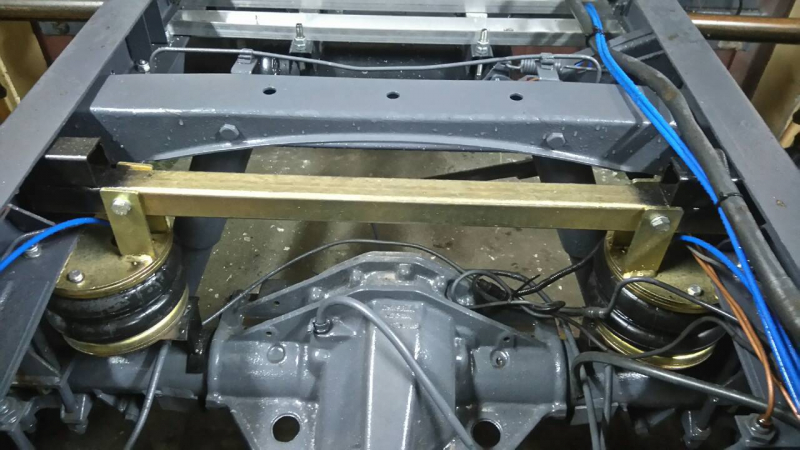

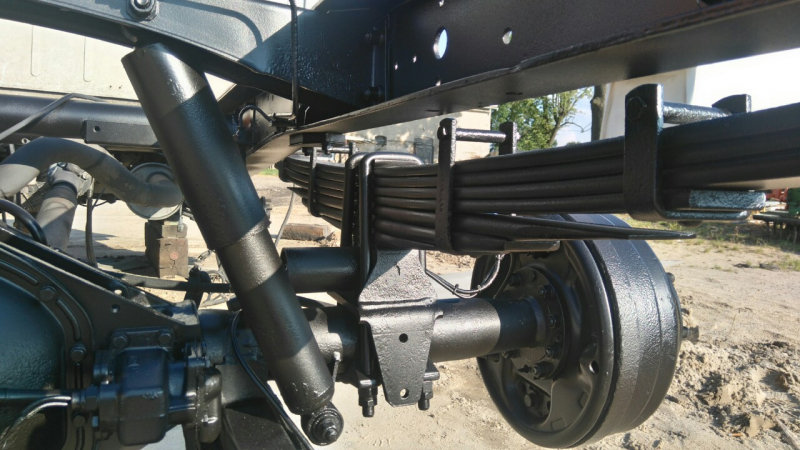

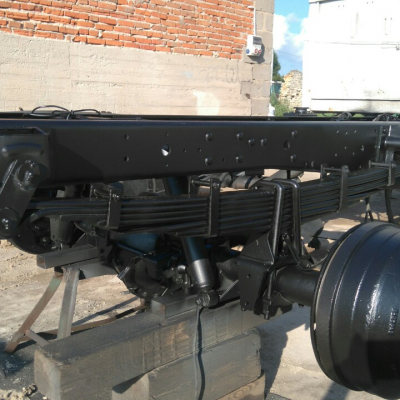

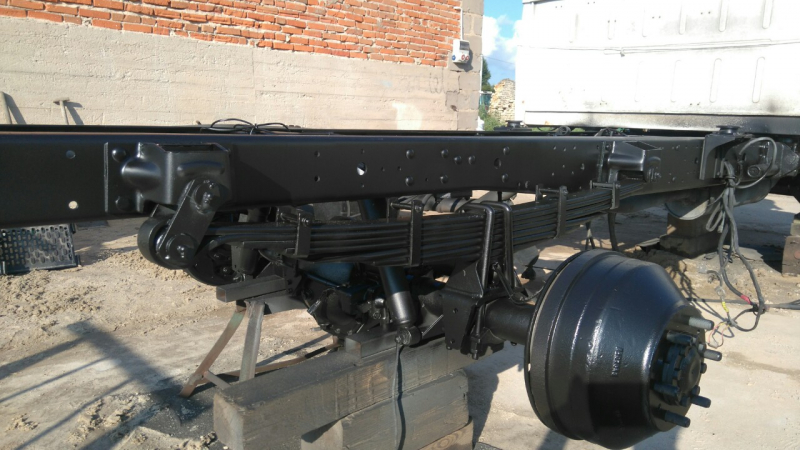

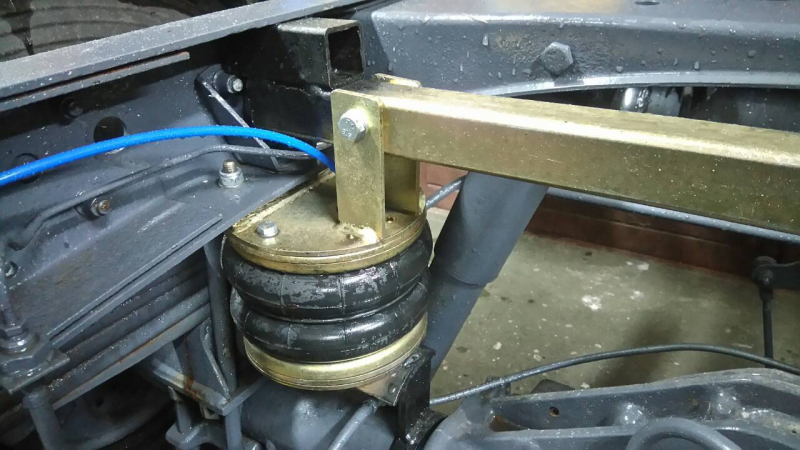

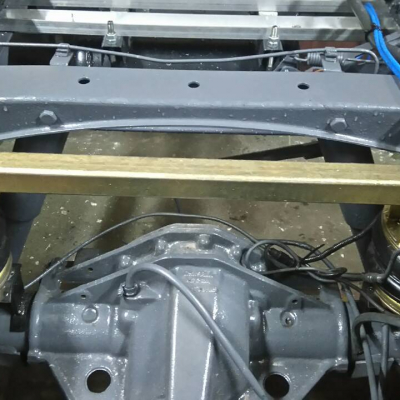

| air rear suspension | |

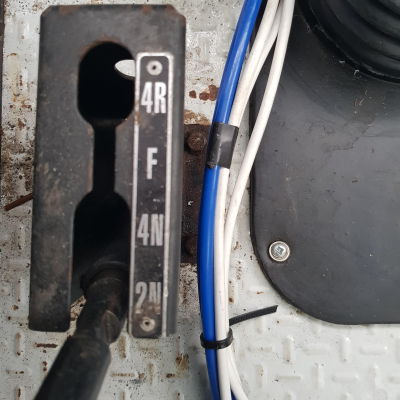

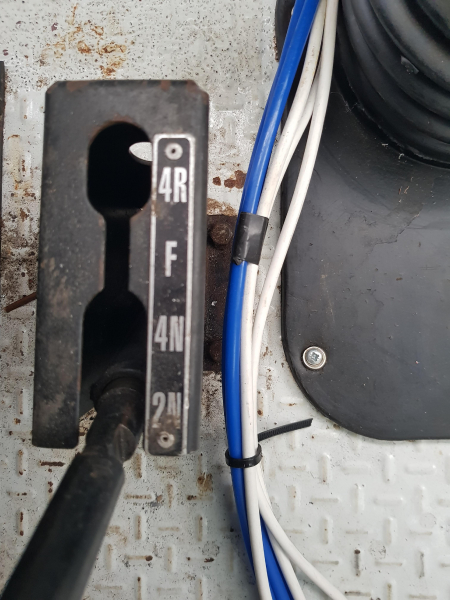

| Permanent or manually selectable 4-wheel drive | manually 4WD |

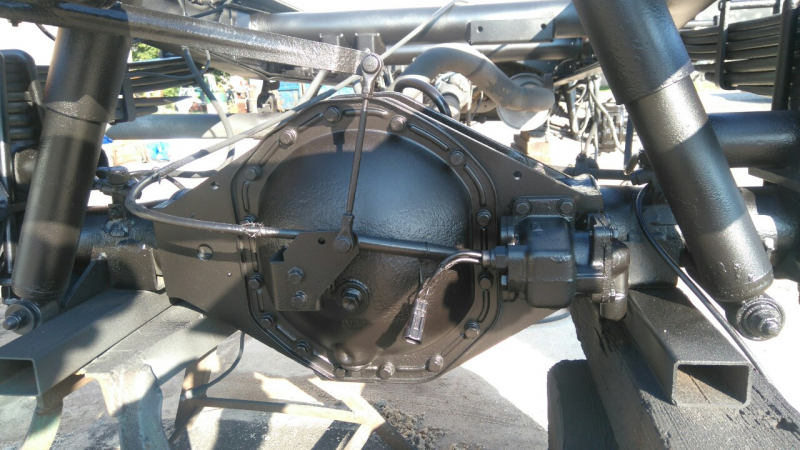

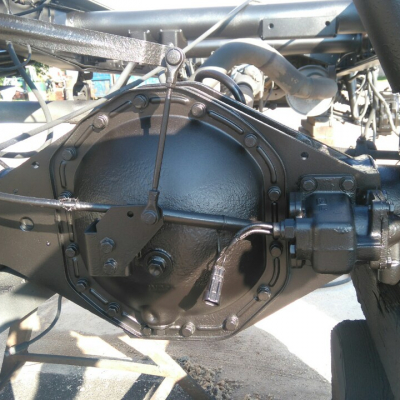

| Diff locks | any axe, central difflock |

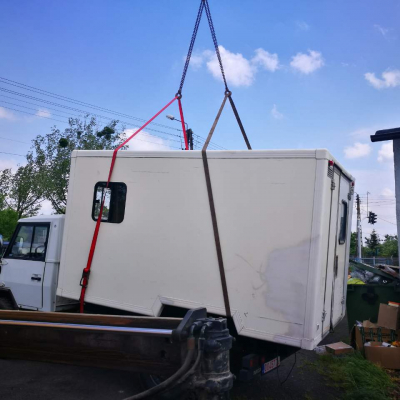

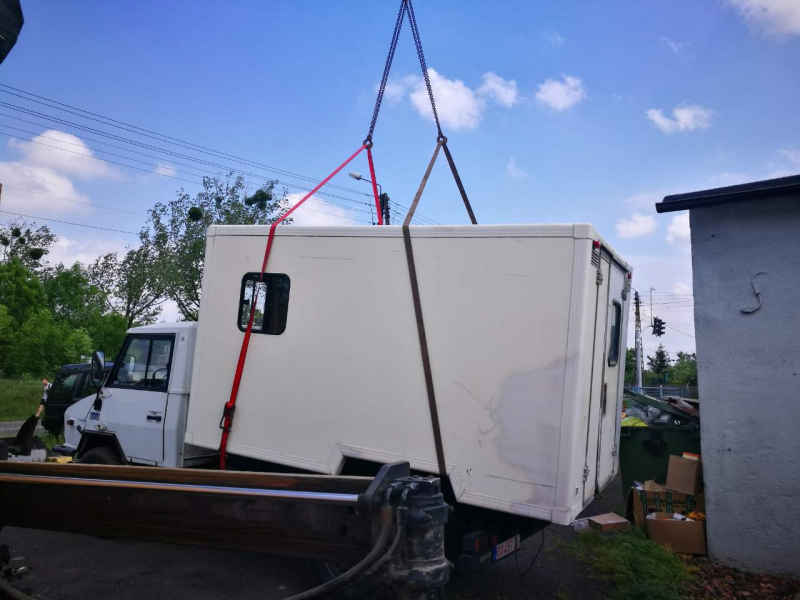

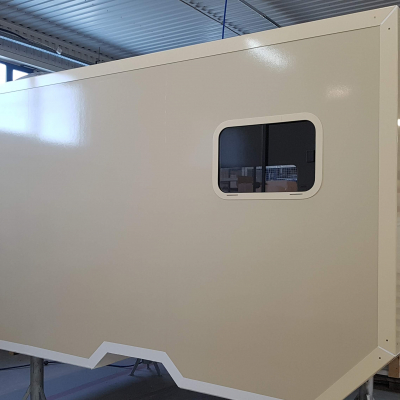

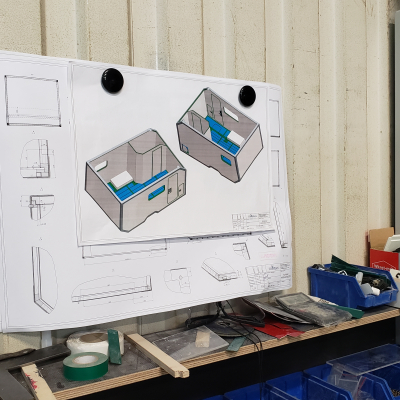

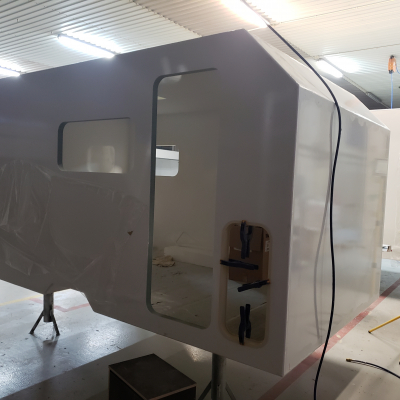

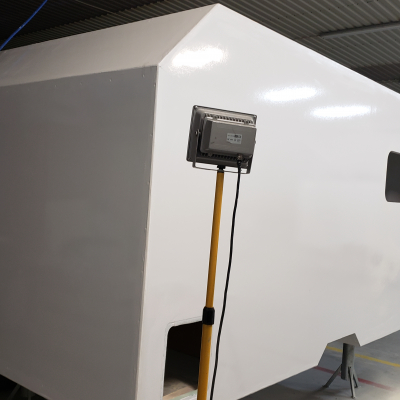

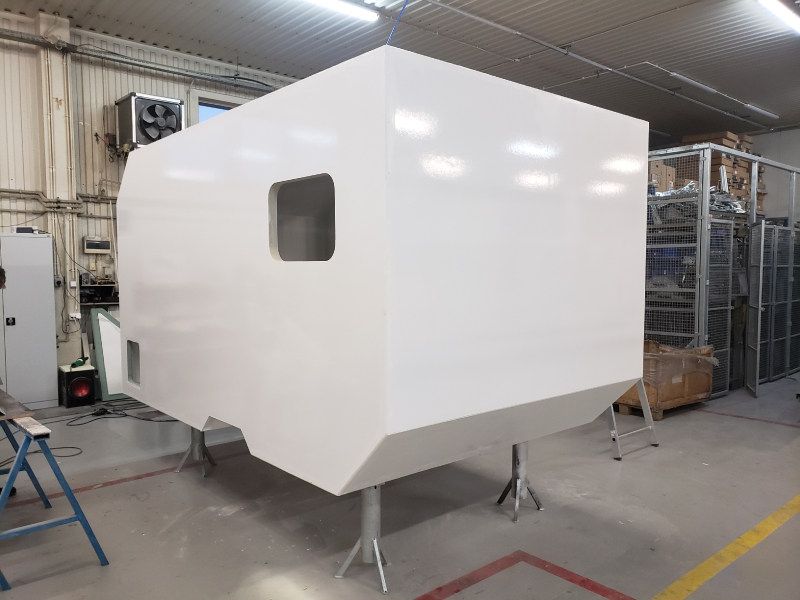

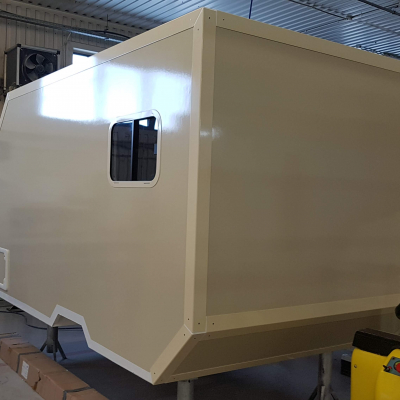

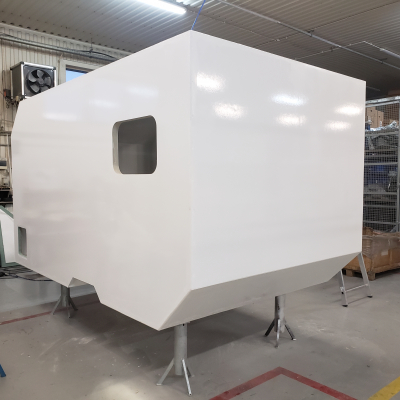

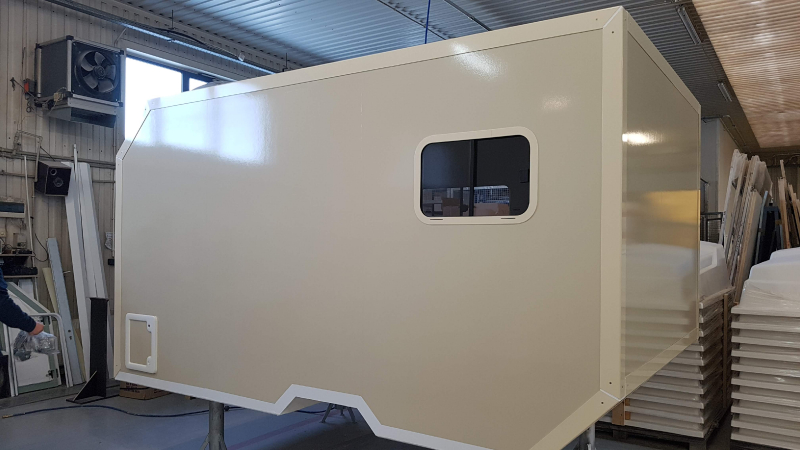

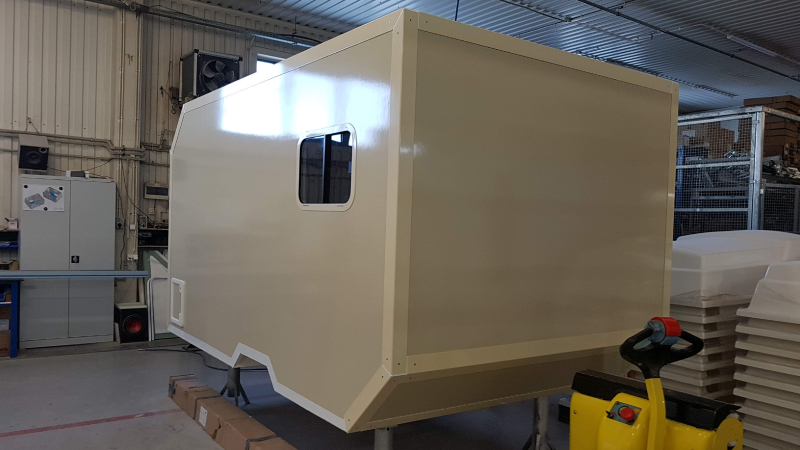

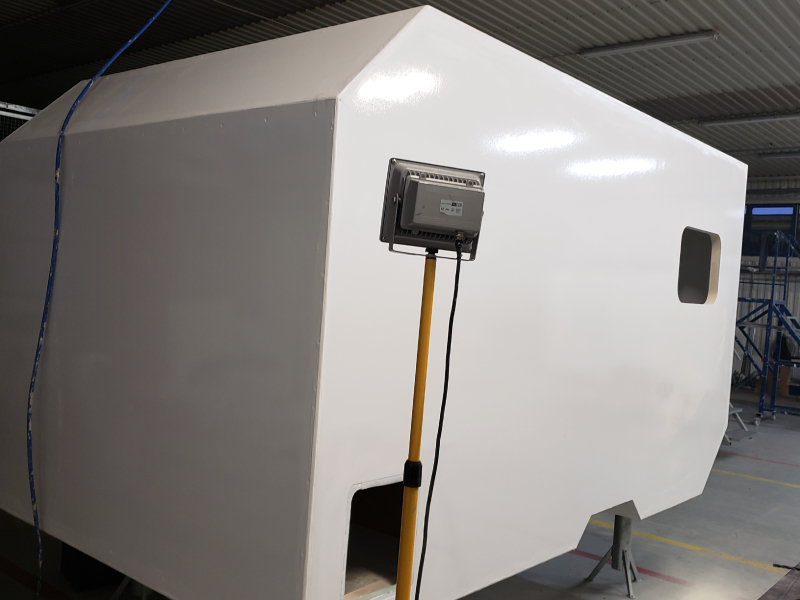

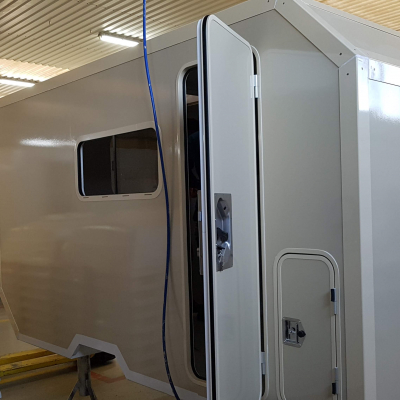

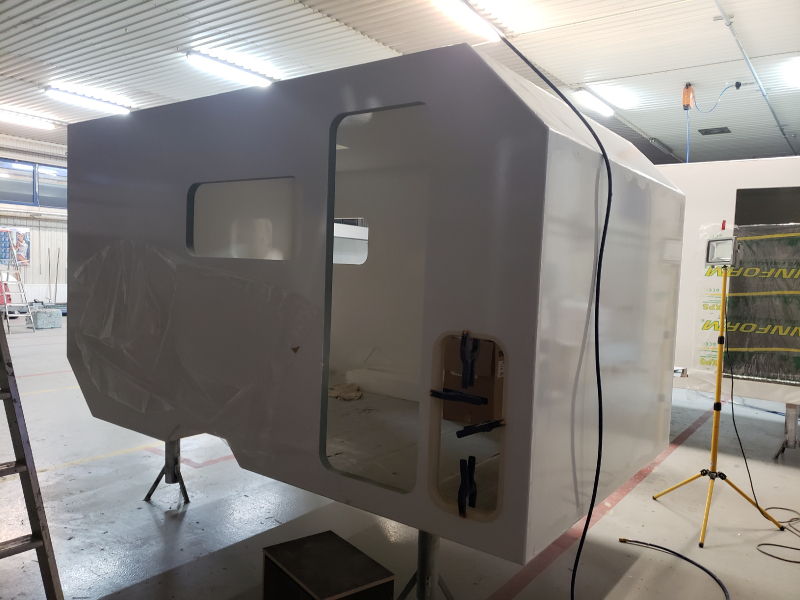

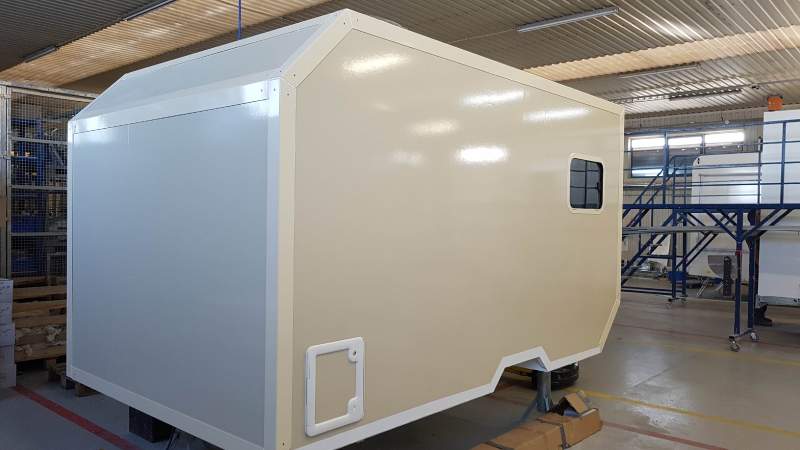

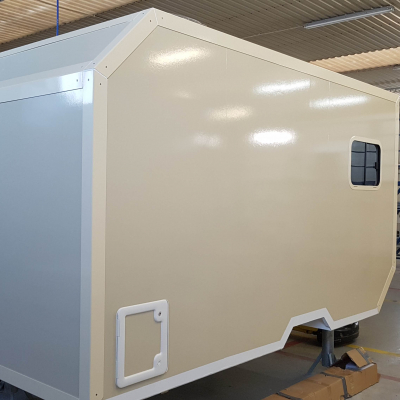

| Manufacturer of the cabin | TOMPLAN |
|---|---|

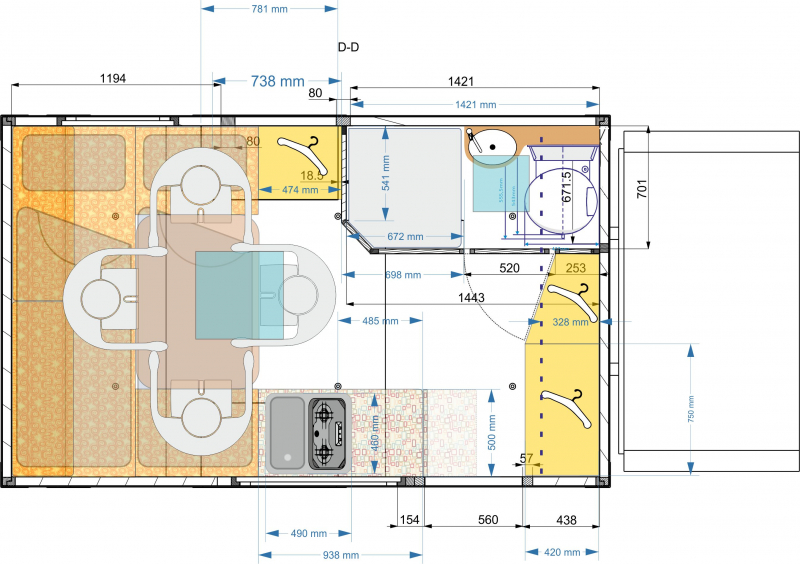

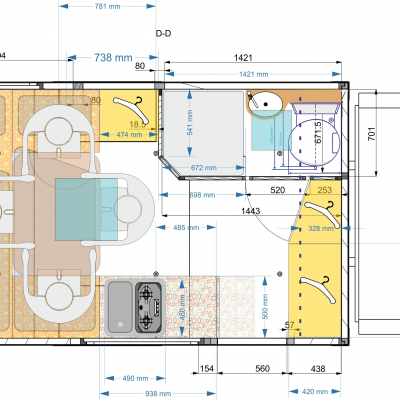

| Inner dimensions (LxWxH) | 3352 x 1958 x 1802 |
| Outer dimensions (LxWxH) | 3458 x 2106 x 1940 |
| Cabin material | sandwich made of polyester-glass laminates |
| Kind and thickness of insulation | sandwich made of polyester-glass laminates |

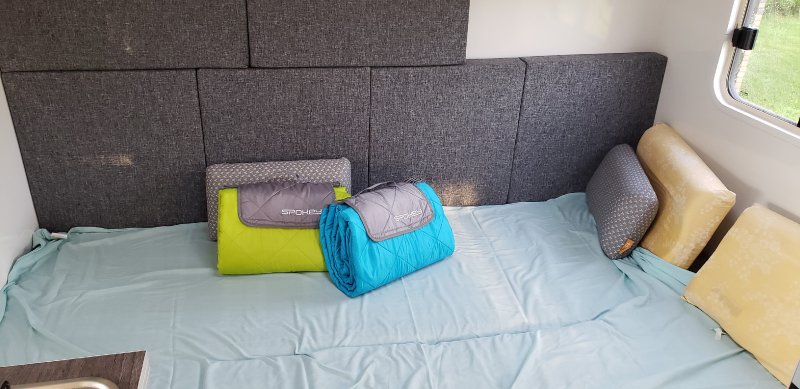

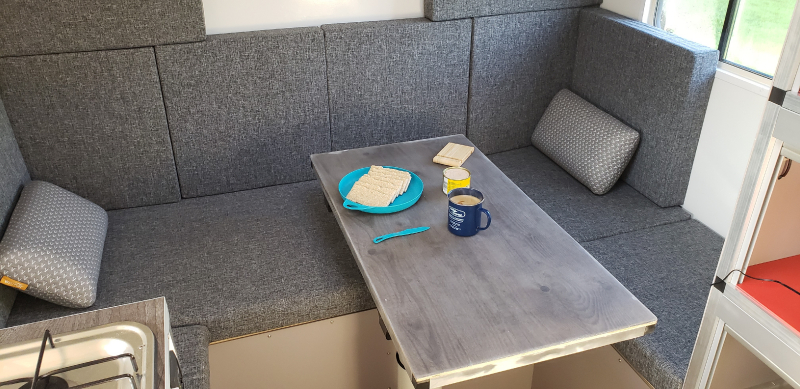

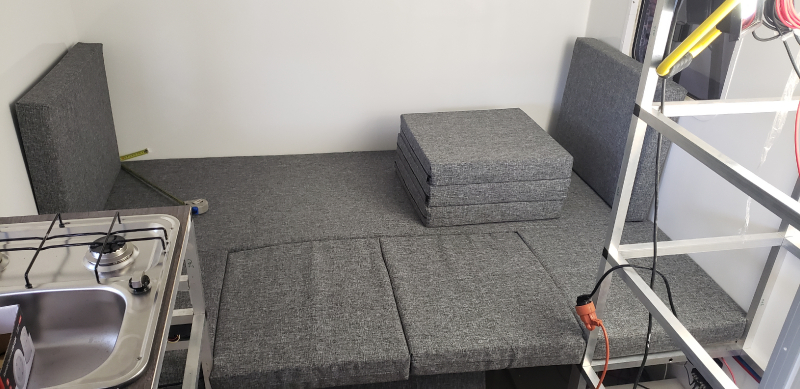

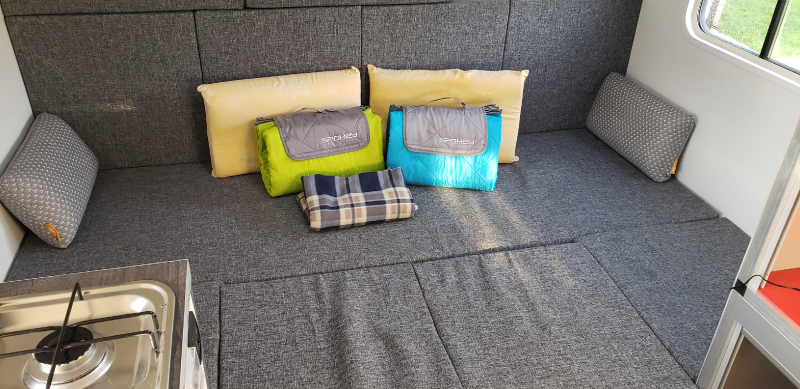

| Number of beds | one 140 x 200 |

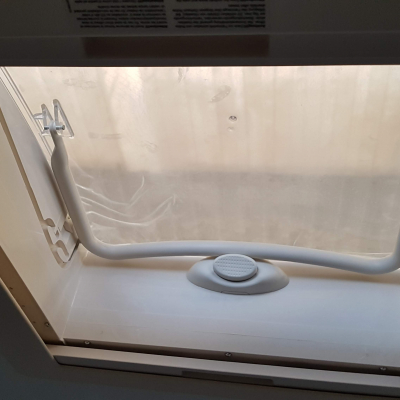

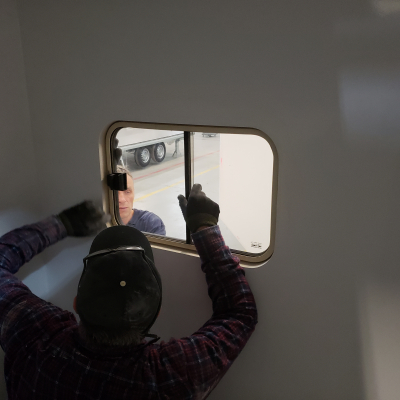

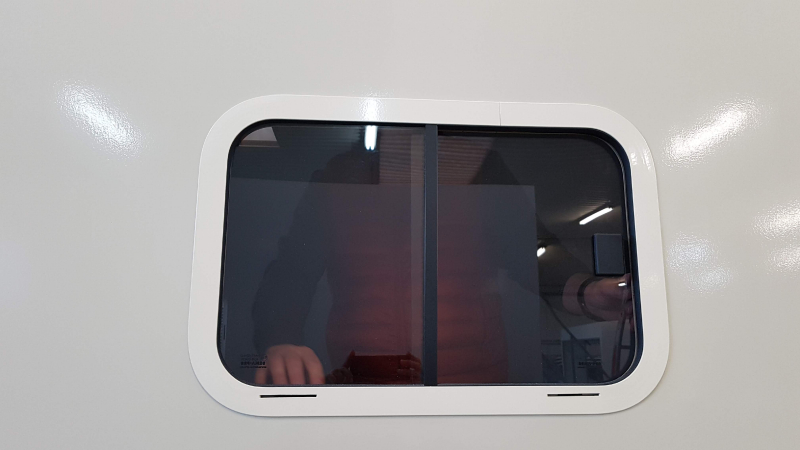

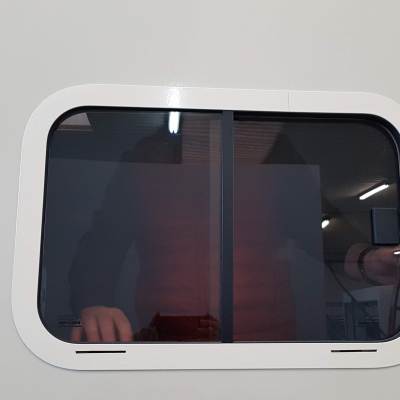

| Windows | glass |

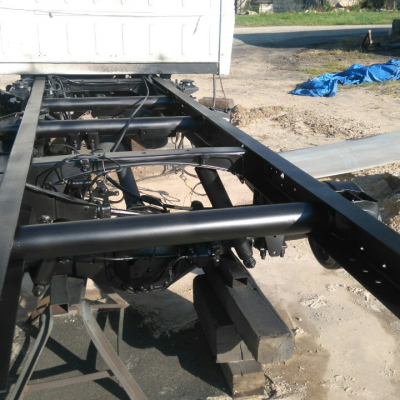

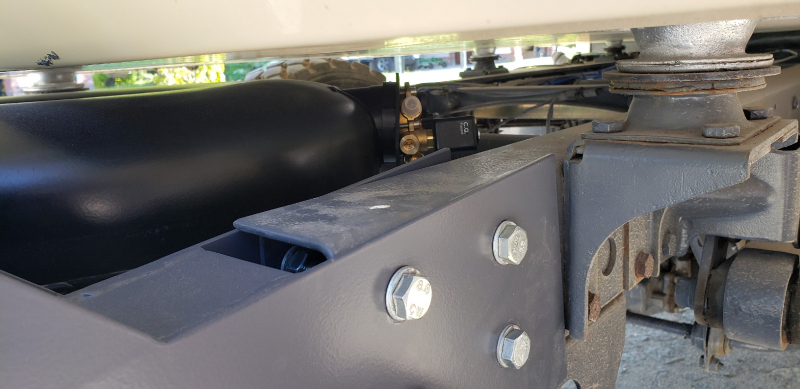

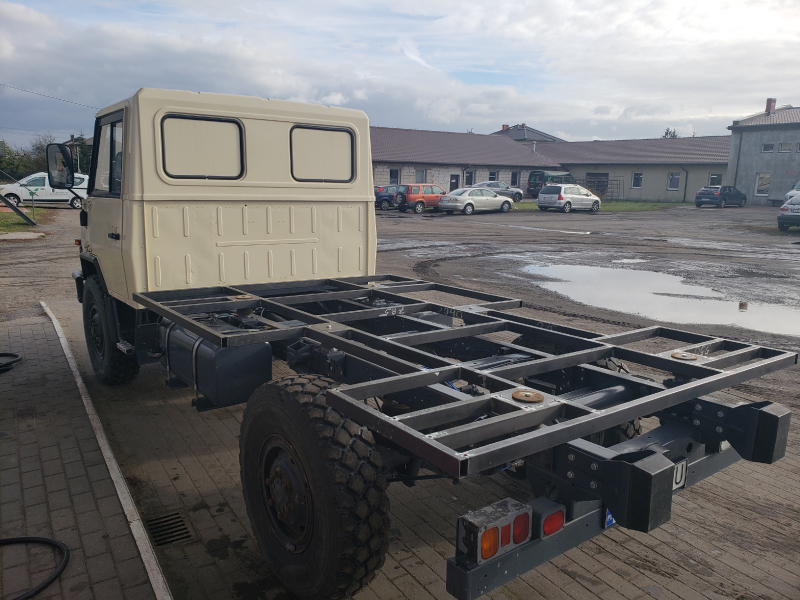

| Subframe | inside food |

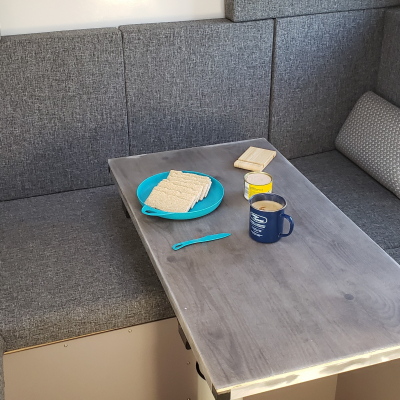

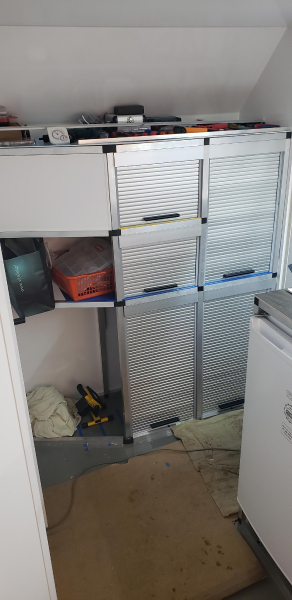

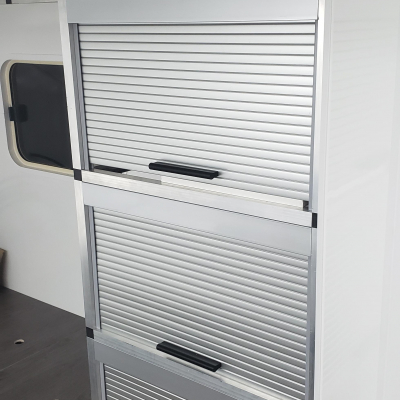

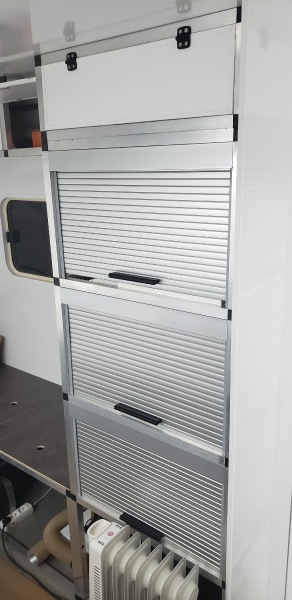

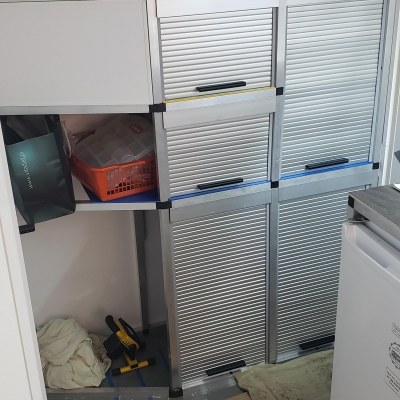

| Material of furniture | AL profile construction with light PCV |
|---|---|
| Other | |
| in | |

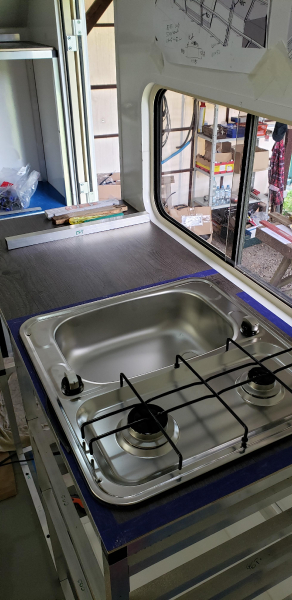

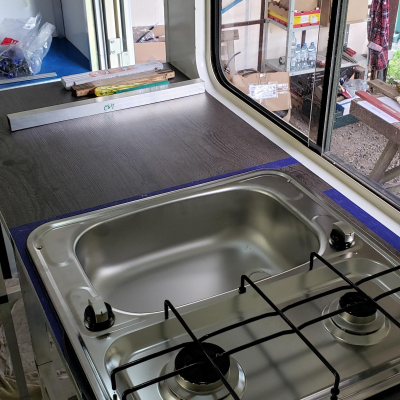

| Cooking stove | Dometic HS2460L |
|---|---|

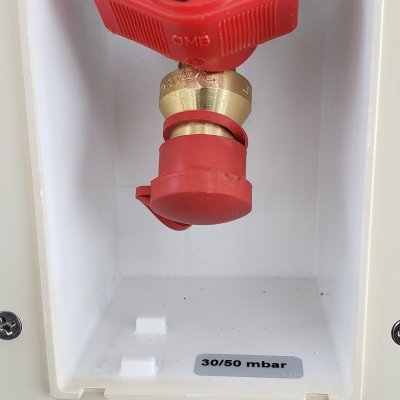

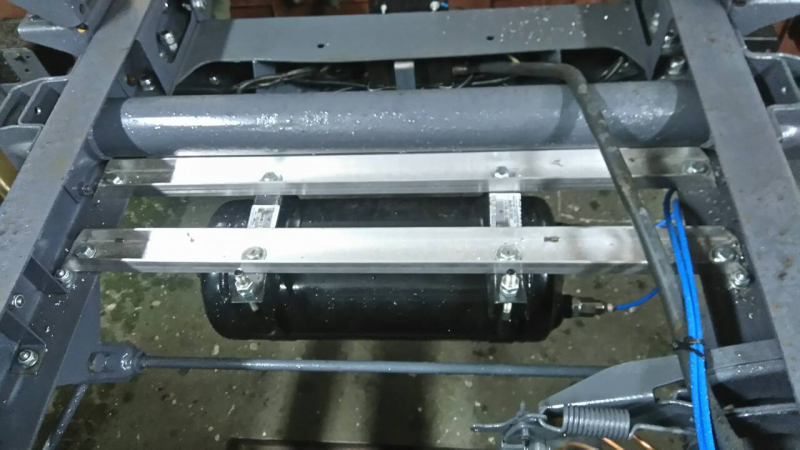

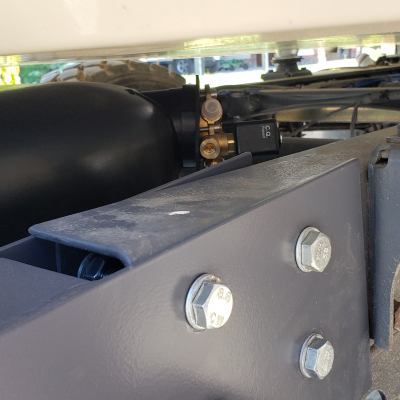

| Gas installation | 24 Litres Motorhome Underslung Gas Tank |

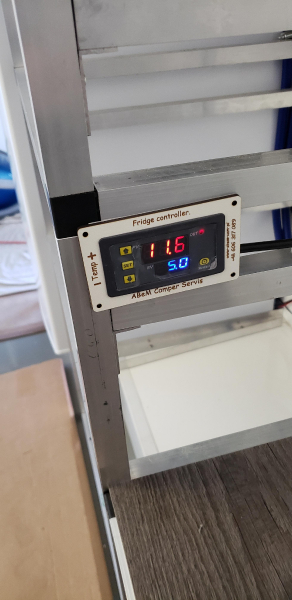

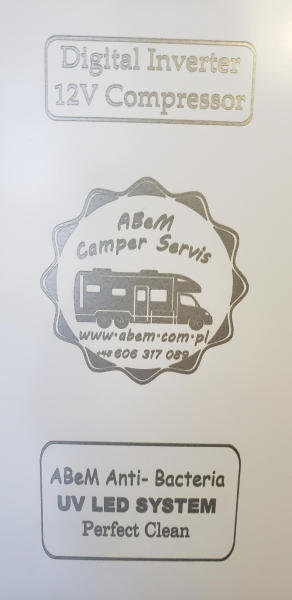

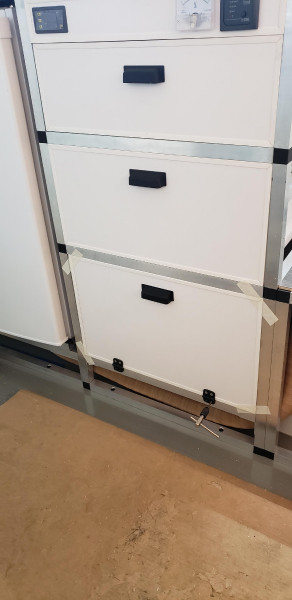

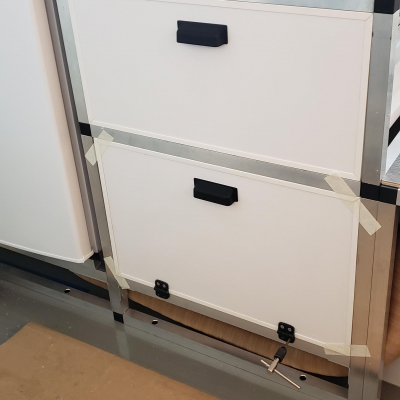

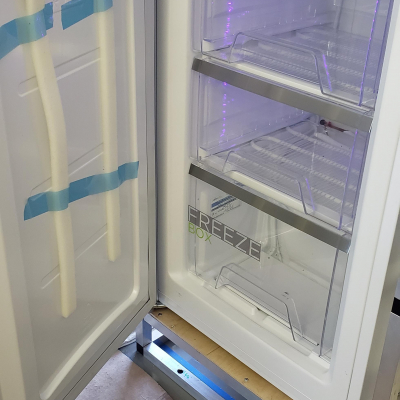

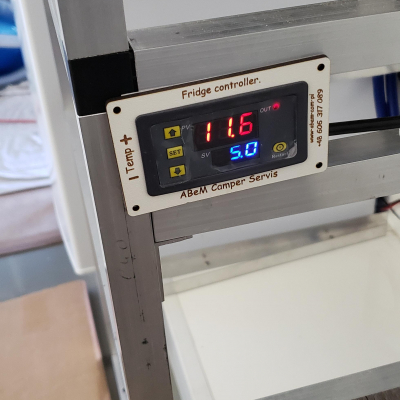

| Manufacturer and type of fridge / cooler | ABeM Camper Servis Poland |
|---|---|
| Other | |
|
All our refrigerators have a system: ABeM Anti Bacteria UV Led System Perfect Clean. for long freshness of your eg: strawberries in the fridge :) Perfect replacement for old inefficient fridge on ammonia ( so-called LPG / 120W heater 12V / 120W heater / 220V ) It comes in 2 versions as a 3-drawer fridge, or as a fridge-freezer, with 1 x freezer drawer, 1 x 0stC drawer, 1x +5stC drawer. The refrigerator is very energy efficient. It does not draw electricity for a very long time.... as is customary with ordinary store refrigerators. The fridge takes only 18 minutes from switching on to 0stC. Current consumption is about 2.8 to 4 amps for 12V DC. The power consumed on average0 is 36-41W, even when the fridge starts. For a temperature setting of 0 degrees Celsius the operation is ONLY ! 5 to 10 minutes per hour, which is very important for the energy balance in the RV, gives a daily energy requirement of ONLY 3-5 Ah. | |

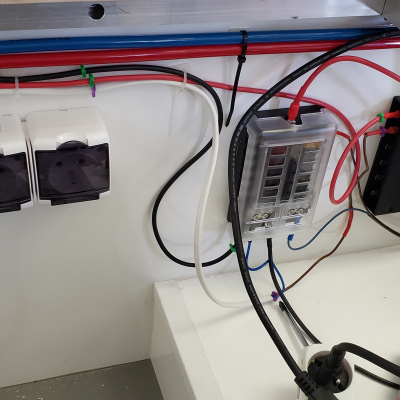

| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12V |

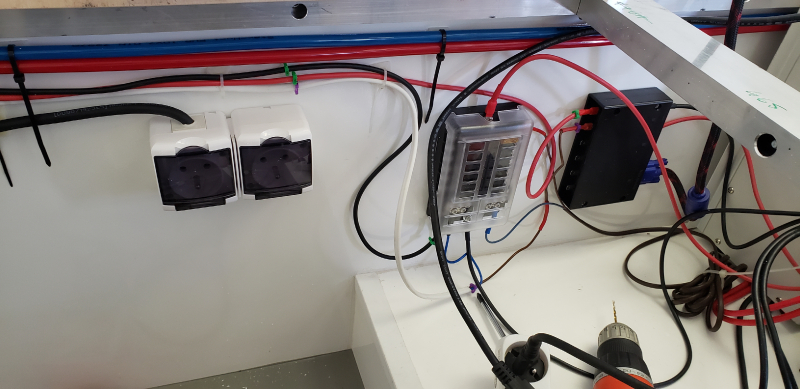

| 110V / 230V in the cabin? | yes |

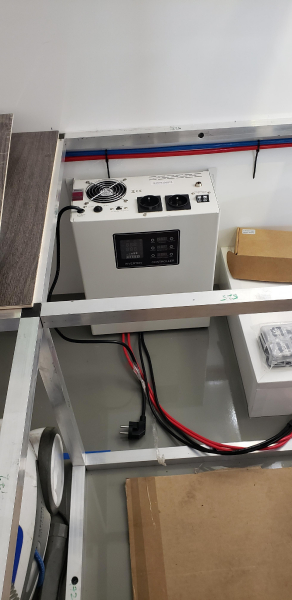

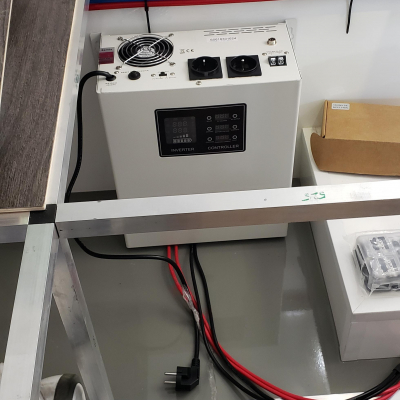

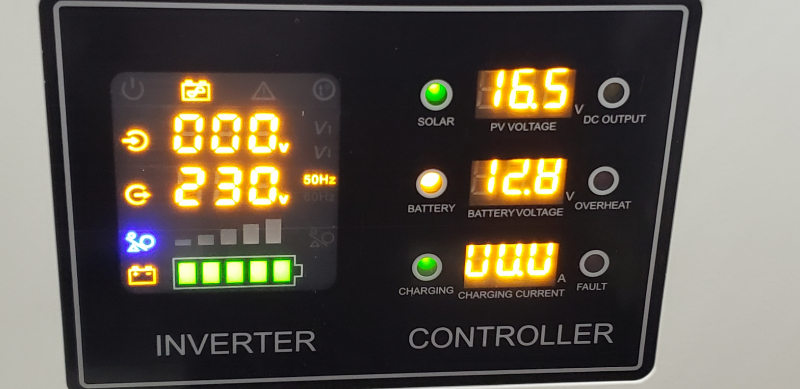

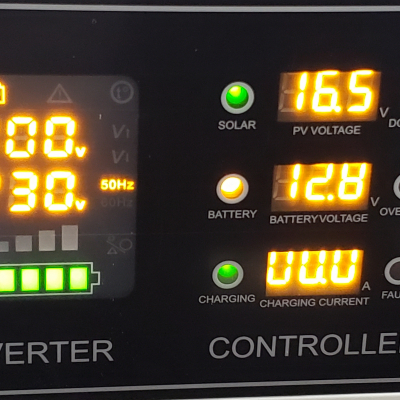

| Inverter | 230V, 1500W max |

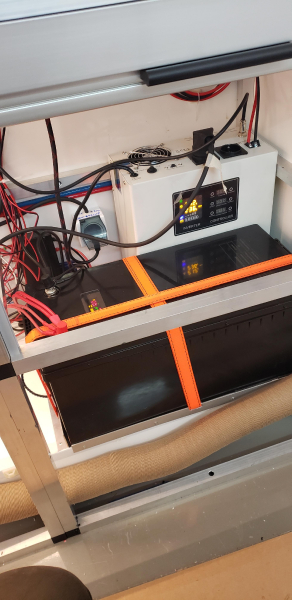

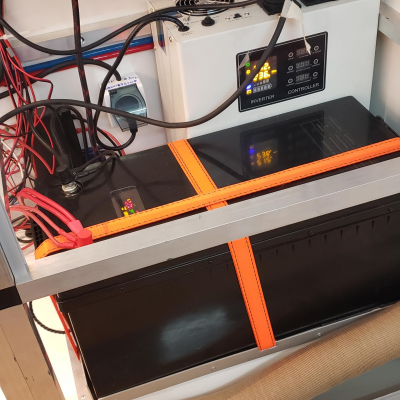

| Capacity of batteries in the cabin | 200 ah |
|---|---|
| Battery type | LiFePo4 |
| Battery charger for cabin batteries | Energoblock by ABeM Camper Servis |
| Battery management | Energoblock by ABeM Camper Servis |

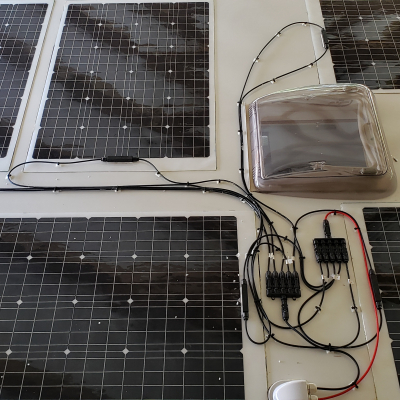

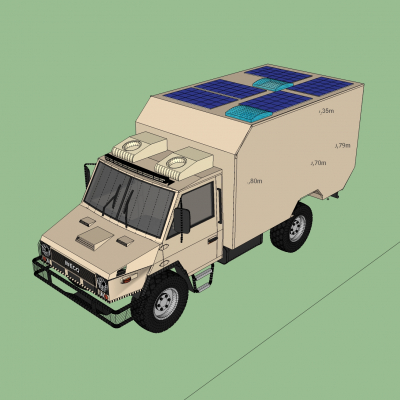

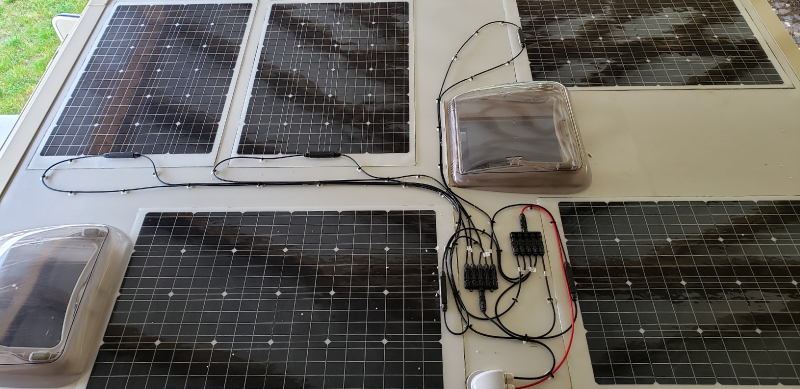

| Solar capacity | 5 x 120 W Model:SSTH-HX-M120 |
|---|---|
| Solar controller | Energoblock by ABeM Camper Servis |
| Fuel cell | no |

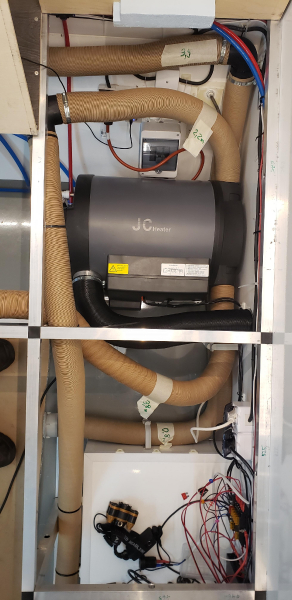

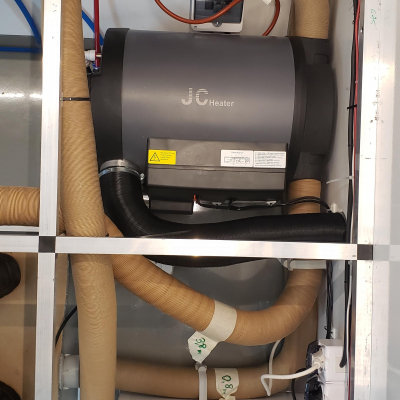

| Manufacturer and type of heating system | JC Heater Air and Water combi gaz and 230V like Truma |
|---|---|
| Warm water processing | JC Heater for water heating 10 dm3 |
| Cab heating | JC Heater Air working with gas or 230V |
| Other | |

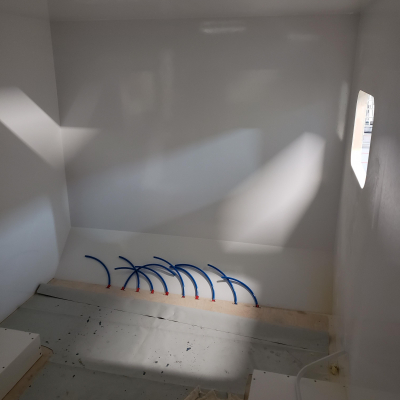

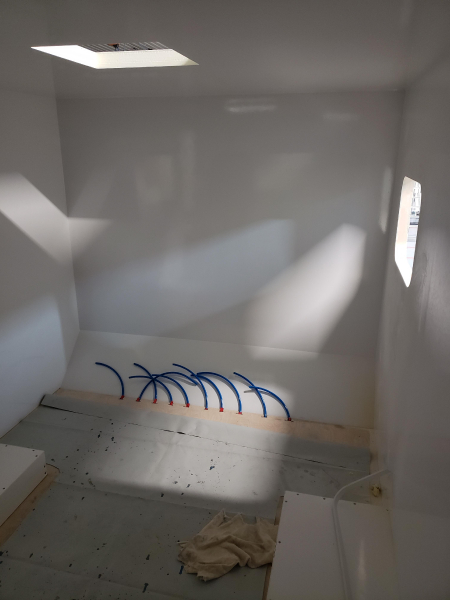

| Floor heating possible not connected | |
| Explanation of gas system | |
|---|---|

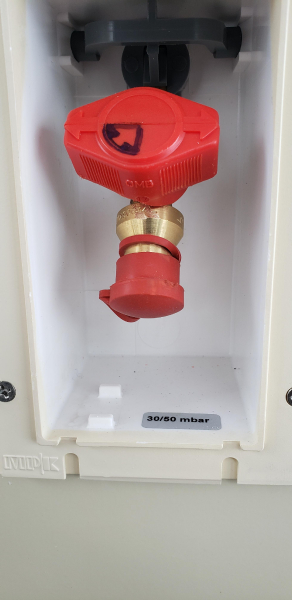

| 24 Litres Motorhome Underslung Gas Tank for stove, JC Heater for air and water heating, and outside outlet |

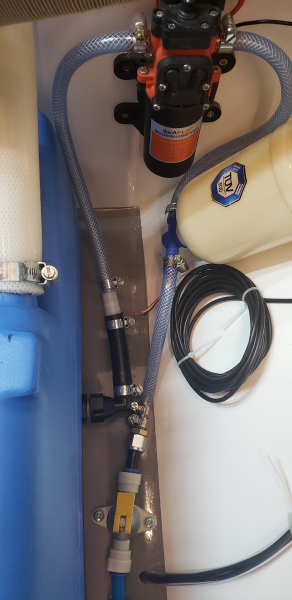

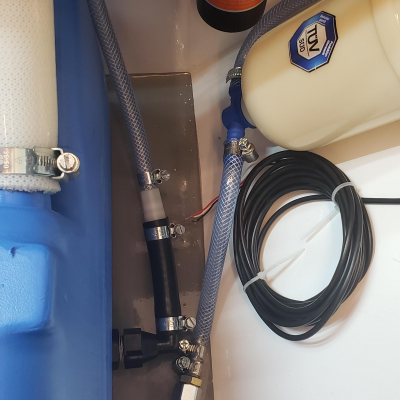

| water flow | Fiamma 8 1,5 BAR 7L |
|---|---|

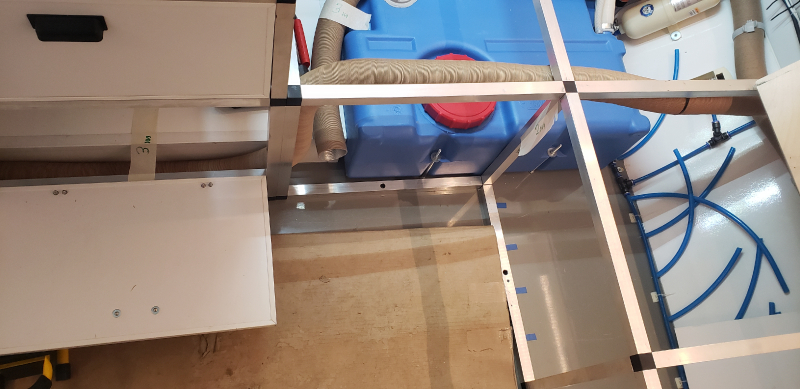

| Capacity of fresh water tank(s) | 70 dm3 |
| Capacity of waste water tank(s) | 90 dm3 |

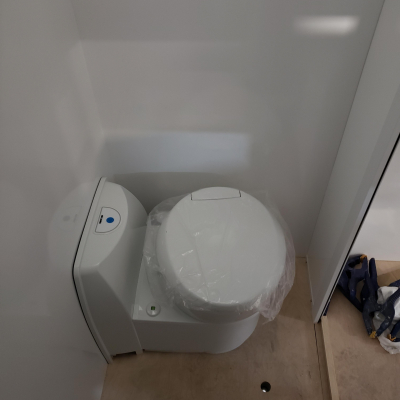

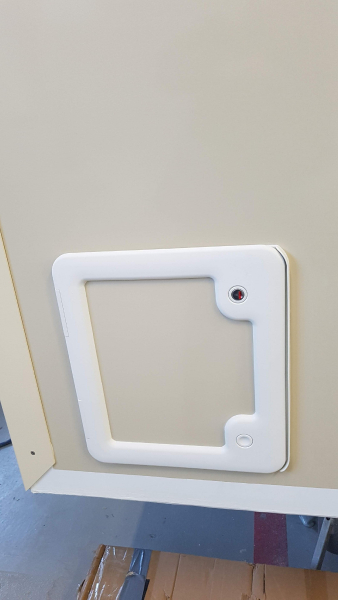

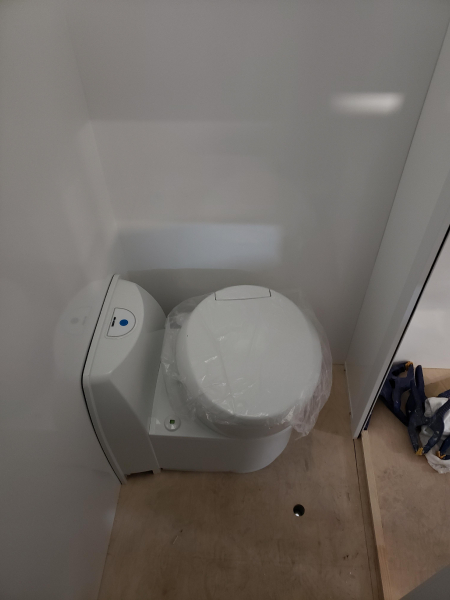

| Manufacturer and type of toilet | Thetford C220 |
|---|---|
| Capacity of black water tank | 17 dm3 |

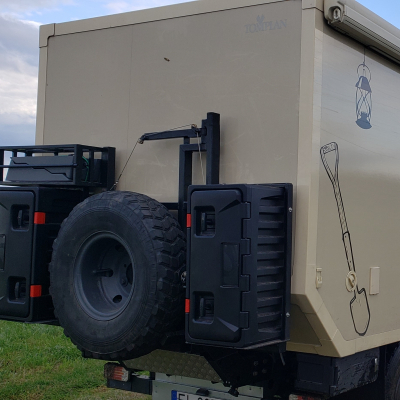

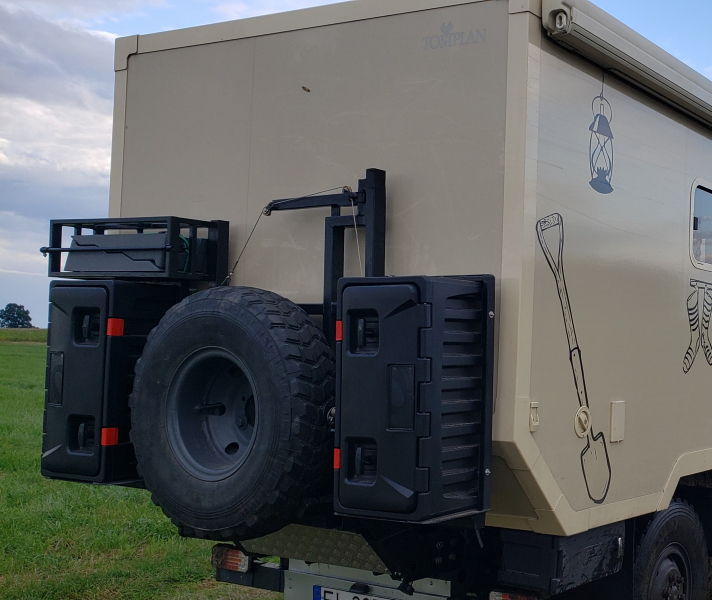

| Rear carrier | yes |
|---|---|

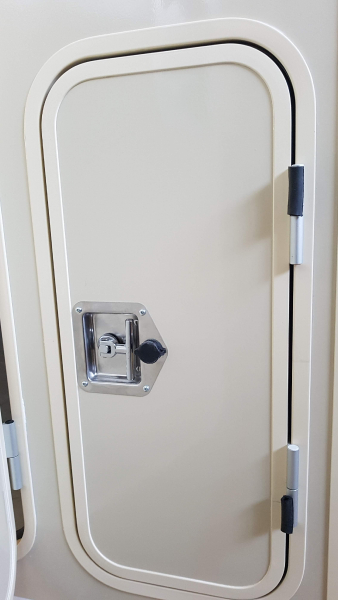

| Storage boxes | yes |
| Outside cooking facilities | yes |

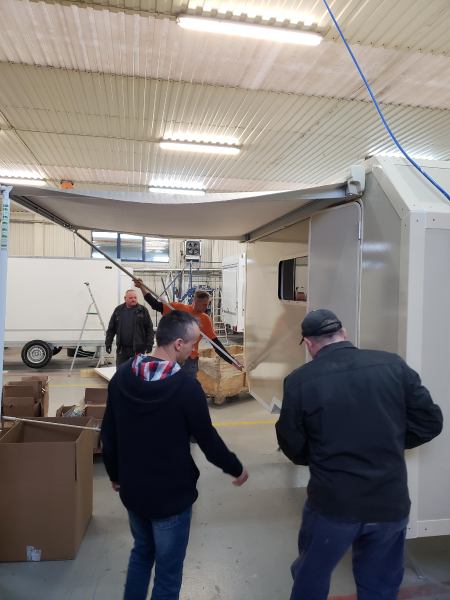

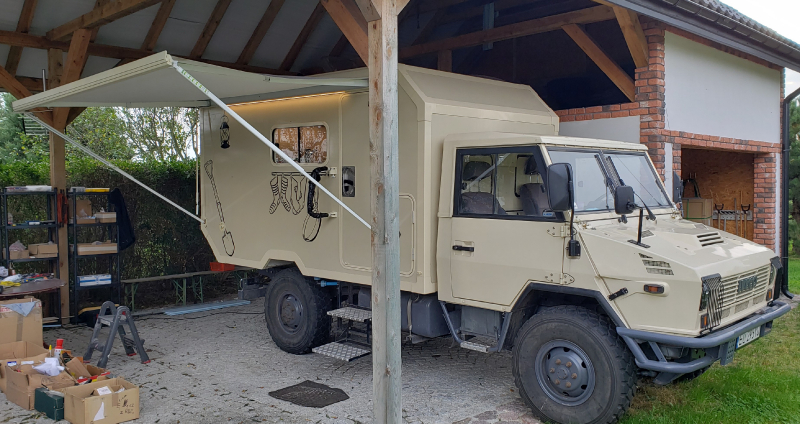

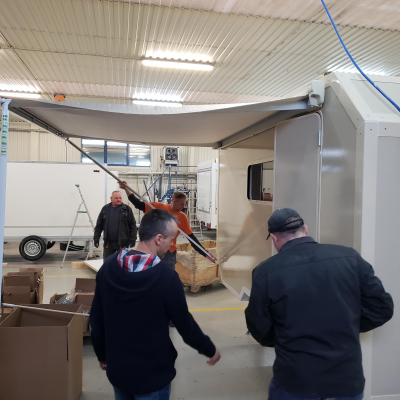

| Awning | yes |
| Other | |

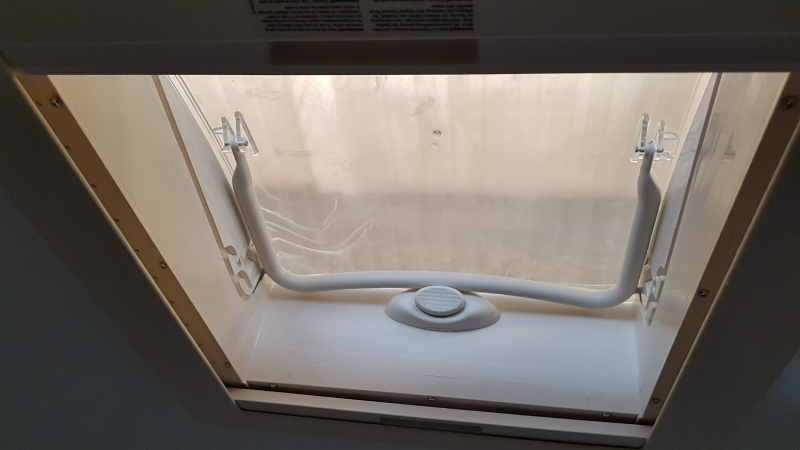

| Floor heating not connected, electric roof fan in cabin, 24V aircondition for chassis connected | |
