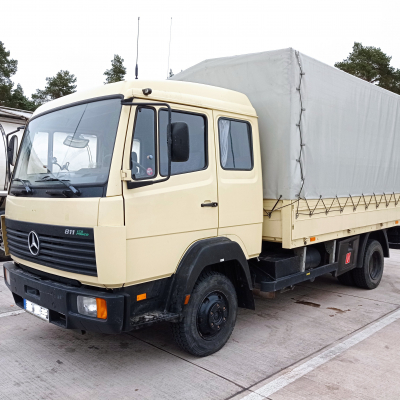

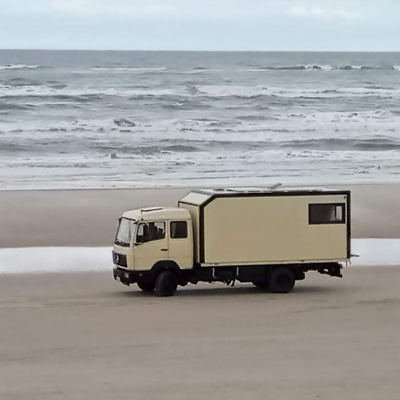

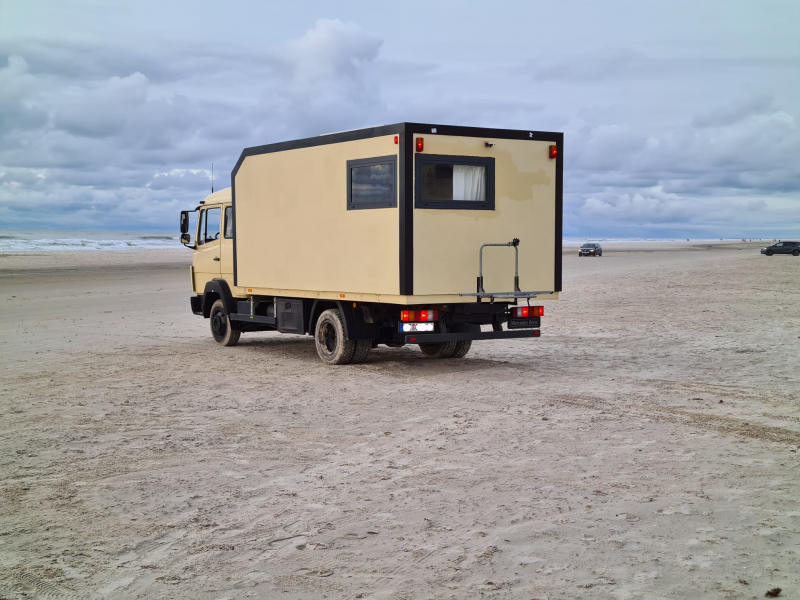

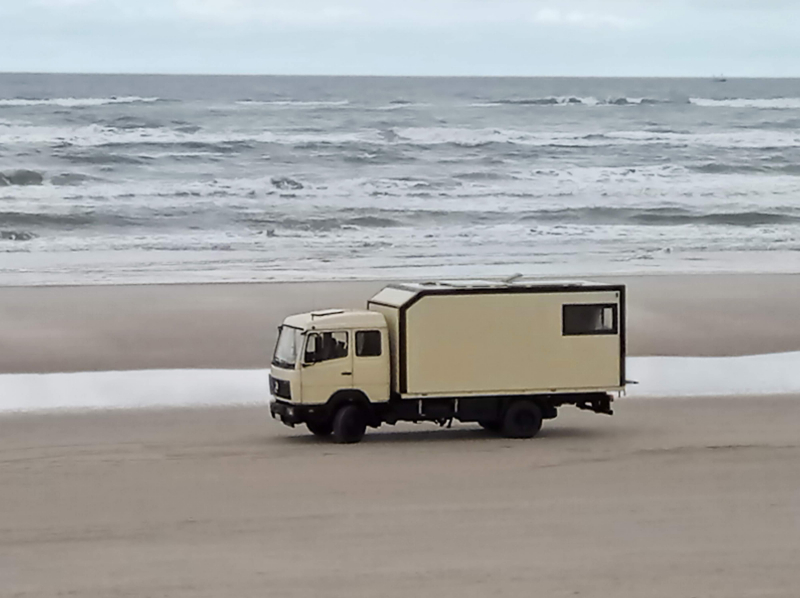

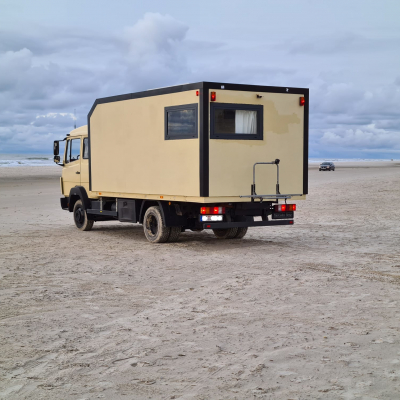

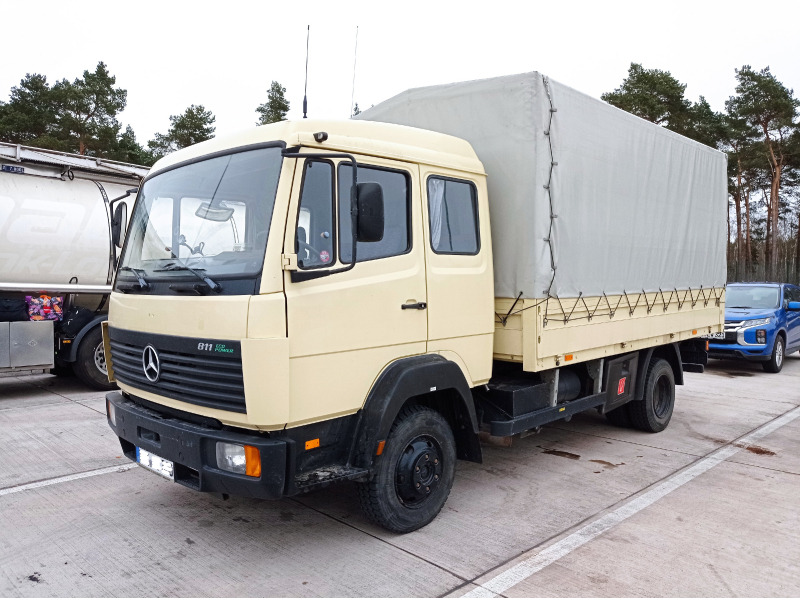

Ehemaliger Betreuungs-LKW des Katastophenschutzes mit Eigenbau Wohnkabine in Holzrahmenkonstruktion.
| Manufacturer and model | Mercedes 811 |
|---|---|
| Name | Frank |
| Country | Deutschland |
| Website | http://www.exmo-reisen.de |
| Year of manufacture | 1999 |
| For sale? | no |
| Engine type | OM 904 LA |
|---|---|
| Cubic capacity | 4,3l |
| Number of cylinders | 4 |
| Horsepower | 122 |
| Torque | 470nm |
| 4x2, 4x4, 6x6, 8x8 | 4x2 |
|---|---|
| Wheel base | 3700mm |
| Number of seats | 6 |
| Diesel filter | no |
| Diff locks | Hinterachse |
| Manufacturer of the cabin | Eigenbau |
|---|---|
| Inner dimensions (LxWxH) | 4800mm x 2360mm |
| Outer dimensions (LxWxH) | 4940mmx2500mm |
| Cabin material | Holzrahmen, Plywood, GFK |
| Kind and thickness of insulation | 60mm EPS |

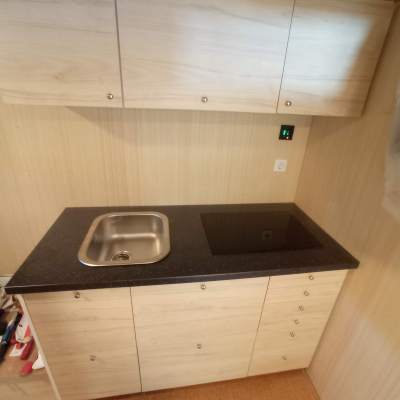

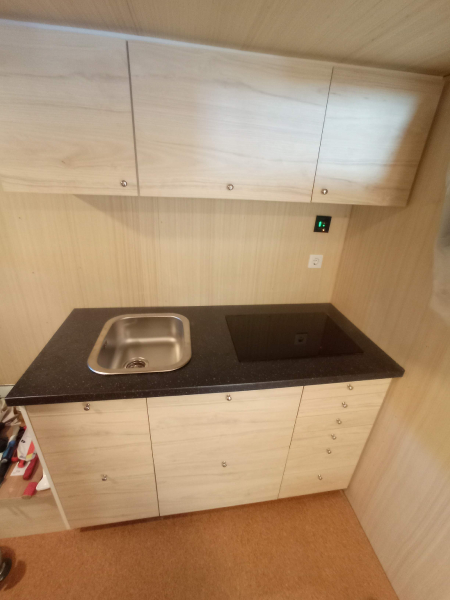

| Cooking stove | 2x Induktionskochfeld |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V DC / 230V AC |
| 110V / 230V in the cabin? | yes |
| Inverter | 3500W/7000W peak |
| Capacity of batteries in the cabin | 11520Wh |
|---|---|
| Battery type | LiFePo4 |
| Battery charger for cabin batteries | Victron 16a |
| Battery management | Daly BMS |
| Solar capacity | 510w |
|---|---|
| Solar controller | Epever 3210AN |
| Fuel cell | no |
| Capacity of fresh water tank(s) | 150l |
|---|
| Manufacturer and type of toilet | Johnson AquaT comfort |
|---|---|
| Capacity of black water tank | 240l |
