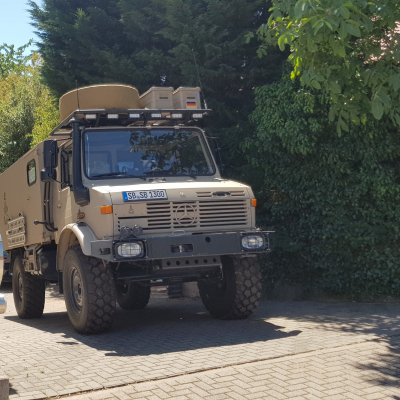

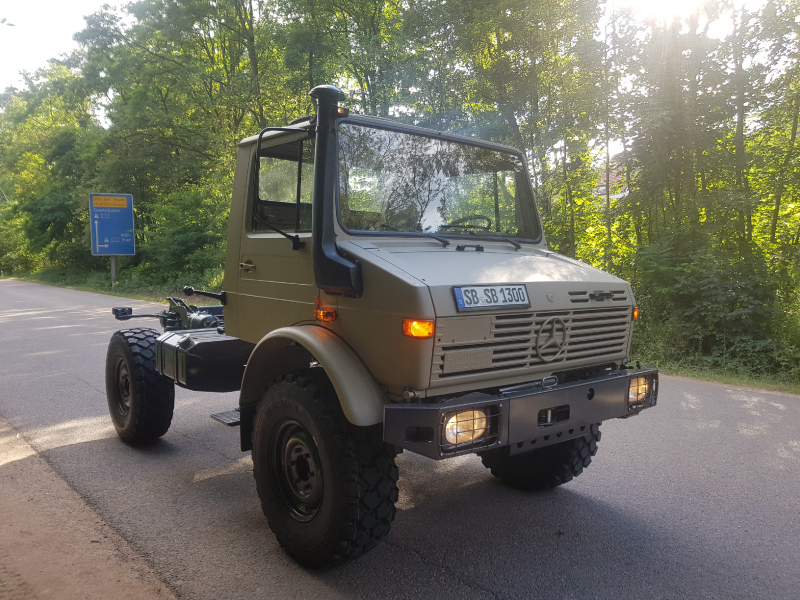

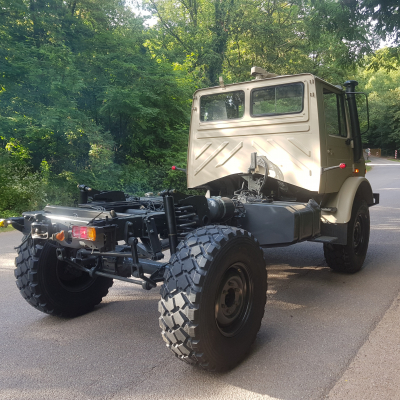

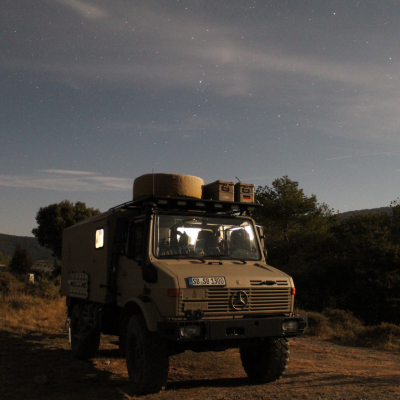

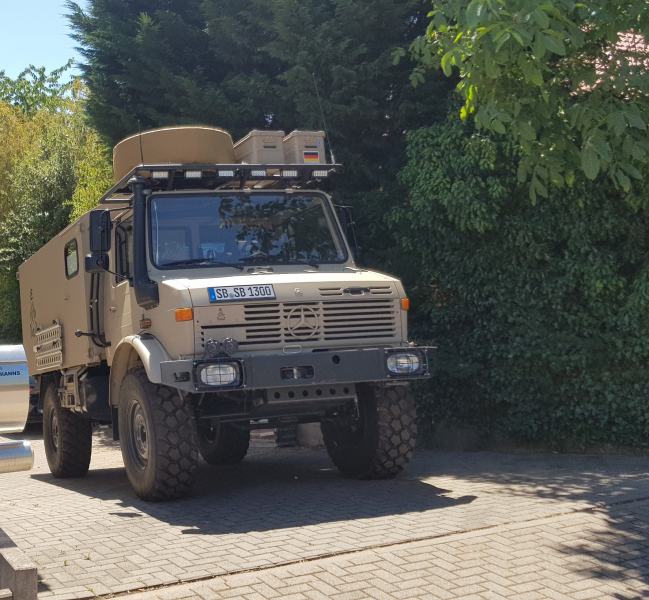

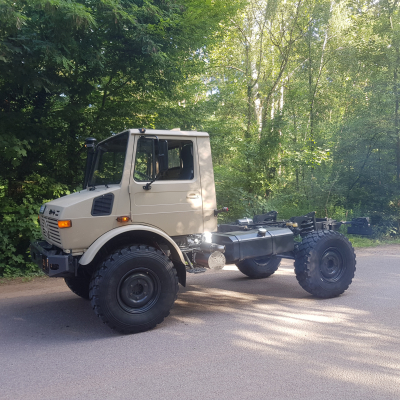

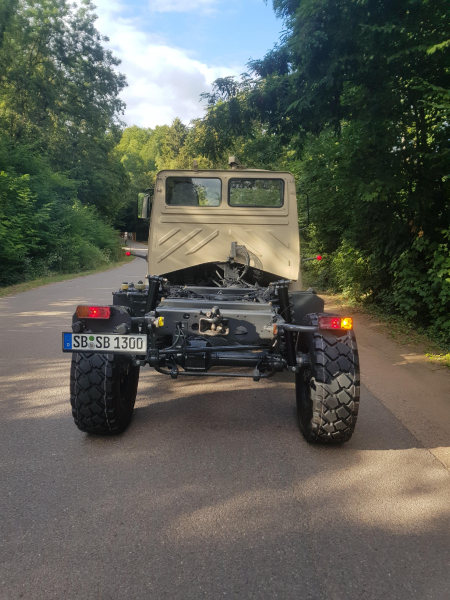

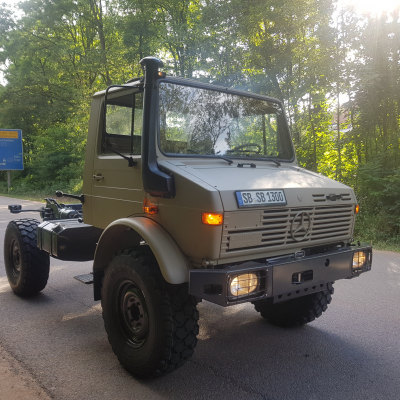

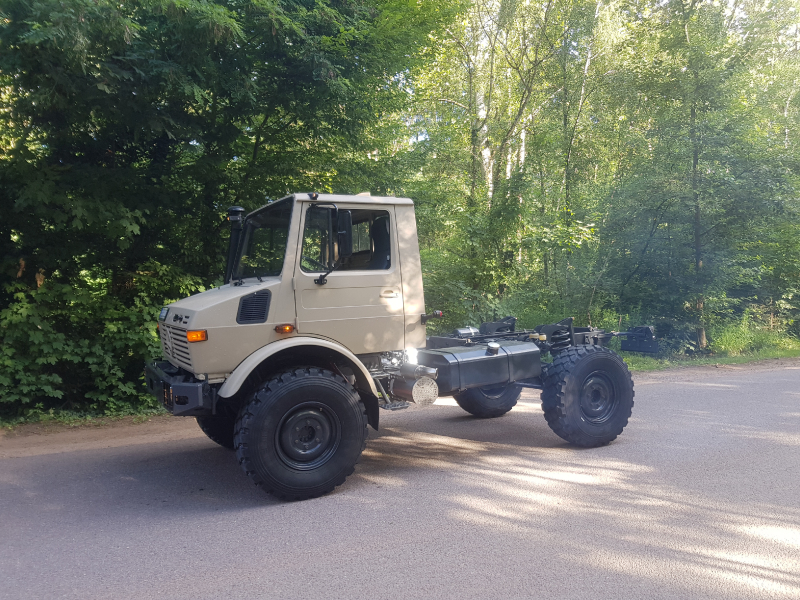

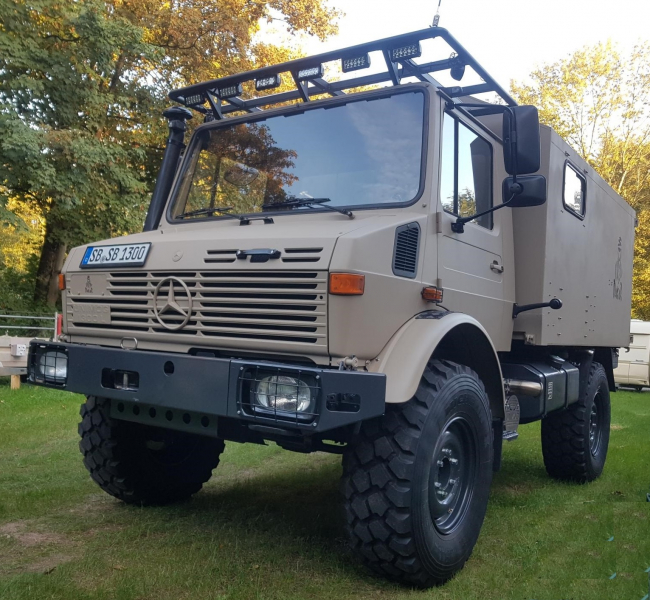

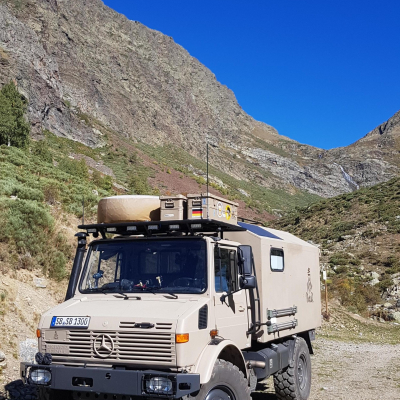

| Manufacturer and model | Mercedes Benz Unimog 1300L |
|---|---|
| Name | Sebastian Hermanns |
| Year of manufacture | 1990 |
| For sale? | no |

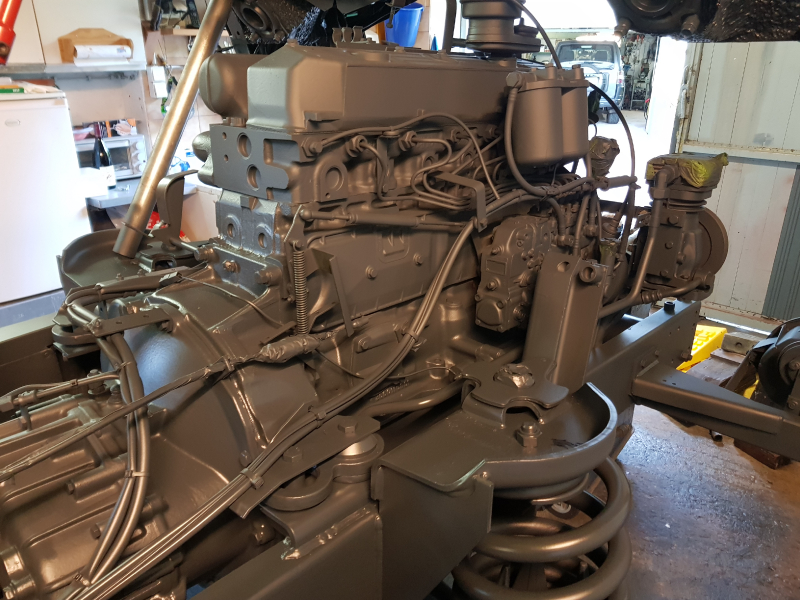

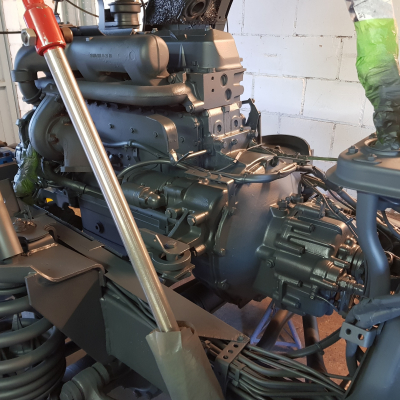

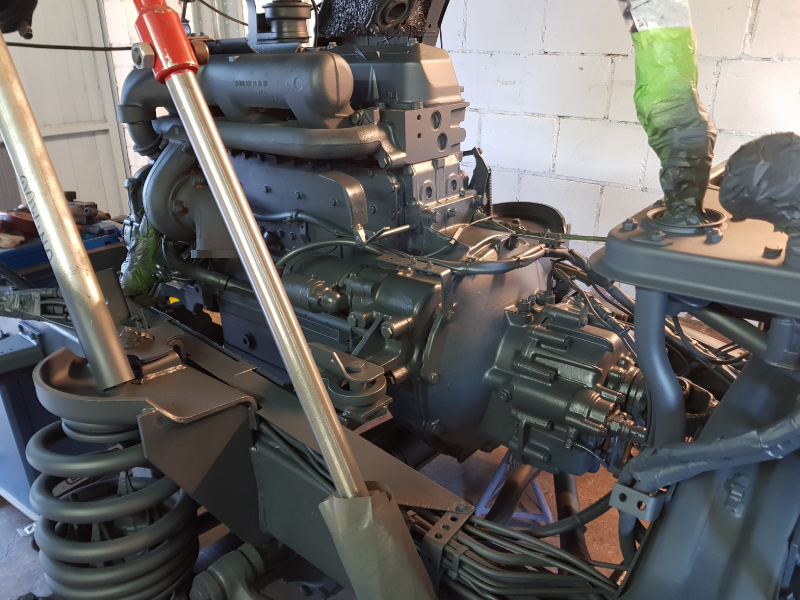

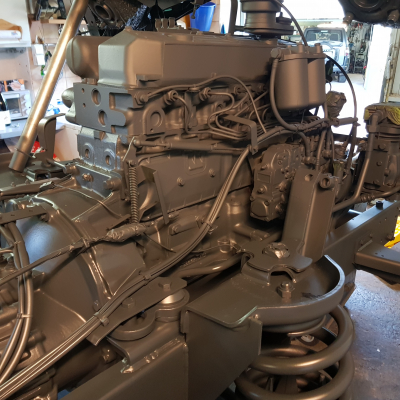

| Engine type | OM 366 A |
|---|---|
| Cubic capacity | 5.955 cm³ |
| Number of cylinders | 6 |
| Horsepower | 136 |
| Torque | 470 Nm |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3250mm |
| Number of seats | 2 |
| Tyre size | 365/80 r20 |
| Rim size | 11x20 |
| Type of tyre | Michelin XZL |
| Tank capacity | 1x160 Liter Original und 1x245 Liter Aluminium (ATLAS 4x4) |
| Diesel filter | yes |
| Other | |

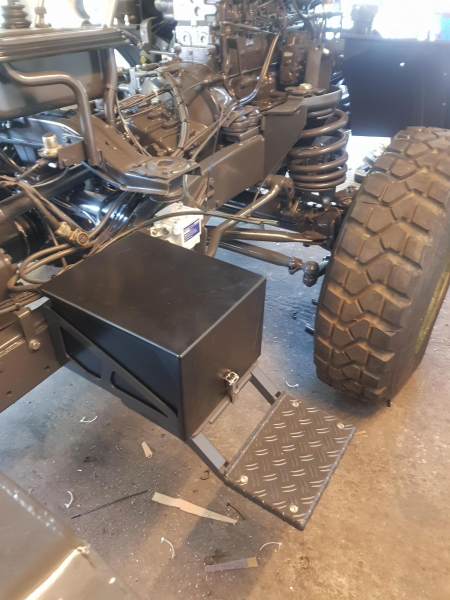

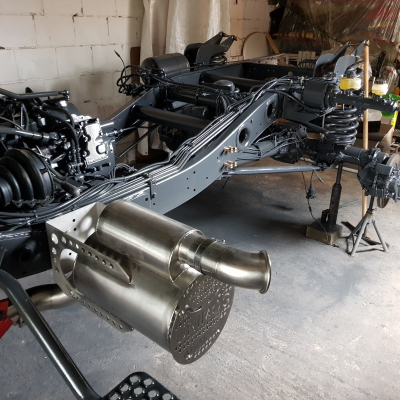

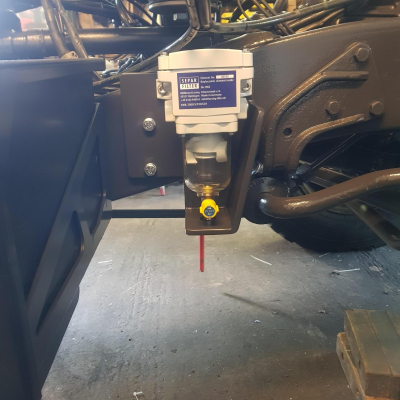

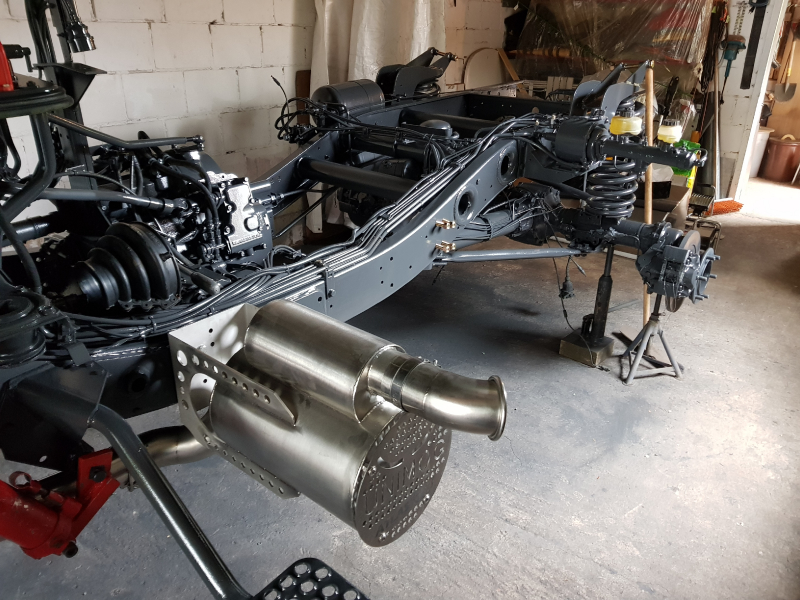

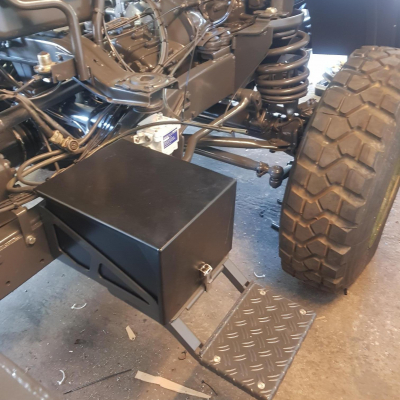

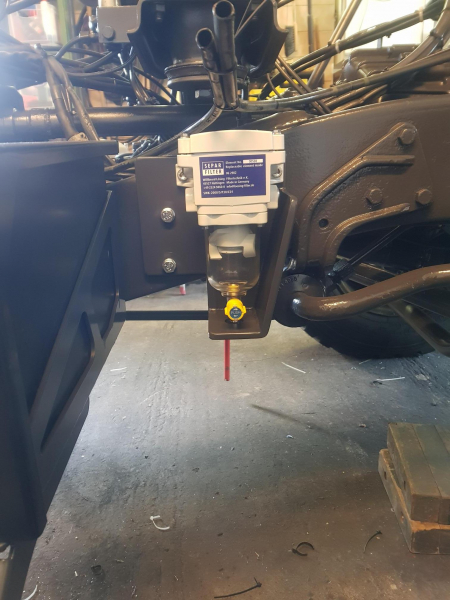

| Getriebe UG 3/65 mit Splittgetriebe, Edelstahlauspuff (ATLAS 4x4), Separ Filter SWK-2000/5, Druckluftkessel aus Aluminium (ATLAS 4x4), Tankumschaltung über Magnetventile (ATLAS 4x4), kleiner Batteriekasten für OPTIMA red top (ATLAS 4x4), beide Tanks Reedkontaktgeber (ATLAS 4x4) | |
| Permanent or manually selectable 4-wheel drive | Zuschaltbar |
| Diff locks | Längssperre,Quersperre Vorderachse,Quersperre Hinterachse |

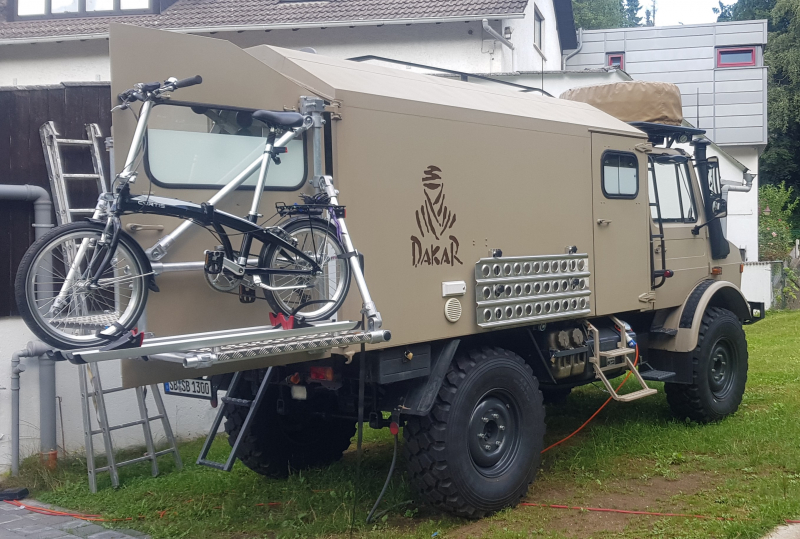

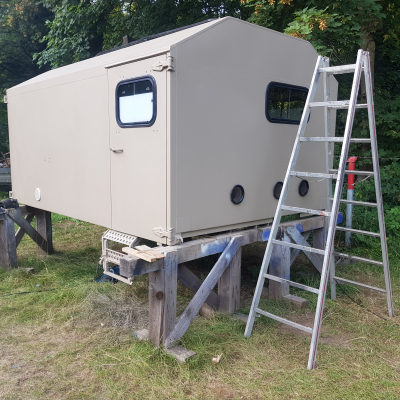

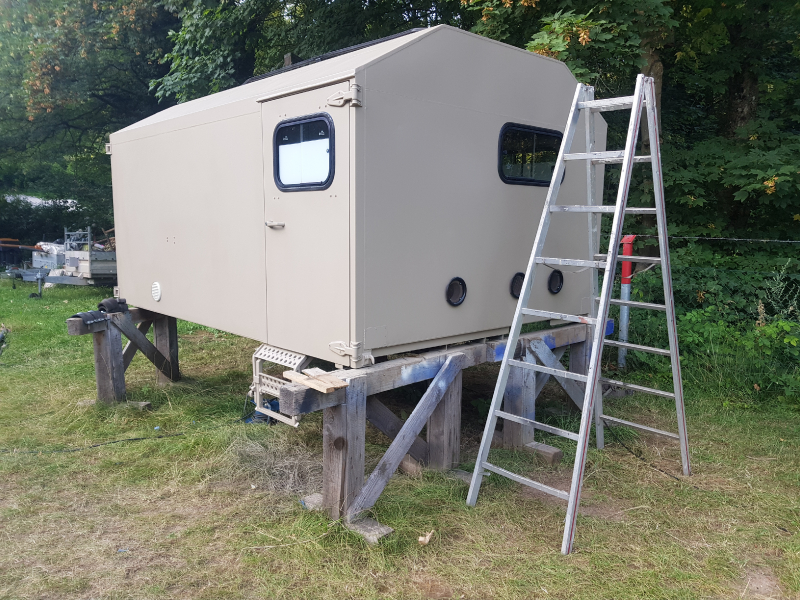

| Manufacturer of the cabin | Ringfeder |
|---|---|
| Outer dimensions (LxWxH) | 3248x2300x1600mm |
| Cabin material | Stahl |
| Number of beds | 2 |
| Material of furniture | Holz |
|---|
| Gas installation | 1x 5kg |
|---|
| Manufacturer and type of fridge / cooler | Dometic CoolFreeze CF 35 Kompressor (12 V, 24 V, 230V) 31Liter |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V |
| Charging converter 24V-12V | 24V |
| 110V / 230V in the cabin? | yes |
| Inverter | ECTIVE SSI154 4in1 Sinus-Inverter 1500Watt |
| Capacity of batteries in the cabin | 2x110Ah |
|---|---|
| Battery type | Exide ES1200 Equipment Gel (Gel G110) 110Ah Nato-Block |
| Battery charger for cabin batteries | ECTIVE SSI154 4in1 Sinus-Inverter |
| Battery management | noch keine |
| Solar capacity | 2x WATTSTUNDE® WS110EFX-24V Marine Solarmodul flexibel 110Wp |
|---|---|
| Solar controller | ECTIVE SSI154 4in1 Sinus-Inverter |
| Fuel cell | no |
| Power generator | Honda 1kva |

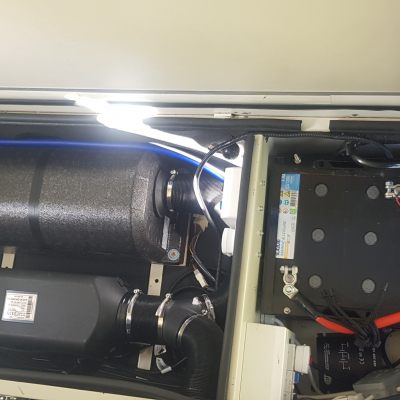

| Manufacturer and type of heating system | Planar 44D |
|---|---|
| Warm water processing | Elgena Nautic-Compact Luft 10L |
| Water filtration system | Albfilter Nano |
|---|---|
| Capacity of fresh water tank(s) | 50 Liter + 2x20L Kanister |
| Capacity of waste water tank(s) | 20 Liter |
| Manufacturer and type of toilet | Thetford |
|---|---|
| Capacity of black water tank | 21 Liter |

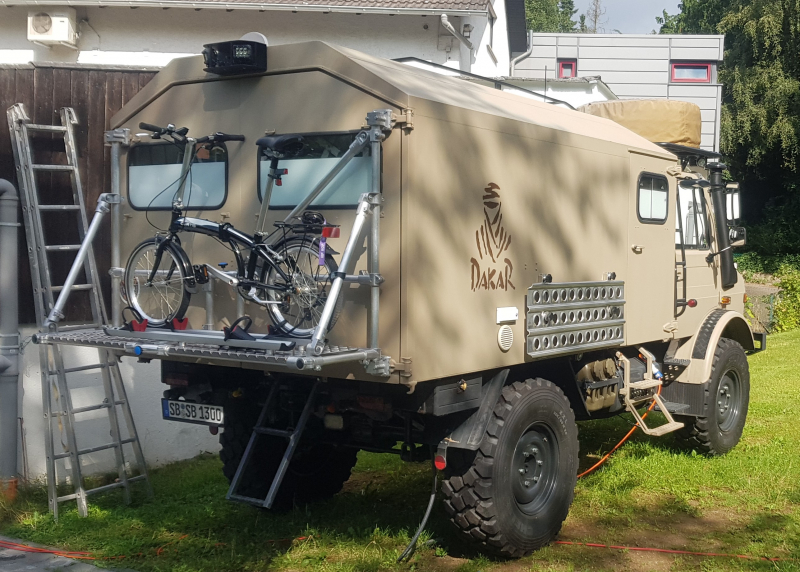

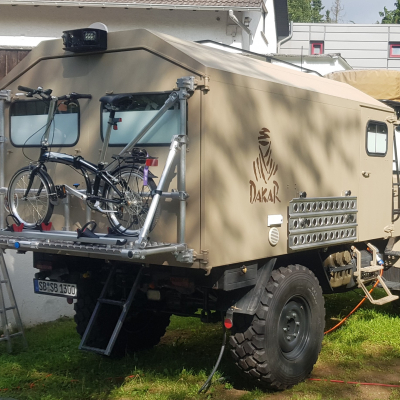

| Rear carrier | eigenbau |
|---|---|

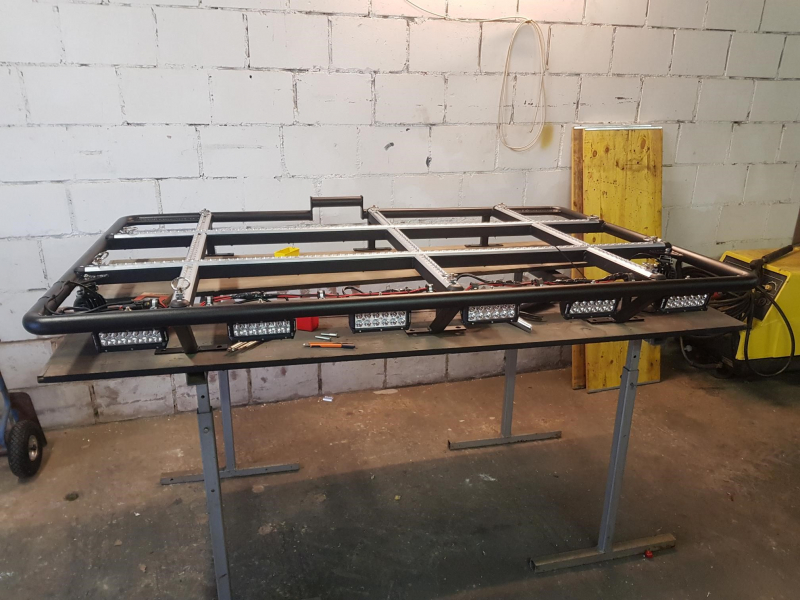

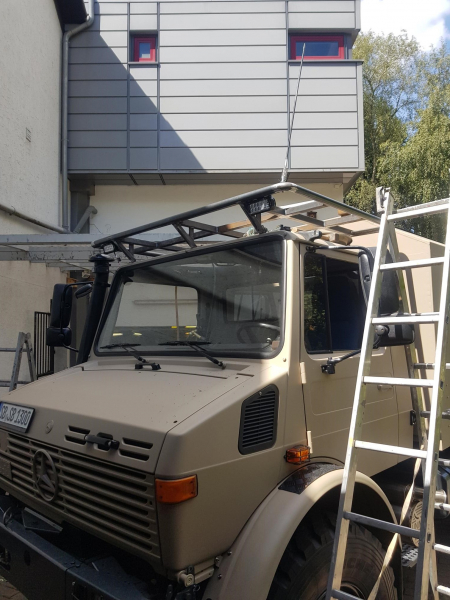

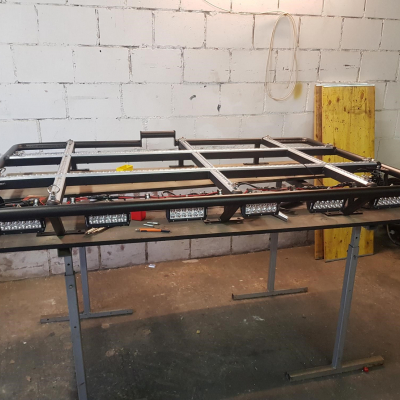

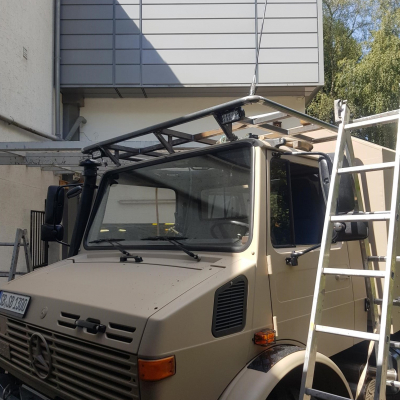

| Roof rack | eigenbau |
| Awning | ARB |
