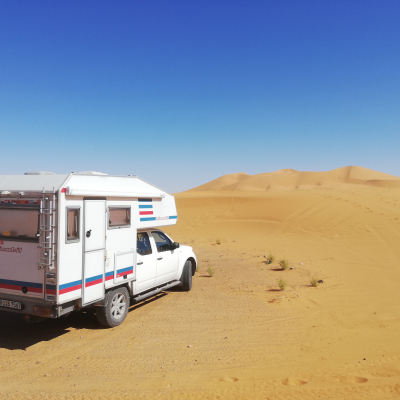

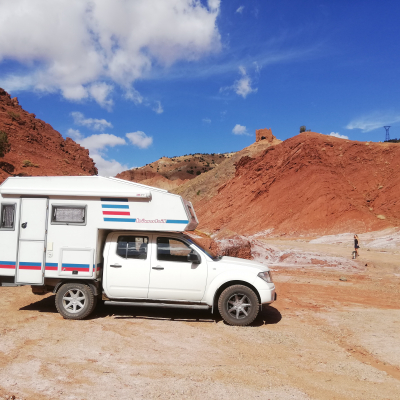

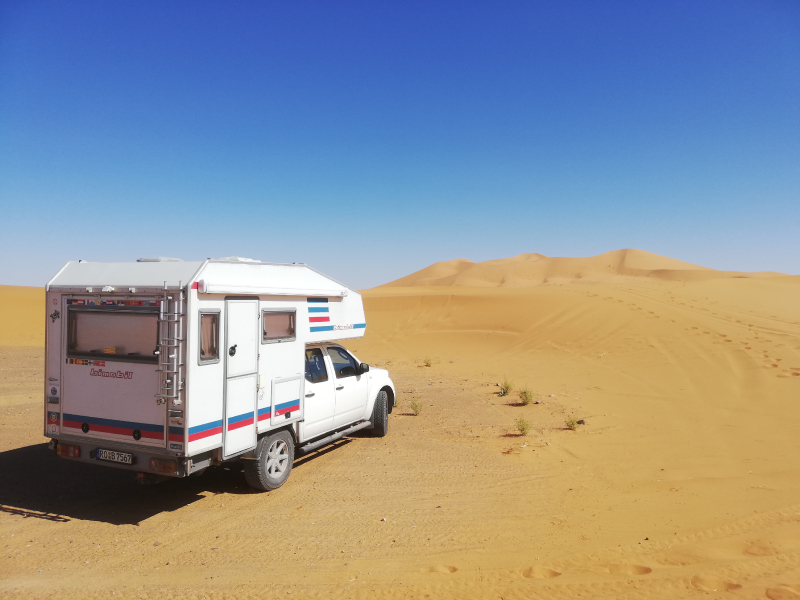

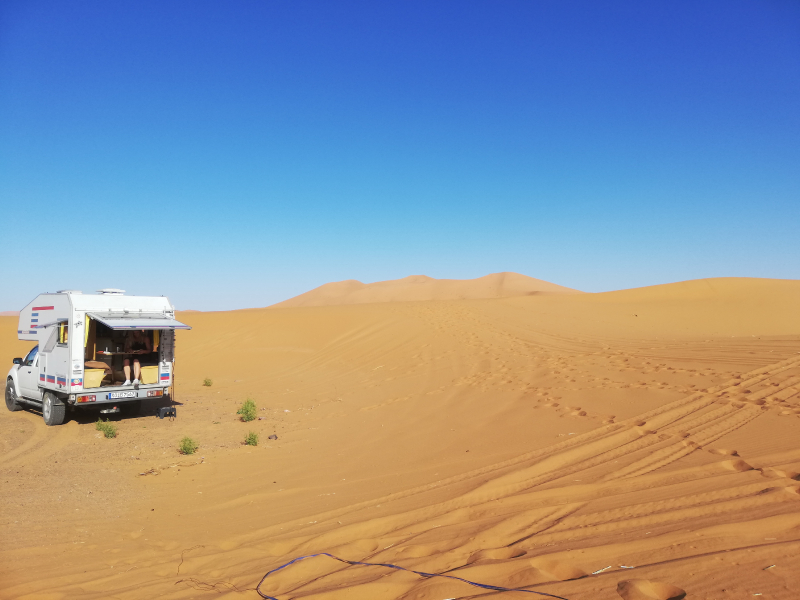

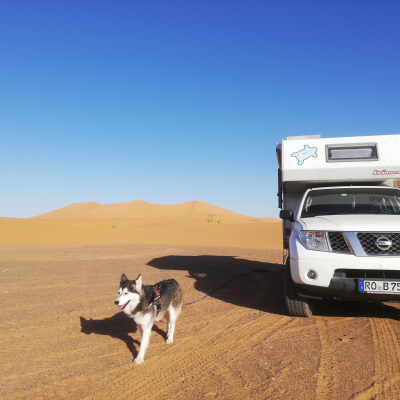

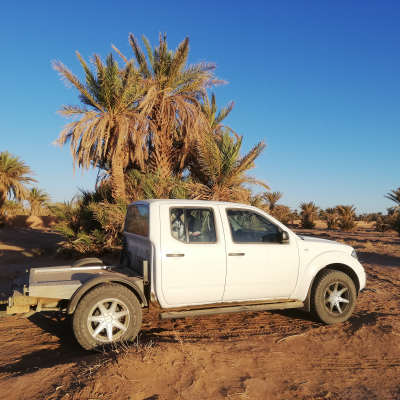

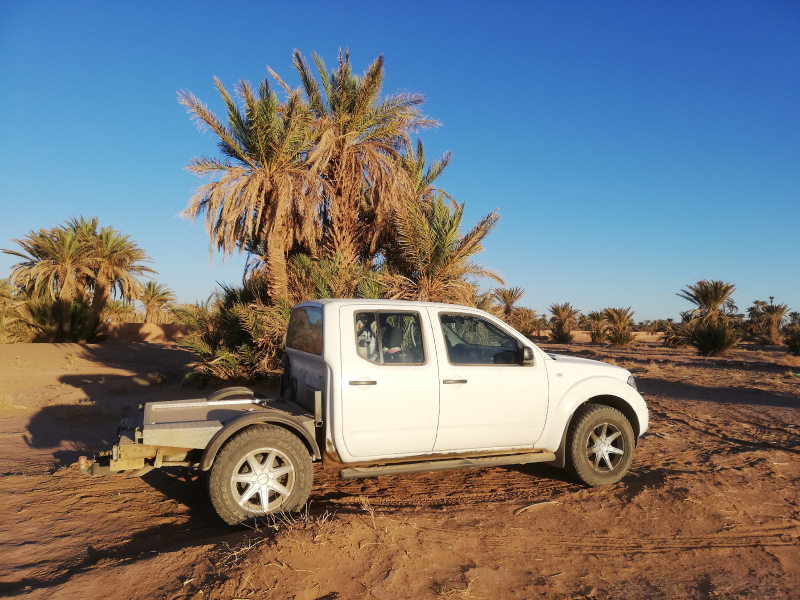

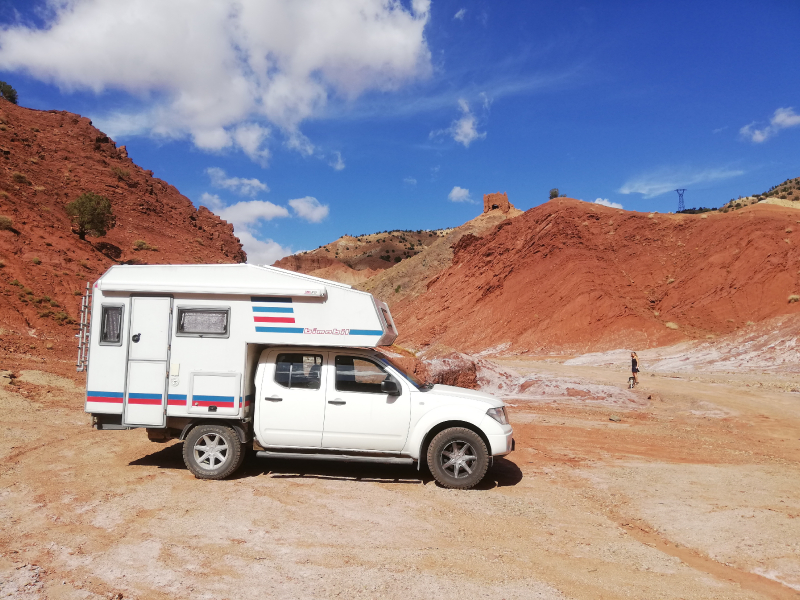

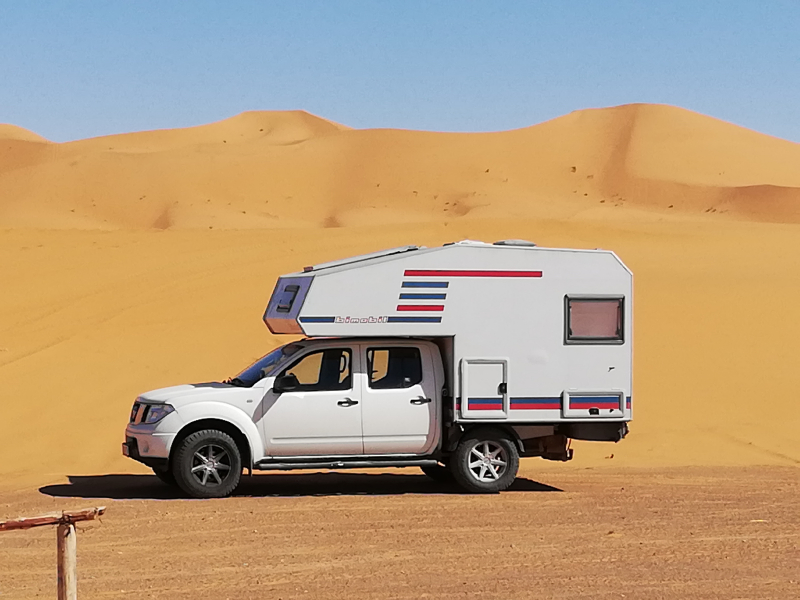

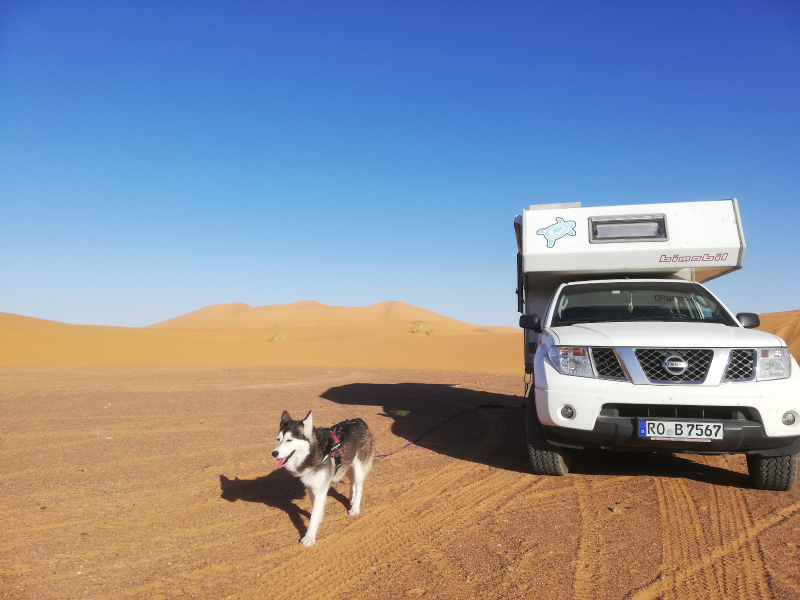

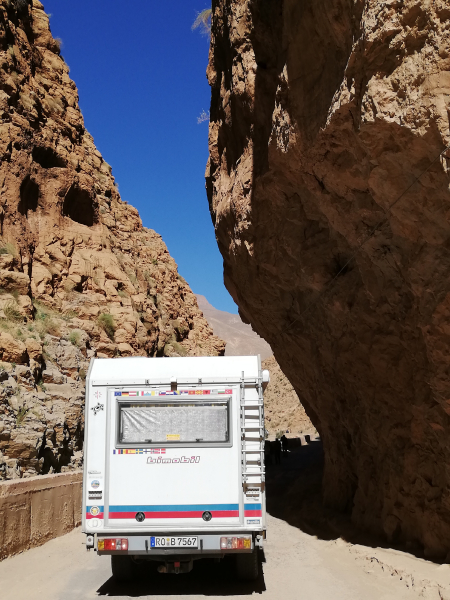

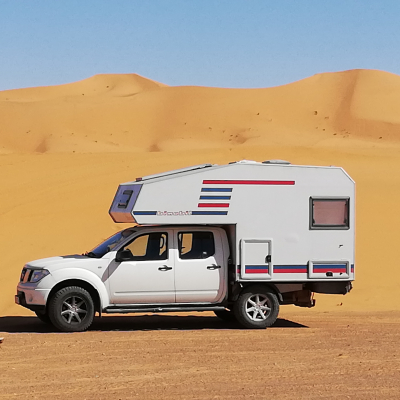

| Manufacturer and model | Nissan Navarra D40 Bimobil Husky 230 Pickup |
|---|---|
| Name | Rob O |
| Year of manufacture | Nissan 2006 Bimobil 1995 |
| For sale? | no |
| Engine type | Diesel |
|---|---|
| Cubic capacity | 2488 cm³ |
| Number of cylinders | 4 |
| Horsepower | 171 PS |
| Torque | 403 Nm |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3200mm |
| Number of seats | 5 |
| Tyre size | 265/65 R17 LT 120 |
| Rim size | Goldschmitt ( CW ) 17 |
| Type of tyre | General Grabber AT3 LT |
| Tank capacity | 80 L |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | Allrad zuschaltbar |
| Diff locks | mitte 100% hinten50% |
| Manufacturer of the cabin | Bimobil Husky 230 |
|---|---|
| Inner dimensions (LxWxH) | B=1950mm x L=2020mm (mit Alkoven 3820mm) |
| Outer dimensions (LxWxH) | B= 2050mm x L=2100mm (mit Alkoven 3900mm) |
| Cabin material | Alu |
| Kind and thickness of insulation | 40mm |
| Number of beds | 3 |
| Windows | 5 |
| Subframe | Stahl 50x50x5mm Feuerverzinkt Eigenbau |
| Explanation of floor plan | |
|---|---|
| Leerkabine husky 230 verkürzt auf 210cm, Innenbreite 195cm Alkoven 20cm länger |
| Material of furniture | Multiplexholzplatten 12mm Birke |
|---|
| Cooking stove | Origo 3000 |
|---|---|
| Gas installation | Kein Gas |
| Other | |
| Spirituskocher | |
| Manufacturer and type of fridge / cooler | Kissman Typ: KB 55 EN/3 |
|---|---|
| Other | |
| Kompressorkühlschrank 12-24V 40-45W | |
| Voltage in the chassis | 12V |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | nein |
| 110V / 230V in the cabin? | yes |
| Capacity of batteries in the cabin | 230Ah |
|---|---|
| Battery type | lifepo4 |
| Battery charger for cabin batteries | Victron |
| Battery management | Jk-BMS |
| Solar capacity | 340watt |
|---|---|
| Fuel cell | no |
| Power generator | Honda eu20i |
| Manufacturer and type of heating system | Webasto Air Top 2000 D |
|---|---|
| Warm water processing | nein |
| Cab heating | Webasto Thermo Top |
| Explanation of gas system | |
|---|---|
| kein Gas |
| Capacity of fresh water tank(s) | 60 L |
|---|---|
| Capacity of waste water tank(s) | 40 L |
| Manufacturer and type of toilet | Trockentrenntoilette |
|---|

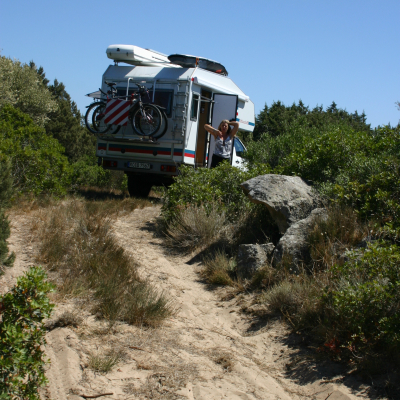

| Rear carrier | Fiamma |
|---|---|
| Roof rack | Bimobil |
| Outside cooking facilities | nein |
| Awning | Fiamma |
