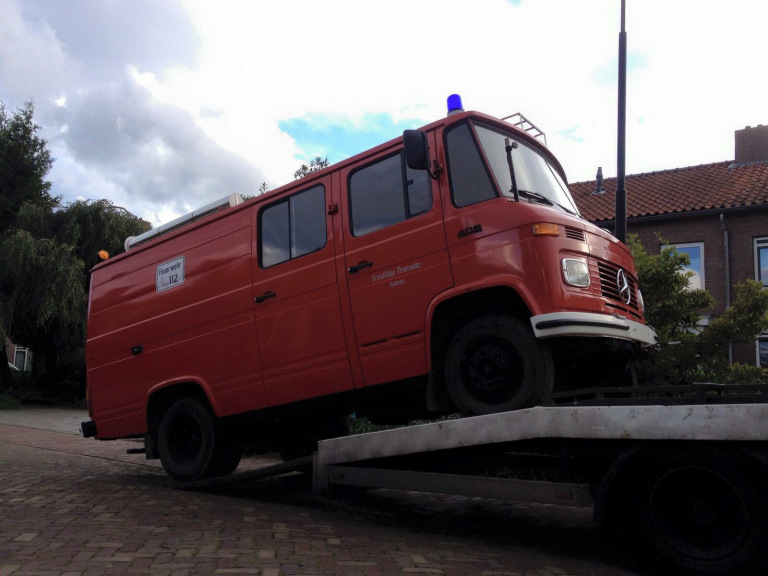

6 person family travel car

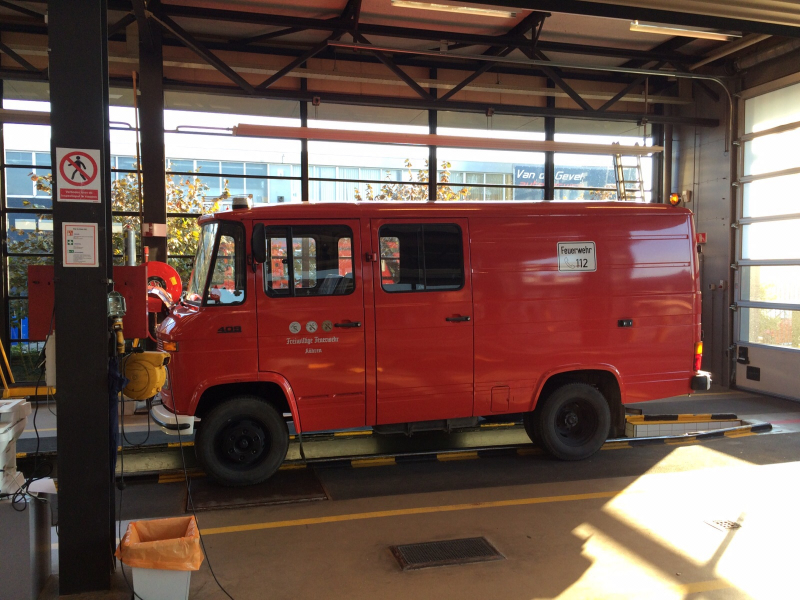

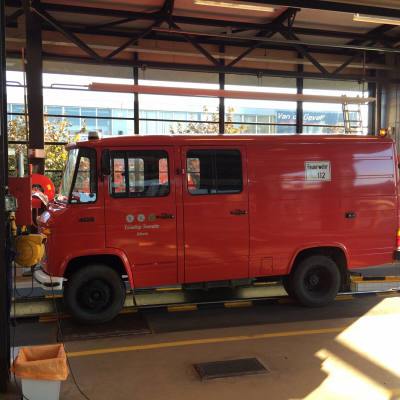

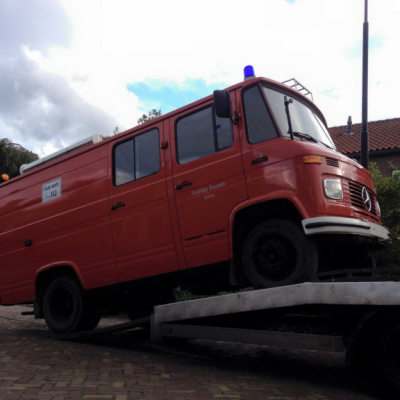

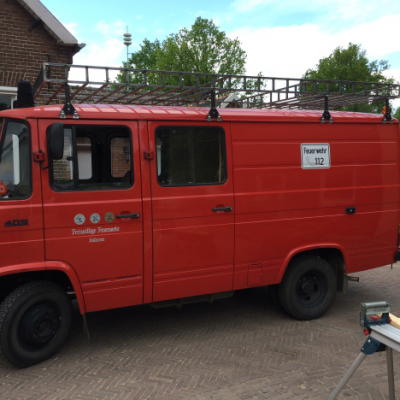

| Manufacturer and model | Daimler Benz |
|---|---|
| Name | Red Bull |
| Country | Netherlands |
| Website | www.brandweer409.wordpress.com |
| Year of manufacture | 1981 |
| For sale? | no |
| Engine type | M115.952 |
|---|---|
| Cubic capacity | 2.3 |
| Number of cylinders | 4 |
| Horsepower | 90 |
| Other | |
|
Baumuster: 309.050 – 059 Fuel consumption RON98 20l/100km (1l/5km). LPG= possible (not installed) Odo: 34.000km Original Weight: 2450kg | |
| 4x2, 4x4, 6x6, 8x8 | 4x2 |
|---|---|

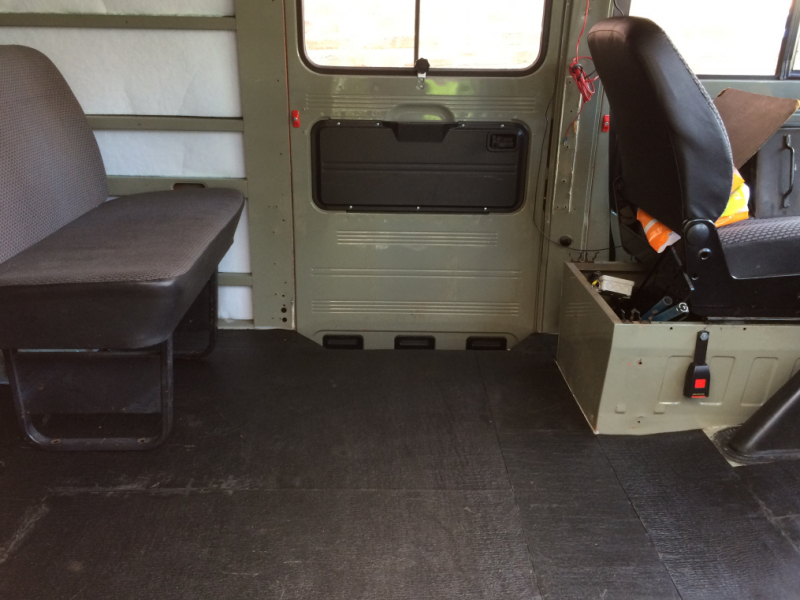

| Number of seats | 5 (6 on paper) |
| Tyre size | 6.50R16 |
| Rim size | 16 |
| Type of tyre | On- Offroad |
| Tank capacity | 80 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | None |
| Diff locks | None |
| Manufacturer of the cabin | Daimler-Benz |
|---|---|
| Inner dimensions (LxWxH) | 3000x1900x1600 |

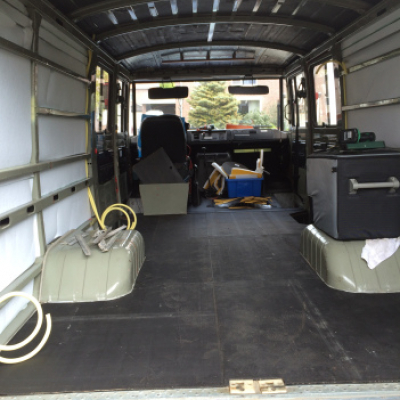

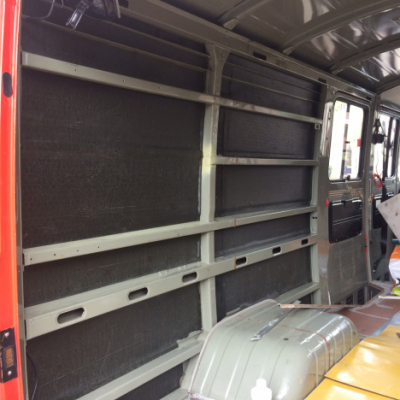

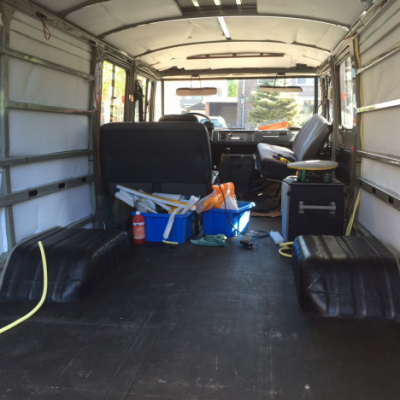

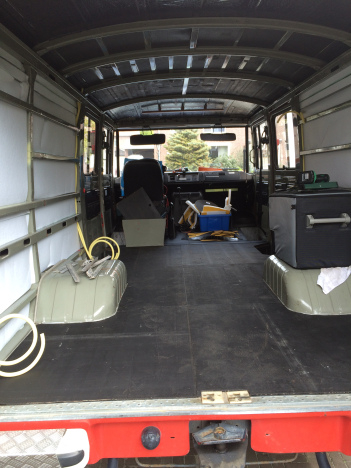

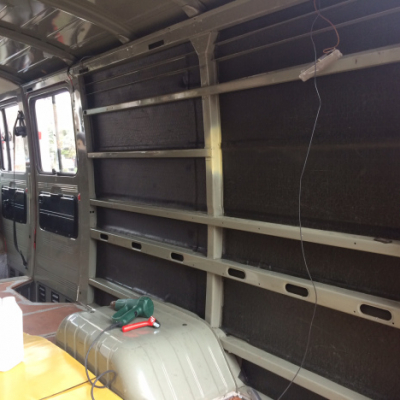

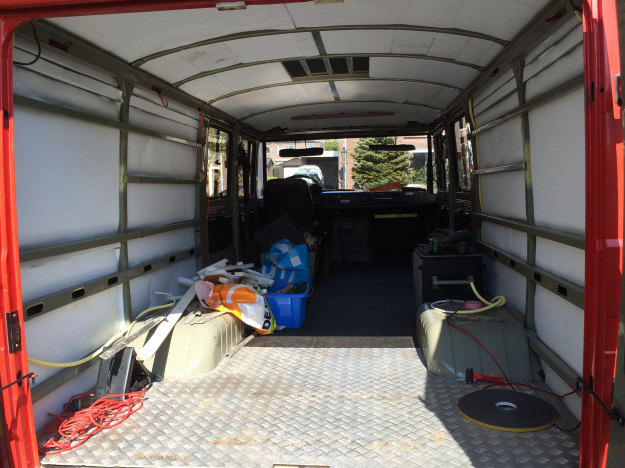

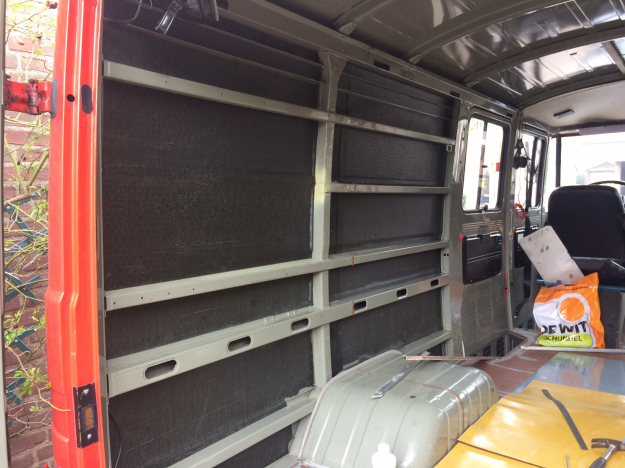

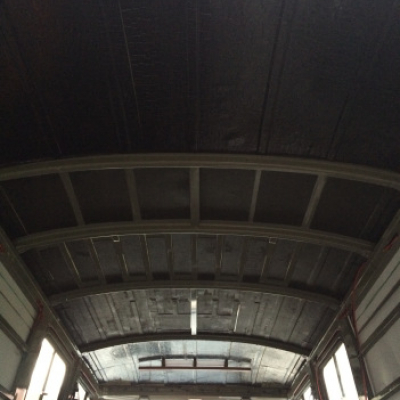

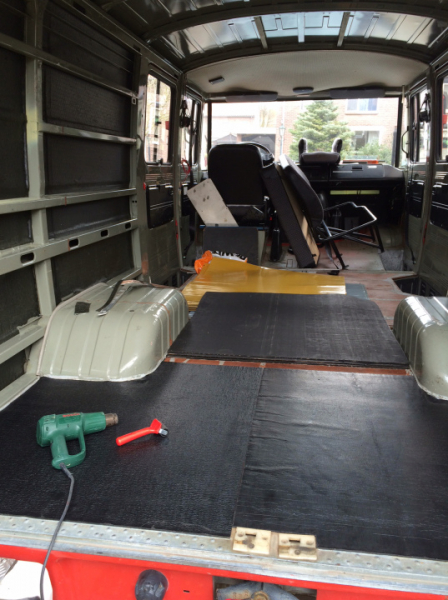

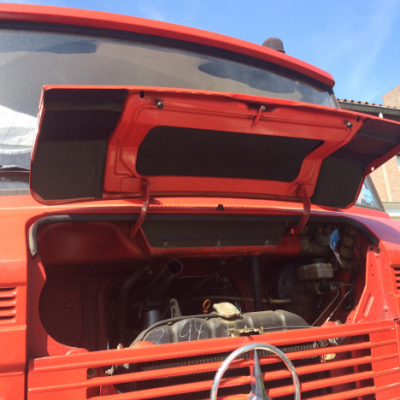

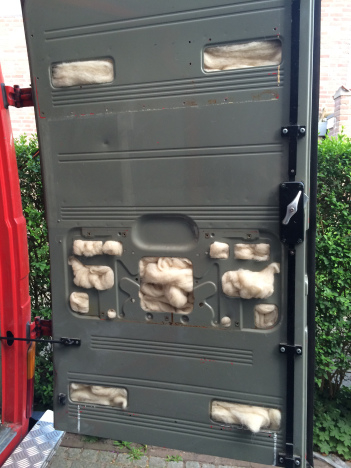

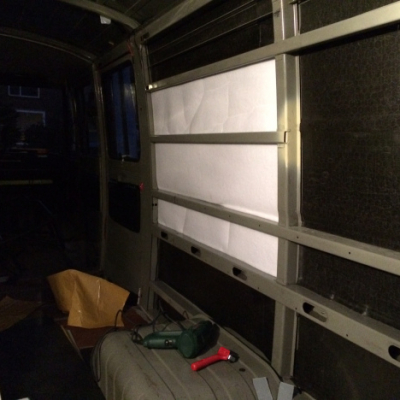

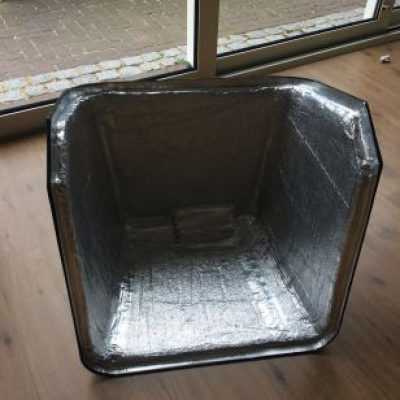

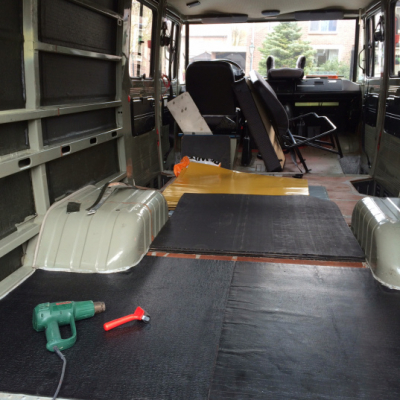

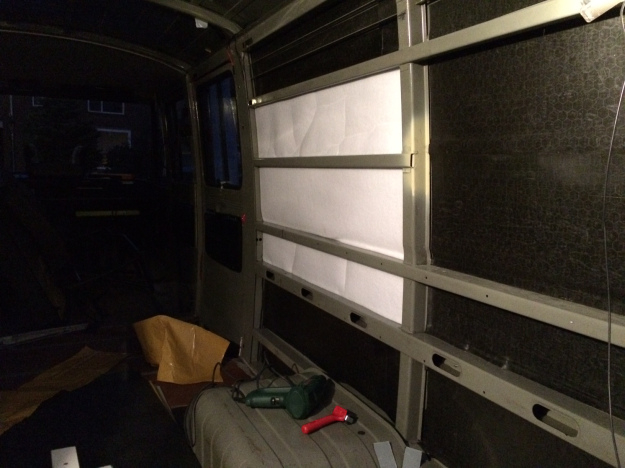

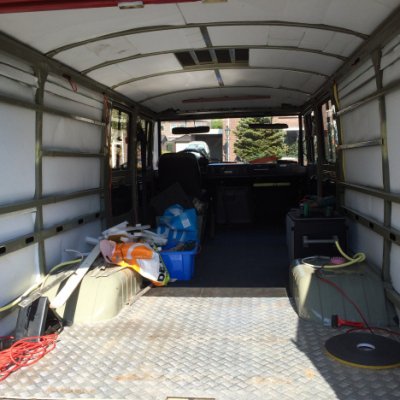

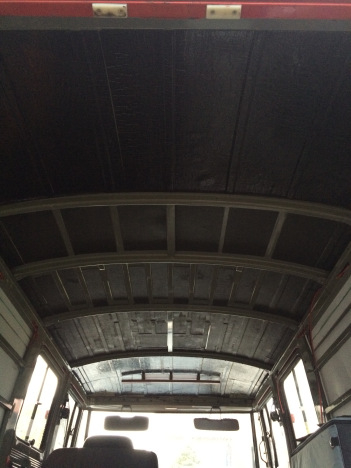

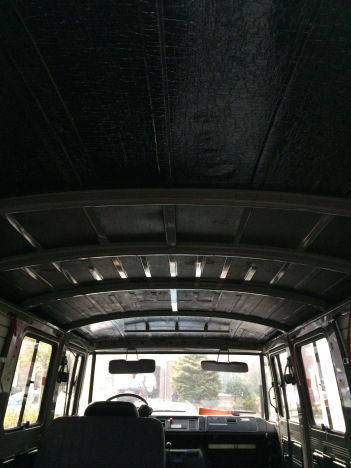

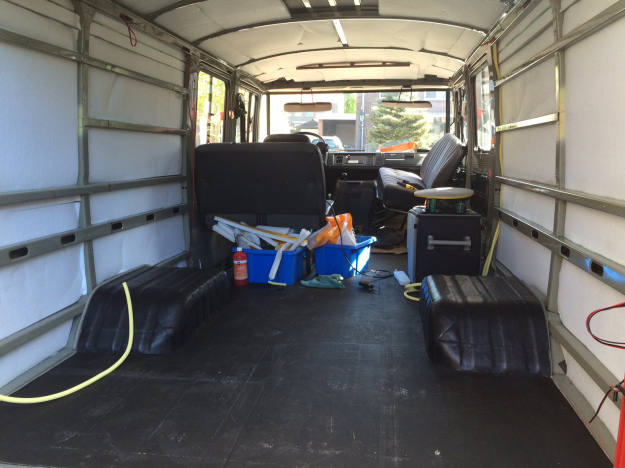

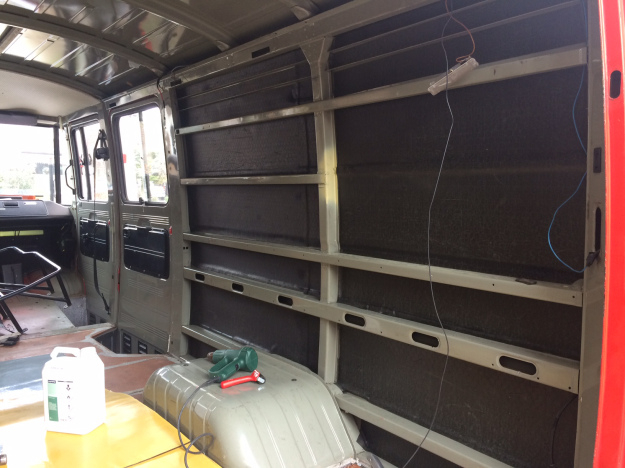

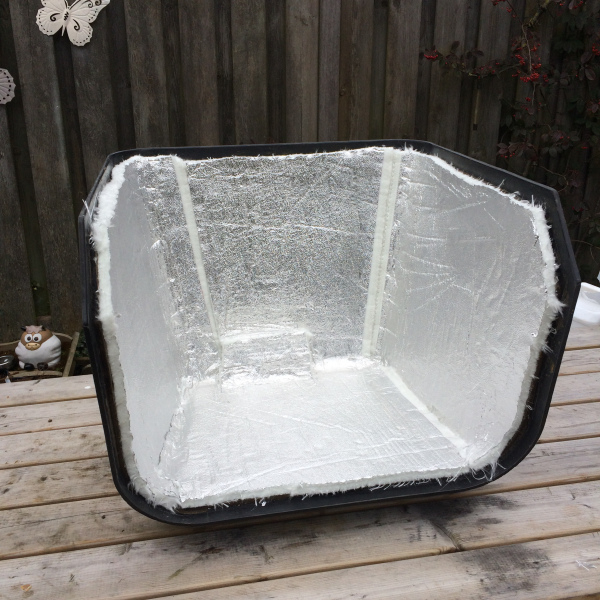

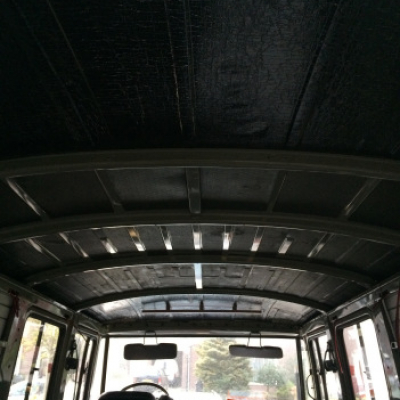

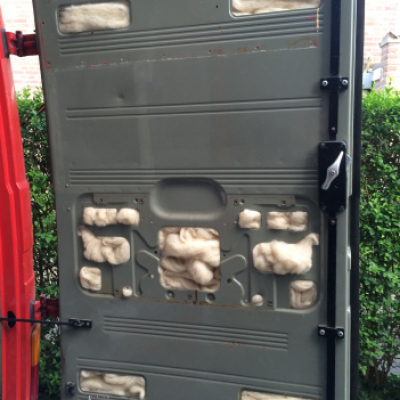

| Kind and thickness of insulation | Akotherm 20mm, Vibraflex Normal, Vibraflex Extreme (dammung), Whool in the doors. |

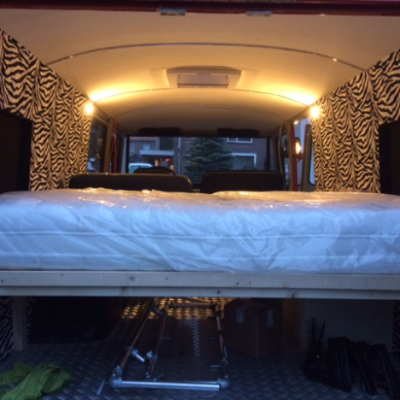

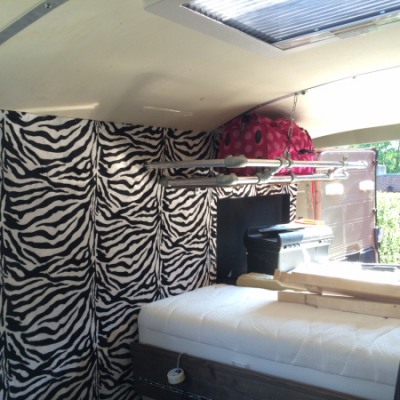

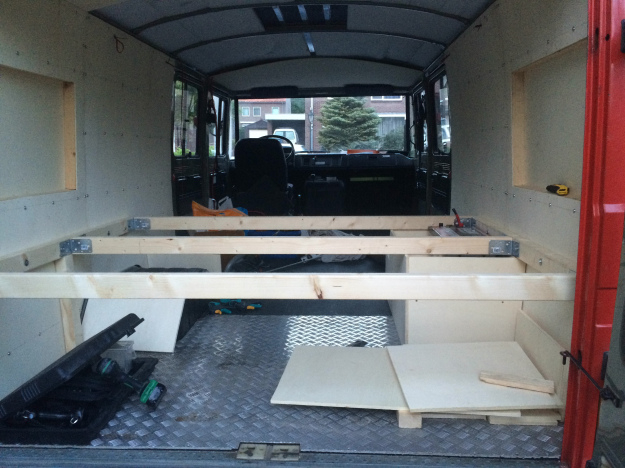

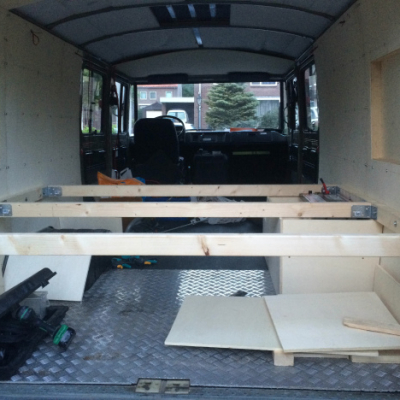

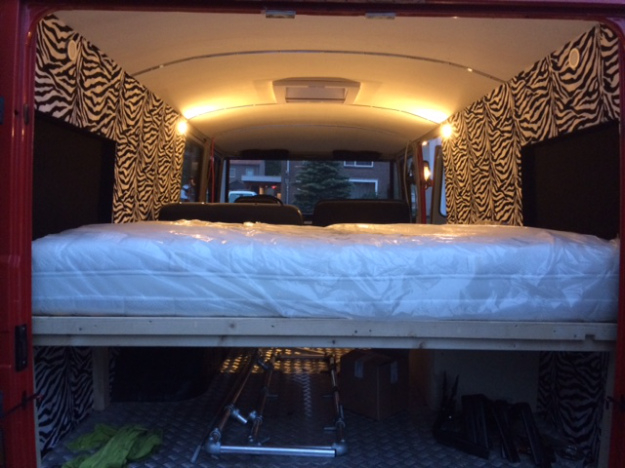

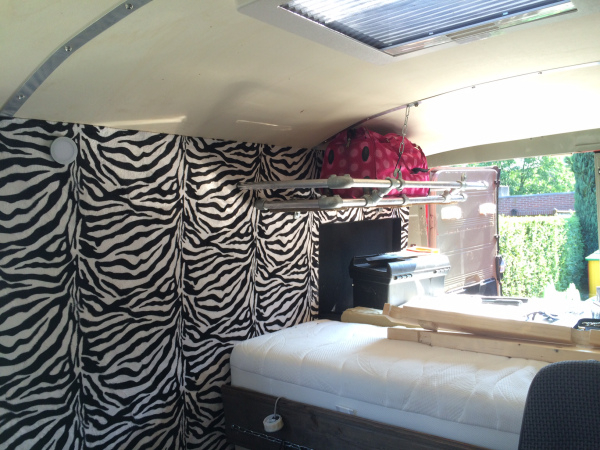

| Number of beds | 2 fieldbeds above cabin, 1 table place and 1 fixed doublebed 1400x2000 |
| Windows | Roofwindow Seitz Midi Heki |
| Subframe | None |
| Other | |
|

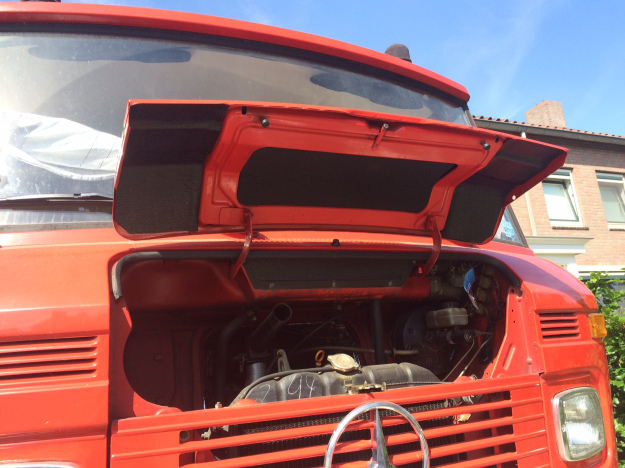

https://brandweer409.wordpress.com/category/isolatie/ Sound isolation: 60 km/u = 72db 70 km/u = 74db 80 km/u = 77db (before 89db) 90 km/u = 77db 100 km/u = 79 db The VAN is thermal and sound isolated. | |
| Explanation of floor plan | |
|---|---|
|

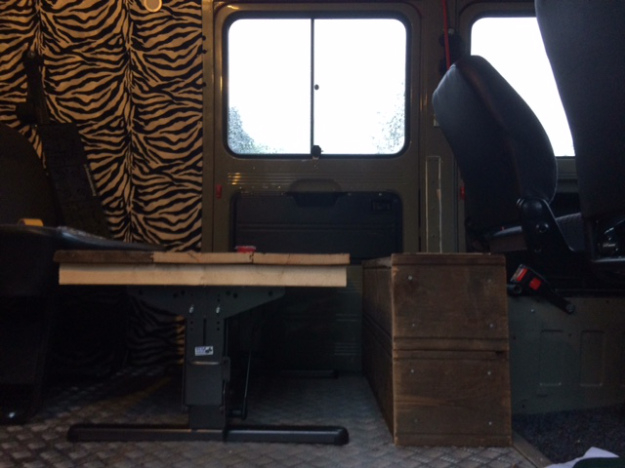

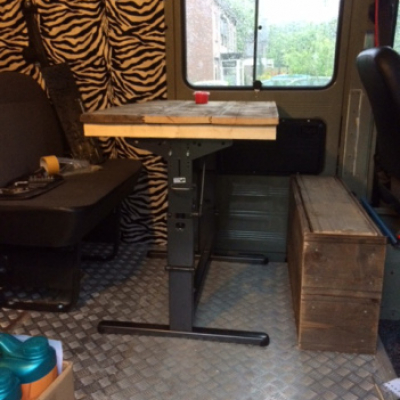

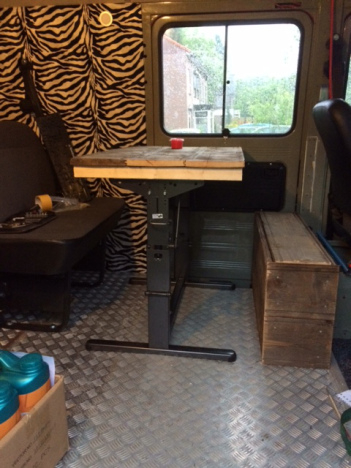

https://brandweer409.wordpress.com/category/inrichting/ Need to sleep and eat with 5. Fixed double bed with thick matress and garage underneath. Two kids sleep in the fieldbeds above the steeringwheel and 1 sleeps on the table. Small benge for storage. |

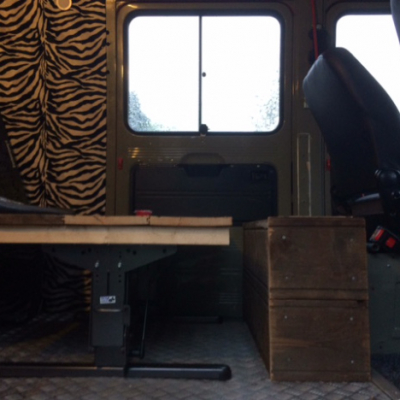

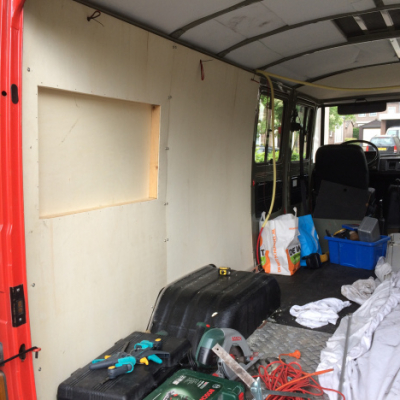

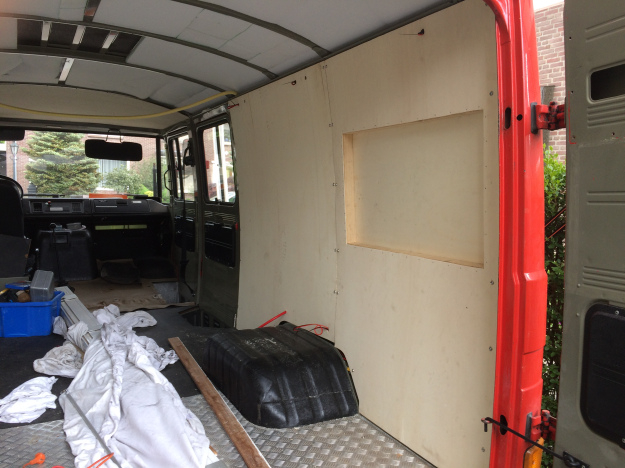

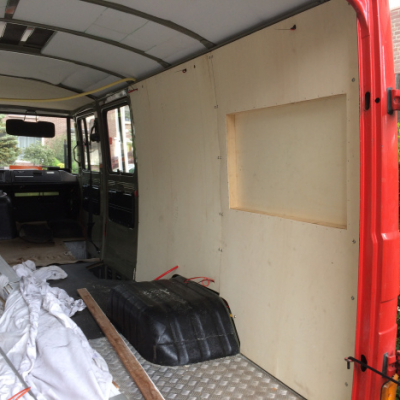

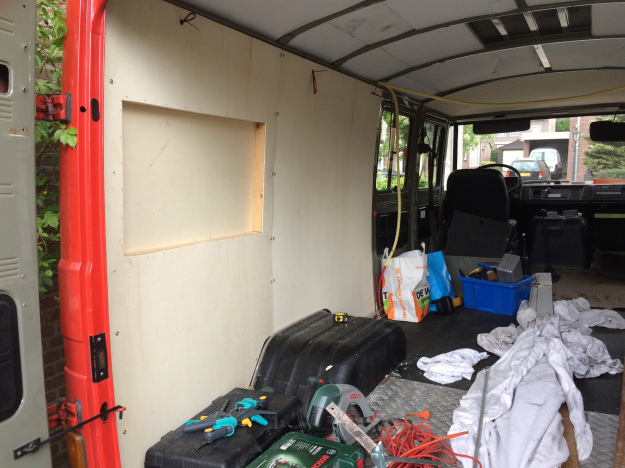

| Material of furniture | Recycled wood from an old house |
|---|---|
| Other | |
| https://brandweer409.wordpress.com/category/inrichting/ | |
| Cooking stove | Portable 2 burner with 5kg GAS PROPANE and 2x protable single burners GAS PROPANE |
|---|---|
| Gas installation | None |
| Manufacturer and type of fridge / cooler | Waeco CF40 compressor |
|---|
| Voltage in the chassis | 12V |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | None |
| 110V / 230V in the cabin? | yes |
| Inverter | Victron inverter 12V/350A |
| Other | |
|

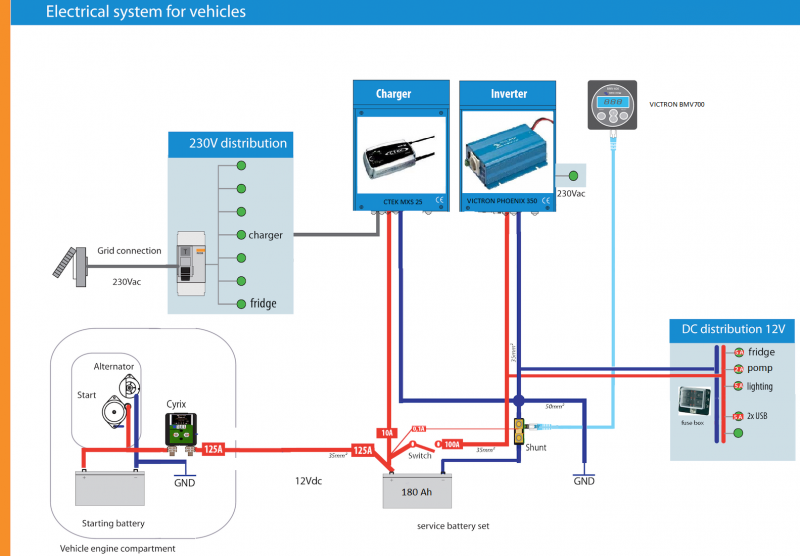

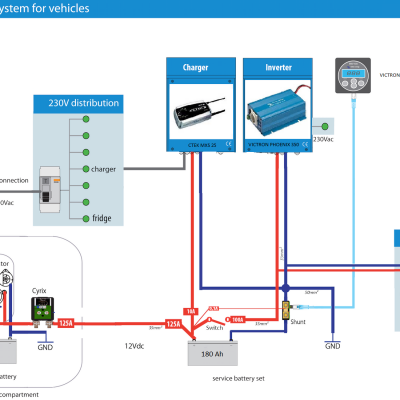

https://brandweer409.wordpress.com/category/elektra/ Battery consumption 20Ah/ day (mainly fridge). With this consumption we can stay put for 4,5 days (50% battery capacity). Solar not nescesary. (1x) BAttery 180Ah AGM Victron Cyrix-ct 12/24V-120A Inverter 12V – 230V Phoenix 350 Victron 230V intake Battery charger (Ctek 25 mxs) Battery monitor Victron BMV-700 | |
| Capacity of batteries in the cabin | 180Ah |
|---|---|
| Battery type | AGM |
| Battery charger for cabin batteries | Ctek MXS25 |
| Battery management | Victron BMV700 |
| Other | |
| https://brandweer409.wordpress.com/category/elektra/ | |
| Solar capacity | None |
|---|---|
| Solar controller | None |
| Fuel cell | no |
| Power generator | None |
| Other | |
| https://brandweer409.wordpress.com/category/elektra/ | |
| Manufacturer and type of heating system | Planned: Webasto 2000ST air heater |
|---|---|
| Warm water processing | None |
| Explanation of gas system | |
|---|---|
| None |
| water flow | Submersible pump |
|---|---|
| Water filtration system | None |
| Capacity of fresh water tank(s) | 12l |
| Capacity of waste water tank(s) | 12l |
| Manufacturer and type of toilet | Porta Potti |
|---|---|
| Capacity of black water tank | Enough for a family of 5 |
| Rear carrier | Fiamma bicycle carrier |
|---|---|

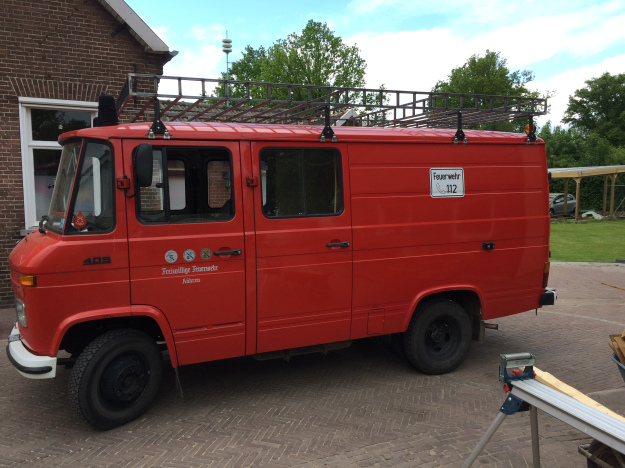

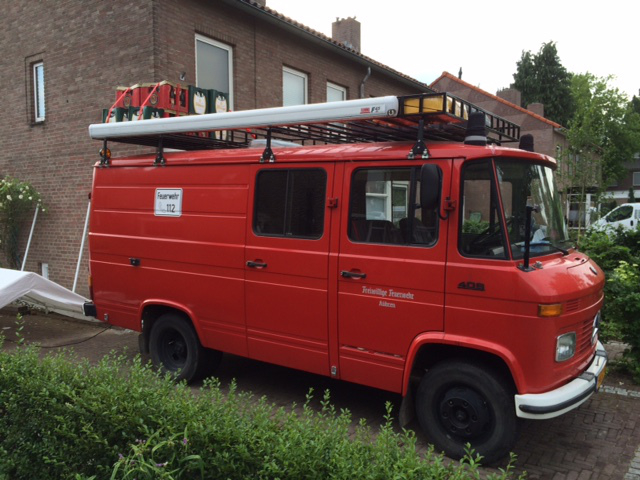

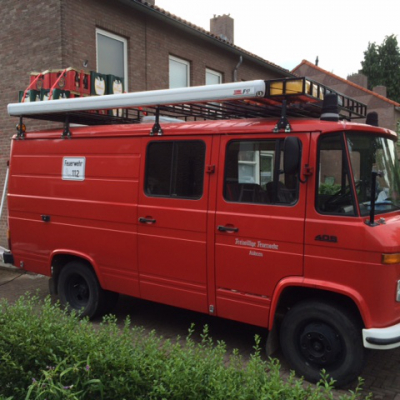

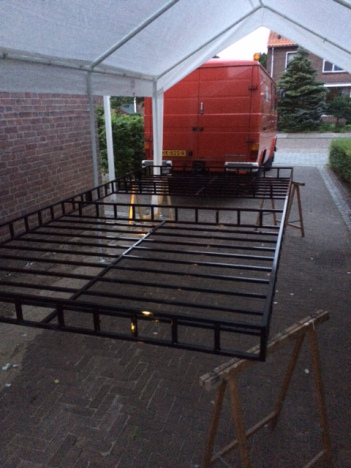

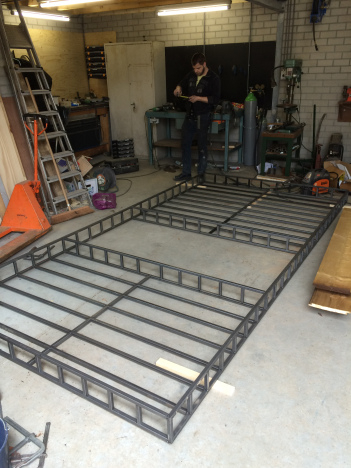

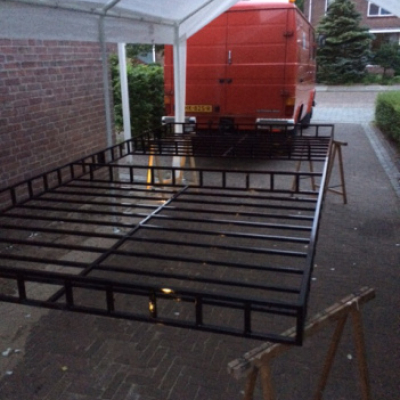

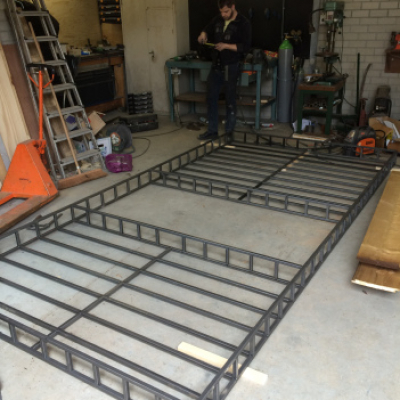

| Roof rack | Yes, self made |
| Storage boxes | Plenty |
| Outside cooking facilities | Yes portable camping stove |
| Awning | Fiamma F45 3500mm |
