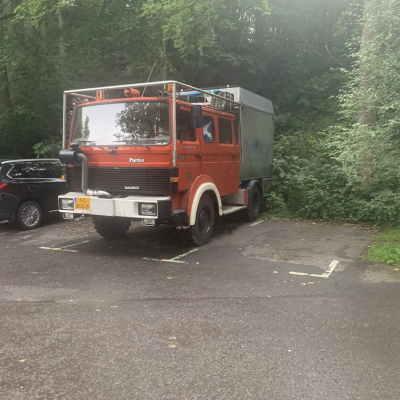

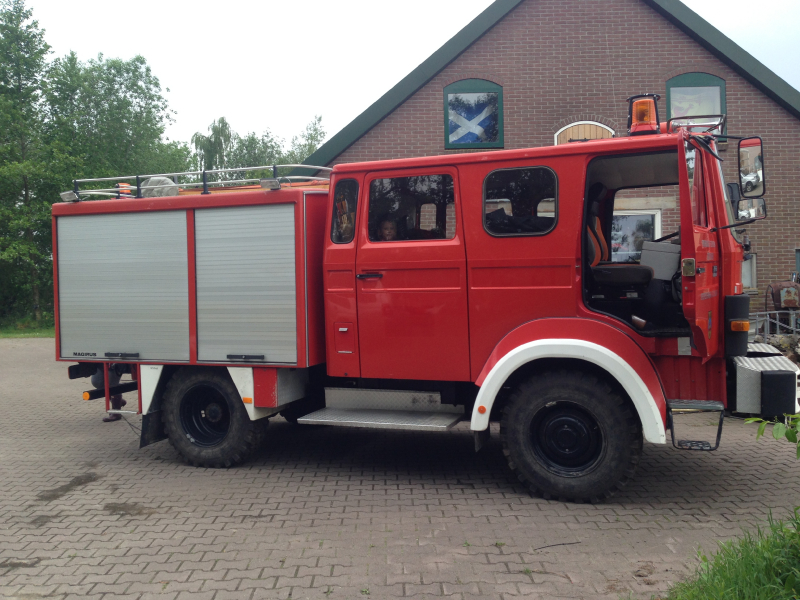

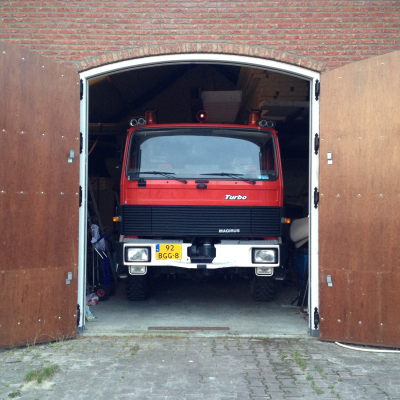

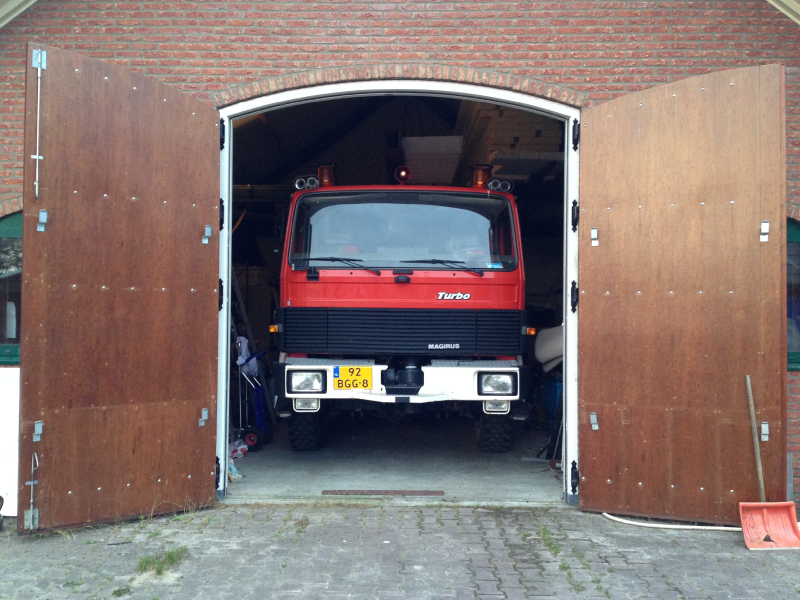

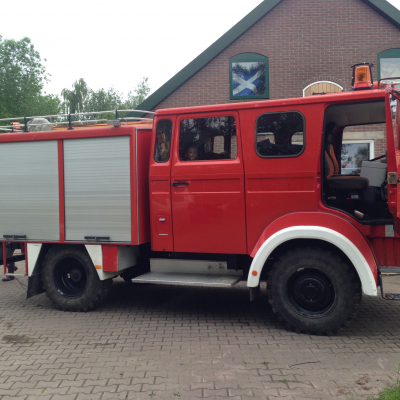

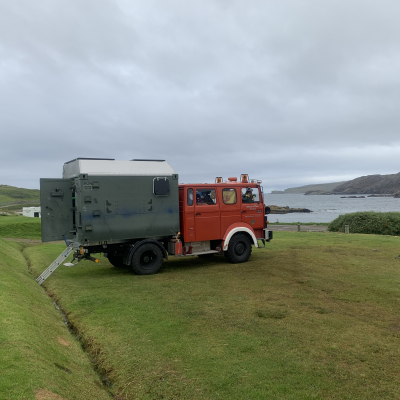

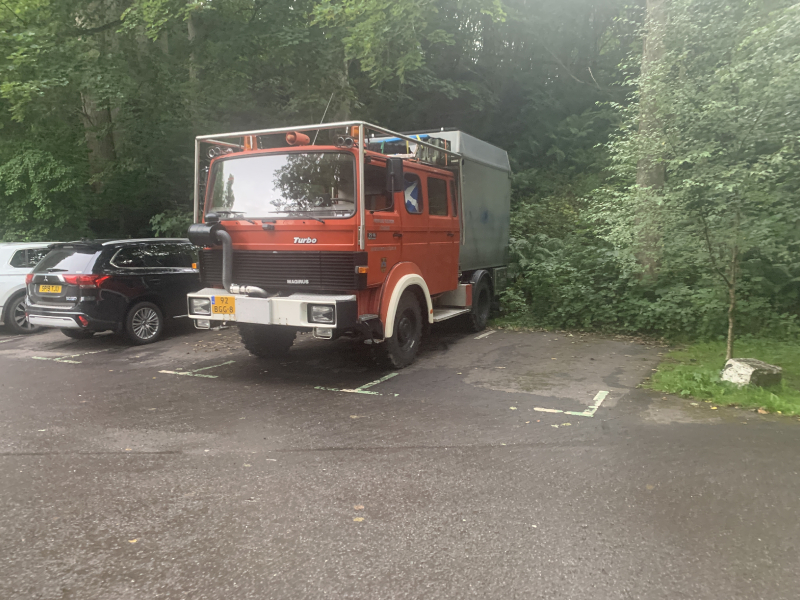

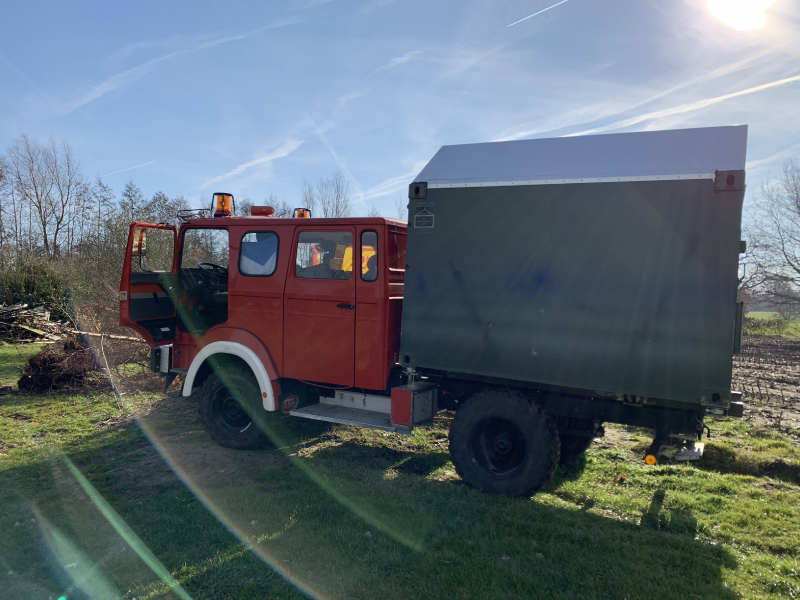

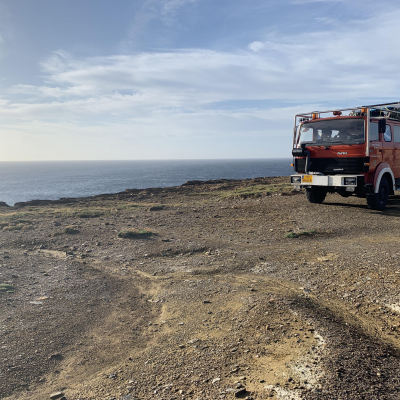

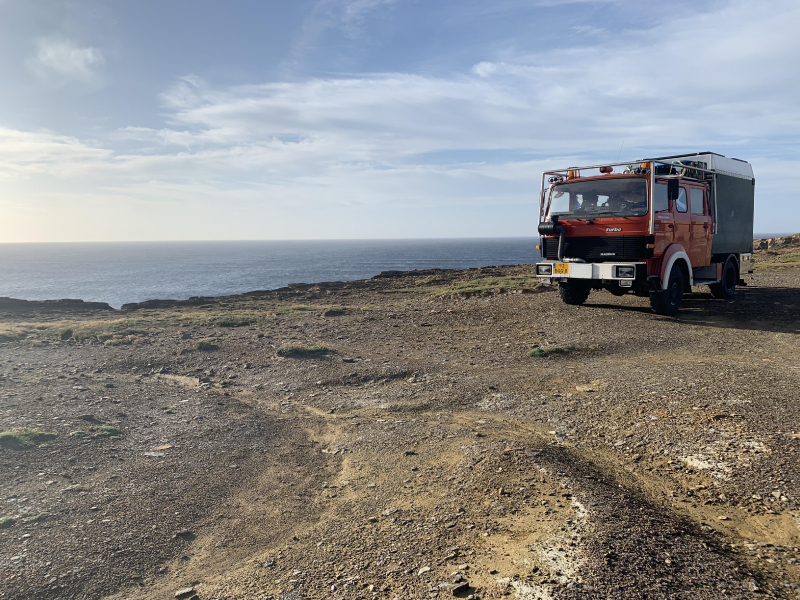

Iveco Magirus 75-16 ex Firetruck in process to rebuild into camper. more to come.
| Manufacturer and model | Iveco Magirus |
|---|---|
| Name | Dot |
| Country | Netherlands |
| Website | NA |
| Year of manufacture | 1985 |
| For sale? | no |
| Engine type | Bf6l913 |
|---|---|
| Cubic capacity | 6128 |
| Number of cylinders | 6 |
| Horsepower | 180 + |
| Torque | 550nm+ |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3,20 |
| Number of seats | 5 |
| Tyre size | 12.5R20 |
| Type of tyre | Mpt81 |
| Tank capacity | 190 |
| Diesel filter | no |
| Other | |

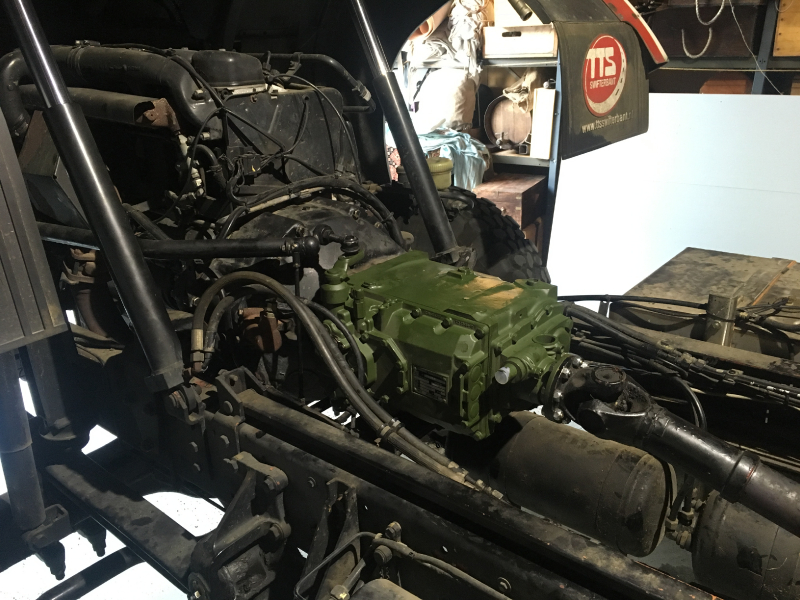

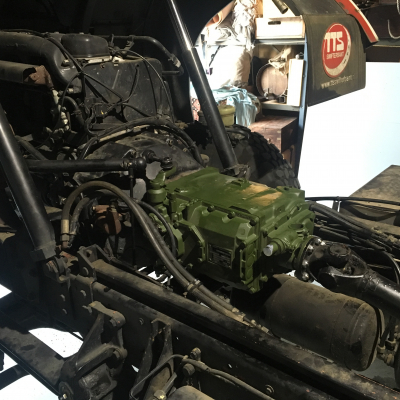

| Just installed a new transmission 5,64- 0,695. Now 80kmh at 1600 rpm! | |
| Permanent or manually selectable 4-wheel drive | Perm |
| Diff locks | yes |

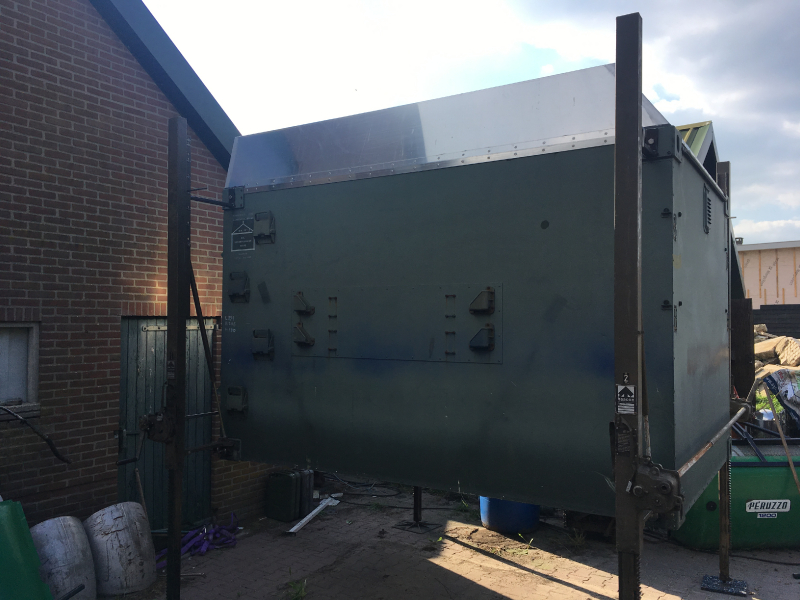

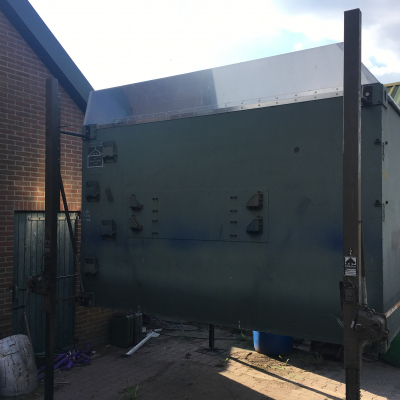

| Manufacturer of the cabin | Dornier |
|---|---|
| Inner dimensions (LxWxH) | 270x190x210 |
| Outer dimensions (LxWxH) | 290x205x218 |
| Cabin material | Alusandwich |
| Kind and thickness of insulation | 60mm |
| Number of beds | 2 in shelter 2 in cab |

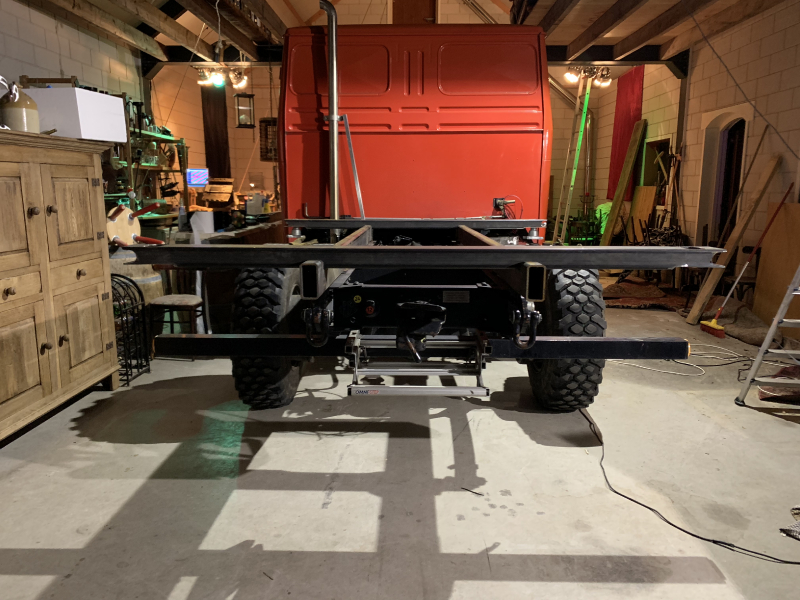

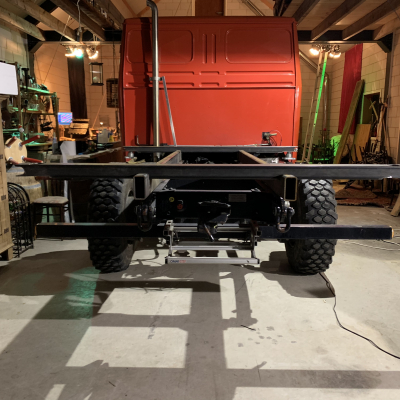

| Subframe | On springs |
| Explanation of floor plan | |
|---|---|
| Still in progress i have made it somewhat flexible to be able to adjust it to use. |

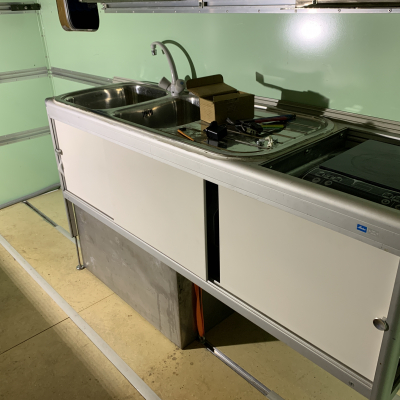

| Material of furniture | Aluminium / pvc |
|---|

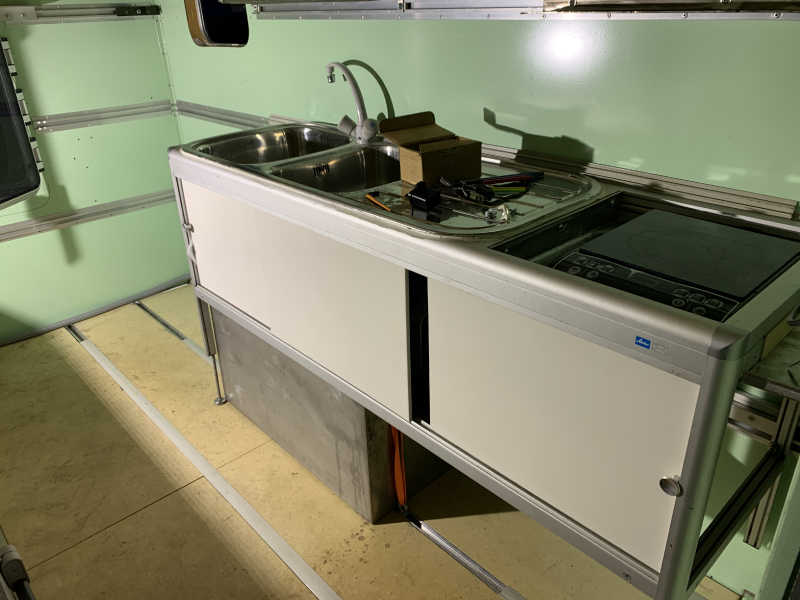

| Cooking stove | Induction 1600w |
|---|---|
| Gas installation | None |
| Other | |
| Microwave electric watercooker | |
| Manufacturer and type of fridge / cooler | Weaco cfx 36 and weaco cf 42 |
|---|
| Voltage in the chassis | 24 |
|---|---|
| Voltage in the cabin | 24 |
| Charging converter 24V-12V | Victron multigrid 24/3000/70 |
| 110V / 230V in the cabin? | yes |
| Inverter | Victron multigrid 24/3000/70 |
| Capacity of batteries in the cabin | 150ah |
|---|---|
| Battery type | Lifepo4 |
| Battery charger for cabin batteries | Victron multigrid |
| Other | |
| To add charger via vehicle motor | |
| Solar capacity | 600wp |
|---|---|
| Solar controller | Victron smartcontroller mppt 100/20 |
| Fuel cell | no |
| Power generator | 2000w Briggs and stratton |
| Warm water processing | N/a |
|---|---|
| Cab heating | Standheizung |
| water flow | 11l/m |
|---|---|
| Capacity of fresh water tank(s) | 125l |
| Capacity of waste water tank(s) | 25 greywater |
| Manufacturer and type of toilet | Thetford cube |
|---|---|
| Capacity of black water tank | 21l |
| Rear carrier | N/a |
|---|---|
| Roof rack | Custom |

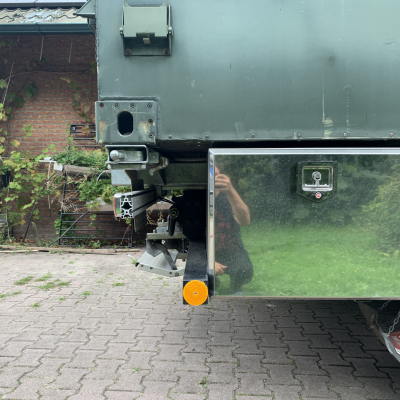

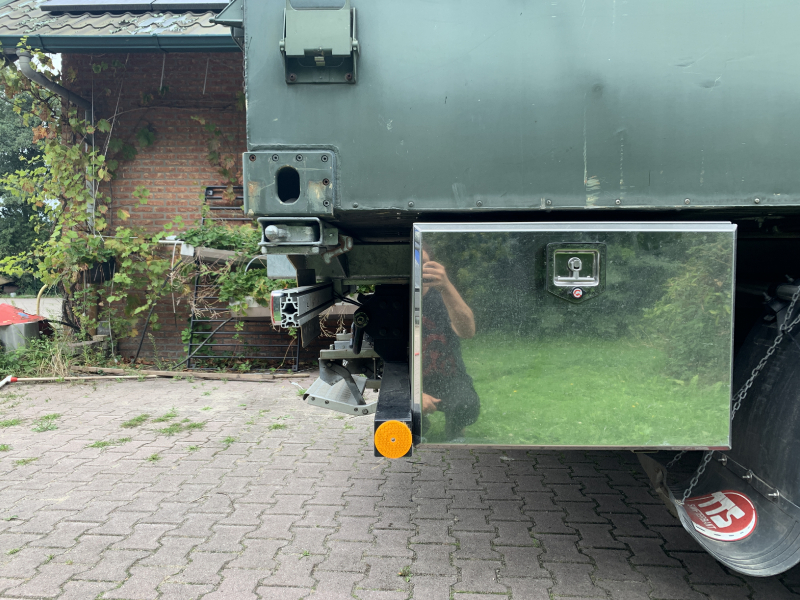

| Storage boxes | Underbuild stainless steel |
| Awning | Tarp 3x3m |
