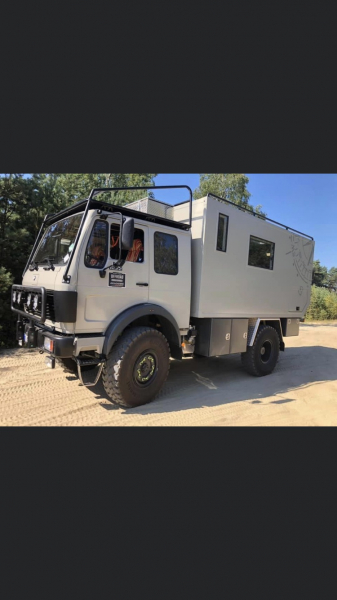

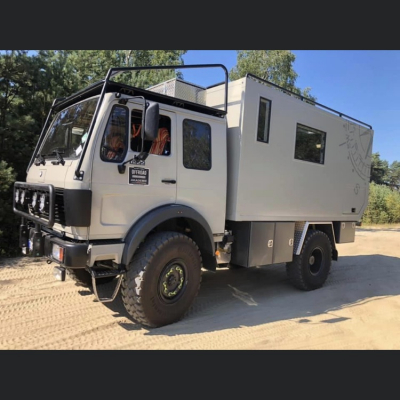

| Manufacturer and model | Mercedes Benz 1222AF |
|---|---|
| Name | Gerd Over |
| Country | Deutschland |
| Website | facebook.com/Mr-Kabenzmann-110199073966716 |
| Year of manufacture | 1989 |
| For sale? | no |
| Engine type | OM421 |
|---|---|
| Cubic capacity | 10964 ccm |
| Number of cylinders | 6 |
| Horsepower | 216 |
| Torque | 784 Nm bei 1200 U/min. |
| Other | |
| Ehemaliges Löschgruppenfahrzeug (LF16) der Freiwilligen Feuerwehr Taunusstein-Hahn | |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3,6m |
| Number of seats | 2 |
| Tyre size | 14R20 |
| Rim size | Sprengring |
| Type of tyre | Conti HCS |
| Tank capacity | 520 Liter |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Hinten und Mitte |

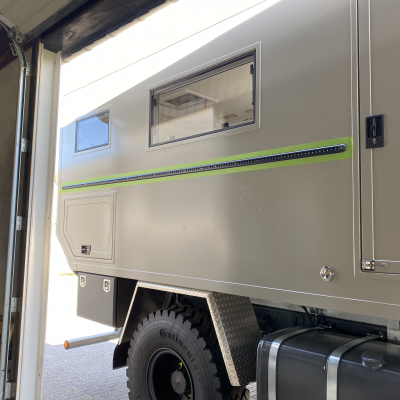

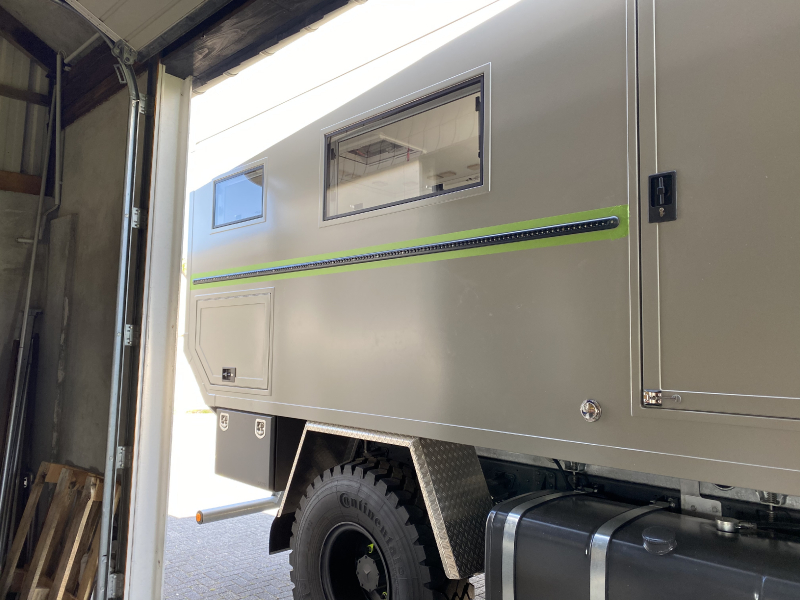

| Manufacturer of the cabin | 4wheel24 |
|---|---|
| Inner dimensions (LxWxH) | 445 x 225 x 205 |
| Outer dimensions (LxWxH) | 457 x 237 x 218 |
| Cabin material | GFK mit Alu-Rahmen |
| Kind and thickness of insulation | 56mm PU-Schaum, Boden 70mm |
| Number of beds | 2 fest + umbaubare Sitzgruppe (1) |
| Windows | 5 |
| Subframe | Federgelagert, 200mm |

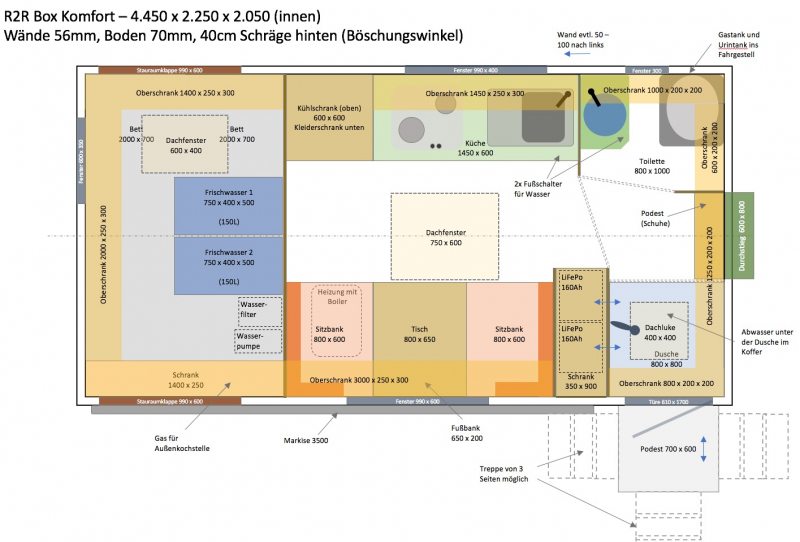

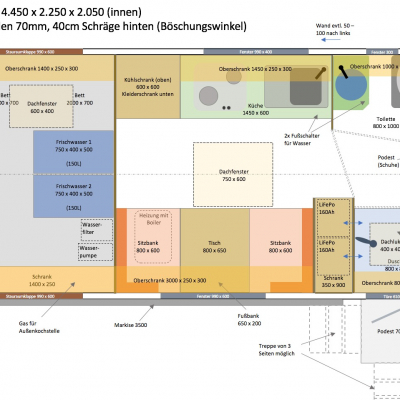

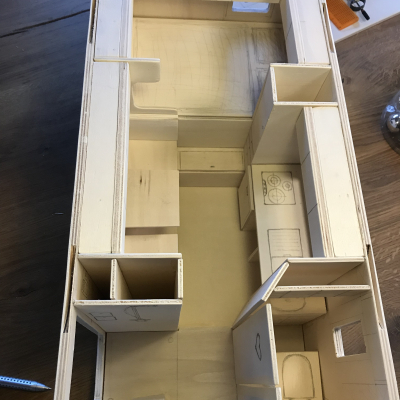

| Explanation of floor plan | |
|---|---|
| „Klassisch“ - Dusche im Eingang, Festbett im Heck |

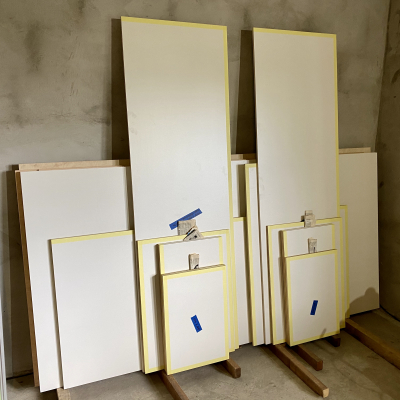

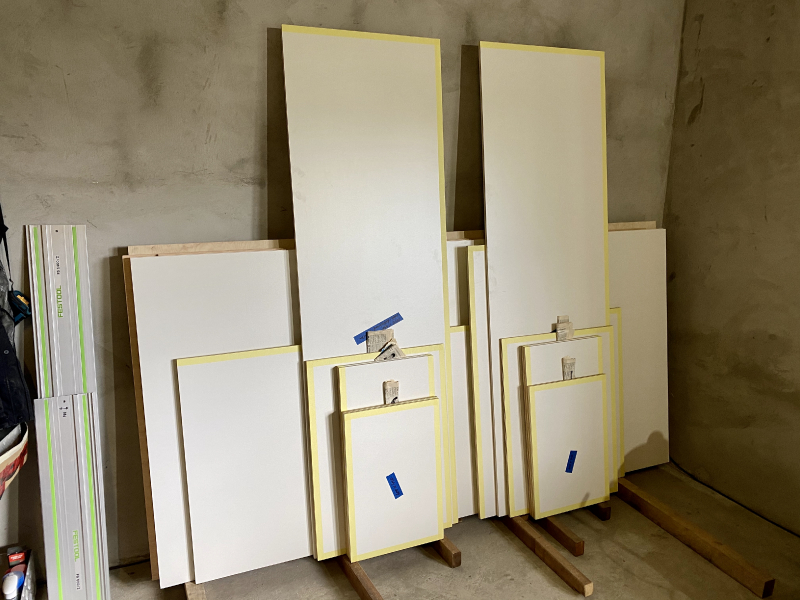

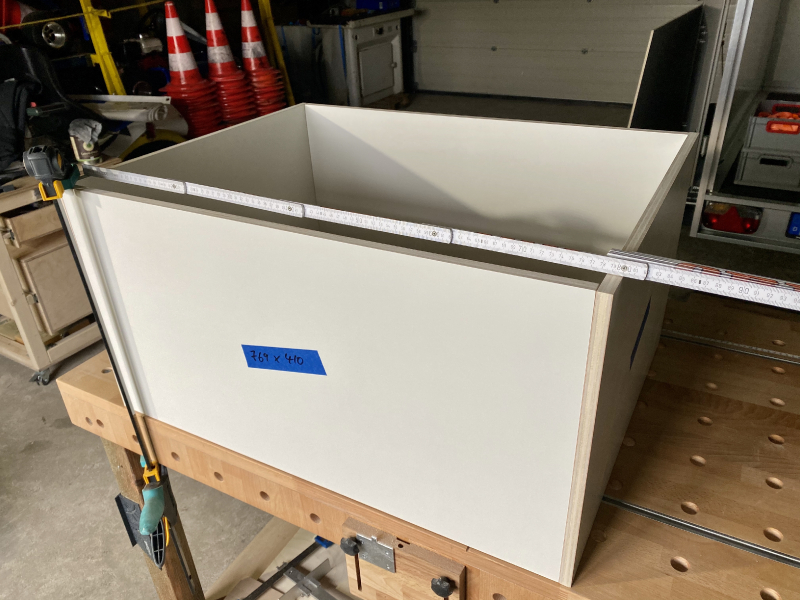

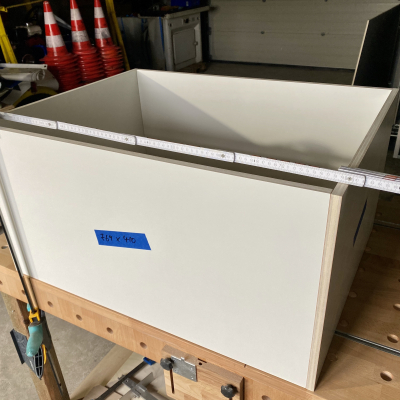

| Material of furniture | Ilomba-Pappel-Ilomba CPL-beschichtet / Birke Multiplex / Aluprofil |
|---|
| Cooking stove | Innen auf Induktionsfeld, Außenküche mit Gas |
|---|---|
| Gas installation | nein |
| Other | |
| Backofen, Dutch Oven, Schwenkgrill | |

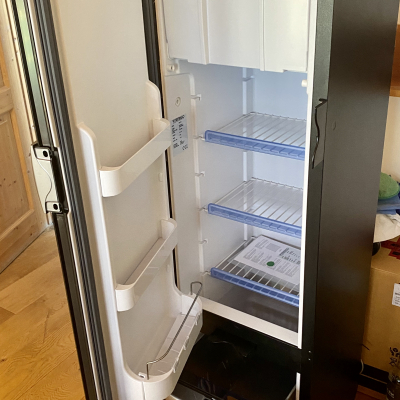

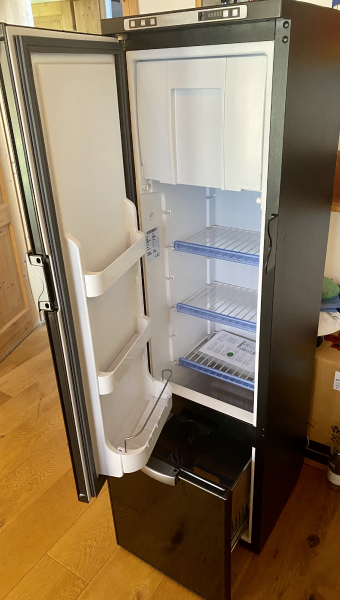

| Manufacturer and type of fridge / cooler | Vitrifrigo Slim 150 und Dometic Kühlbox 40L |
|---|

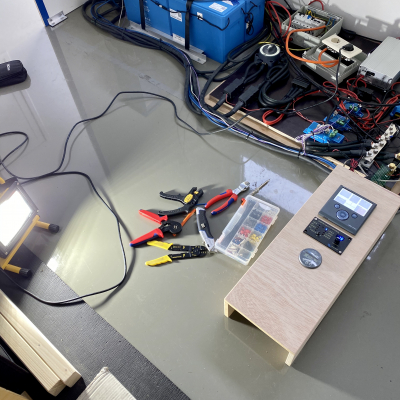

| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V |
| Charging converter 24V-12V | ja |
| 110V / 230V in the cabin? | yes |

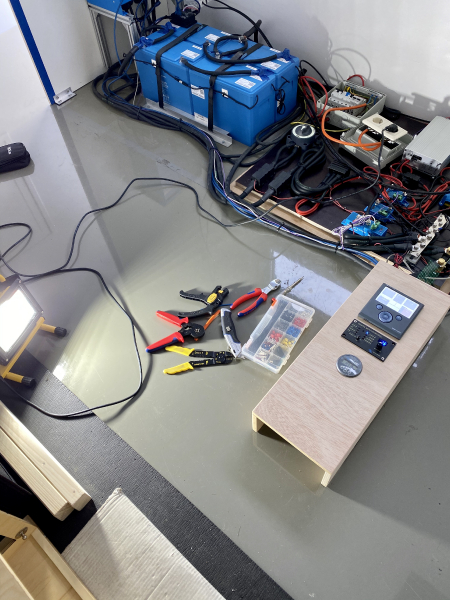

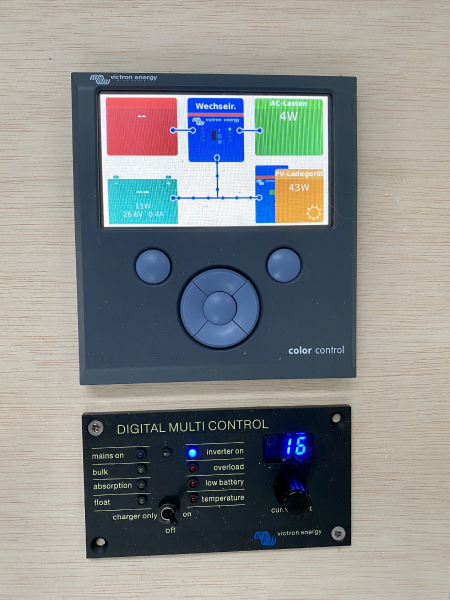

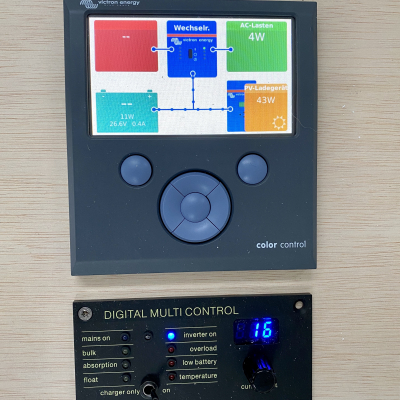

| Inverter | Victron Multiplus 5kW |
| Capacity of batteries in the cabin | 400Ah |
|---|---|
| Battery type | LiFePo |
| Battery charger for cabin batteries | Smart Solar MPPT 100/50 + Votronic VCC 2424 -25 |
| Battery management | BMV 712 |

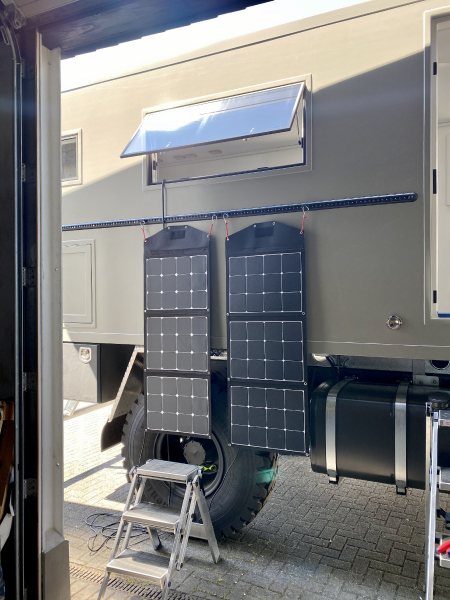

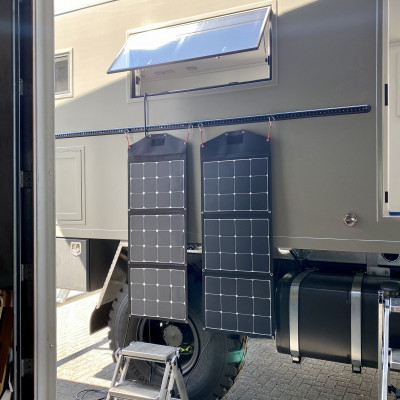

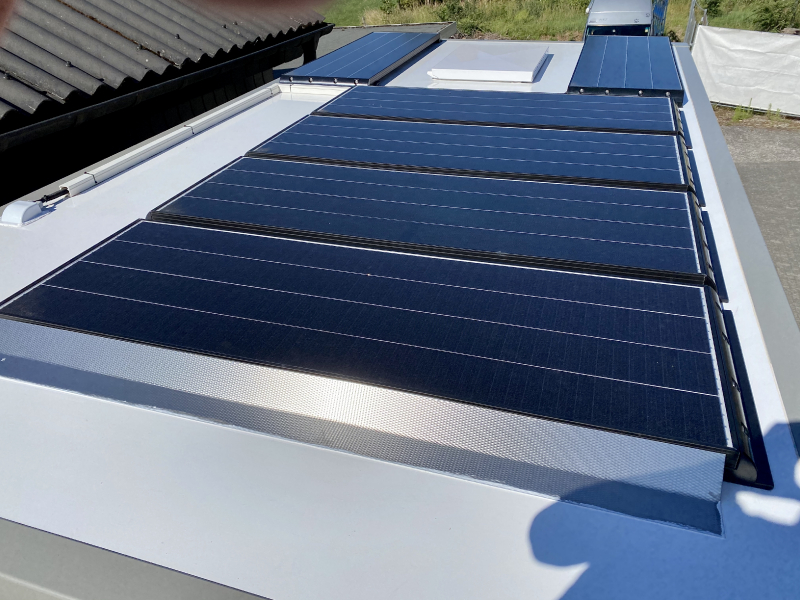

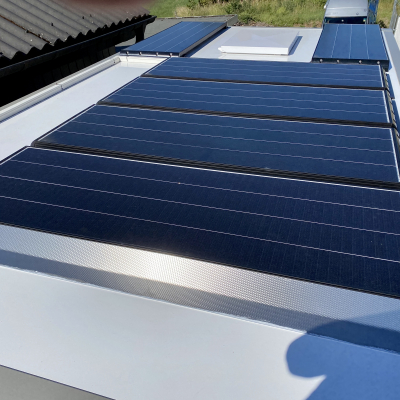

| Solar capacity | 1200 Wp |
|---|---|
| Solar controller | Victron 100/50 und 75/15 |
| Fuel cell | no |
| Power generator | Honda EU22i |
| Manufacturer and type of heating system | Autoterm Air 2D |
|---|---|
| Warm water processing | Elgena 500W/ 220V |
| Cab heating | nichts zusätzlich verbautes |
| water flow | Lilie Trinkwasserschläuche |
|---|---|
| Water filtration system | famous water - Keramik/AK |
| Capacity of fresh water tank(s) | 300L |
| Capacity of waste water tank(s) | tbd |
| Manufacturer and type of toilet | TTT Eigenbau |
|---|---|
| Capacity of black water tank | tbd |
| Rear carrier | kommt |
|---|---|

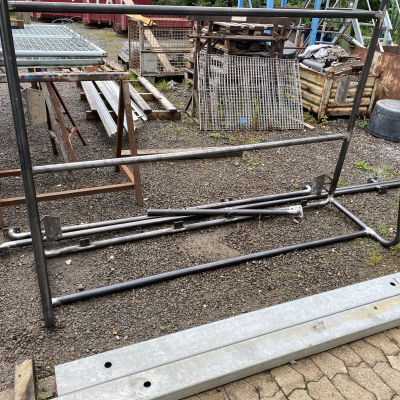

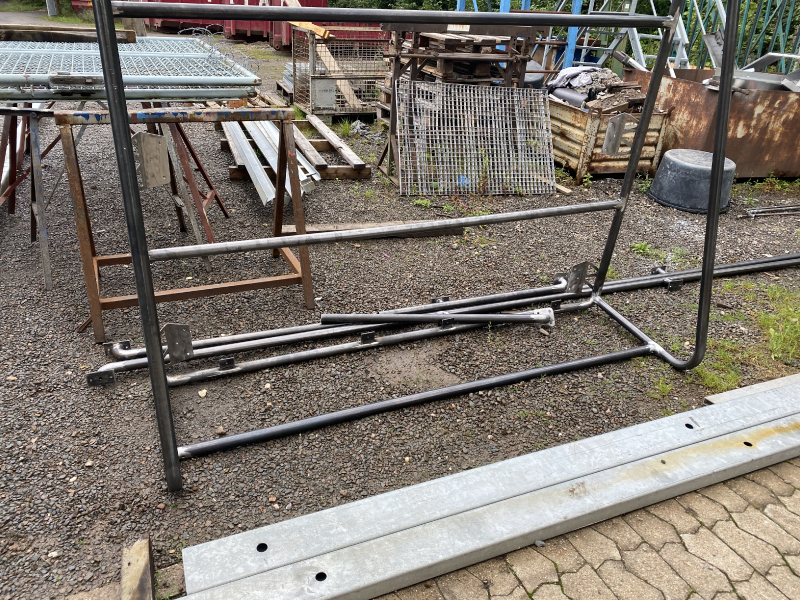

| Roof rack | 42er Rohr, verzinkt und gepulvert |

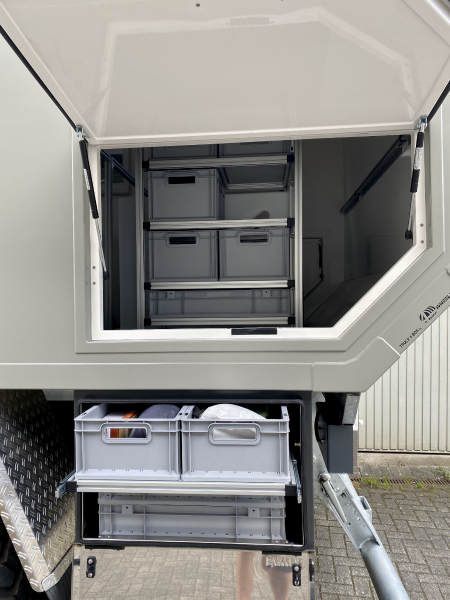

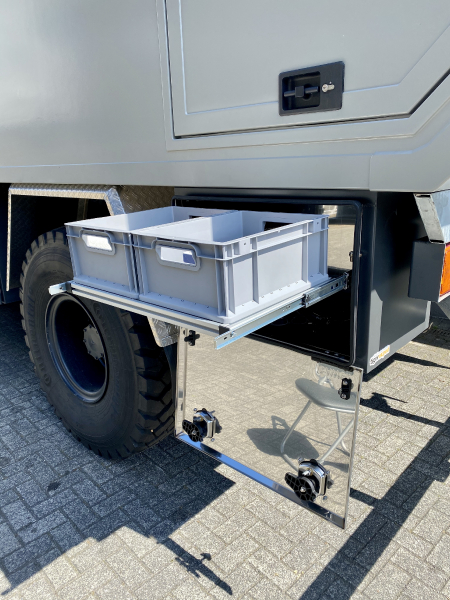

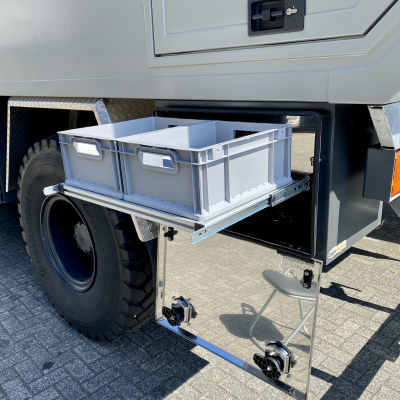

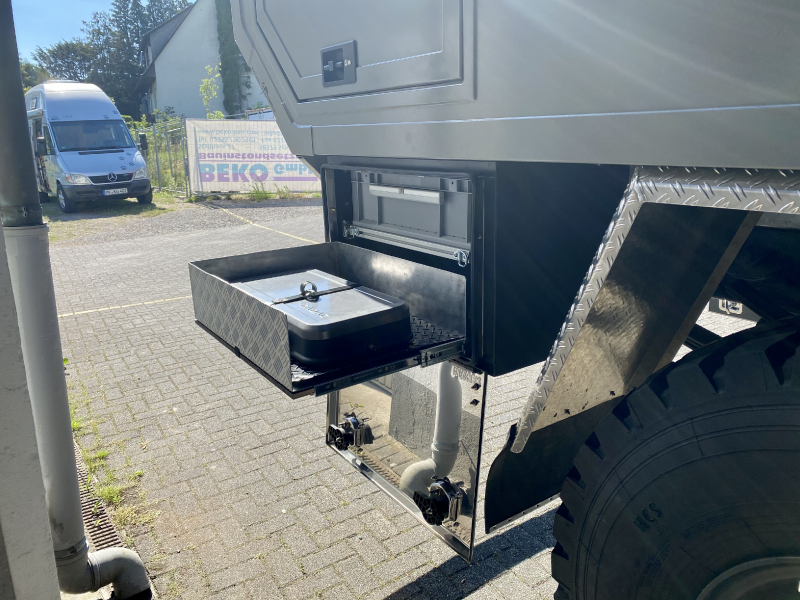

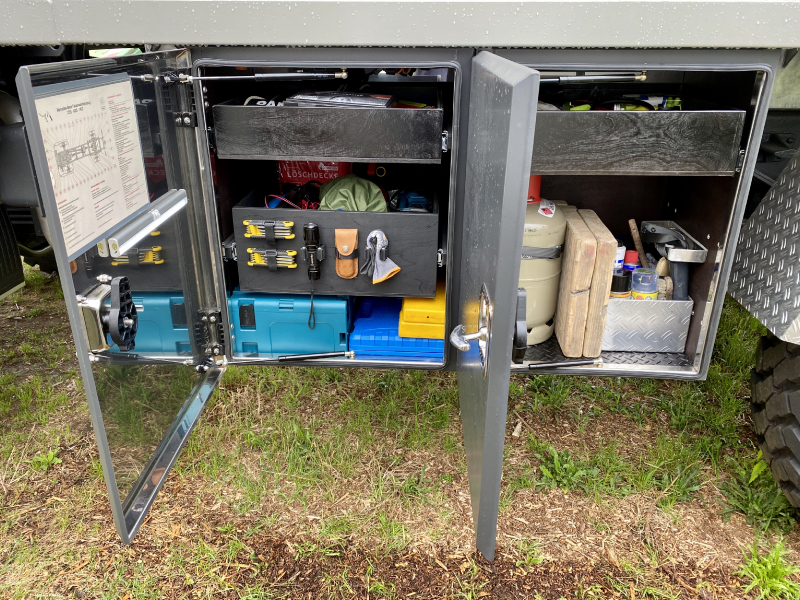

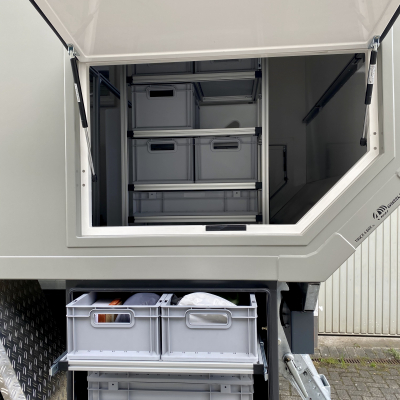

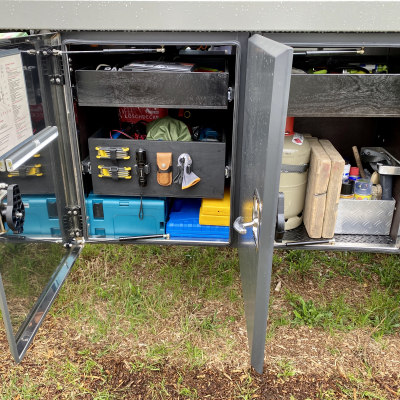

| Storage boxes | 4 + Dachbox |
| Outside cooking facilities | ja |
| Awning | Tarp an Airlineschiene, evtl. später noch Keder |
