Fahrzeug für eine Auszeit und Offroad Urlaub mit einem Freund der einen Unimog fährt.

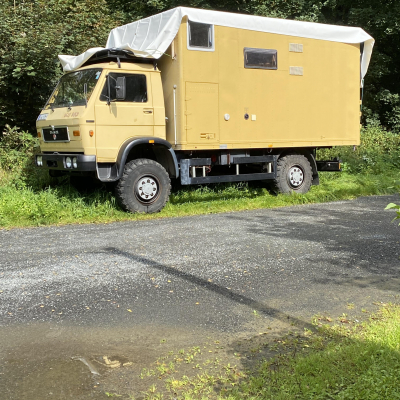

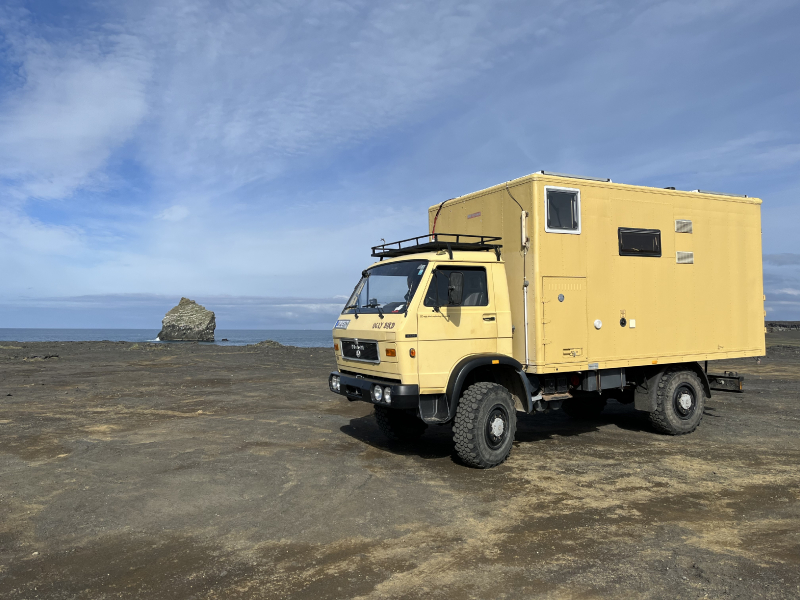

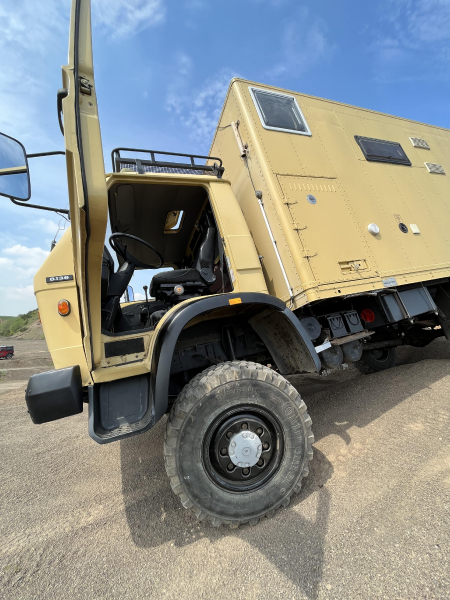

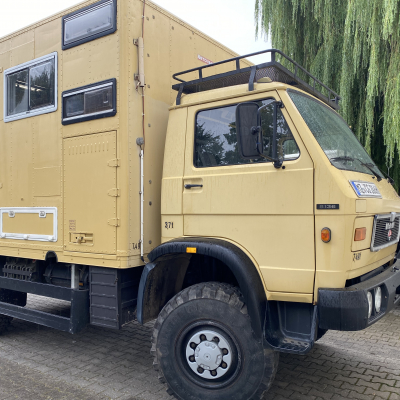

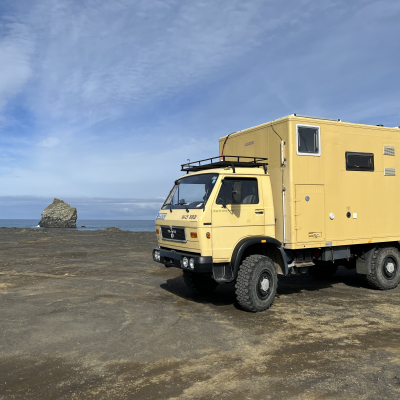

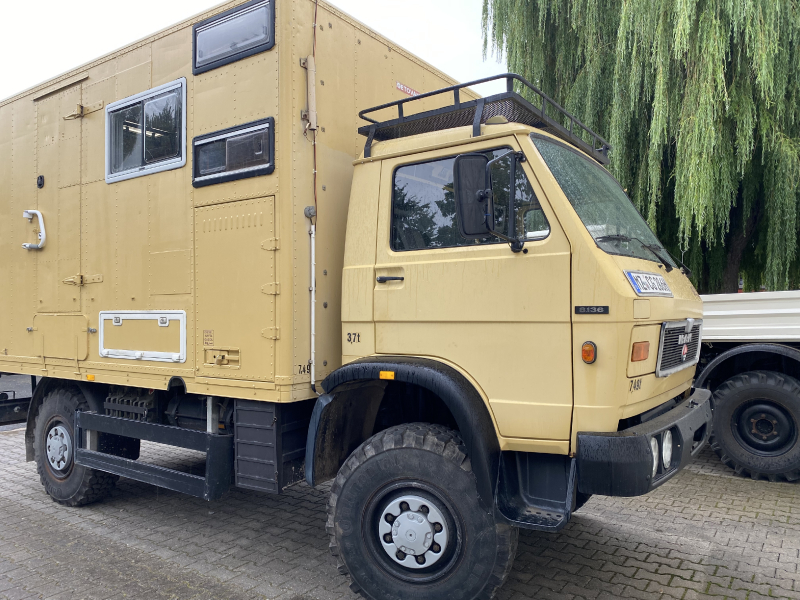

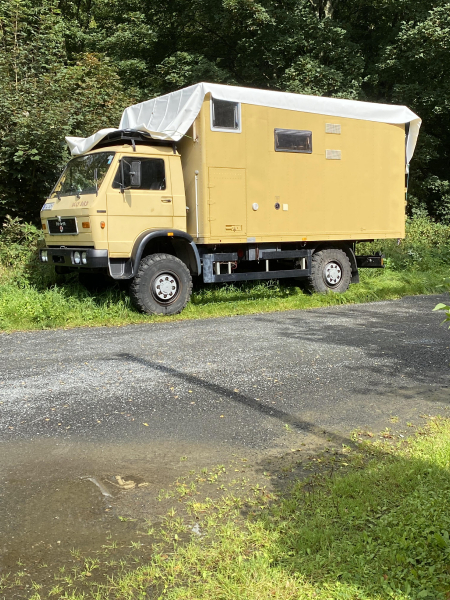

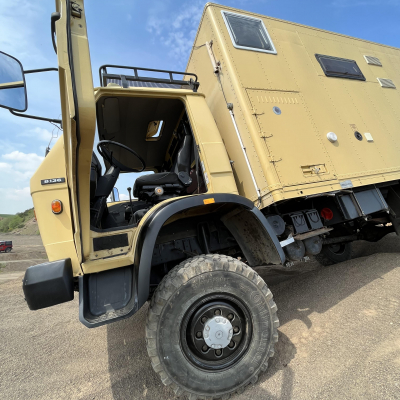

| Manufacturer and model | VW MAN 8.136 |
|---|---|
| Name | Christoph |
| Country | Deutschland |
| Year of manufacture | 1987 |
| For sale? | no |
| Engine type | MAN D0226 |
|---|---|
| Cubic capacity | 5,7 |
| Number of cylinders | 6 |
| Horsepower | 136 |
| Torque | 353nm |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 360cm |
| Number of seats | 6 |

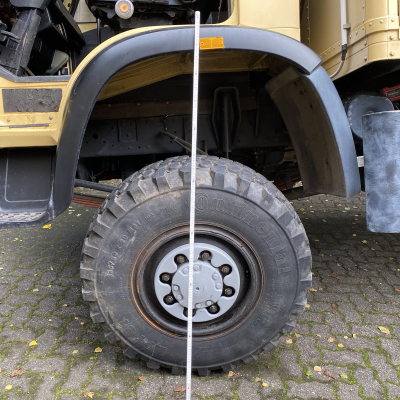

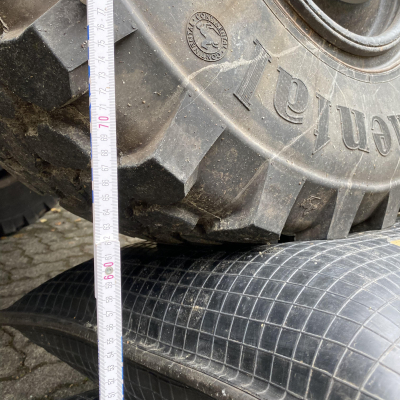

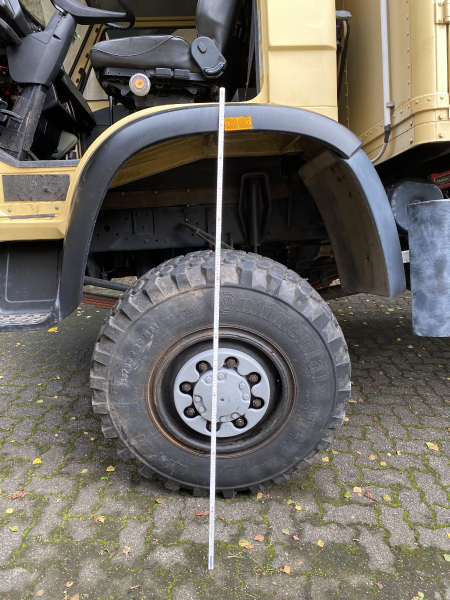

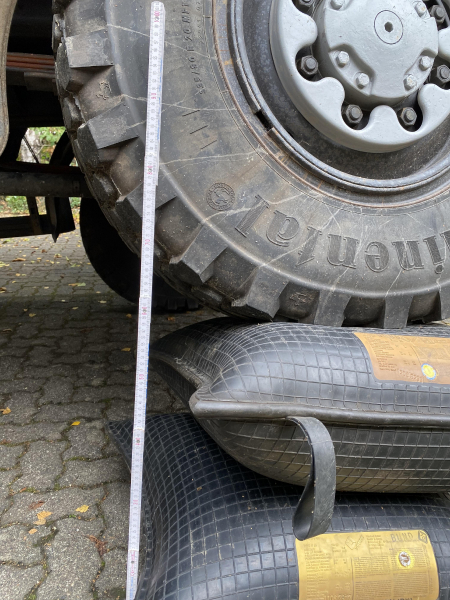

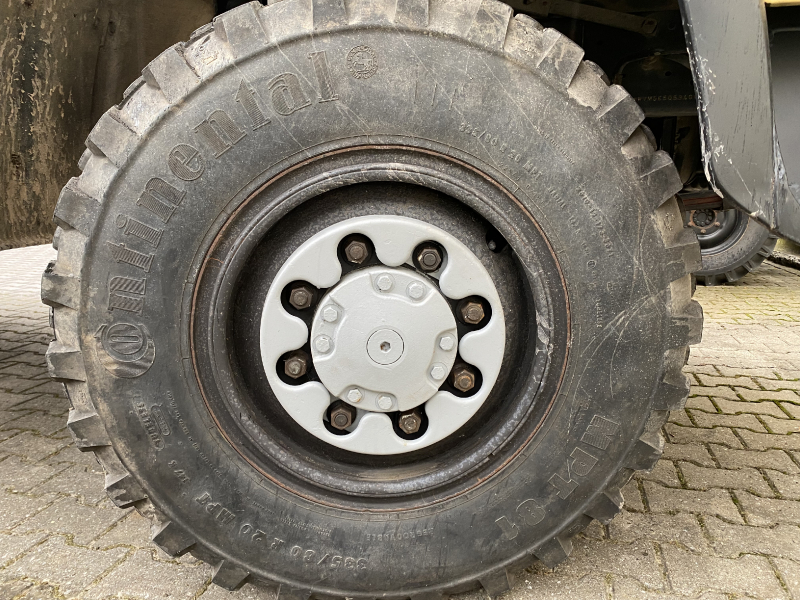

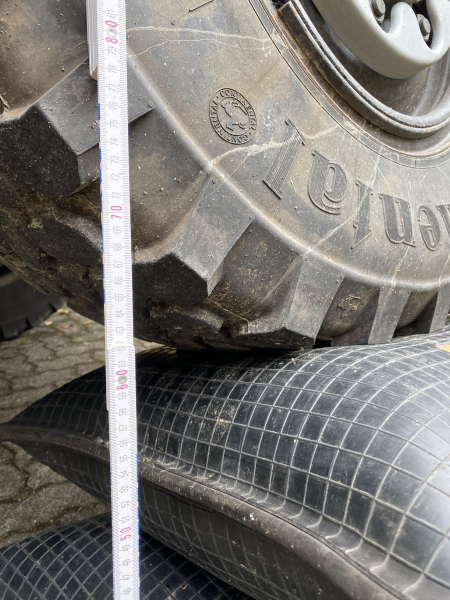

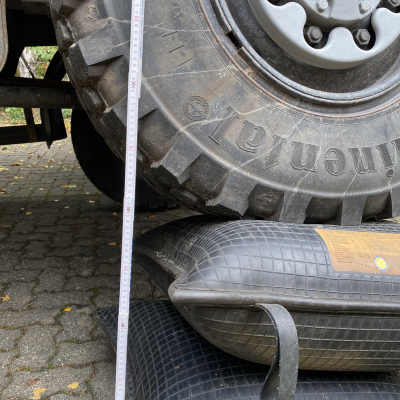

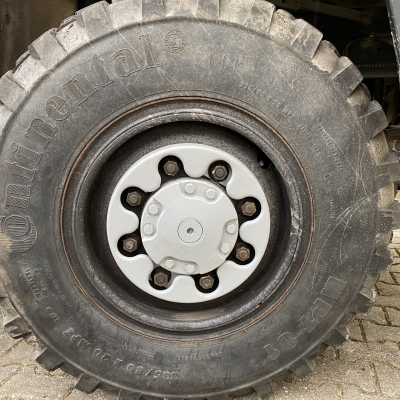

| Tyre size | 20“ |
| Rim size | Sprengring |
| Type of tyre | MPPT |
| Tank capacity | 100l |
| Diesel filter | no |
| Other | |
| Filter und mehr Tankvolumen wird noch kommen. | |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Hinten quer und Mitte längs |

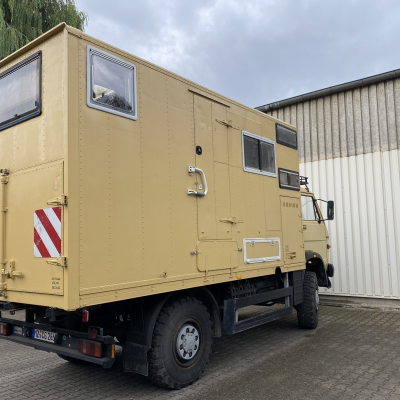

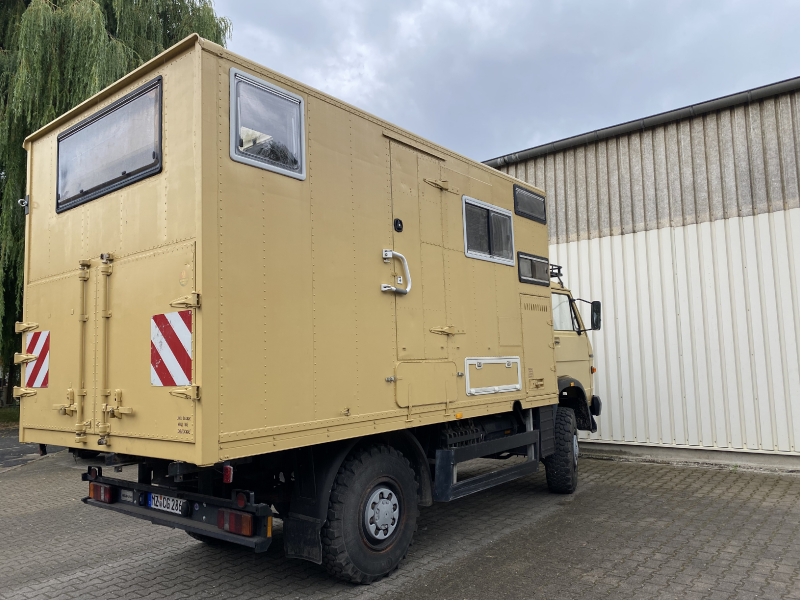

| Manufacturer of the cabin | Hegla |
|---|---|
| Inner dimensions (LxWxH) | 460cm x 240cm x 190cm |
| Outer dimensions (LxWxH) | 480cm x 250cm x 250cm |
| Cabin material | Alu |
| Kind and thickness of insulation | Wände und Decke 50mm Boden 80mm |

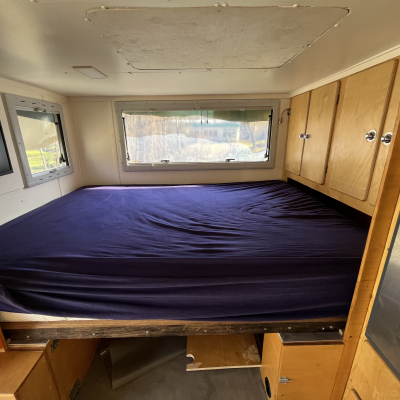

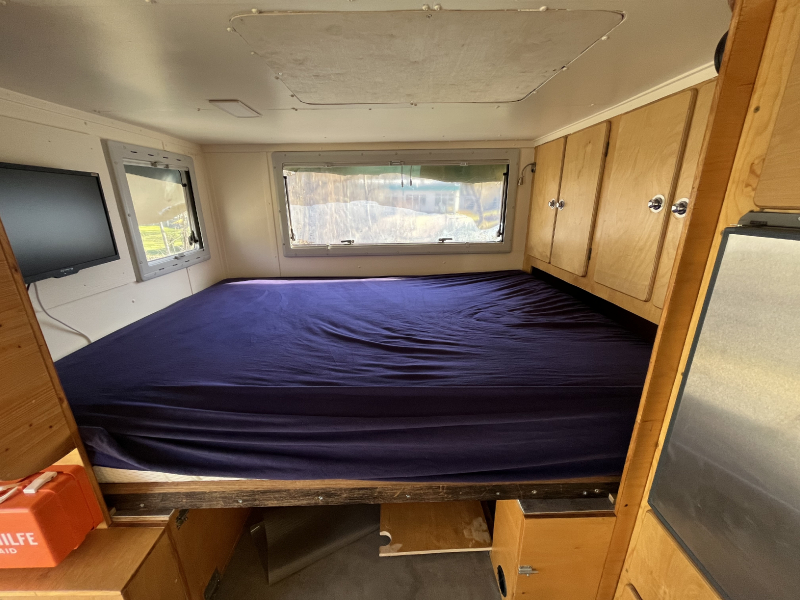

| Number of beds | 3 |
| Windows | 7x Seitz S5 |
| Other | |
| Der Aufbau hat einen doppelten Boden in dem die Technik ihren Platz hat. | |

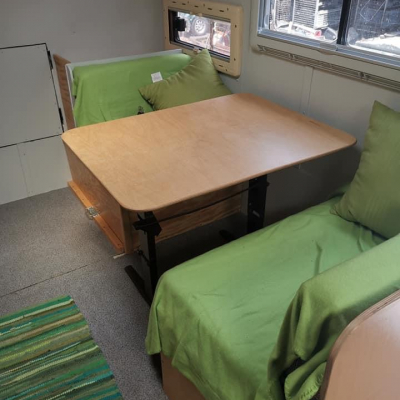

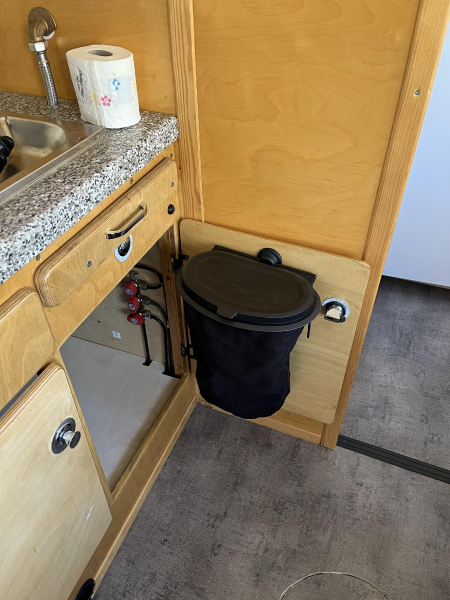

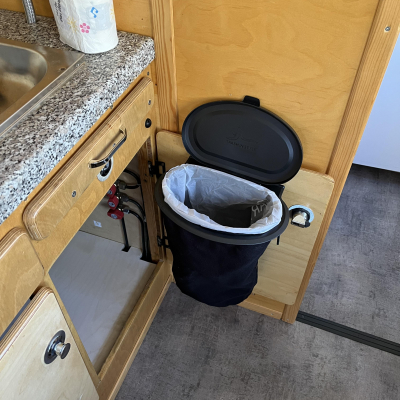

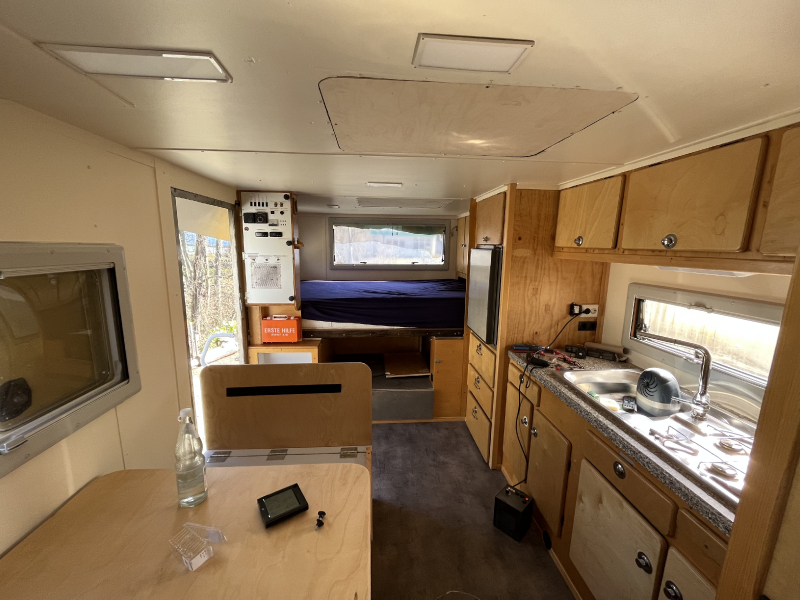

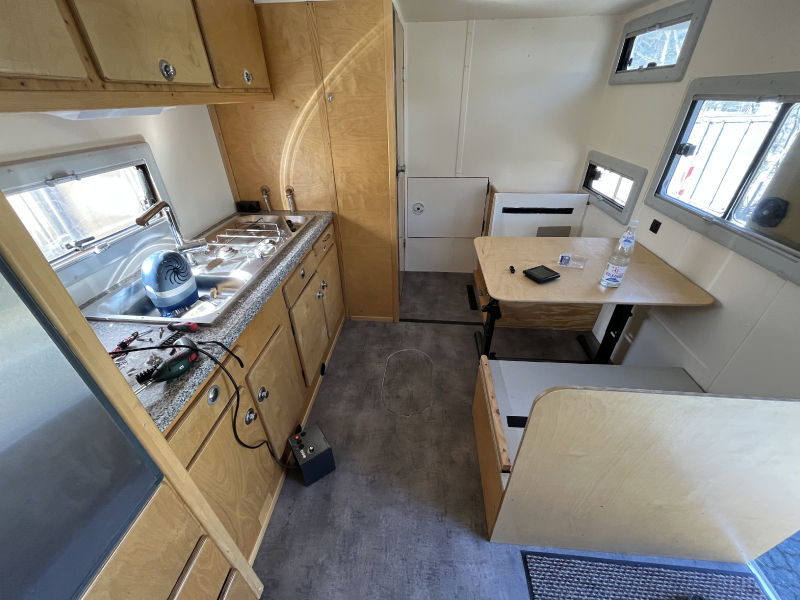

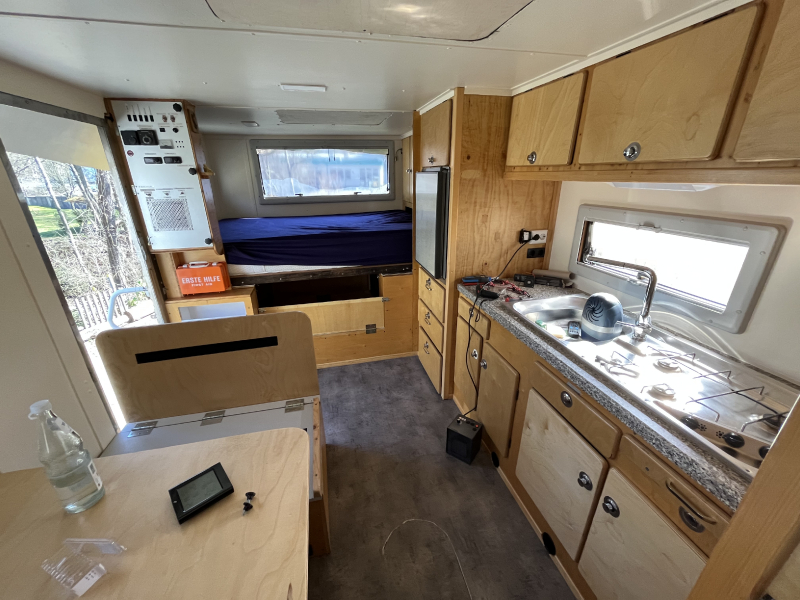

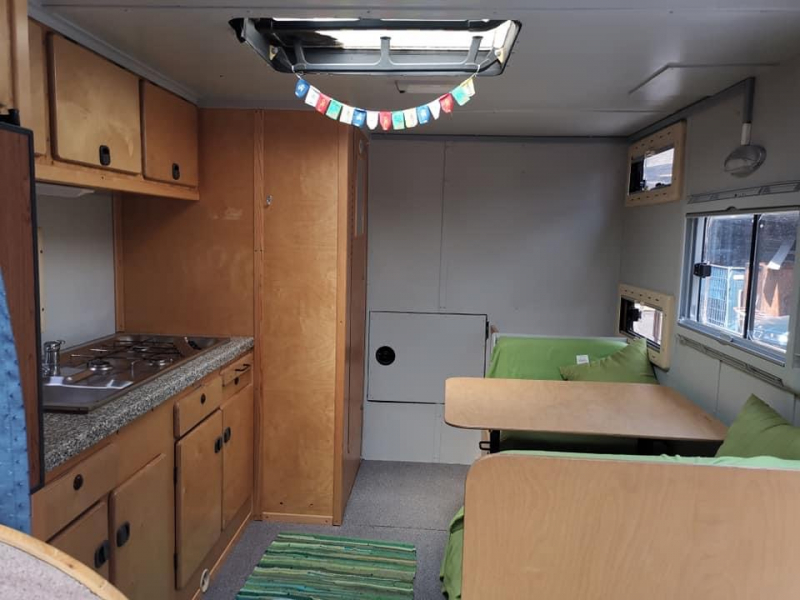

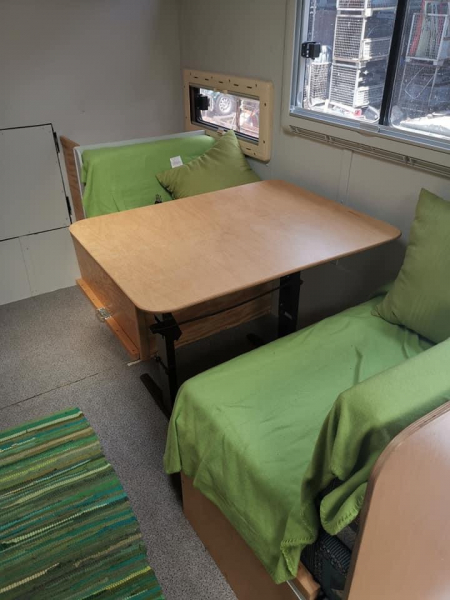

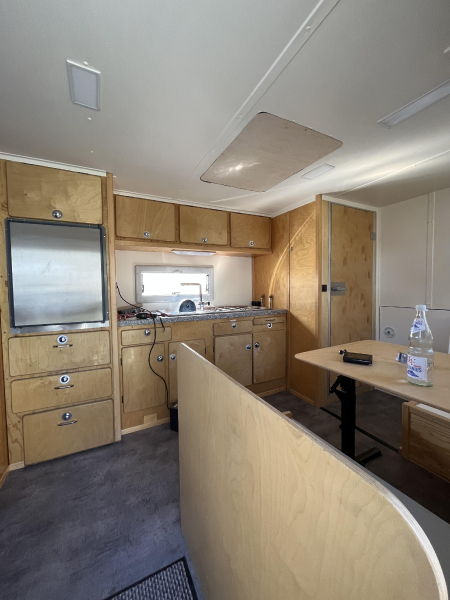

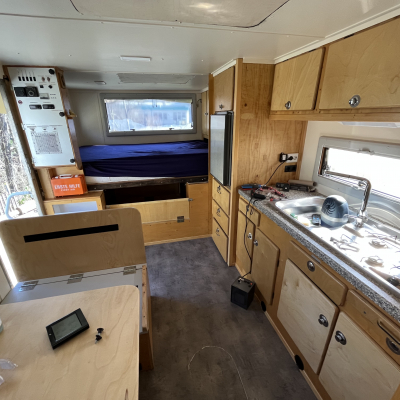

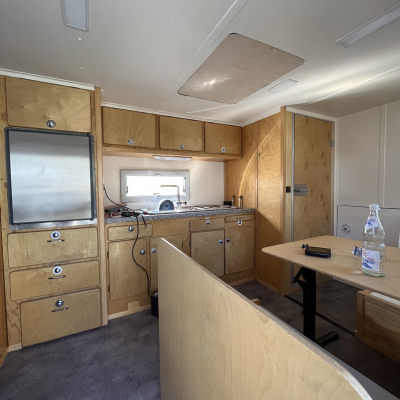

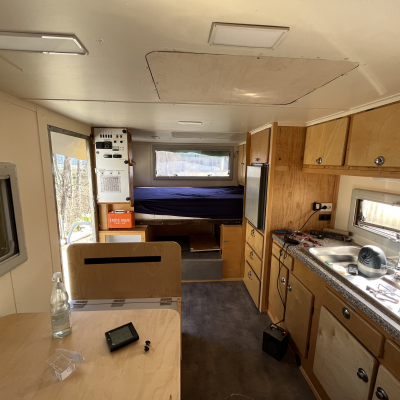

| Material of furniture | Birke Schichtverleimt |
|---|---|
| Other | |

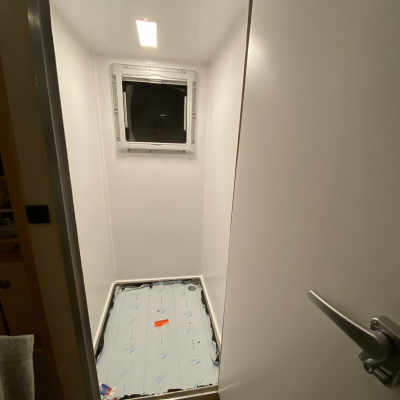

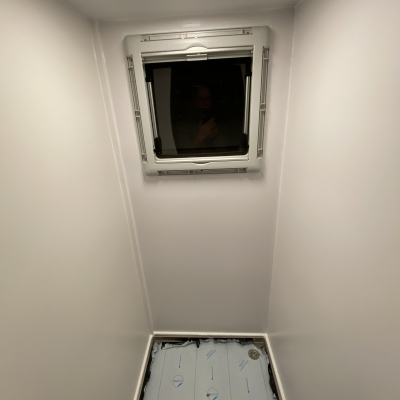

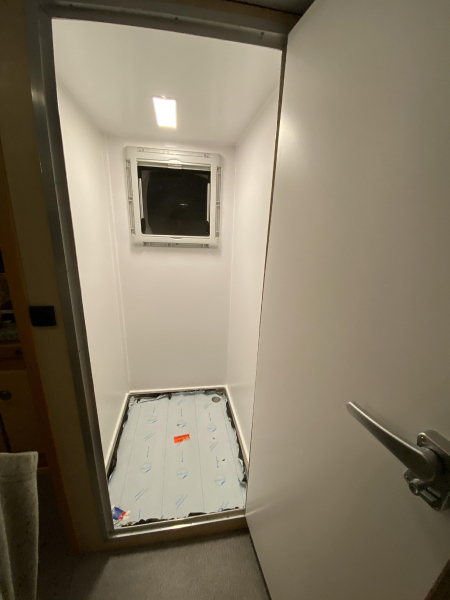

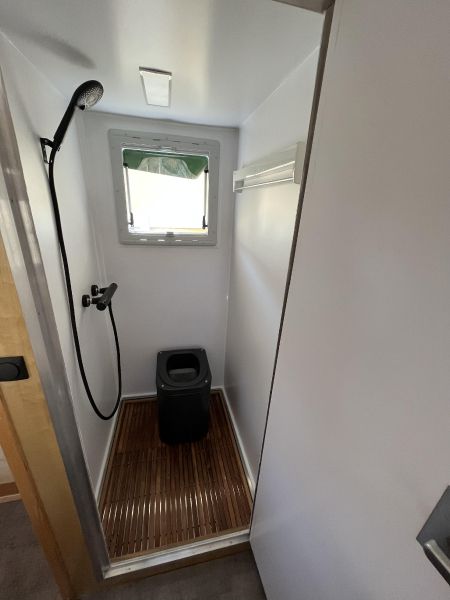

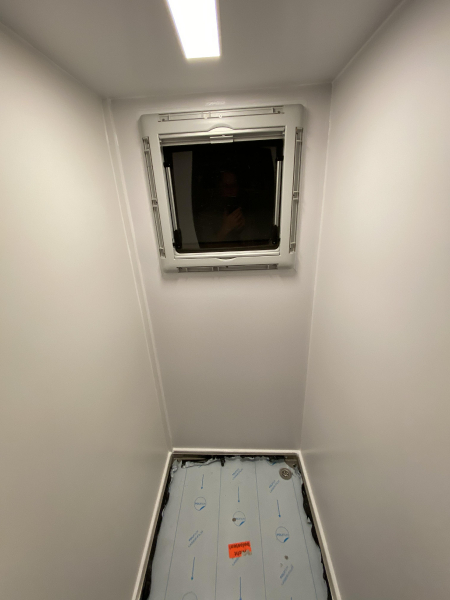

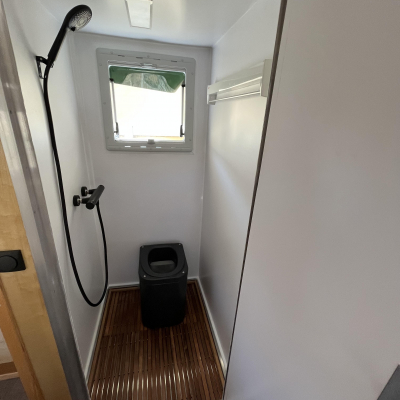

| Nasszelle neu gemacht aus 3mm PVC Hartschaumplatten mit Edelstahl Duschtasse welche 2 diagonal angeordnete Abläufe hat. | |

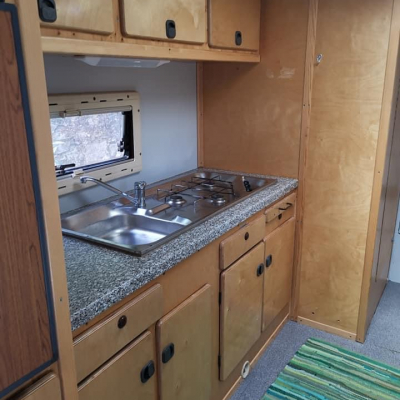

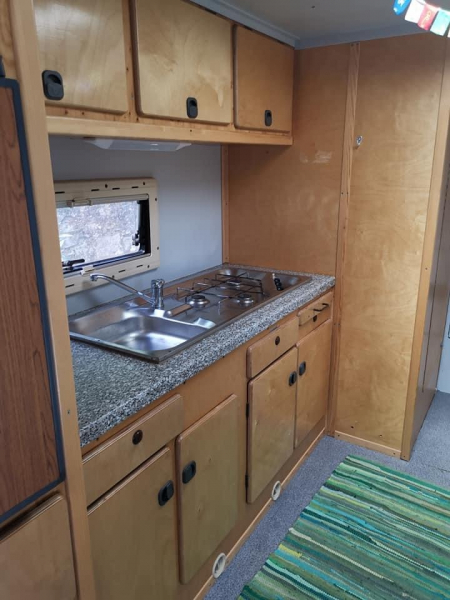

| Cooking stove | 3 Flammig |
|---|

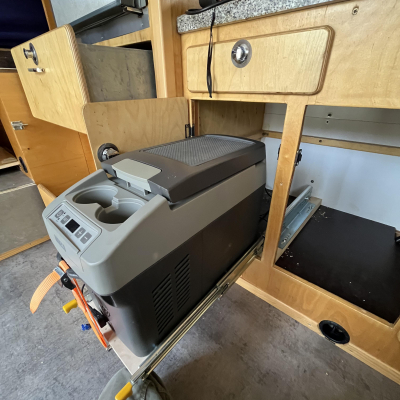

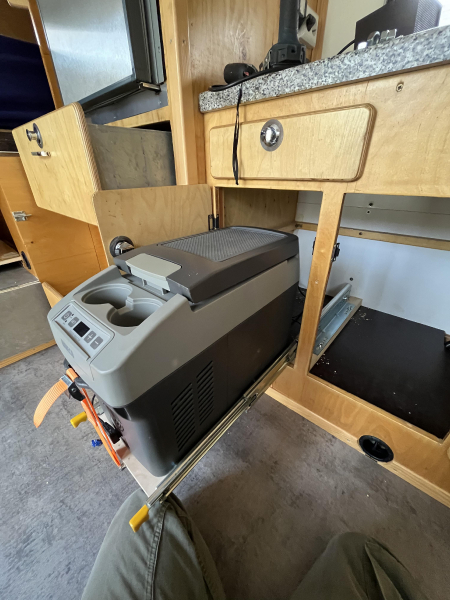

| Manufacturer and type of fridge / cooler | Dometic Kompressor |
|---|
| Voltage in the chassis | 24v |
|---|---|
| Voltage in the cabin | 12 |
| Charging converter 24V-12V | Victron |
| 110V / 230V in the cabin? | yes |
| Inverter | Victron 3000w |
| Capacity of batteries in the cabin | 280ah |
|---|---|
| Battery type | Gel |
| Battery charger for cabin batteries | Victron 24/100 |
| Battery management | Victron |

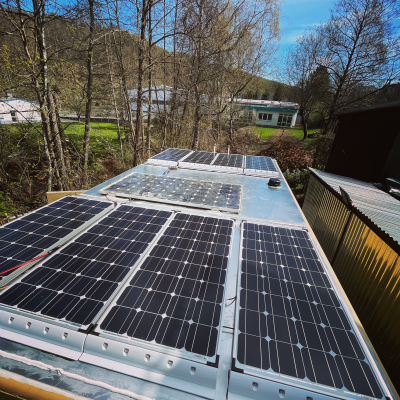

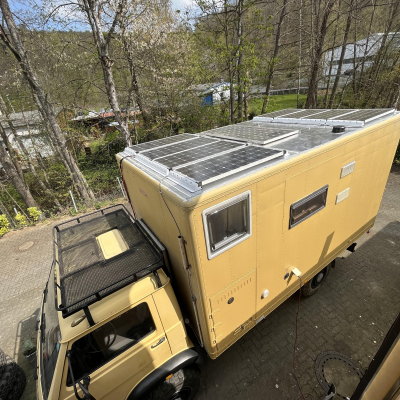

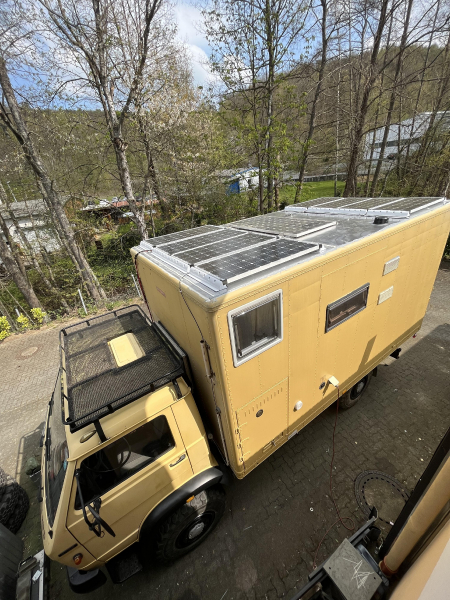

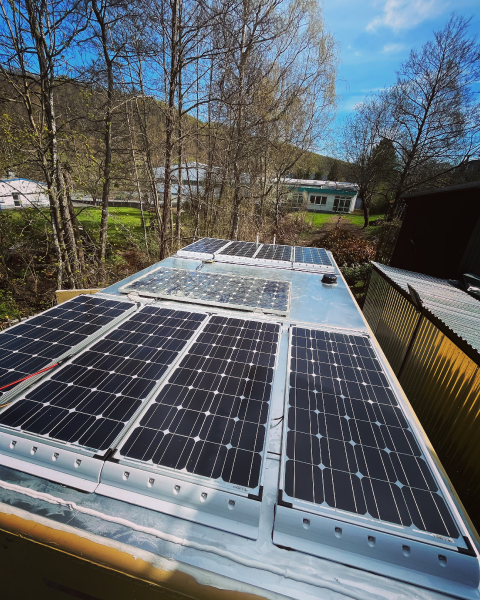

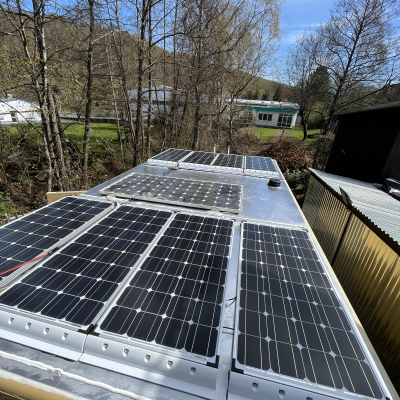

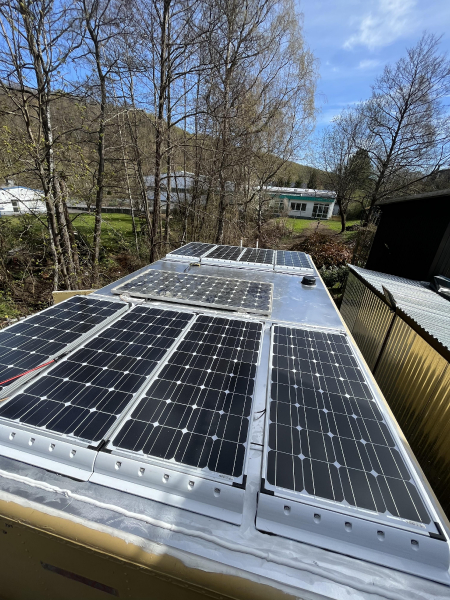

| Solar capacity | Ca. 900 Watt |
|---|---|
| Solar controller | Victron |
| Fuel cell | no |
| Manufacturer and type of heating system | Truma Combi 6 und 2x Autoterm 2D |
|---|---|
| Warm water processing | Ja |
| Cab heating | Autoterm Flow 5 |
| Water filtration system | 3 Stufiger Begüllfilter + entnahme Filter von Alb (Aktivkohle und Bakterien stopp) |
|---|---|
| Capacity of fresh water tank(s) | 200l |
| Capacity of waste water tank(s) | 100l |

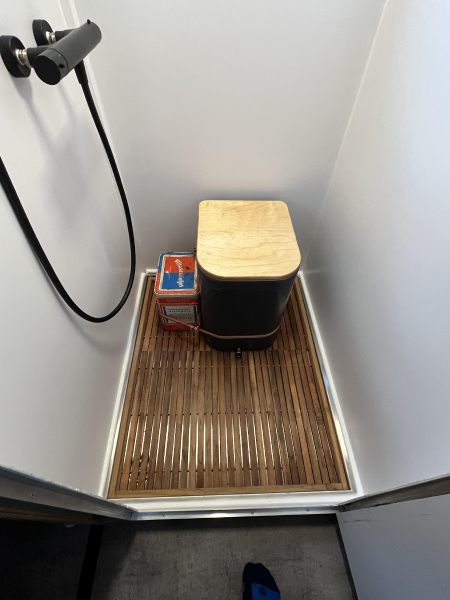

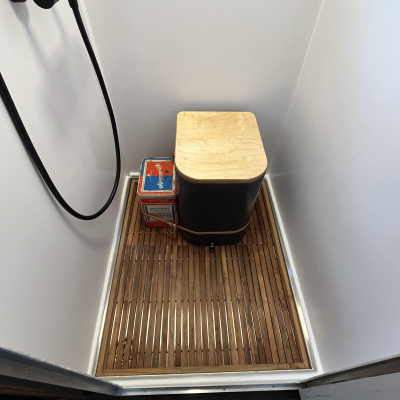

| Manufacturer and type of toilet | Trelino L |
|---|
| Rear carrier | — |
|---|---|
| Roof rack | Ja |
| Storage boxes | eine |
| Outside cooking facilities | — |
| Awning | — |
