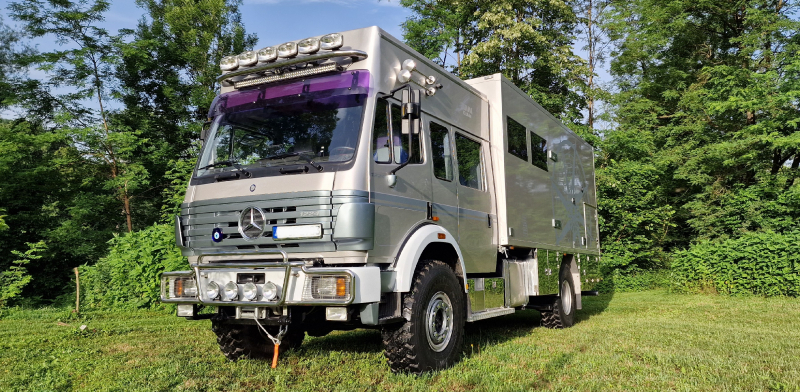

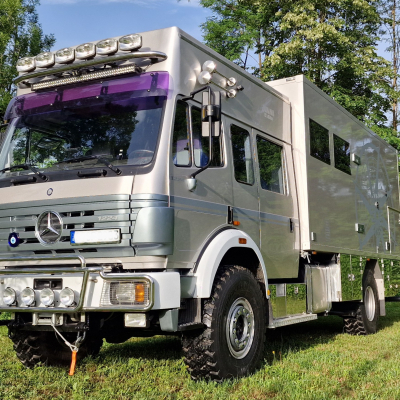

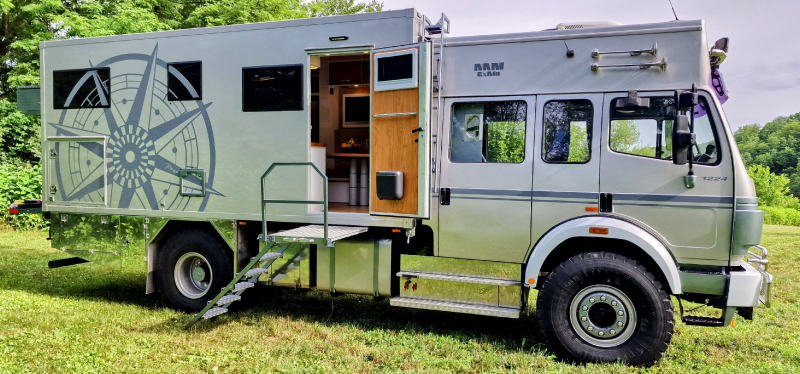

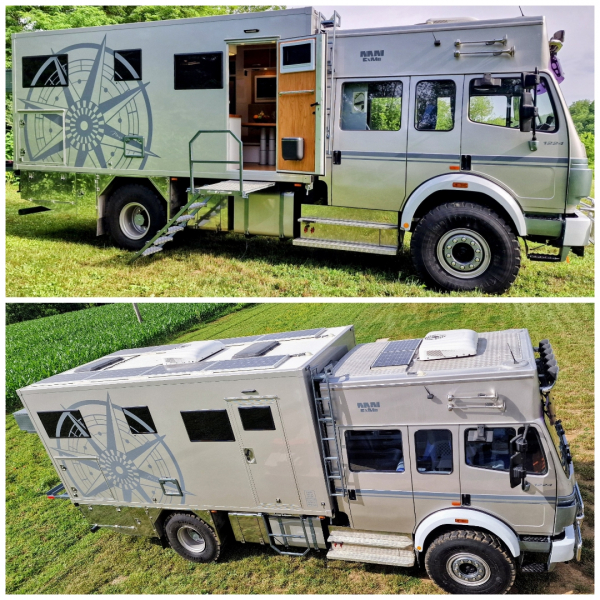

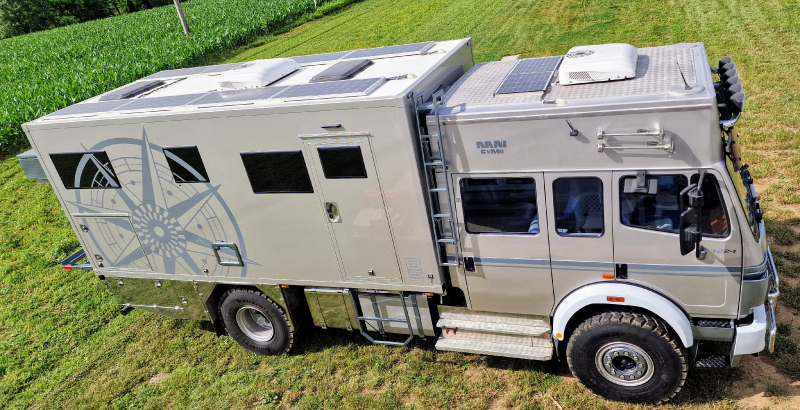

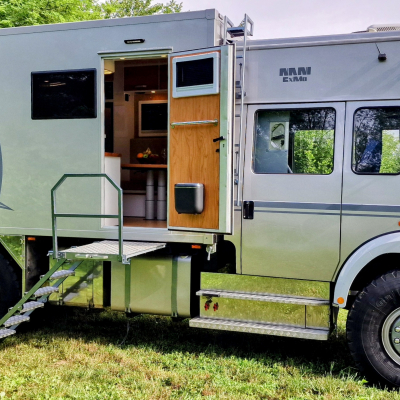

Fire engine to expedition mobile
| Manufacturer and model | Mercedes Benz 1224AF |
|---|---|
| Name | Chris |
| Country | Germany |
| Website | https://www.youtube.com/watch?v=tC8i9YcmZWI |
| Year of manufacture | 2023. Chassis 1997 |
| For sale? | yes |
| Asking price? | POA |

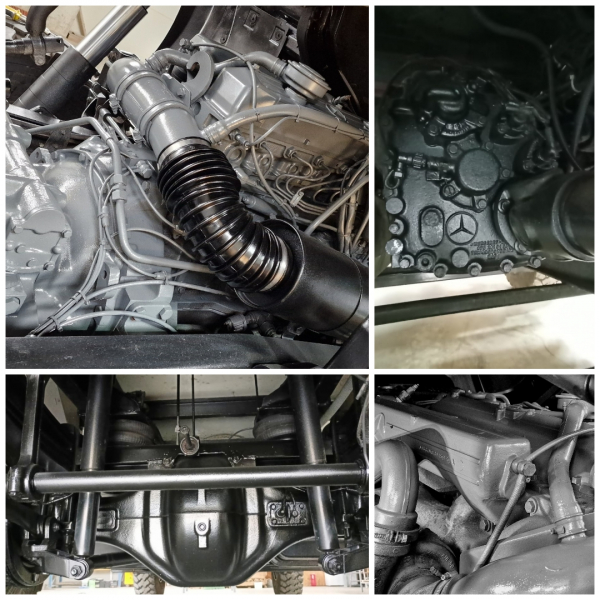

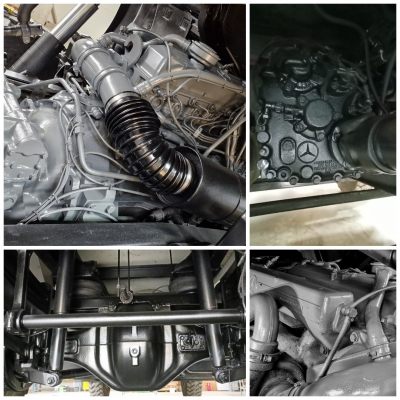

| Engine type | OM366 |
|---|---|
| Cubic capacity | 5,6l |
| Number of cylinders | 6 |
| Horsepower | 241 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 4.930mm (extended from 3.600mm) |

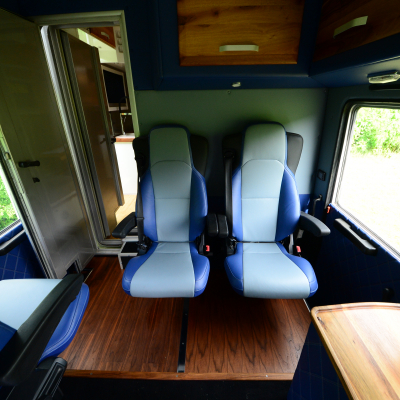

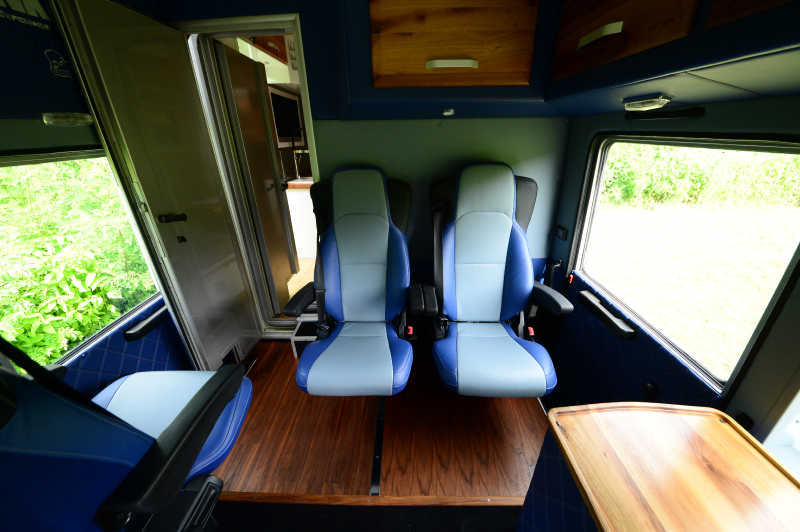

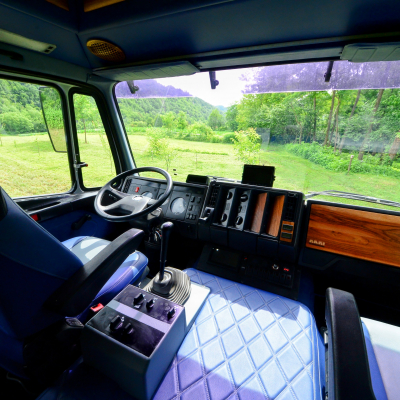

| Number of seats | 5 |
| Tyre size | 14:00R20 |
| Rim size | 10.00V-20 |
| Type of tyre | Continental HCS |
| Tank capacity | 800l |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | Permanent |
| Diff locks | Centre/rear |
| Outer dimensions (LxWxH) | 5.500x2.300x2.500 |
|---|---|
| Cabin material | High density XPS Sandwich |
| Kind and thickness of insulation | Sidewalls 60mm. Roof and flooring 80mm |

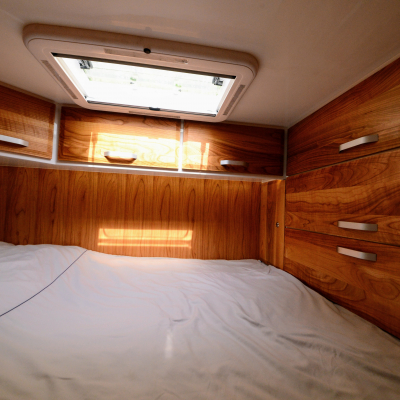

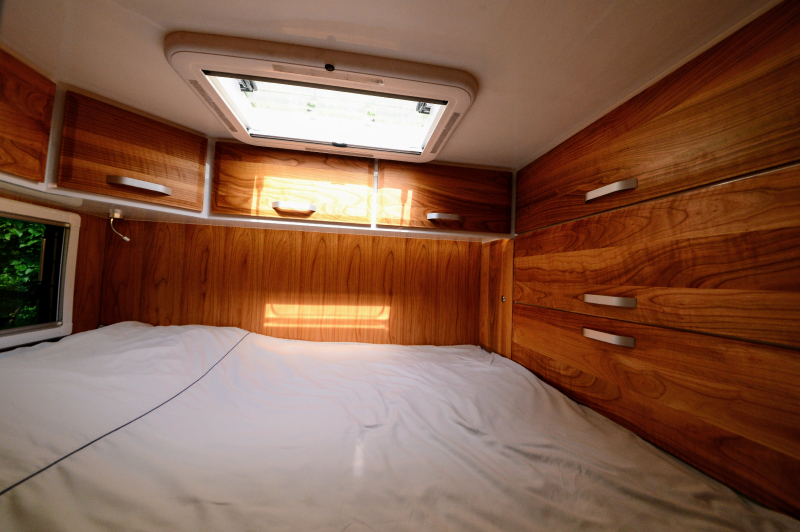

| Number of beds | 4/5 |
| Windows | 6 |
| Subframe | Spring loaded |

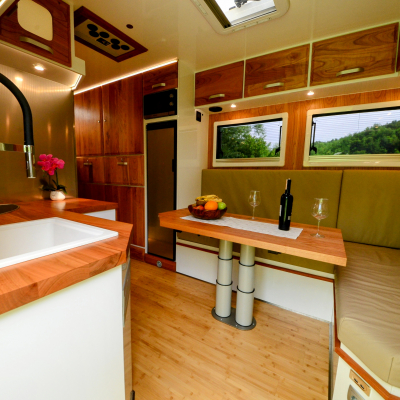

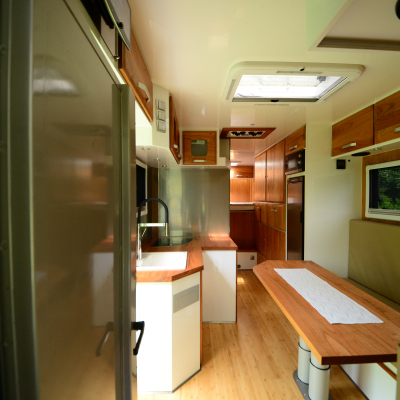

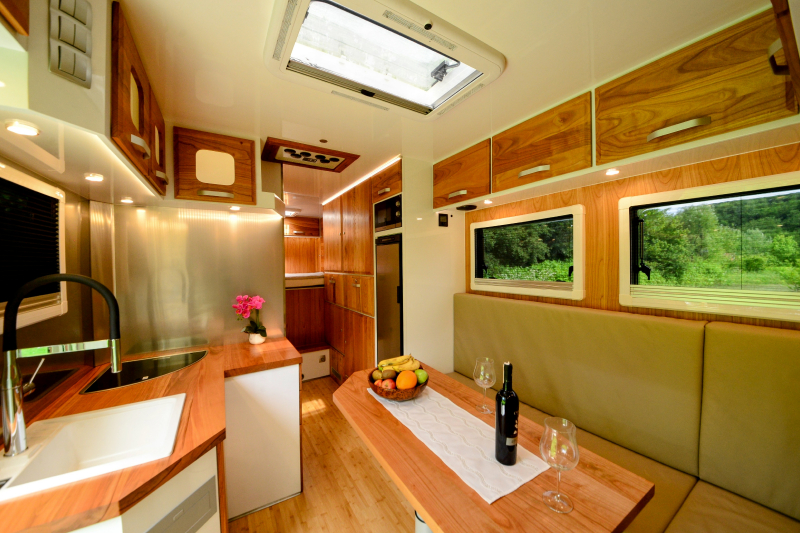

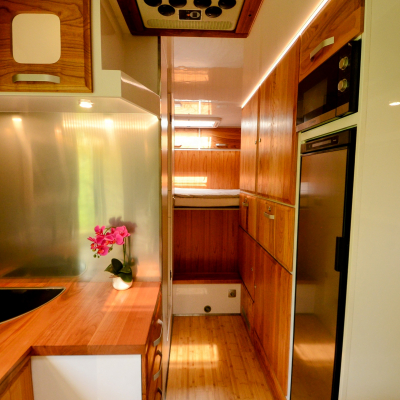

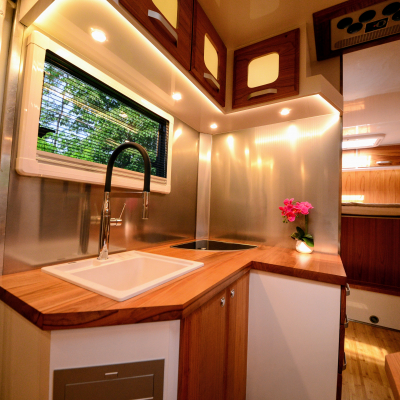

| Material of furniture | All fronts solid wood. Cherry and walnut. Natural wood veneer throughout |
|---|

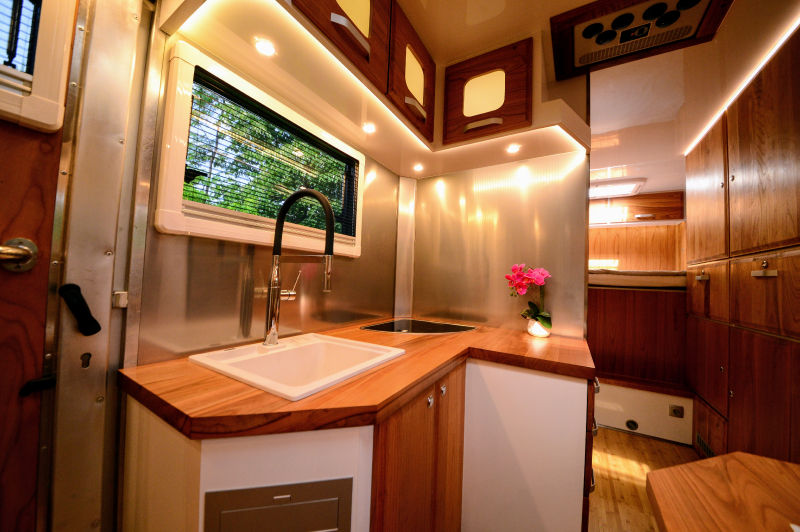

| Cooking stove | Dometic |
|---|---|
| Gas installation | Yes |

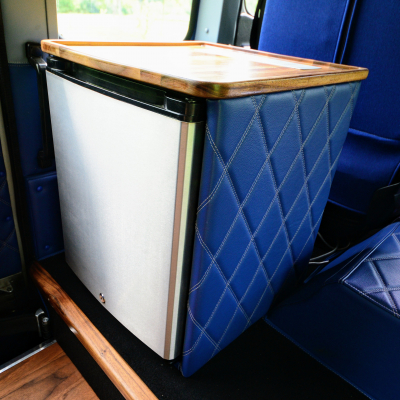

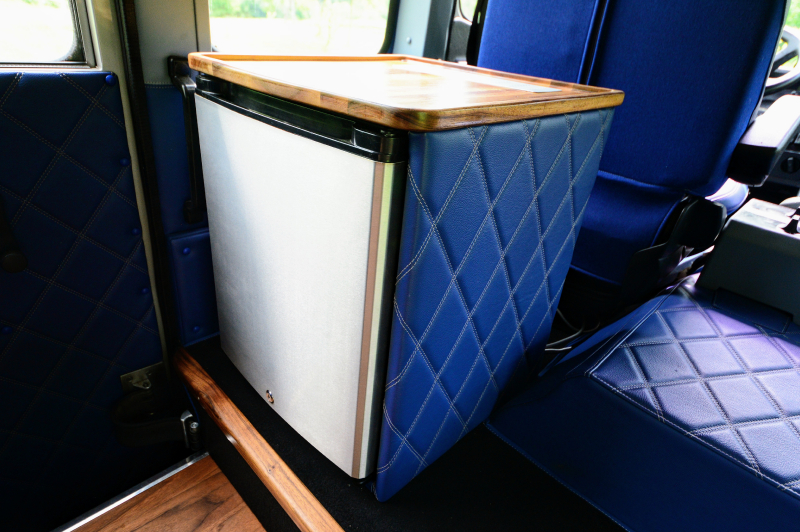

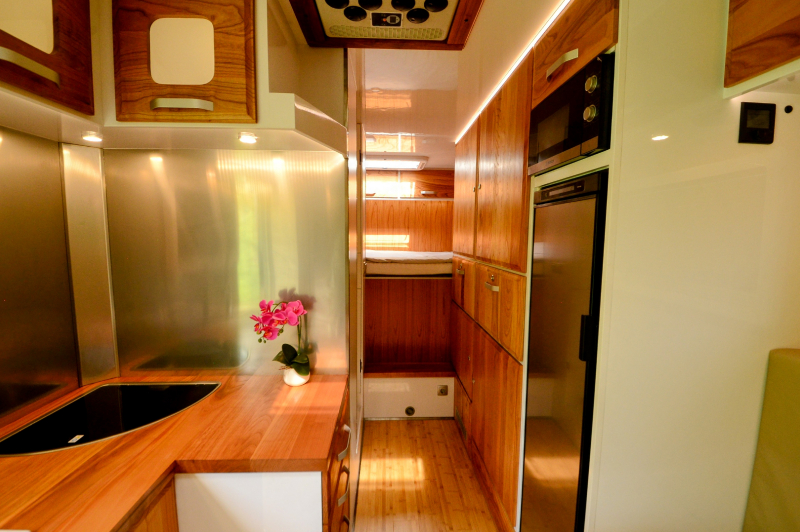

| Manufacturer and type of fridge / cooler | Thetford 12v 220v and gas |
|---|
| Voltage in the chassis | 24v |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | Fraron |
| 110V / 230V in the cabin? | yes |
| Inverter | 4000W |
| Capacity of batteries in the cabin | 400ah |
|---|---|
| Battery type | LiFePO4 deep cicle |
| Battery charger for cabin batteries | Victron |
| Battery management | Victron and Fraron |

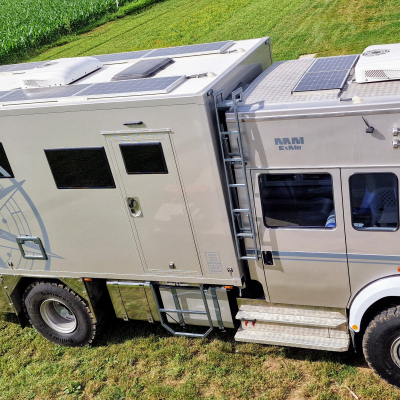

| Solar capacity | 1.000WP 12v and 100WP 24v |
|---|---|
| Solar controller | Victron |
| Fuel cell | no |
| Manufacturer and type of heating system | JP Heater |
|---|---|
| Warm water processing | JP Heater |
| Other | |

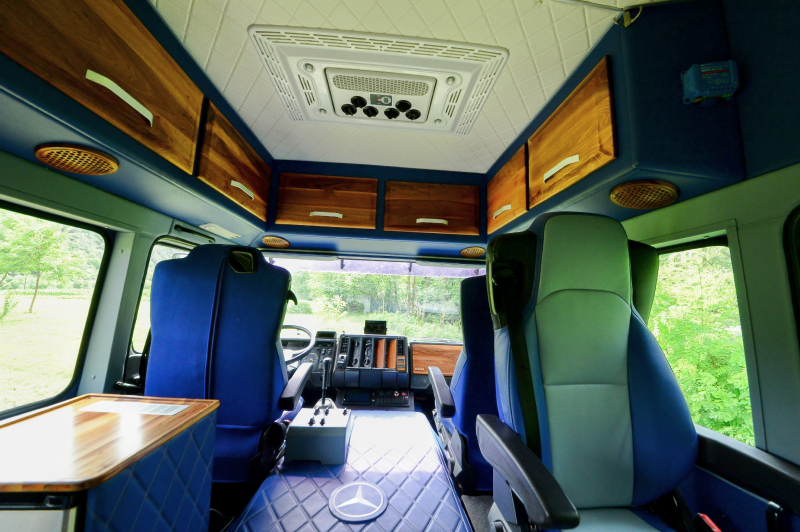

| Air conditioning front and rear. Two units with 3.000 Watts cooling capacity each | |
| Explanation of gas system | |
|---|---|
| 100kg chassis-mounted gas tank |
| Capacity of fresh water tank(s) | 650 Litres stainless steel tank |
|---|---|
| Capacity of waste water tank(s) | 250 Litres stainless steel tank |

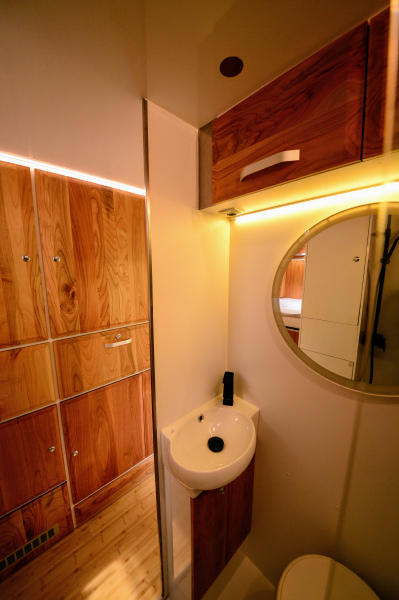

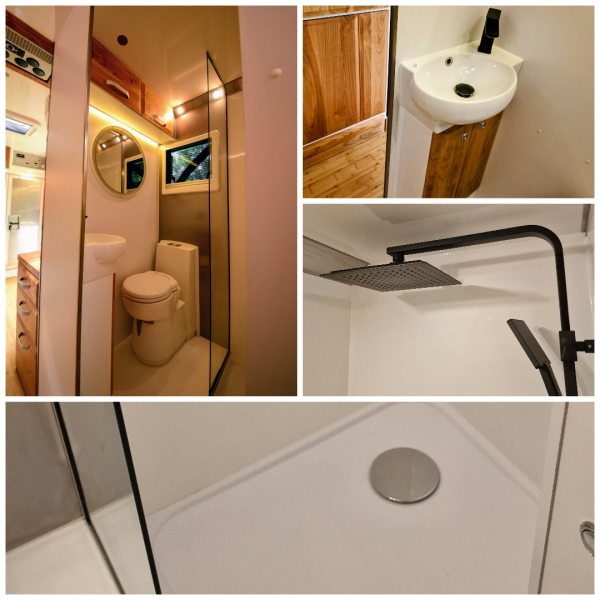

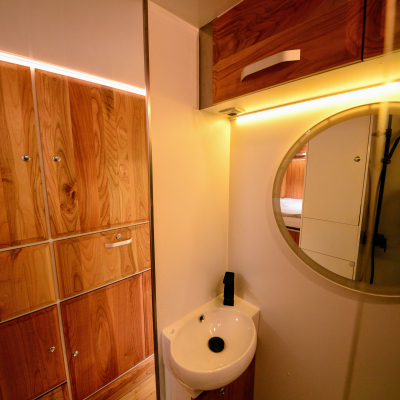

| Manufacturer and type of toilet | Therford Ceramic |
|---|---|
| Capacity of black water tank | 13l |

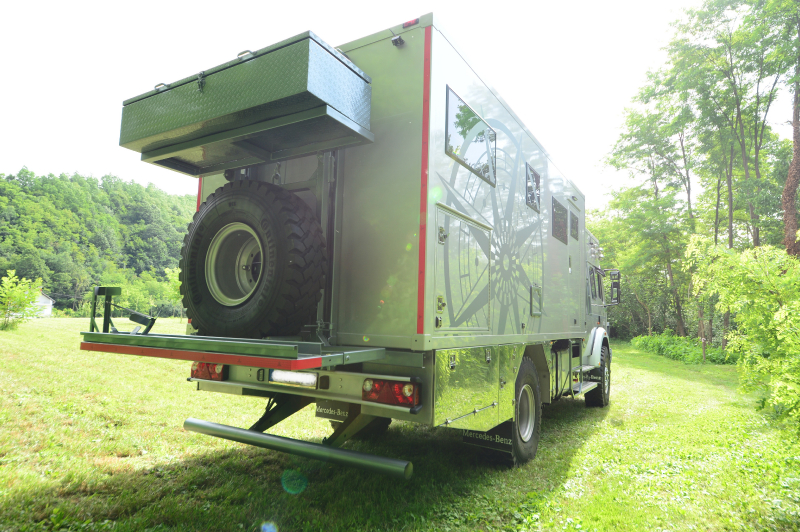

| Rear carrier | For spare wheel and motorcycle. Capacity 1.000kg |
|---|---|

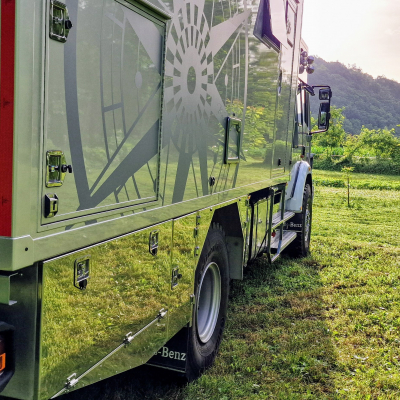

| Storage boxes | 11 Storage boxes. Bodies made of aluminium. Doors made of stainless steel |
