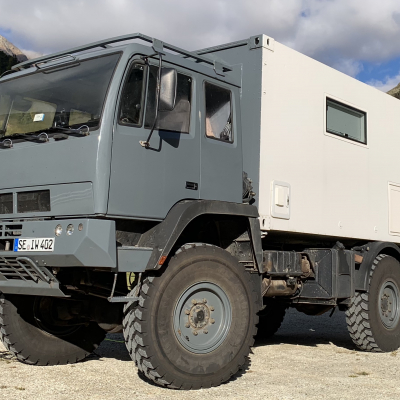

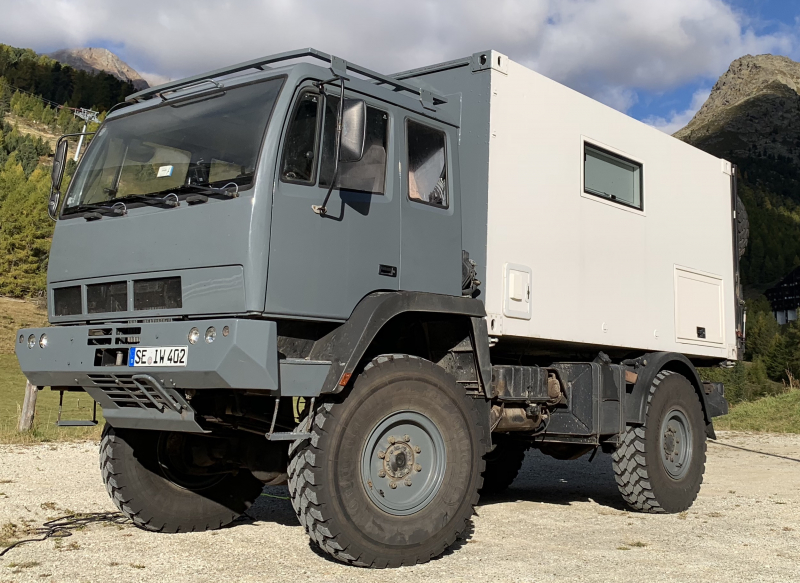

Aufbau Zeppelin FM2 auf Steyr 12M18

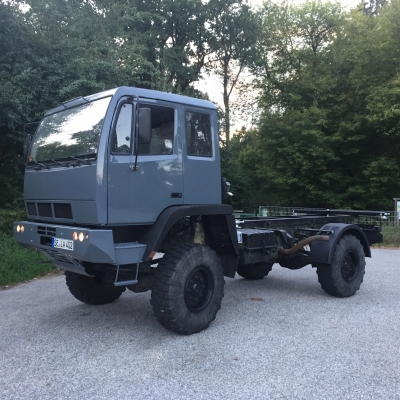

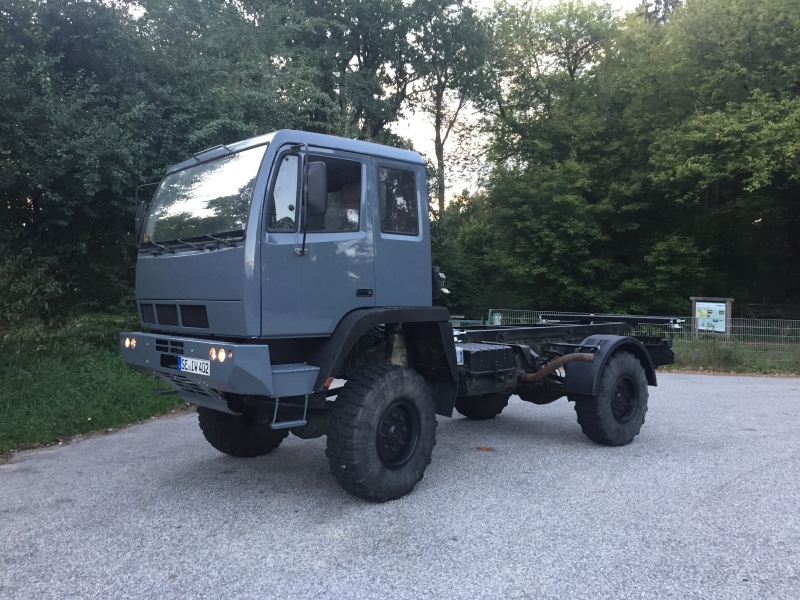

| Manufacturer and model | Steyr 12M18 |
|---|---|
| Name | Christian Waldow |
| Year of manufacture | 1987 |
| For sale? | no |
| Engine type | Diesel |
|---|---|
| Cubic capacity | 6600 |
| Number of cylinders | 6 |
| Horsepower | 180 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Number of seats | 2 |
| Tyre size | 14.5 R 20 |
| Rim size | Stahl |
| Tank capacity | 180 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | 3 |
| Manufacturer of the cabin | Zeppelin |
|---|---|
| Inner dimensions (LxWxH) | 4,10 x 2,06 |
| Cabin material | Sandwich |
| Kind and thickness of insulation | 60 mm |
| Number of beds | 3-4 |
| Windows | Outbound |

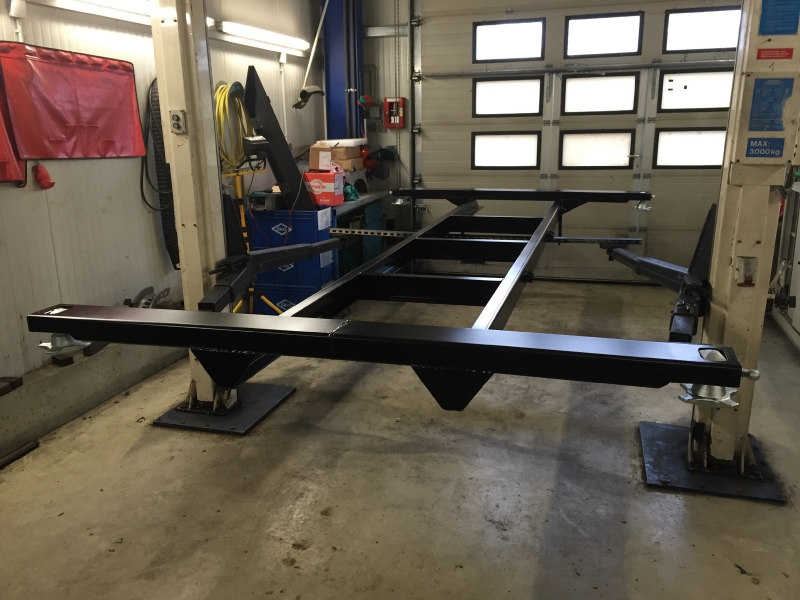

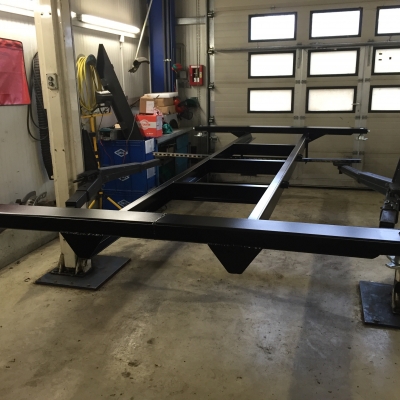

| Subframe | Fest verschraubt später Federlagerung Eigenbau |

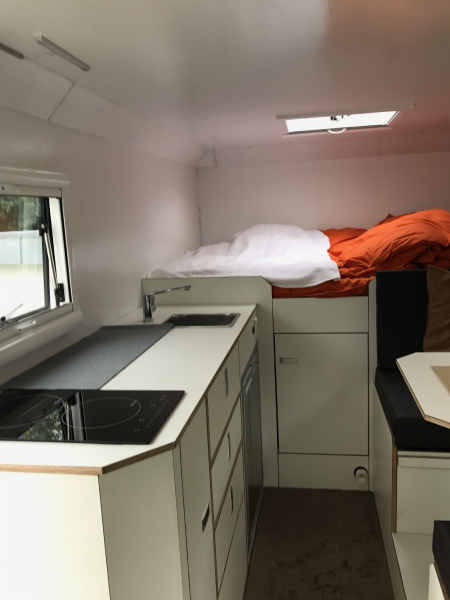

| Material of furniture | 16 mm Multiplex HPL beschichtet |
|---|

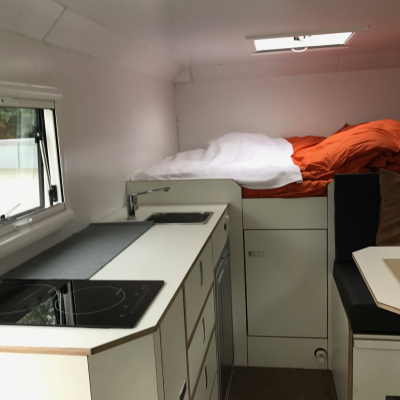

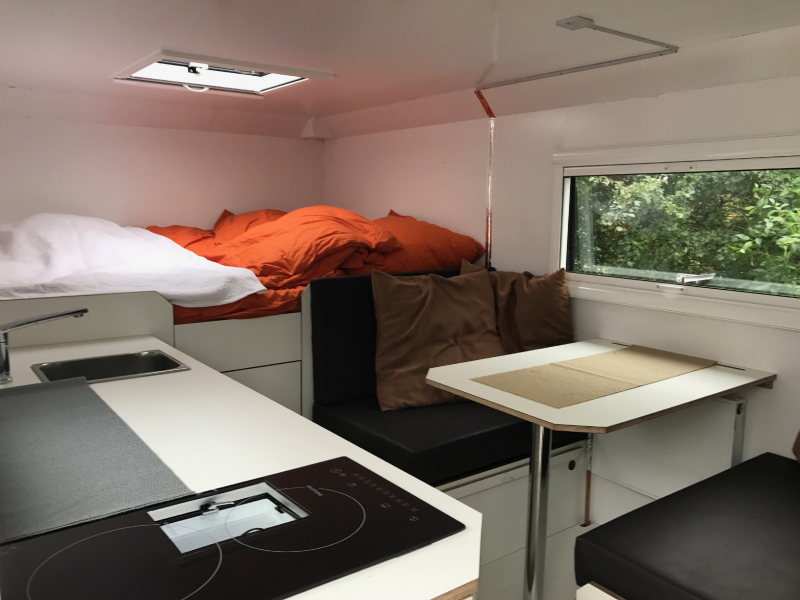

| Cooking stove | Induktionskochfeld 2-flammig |
|---|---|
| Gas installation | Keine |
| Manufacturer and type of fridge / cooler | Waeco CDX 110 |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24 |
| Charging converter 24V-12V | Voitronic 24/12 25A |
| 110V / 230V in the cabin? | no |
| Inverter | Victron Phoenix |
| Capacity of batteries in the cabin | 520 Ah |
|---|---|
| Battery type | Varta deep cycle Agm |
| Battery charger for cabin batteries | Mastervolt |
| Battery management | Philippi |
| Other | |
| in Arbeit | |
| Solar capacity | Bisher noch nicht |
|---|---|
| Fuel cell | no |
| Manufacturer and type of heating system | Eberspächer M10 Diesel Wasserheizgerät |
|---|---|
| Warm water processing | Über Heizgerät mit Isotemp 24 l Boiler |
| Cab heating | Warmwasserheizung mit Wandheizkörper und Badheizkörper. Eine Heizschlange durch Laderaum und Fußboden. |
| water flow | Shurflo Pumpe mit kleinem Expansionsgefäß |
|---|---|
| Water filtration system | kein |
| Capacity of fresh water tank(s) | 420 Liter |
| Capacity of waste water tank(s) | 105 |

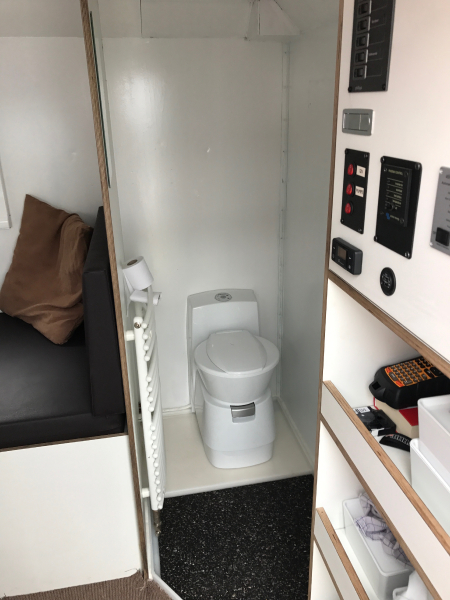

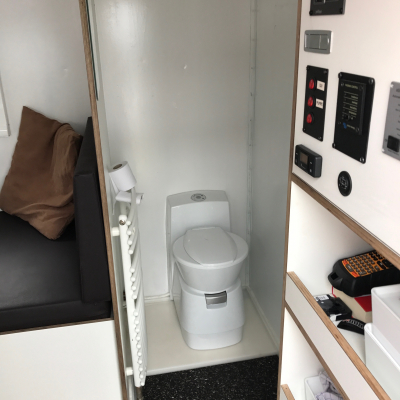

| Manufacturer and type of toilet | Dometic Kassettentoilette |
|---|
