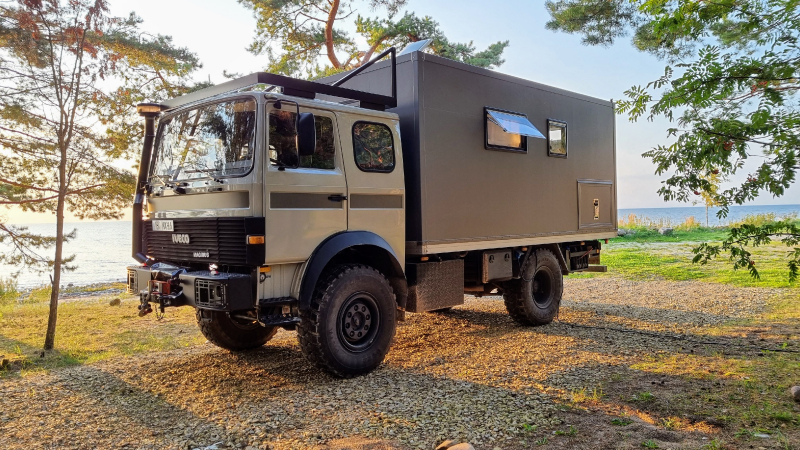

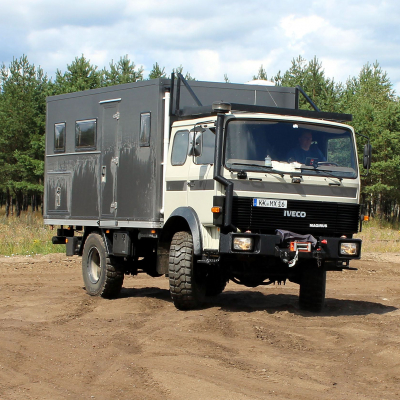

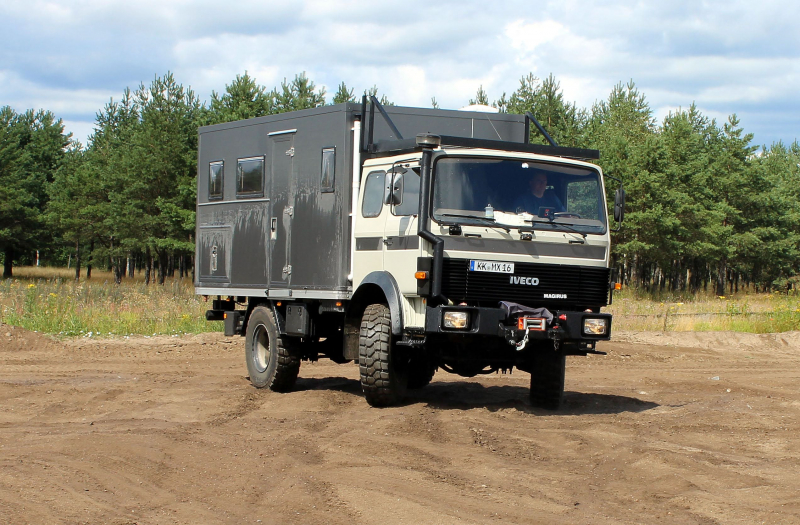

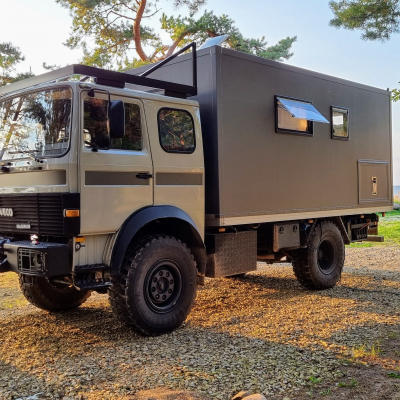

Iveco 90-16, 7,5to, ehemalige Feuerwehr, gekürte Maschaftskabine, Zwischenahmen, Aufbau WM Meyer, Innenausbau u.a. Heidenreich Küchen, Stehhöhe 205cm, Doppelbertt 140*200cm, 80x80cm Dusche, 200l Frischwasser, 200l Abwasser, Trockentrenntoilette, 40l Urintank, 4KW autoterm Dieselheizung mit Warmwasserboiler, Fußbodenheizung 230V, DFF Feder und Stoßdämpfer, gasfrei, 280 AH 24 V LiFePo, 2500W Inverter, 400W Solar, victron Laderegler, Victron Ladegerät, victron Messshunt, votronic Ladebooster, keine sichtbaren Anzeigen (alles bluetooth), Aufbau Vollfolierung Grau matt metallic.
| Manufacturer and model | Iveco 90-16 7,5to |
|---|---|
| Name | Christian & Katja Mix |
| Year of manufacture | 1990 Aufbau 2019 |
| For sale? | no |
| Asking price? | Nein |
| Engine type | BF6L913 |
|---|---|
| Cubic capacity | 6128 cm² |
| Number of cylinders | 6 |
| Horsepower | 160 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3,5 |

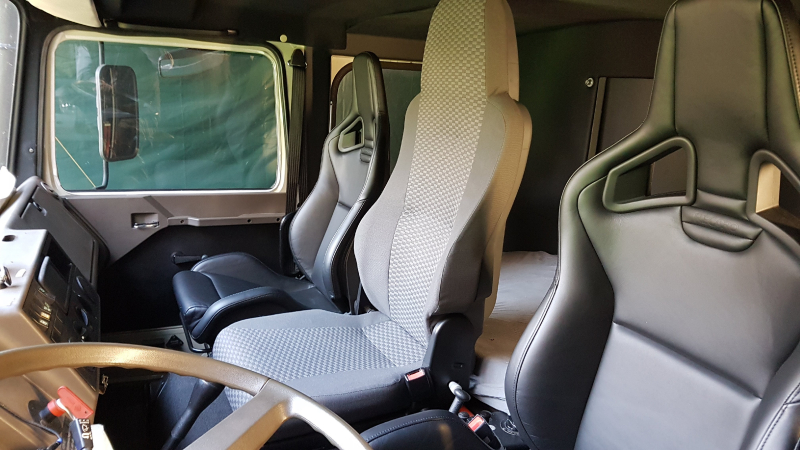

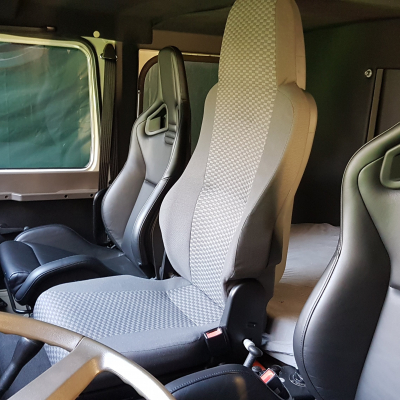

| Number of seats | 3 |
| Tyre size | 365 85 R20 |
| Rim size | ET70 |
| Type of tyre | Pirelli Pista PS 22 |
| Tank capacity | 130+60 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | hinten und mittig |
| Manufacturer of the cabin | WM Meyer |
|---|---|

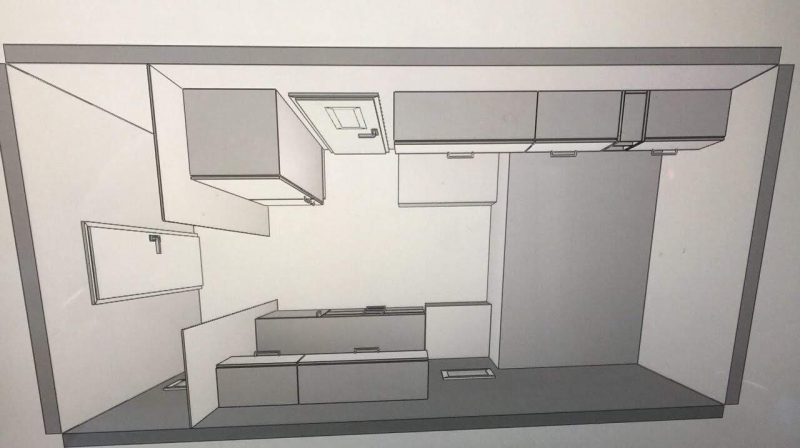

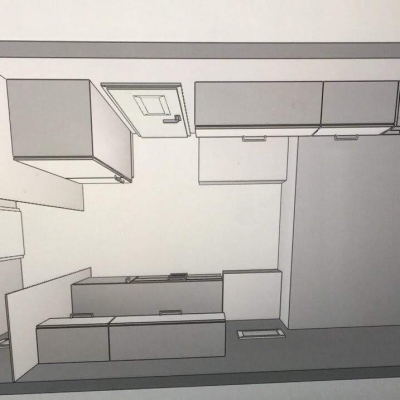

| Inner dimensions (LxWxH) | 470 x 220 x 193 cm |
| Outer dimensions (LxWxH) | 490 x 230 x 208 cm |
| Cabin material | GFK/PU/GFK |
| Kind and thickness of insulation | 40mm |

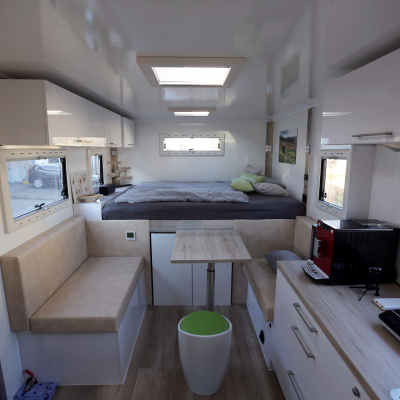

| Number of beds | 2 plus 1 Fahrerhaus |
| Windows | 6 Dometic S4 plus 2 Mini Heki Dach |

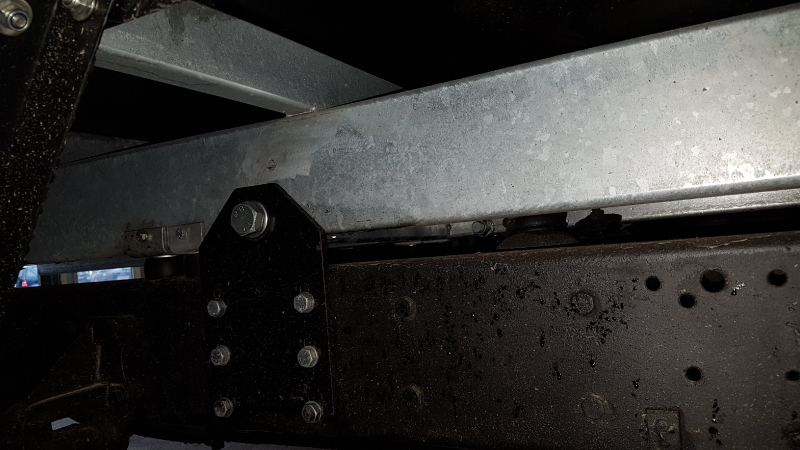

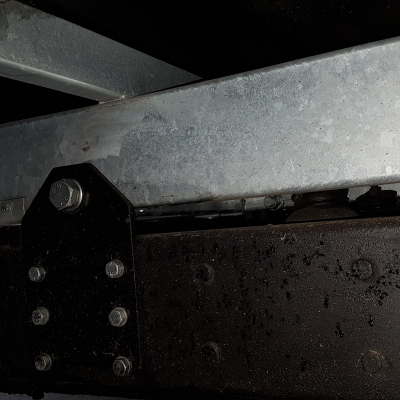

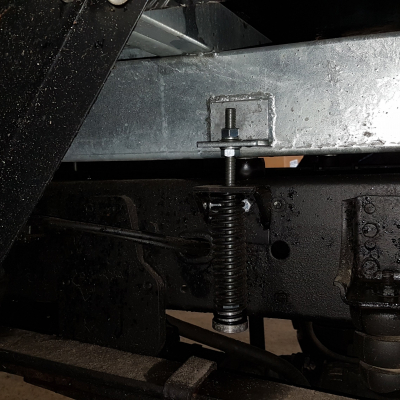

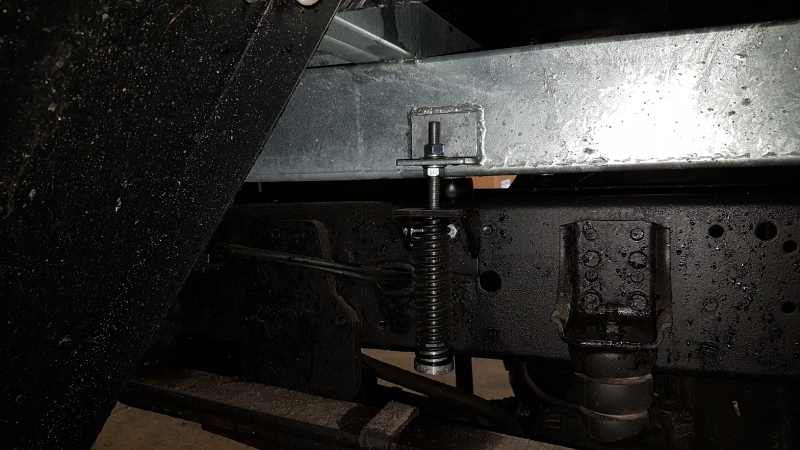

| Subframe | 4 Punkt federgelagert |

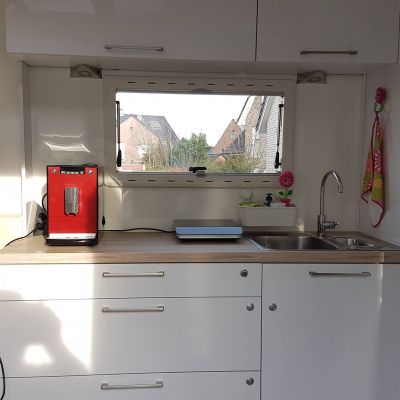

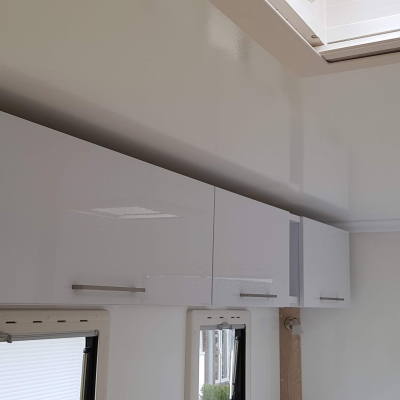

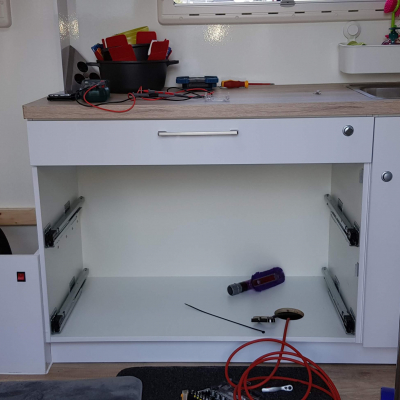

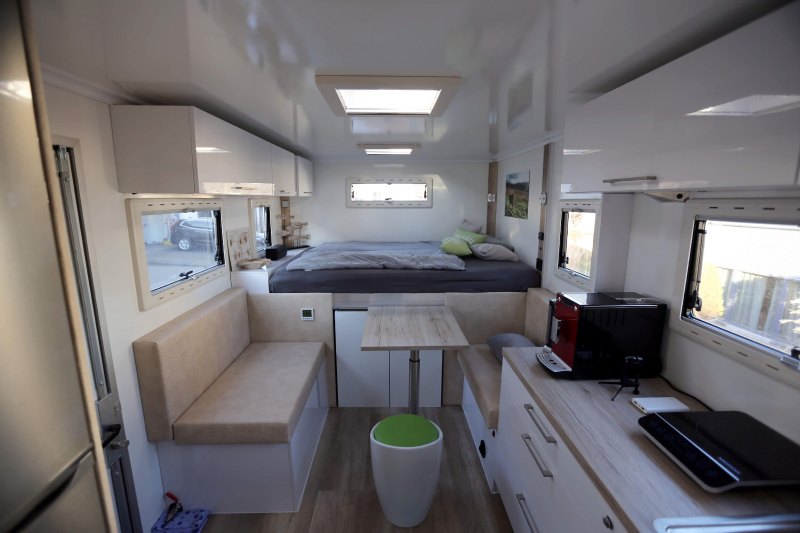

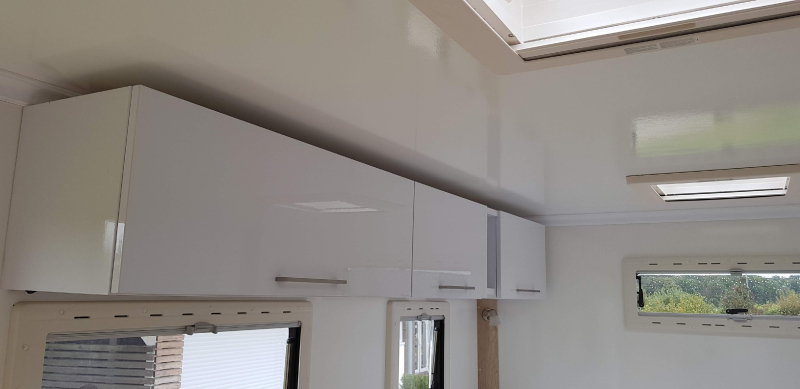

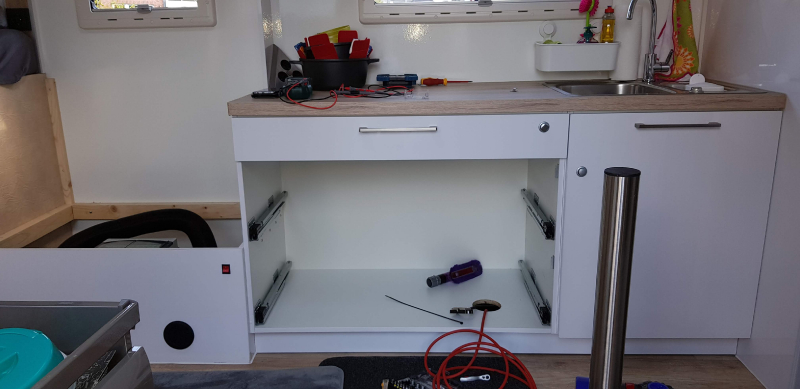

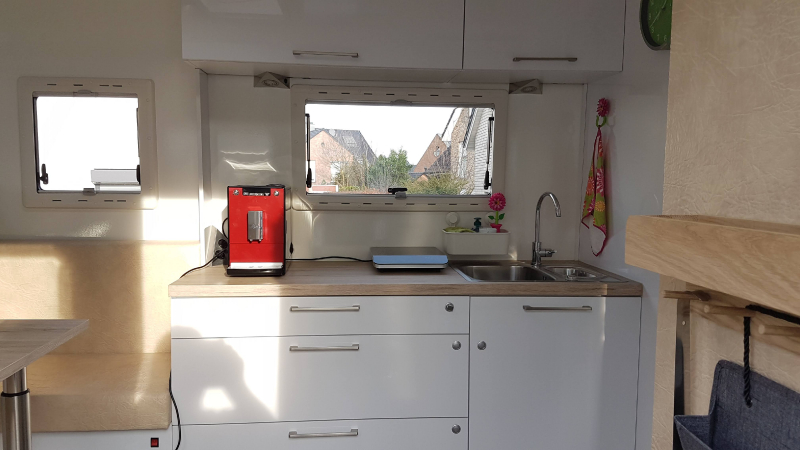

| Material of furniture | Heidenreich Küchenmodule |
|---|
| Cooking stove | Induktion mobil, außen Primus Multifuel und Rocket Stove dutch oven |
|---|---|
| Gas installation | keine |

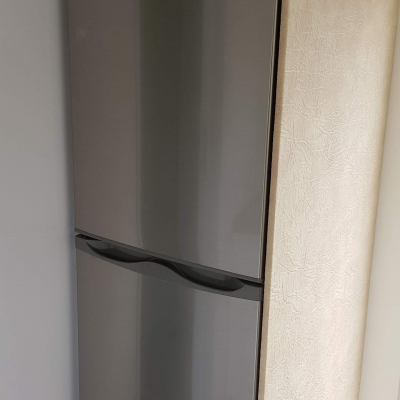

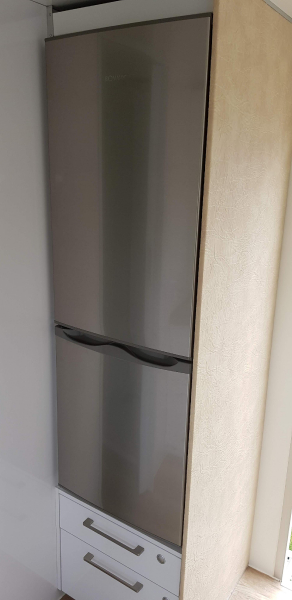

| Manufacturer and type of fridge / cooler | bomann 230V 120l Kühl, 40l Gefrier |
|---|
| Voltage in the chassis | 24 |
|---|---|
| Voltage in the cabin | 12/24/230 |
| Charging converter 24V-12V | ja |
| 110V / 230V in the cabin? | yes |
| Inverter | 3KW Peak 6KW Victron |

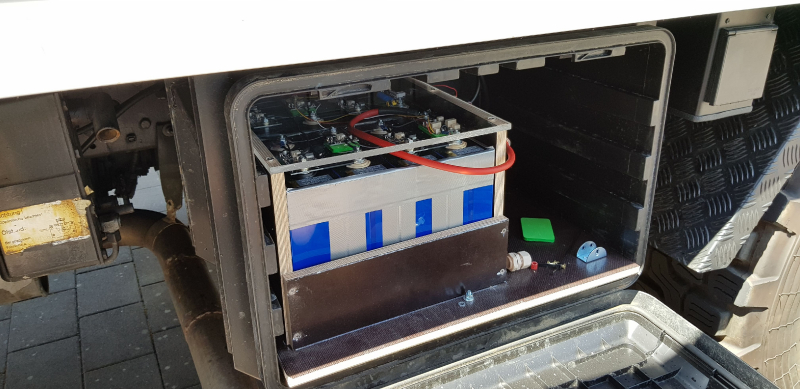

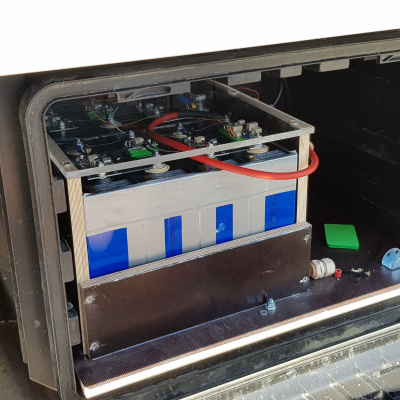

| Capacity of batteries in the cabin | 280 Ah, 24V |
|---|---|
| Battery type | LiFePO |
| Battery charger for cabin batteries | victron und votronic Ladebooster |

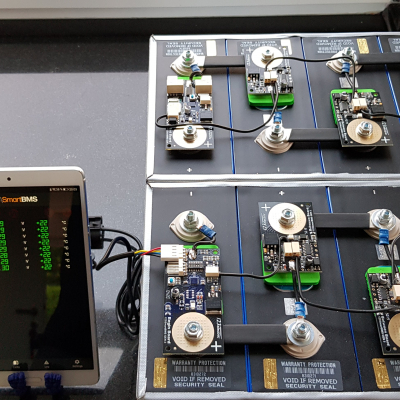

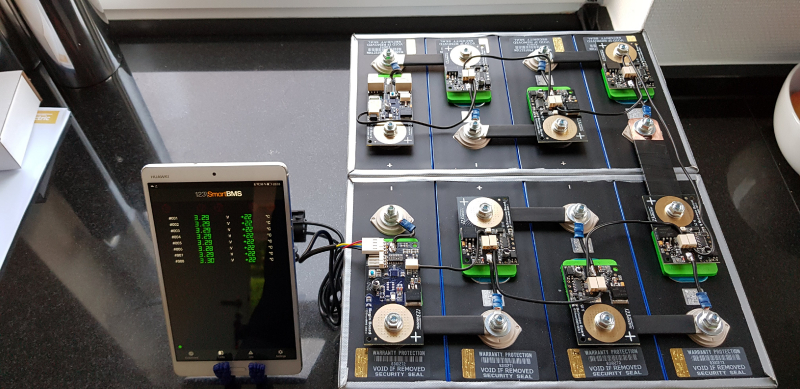

| Battery management | bms123 |
| Solar capacity | 800Wp fest und 500Wp mobil |
|---|---|
| Solar controller | victron MPPT 100/30, victron MPPT 100/20 |
| Fuel cell | no |
| Power generator | nein |
| Manufacturer and type of heating system | autoterm D44 und 230V Fußbodenheizung |
|---|---|
| Warm water processing | Warmluft oder 230V |
| Cab heating | webasto 2KW |
| water flow | Schlauch |
|---|---|
| Water filtration system | Einfüllkartusche |
| Capacity of fresh water tank(s) | 200 |
| Capacity of waste water tank(s) | 200 |

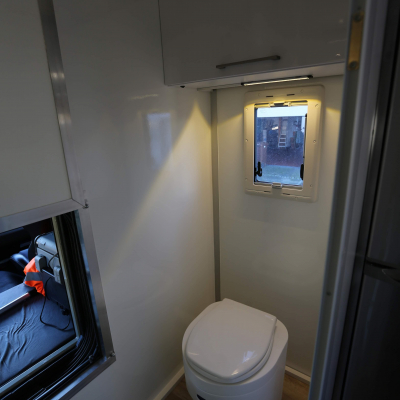

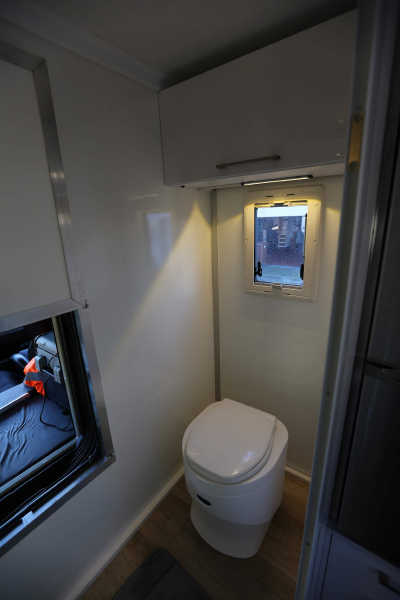

| Manufacturer and type of toilet | TTT separett weekend |
|---|---|
| Capacity of black water tank | 20l Urin |
| Other | |

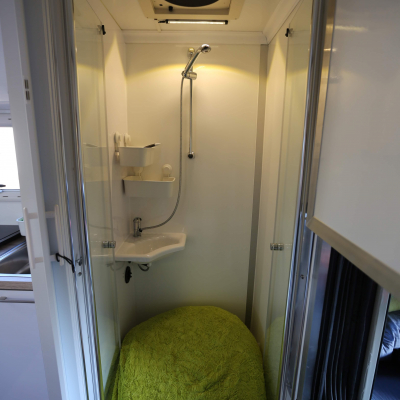

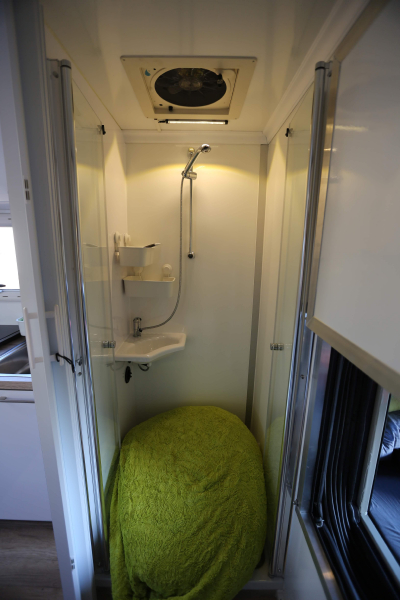

| Dusche 80x80cm, Bad mit Falttür trennbar, Durchschlupf zum Fahrerhaus mit Gummifaltenbalg | |
| Rear carrier | 2 ebikes, klappbar |
|---|---|
| Outside cooking facilities | Primus Multifuel, Rocket Stove Dutch oven |
| Awning | Tarp an Kederschiene |
| Other | |
| Vollfolierung Grau Metallic matt, Luxx Voll-LED Hauptscheinwerfer, vanglas Echtglasfenster | |
