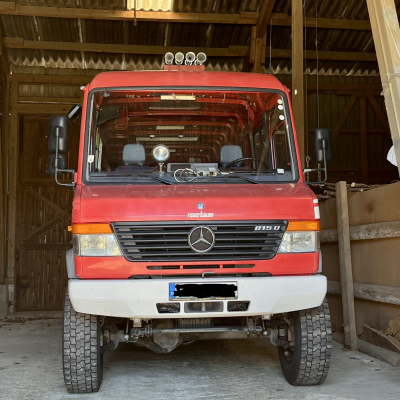

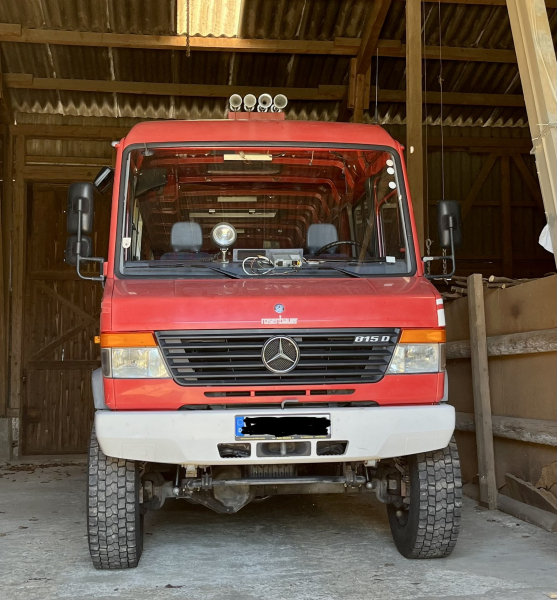

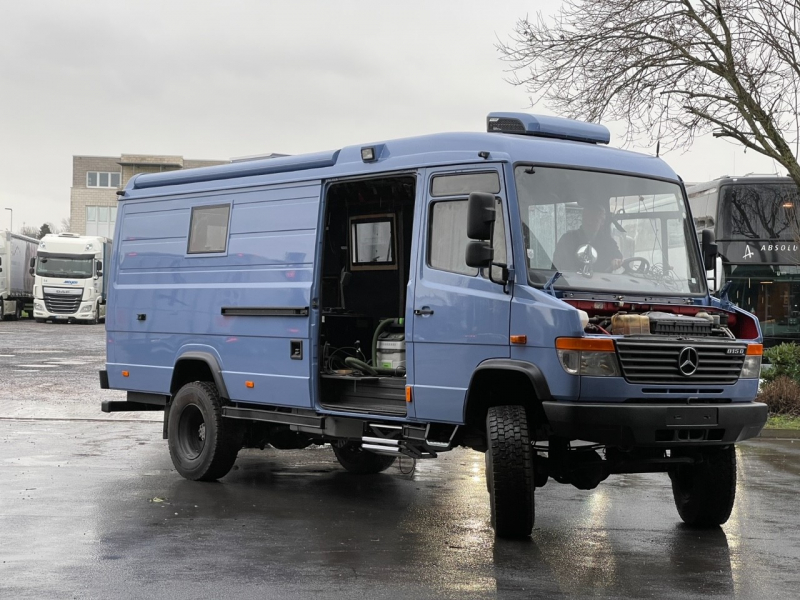

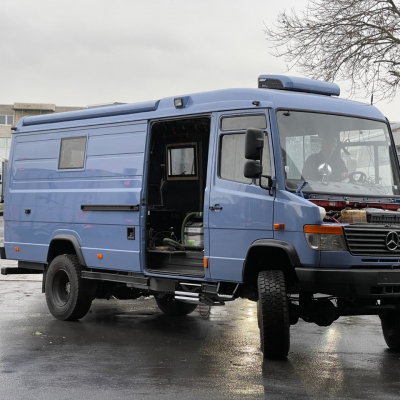

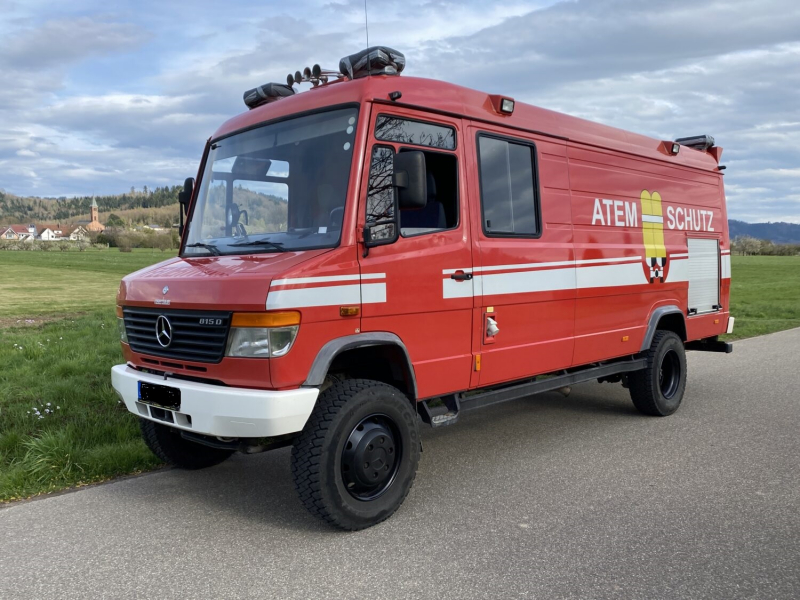

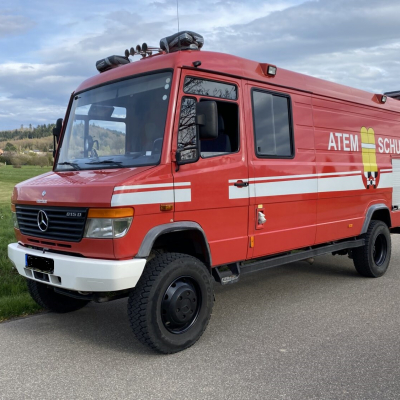

| Manufacturer and model | Mercedes Benz Vario 815 DA |
|---|---|
| Name | H F |
| Year of manufacture | 2002 |
| For sale? | no |

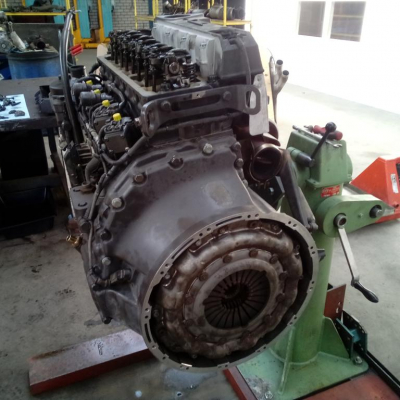

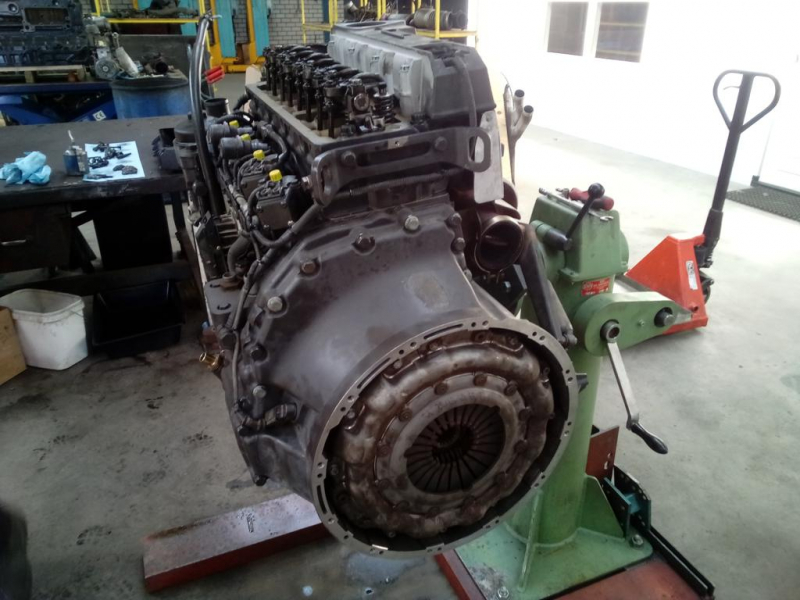

| Engine type | Diesel |
|---|---|
| Cubic capacity | 4,3 l |
| Number of cylinders | 4 |
| Horsepower | 150 |
| Torque | 580 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 4250mm |

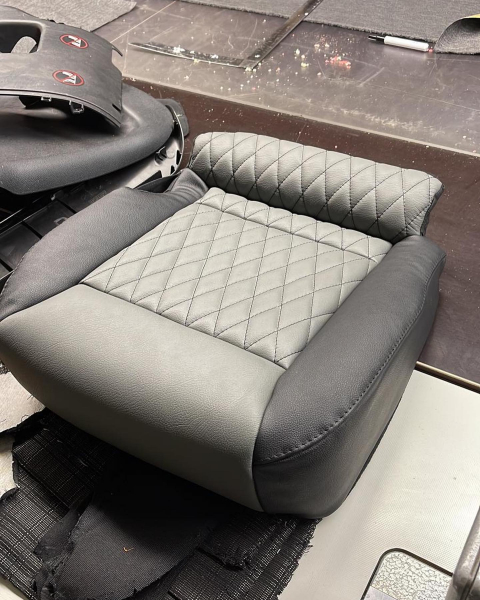

| Number of seats | 5 |
| Tyre size | 305/70-19.5 |
| Rim size | Gabo |
| Tank capacity | 230 l |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent + Untersetzung |
| Diff locks | Mittelsperre + Hecksperre |
| Manufacturer of the cabin | Kastenwagen |
|---|---|

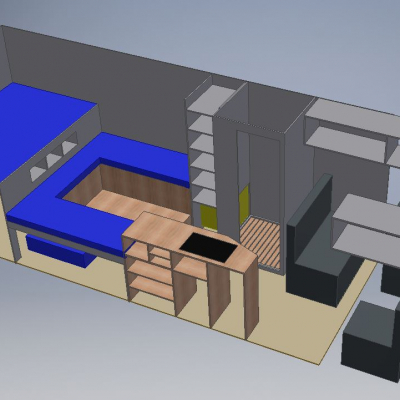

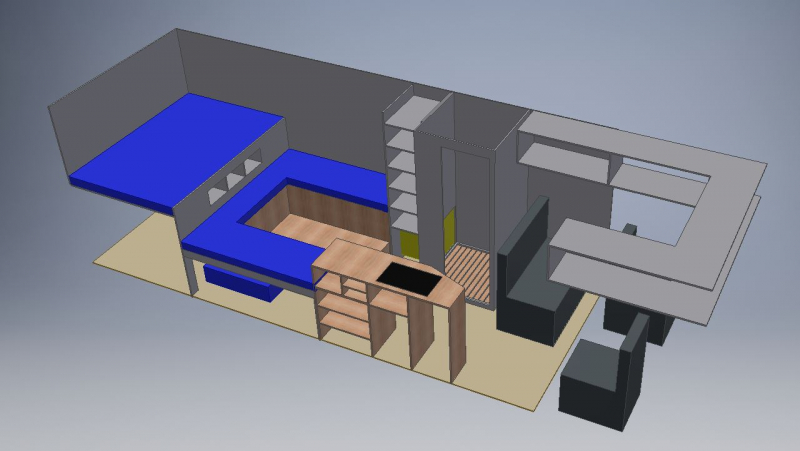

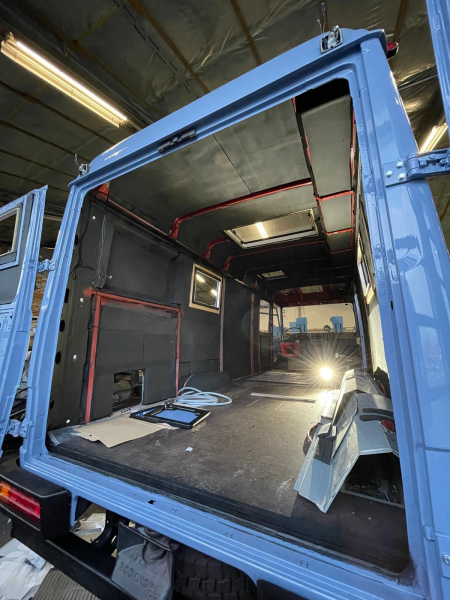

| Inner dimensions (LxWxH) | LxBxH: 5,1 x 1,9 x 1,94 m |
| Cabin material | Stahl |

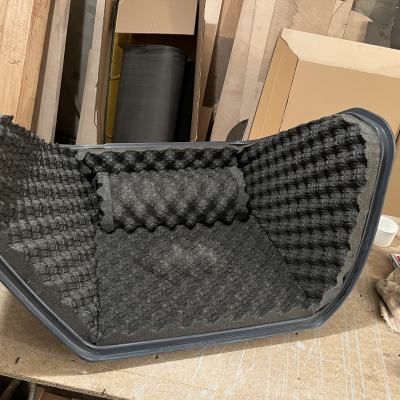

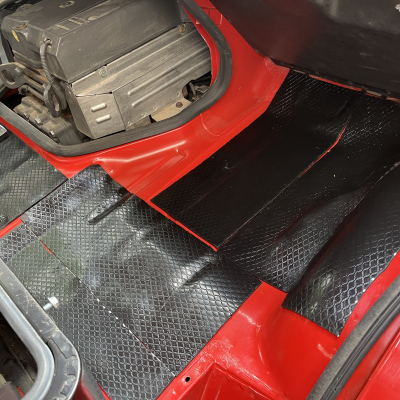

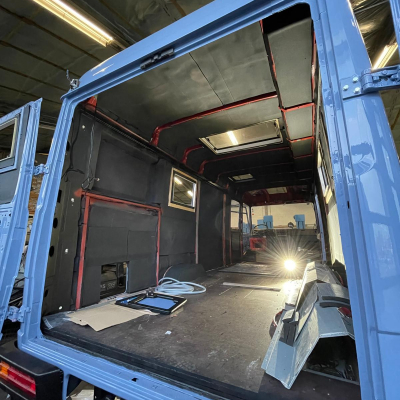

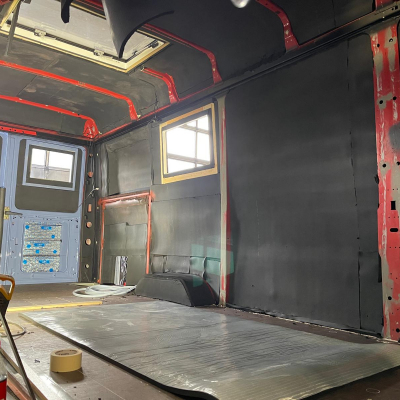

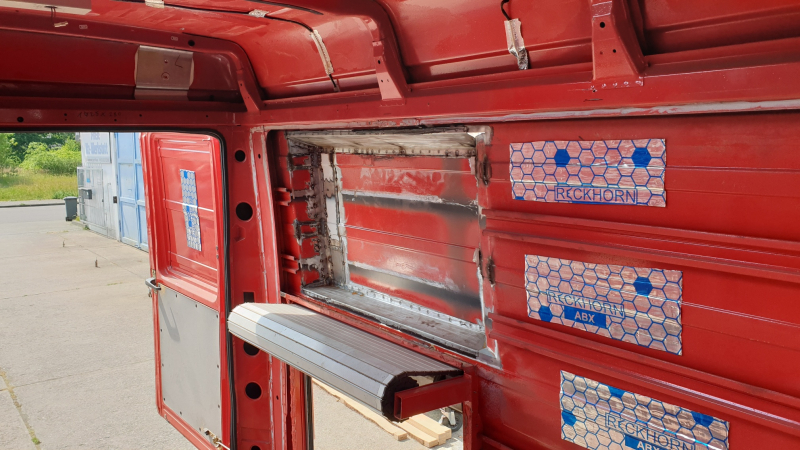

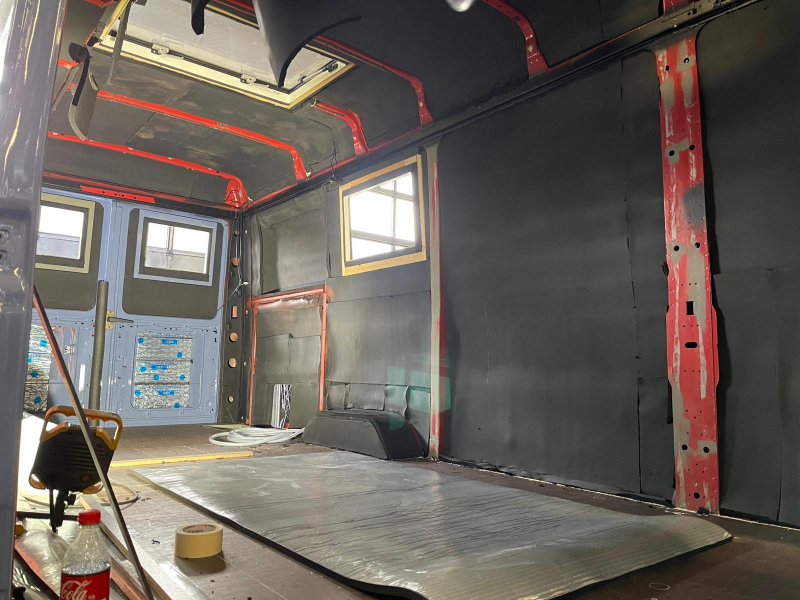

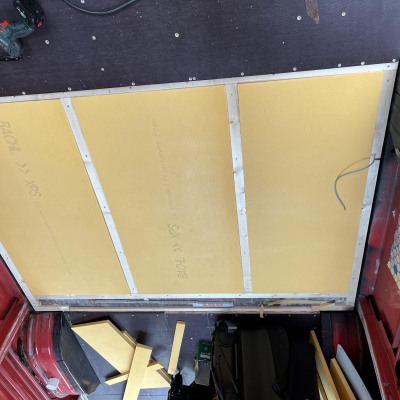

| Kind and thickness of insulation | Armaflex, 43 mm |
| Number of beds | 4 |

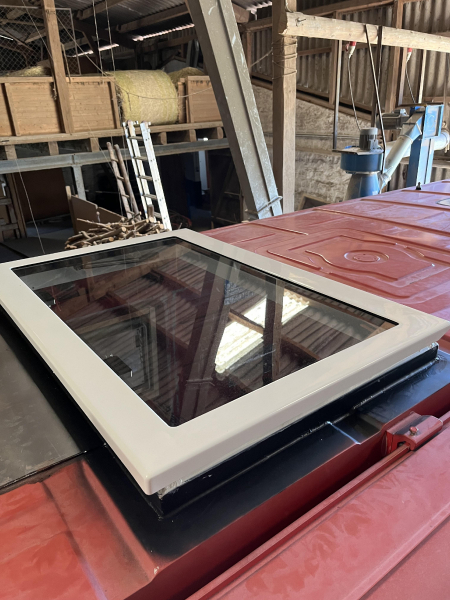

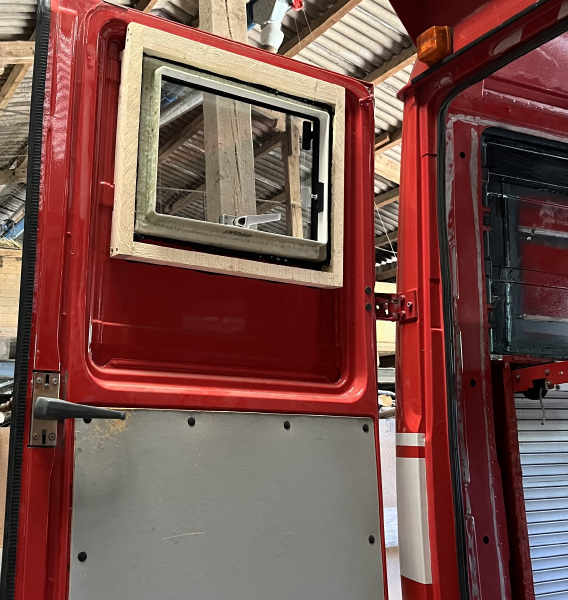

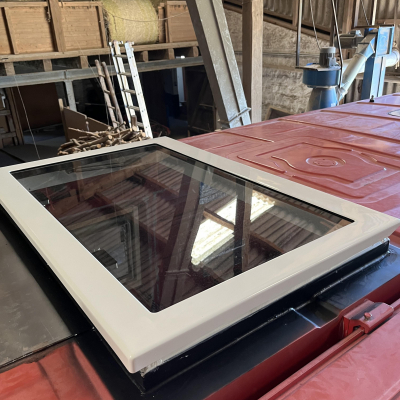

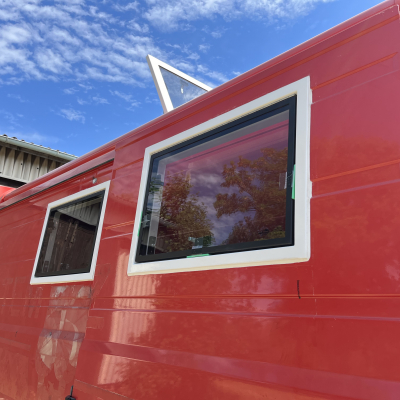

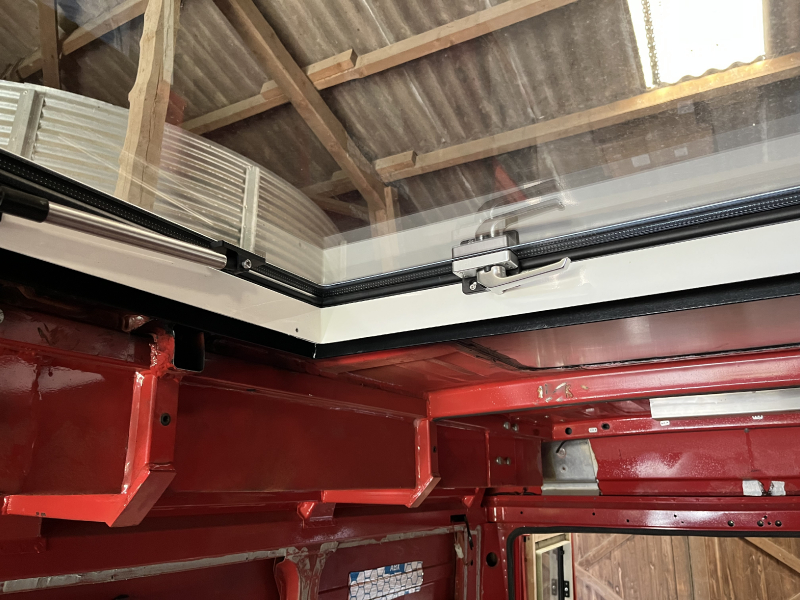

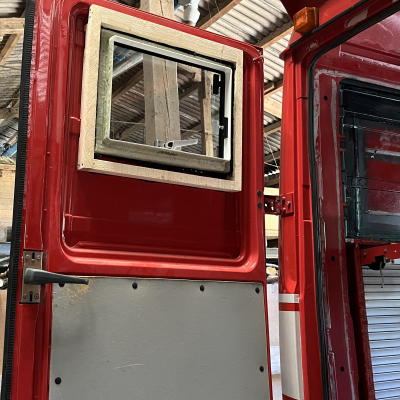

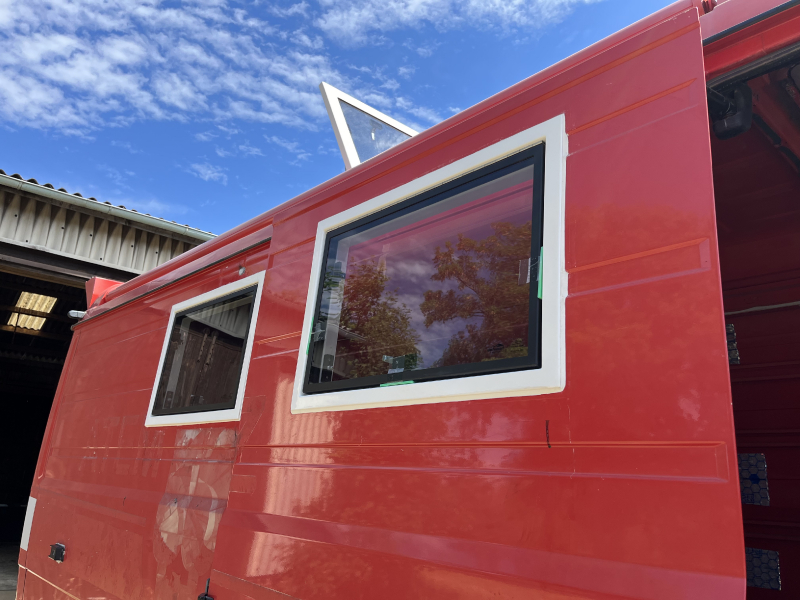

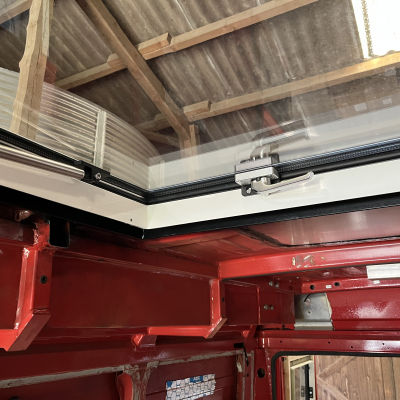

| Windows | Outbound: 5 Fenster 1x Dachfenster |
| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 24 V |
| 110V / 230V in the cabin? | yes |
| Inverter | 3 kW |
| Capacity of batteries in the cabin | 280Ah |
|---|---|
| Battery type | LiFePo4 |
| Solar capacity | 1200 W |
|---|---|
| Fuel cell | no |
| Warm water processing | Wärmetauscher Motorkreislauf mit Wasserstandheizung, optional 230 V |
|---|
| Explanation of gas system | |
|---|---|
| Gasfrei |

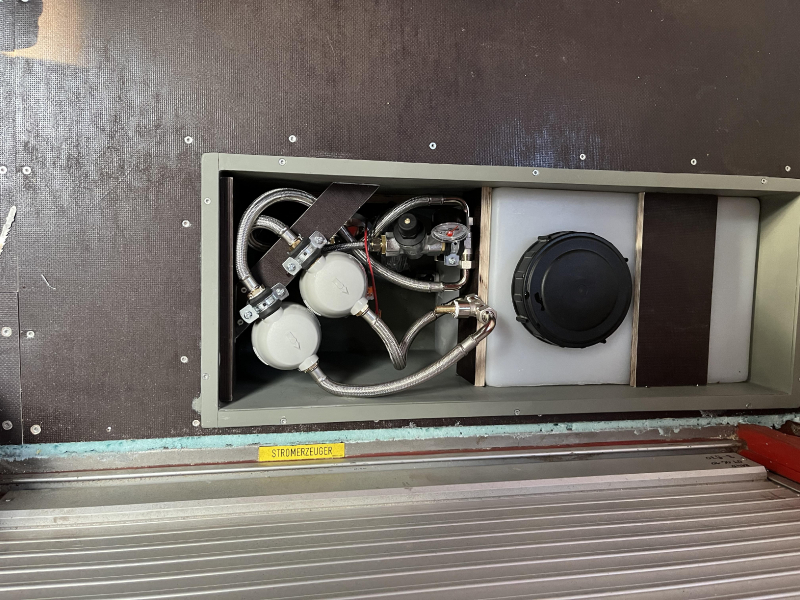

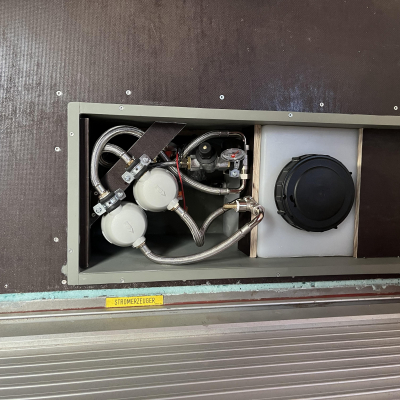

| Water filtration system | Befüllung über Keramikfilter, Wasserentnahme über Aktivkohle + UV-C LED Einheit |
|---|---|

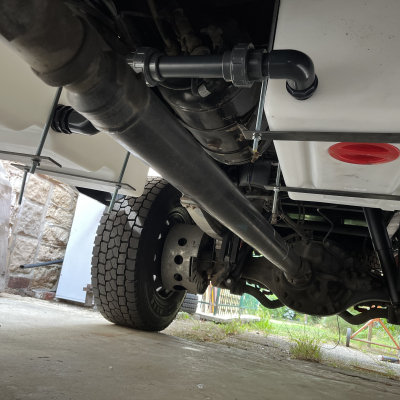

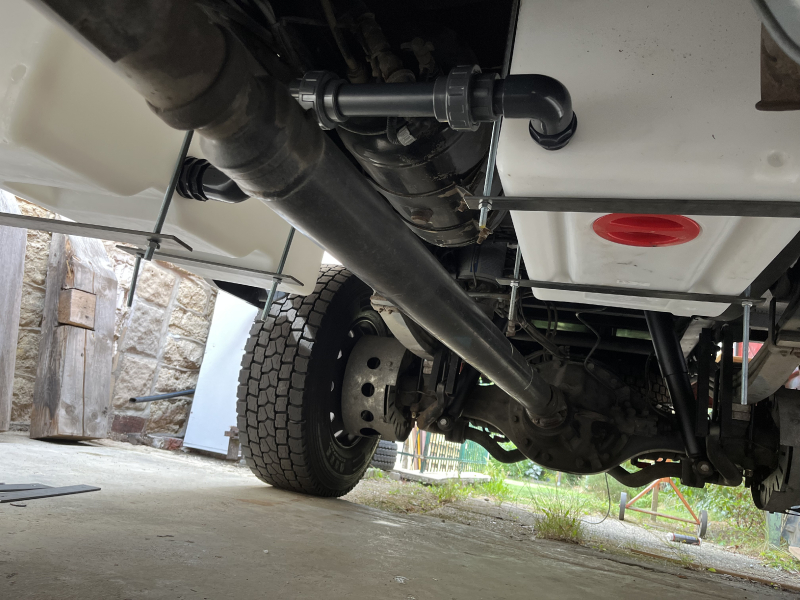

| Capacity of fresh water tank(s) | 270 l |
| Capacity of waste water tank(s) | 160 l |
| Manufacturer and type of toilet | Trockentrenntoilette |
|---|
