Camper

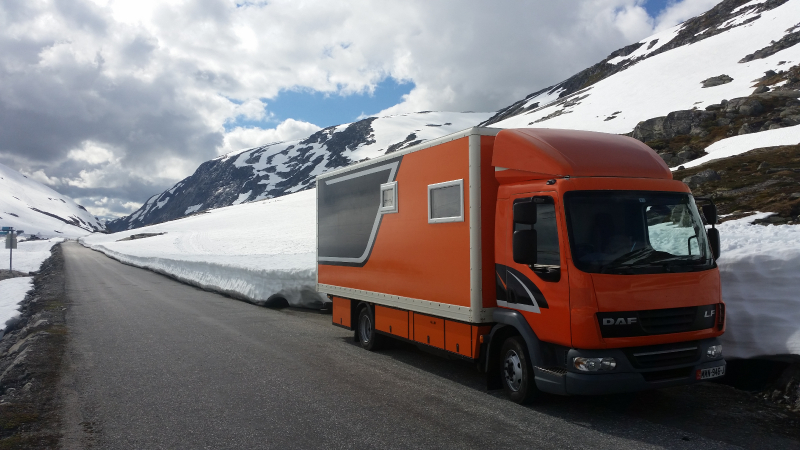

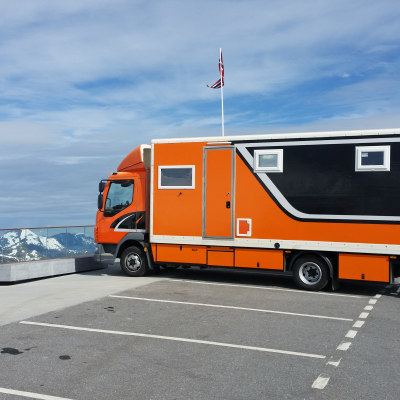

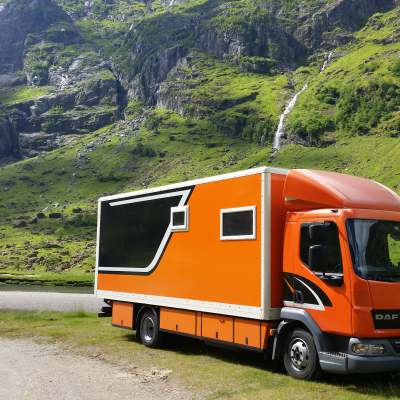

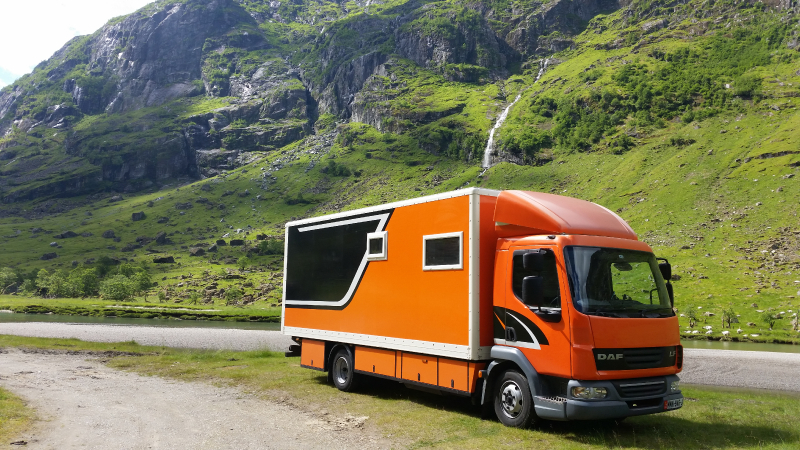

| Manufacturer and model | Daf lf 45 |
|---|---|
| Country | Isle of Man |
| Year of manufacture | 2008 / 2016 conversion |
| For sale? | no |
| Asking price? | Sold |
| Engine type | Paccar FR 118 Euro 5 |
|---|---|
| Cubic capacity | 4.5L |
| Number of cylinders | 4 |
| Horsepower | 160Hp |
| Torque | 600 Nm @ 1200rpm |
| 4x2, 4x4, 6x6, 8x8 | 4x2 |
|---|---|
| Wheel base | 4500 mm |
| Number of seats | 2 |
| Tyre size | 215/75 R17.5 (5) |
| Rim size | 17.5 |
| Type of tyre | Hankook |
| Tank capacity | 100L |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | non :( |
| Diff locks | no |
| Manufacturer of the cabin | GPR |
|---|---|
| Inner dimensions (LxWxH) | 6100 x 2350 x 2200mm |
| Outer dimensions (LxWxH) | 6200 x 2450 x 2350mm |
| Cabin material | GPR - Celotex- Marine ply |
| Kind and thickness of insulation | 50mm |

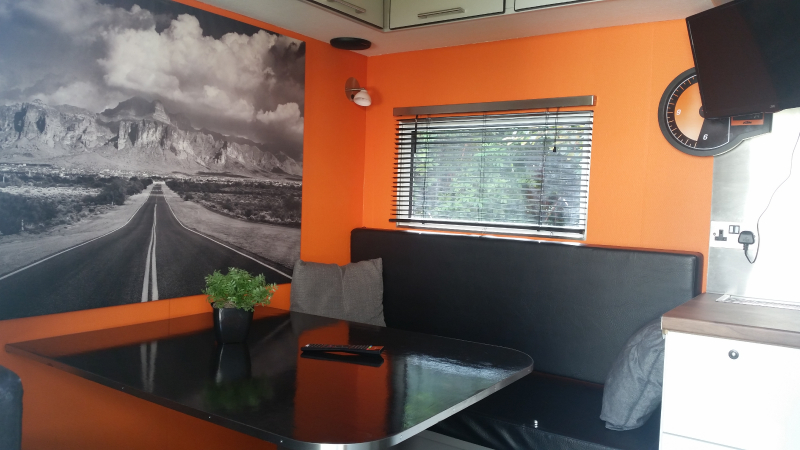

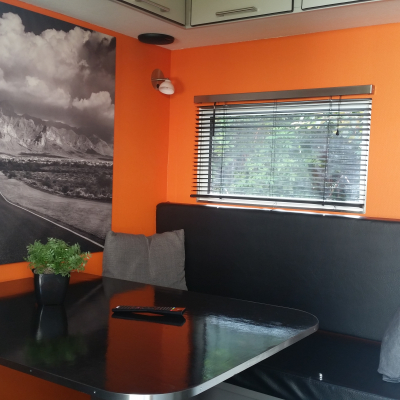

| Number of beds | 2 in the rear and 2 can be made from front seating area |
| Windows | 5 |
| Subframe | Aluminium |

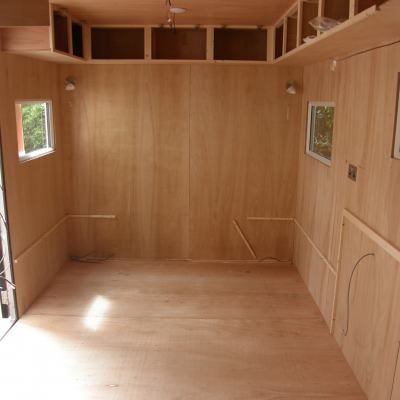

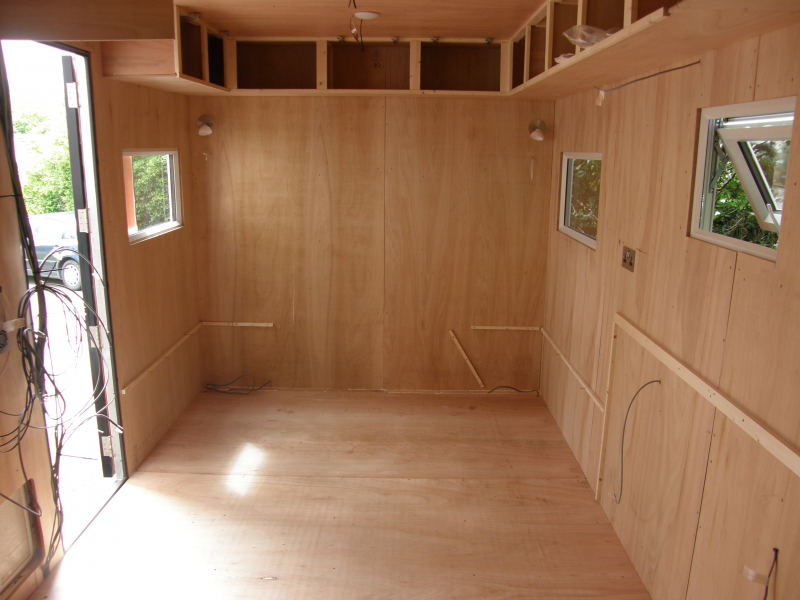

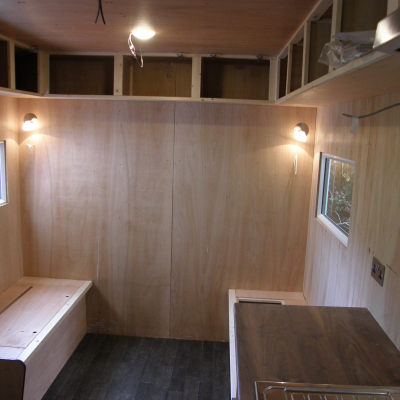

| Material of furniture | 12mm Marine ply |
|---|

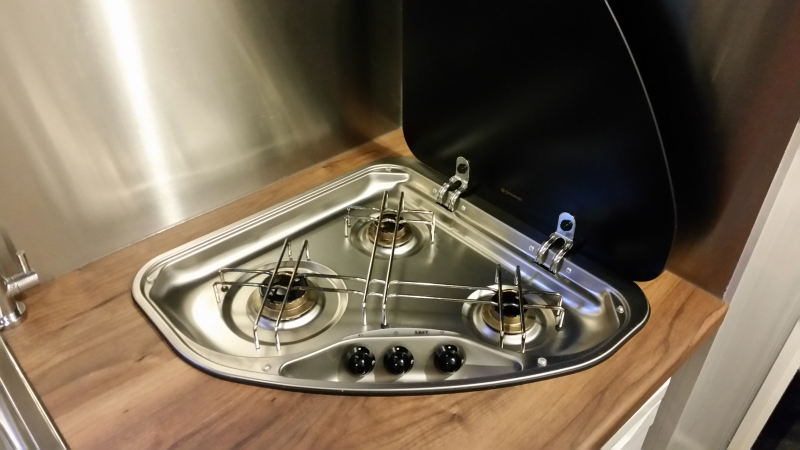

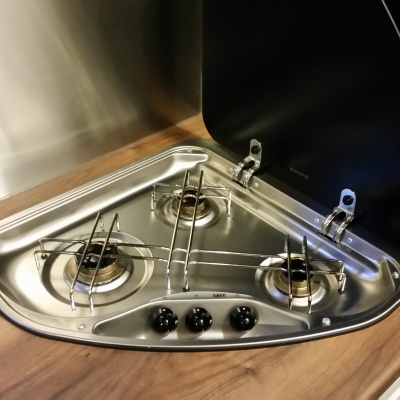

| Cooking stove | Smev 3 burner |
|---|---|
| Gas installation | 2 x 8 Kg |
| Other | |
| BBQ outside | |

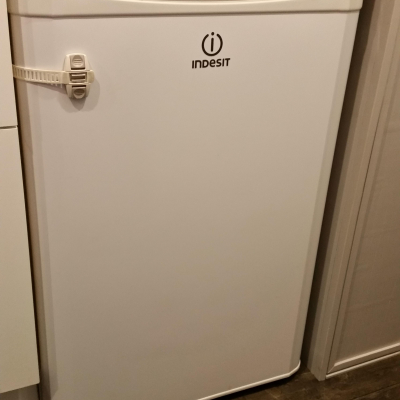

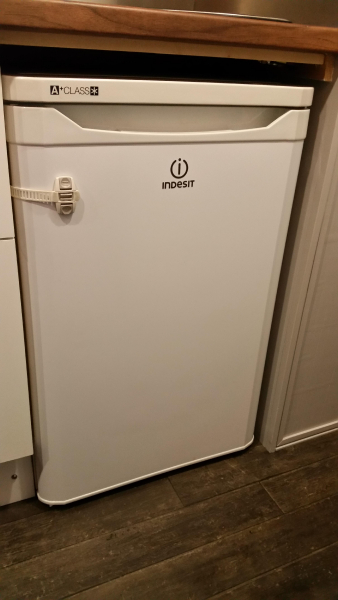

| Manufacturer and type of fridge / cooler | Indesit 115L |
|---|
| Voltage in the chassis | 24v |
|---|---|
| Voltage in the cabin | 230V / 12V |
| Charging converter 24V-12V | no |
| 110V / 230V in the cabin? | no |
| Inverter | inverter |
| Capacity of batteries in the cabin | 12v 200ah |
|---|---|
| Battery type | AGM |
| Battery charger for cabin batteries | Optimate |
| Battery management | 12v and 230v shunt with digital meter |
| Other | |
|
Main truck isolator in Cabin All lights are 12v LED Out side LED on remote control 12v Bathroom extractor Cooker hood Indesit fridge freezer 28" JVC TV | |
| Solar capacity | - |
|---|---|
| Solar controller | - |
| Fuel cell | no |
| Power generator | Honda EU10 |
| Manufacturer and type of heating system | Dakin Aircon |
|---|---|

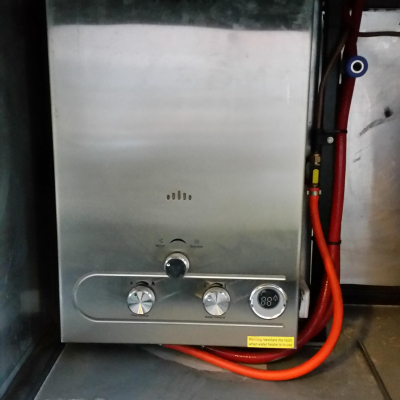

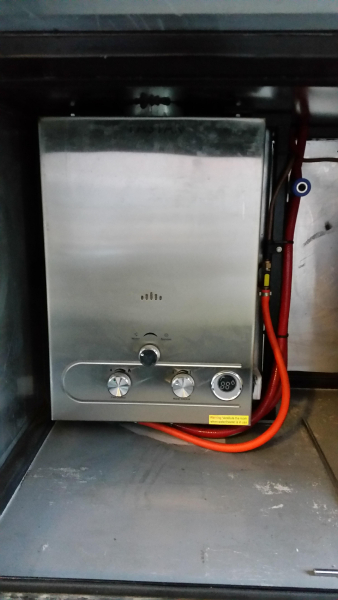

| Warm water processing | Gas heater 18KW |
| Cab heating | - |
| Other | |

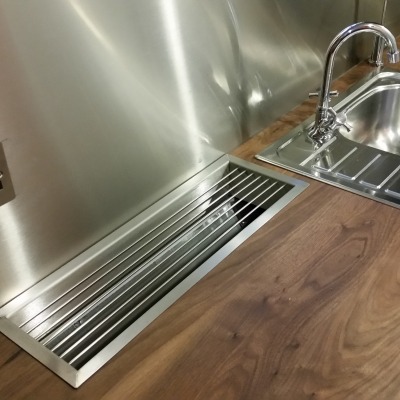

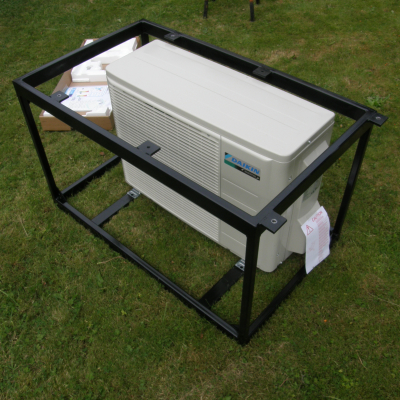

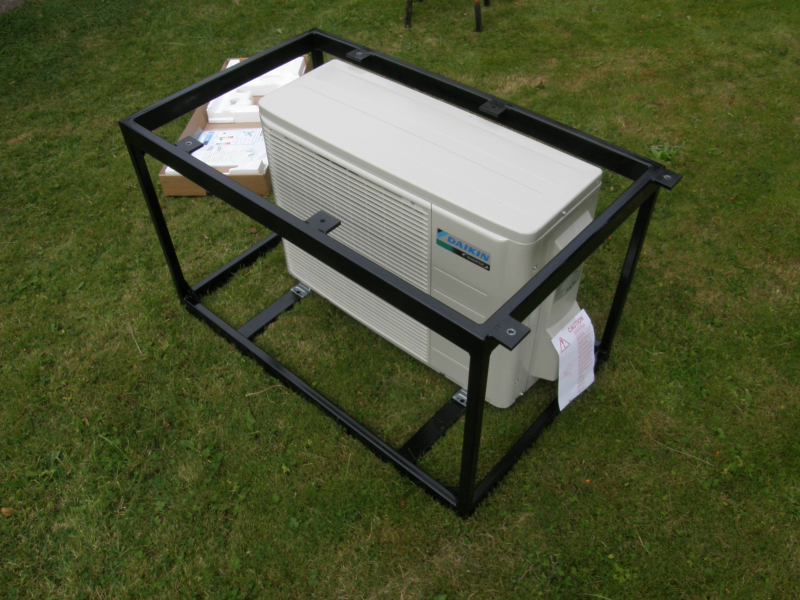

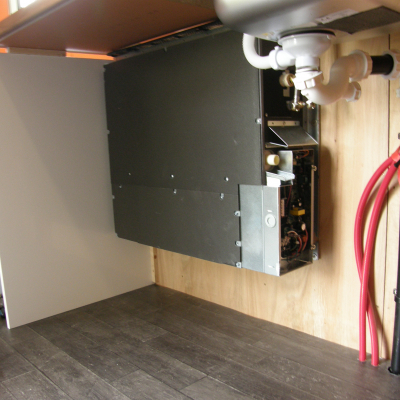

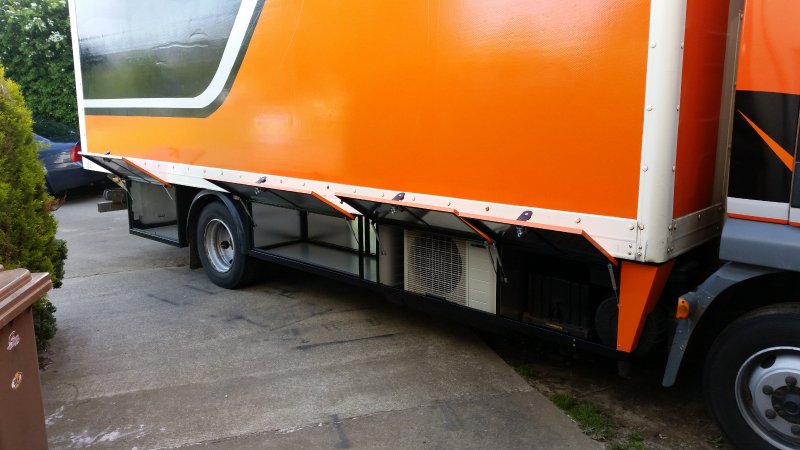

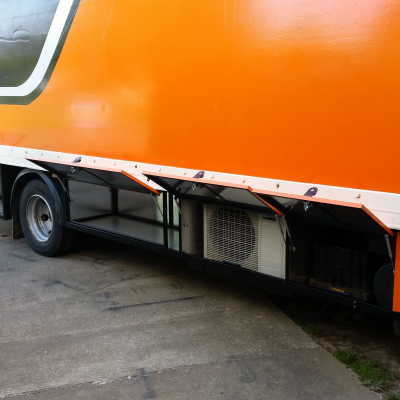

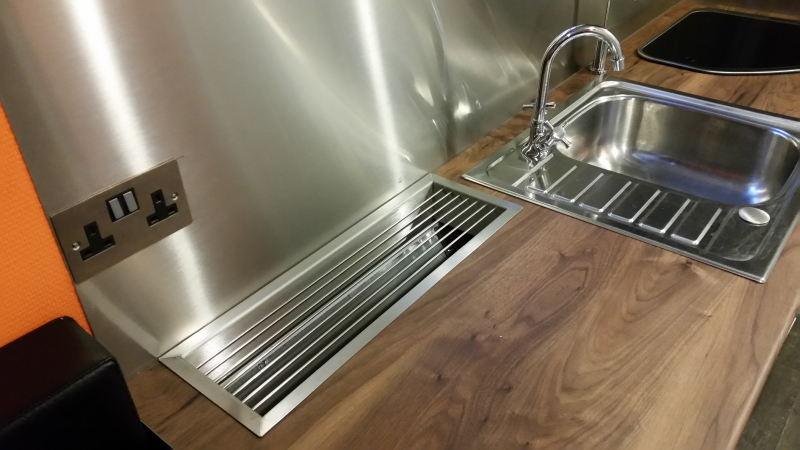

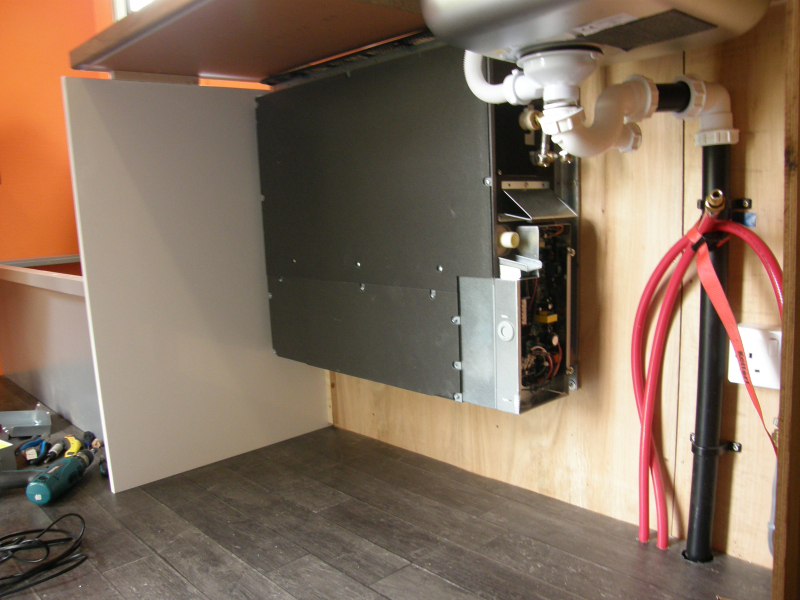

| Dakin 3MXS-E and FNQ-A out door unit build in side locker with doors each side for ventilation indoor unit build in the back of the kitchen work top to safe space | |
| Explanation of gas system | |
|---|---|

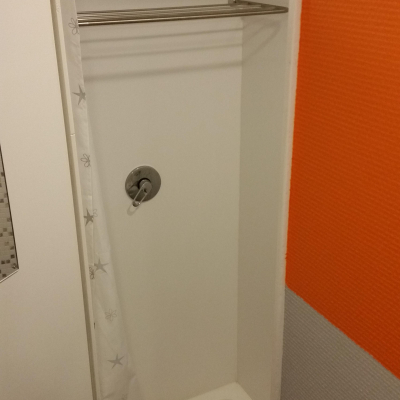

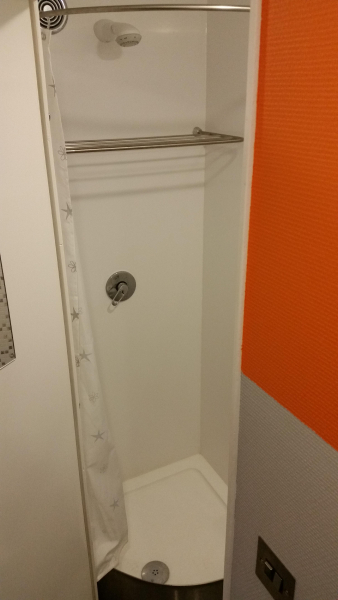

| Gas is used for cooking and hot water / shower |
| water flow | Shurflo 10lpm 40psi |
|---|---|
| Water filtration system | Aqua safe |
| Capacity of fresh water tank(s) | 200l + 2x 20l + 2x10l |
| Capacity of waste water tank(s) | 140l |
| Other | |
| Out side water outlet for pressure washer | |

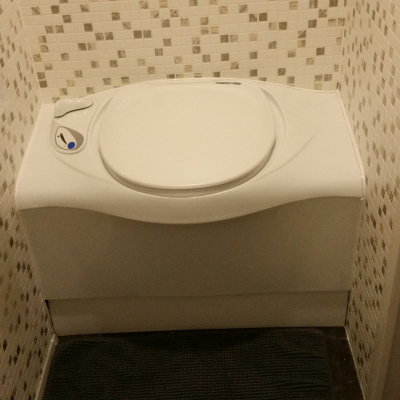

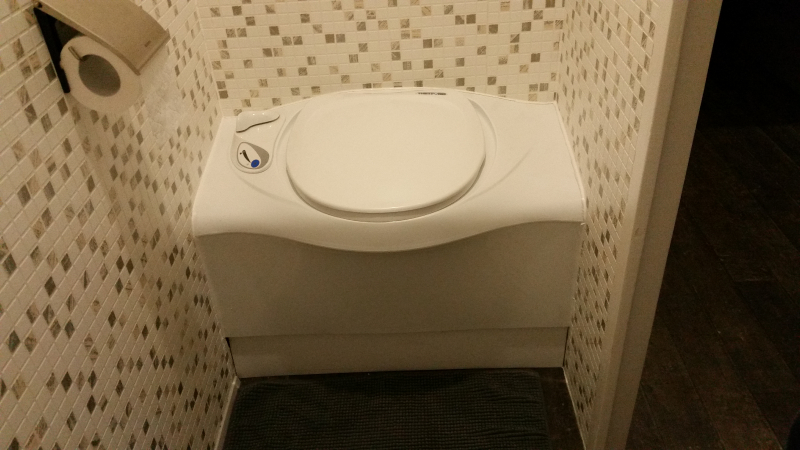

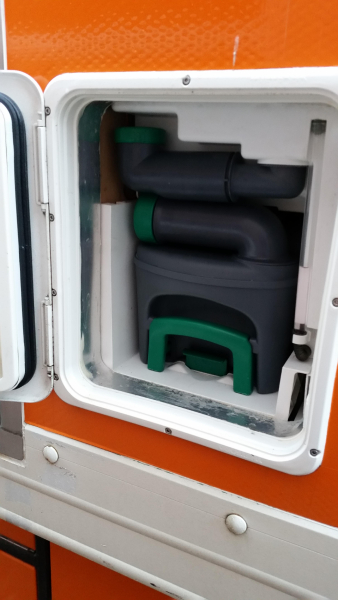

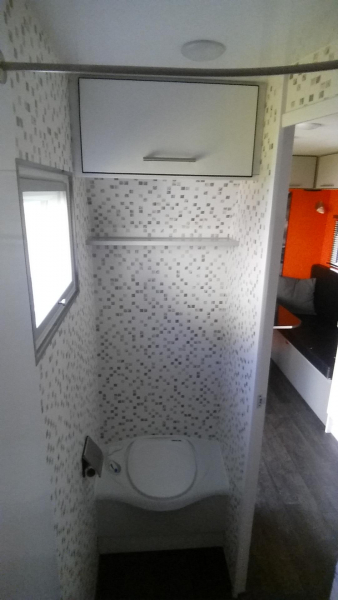

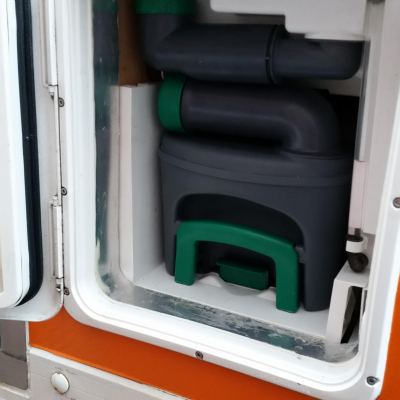

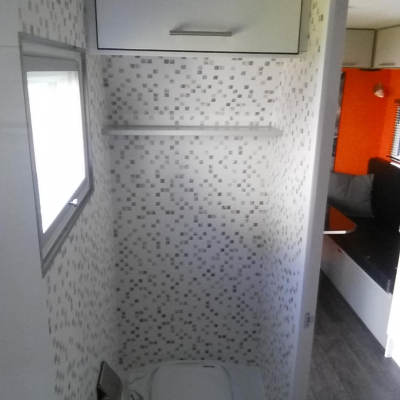

| Manufacturer and type of toilet | Thetford C403 |
|---|---|
| Capacity of black water tank | 19,3L |
| Rear carrier | no |
|---|---|
| Roof rack | no |

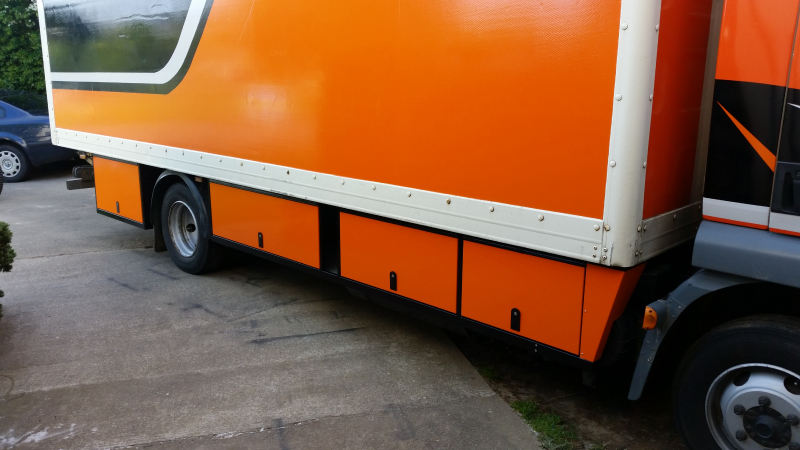

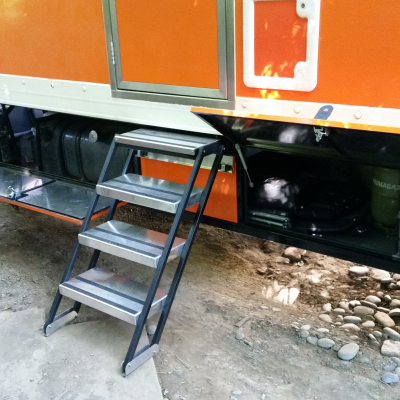

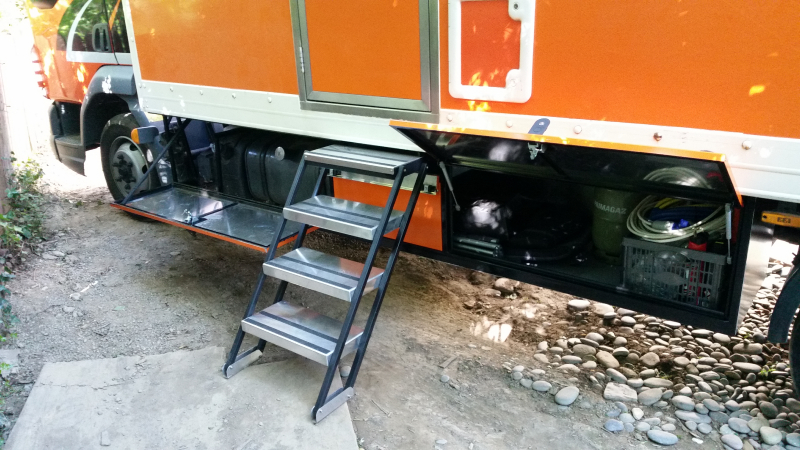

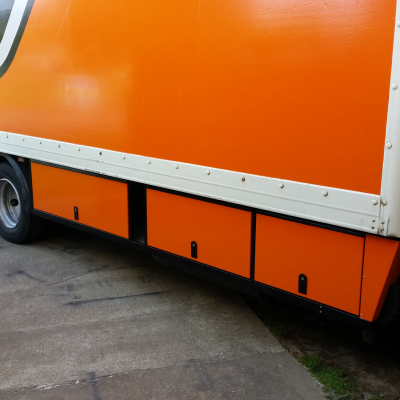

| Storage boxes | Plenty on each side |
| Outside cooking facilities | BBQ |
| Awning | no |
| Other | |
|

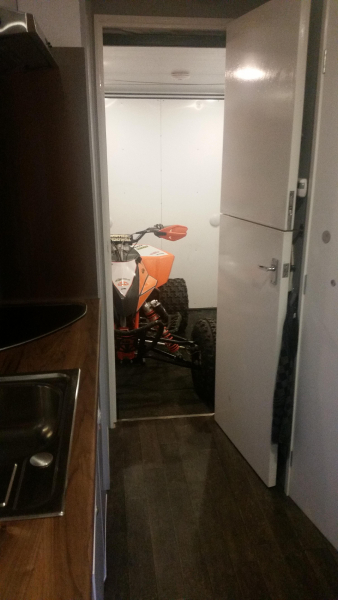

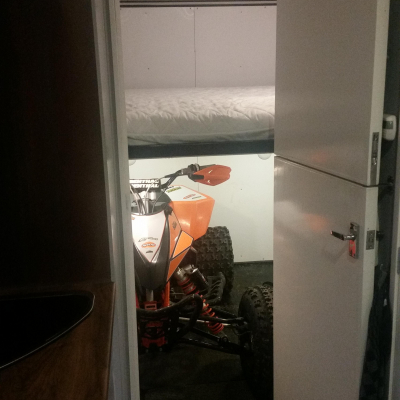

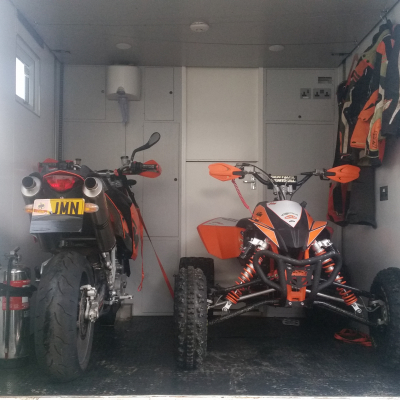

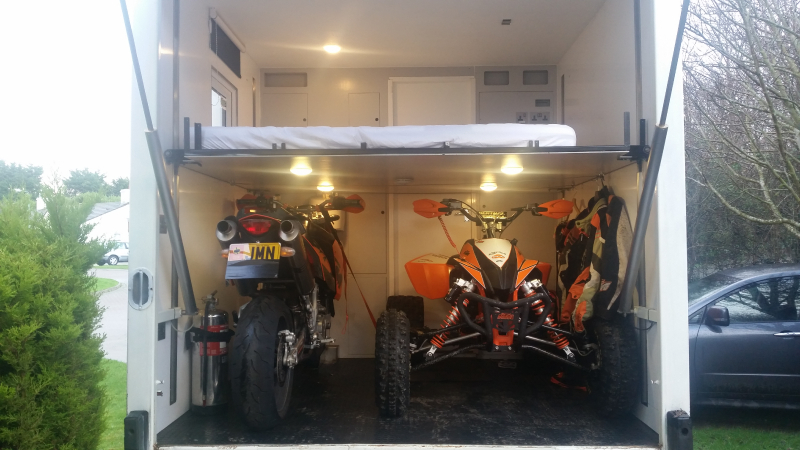

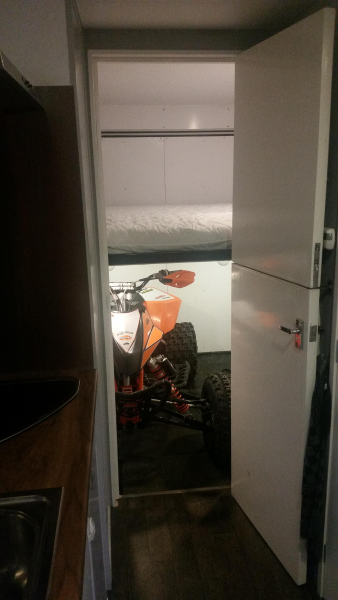

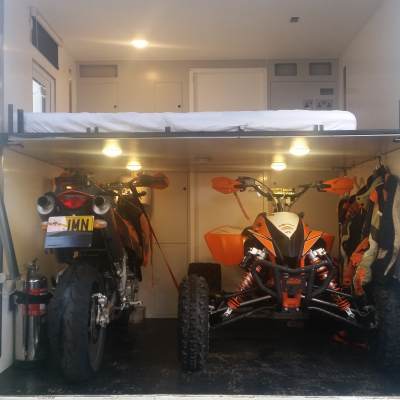

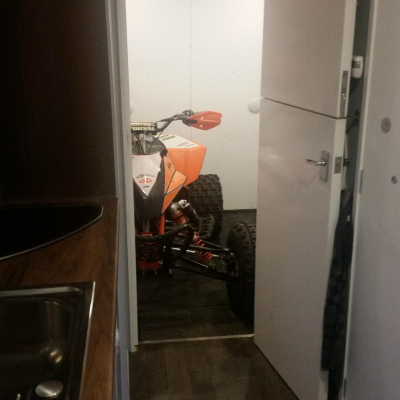

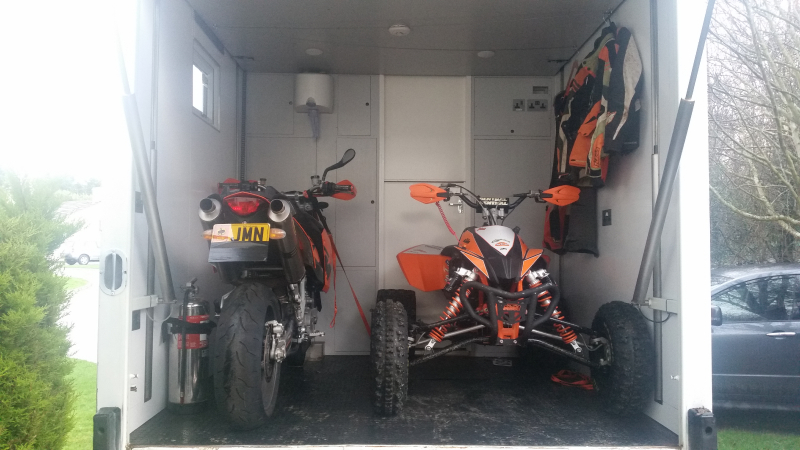

Storage for 3 Motor bikes in the back Pneumatic Bed is lowered on top of the bikes in the evening and stored to the ceiling during the day to max space and provide a full height work shop Spare wheel under tail lift 1000kg tail lift Pneumatic rear door After the great building experience and 15000 Mile of awesome trouble free holiday travel. We have decided to make the step to build an 4x4 over-lander hence our pride and joy is for sale. please contact my self if seriously interested Thanks Robert +44 07624337084 | |
