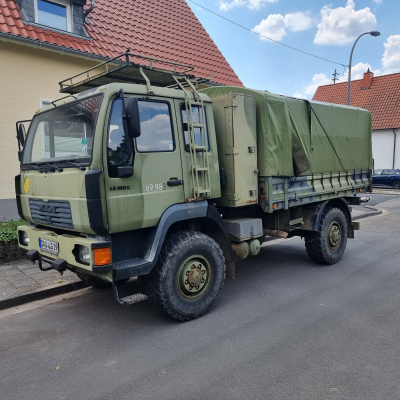

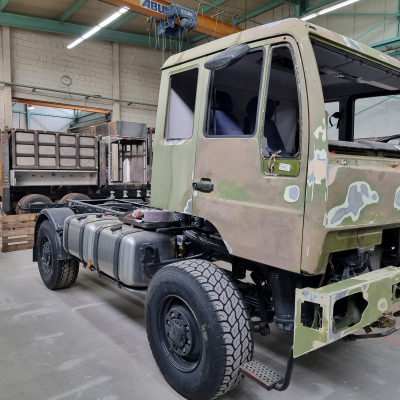

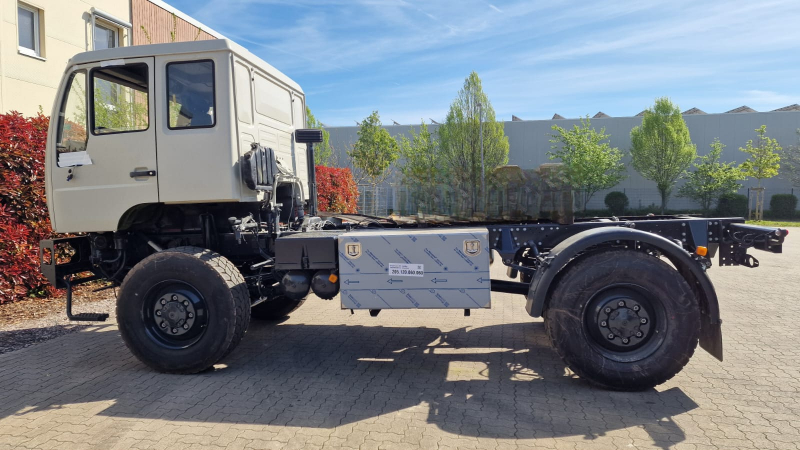

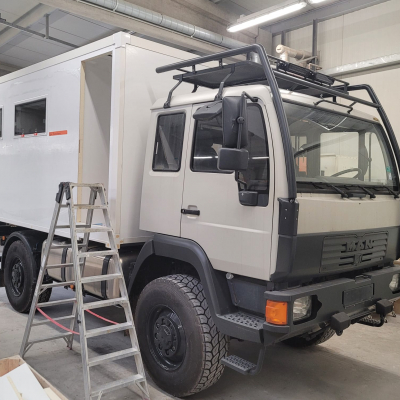

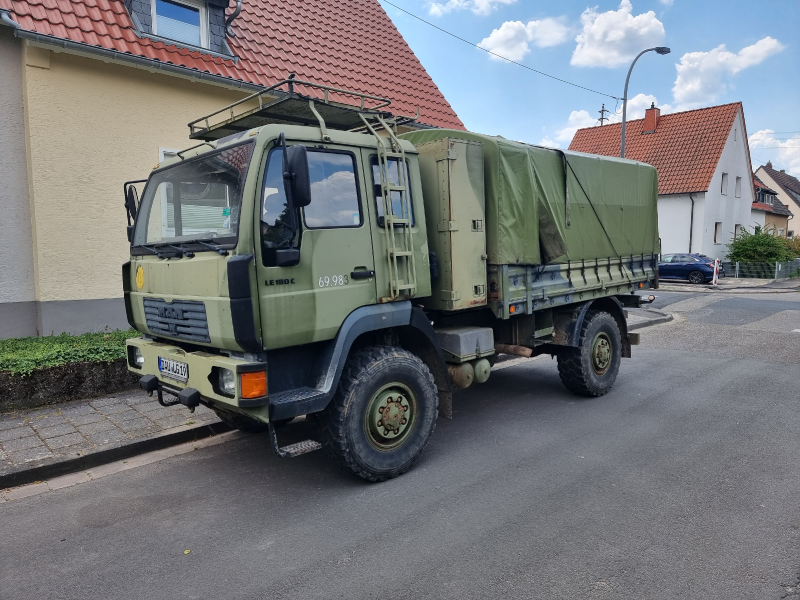

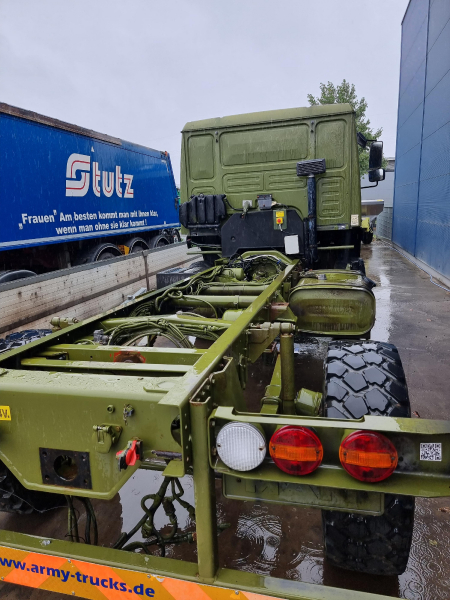

Wir bauen einen ehemaligen Militär Truck (Dänemark) zum Exmo um, aus, auf .....

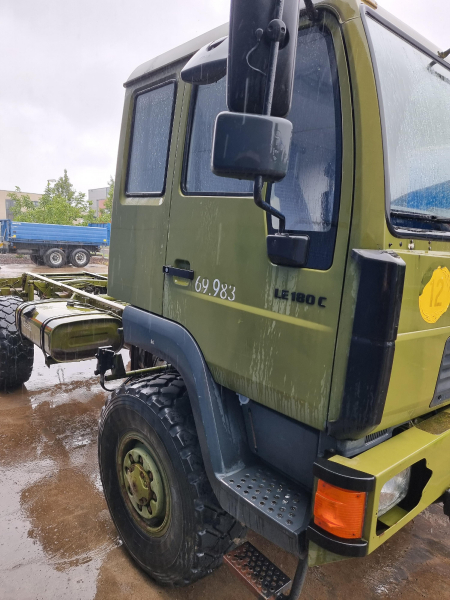

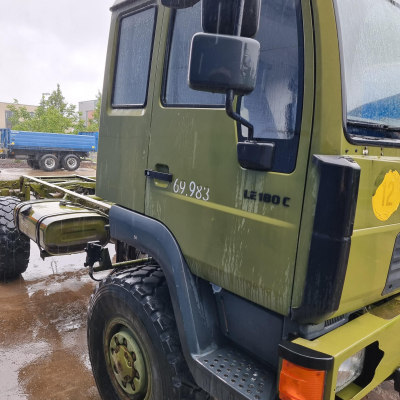

Manufacturer and model | MAN LE180C, 10.185 LAEC, L2000 |
---|---|
Name | Martin |
Year of manufacture | 2004 |
For sale? | no |
Engine type | D0834 |
---|---|
Cubic capacity | 4580 |
Number of cylinders | 4 |
Horsepower | 180 |
Other | |
Separ Diesel Vorfilter |
Zulässiges Gesamtgewicht | 7,5 |
---|---|
4x2, 4x4, 6x6, 8x8 | 4x4 |
Wheel base | 3.600 |
Number of seats | 3 |
Tyre size | 385/65R22.5 |
Rim size | Stahl 22,5x11,75 |
Type of tyre | Baustellenreifen |
Tank capacity | 2x300l |
Diesel filter | yes |
Other | |

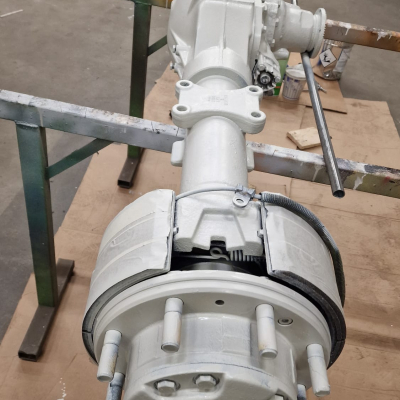

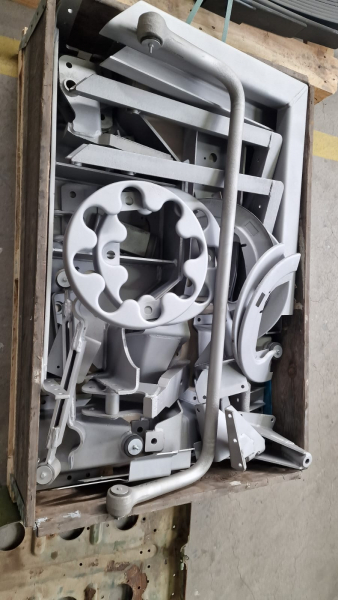

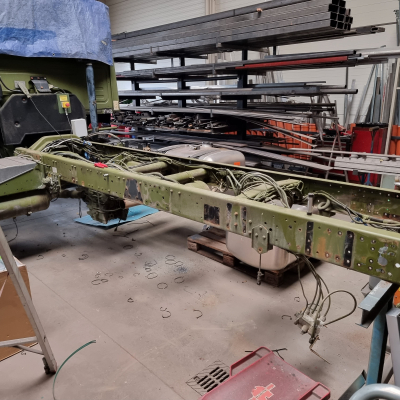

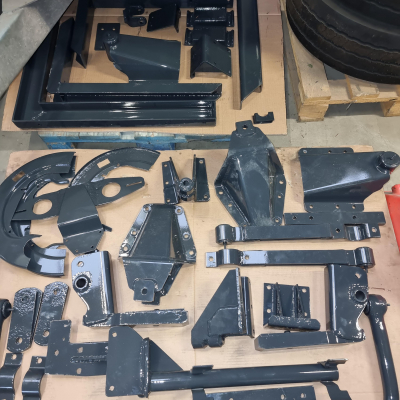

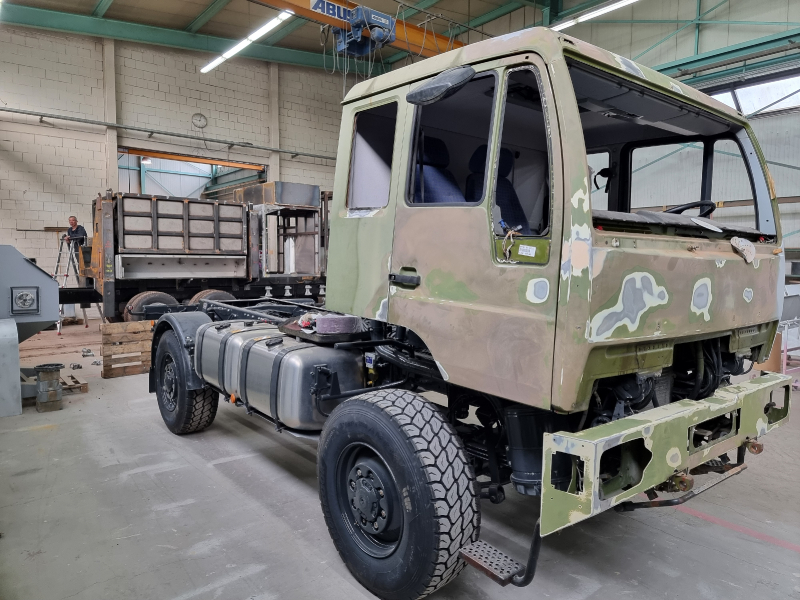

in 12Monaten vollsaniert: technisch und optisch | |
Permanent or manually selectable 4-wheel drive | permanent |
Diff locks | 3 |

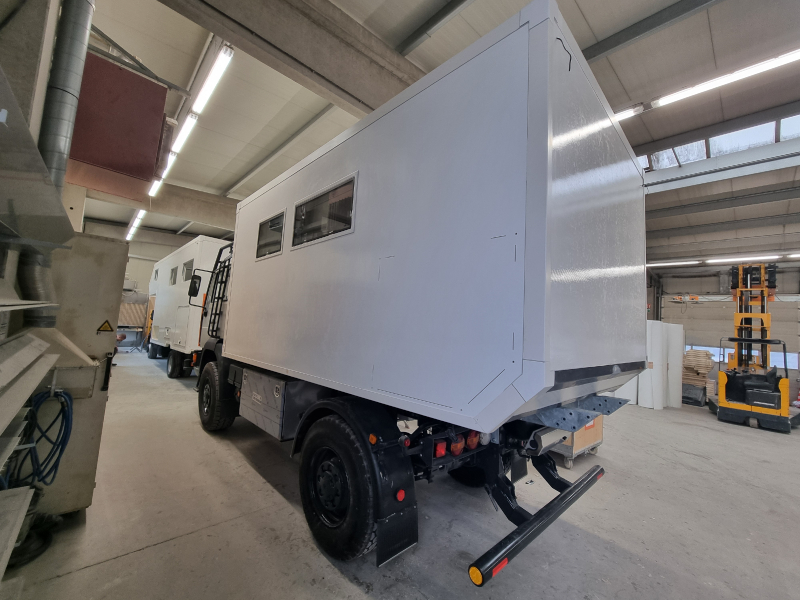

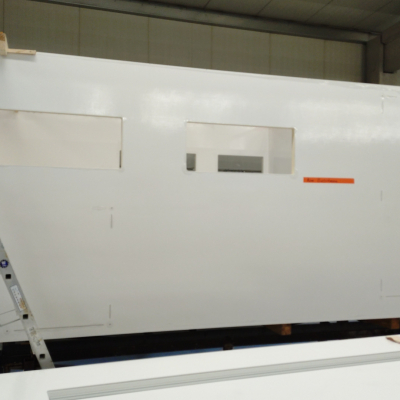

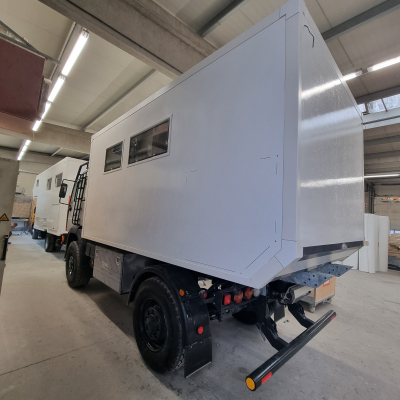

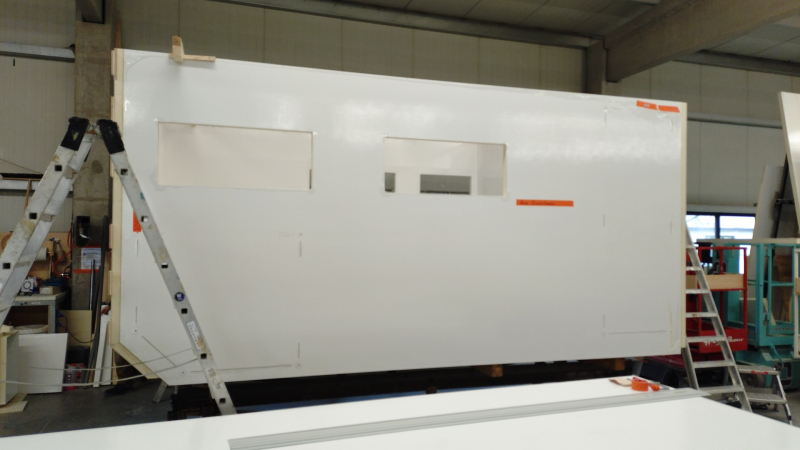

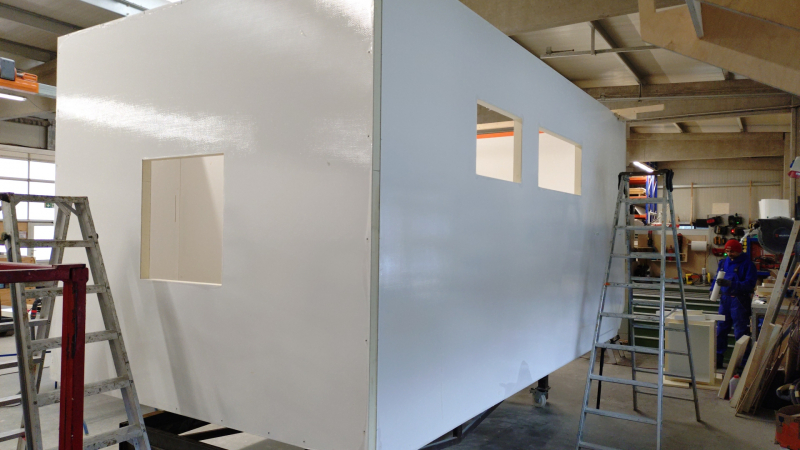

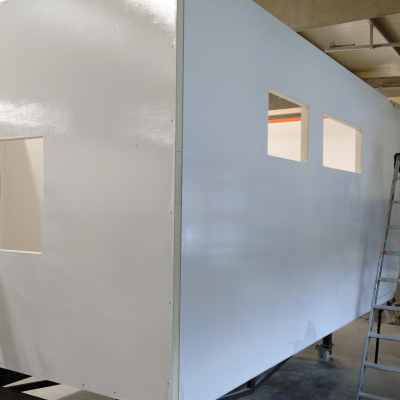

Manufacturer of the cabin | Ormocar |
---|---|
Inner dimensions (LxWxH) | 4380x2300x2050 |
Outer dimensions (LxWxH) | 4500x2400x2200 |
Cabin material | GFK Sandwich |
Kind and thickness of insulation | 50mm |
Number of beds | 2 |
Windows | Outbound |

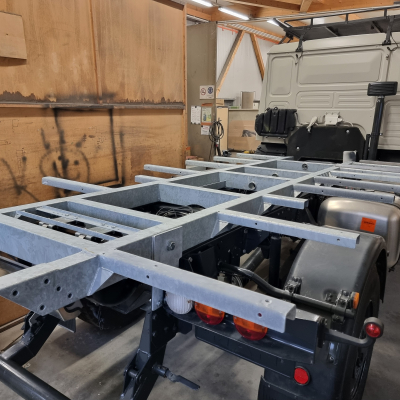

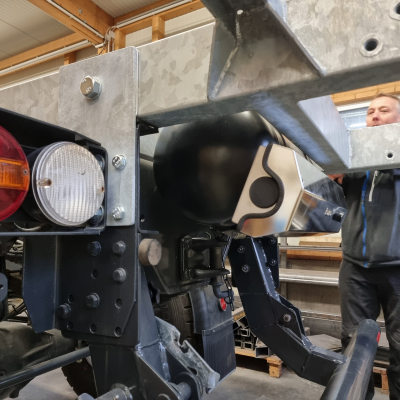

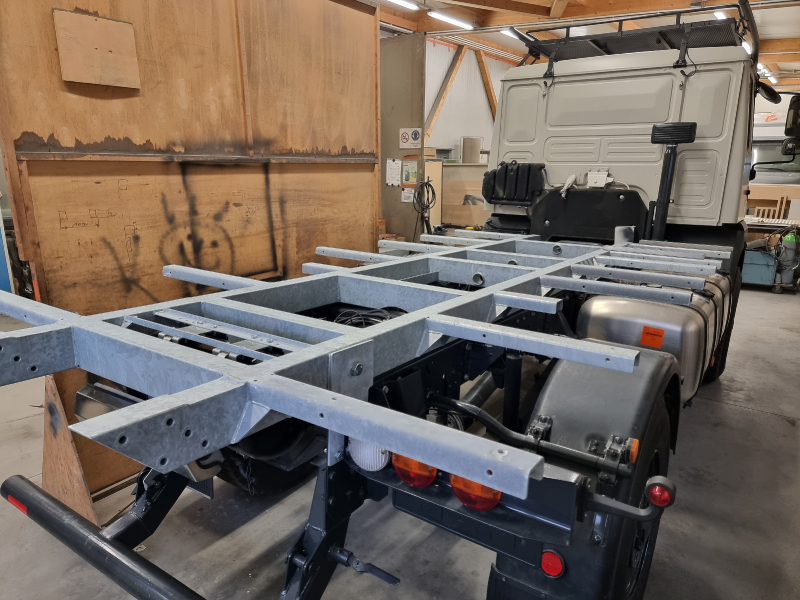

Subframe | federgelagert, Stahl, feuerverzinkt |
Explanation of floor plan | |
---|---|

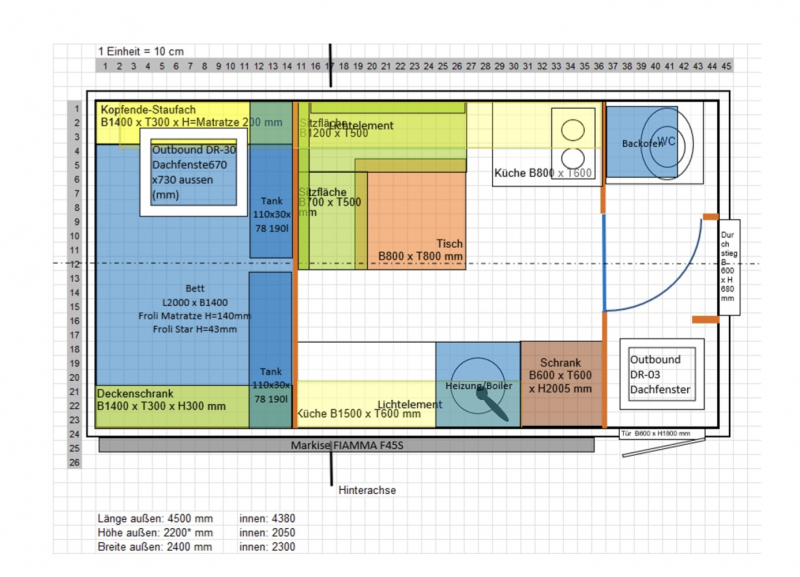

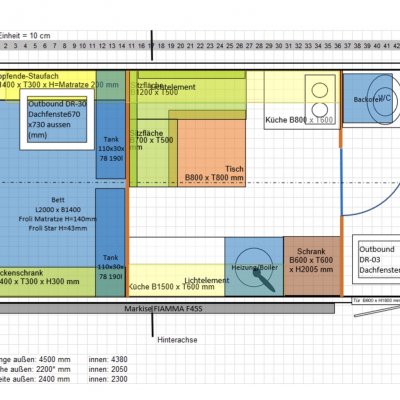

nach vielen Varianten, die wir entworfen und wieder verworfen haben, ist es am ende die auf dem Bild gezeigte geworden. |
Material of furniture | Ausbau beginnt mitte 2025 ........ |
---|
Cooking stove | 1x Induktion und 2x Gas |
---|---|
Gas installation | fest installierter Gastank |
Voltage in the chassis | 24V |
---|---|
Voltage in the cabin | 12V |
Charging converter 24V-12V | Victron Orion |
110V / 230V in the cabin? | yes |
Inverter | Victron |
Capacity of batteries in the cabin | 2x 100 Ah |
---|---|
Battery type | LiFePo |
Solar capacity | 880 Wp |
---|---|
Solar controller | Victron |
Fuel cell | no |
Power generator | nein |
Manufacturer and type of heating system | Diesel Luft |
---|
Explanation of gas system | |
---|---|

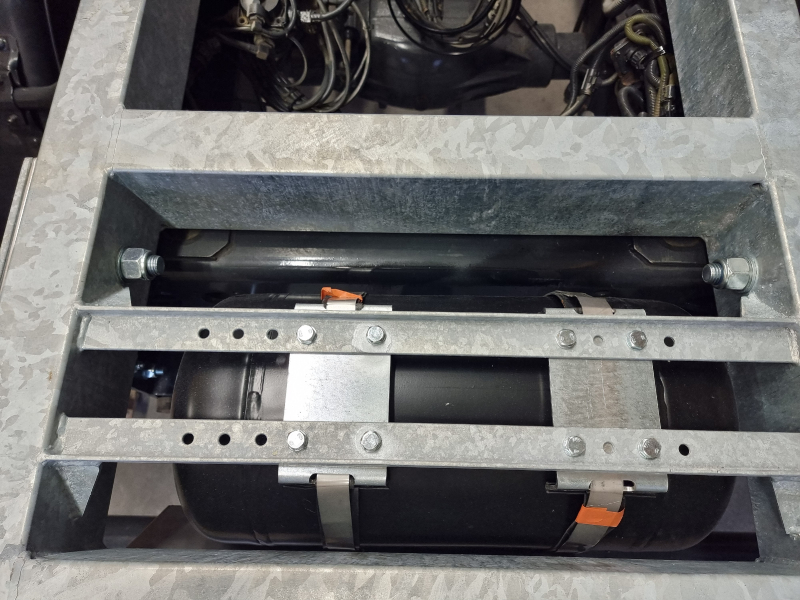

fest installierter Gastank. Hinten im Zwischenrahmen |
Capacity of fresh water tank(s) | 2x 200l |
---|---|
Capacity of waste water tank(s) | 1x 100l |
Manufacturer and type of toilet | Trocken Trenn Toilette |
---|
Rear carrier | ja |
---|---|
Roof rack | ja |
Storage boxes | ja |
Awning | ja |
