Winter Fahrzeug (#2171)

General Information

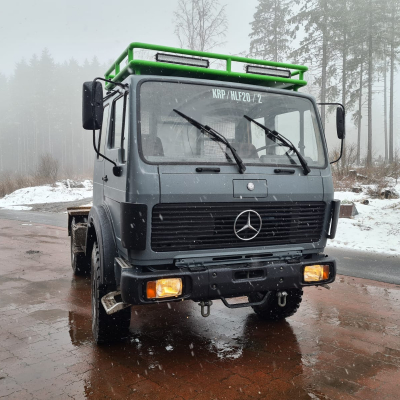

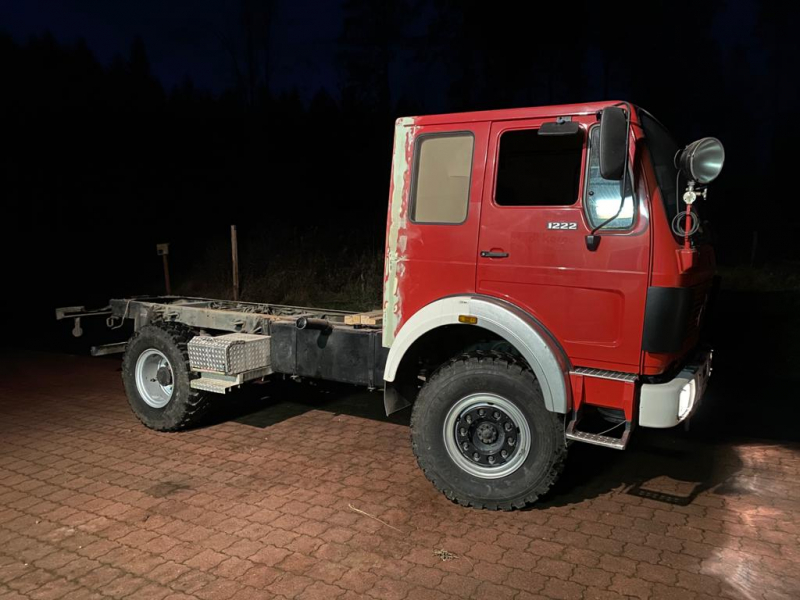

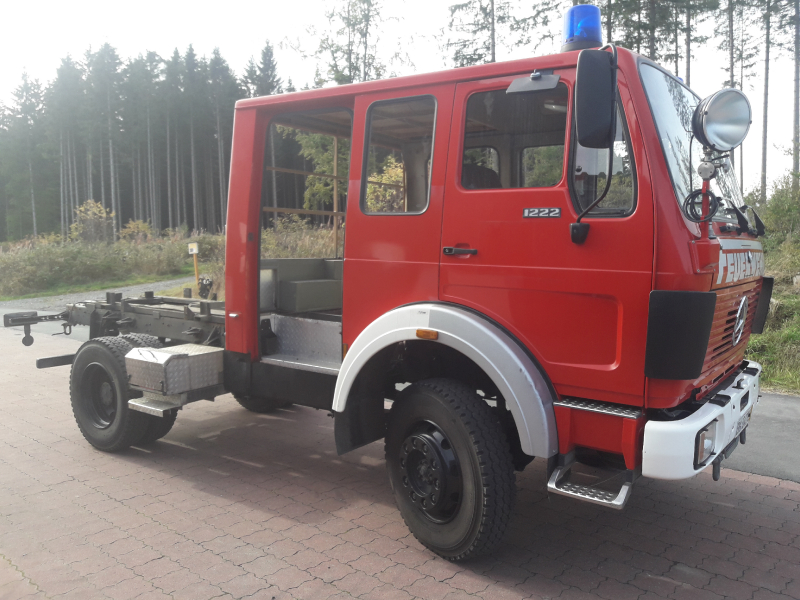

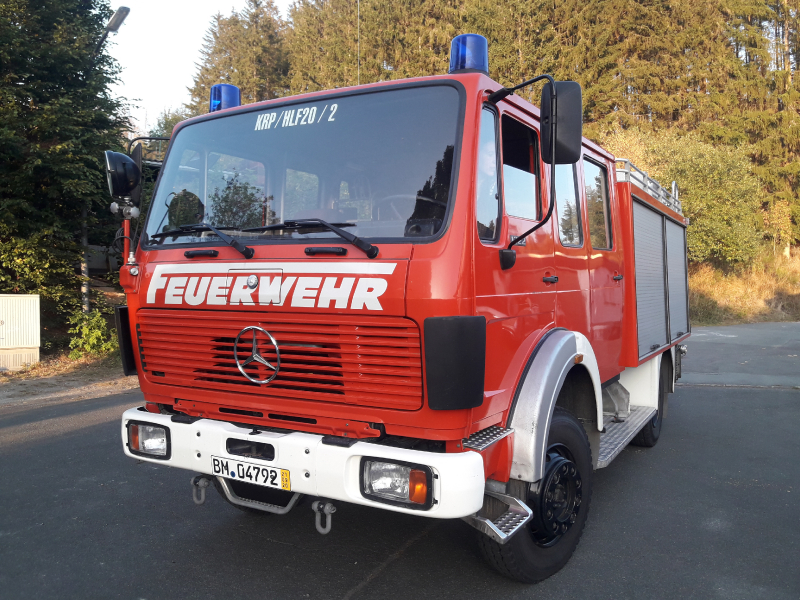

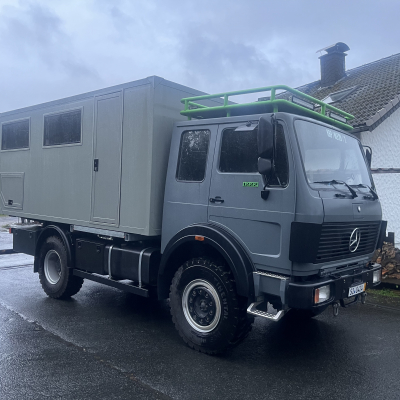

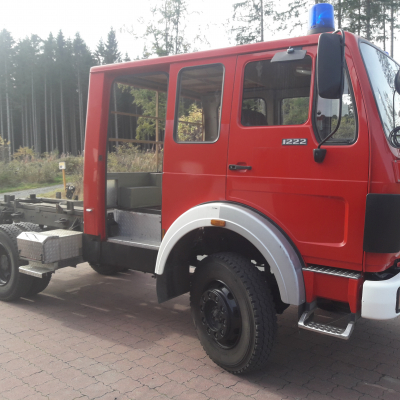

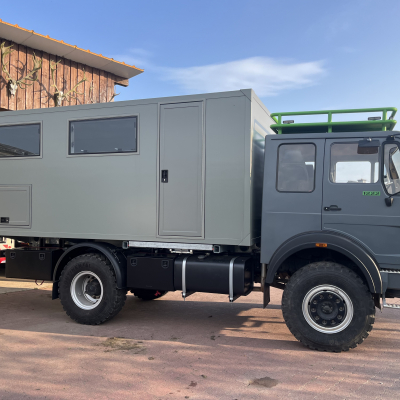

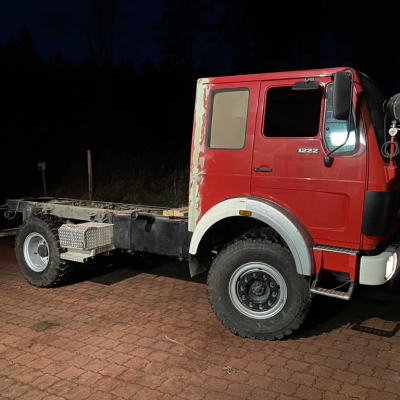

Manufacturer and model Daimler Benz 1222 AF
Name Thorsten Winter
Year of manufacture 1987
For sale? no

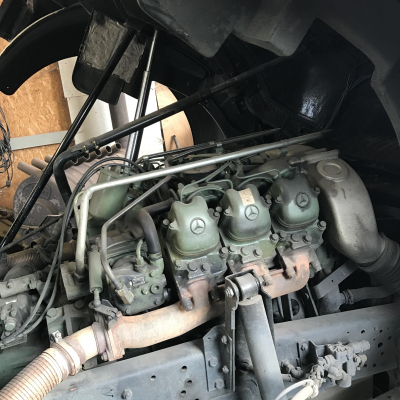

Engine

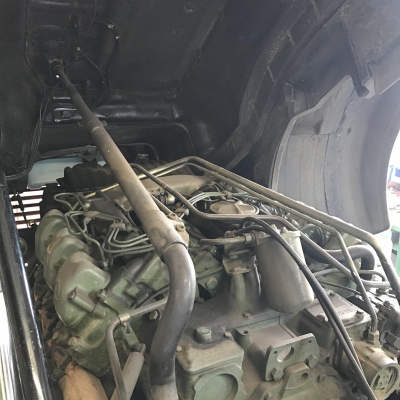

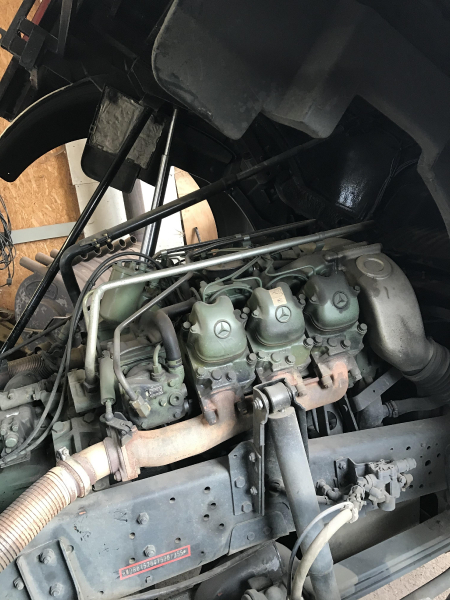

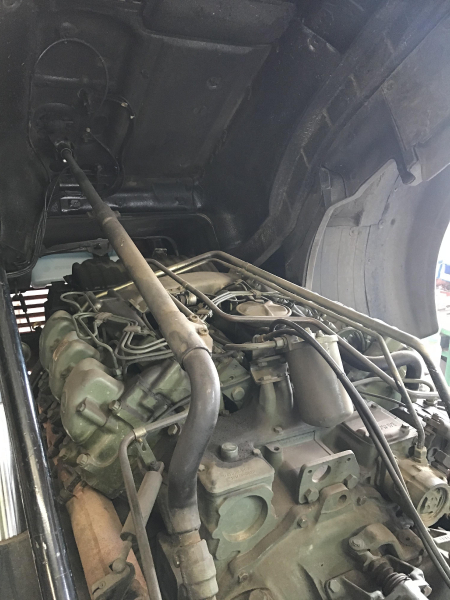

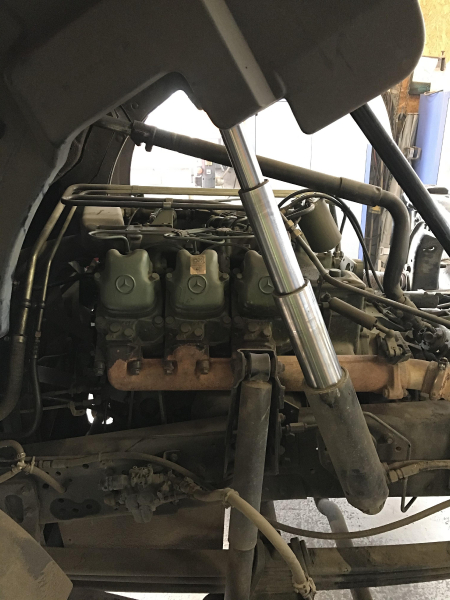

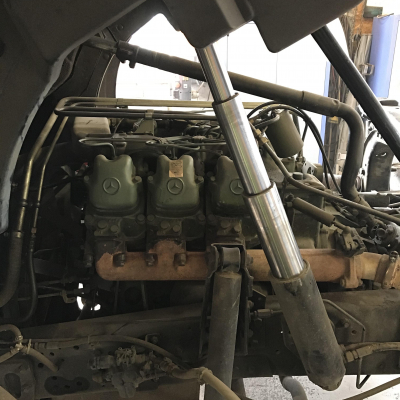

Engine type OM421
Cubic capacity 10888ccm
Number of cylinders 6
Horsepower 216
Torque 785Nm

Chassis

Zulässiges Gesamtgewicht 10to
4x2, 4x4, 6x6, 8x8 4x4
Wheel base 3,6m
Number of seats 4
Tyre size 365/85 R20
Rim size 10x20
Type of tyre Continental HSC
Tank capacity 230 + 300 Liter
Diesel filter no
Permanent or manually selectable 4-wheel drive permanent
Diff locks 2x

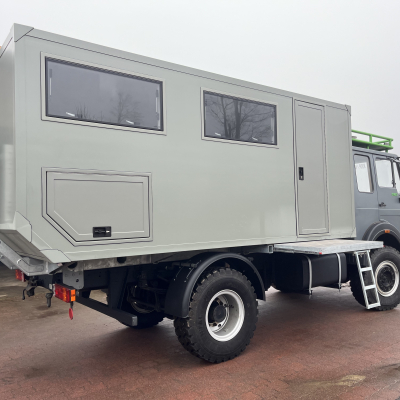

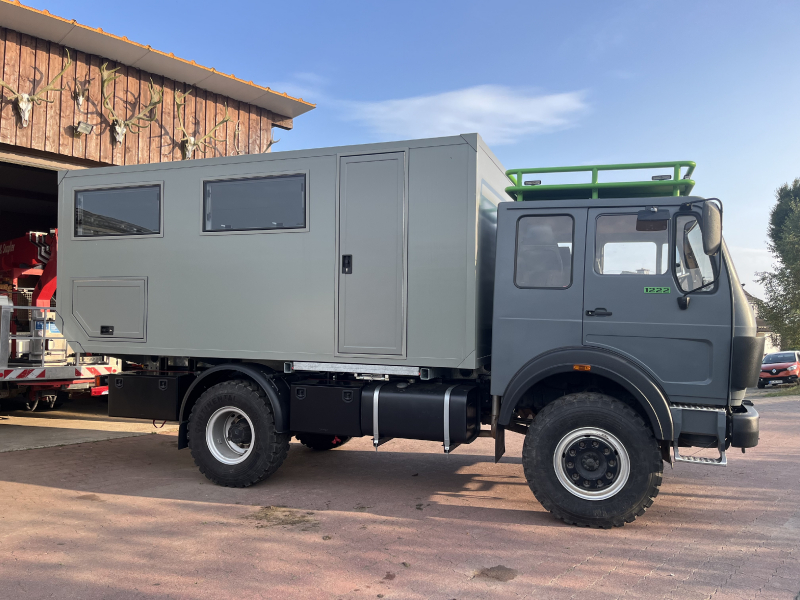

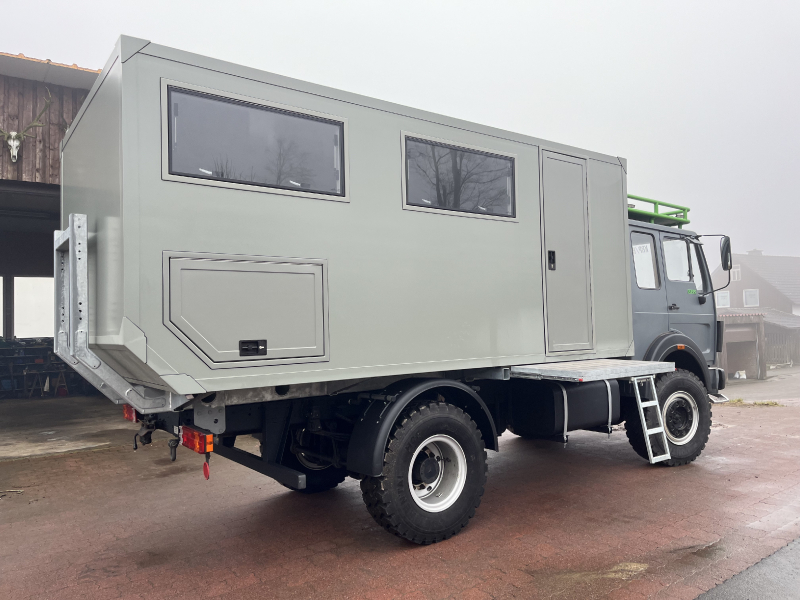

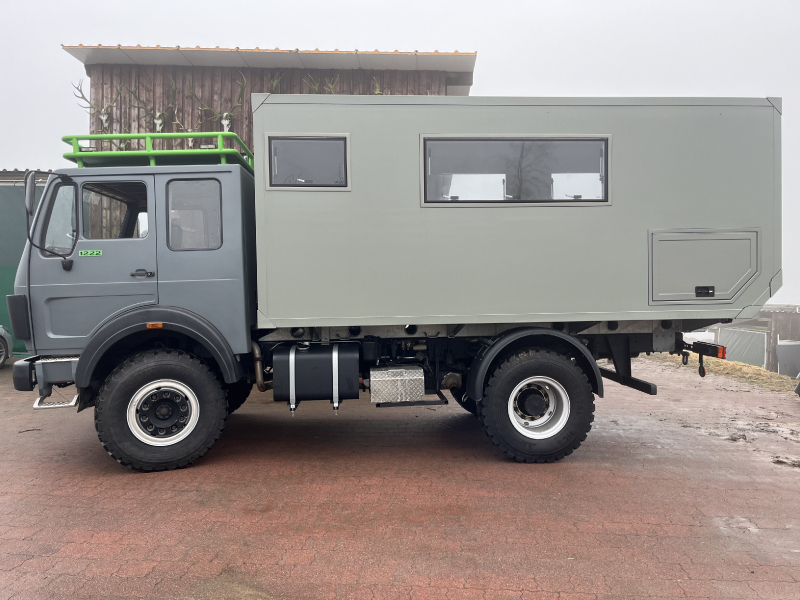

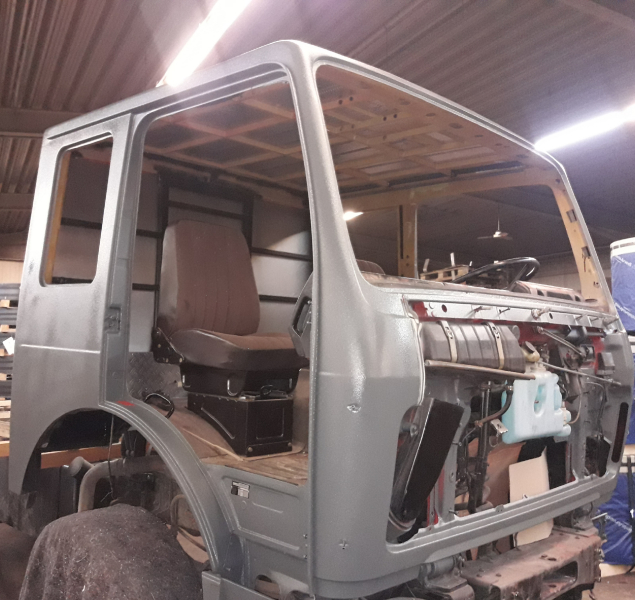

Cabin

Manufacturer of the cabin Eigenbau/kauf
Inner dimensions (LxWxH) 4880x2380x1980
Outer dimensions (LxWxH) 5000 x 2500 x 2100
Cabin material GFK
Kind and thickness of insulation 60mm
Number of beds 4
Windows Outbound

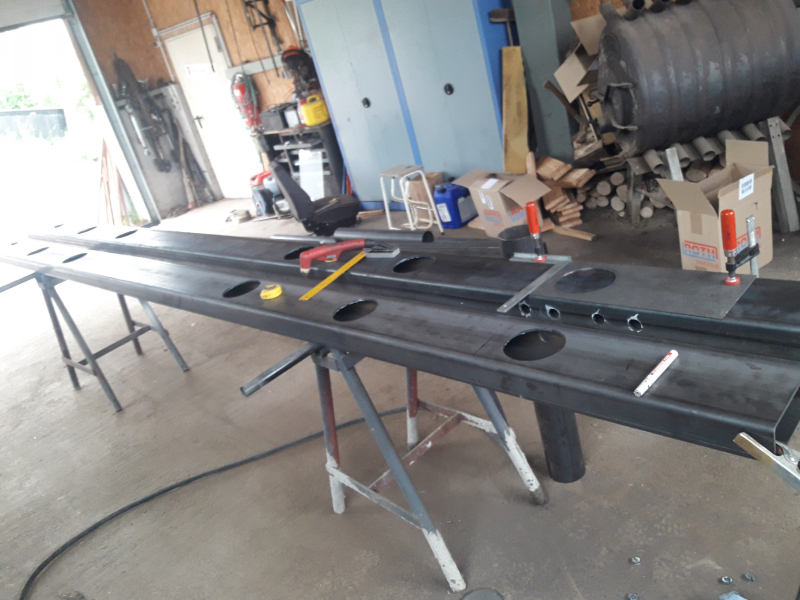

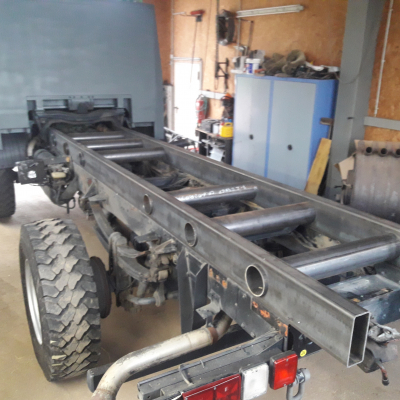

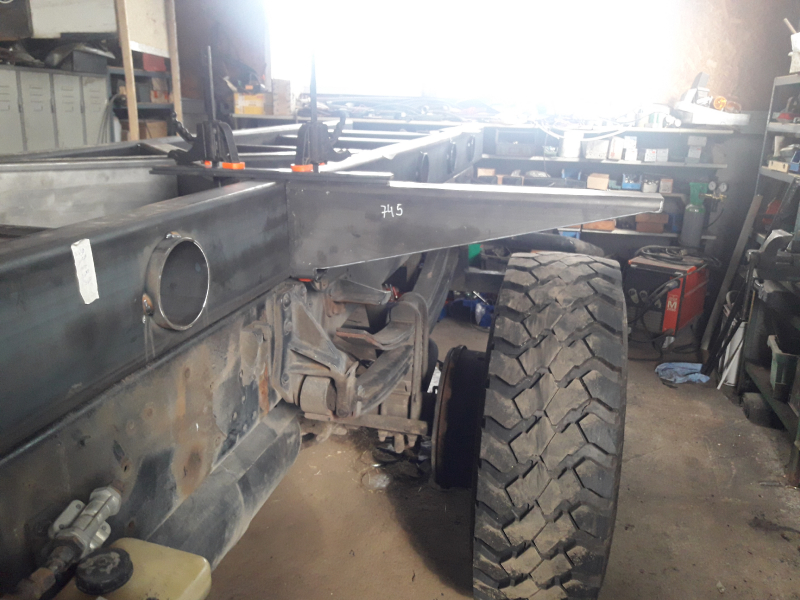

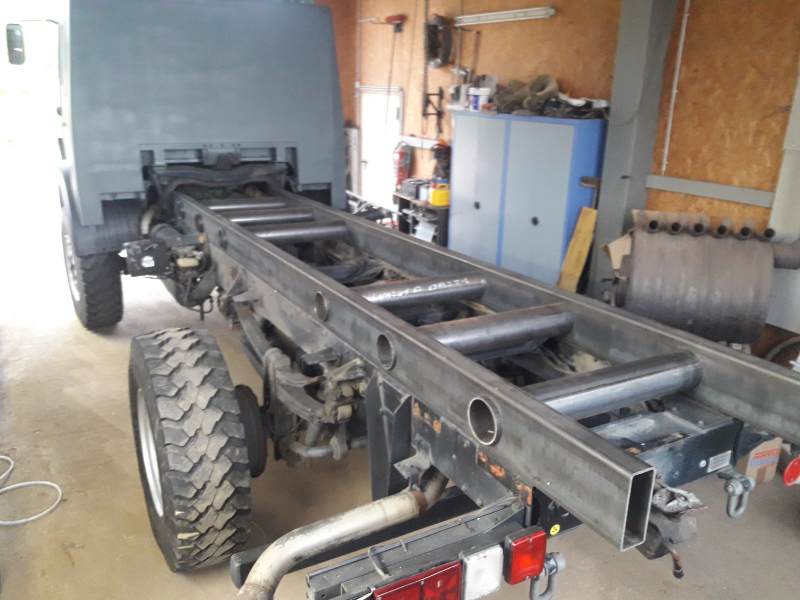

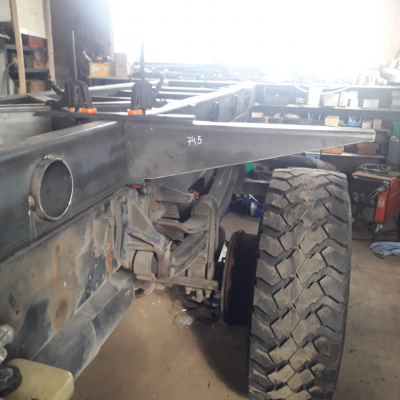

Subframe Federlagerung

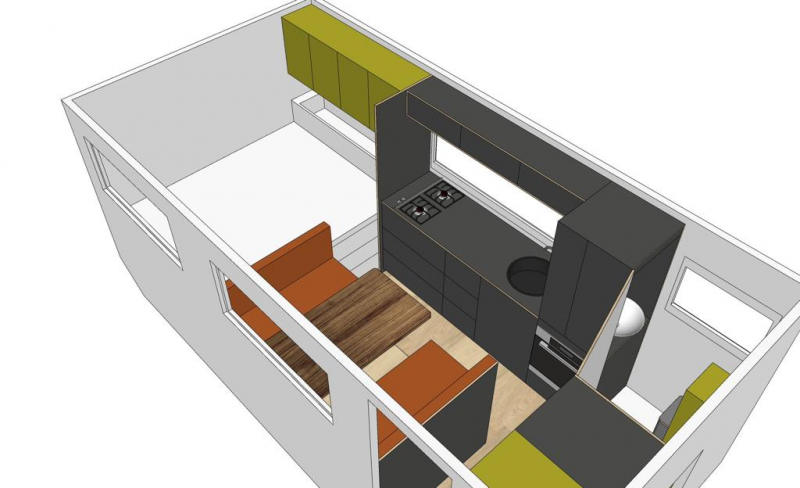

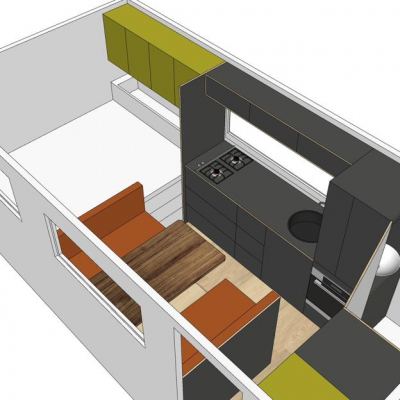

Floor plan

Cooking stove

Cooking stove Dometic
Gas installation Nein

Refrigerator; cool box

Manufacturer and type of fridge / cooler Dometic RCL 10.4 ET

Power supply

Voltage in the chassis 24V
Voltage in the cabin 24V
Charging converter 24V-12V Ja
110V / 230V in the cabin? yes
Inverter Victron 24/5000 120-100

Capacity of batteries in the cabin

Capacity of batteries in the cabin 4x 100Ah
Battery type LiFePo4
Battery charger for cabin batteries Victron Blue Smart 24/16
Battery management Ja

Power generation

Solar capacity 1kWP
Solar controller Victron Smart Solar MPPT 250/60-Tr
Fuel cell no
Power generator Nein

Heating system

Manufacturer and type of heating system Dometic D6E
Warm water processing Ja
Cab heating Classisch

Water system

Capacity of fresh water tank(s) 2x 220 Liter

Vehicle accessories

Rear carrier Ja

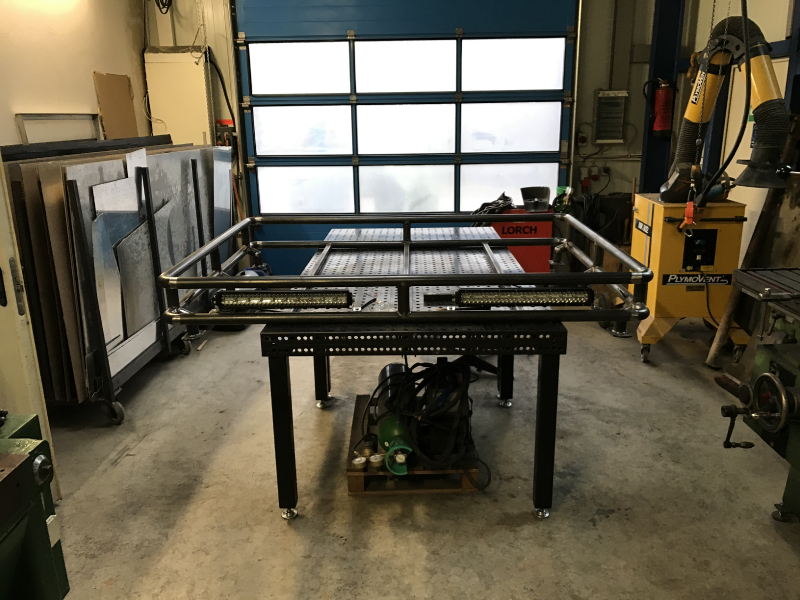

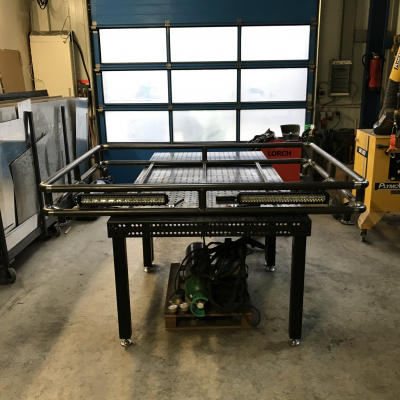

Roof rack Ja
Storage boxes 4 Stück
Outside cooking facilities Ja
released 13.11.20
owner Thorsten Winter
views 7789
filled out 84%
