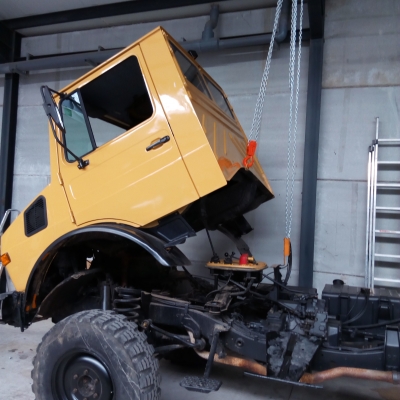

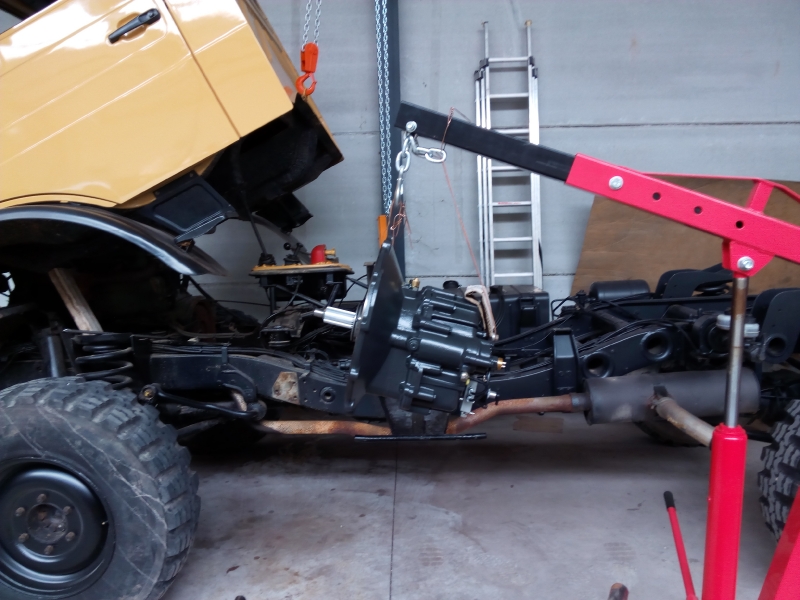

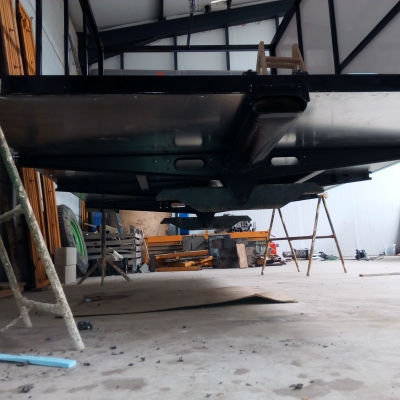

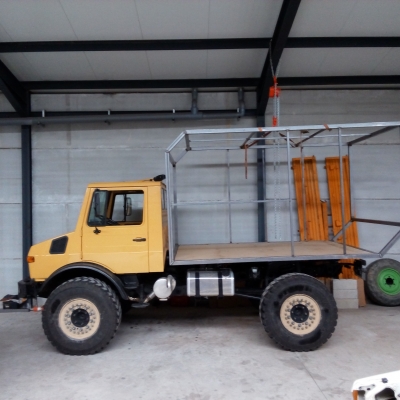

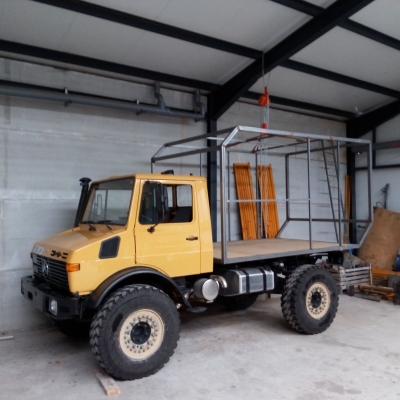

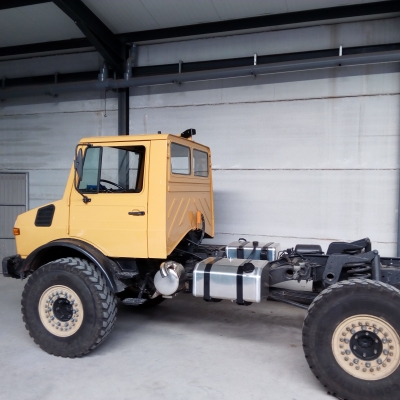

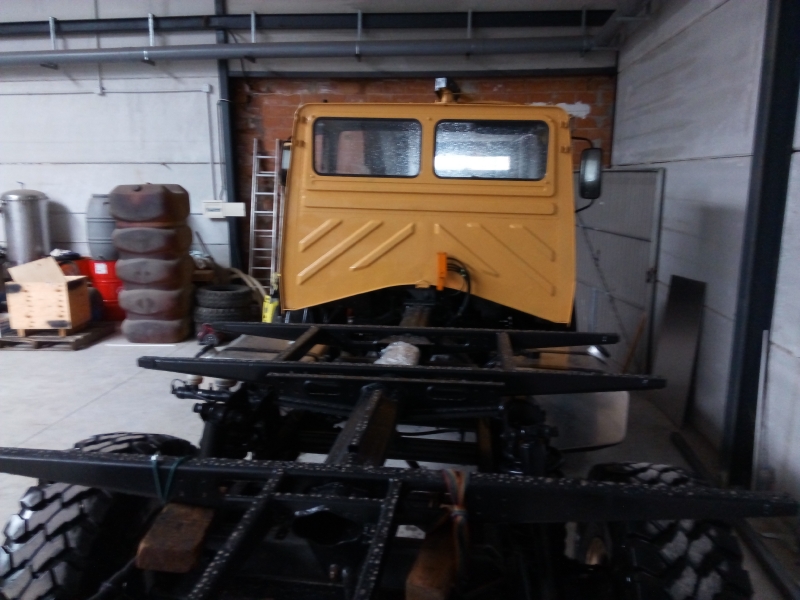

Just we star on this adventure, we would like to make long travels whit it over the world in the future so is time to work hard on it , at the moment the engine and chasi are ready, next step the cabine.

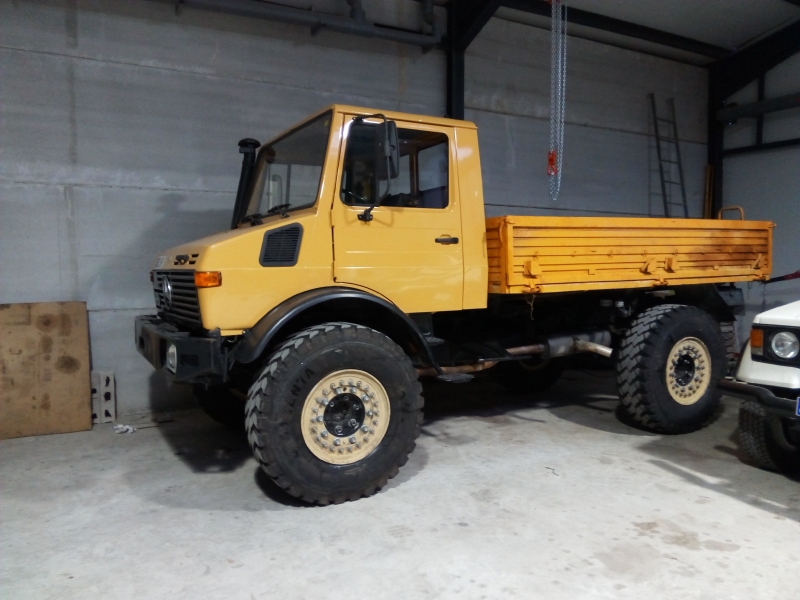

| Manufacturer and model | Mercedes |
|---|---|

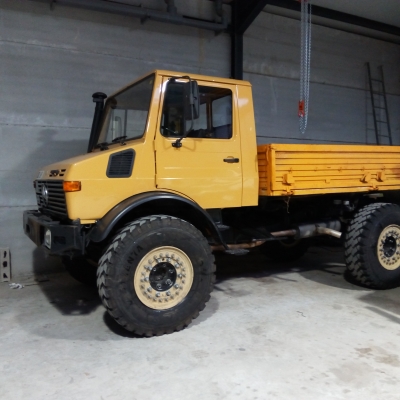

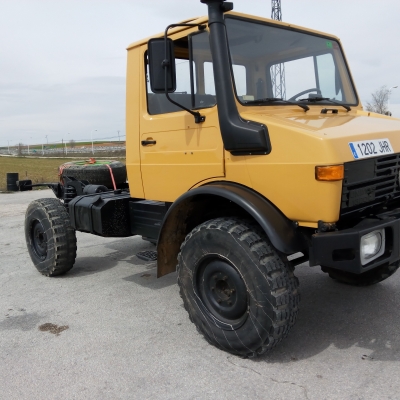

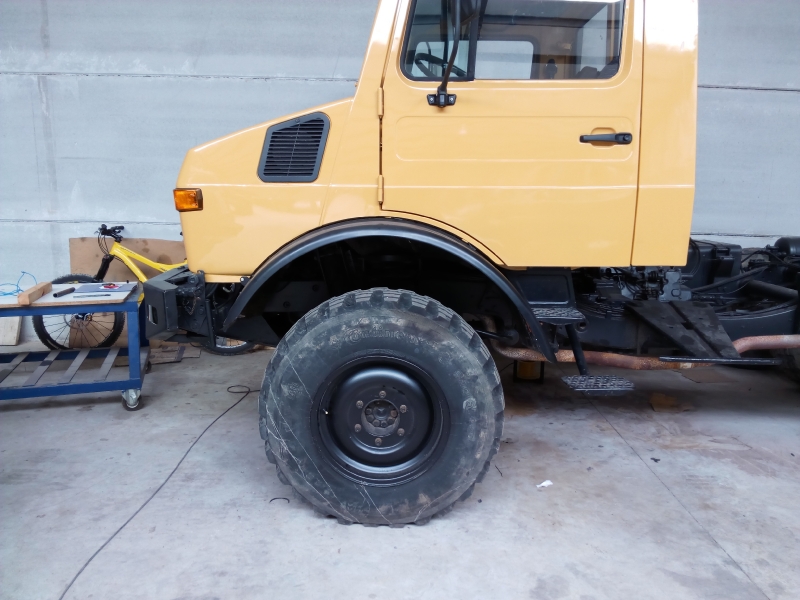

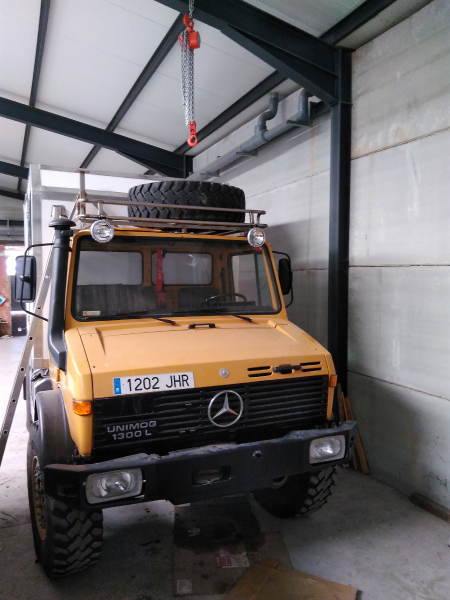

| Name | Unimog 1300 L |
| Year of manufacture | 1978 |
| For sale? | no |

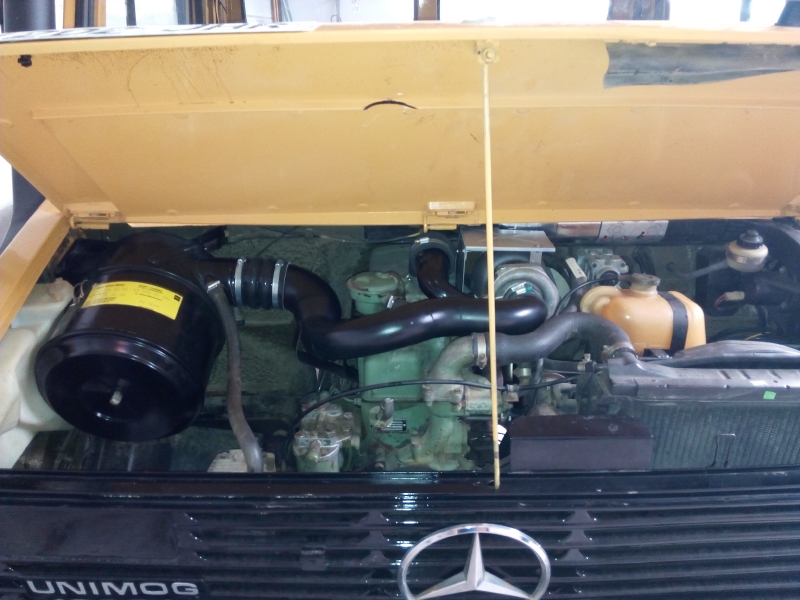

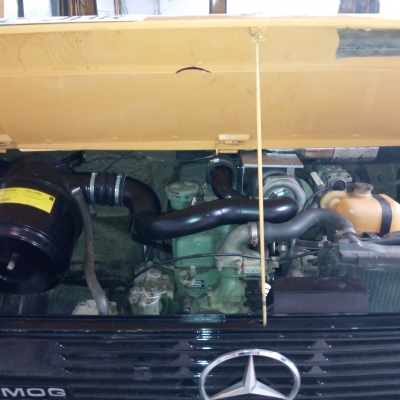

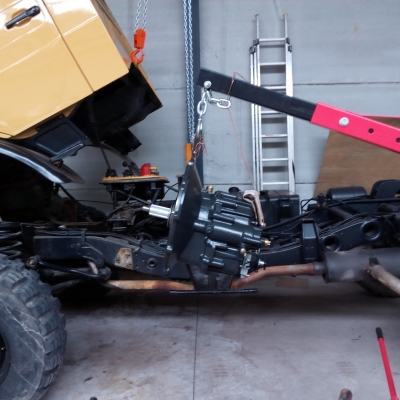

| Engine type | 352+turbo |
|---|---|
| Cubic capacity | 5700cc |
| Number of cylinders | 6 in line |
| Horsepower | 150cv |
| Torque | 350 Nm |
| Other | |

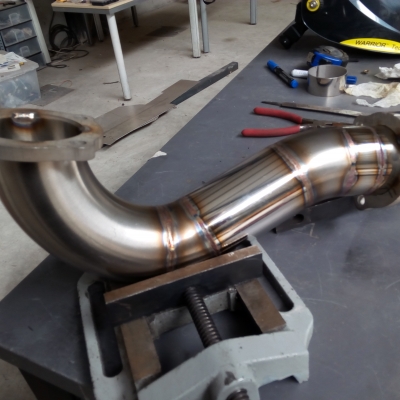

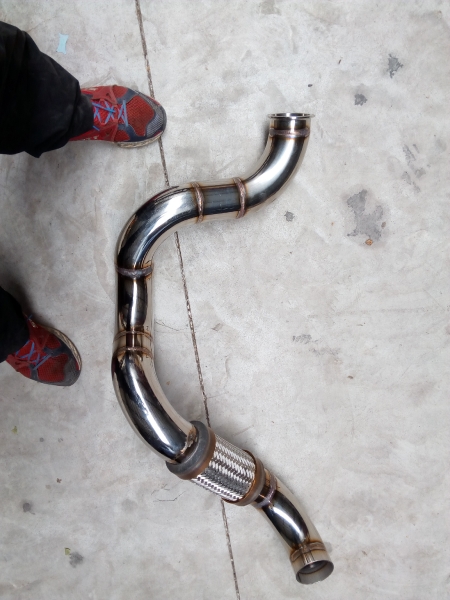

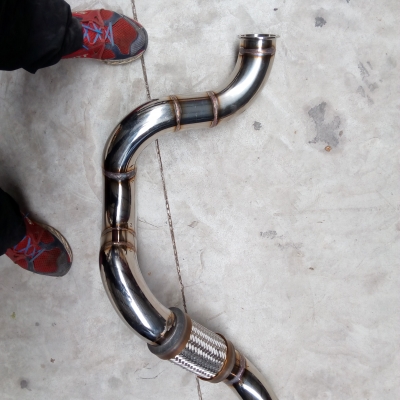

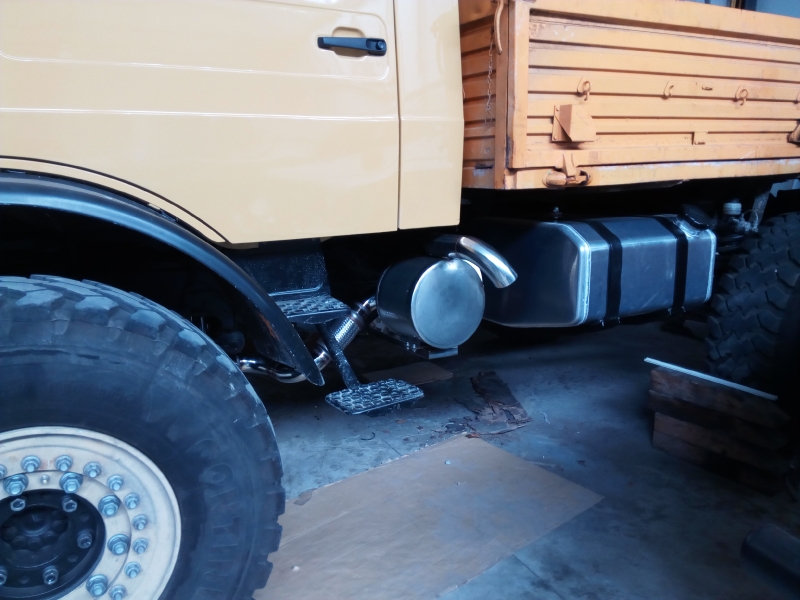

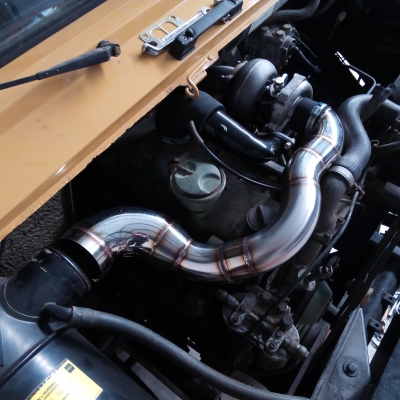

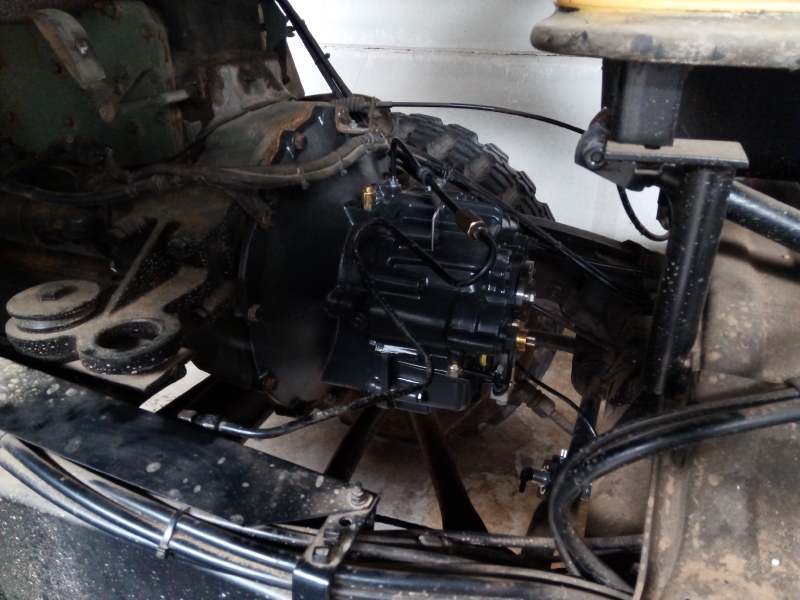

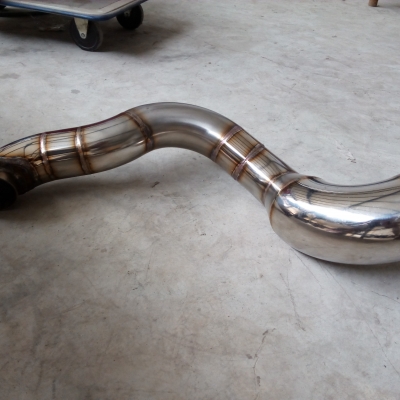

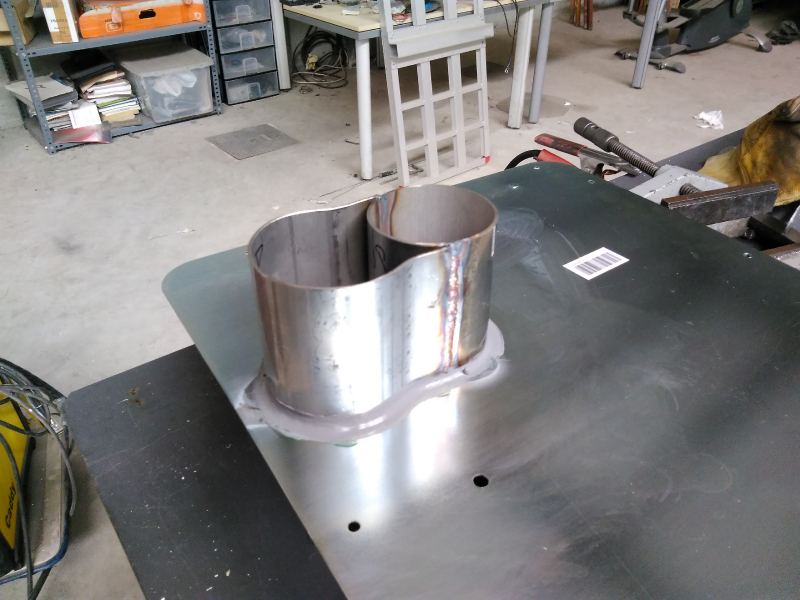

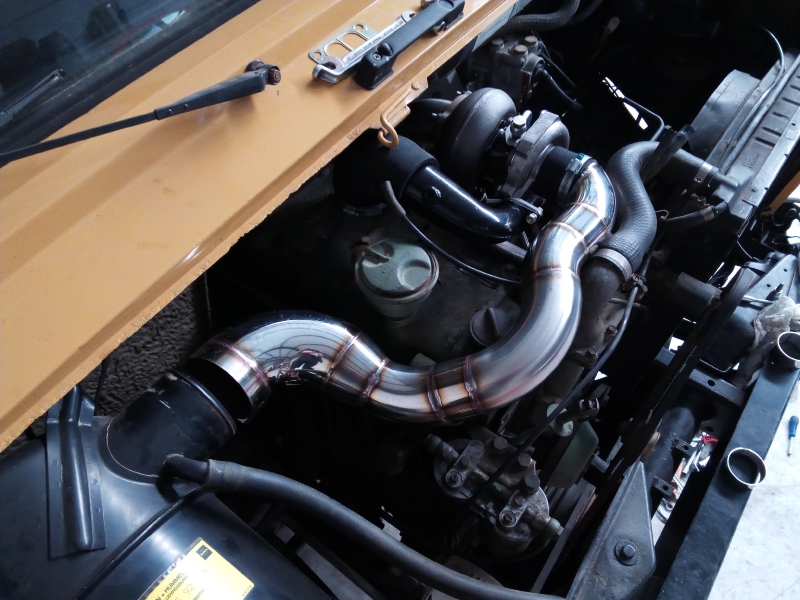

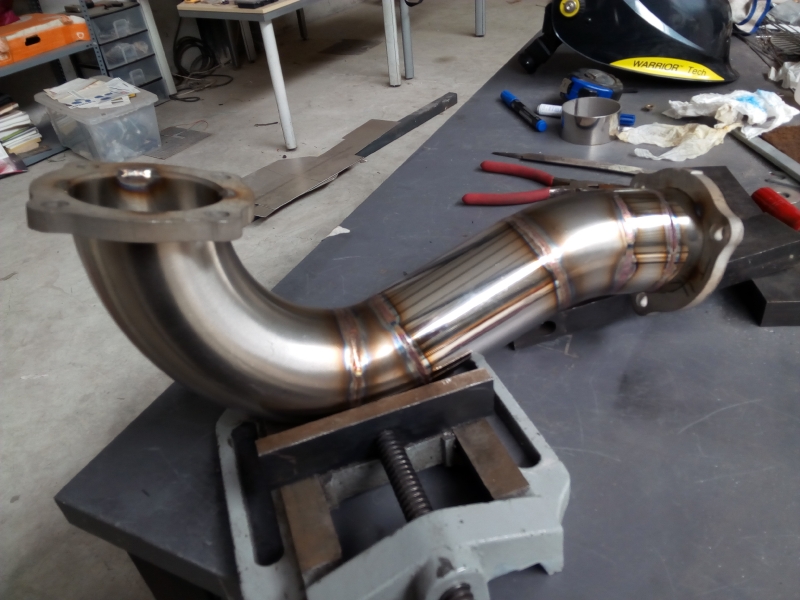

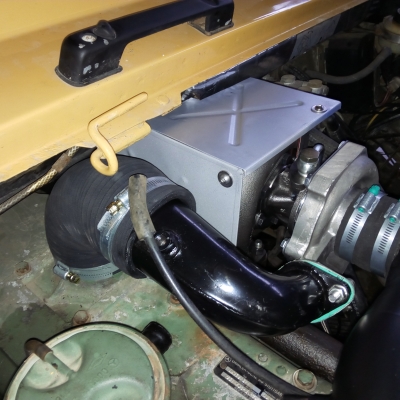

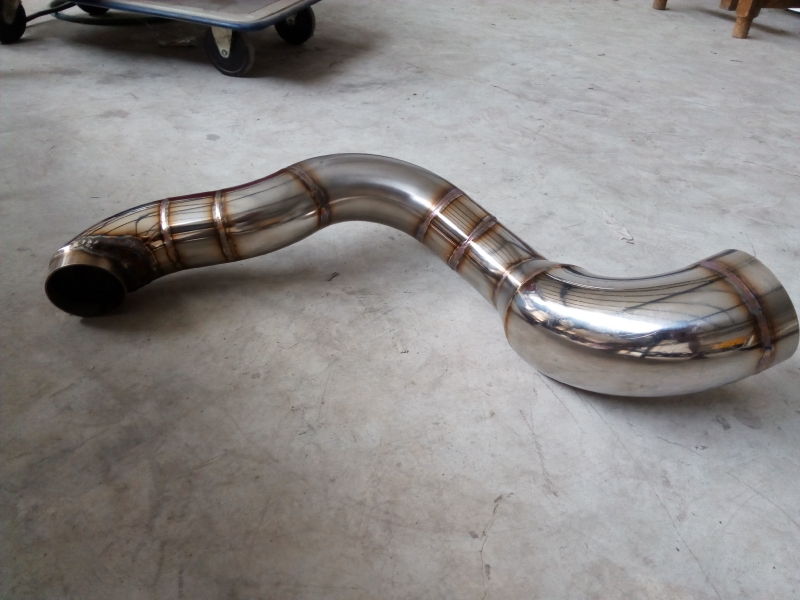

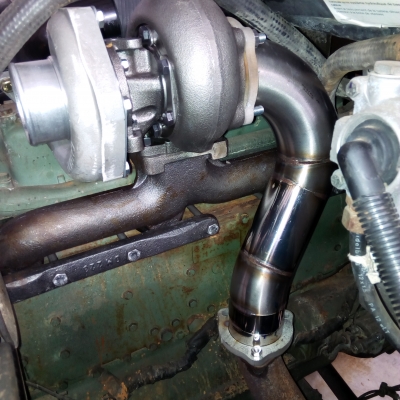

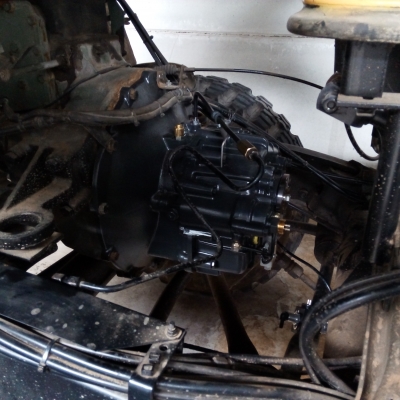

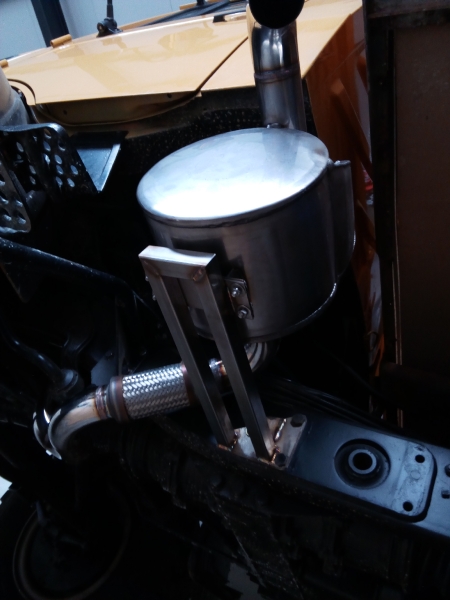

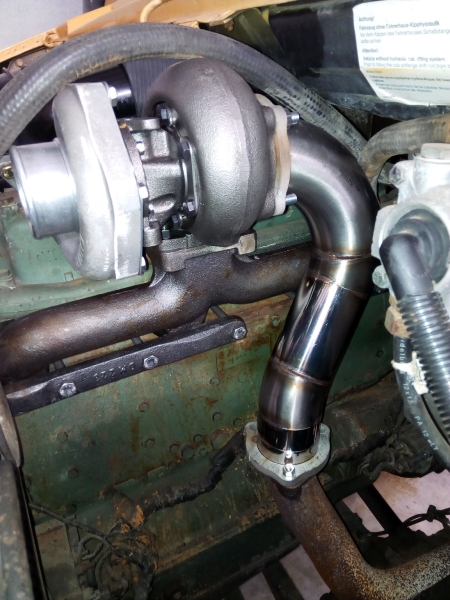

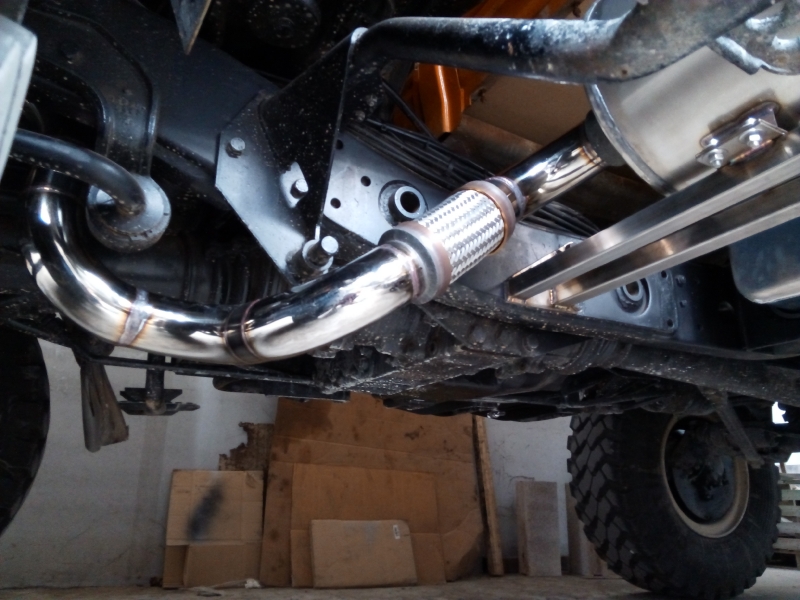

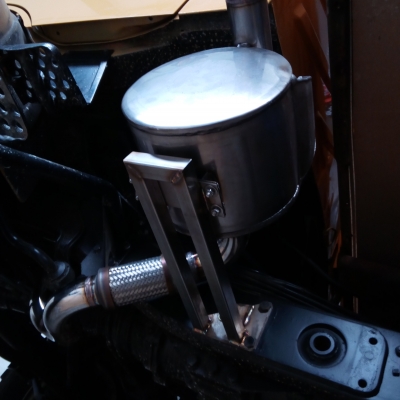

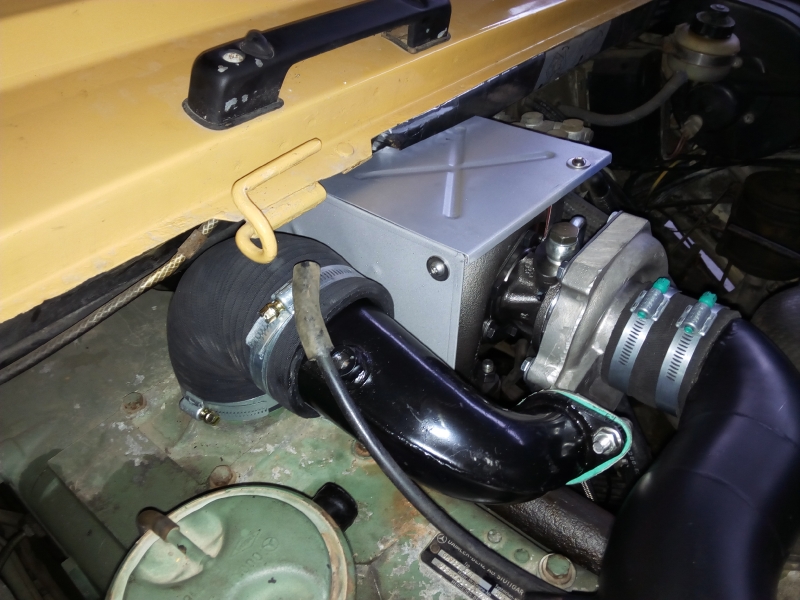

| Garret turbo as a std 352a model, full exhaust pipe and cowl mufler, overdrive plus 23/9 fast axle ratio upgrade | |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3250 |
| Number of seats | 3 |
| Tyre size | 365 85 R20 or 13.00 r20 |
| Rim size | 10xR20 |
| Type of tyre | Continental CCT |

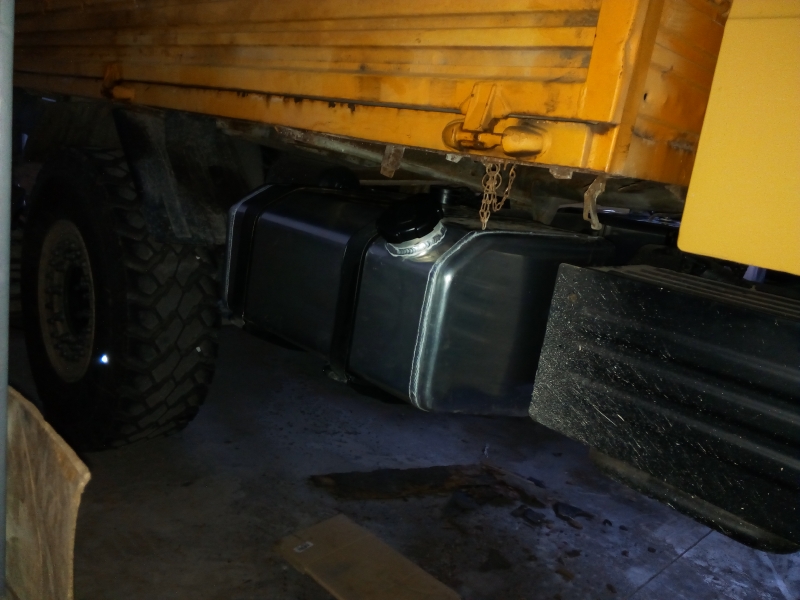

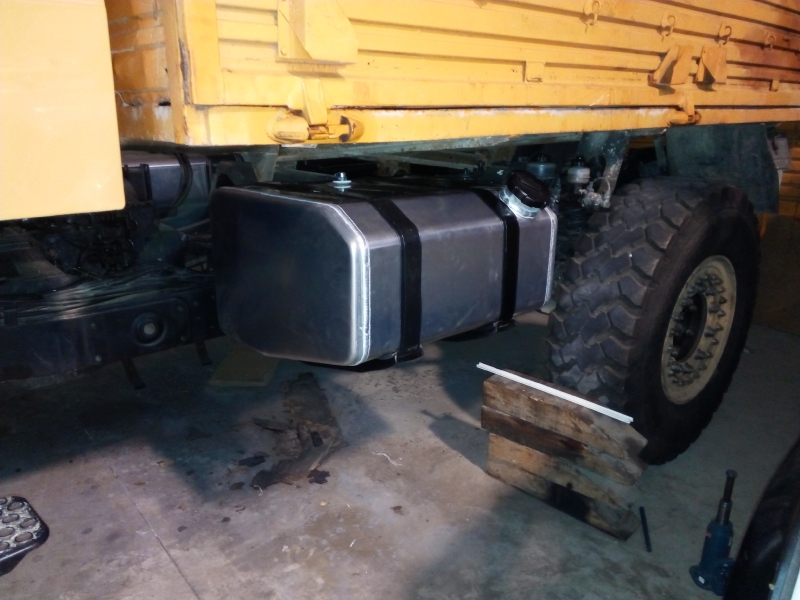

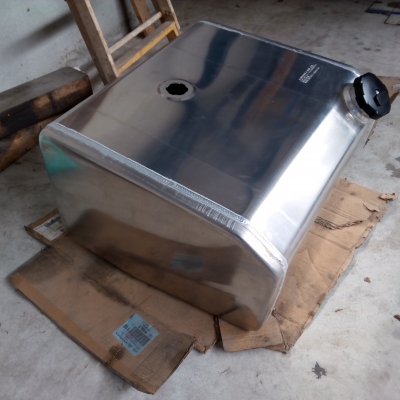

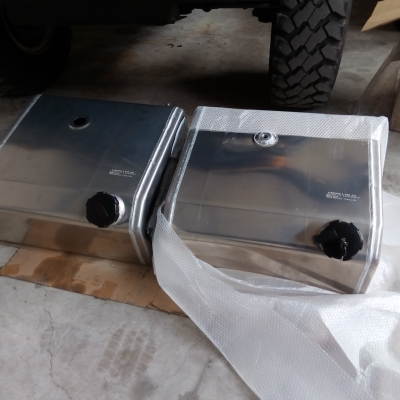

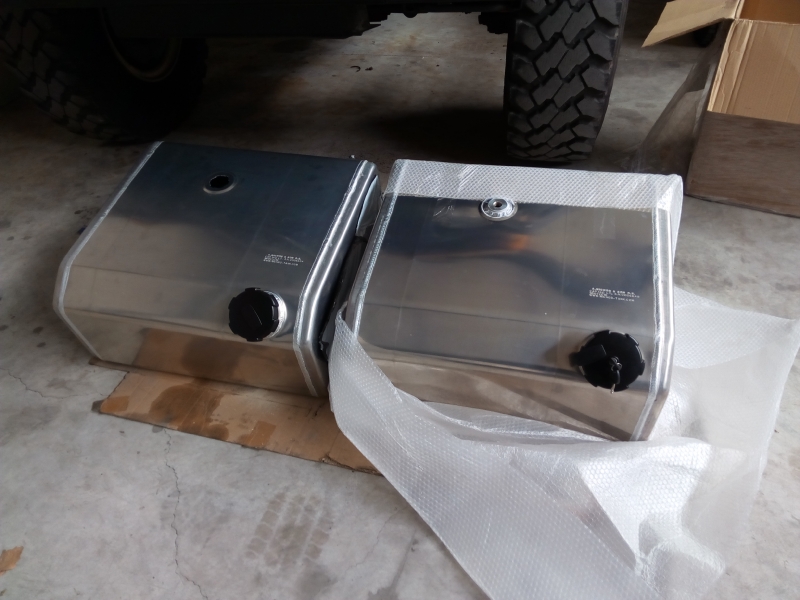

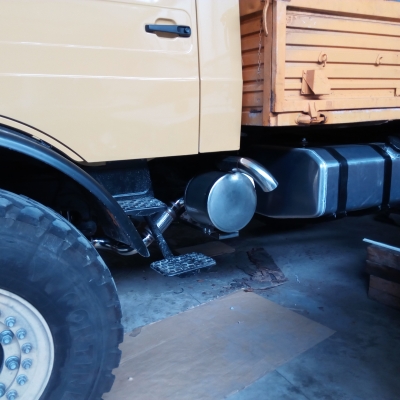

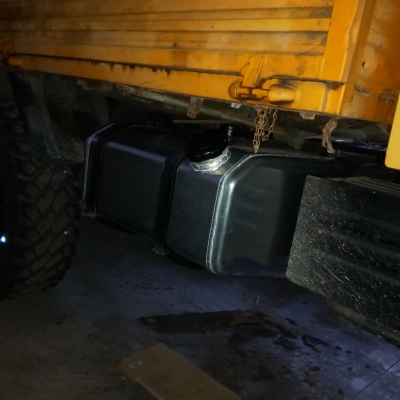

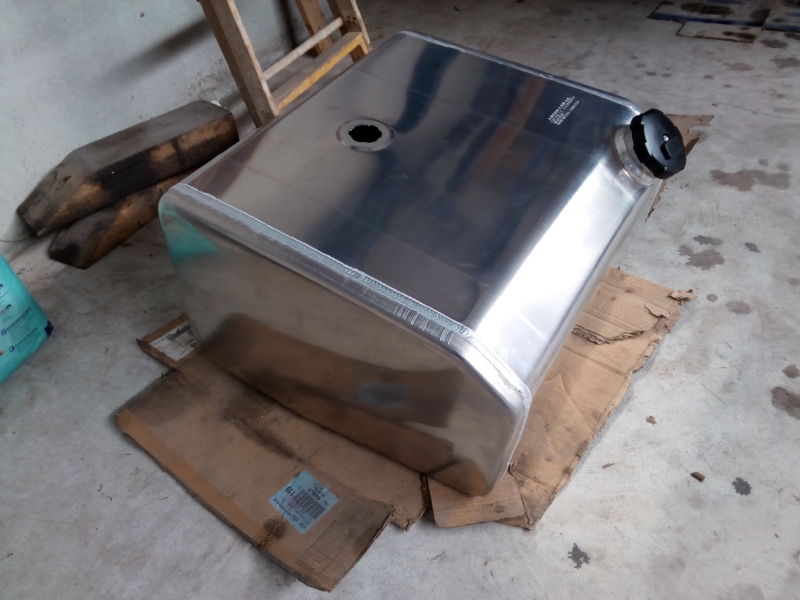

| Tank capacity | 2x 140ltrs |
| Diesel filter | no |
| Other | |

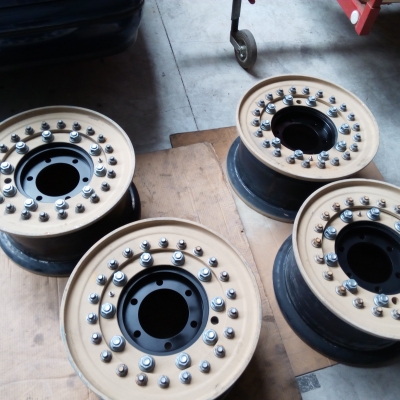

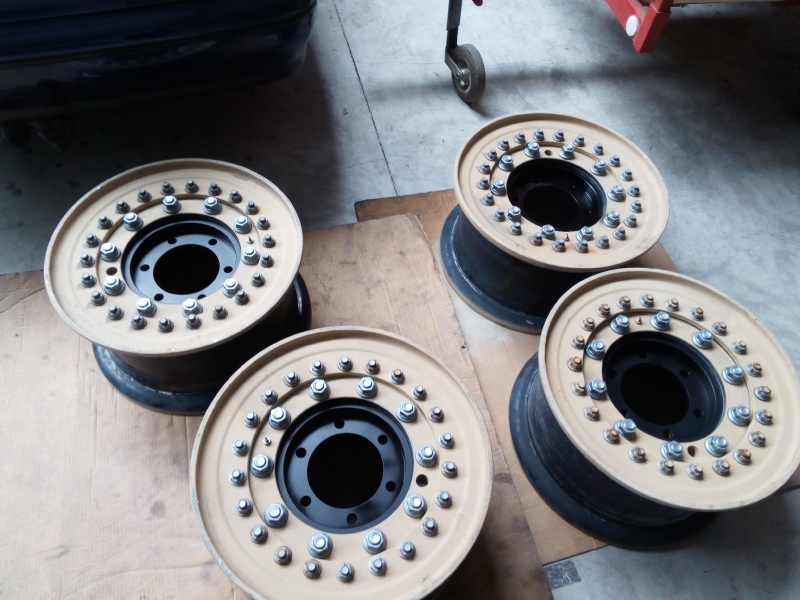

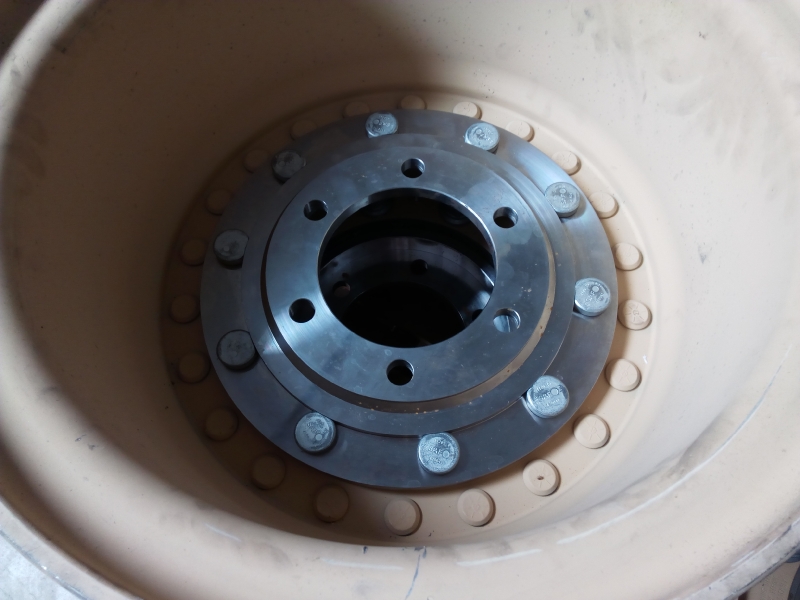

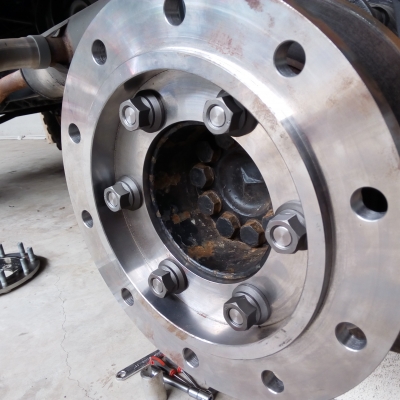

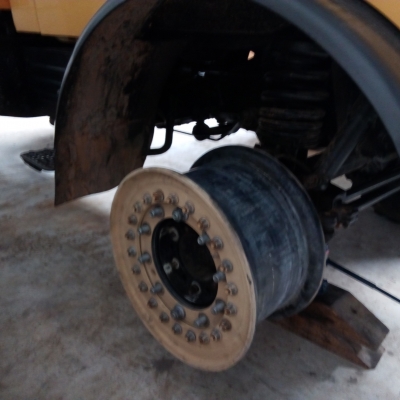

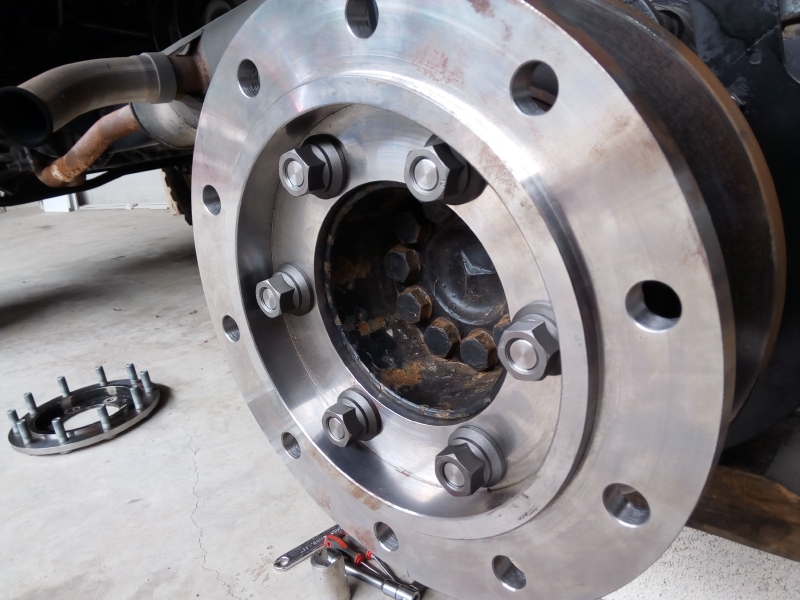

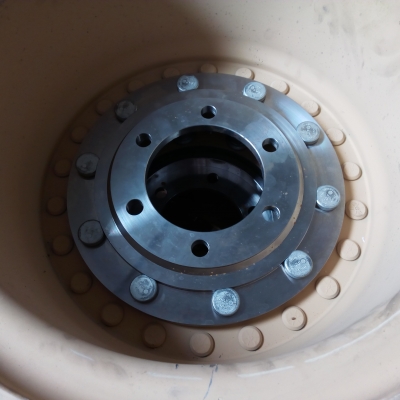

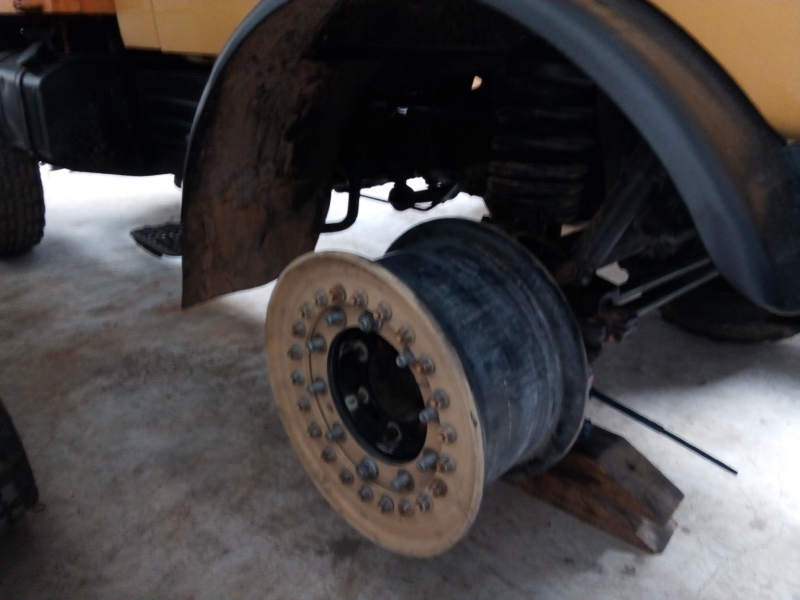

| Hutchinson wheels whit 10 bolt pat | |
| Permanent or manually selectable 4-wheel drive | 4 wheel permanent |
| Diff locks | 3 locks |

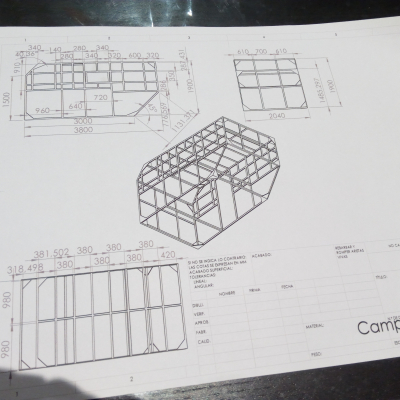

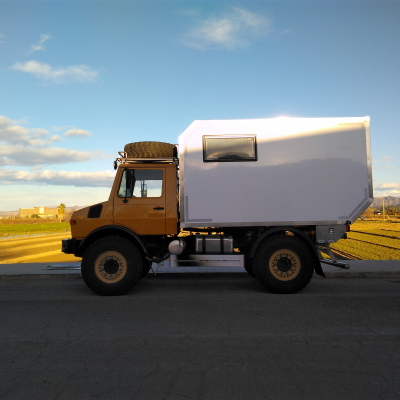

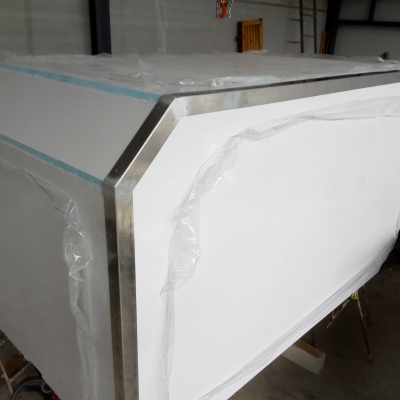

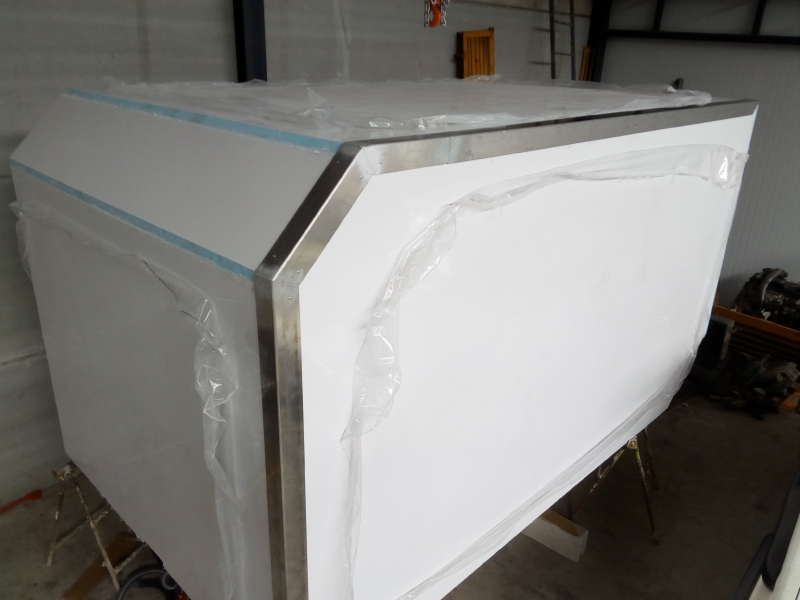

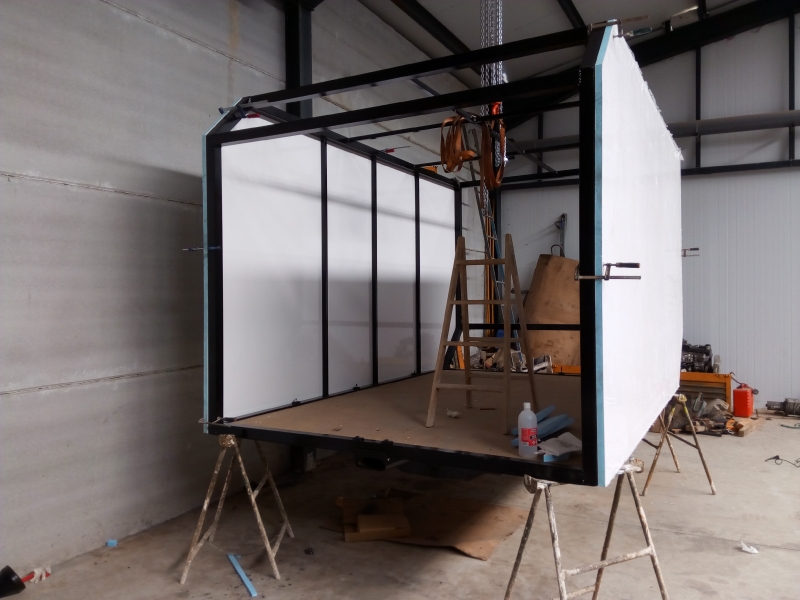

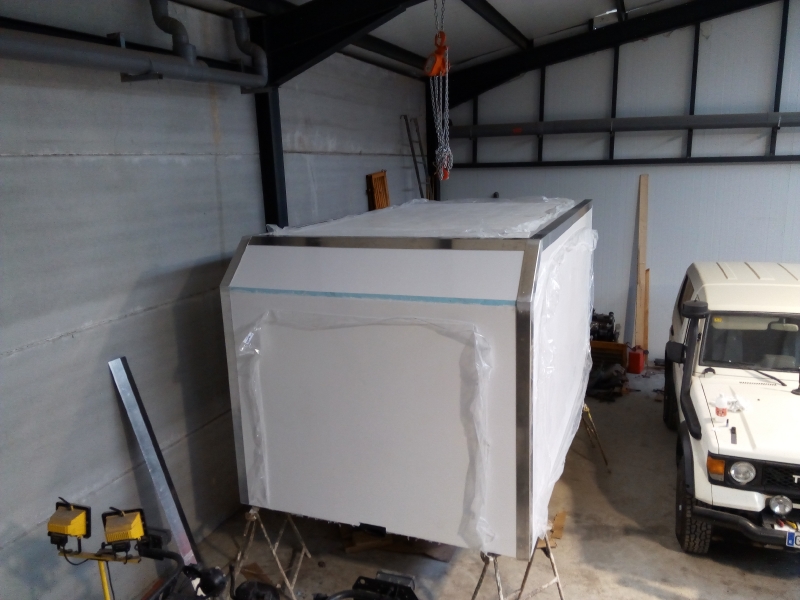

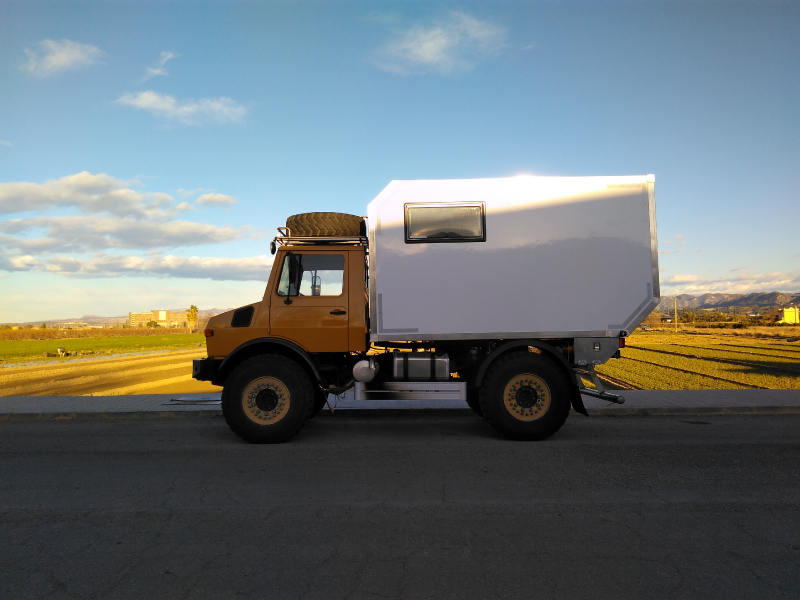

| Manufacturer of the cabin | Self build cabine |
|---|---|

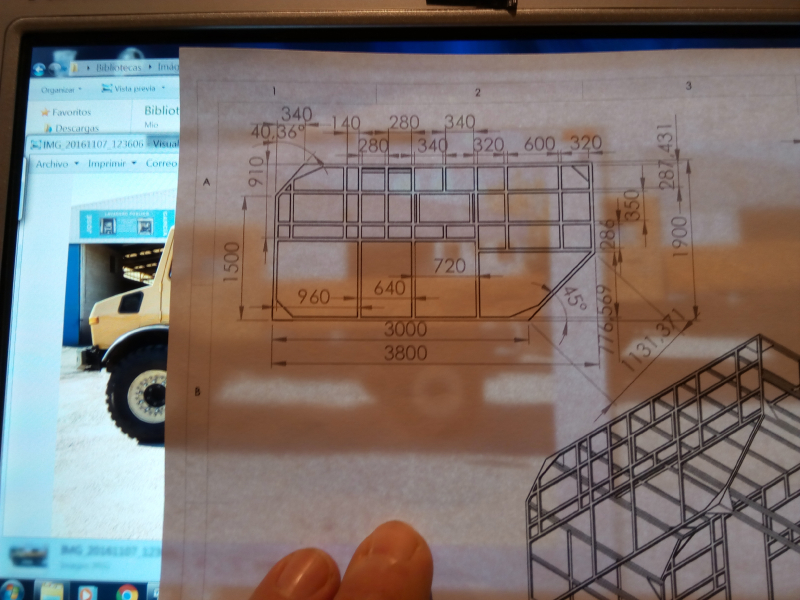

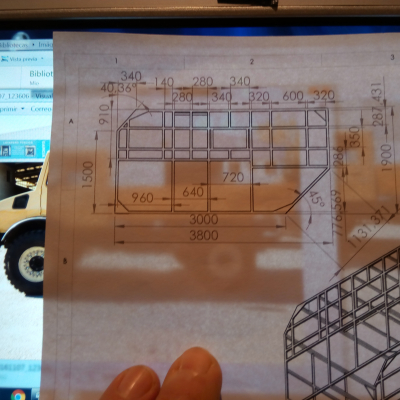

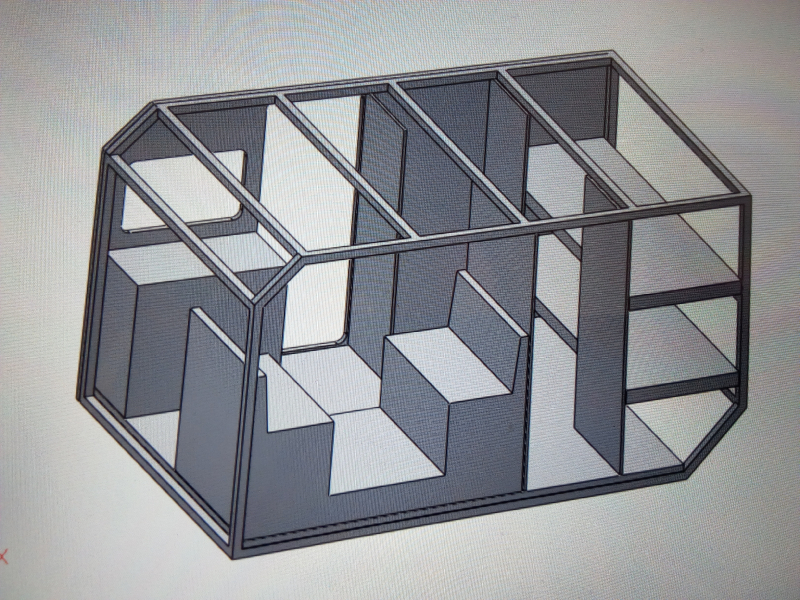

| Inner dimensions (LxWxH) | 3500x2000x1850 |
| Outer dimensions (LxWxH) | 3600x2100x1950 mm |

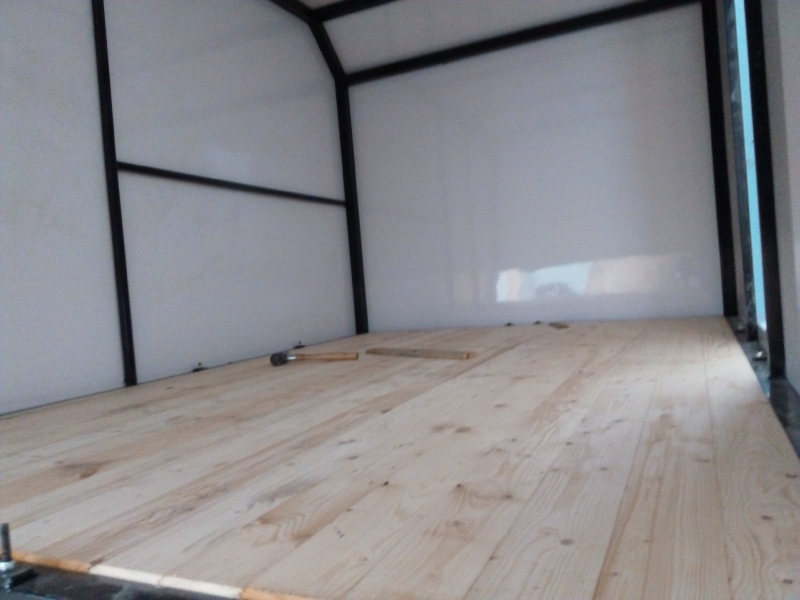

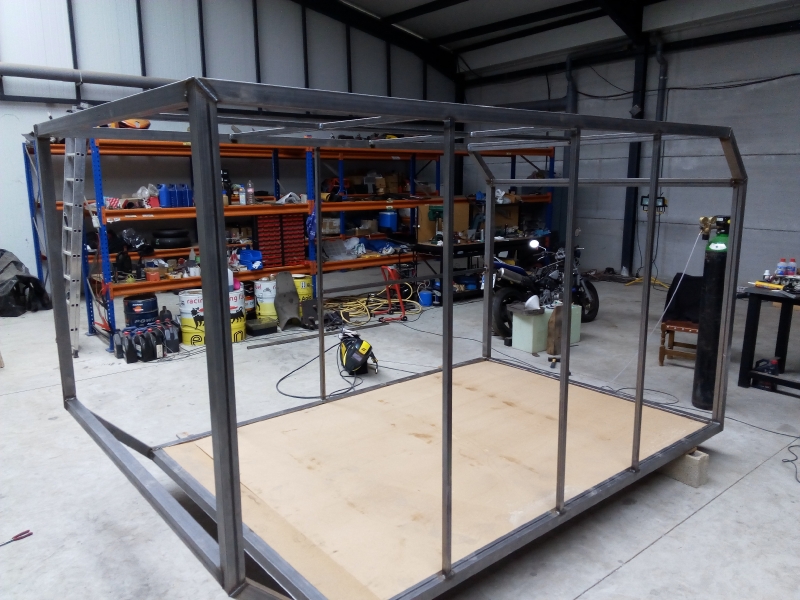

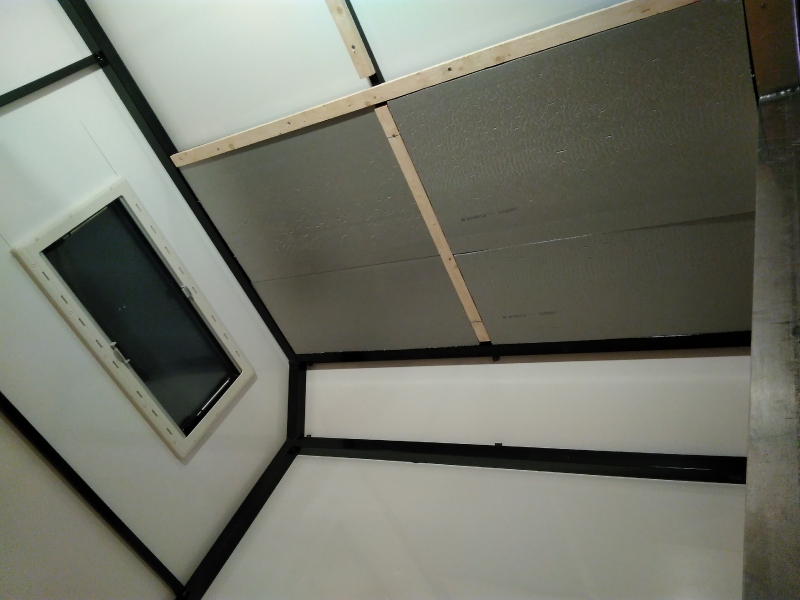

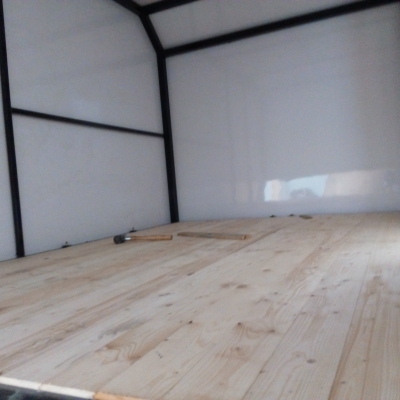

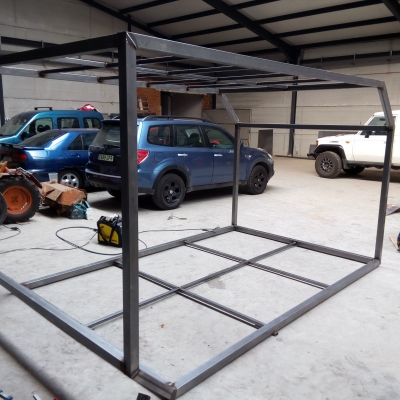

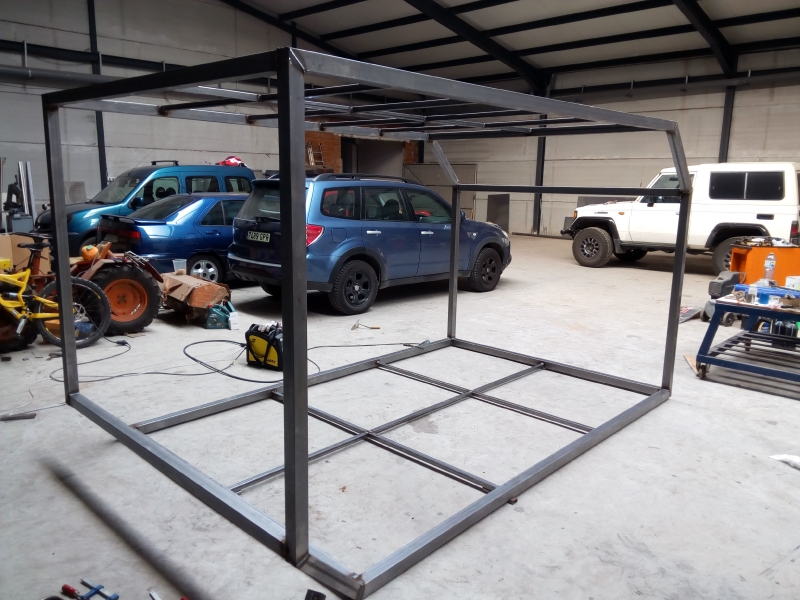

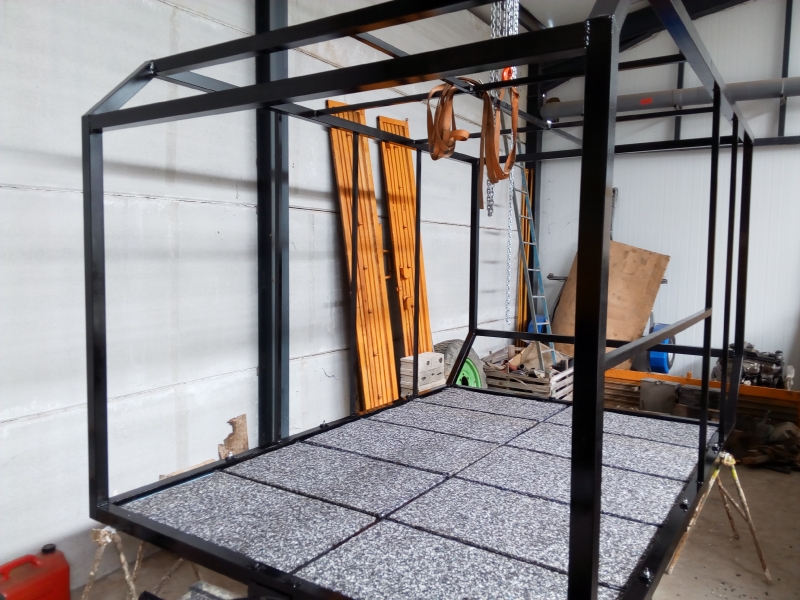

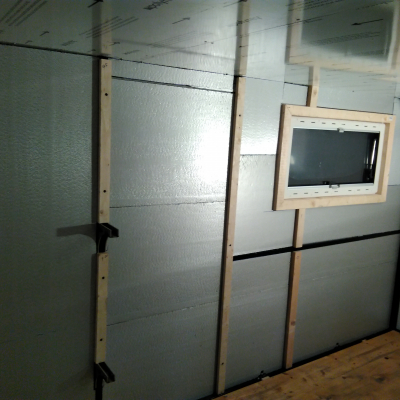

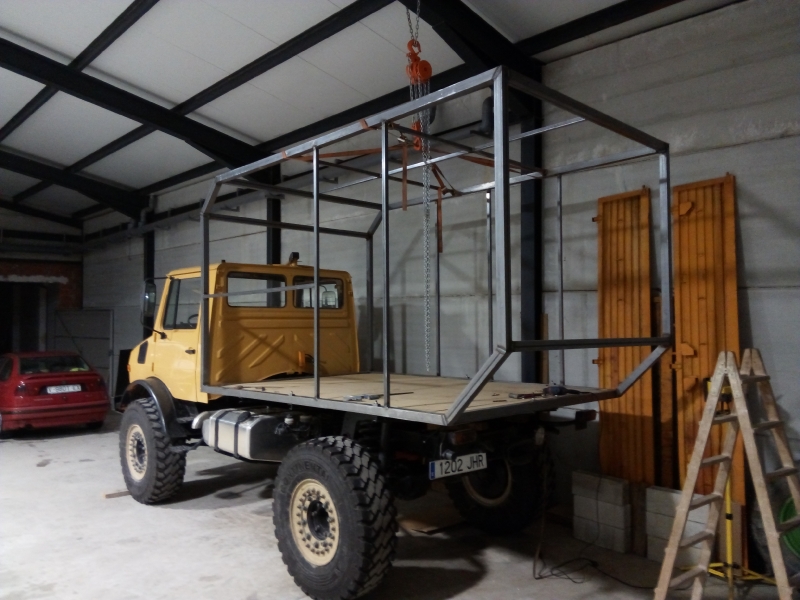

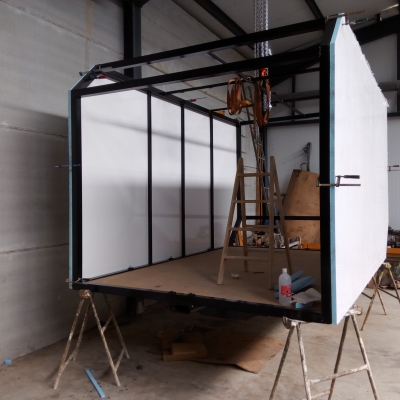

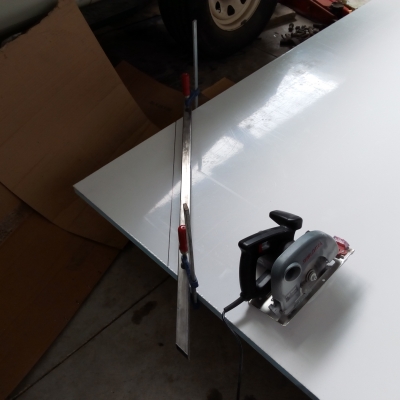

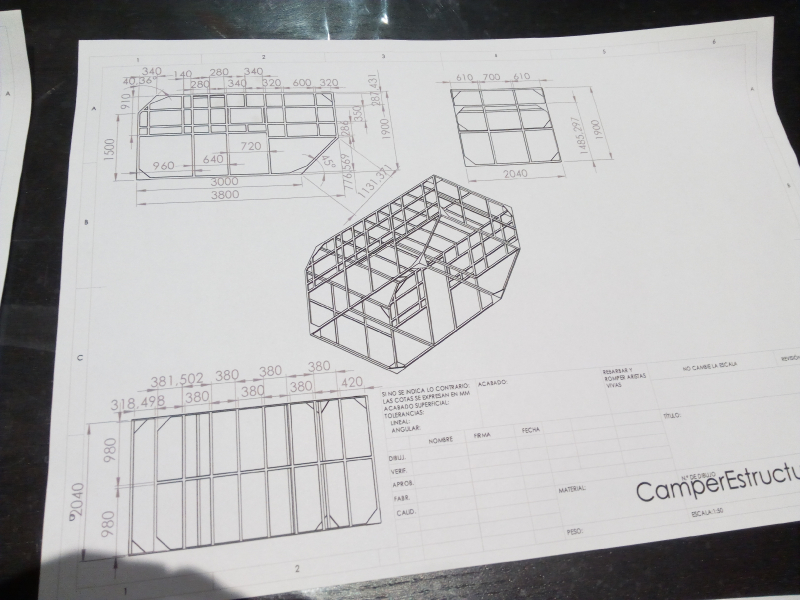

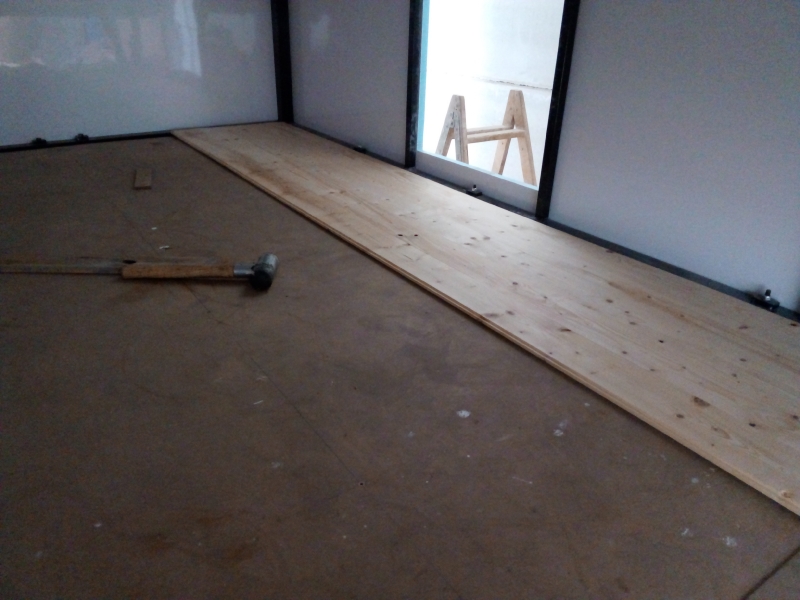

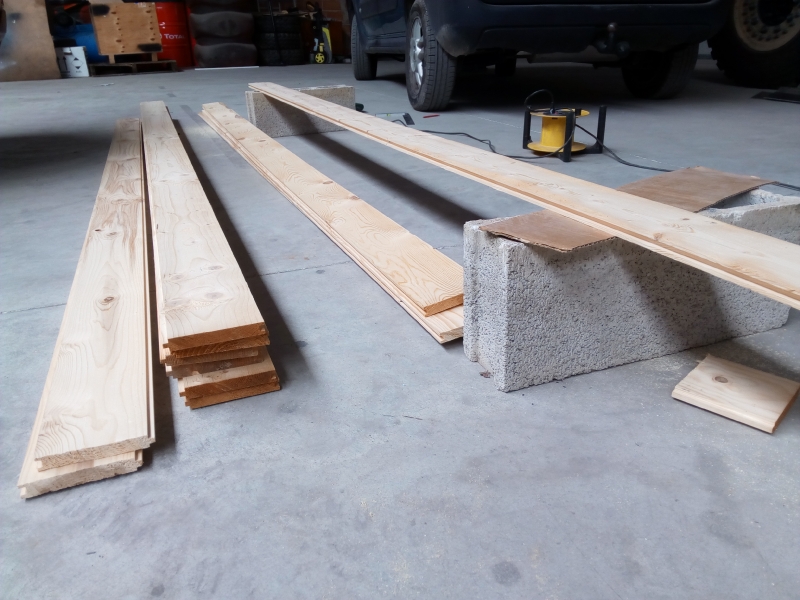

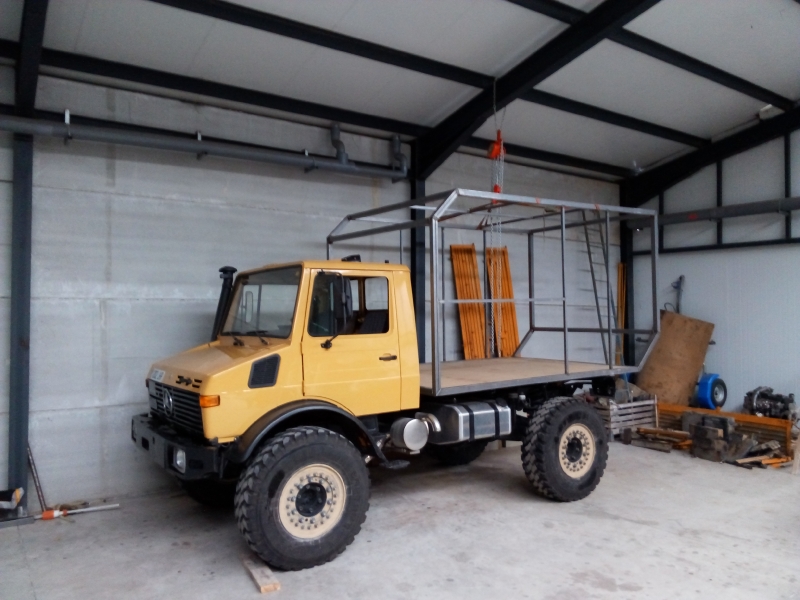

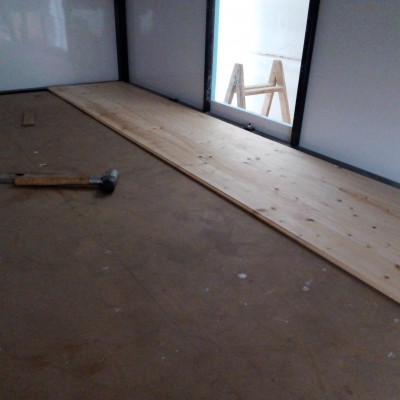

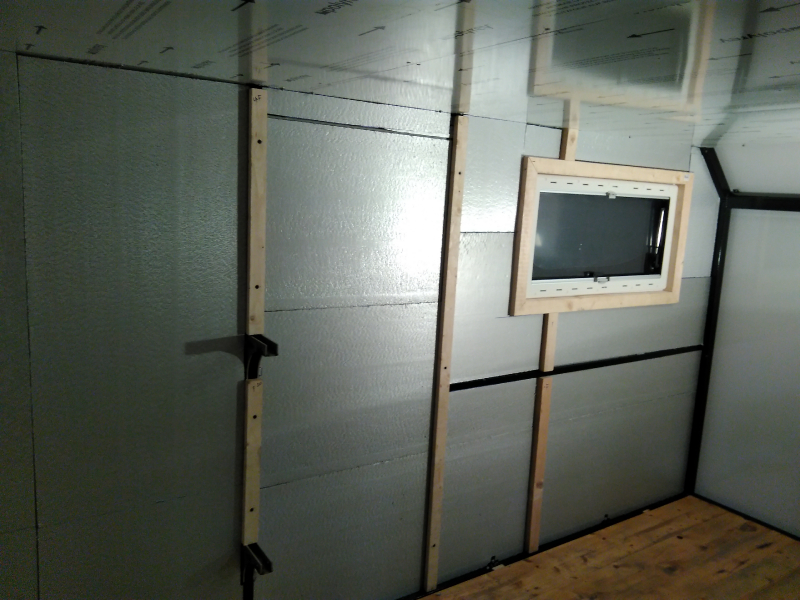

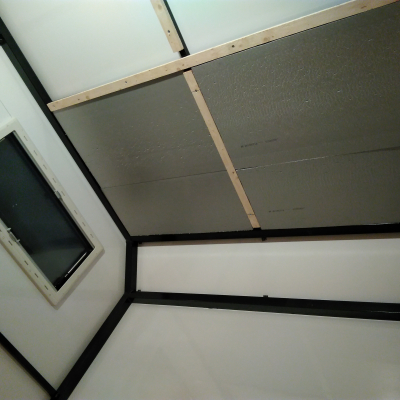

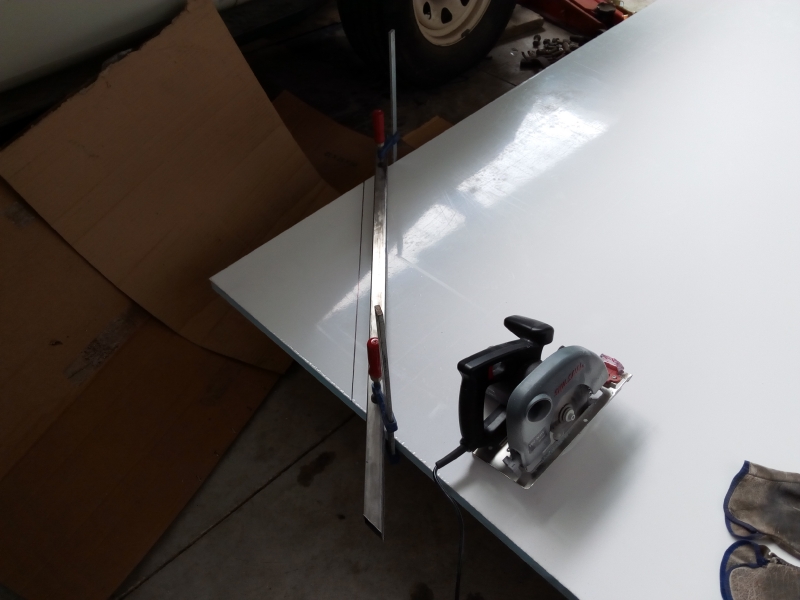

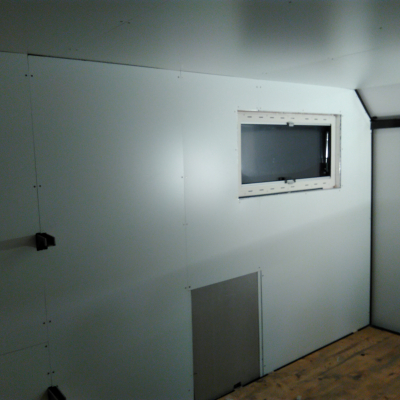

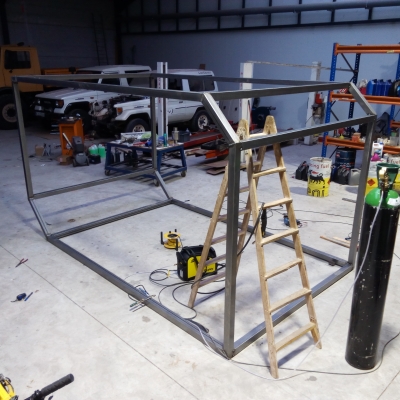

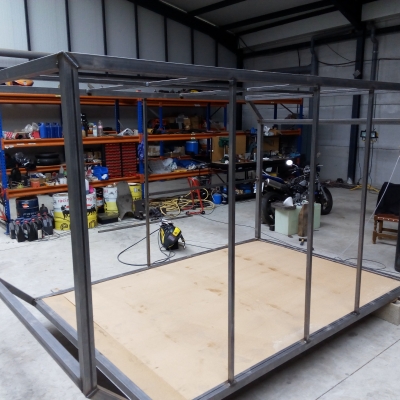

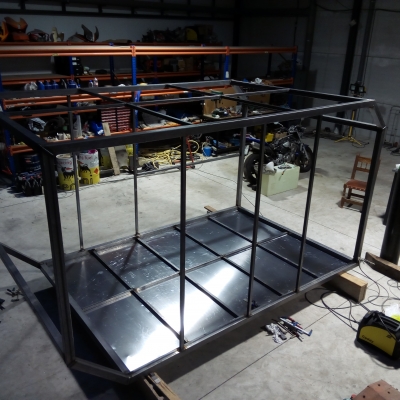

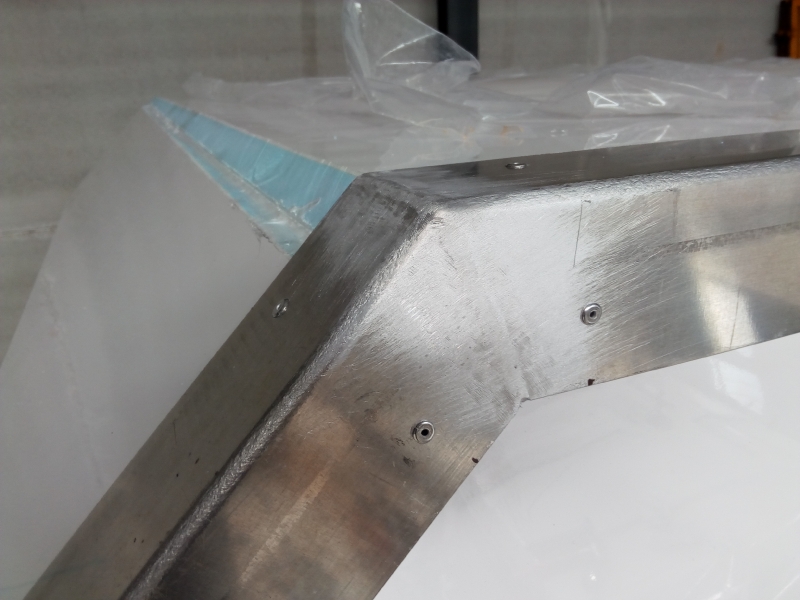

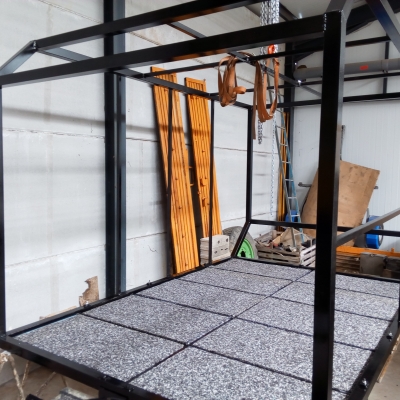

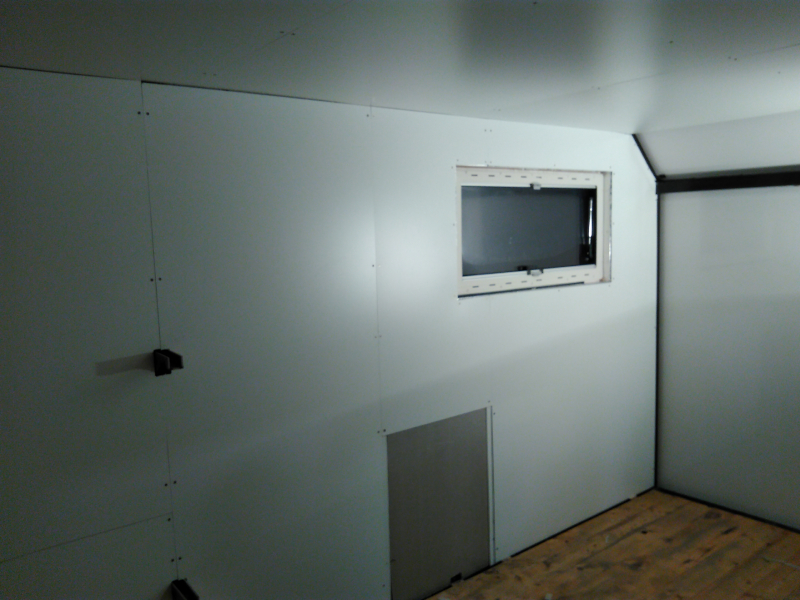

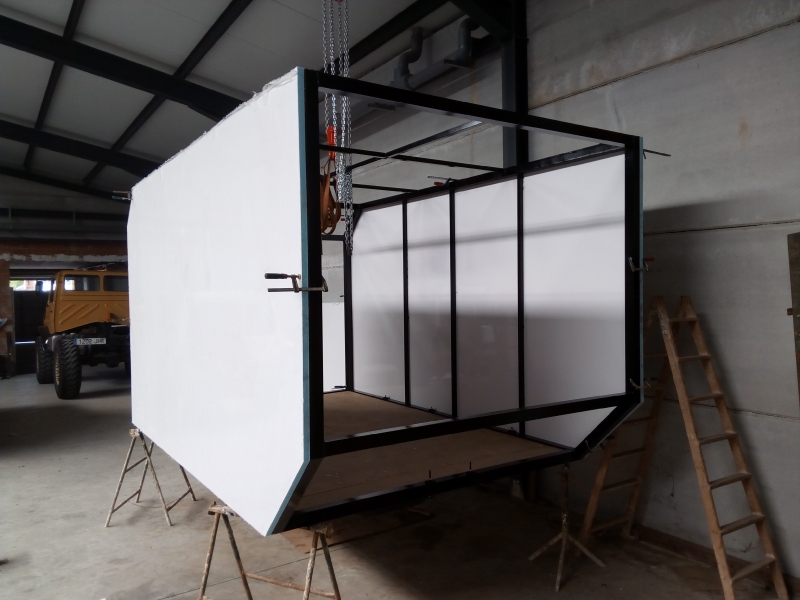

| Cabin material | Steel frame, wood insulation + XPS 30mm+ fiberglas |
| Kind and thickness of insulation | 90mm |
| Number of beds | 2+1 |
| Windows | 2 |

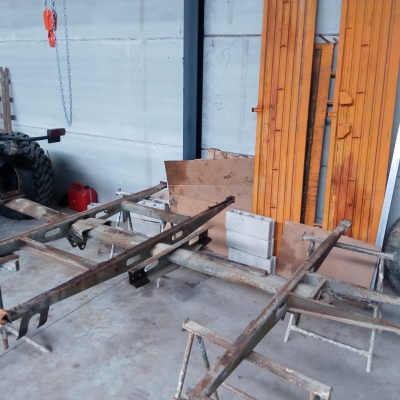

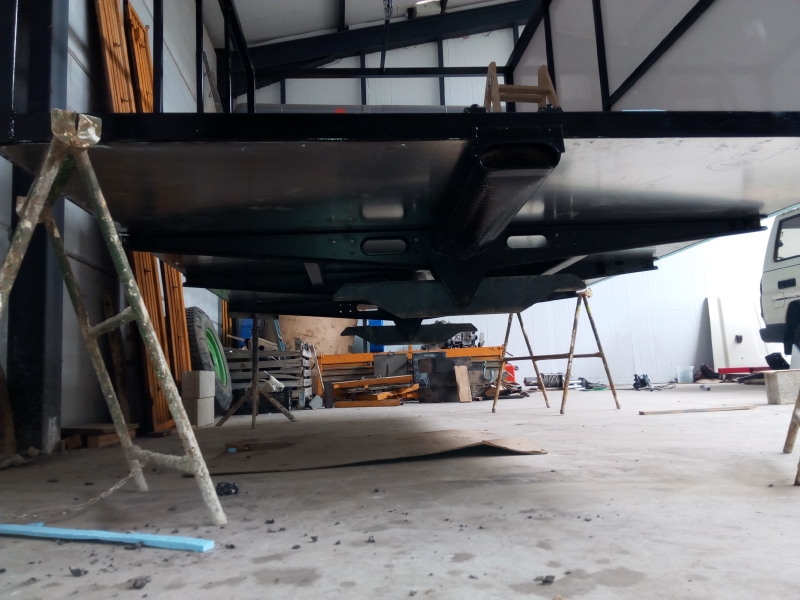

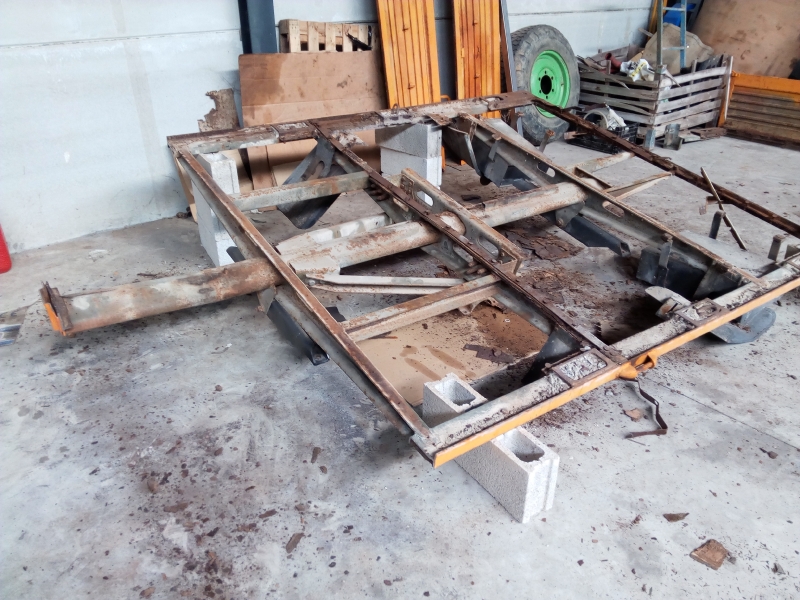

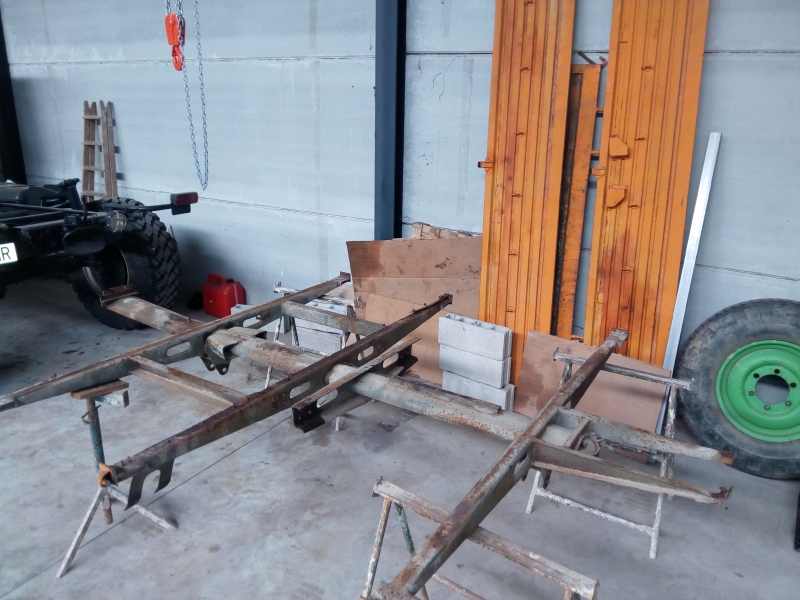

| Subframe | Std from unimog bed Type |
| Explanation of floor plan | |
|---|---|

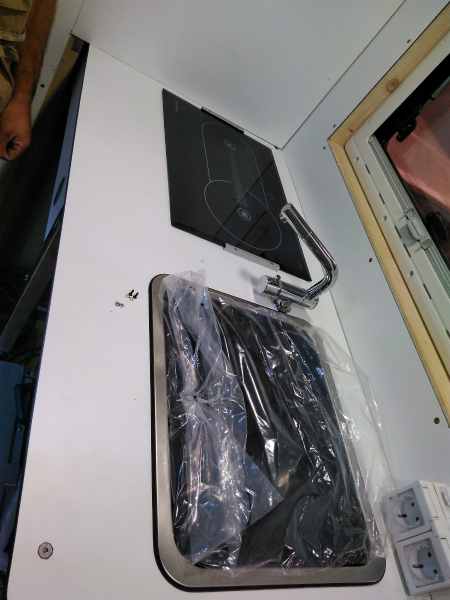

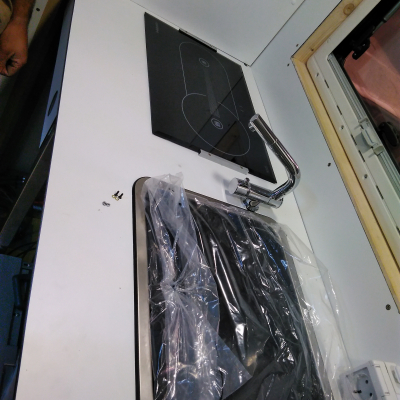

| two fix beds whit one extra bed on the living room, complete kichen whit diesel coocker and freezer , one toilette whit shower and chemical toilette |

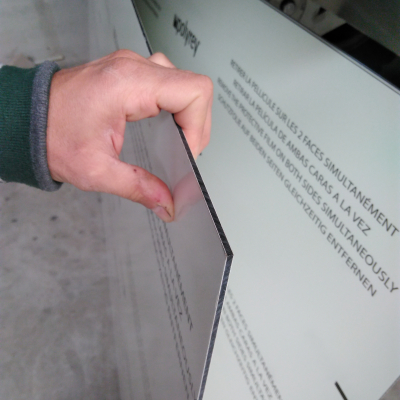

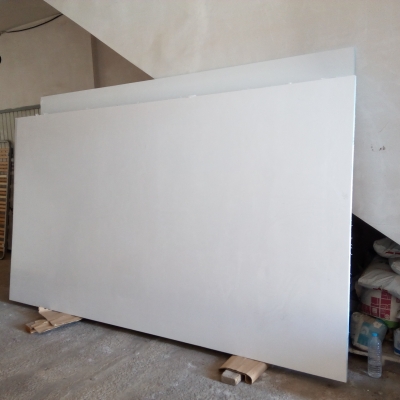

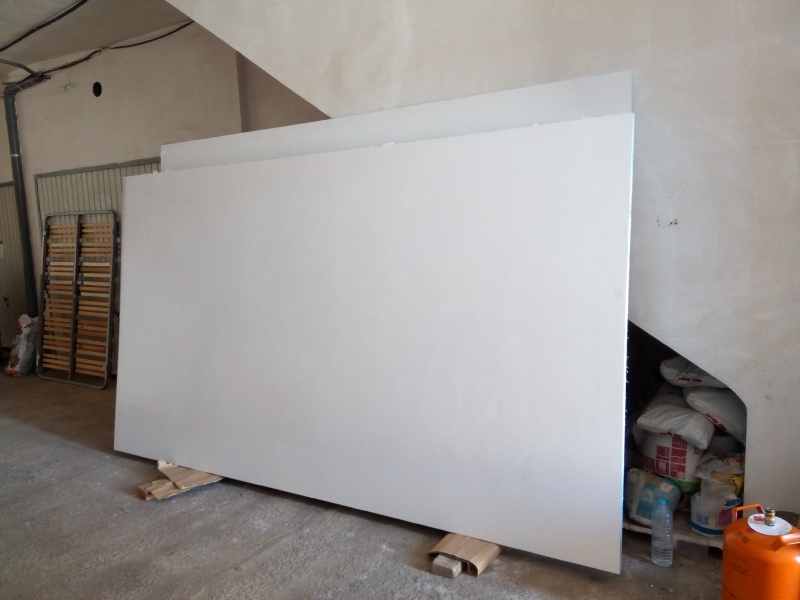

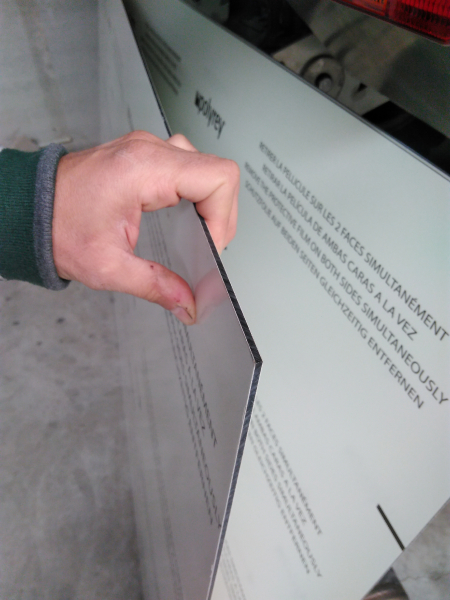

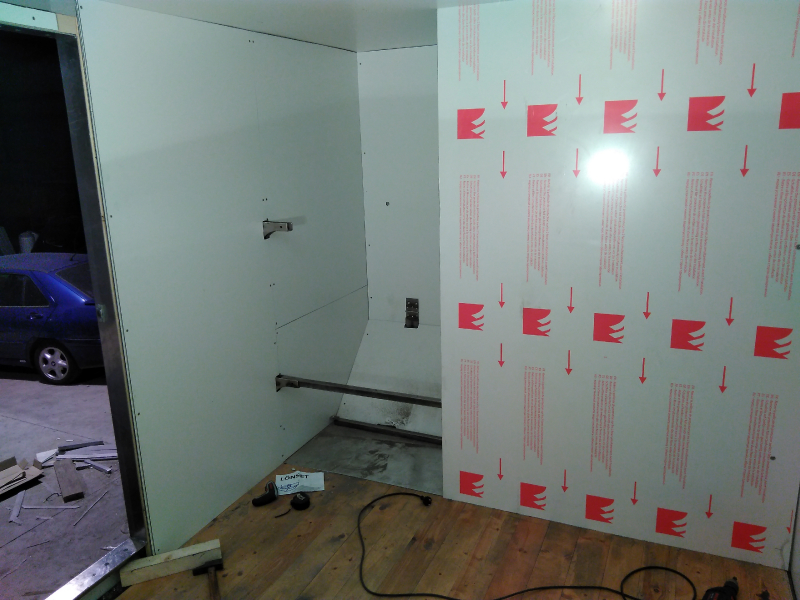

| Material of furniture | Phenolic compact wood 3mm and 8mm |
|---|---|
| Other | |

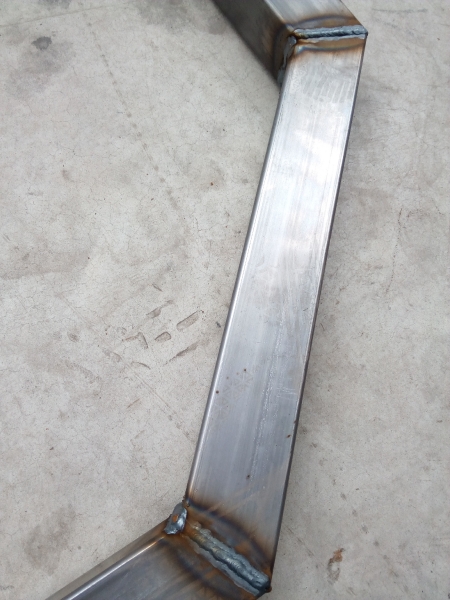

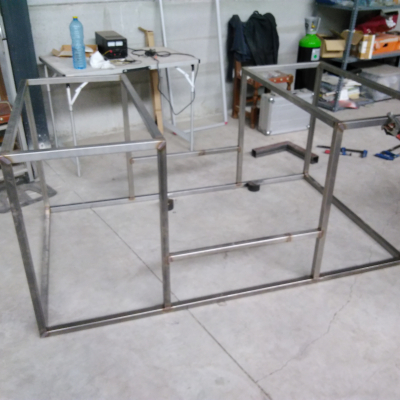

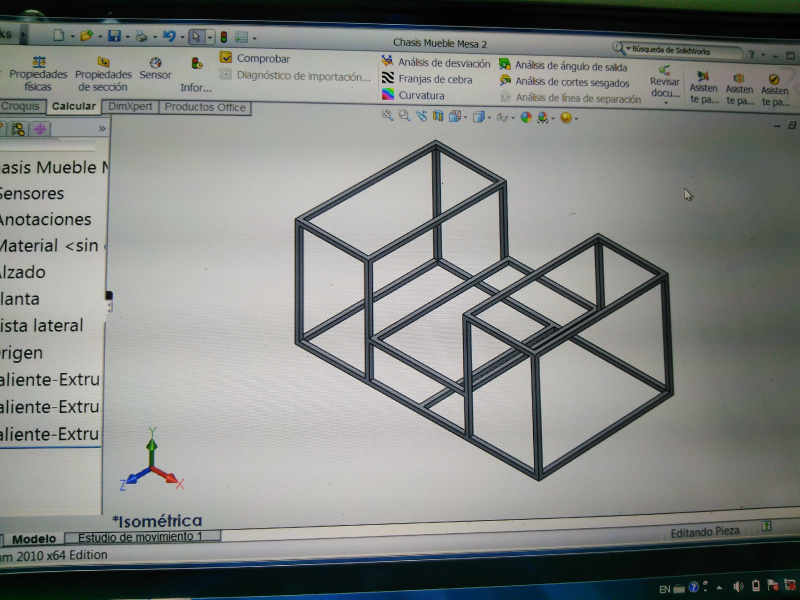

| The chasis of the furniture is made it in stainlessteel tube | |
| Cooking stove | webasto diesel coocker x100 |
|---|
| Manufacturer and type of fridge / cooler | Waeco cx65 |
|---|

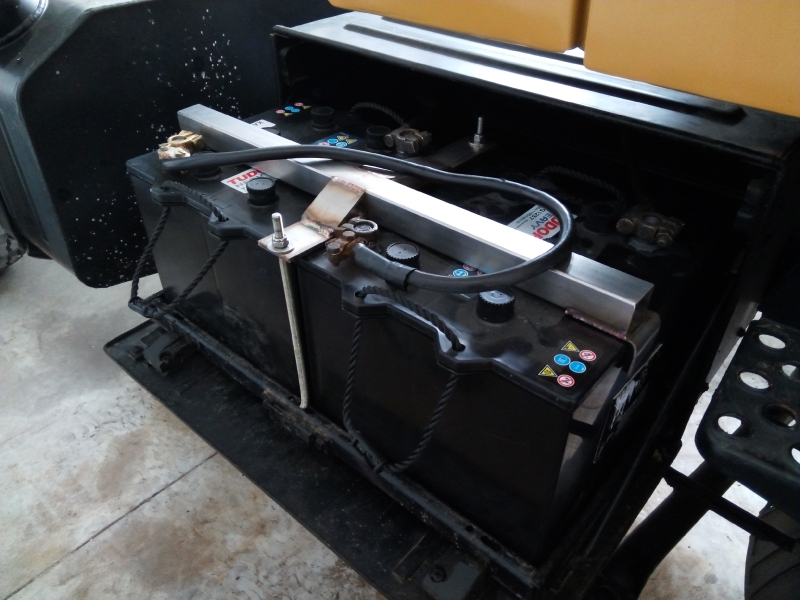

| Voltage in the chassis | 24 v |
|---|---|

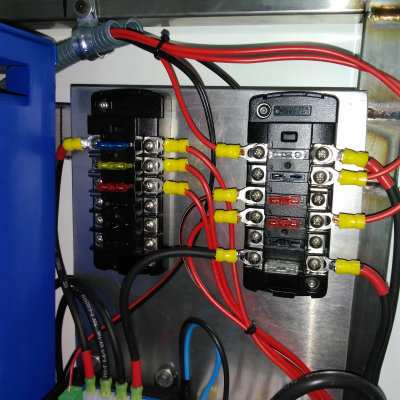

| Voltage in the cabin | 24 v 12 v 220v |
| Charging converter 24V-12V | Victron 24 to 12 v |
| 110V / 230V in the cabin? | yes |

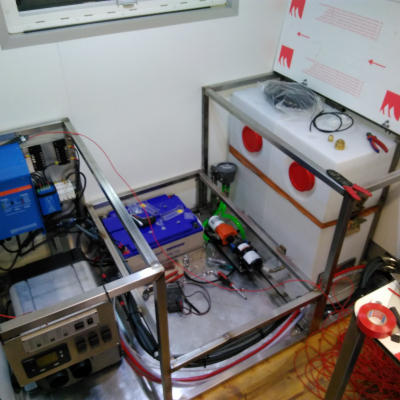

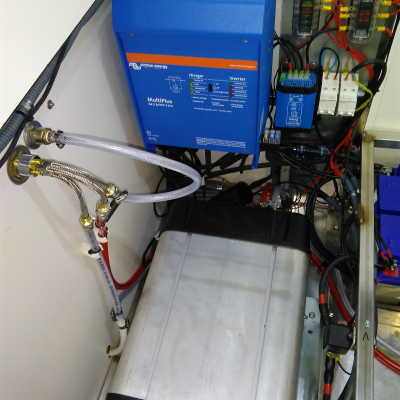

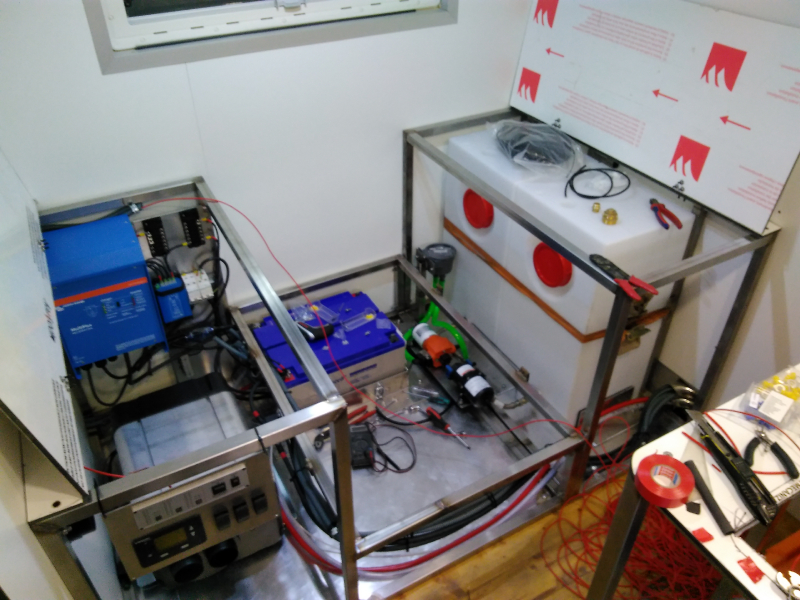

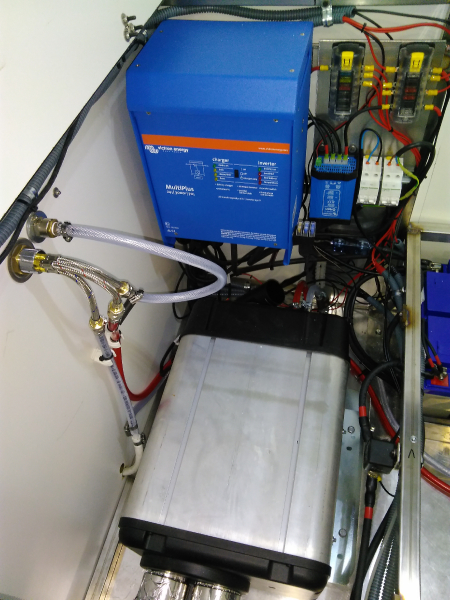

| Inverter | Victron multiplus 3000 24v |

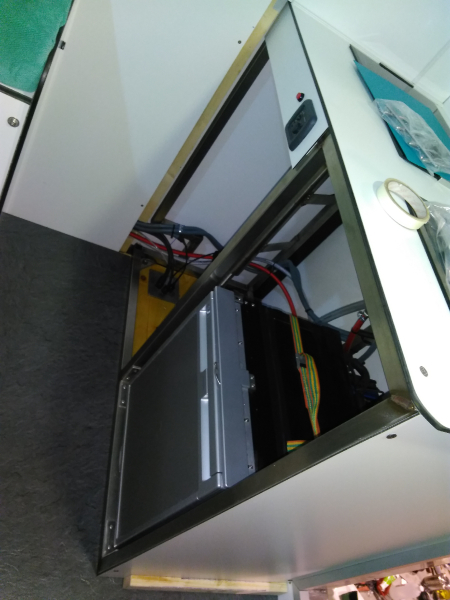

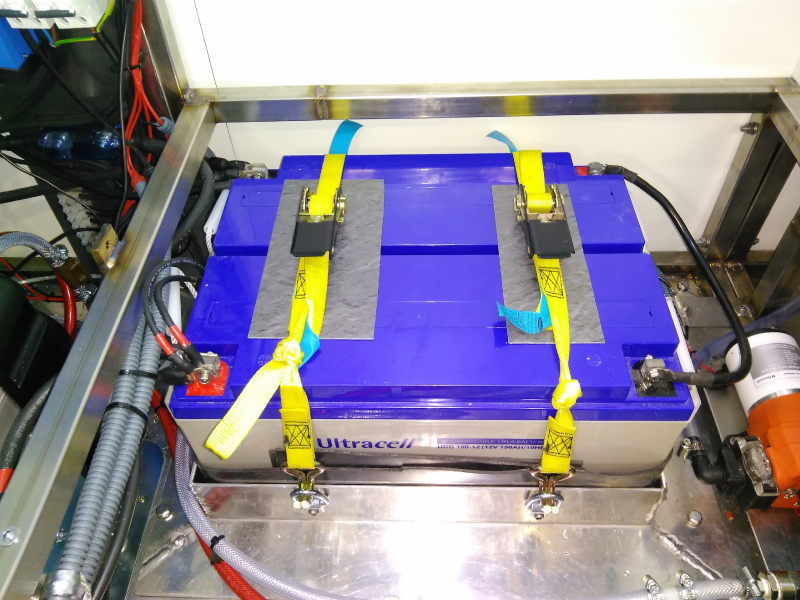

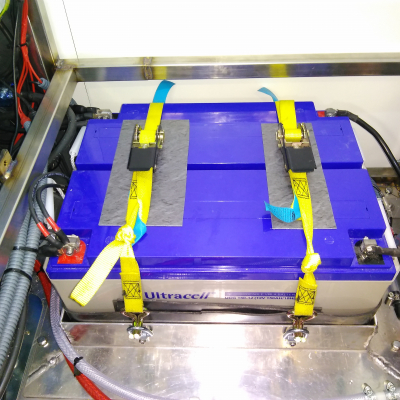

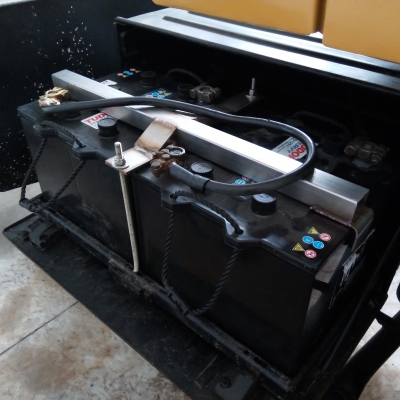

| Capacity of batteries in the cabin | 150 Ah 24 v |
|---|---|
| Battery type | Ultracell UGC |
| Battery charger for cabin batteries | Victron 70 Ah |

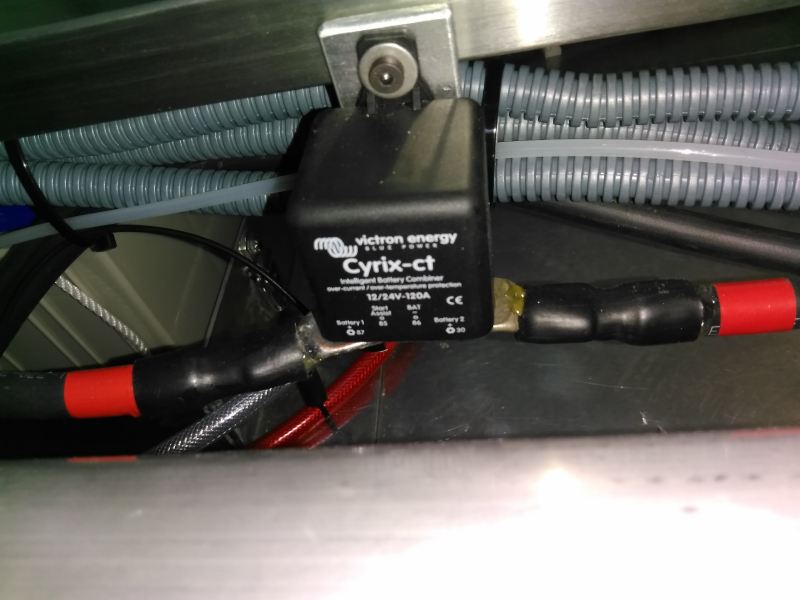

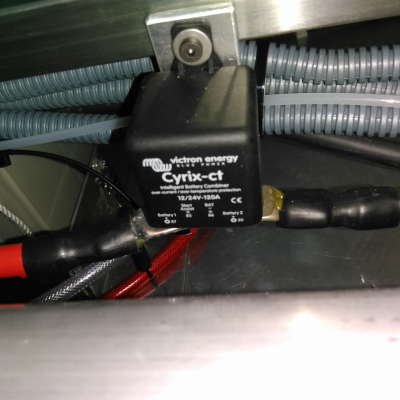

| Battery management | Victron Ciryx Relay, Batery combinator |
| Fuel cell | no |
|---|---|

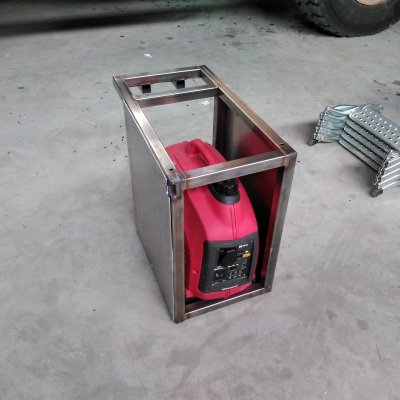

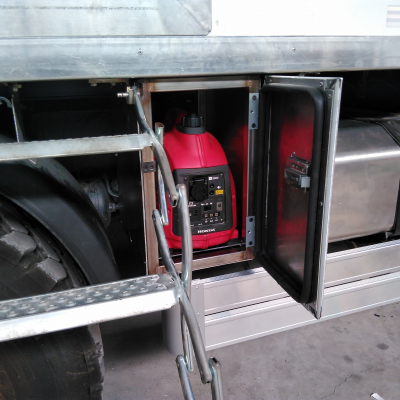

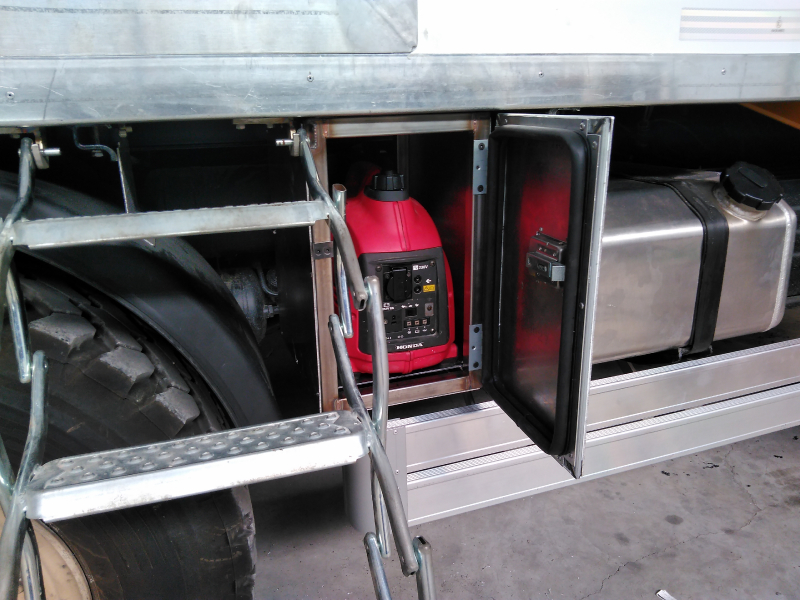

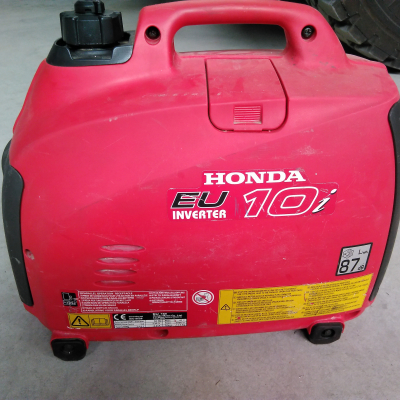

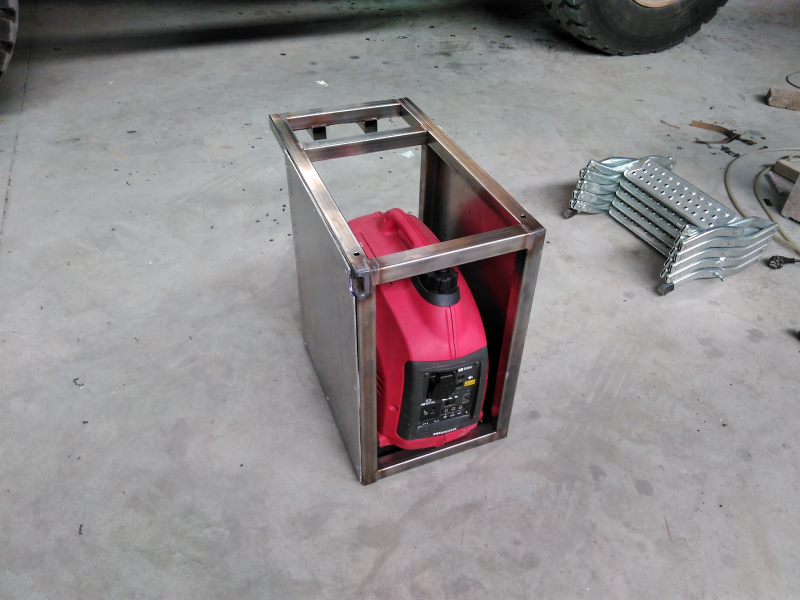

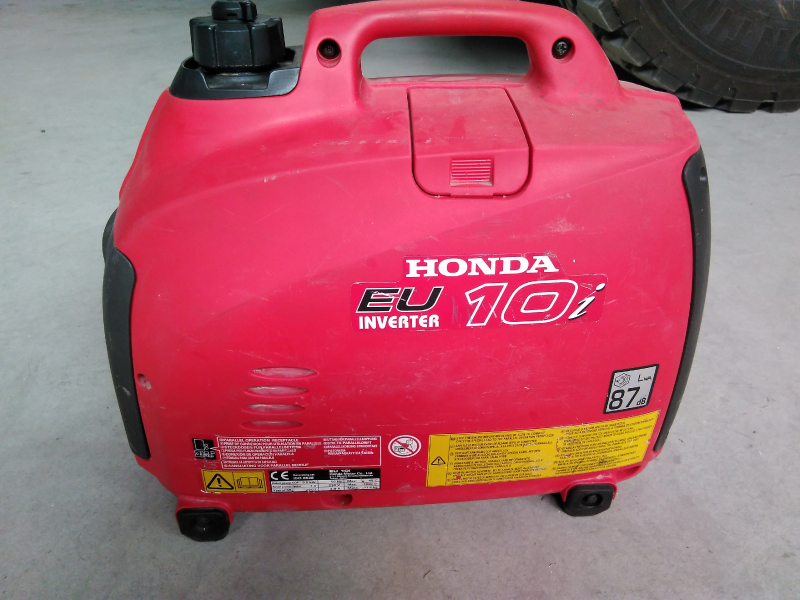

| Power generator | Honda i10 1000w |

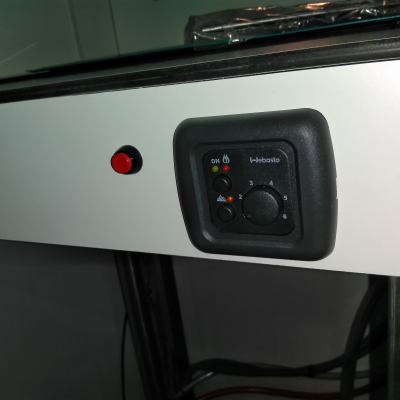

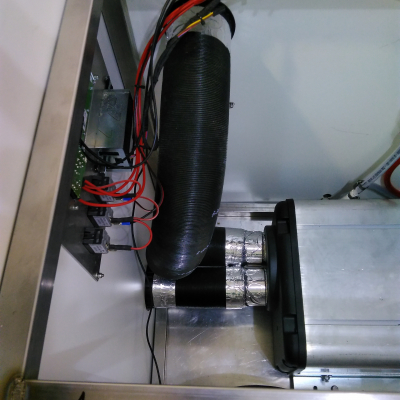

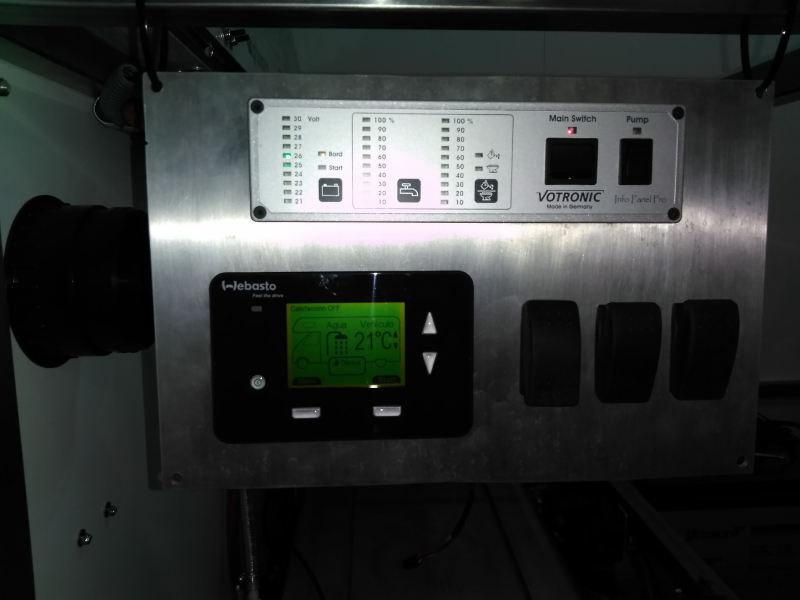

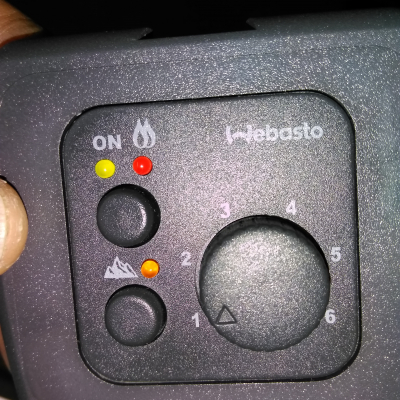

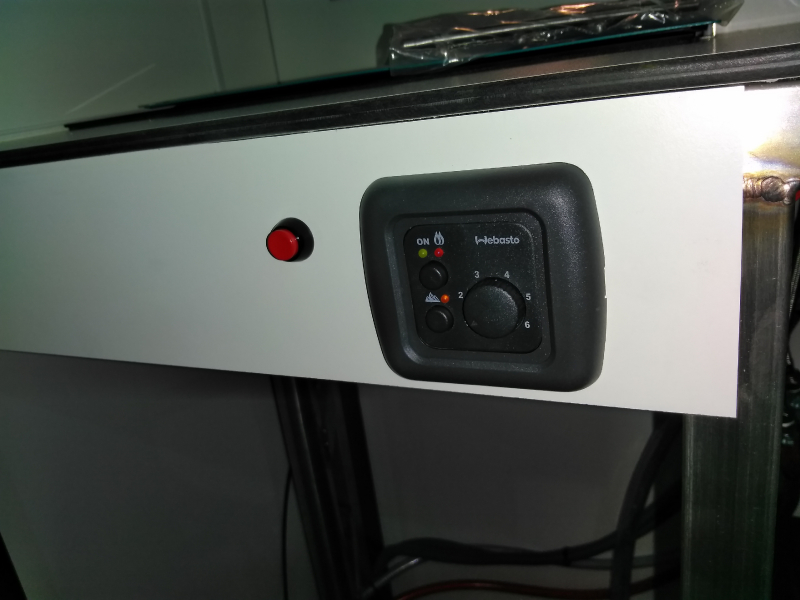

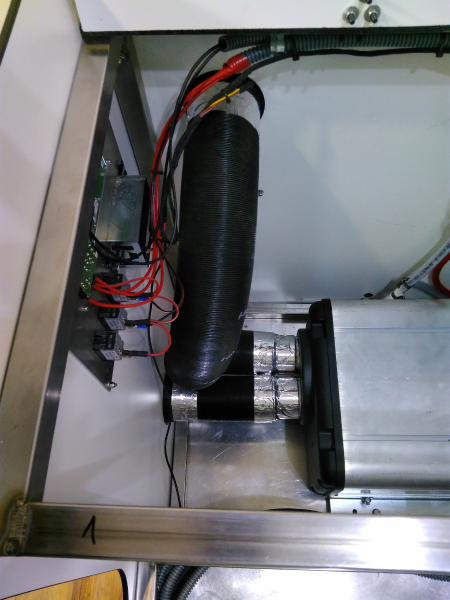

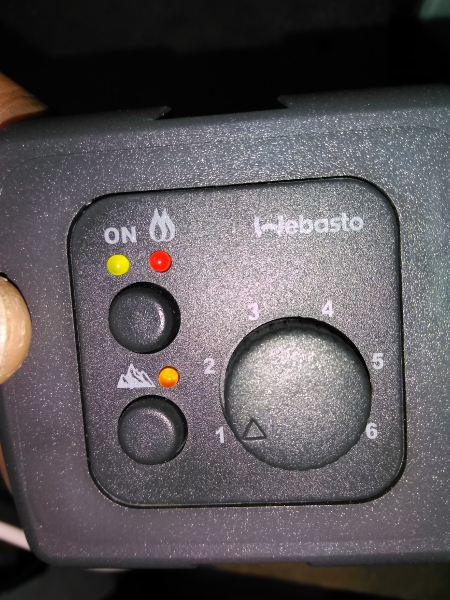

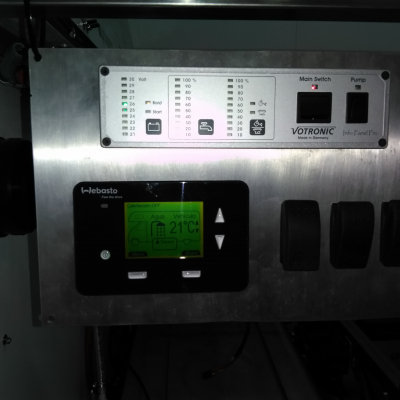

| Manufacturer and type of heating system | Webasto dualtop |
|---|---|
| Warm water processing | Diesel Boiler |
| Cab heating | Webasto dualtop |

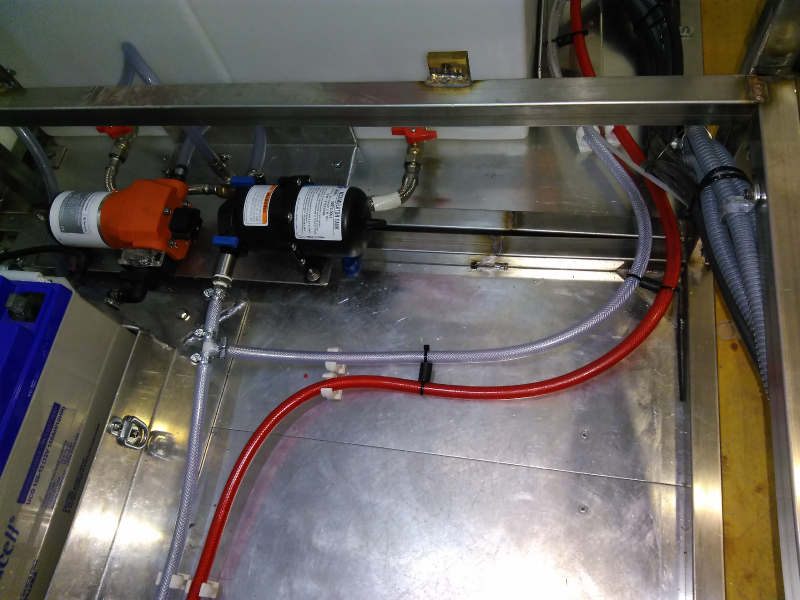

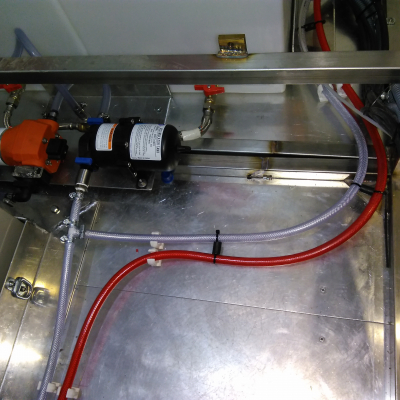

| water flow | Dometic 10 Ltrs / min water pump + 1ltr acumulator |
|---|---|
| Water filtration system | Marine filter |
| Capacity of fresh water tank(s) | 100 ltr x 2 |
| Capacity of waste water tank(s) | 40 ltr |

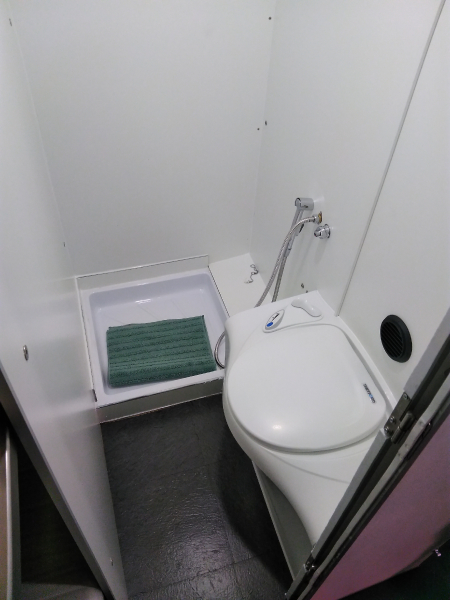

| Manufacturer and type of toilet | Tedford c404 |
|---|---|
| Capacity of black water tank | 19 ltrs |
| Other | |
| 60 ltrs grey water tank | |

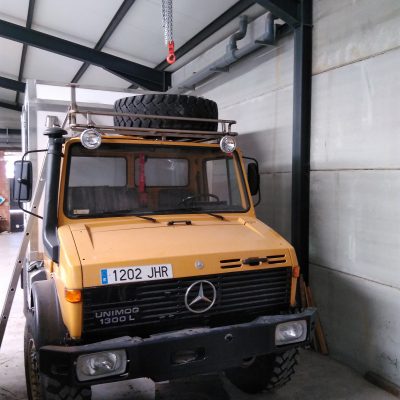

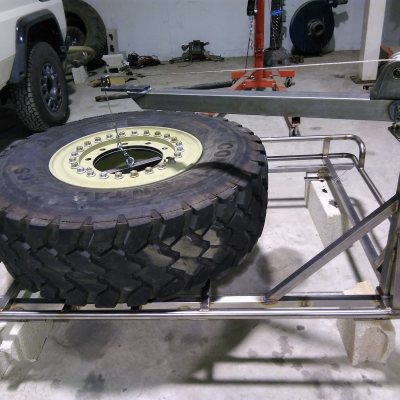

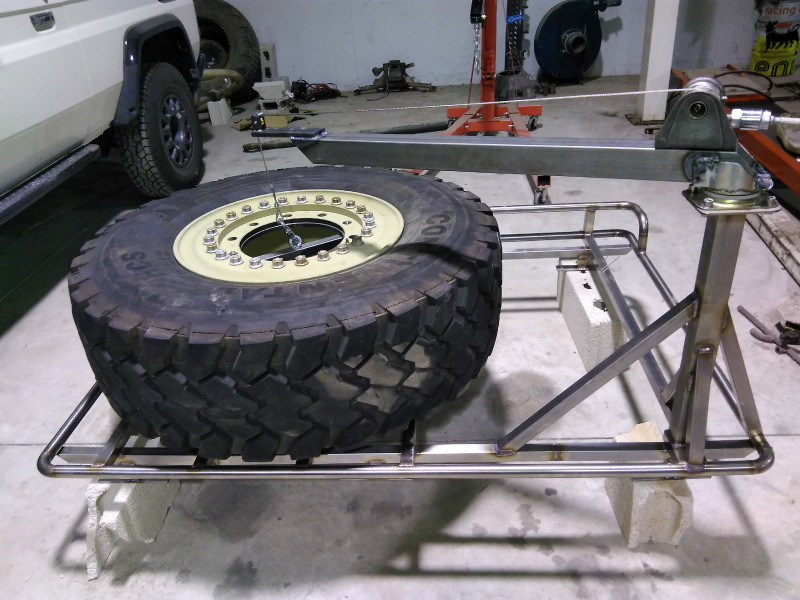

| Roof rack | Self build Stainlessteel whit mechanical lift |
|---|---|
| Storage boxes | two storage boxes for truck spares and staff |
