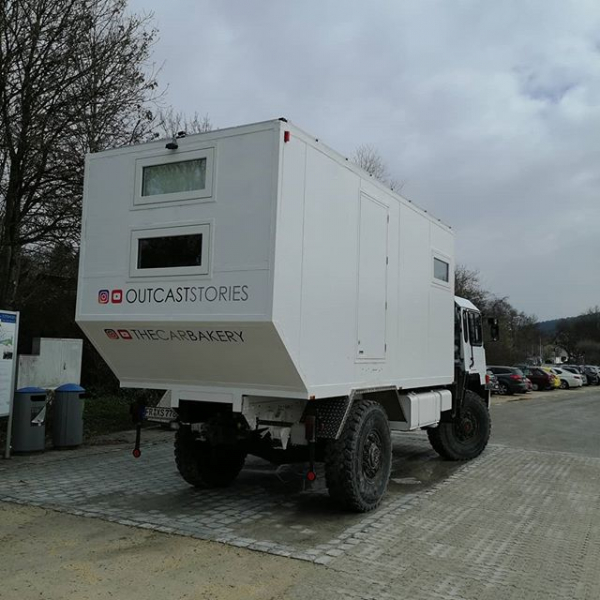

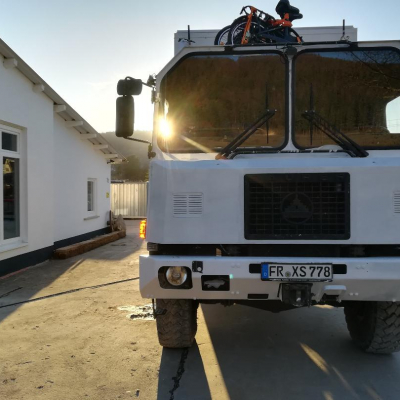

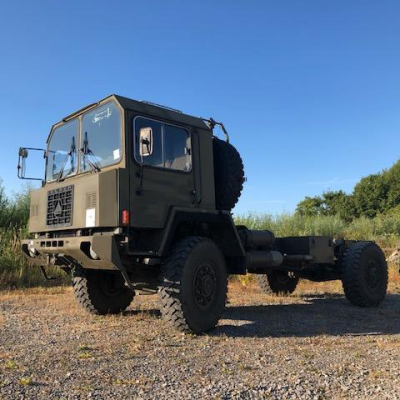

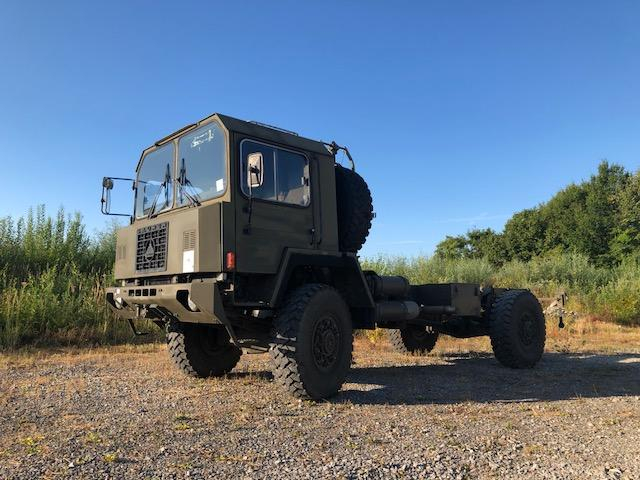

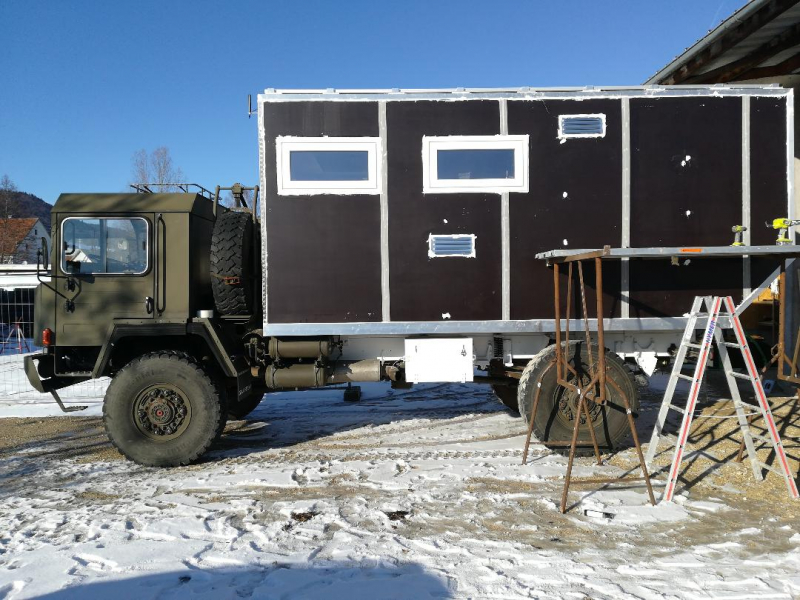

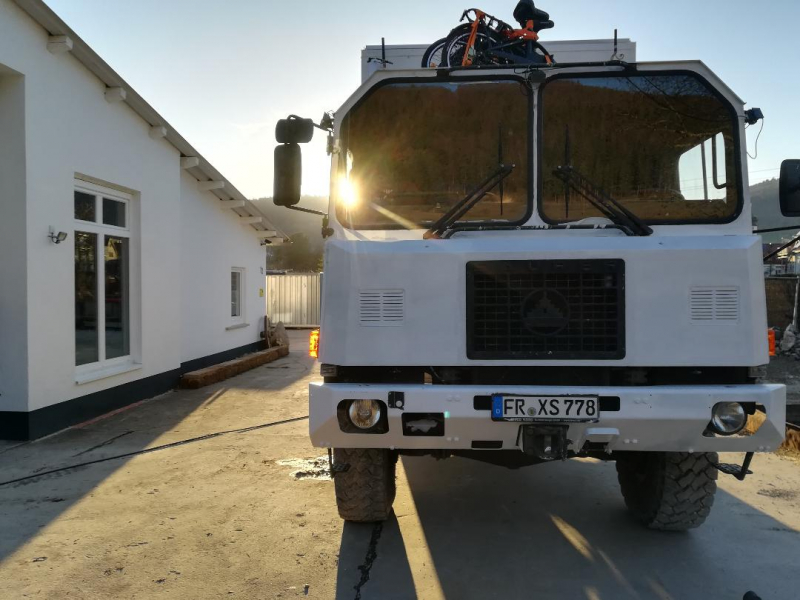

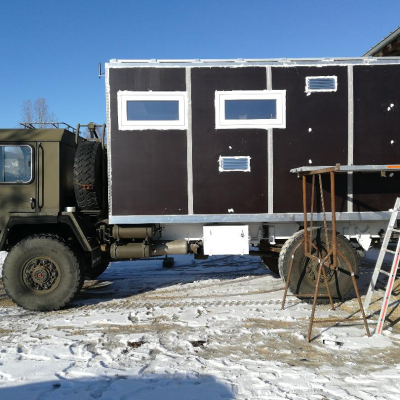

Wir haben einen Saurer 6dm umgebaut. Die Kabine ist aus Holz gebaut.
| Manufacturer and model | Saurer 6dm |
|---|---|
| Name | Moritz Becker |
| Country | Deutschland |
| Website | www.youtube.de/outcaststories |
| Year of manufacture | 1984 |
| For sale? | no |
| Engine type | Saurer D4 KT-M |
|---|---|
| Cubic capacity | 11,95l |
| Number of cylinders | 6 |
| Horsepower | 250 |
| Torque | 1060 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 4350 |
| Number of seats | 3 |
| Tyre size | 14 R20-18PR |
| Rim size | Triflex |
| Tank capacity | 300 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Hinterachsdifferential |
| Manufacturer of the cabin | Eigenbau |
|---|---|
| Inner dimensions (LxWxH) | 5,38x2,28x2,1 |
| Outer dimensions (LxWxH) | 5,5x2,4x2,4 |
| Cabin material | Holz |

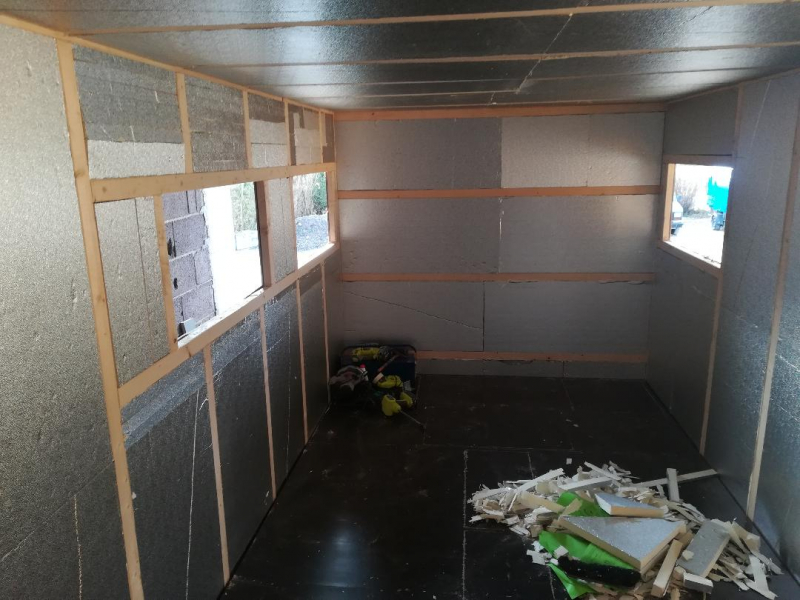

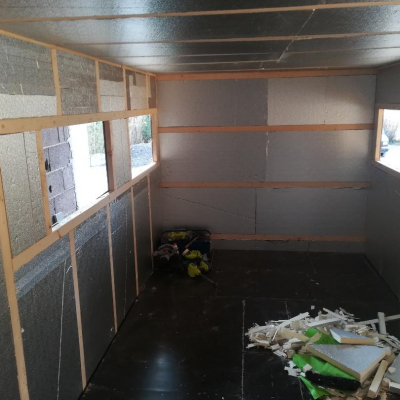

| Kind and thickness of insulation | 60mm XPS |
| Number of beds | 4 |
| Windows | 5 |
| Subframe | Federgelagert |
| Material of furniture | Pappel |
|---|

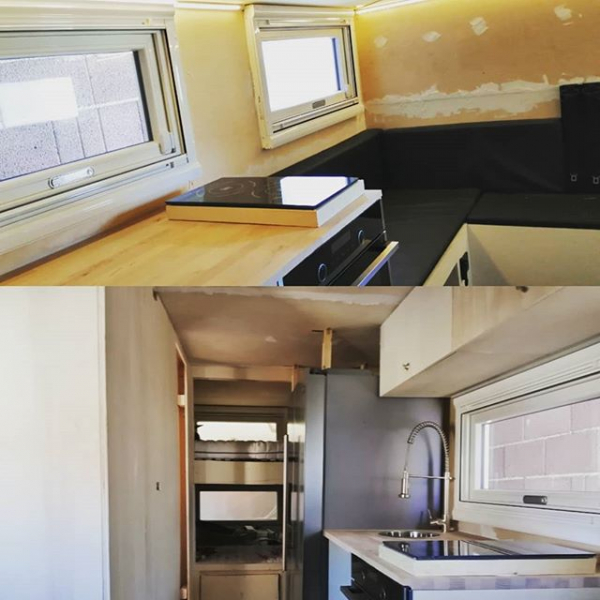

| Cooking stove | Induktion / Mikrowelle / Backofen |
|---|---|
| Gas installation | Keine |
| Manufacturer and type of fridge / cooler | Samsung |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V |
| Charging converter 24V-12V | Traco Power |
| 110V / 230V in the cabin? | yes |
| Inverter | Victron Energy Multiplus 24/5000/120-100 |
| Capacity of batteries in the cabin | 22kW (11kW nutzbar weil AGM) |
|---|---|
| Battery type | AGM |
| Battery charger for cabin batteries | Victron Energy Multiplus 24/5000/120-100 |
| Battery management | Victron BMV-712 |

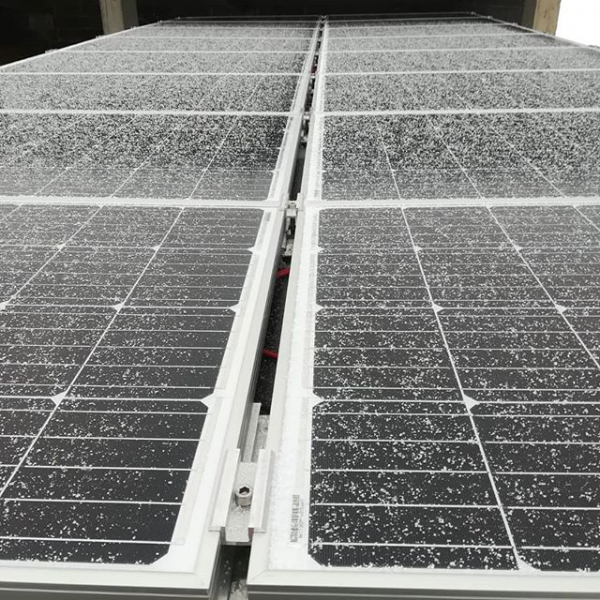

| Solar capacity | 1920 Wp |
|---|---|
| Solar controller | 2x (Victron SmartSolar MPPT Laderegler 100/50 12V / 24V) |
| Fuel cell | no |
| Power generator | Honda eu-10i |
| Manufacturer and type of heating system | Planar 44D |
|---|---|
| Warm water processing | Elgena 6l 230V |

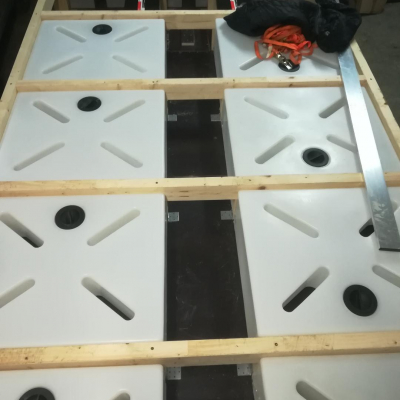

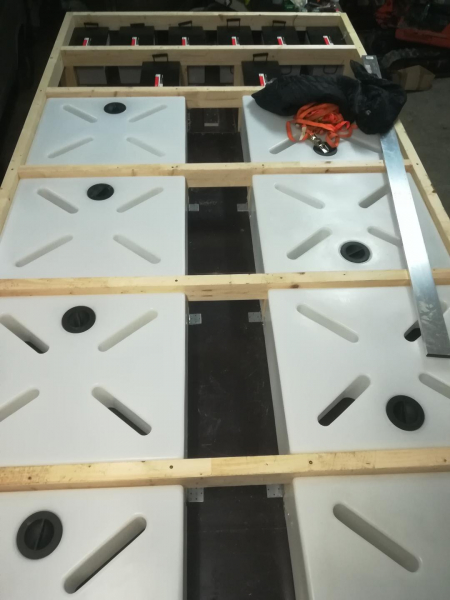

| Capacity of fresh water tank(s) | 600l |
|---|---|
| Capacity of waste water tank(s) | 450l |
| Manufacturer and type of toilet | Eigenbau / |
|---|---|
| Capacity of black water tank | 150l |
| Rear carrier | - |
|---|---|
| Roof rack | Standard Gepäckträger auf dem Fahrerhaus |
| Storage boxes | - |
| Outside cooking facilities | - |
| Awning | - |
