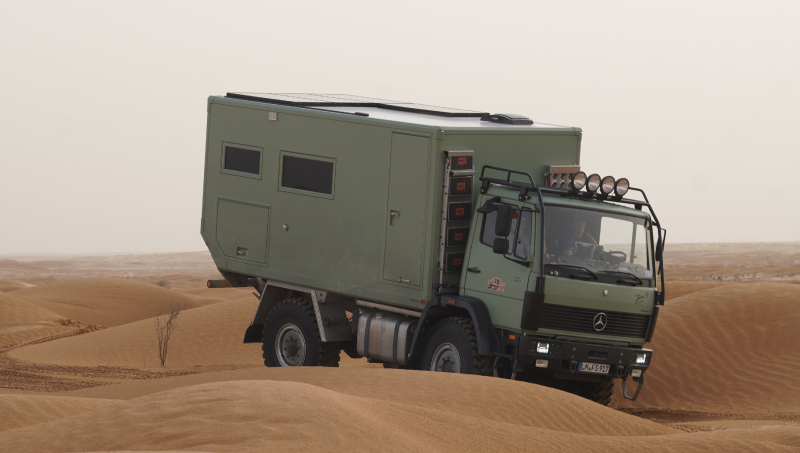

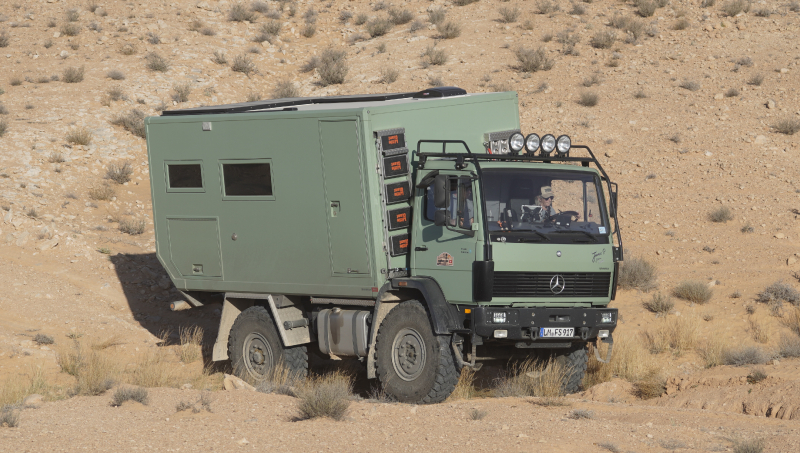

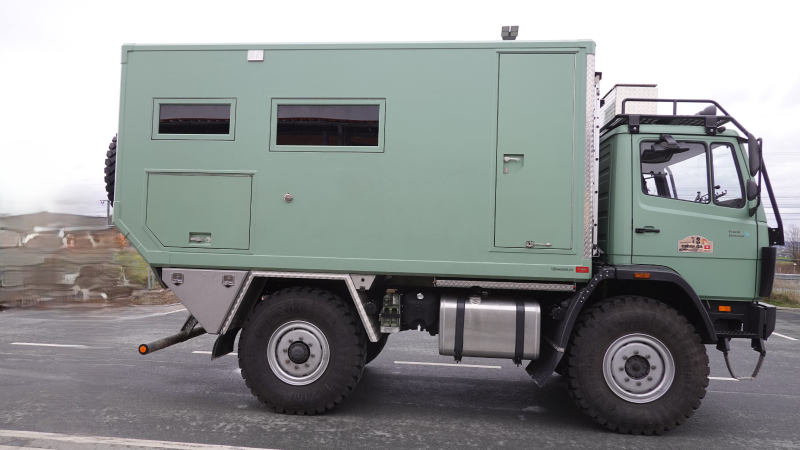

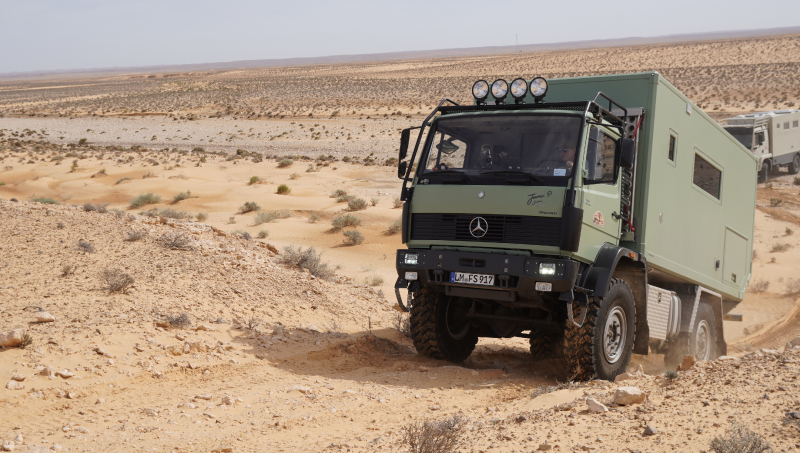

Vom Tanklöschfahrzeug zum Reisemobil

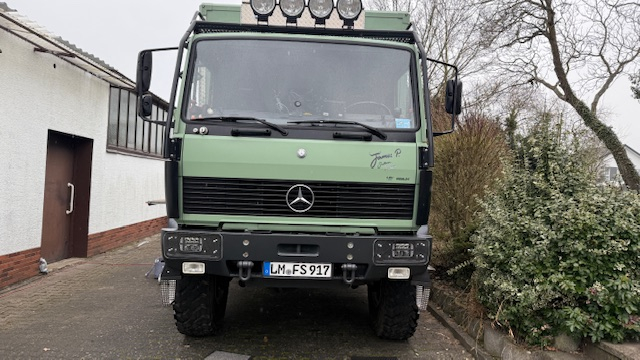

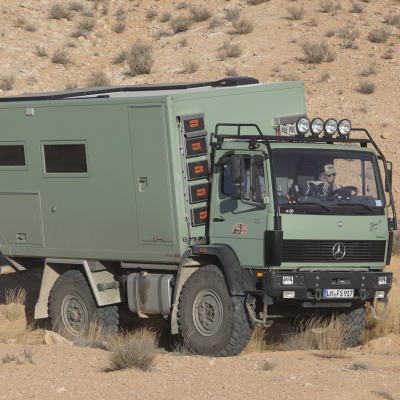

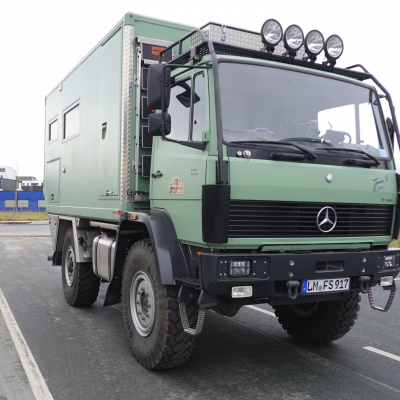

| Manufacturer and model | Mercedes-Benz 917 AF |
|---|---|
| Name | Frank Lückerath |
| Year of manufacture | 12/93 |
| For sale? | no |
| Engine type | OM 366 |
|---|---|
| Cubic capacity | 5958 |
| Number of cylinders | 6 |
| Horsepower | 121kw |
| Zulässiges Gesamtgewicht | 9500 |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4 x 4 |
| Wheel base | 3090 |
| Number of seats | 3 |
| Tyre size | 14.00 R20 |
| Type of tyre | Continental HCS |
| Tank capacity | 450 |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Hinterachse und Mitteldifferenzial |
| Manufacturer of the cabin | 4wheel24 |
|---|---|

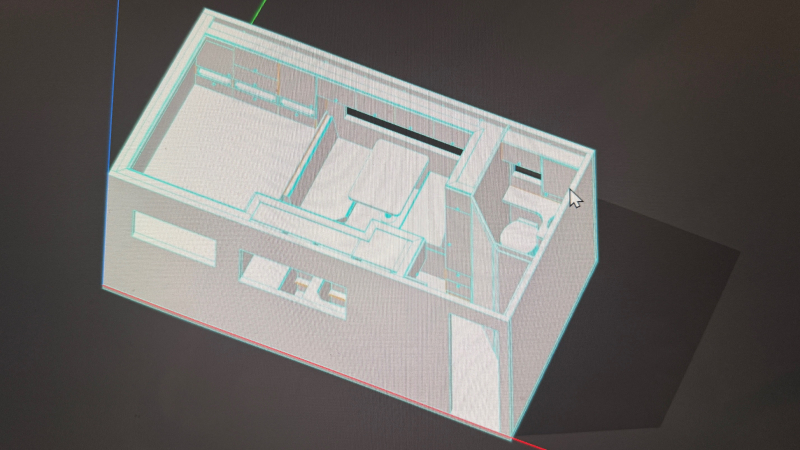

| Inner dimensions (LxWxH) | Länge 4450 mm, Breite 2250 mm, Höhe 2050 mm, |
| Cabin material | GFK |
| Kind and thickness of insulation | Wand und Decke 60 mm, Boden 85 mm, |
| Number of beds | 3 |
| Windows | 4wheel 24 Optimal |
| Subframe | 4wheel24 |
| Material of furniture | Albasia Falcata Leichtsperrholz aus Plantagenholz |
|---|

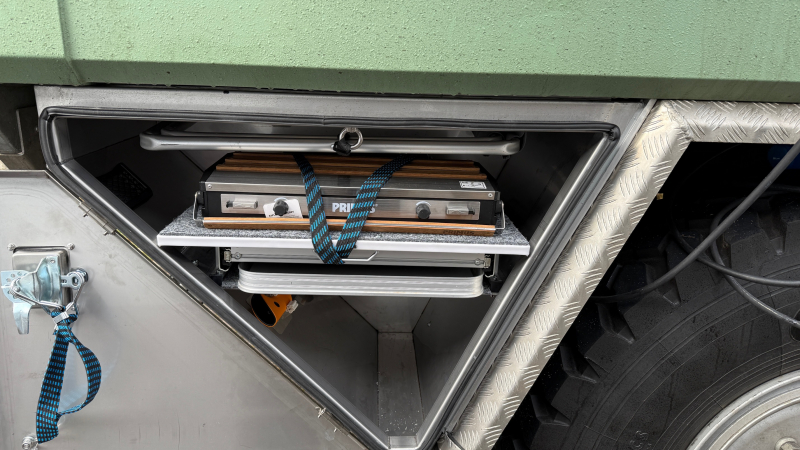

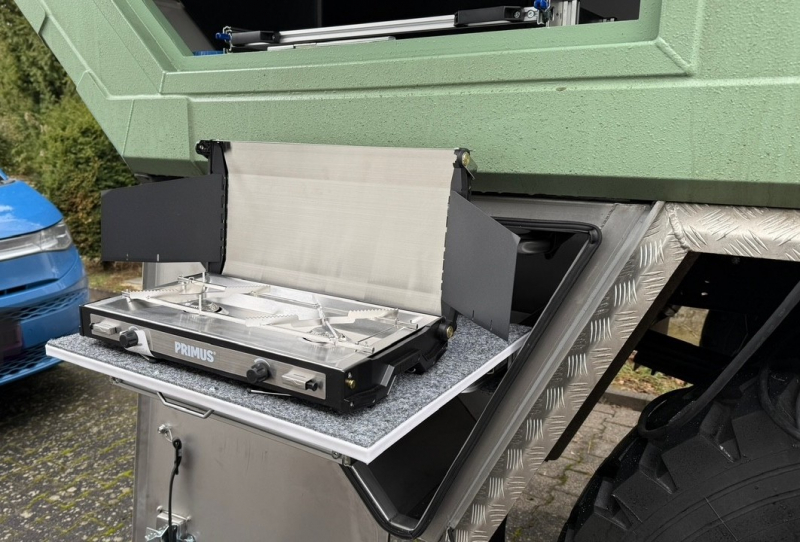

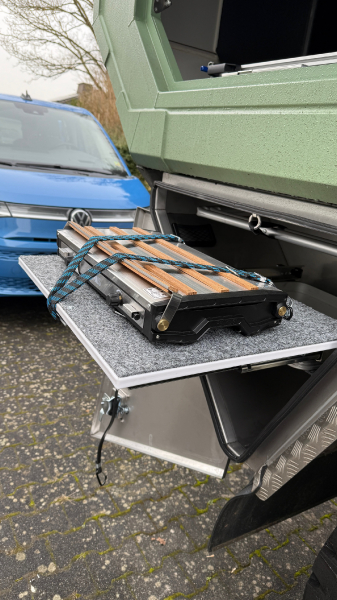

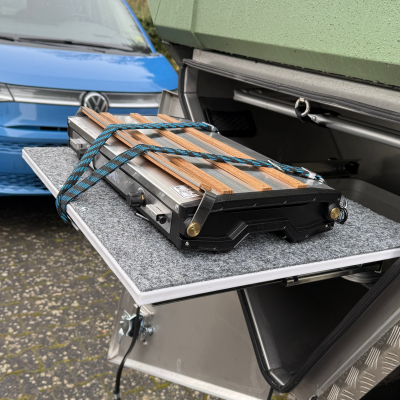

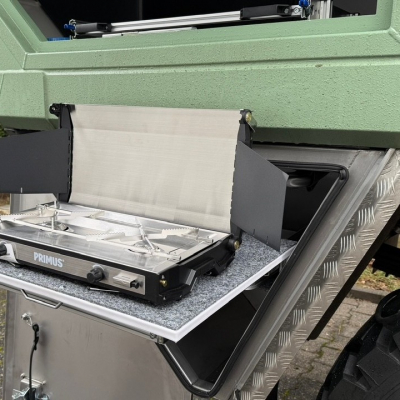

| Cooking stove | CAN PT1356 Cerankochfeld |
|---|---|
| Gas installation | gasfrei |
| Manufacturer and type of fridge / cooler | Thetford T2138 Kompressor-Kühlschrank |
|---|
| Voltage in the cabin | 12 V / 230 V |
|---|---|
| Charging converter 24V-12V | ja |
| 110V / 230V in the cabin? | yes |
| Inverter | 3000 W |
| Capacity of batteries in the cabin | 2 x 300Ah |
|---|---|
| Battery type | BullTron Lithium |
| Battery charger for cabin batteries | 50 V Ladestrom |
| Battery management | Smartshunt 500 |

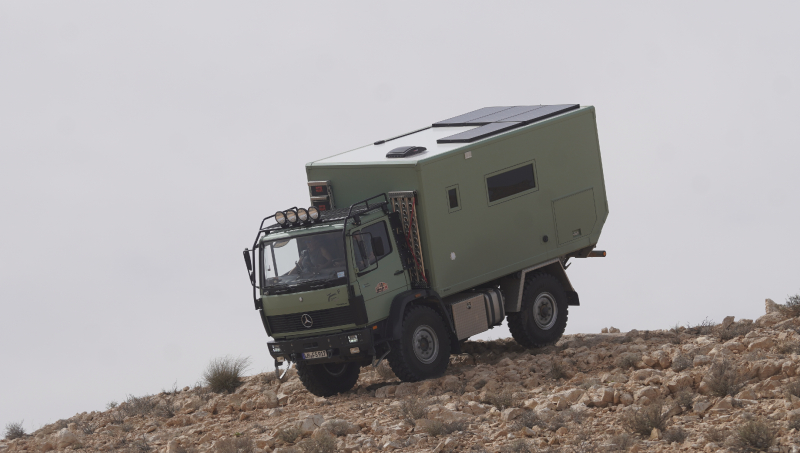

| Solar capacity | 840 Wp |
|---|---|
| Solar controller | Victron MPPT 60A/250 V |
| Fuel cell | no |
| Manufacturer and type of heating system | Truma Combi D6E |
|---|
| Explanation of gas system | |
|---|---|
| gasfrei |
| Water filtration system | WM Aquatec UV-C LED, Alp Filter-Set |
|---|---|
| Capacity of fresh water tank(s) | 400 l |
| Manufacturer and type of toilet | Air Head Trockentrenn-Toilette |
|---|

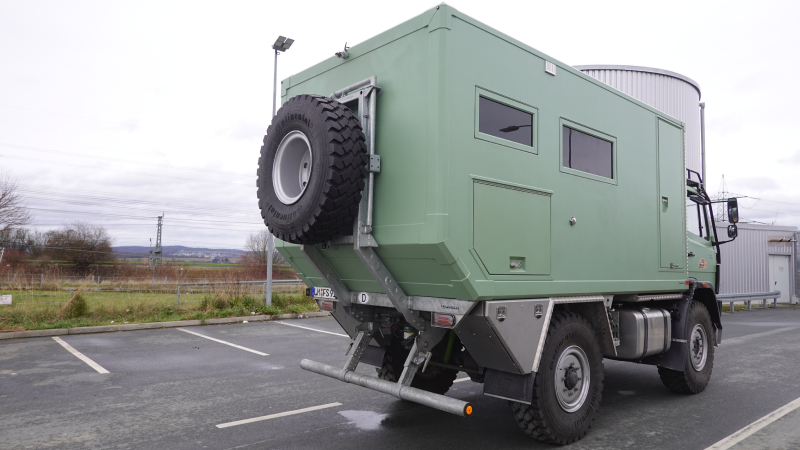

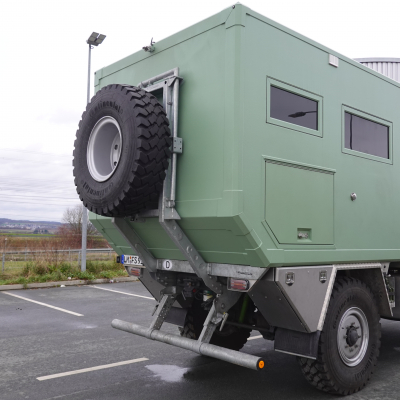

| Rear carrier | 4wheel24 |
|---|
