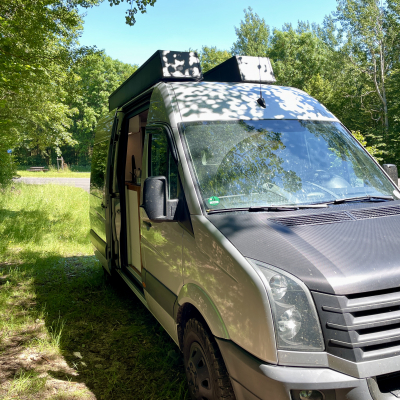

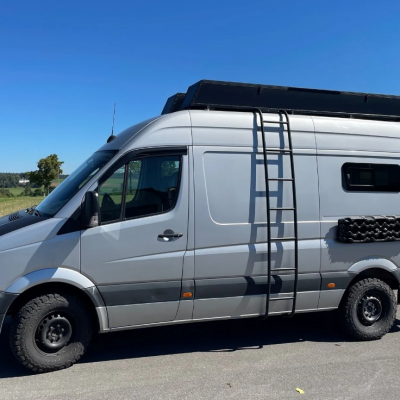

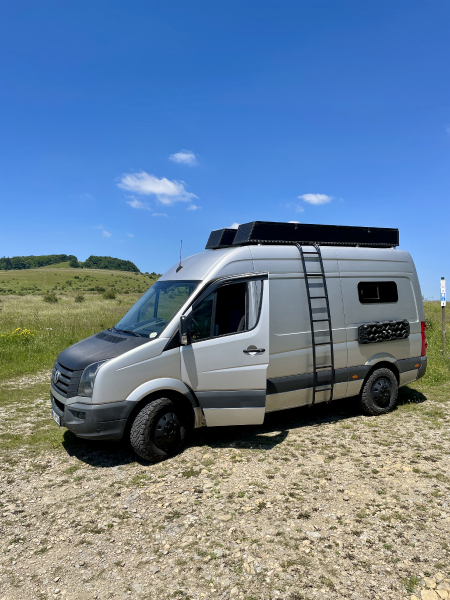

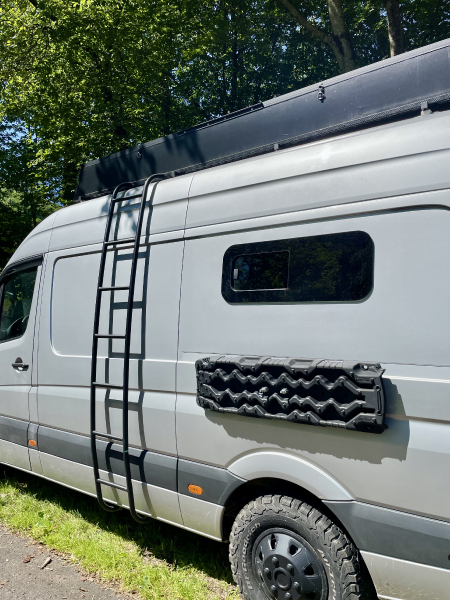

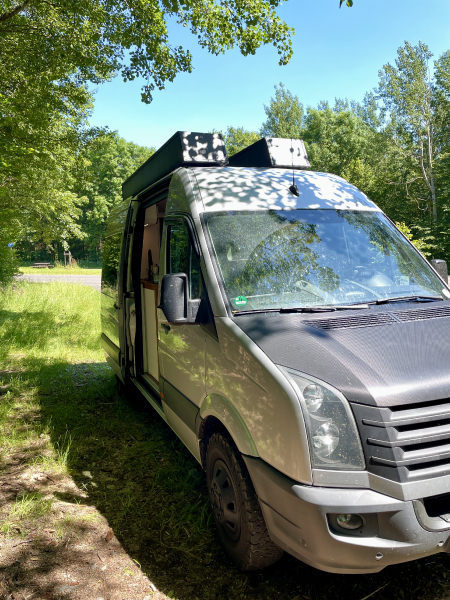

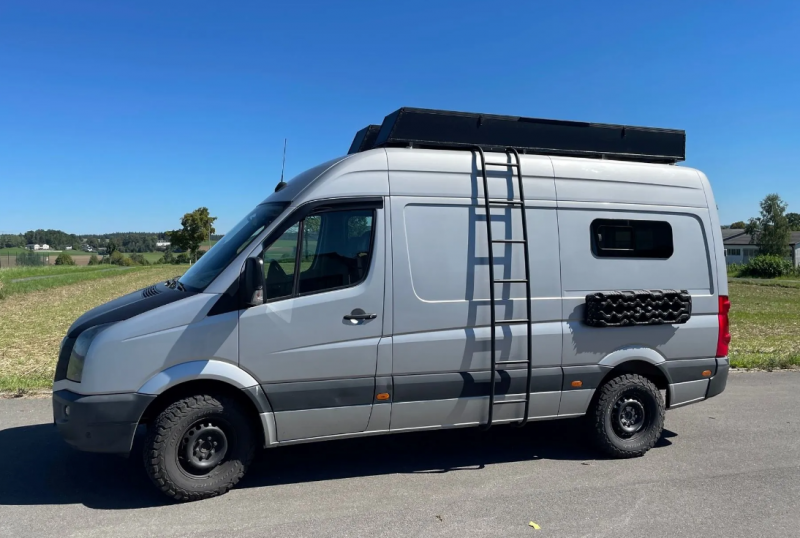

Autarker VW Crafter in der Funktion als Büro & Reisemobil
| Manufacturer and model | Volkswagen Crafter |
|---|---|
| Name | Alexander Kraus |
| Website | www.fichtel-van.de |
| Year of manufacture | 2016 |
| For sale? | no |
| Engine type | 2.0 CDI |
|---|---|
| Cubic capacity | k.A. |
| Number of cylinders | k.A. |
| Horsepower | k.A. |
| Torque | k.A. |
| 4x2, 4x4, 6x6, 8x8 | 4x2 |
|---|---|
| Wheel base | k.A. |
| Number of seats | 2 |
| Tyre size | k.A. |
| Rim size | k.A. |
| Type of tyre | BF Goodrich |
| Tank capacity | 70 |
| Diesel filter | yes |
| Manufacturer of the cabin | Fichtel-Van |
|---|---|
| Inner dimensions (LxWxH) | k.A. |
| Outer dimensions (LxWxH) | L2H2 |
| Cabin material | k.A. |
| Kind and thickness of insulation | Vanue 25mm, 19mm, 3mm |

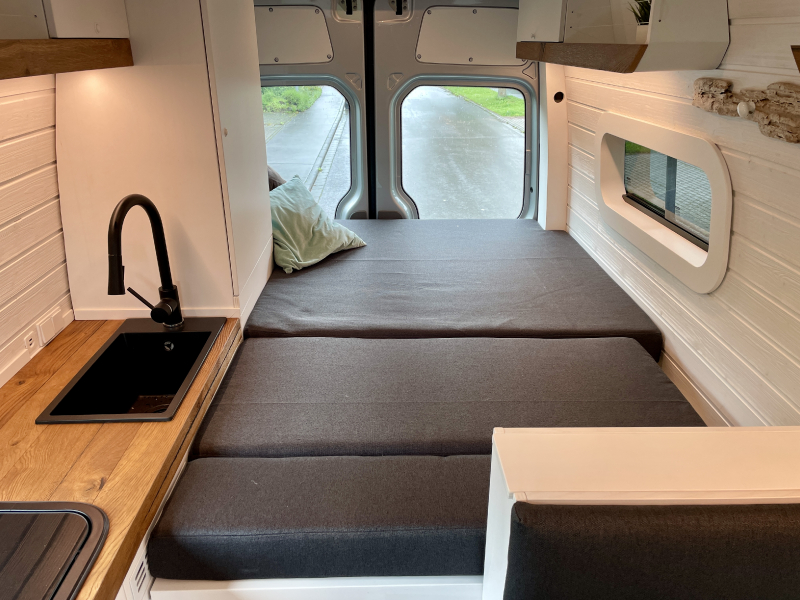

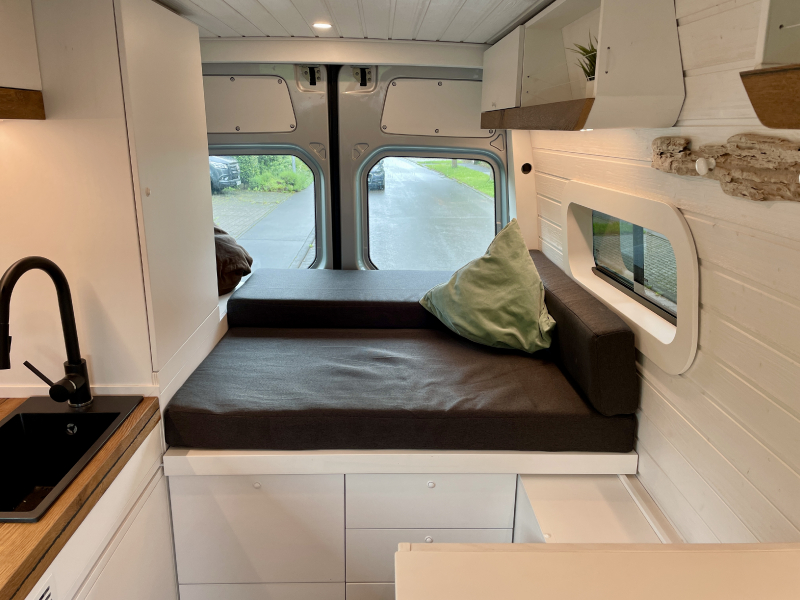

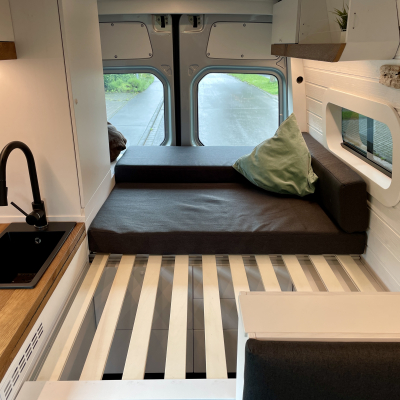

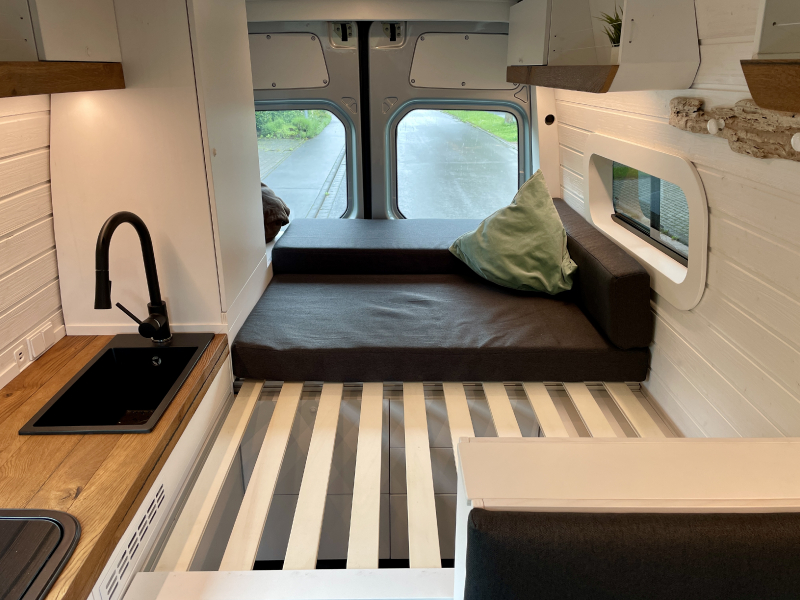

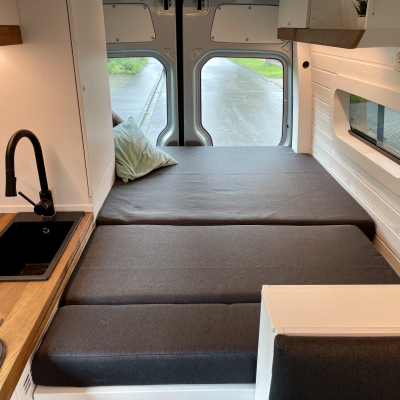

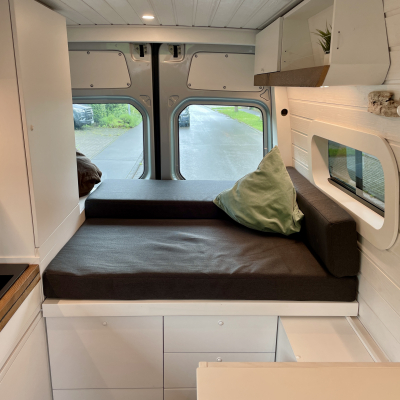

| Number of beds | 2 |
| Windows | 3 |
| Subframe | k.A. |
| Explanation of floor plan | |
|---|---|

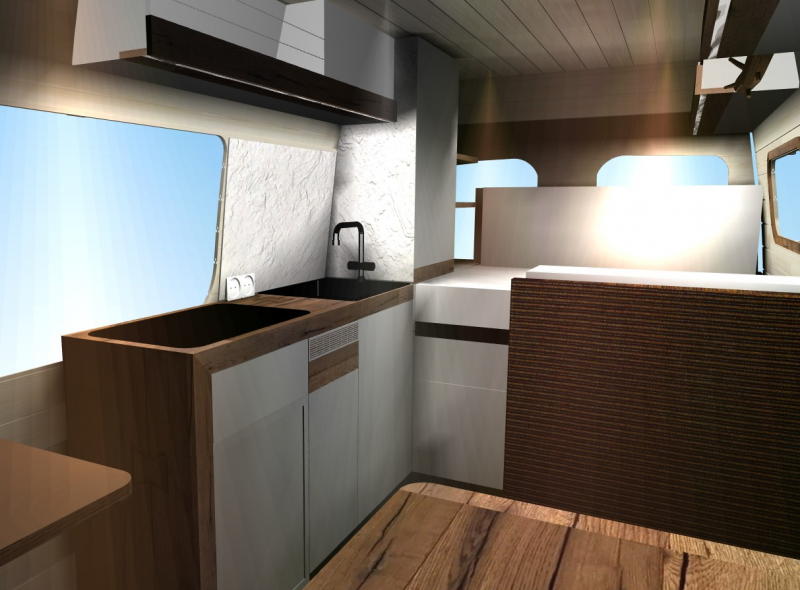

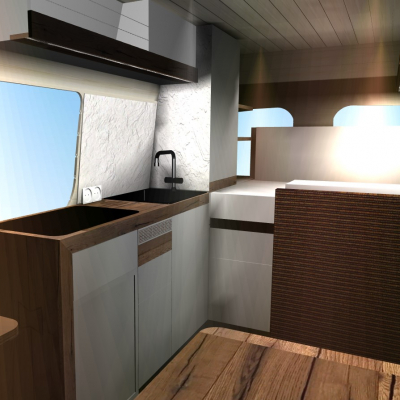

| 3D Visualisierung und Rendering mit PYTHA CAD |

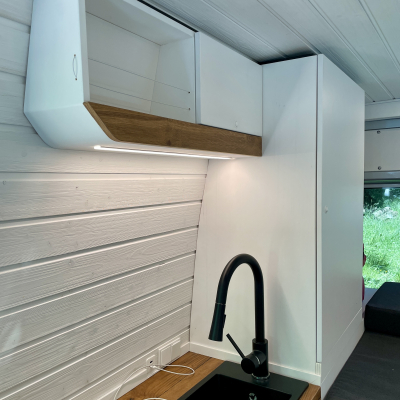

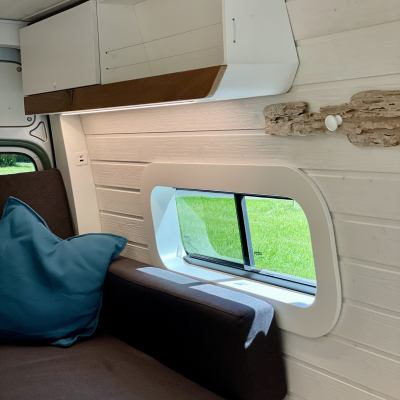

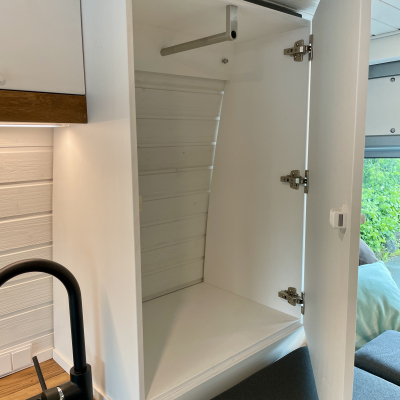

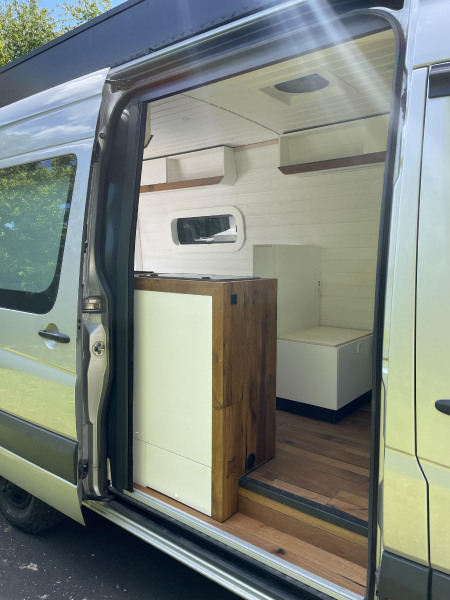

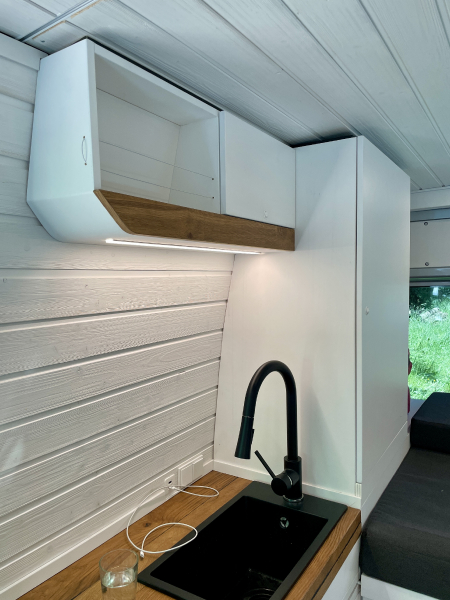

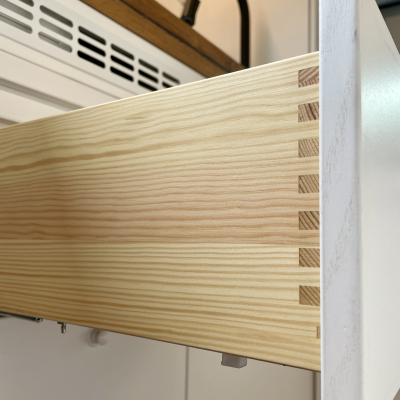

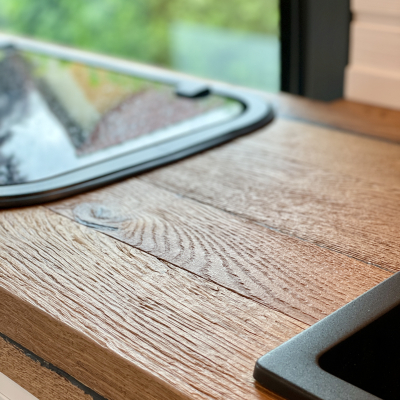

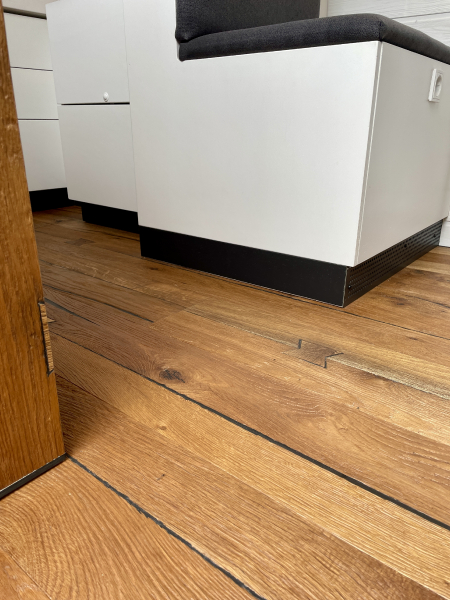

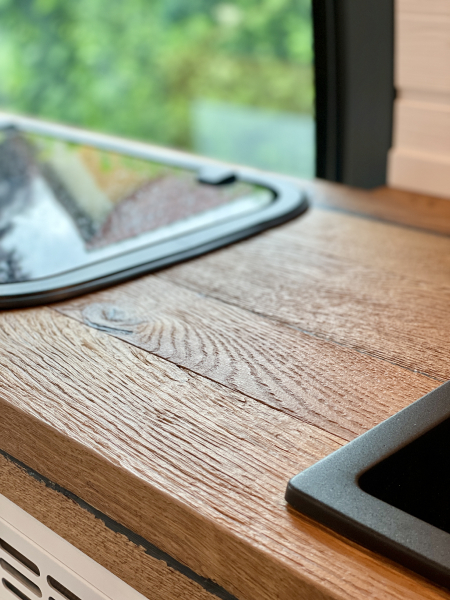

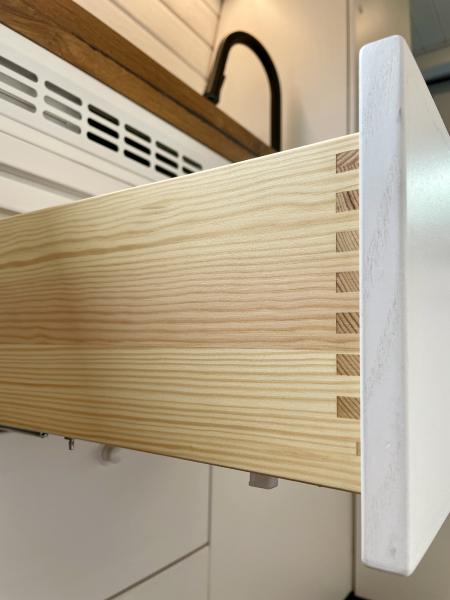

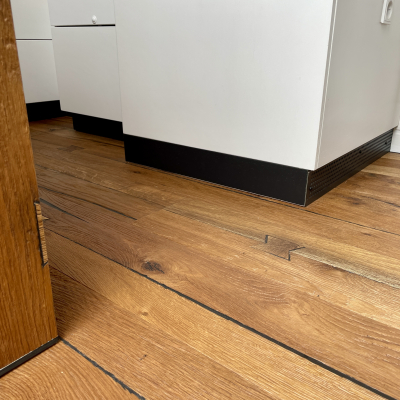

| Material of furniture | Fußboden Eiche Parkett, geölt. Wandverkleidung Fichte Panelbretter, gebürstet, Wasserlackiert. Möbel Pappelsperrholz, Wasserlackiert |
|---|

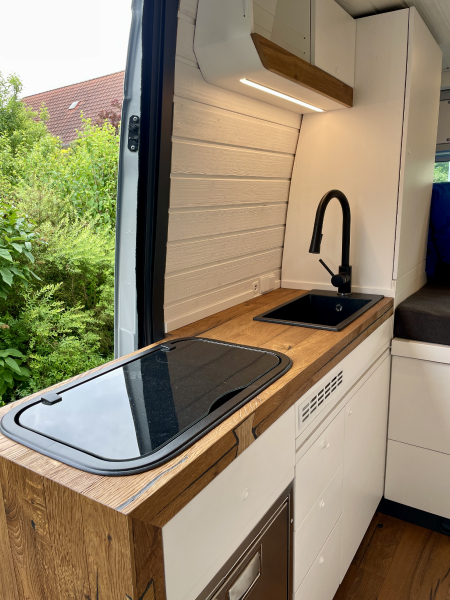

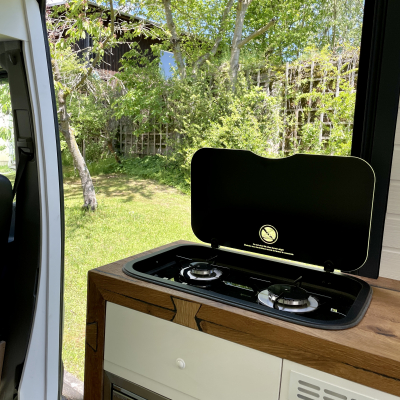

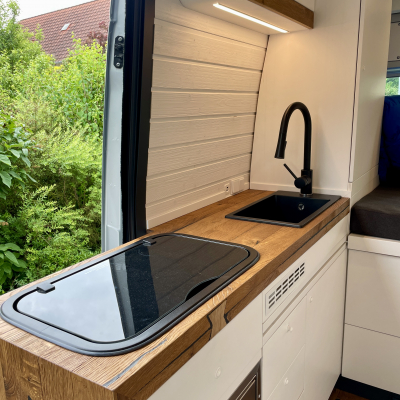

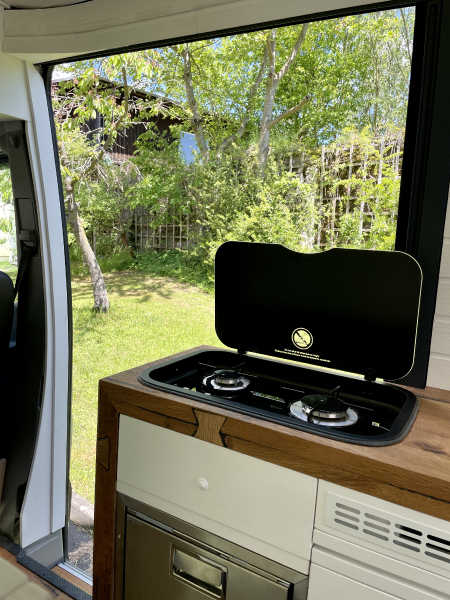

| Cooking stove | Thetford Topline 165 |
|---|---|
| Gas installation | 10 L Gastankflasche LPG |

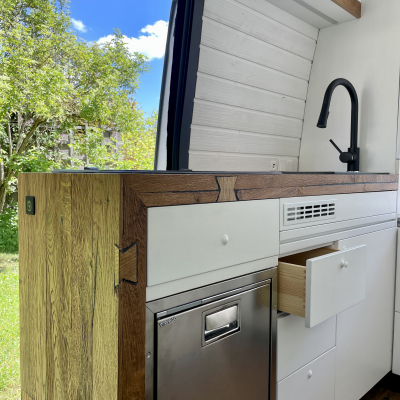

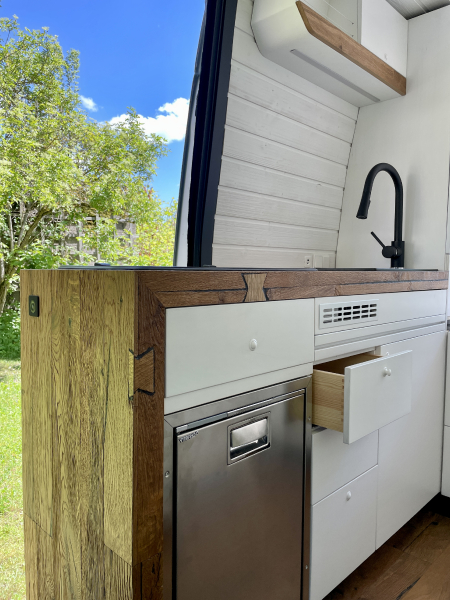

| Manufacturer and type of fridge / cooler | Vitrifrigo C42LX Kompressor-Kühlschrank, 12/24V, 42L |
|---|
| Voltage in the chassis | 12V |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | Victron MultiPlus 12/1200/50-16 230V VE.Bus |
| 110V / 230V in the cabin? | yes |
| Capacity of batteries in the cabin | 300A |
|---|---|
| Battery type | Liontron |
| Battery charger for cabin batteries | Votronic 50A |
| Battery management | Victron |

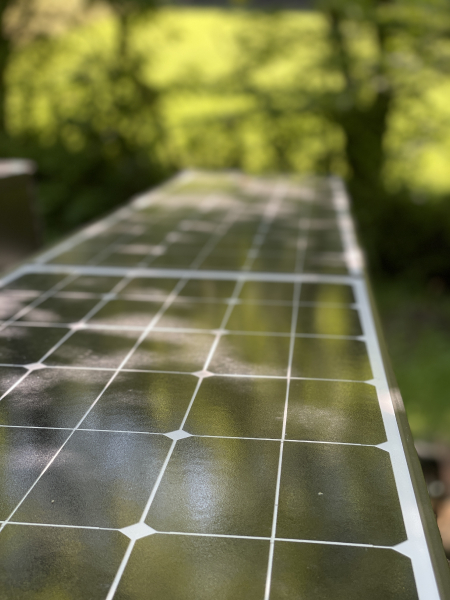

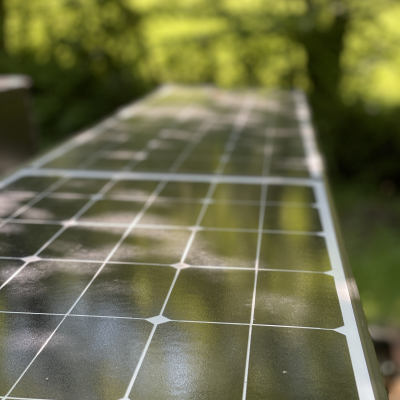

| Solar capacity | 500Wp |
|---|---|
| Solar controller | Victron MPPT |
| Fuel cell | no |

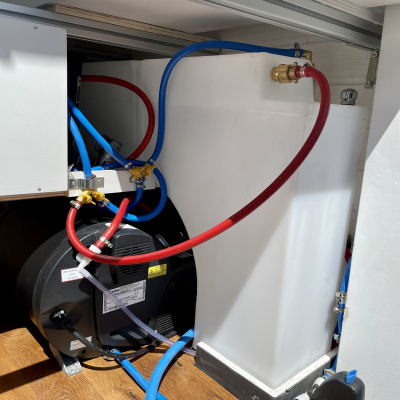

| Manufacturer and type of heating system | Truma 4DE |
|---|---|

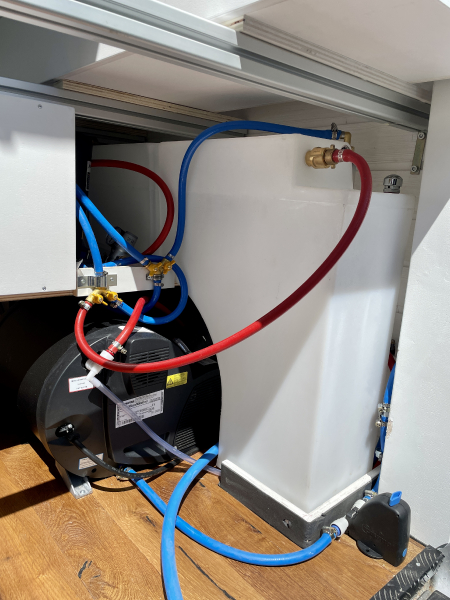

| Warm water processing | Integriert 20L |
| Cab heating | k.A. |
| water flow | Tigerexped |
|---|---|
| Water filtration system | Alb Filter Travel Pro |
| Capacity of fresh water tank(s) | 100L |
| Capacity of waste water tank(s) | k.A. |

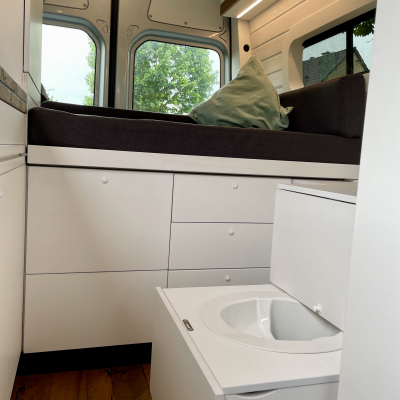

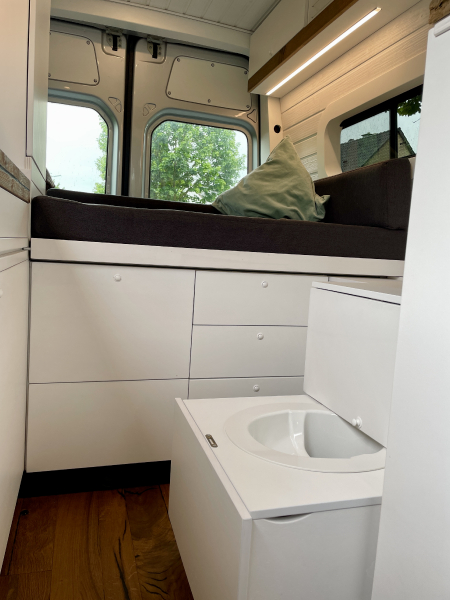

| Manufacturer and type of toilet | Trockentrenntoilette Eigenbau |
|---|---|
| Capacity of black water tank | k.A. |
| Rear carrier | k.A. |
|---|---|
| Roof rack | k.A. |

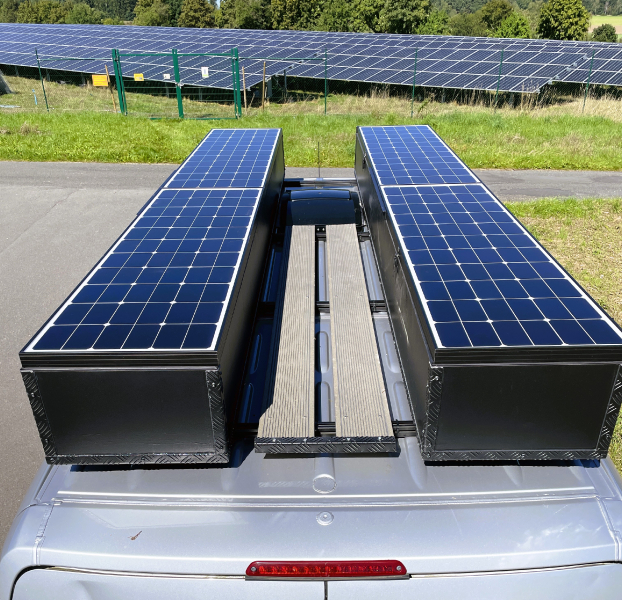

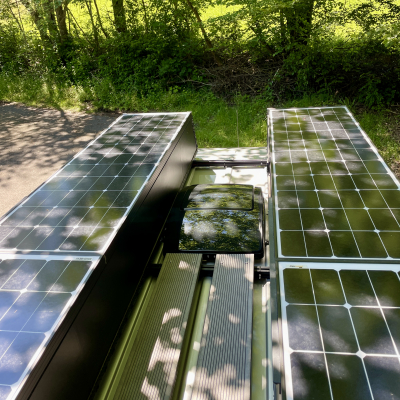

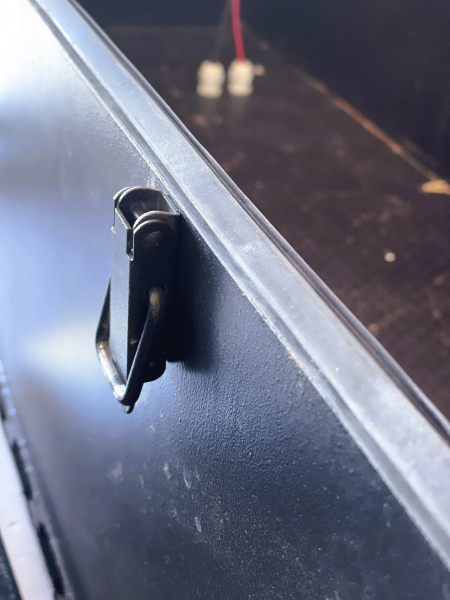

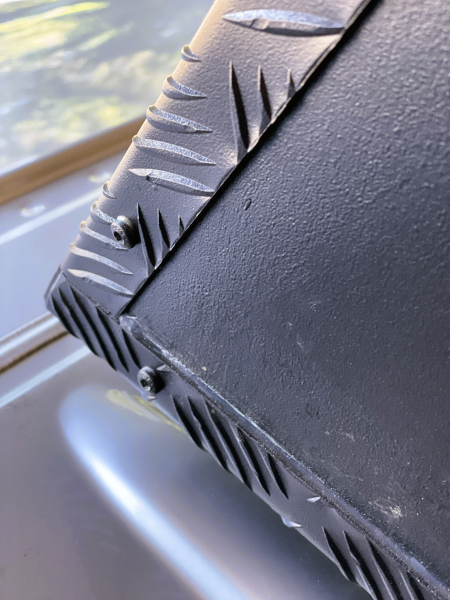

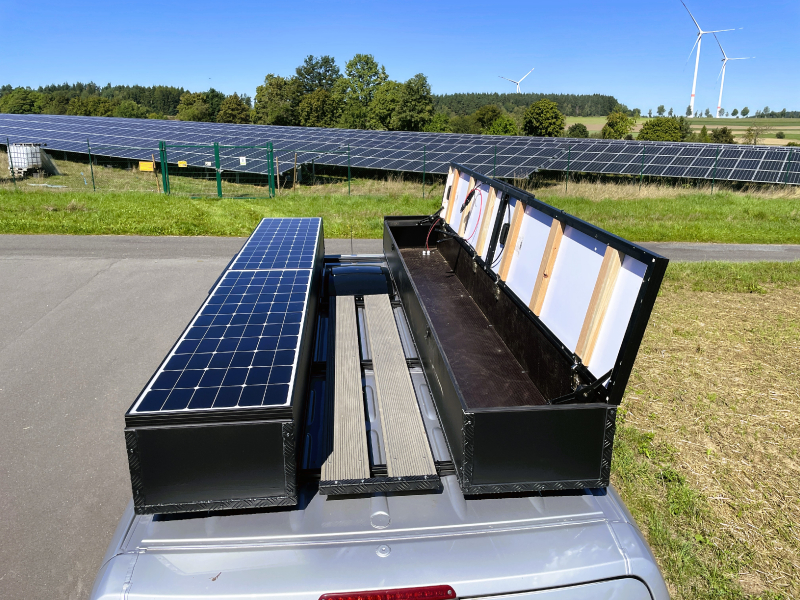

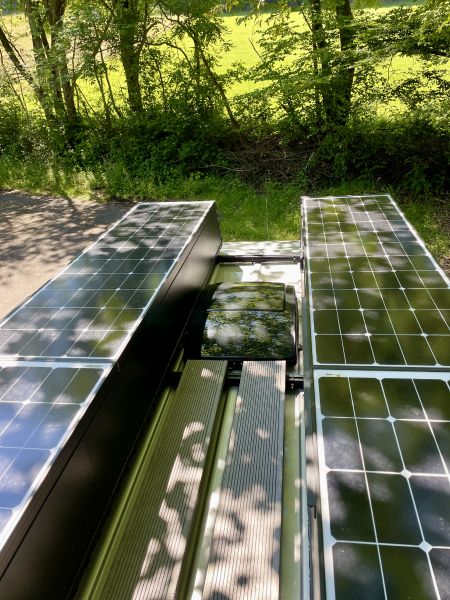

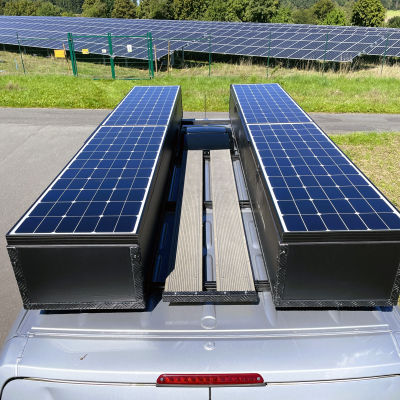

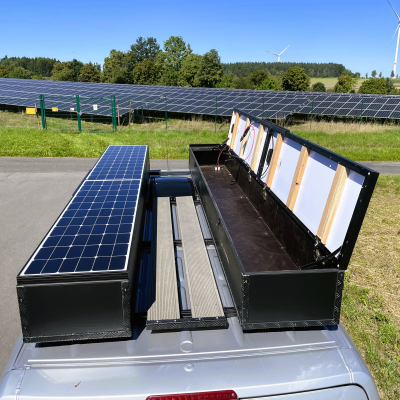

| Storage boxes | 2x Dachboxen mit integrierten Solarpanele |
| Outside cooking facilities | k.A. |
| Awning | k.A. |
