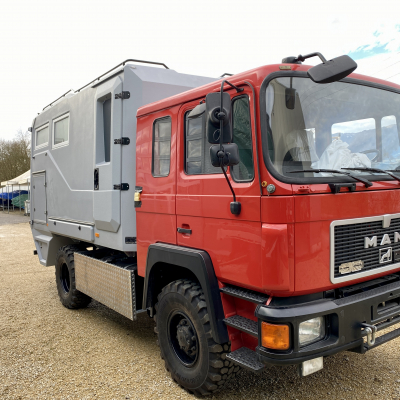

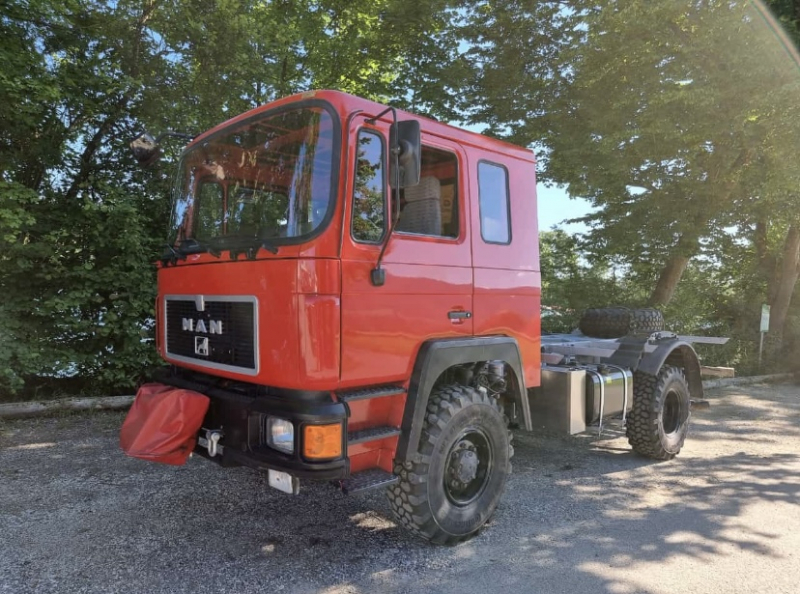

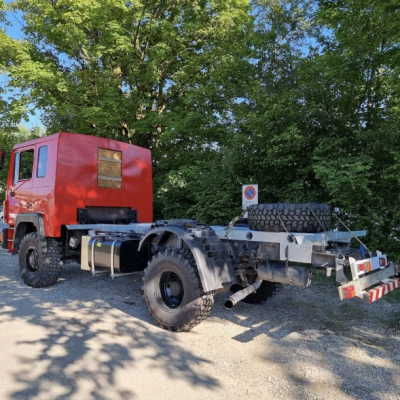

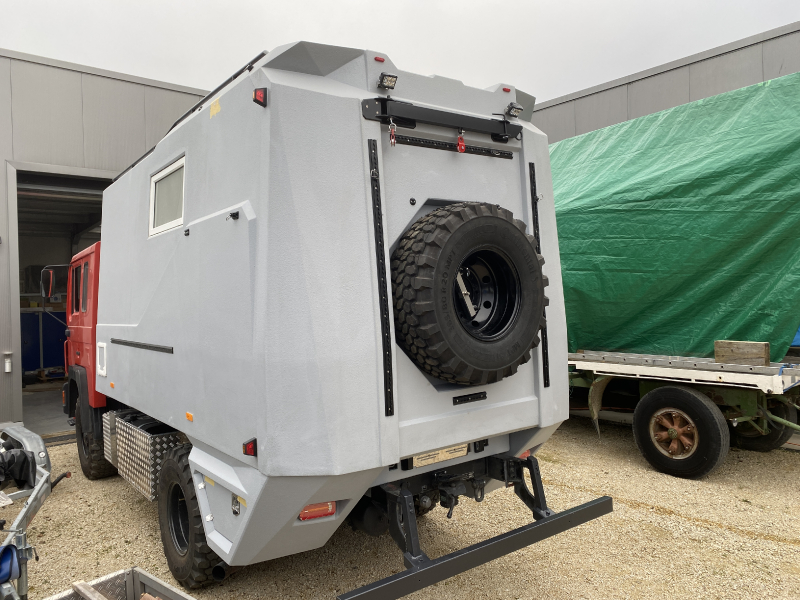

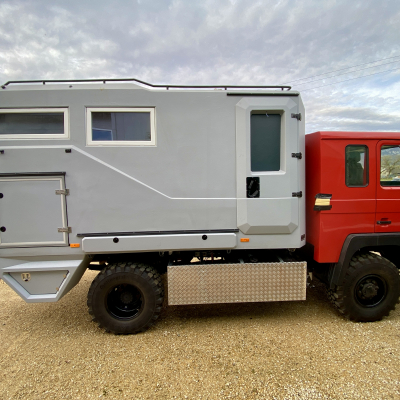

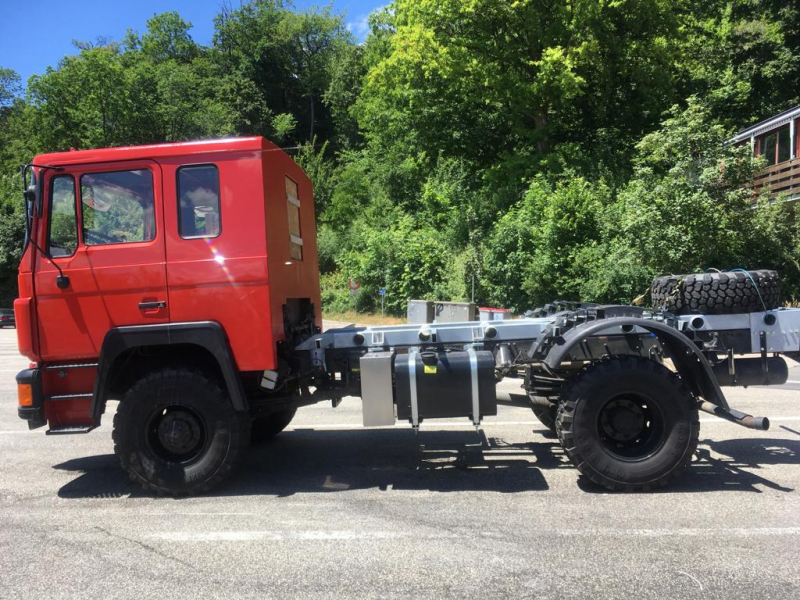

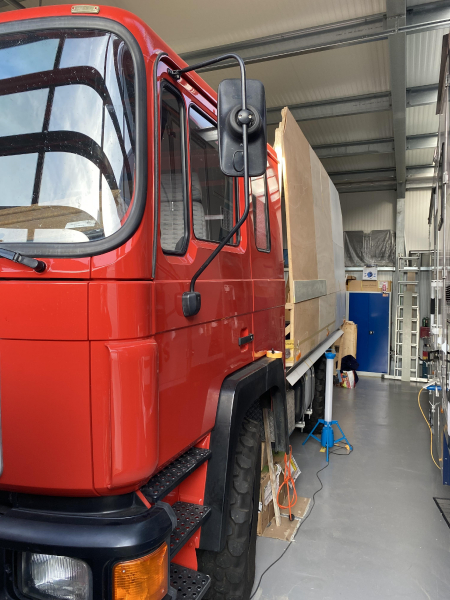

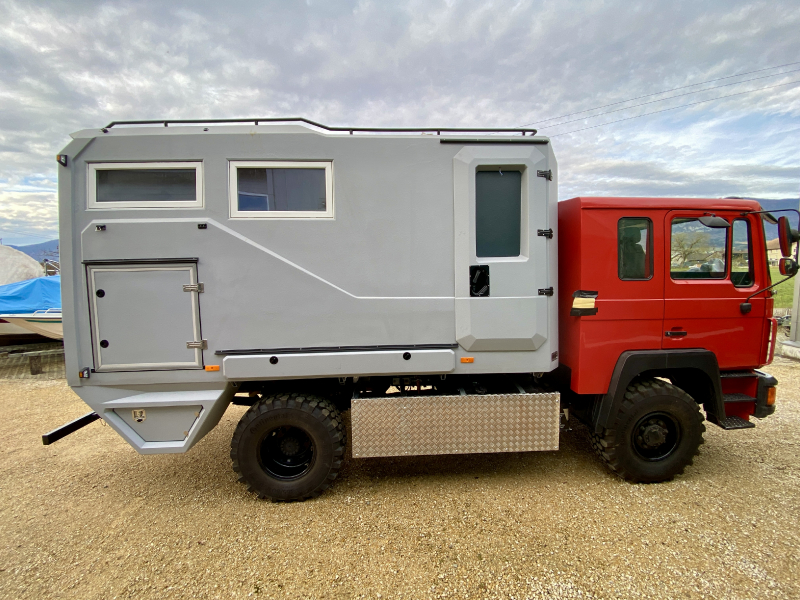

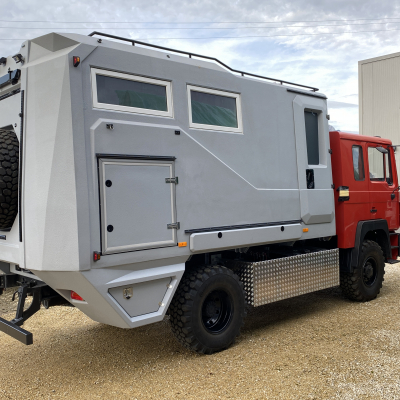

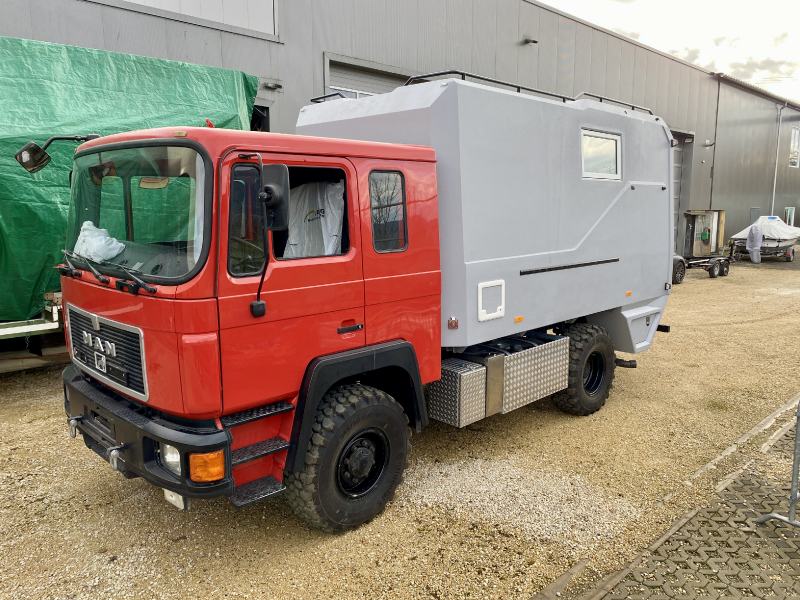

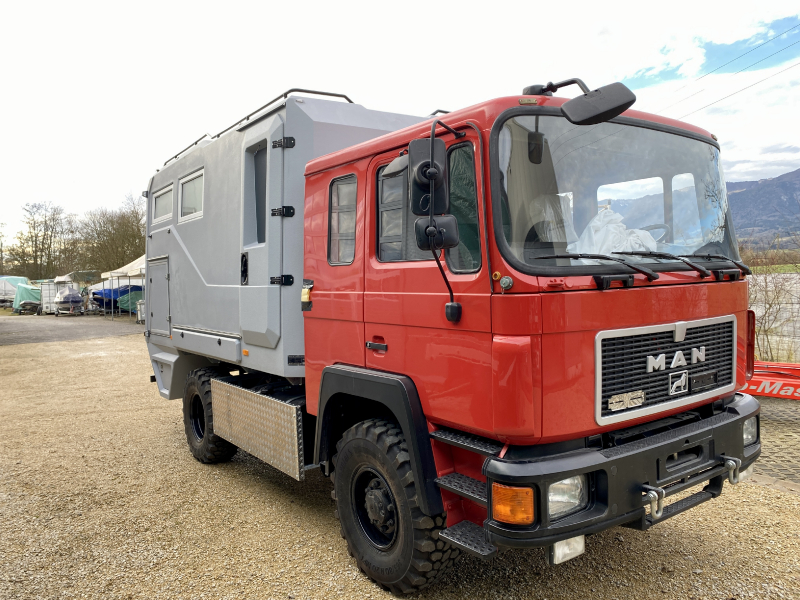

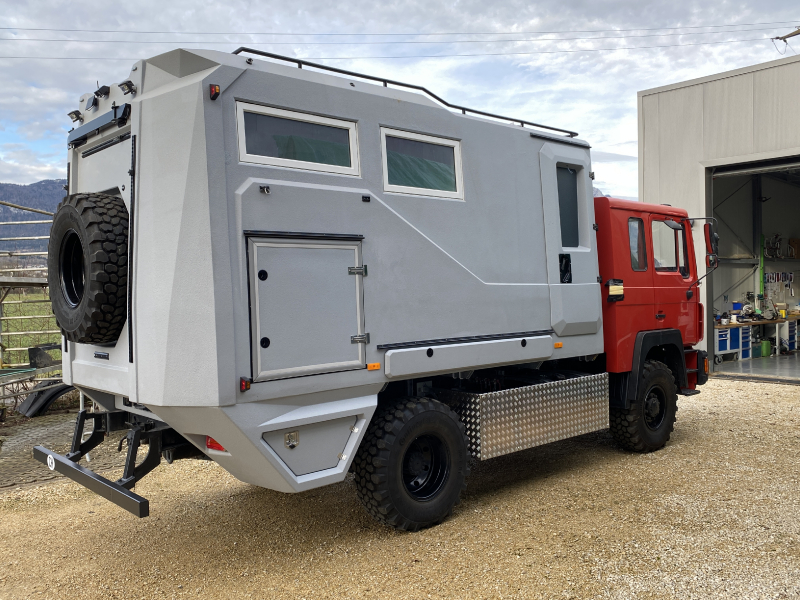

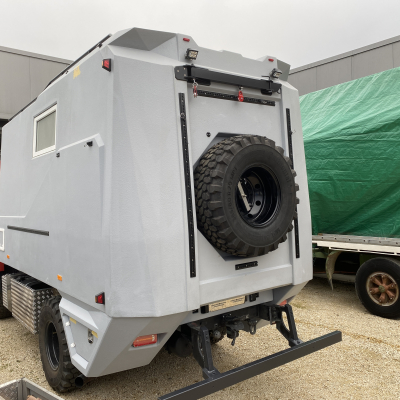

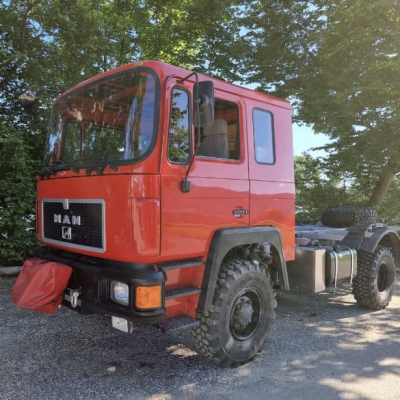

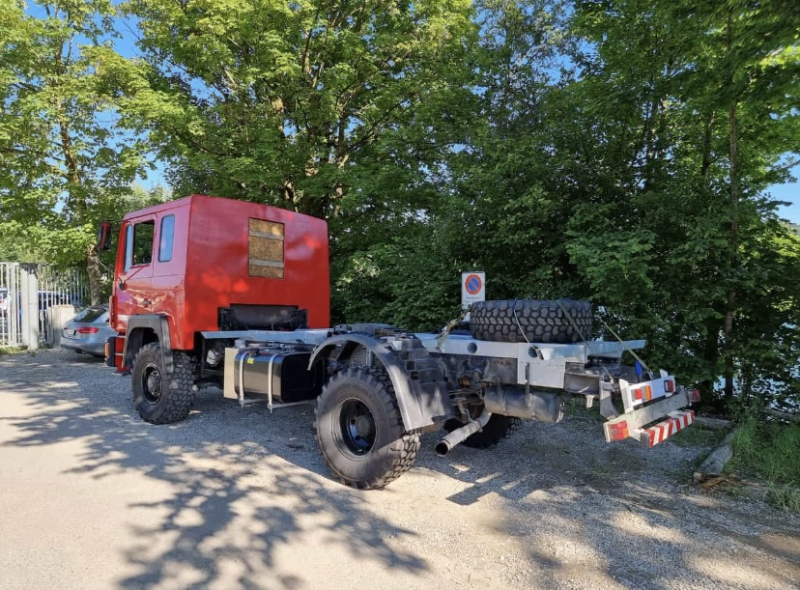

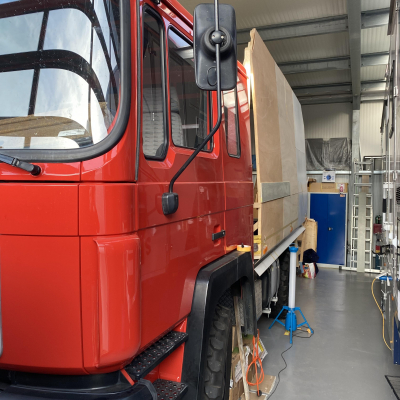

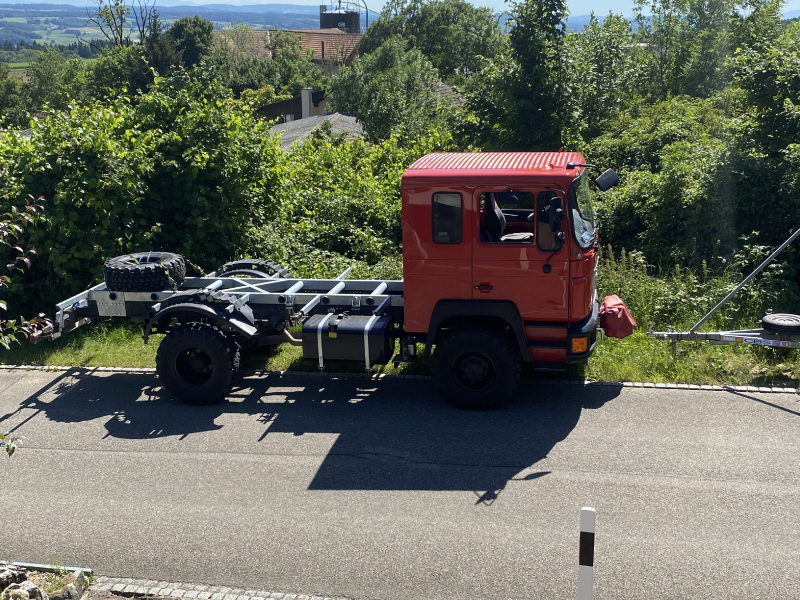

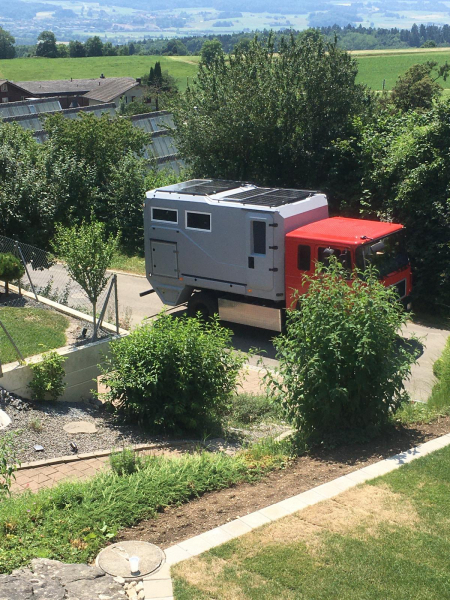

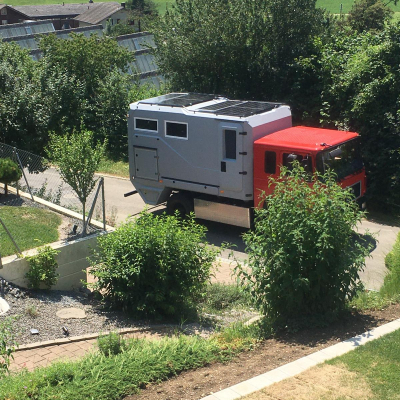

MAN 12.232 (ex Feuerwehr) mit Aufbau von Lehmar AG
| Manufacturer and model | MAN 12.232 |
|---|---|
| Name | Schreiber Urs |
| Country | Schweiz |
| Website | Noch keine |
| Year of manufacture | 1994 |
| For sale? | no |
| Engine type | Diesel |
|---|---|
| Cubic capacity | 6.8 |
| Number of cylinders | 6 |
| Horsepower | 230 |
| Zulässiges Gesamtgewicht | 12300 kg |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 365 |
| Number of seats | 6 (2 + 4) |
| Tyre size | 365/80 R20 MBT |
| Rim size | Sprengring |
| Type of tyre | Continental MPT 81 |
| Tank capacity | 230 + 300 |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | Zuschaltbar |
| Diff locks | Hecksperre |

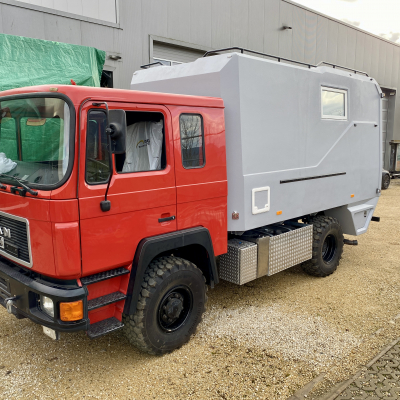

| Manufacturer of the cabin | Lehmar AG (www.lehmarexpedition.ch) |
|---|---|

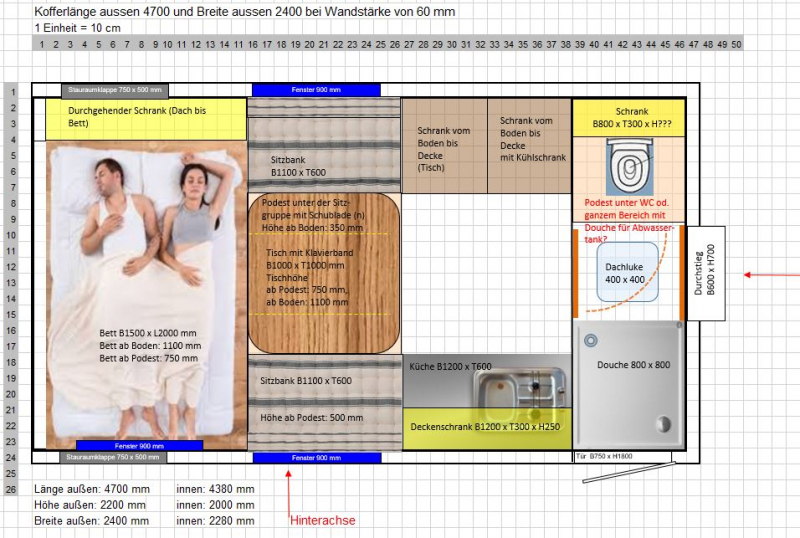

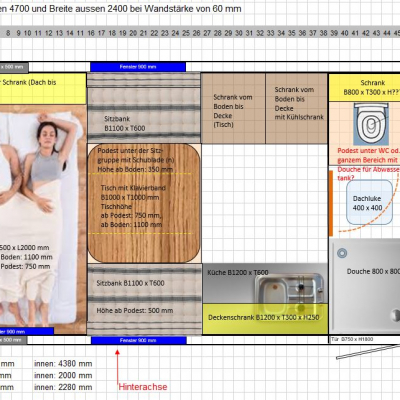

| Inner dimensions (LxWxH) | 4.55 x 2.30 |
| Outer dimensions (LxWxH) | 4.70 x 2.45 |
| Cabin material | GFK |

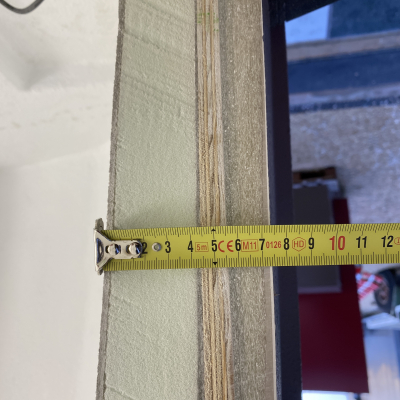

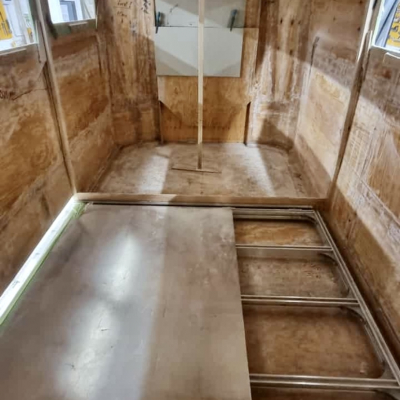

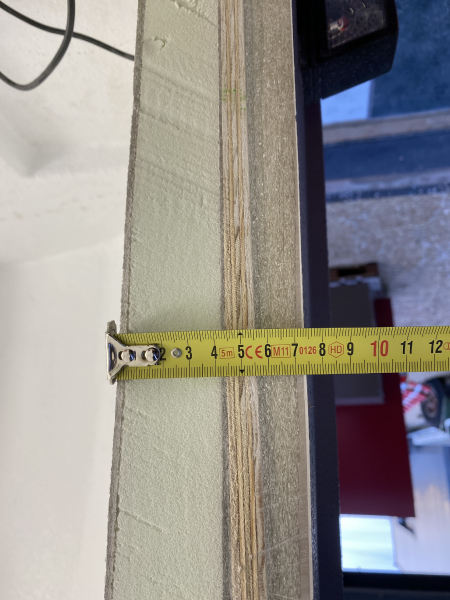

| Kind and thickness of insulation | 40mm Schaum und 16mm Marinesperrholz |

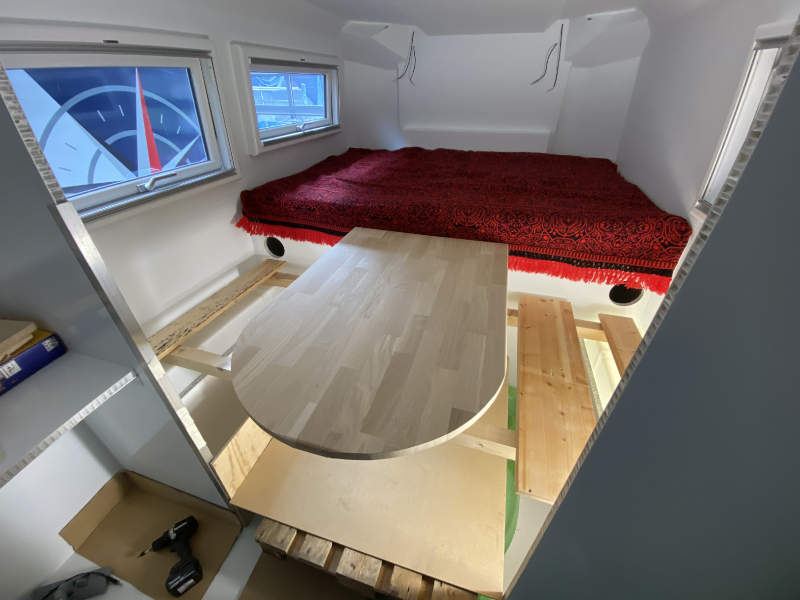

| Number of beds | 2 |

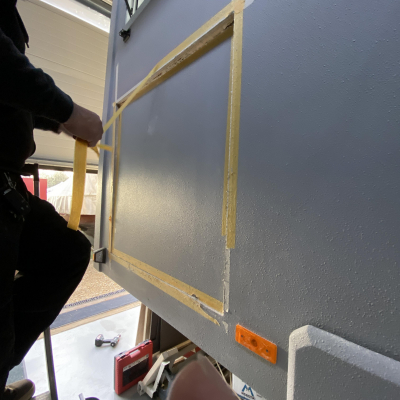

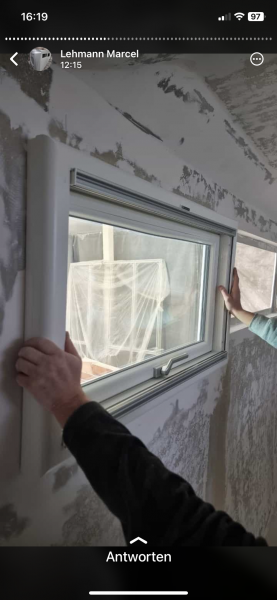

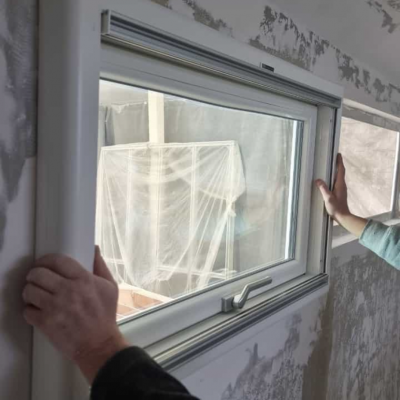

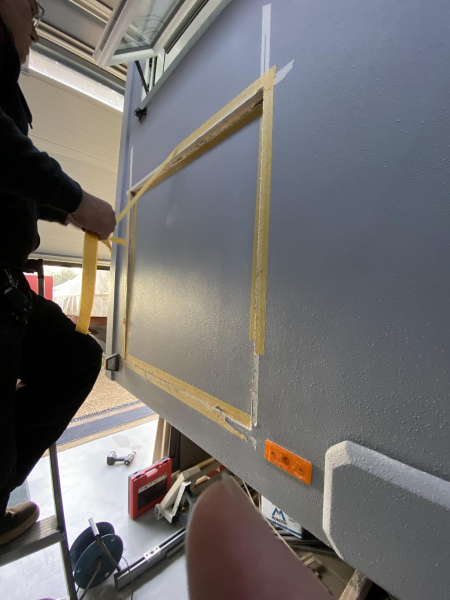

| Windows | KCT |

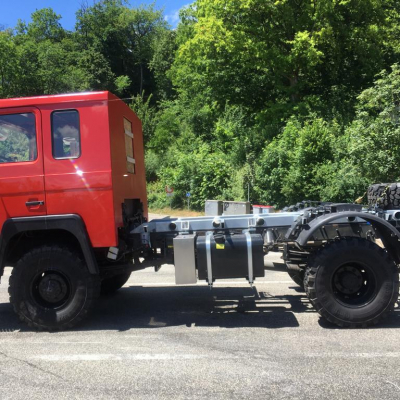

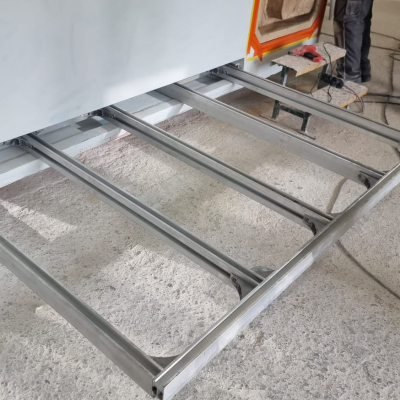

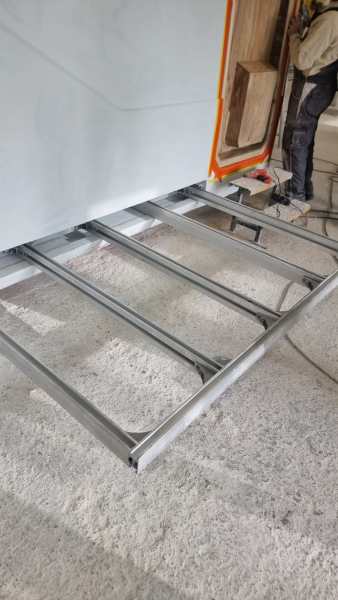

| Subframe | Stahl verzinkt, federgelagert |

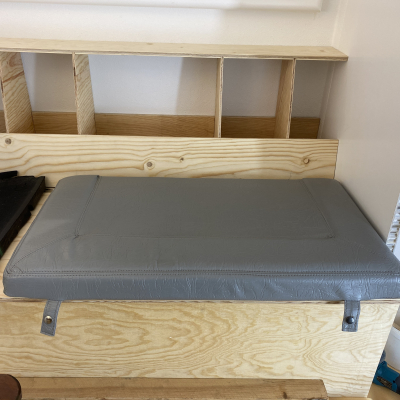

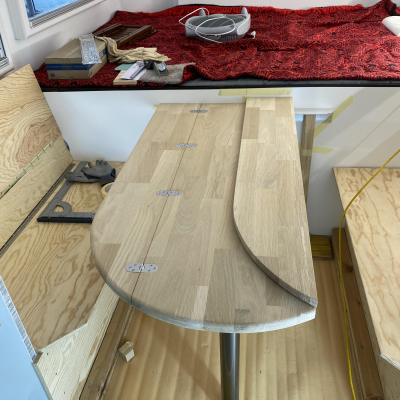

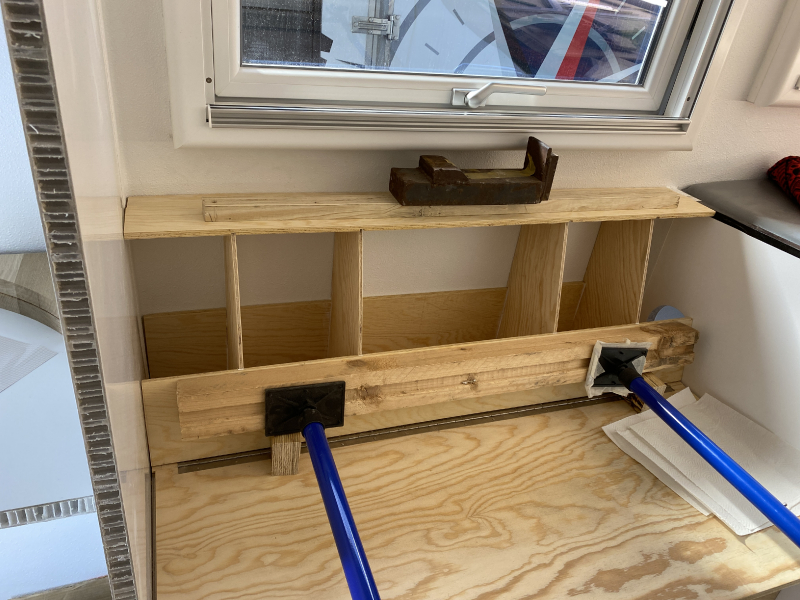

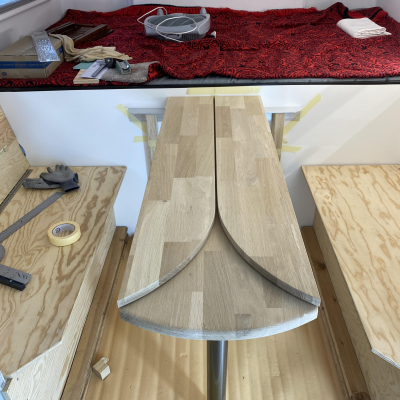

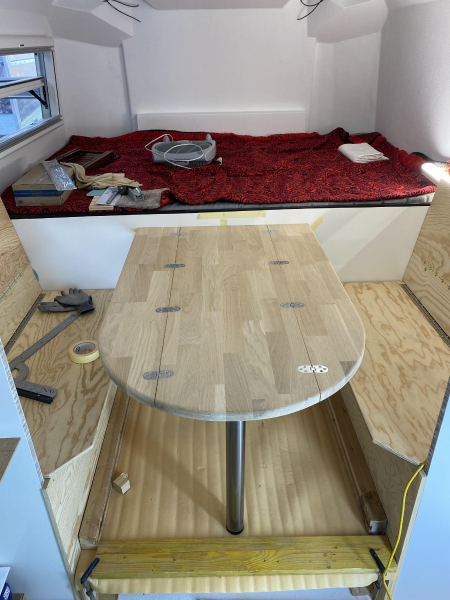

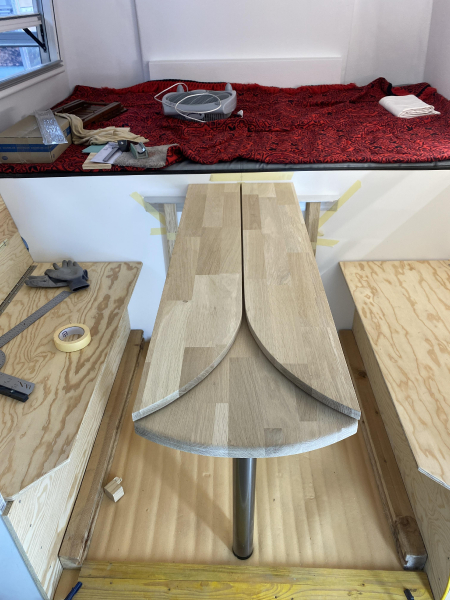

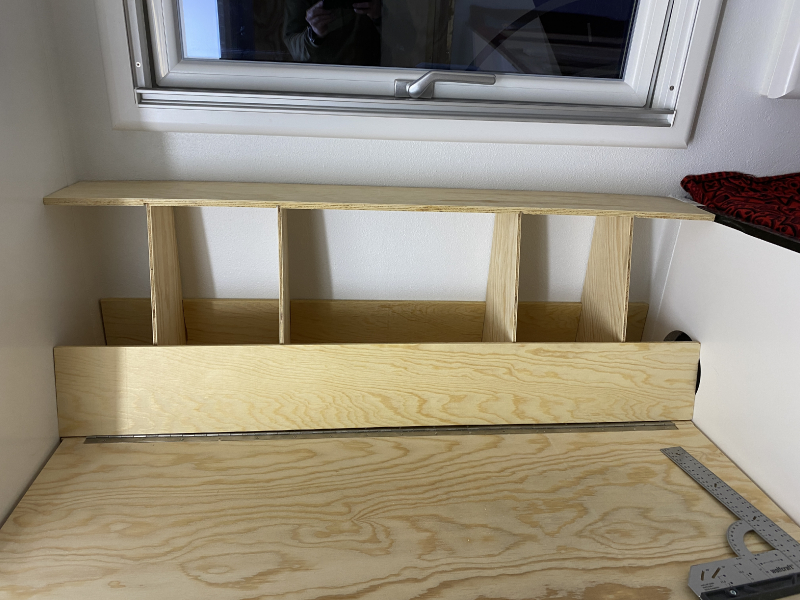

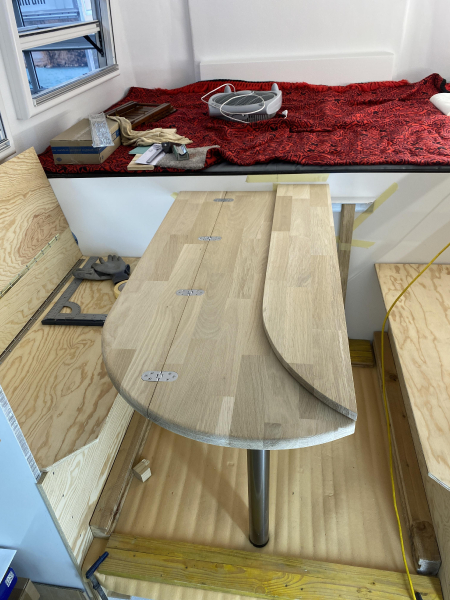

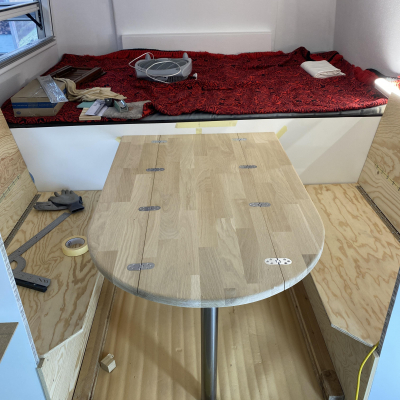

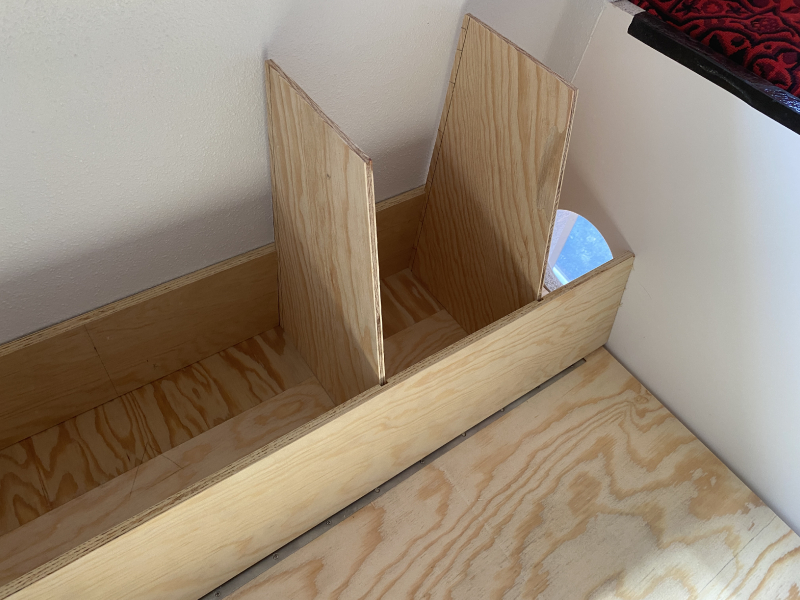

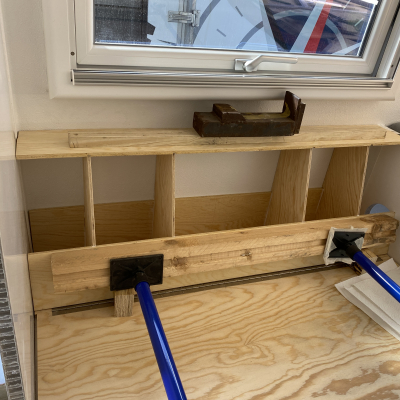

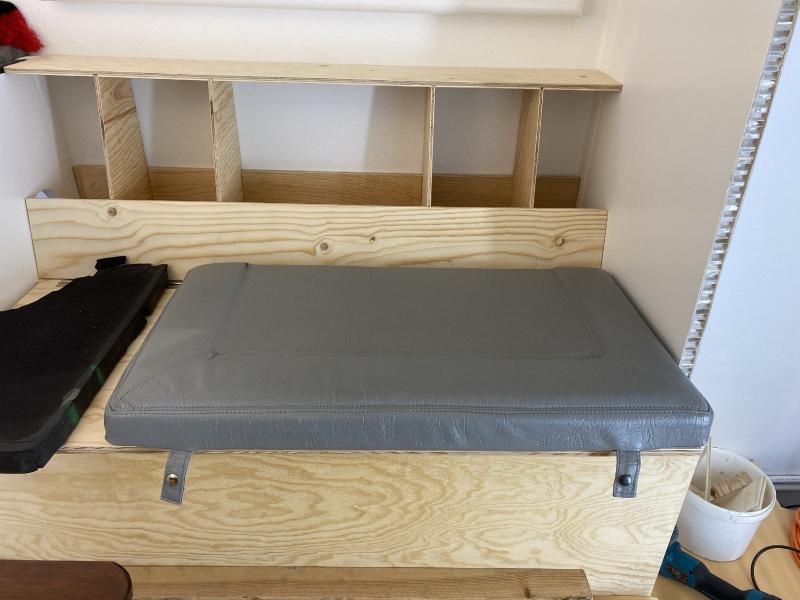

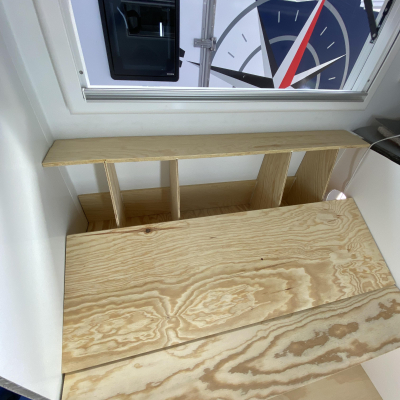

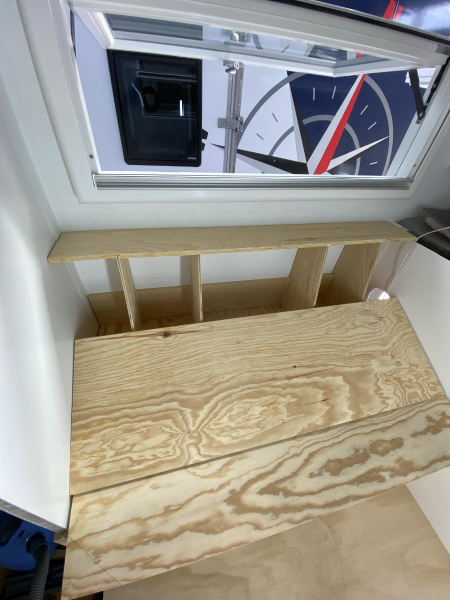

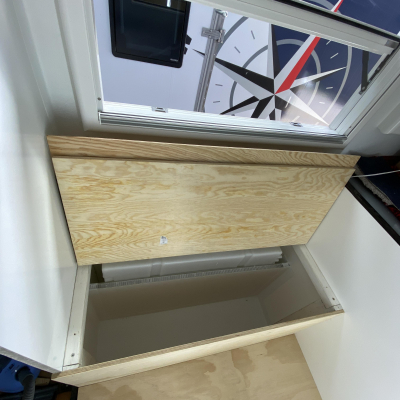

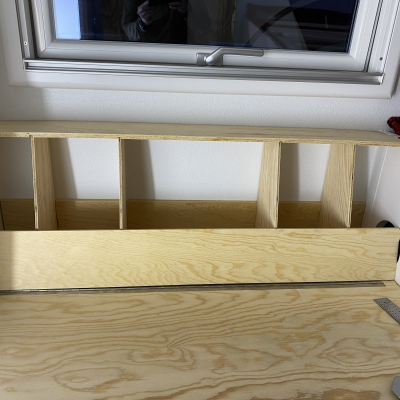

| Material of furniture | Holz |
|---|---|
| Other | |

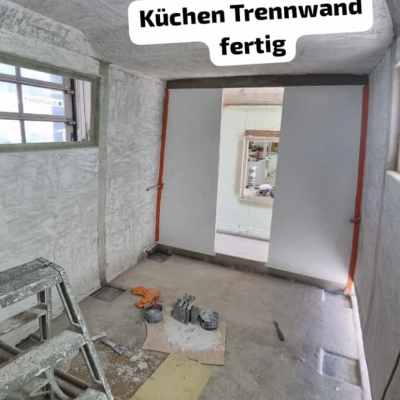

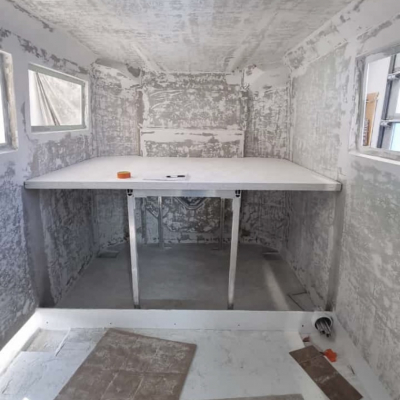

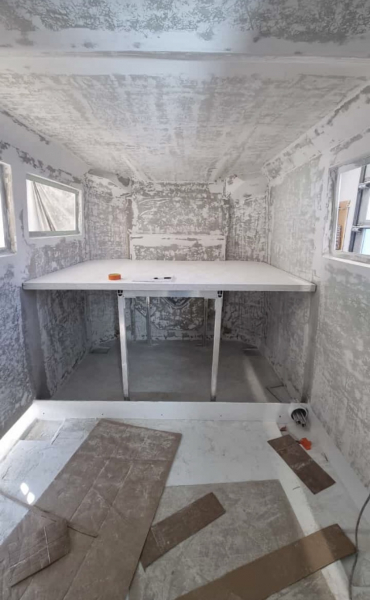

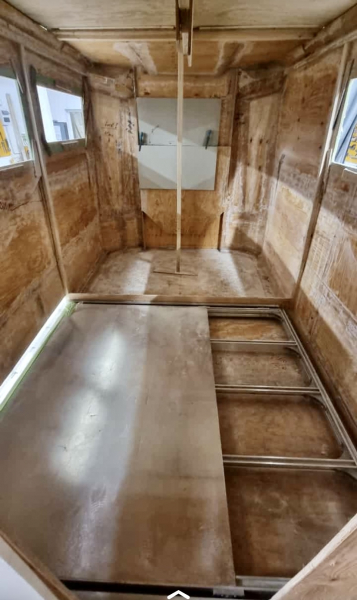

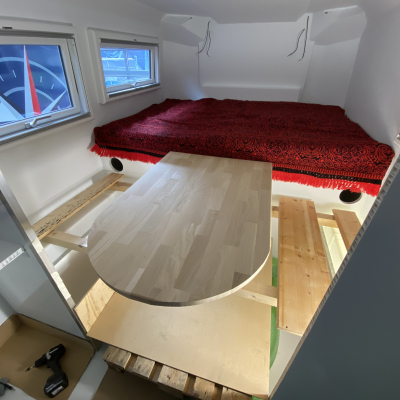

| Der Innenausbau ist noch nicht abgeschlossen, weitere Bilder folgen. | |
| Cooking stove | Spiritus & Induktion |
|---|---|
| Gas installation | Keine |
| Other | |
| Der ganze Innenausbau erfolgt eher spartanisch. Es soll kein „Glampingmobil“ werden. | |

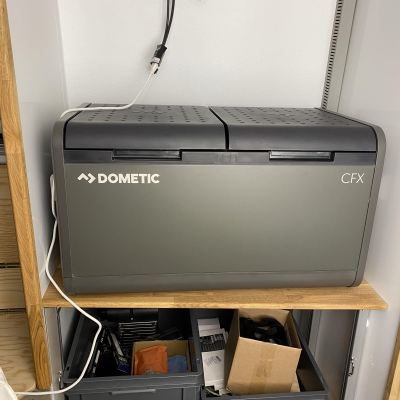

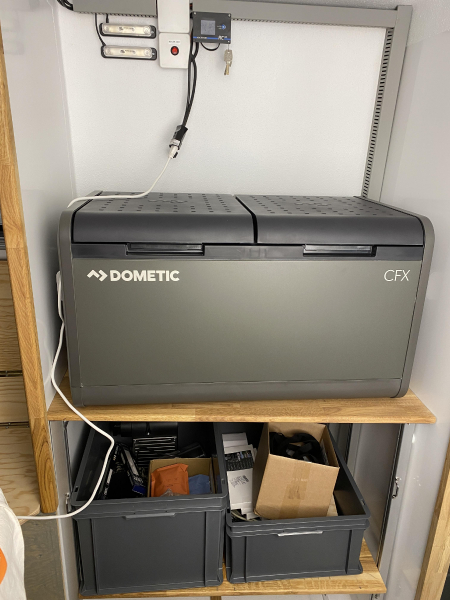

| Manufacturer and type of fridge / cooler | Dometic CFX5 75 DZ |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12V |

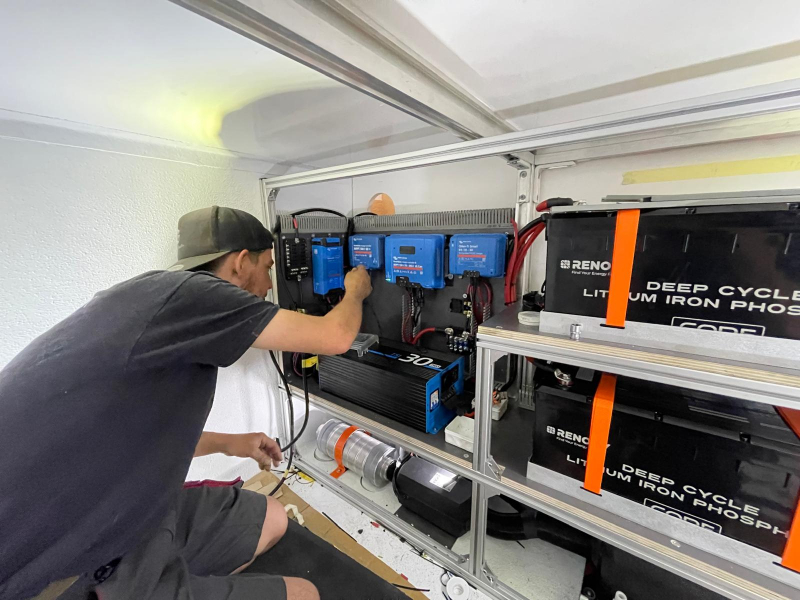

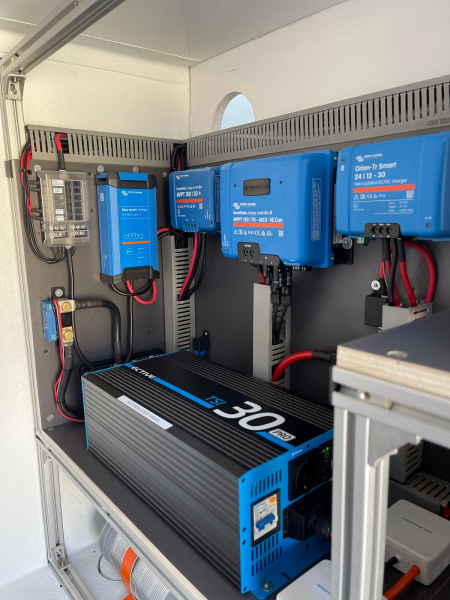

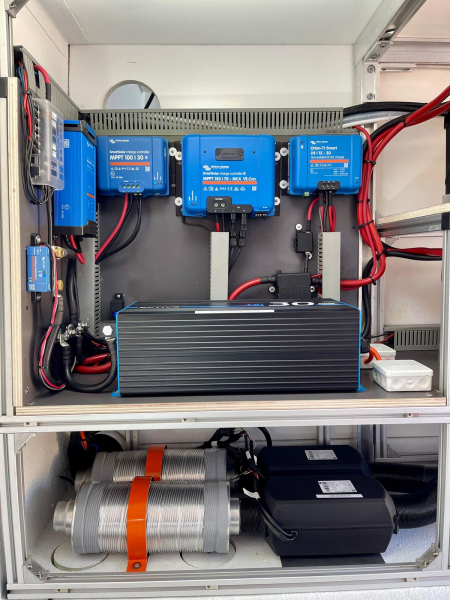

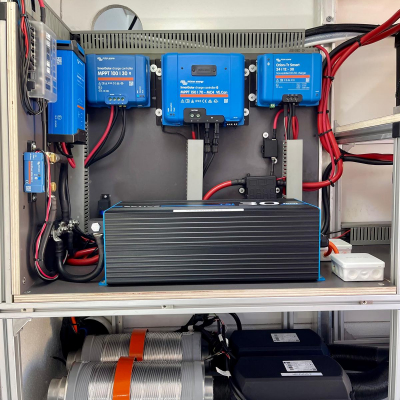

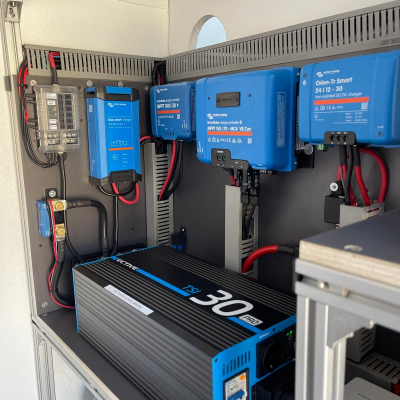

| Charging converter 24V-12V | Orion-Tr Smart Ladewandler 30A |
| 110V / 230V in the cabin? | yes |
| Inverter | Sinus Wechselrichter TSI 30 Pro 3000W |

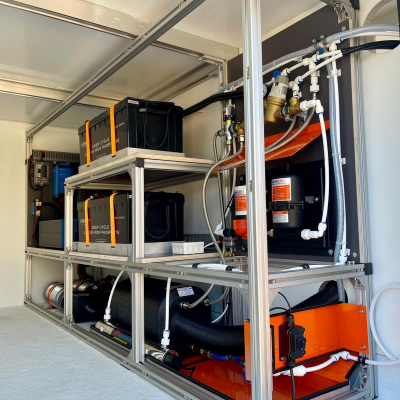

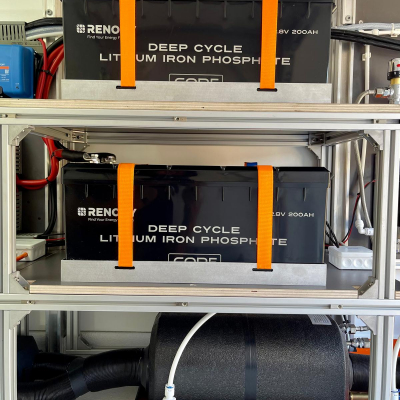

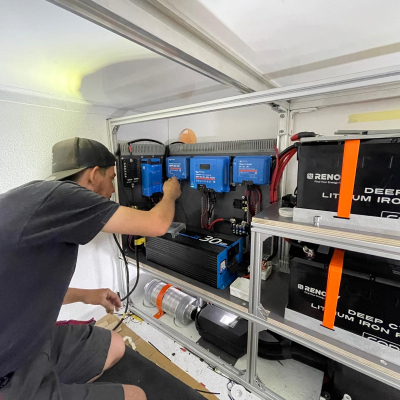

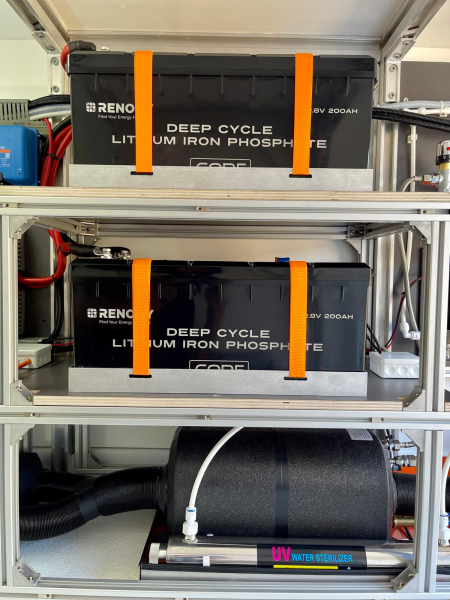

| Capacity of batteries in the cabin | 2x200Ah LiFePO4 |
|---|---|
| Battery type | LiFePo4 |
| Battery charger for cabin batteries | Victron Blue Smart Ladegerät 12V 30A |
| Battery management | Victron Smart Shunt 500A |

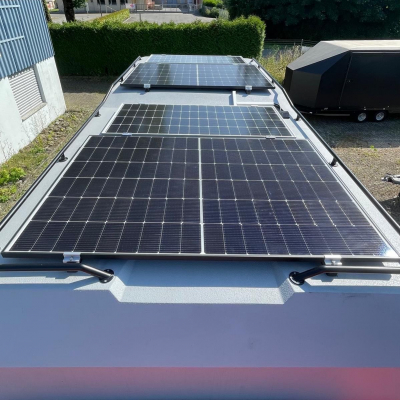

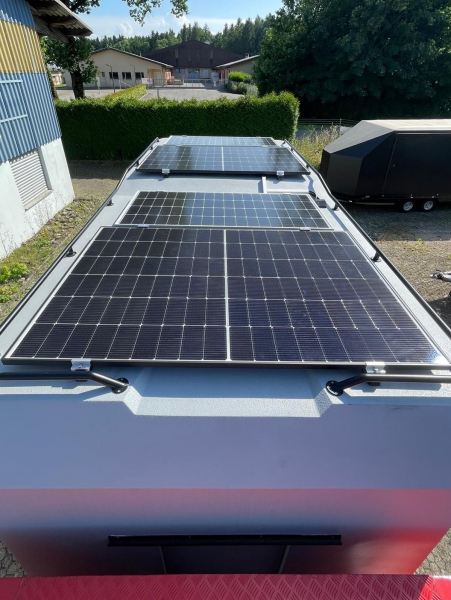

| Solar capacity | 1320 W |
|---|---|
| Solar controller | Victron MPPT |
| Fuel cell | no |
| Power generator | 2000W Benzin |

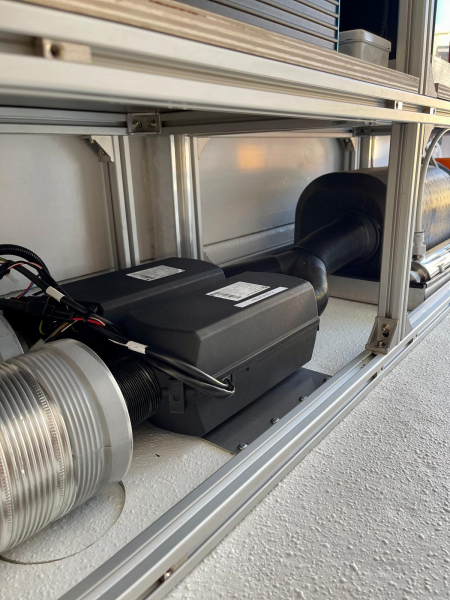

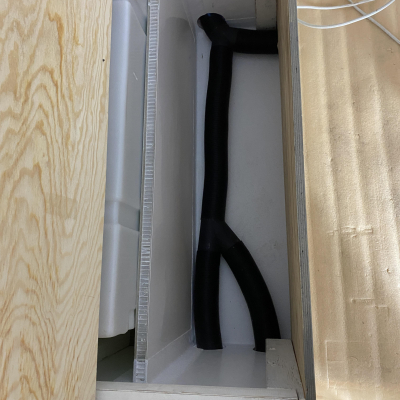

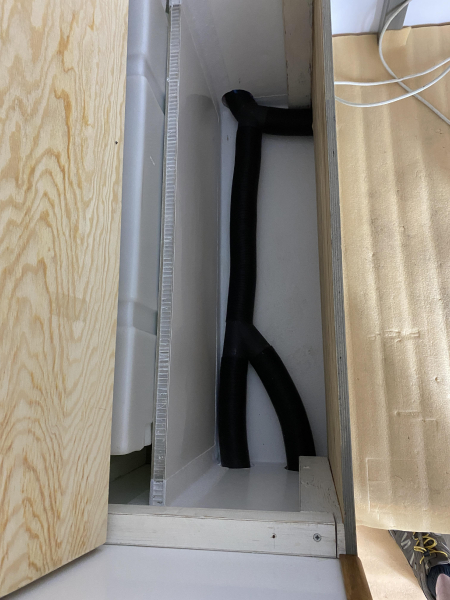

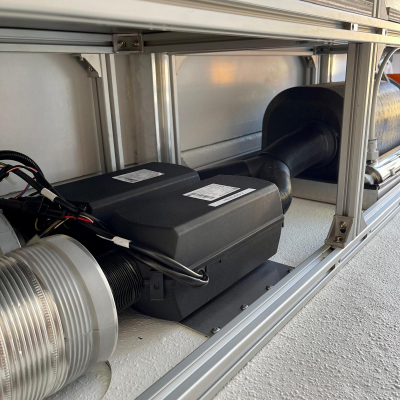

| Manufacturer and type of heating system | 2 x Autotherm Air 2D |
|---|---|
| Warm water processing | 10 Liter Boiler (Luft und 230V) |
| Cab heating | Original Motorheizung |
| Explanation of gas system | |
|---|---|
| Fahrzeug wird gasfrei |

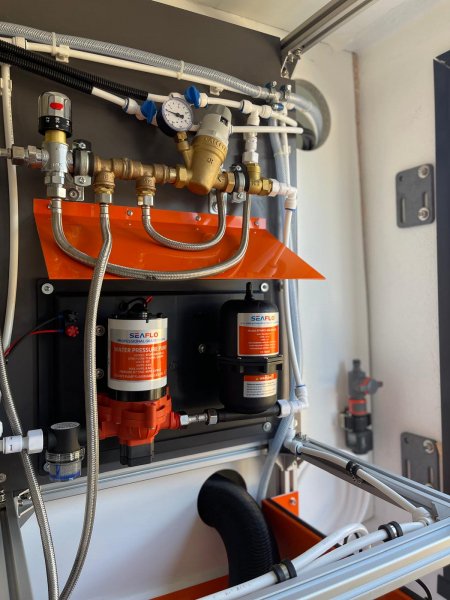

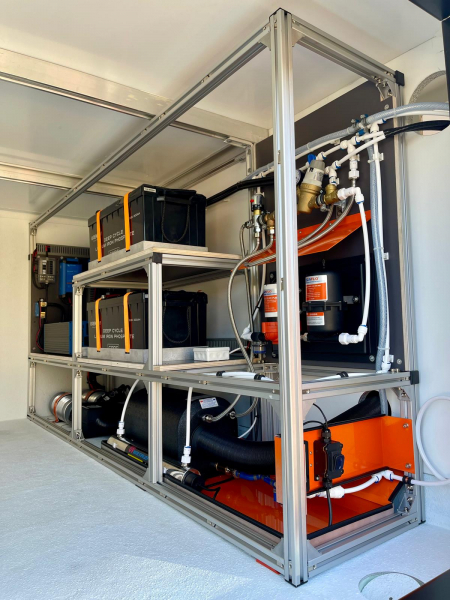

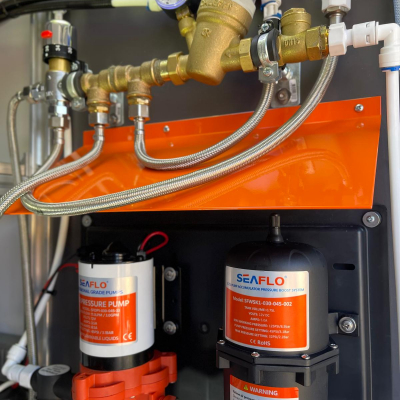

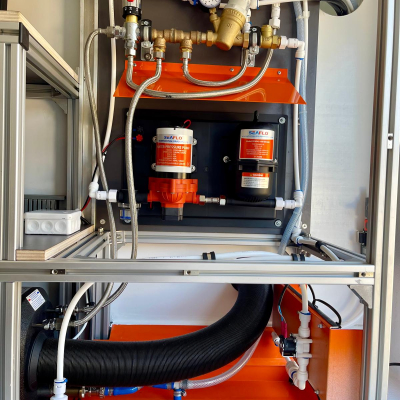

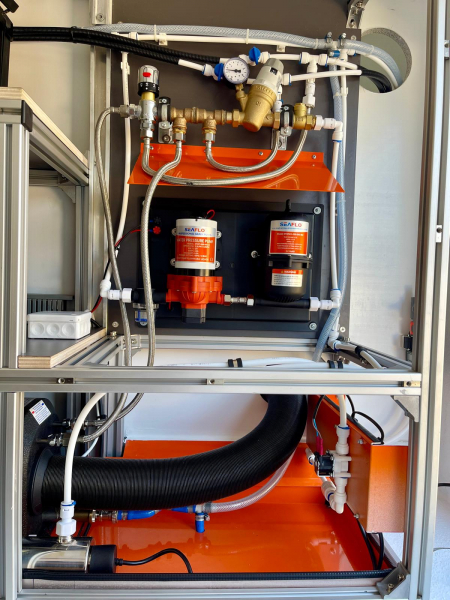

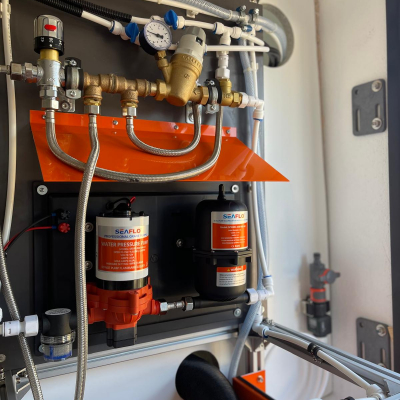

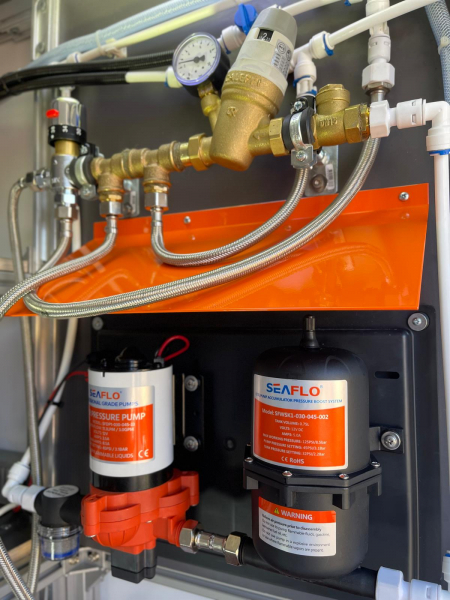

| Capacity of fresh water tank(s) | 2x150 Liter |
|---|---|
| Capacity of waste water tank(s) | 50 Liter |

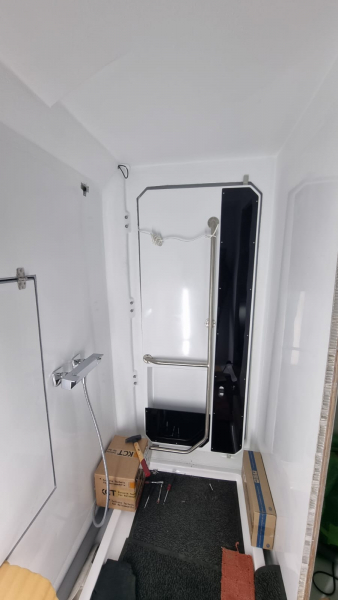

| Manufacturer and type of toilet | Trelino Evo |
|---|

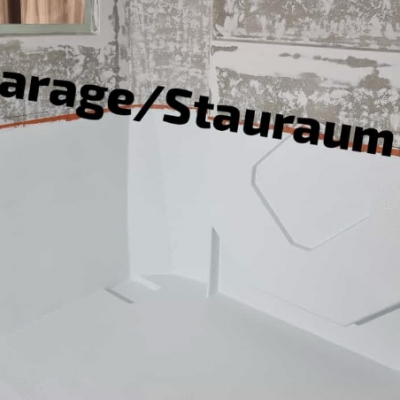

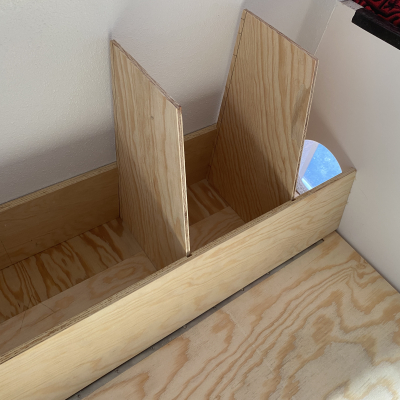

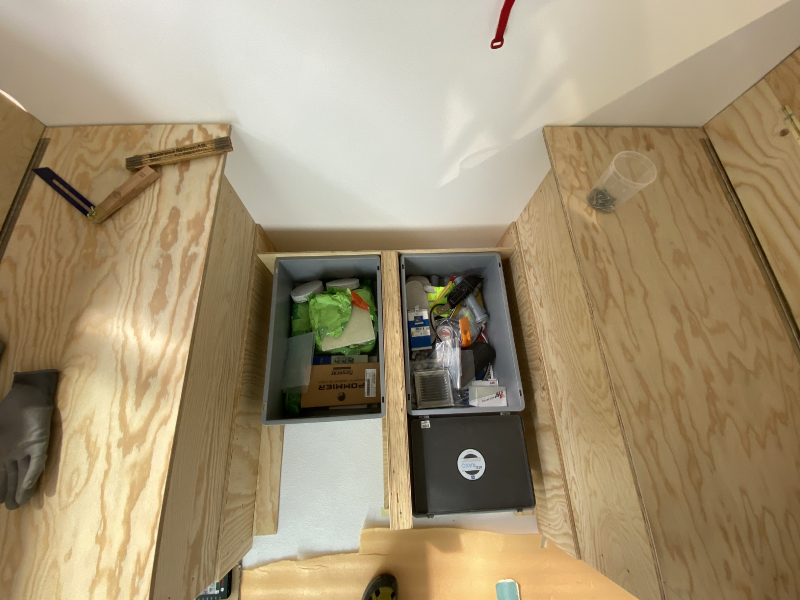

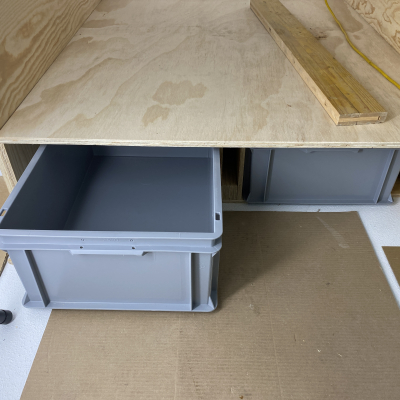

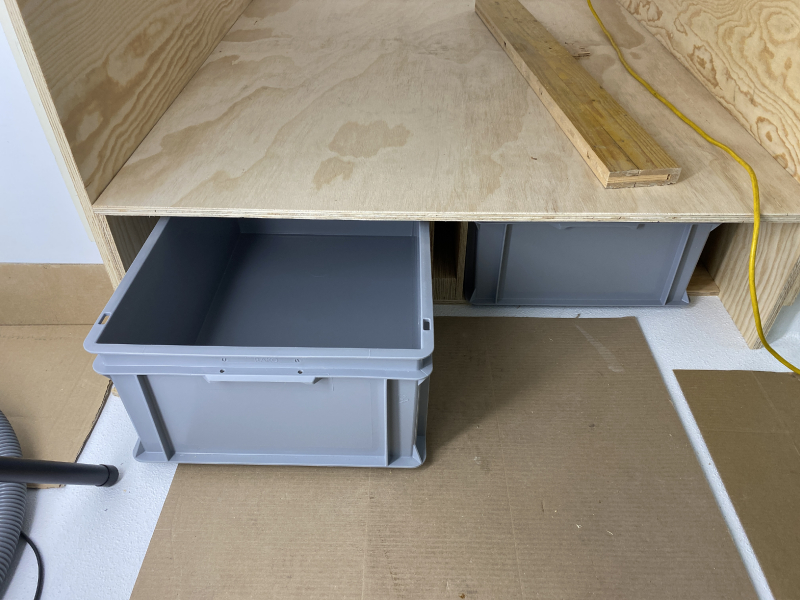

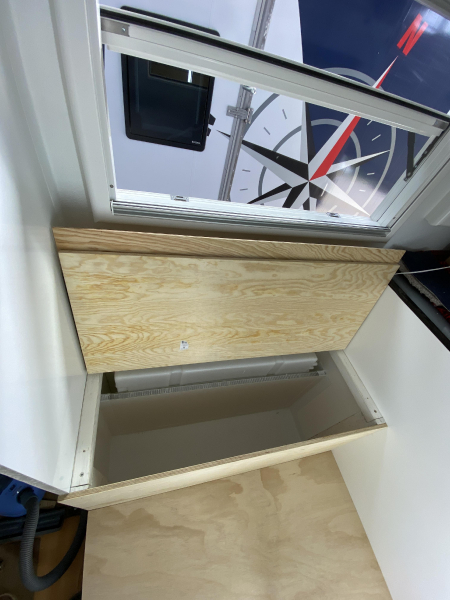

| Storage boxes | Lehmarexpedition GFK Selbstbau |
|---|---|
| Outside cooking facilities | Origo 2000, Petromax Atago & Feuertopf |
| Other | |

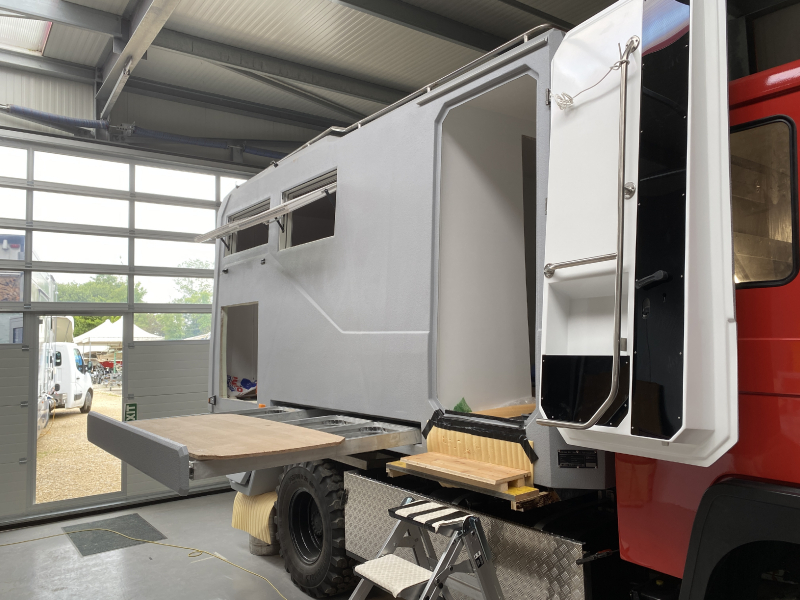

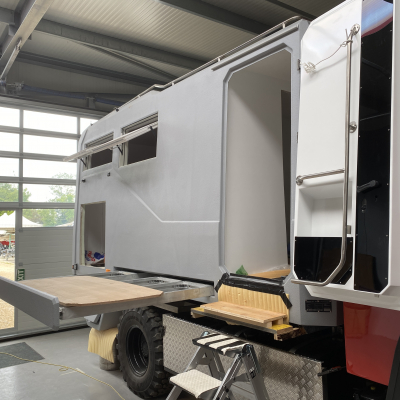

| Ausziehbare Terasse | |
