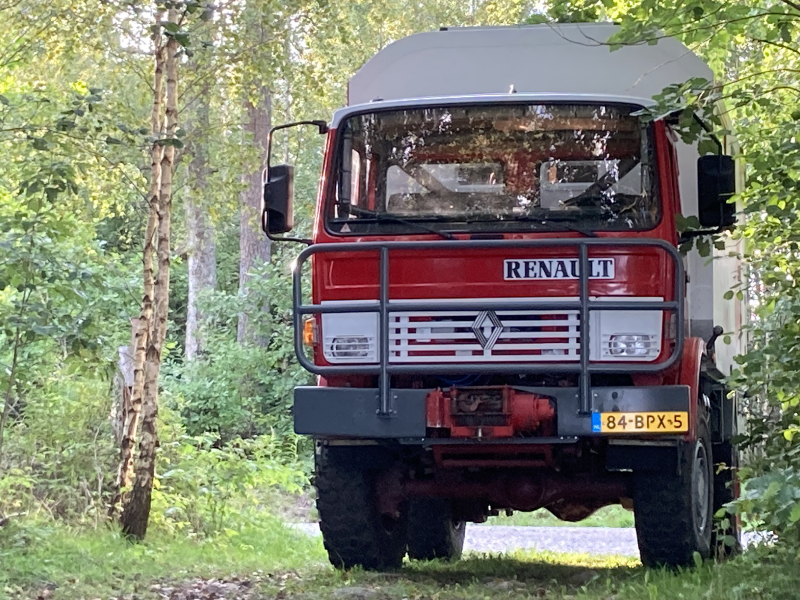

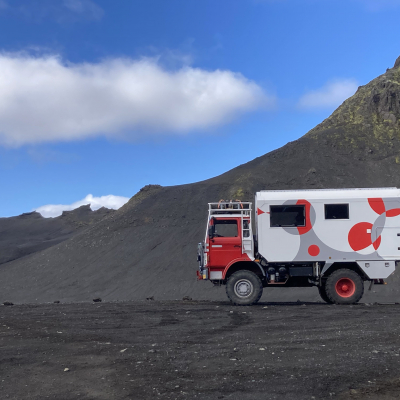

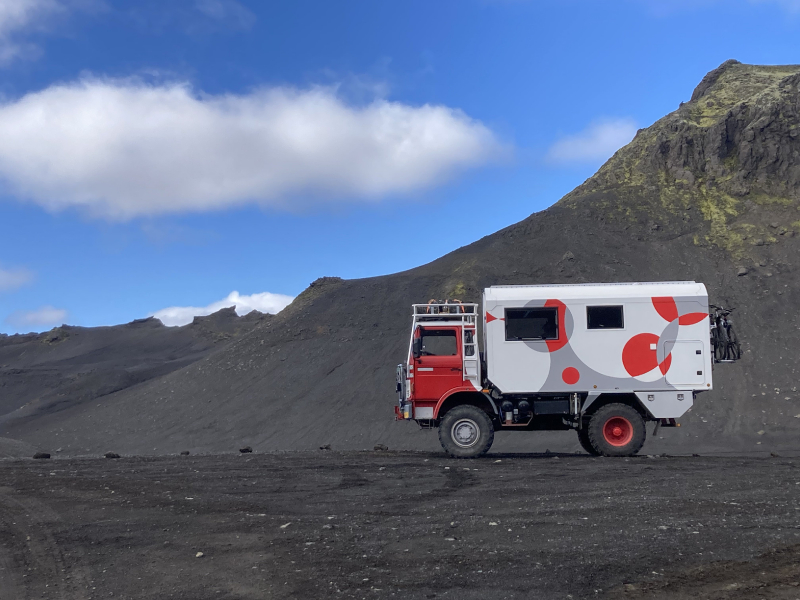

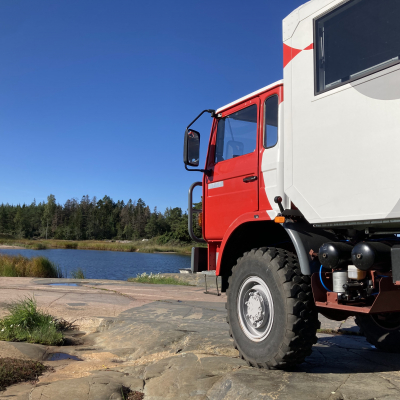

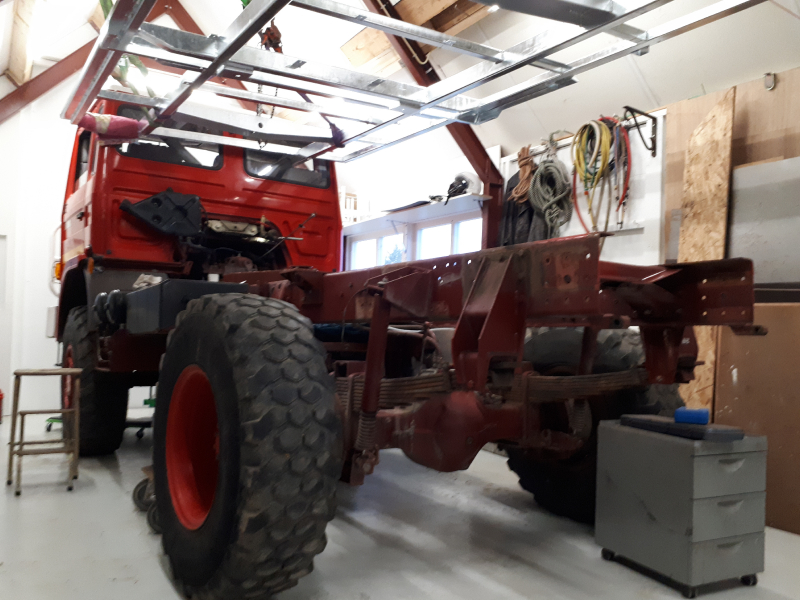

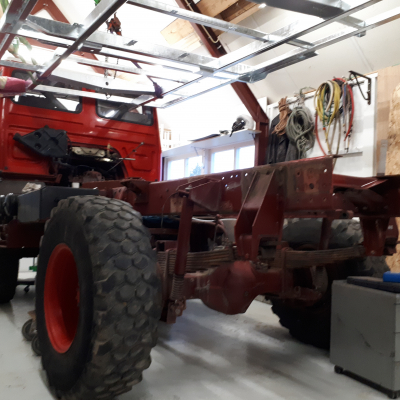

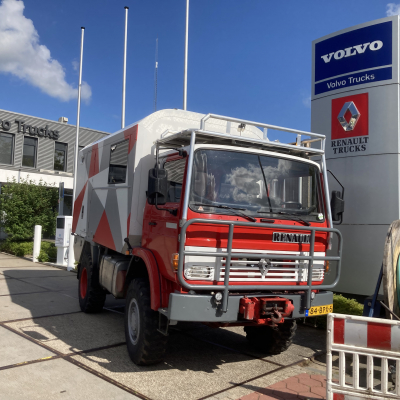

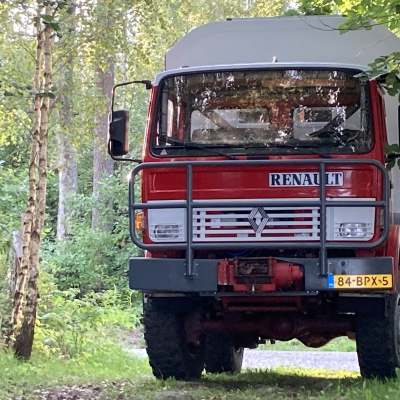

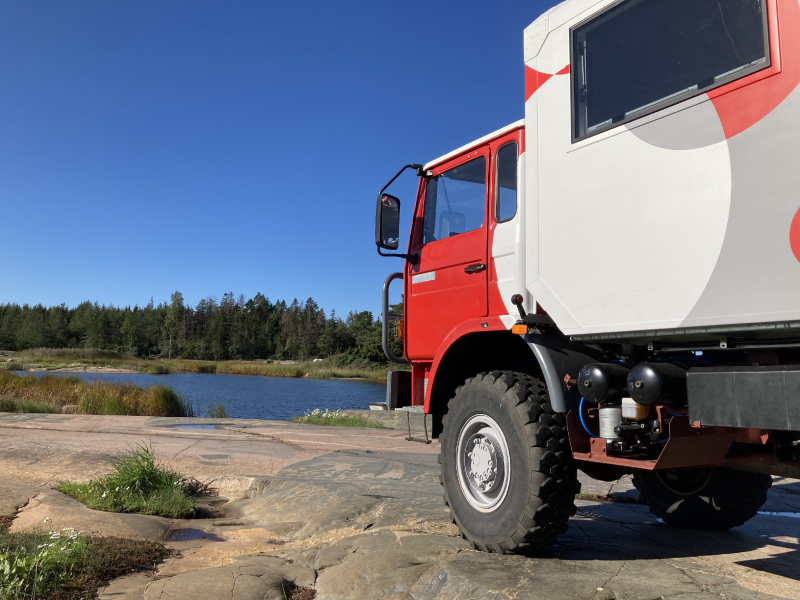

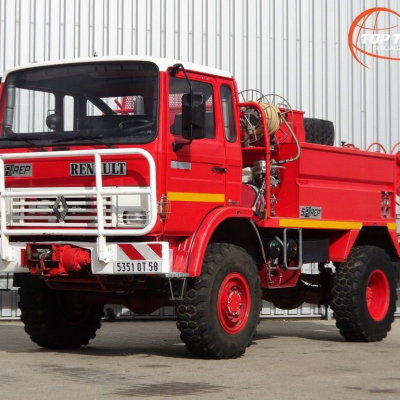

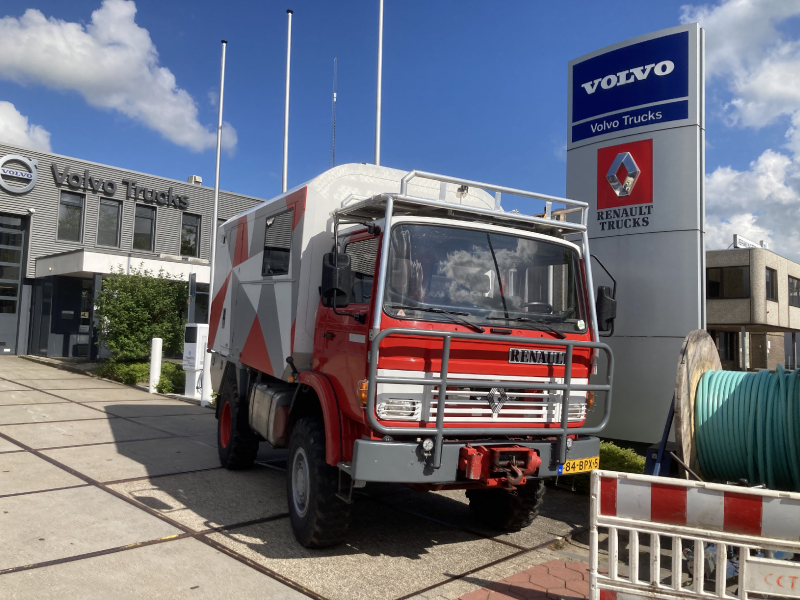

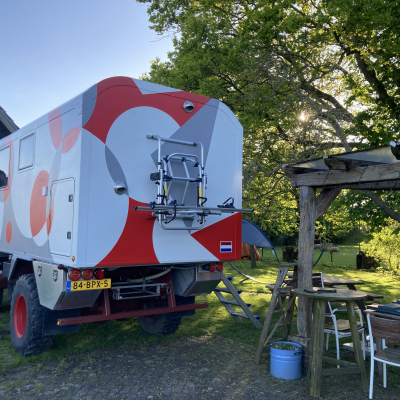

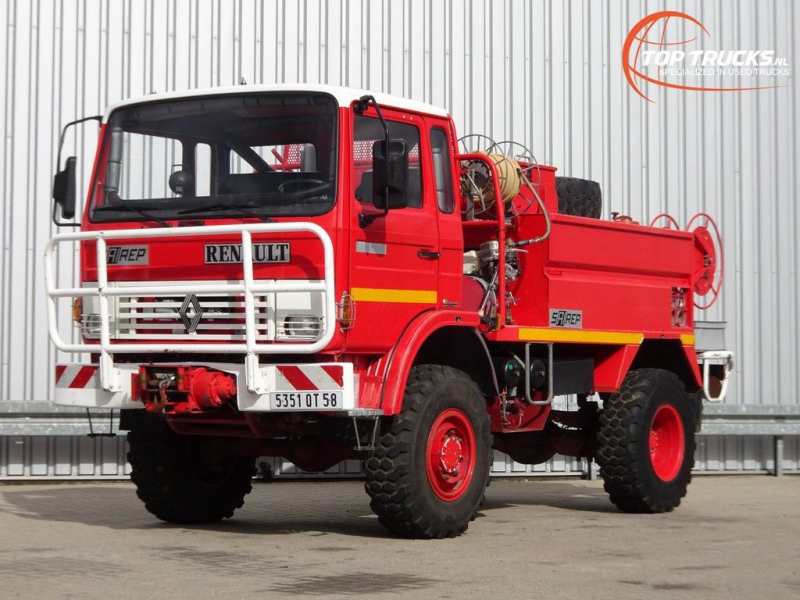

Original French forest fire truck, converted into a capable expedition camper
| Manufacturer and model | Renault JP1A12S8 |
|---|---|
| Name | Eelco & Irene |
| Country | Netherlands |
| Year of manufacture | 1990 |
| For sale? | no |
| Engine type | MIDS 06.02.12 B |
|---|---|
| Cubic capacity | 5488 cc |
| Number of cylinders | 6 |
| Horsepower | 150 |
| Zulässiges Gesamtgewicht | 7490 kg |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 2700mm |
| Number of seats | 3 |
| Tyre size | 14.5 r20 |
| Rim size | 20 |
| Type of tyre | Continental mpt 80 |
| Tank capacity | 250L + 2x20L jerrycan |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | manually selectable |
| Diff locks | diff locks fore, aft and transfer case |
| Manufacturer of the cabin | Self built |
|---|---|
| Inner dimensions (LxWxH) | 4180x2130x1930 mm |
| Outer dimensions (LxWxH) | 4200x2250x2050 mm |

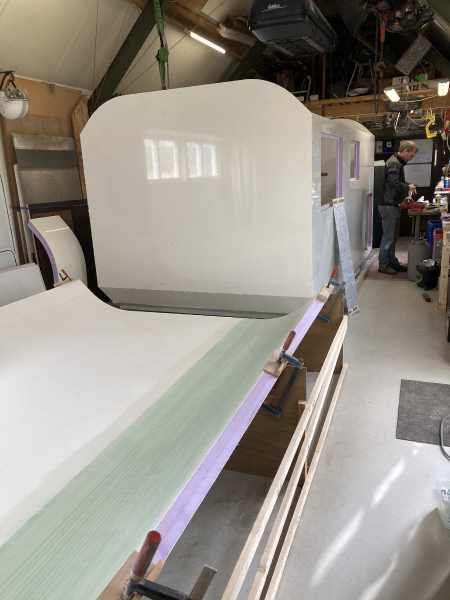

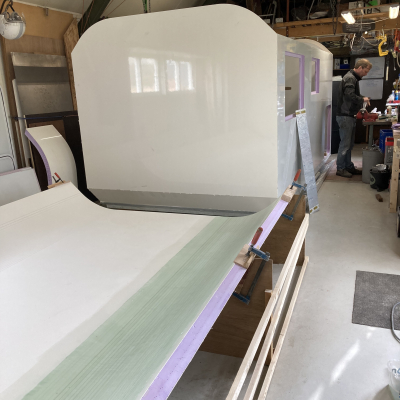

| Cabin material | GRP Sandwich |
| Kind and thickness of insulation | 60mm XPS foam |
| Number of beds | 1x kingsize lift bed |
| Windows | Outbound |

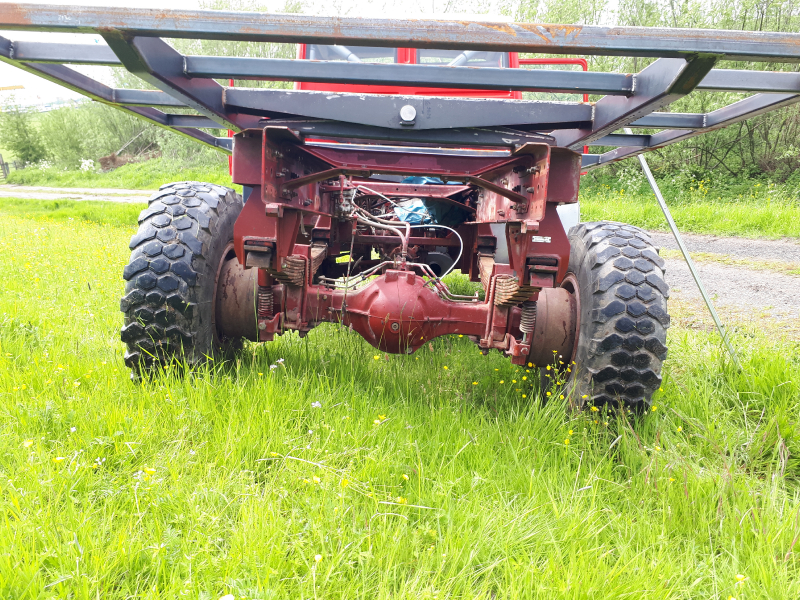

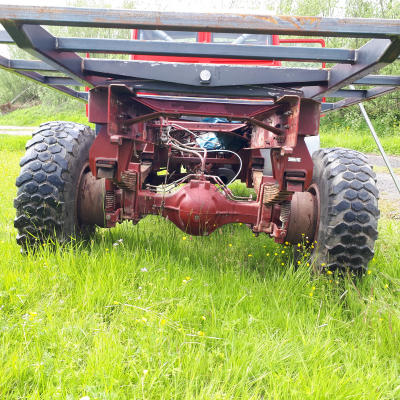

| Subframe | 4 point pivotting |

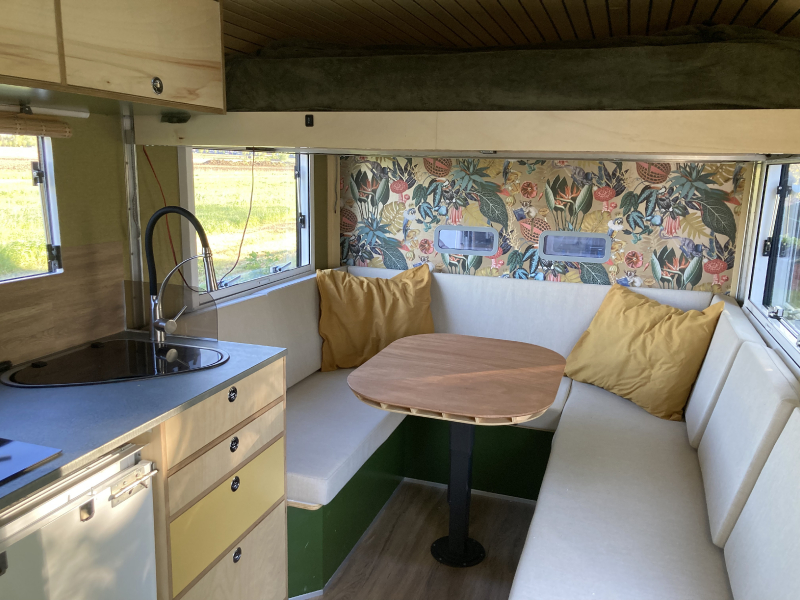

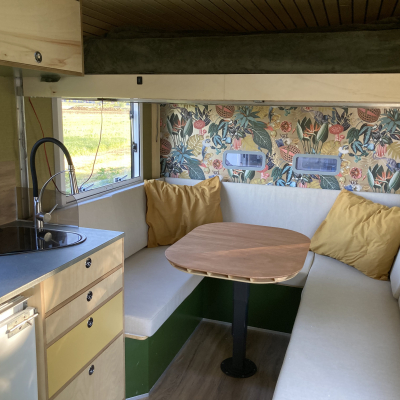

| Material of furniture | Poplar plywood |
|---|

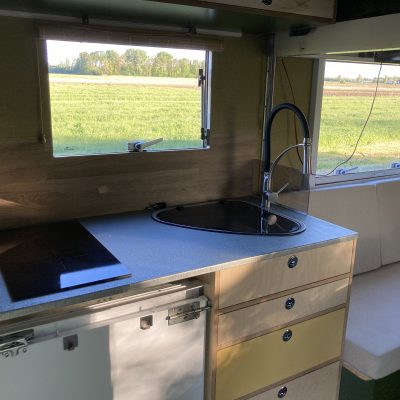

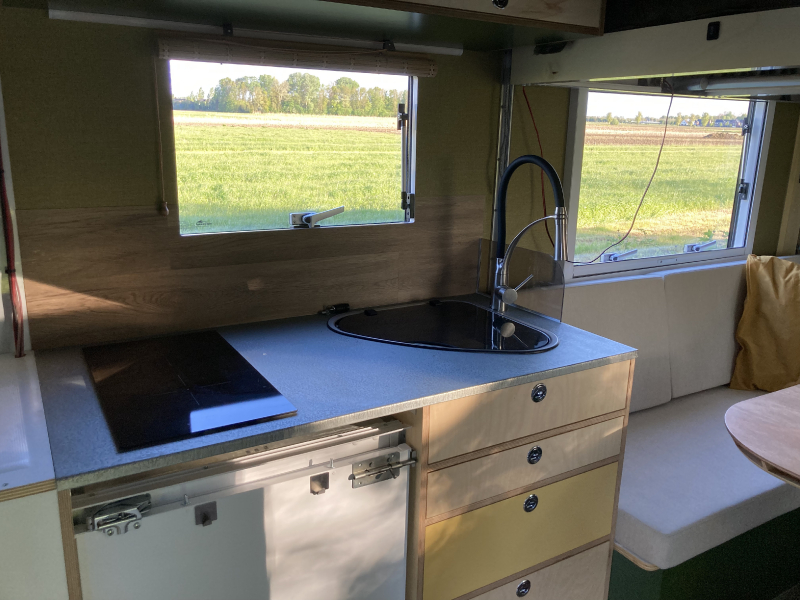

| Cooking stove | Ikea VÄLBILDAD, 2 burner induction |
|---|---|
| Gas installation | - |
| Manufacturer and type of fridge / cooler | Ikea Huttra |
|---|
| Voltage in the chassis | 24 Volt |
|---|---|
| Voltage in the cabin | 24 Volt |
| Charging converter 24V-12V | - |
| 110V / 230V in the cabin? | yes |

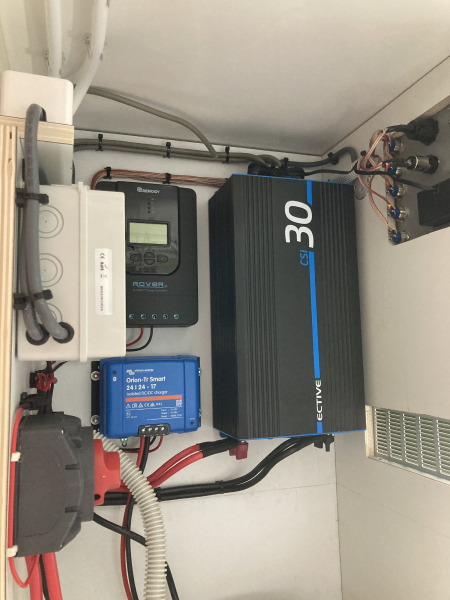

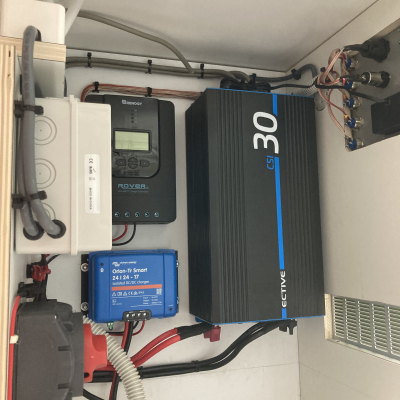

| Inverter | Ective CSI 30 3000W |
| Capacity of batteries in the cabin | 2x150 Ah |
|---|---|
| Battery type | SolarV LiFePo4 |
| Battery charger for cabin batteries | Solar + DC/DC from generator + shorepower via Ective converter |
| Battery management | Integrated in batteries |
| Solar capacity | 2x400W |
|---|---|
| Solar controller | Renogy Rover Li 30 Amp MPPT Solar |
| Fuel cell | no |
| Manufacturer and type of heating system | Chinese diesel heater |
|---|---|
| Warm water processing | Allpa boiler 22 Liter 800 Watt |
| Cab heating | sometimes |
| Explanation of gas system | |
|---|---|
| None |
| water flow | 10 l/min |
|---|---|
| Water filtration system | Aqua Logic |
| Capacity of fresh water tank(s) | 2 x 126 L |
| Capacity of waste water tank(s) | 126 L |

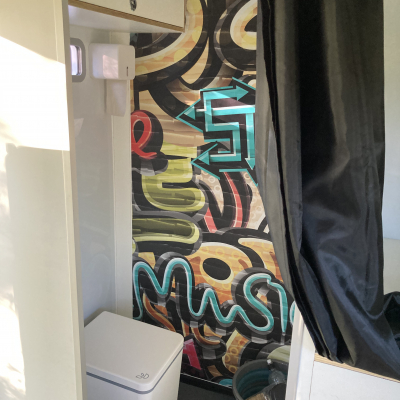

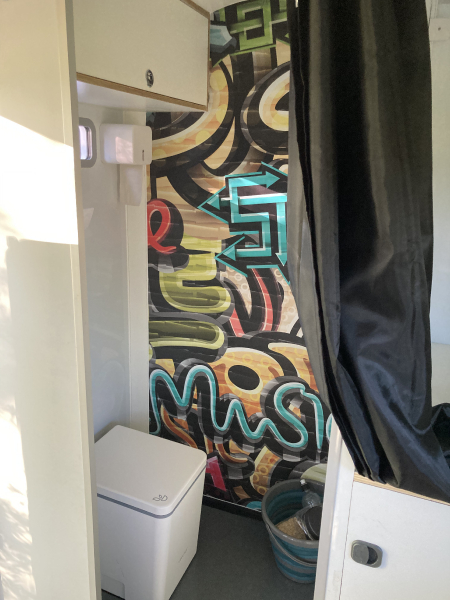

| Manufacturer and type of toilet | Trelino® Trenntoilette Evo, 43,5 | L |
|---|---|
| Capacity of black water tank | - |

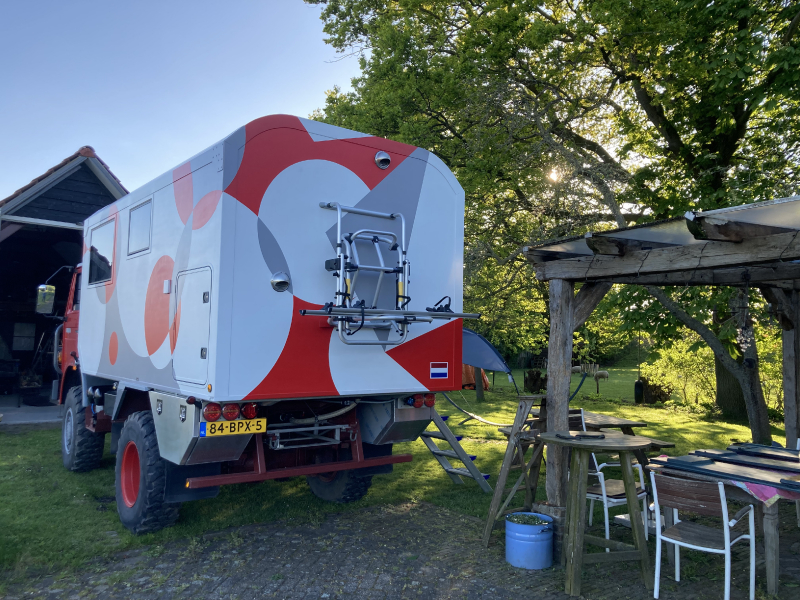

| Rear carrier | Thule lift v16 Manual |
|---|---|
| Roof rack | Aluminium pipe frame with A frame for hoisting spare tyre |
| Storage boxes | Gepro alu underbody store boxes |
| Outside cooking facilities | - |

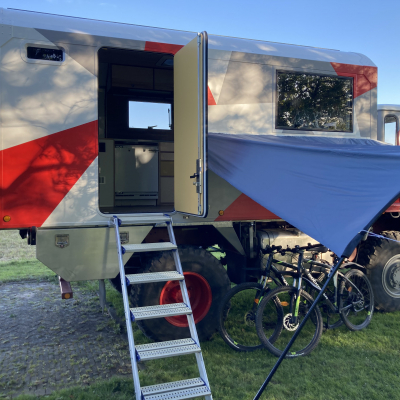

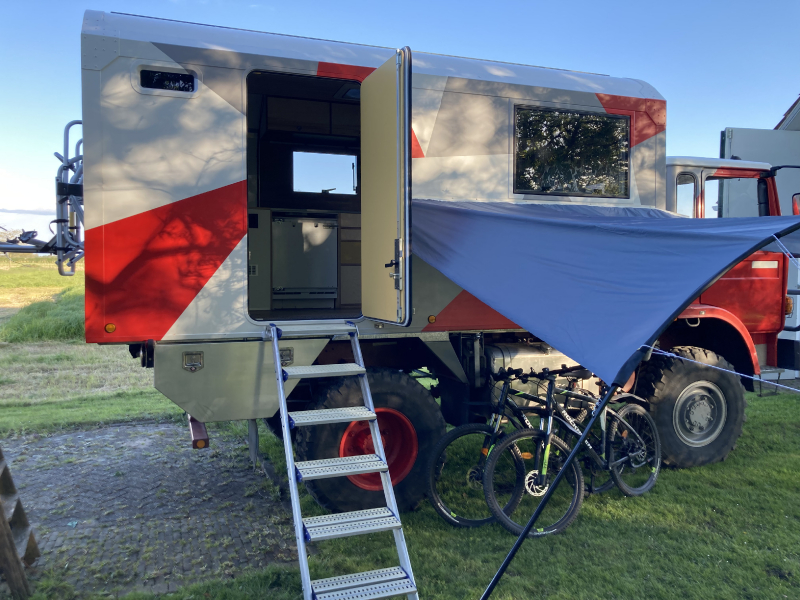

| Awning | Loose awning in rail |
