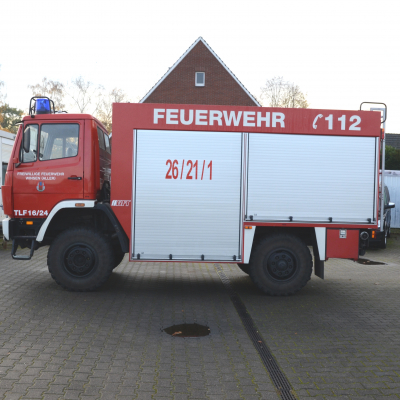

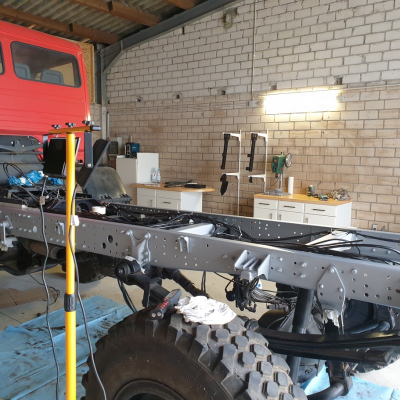

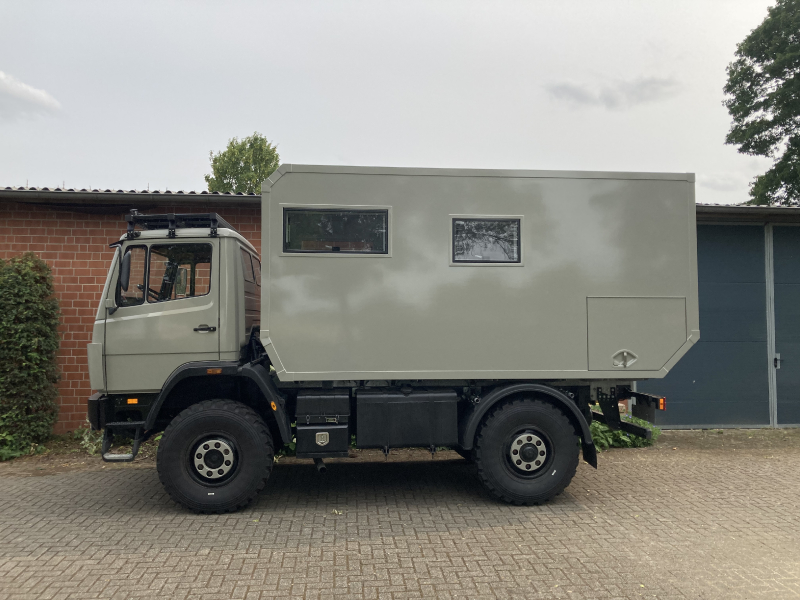

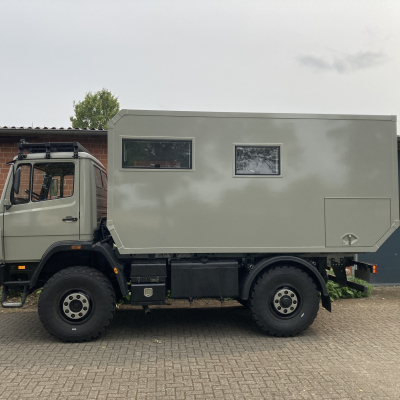

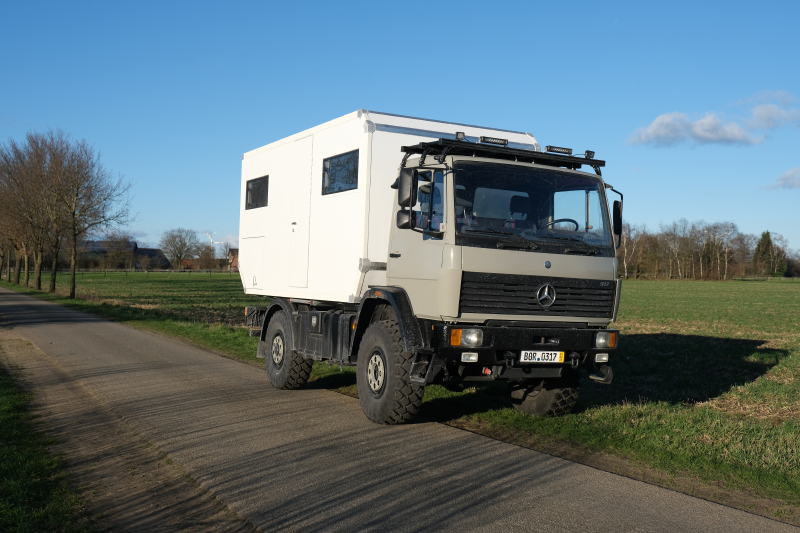

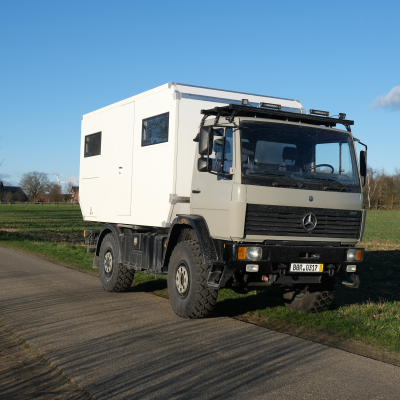

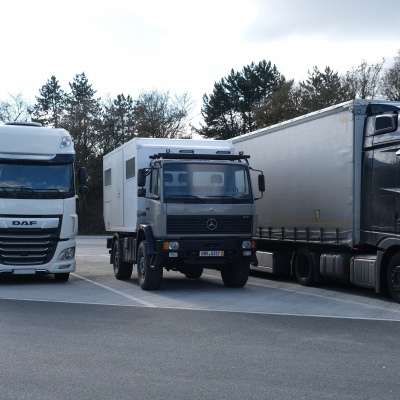

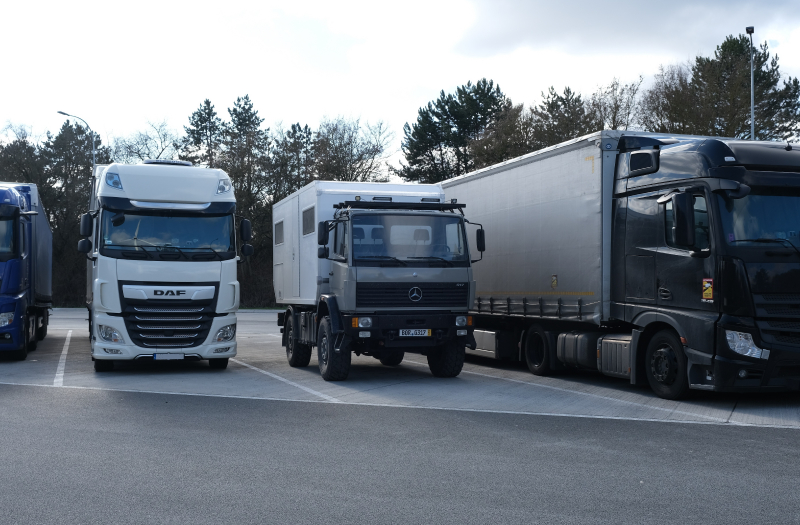

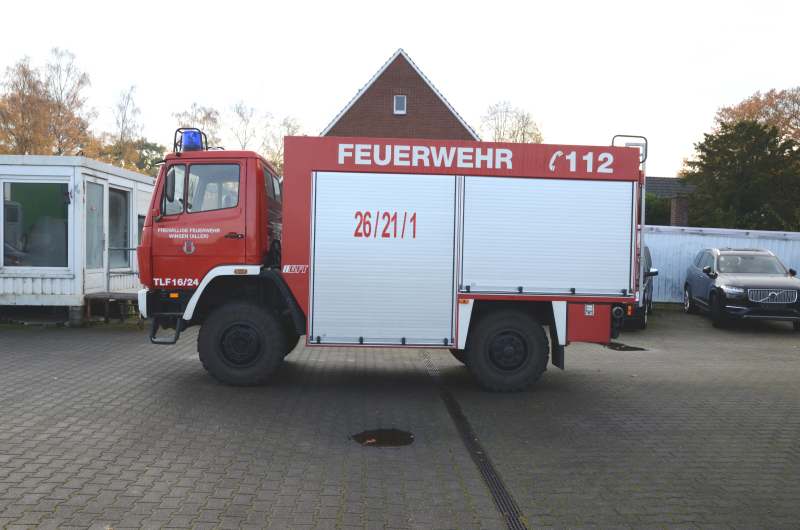

Ein ehemaliges Tanklöschfahrzeug wird umgebaut zu einem Fernreisemobil.

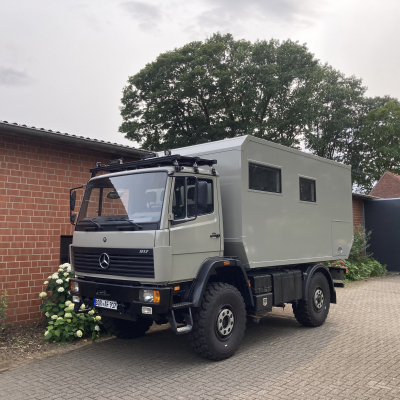

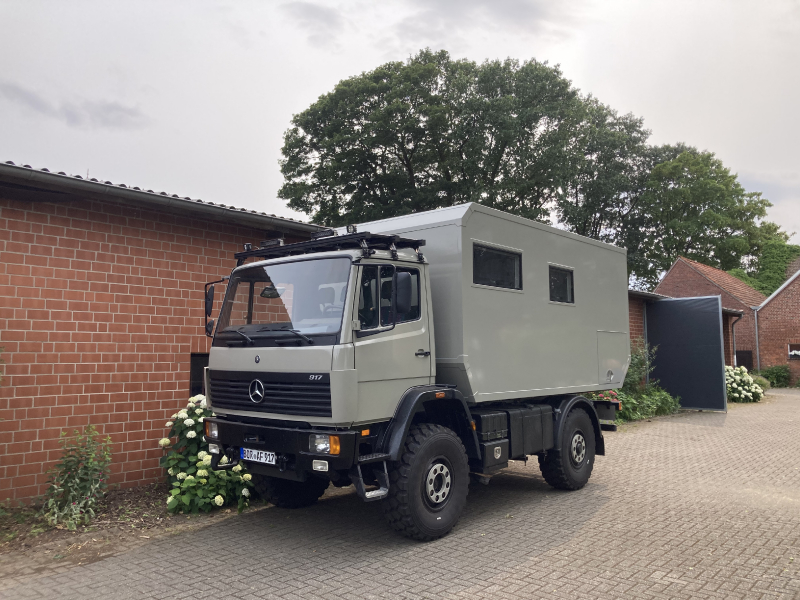

| Manufacturer and model | Mercedes 917 AF |
|---|---|
| Name | Roland |
| Website | www.paffi.de |
| Year of manufacture | 1997 |
| For sale? | no |
| Engine type | OM 366 LA |
|---|---|
| Cubic capacity | 5958 cm³ |
| Number of cylinders | 6 |
| Horsepower | 170 PS |
| Torque | 575 Nm |
| Zulässiges Gesamtgewicht | 7,49 t |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |

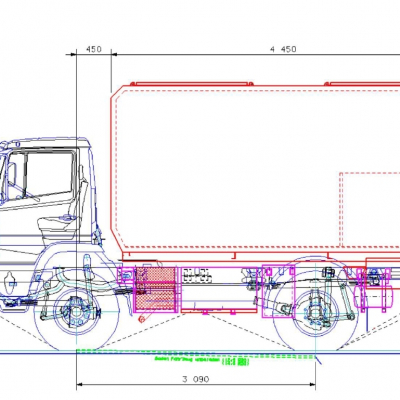

| Wheel base | 3090 |
| Number of seats | 3 |
| Tyre size | 14,5R20 (365/80R20) |
| Rim size | 20-11 SDC |
| Type of tyre | MPT - Michelin XZL |
| Tank capacity | 425 |
| Diesel filter | yes |
| Other | |
| - | |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Mitte und Heck |

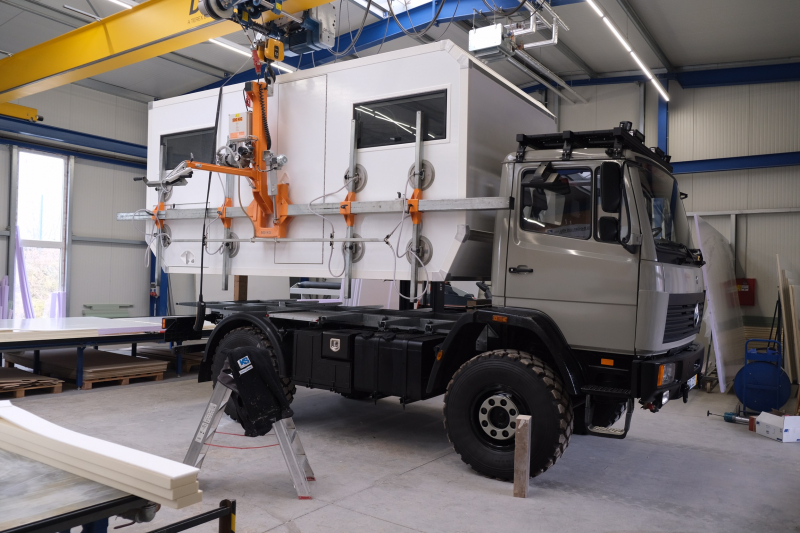

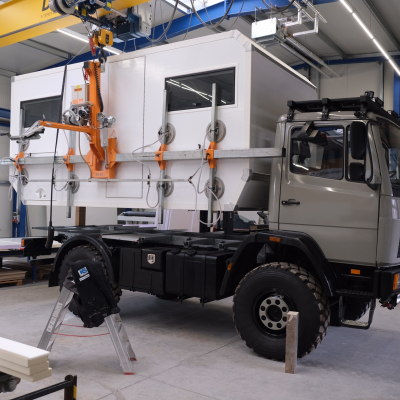

| Manufacturer of the cabin | Kabinenschmiede |
|---|---|

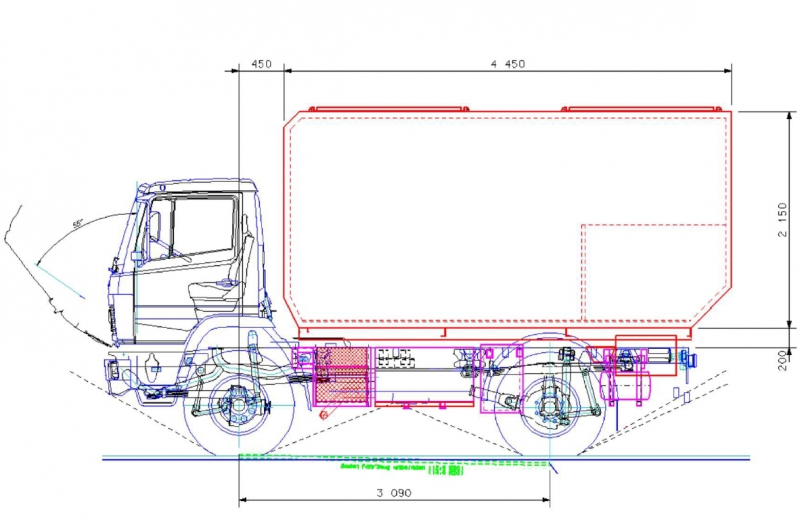

| Inner dimensions (LxWxH) | 4330x2180x2000 |
| Outer dimensions (LxWxH) | 4450x2300x2150 |
| Cabin material | GFK-Sandwich |
| Kind and thickness of insulation | 55mm PUR |
| Number of beds | 2+2 |
| Windows | Outbound |

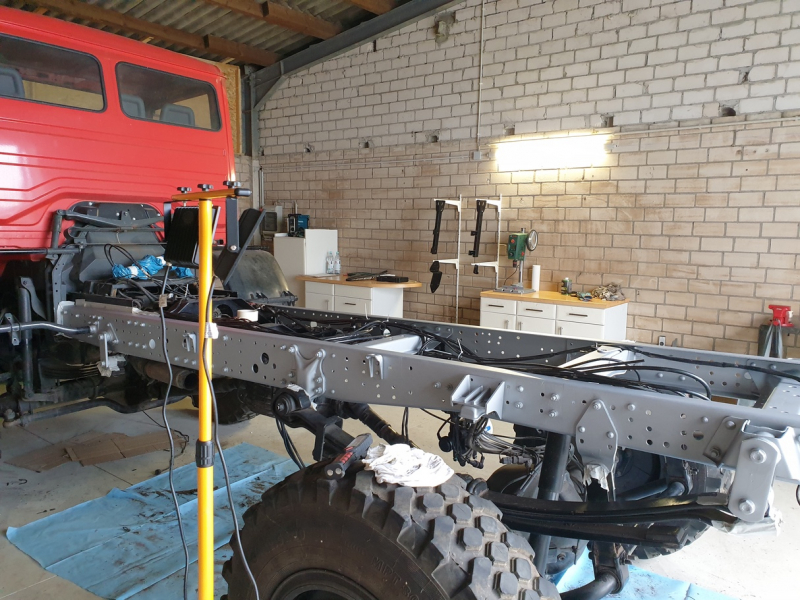

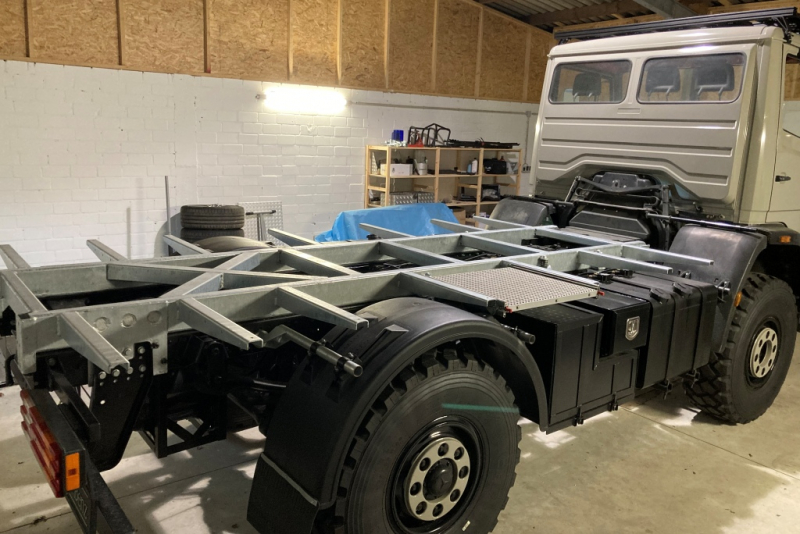

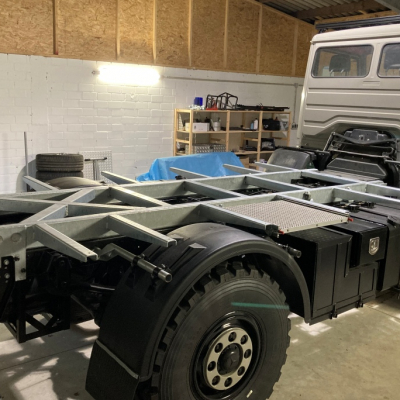

| Subframe | Federlagerung |
| Other | |
| - | |

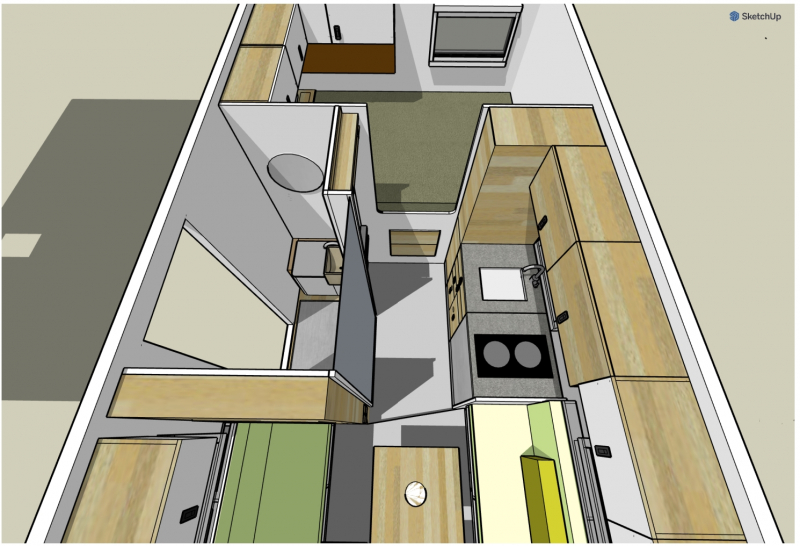

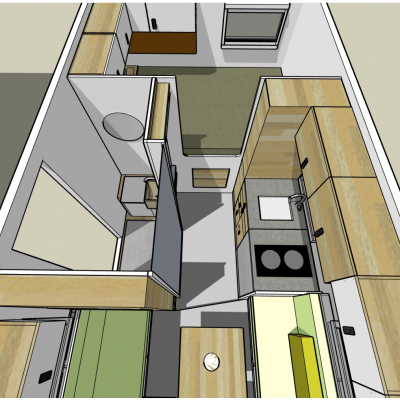

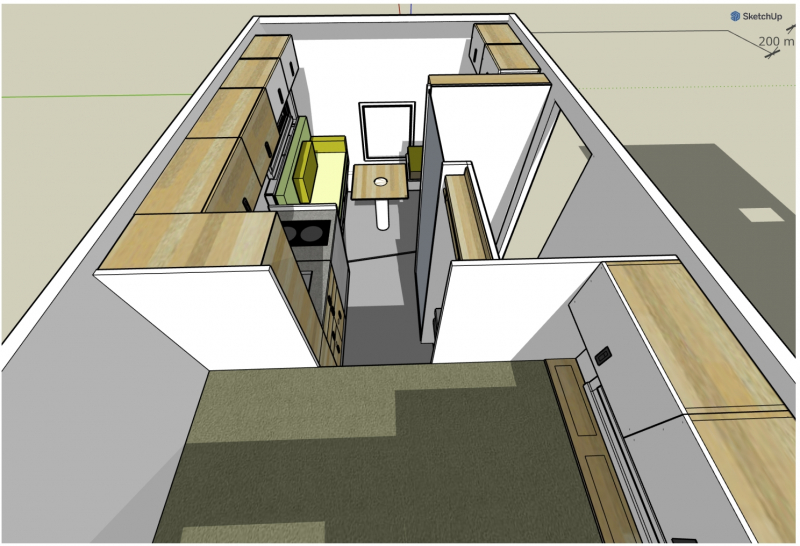

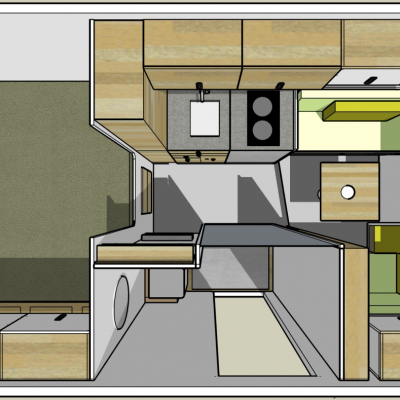

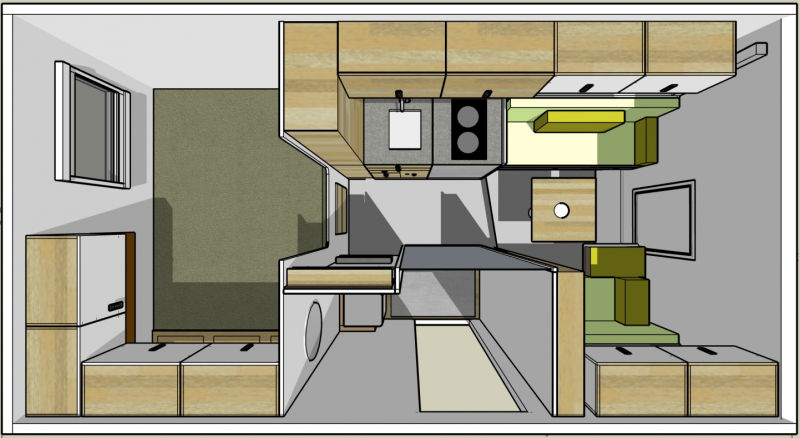

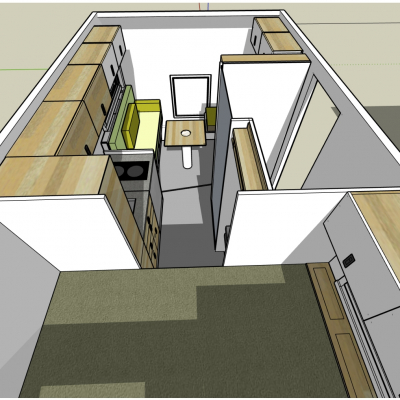

| Explanation of floor plan | |
|---|---|
| Trennung von Sitz- und Schlafecke. Dusche als Dreckschleuse. Durchstieg optional. |

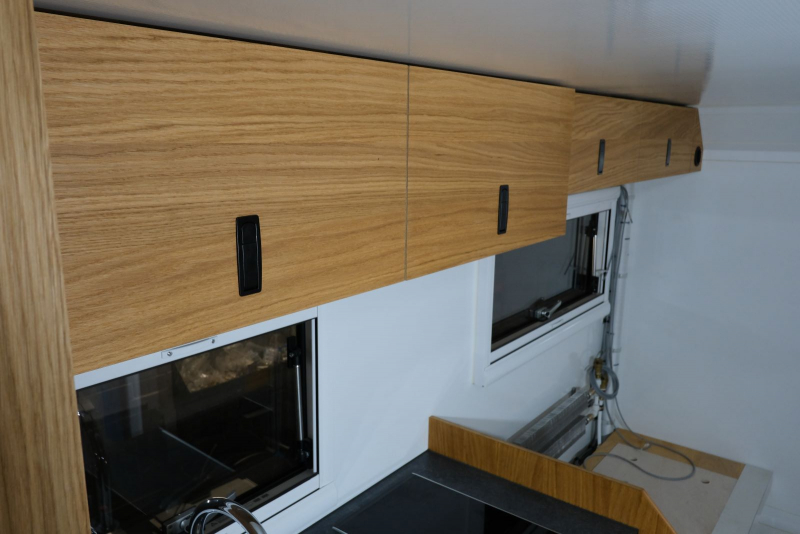

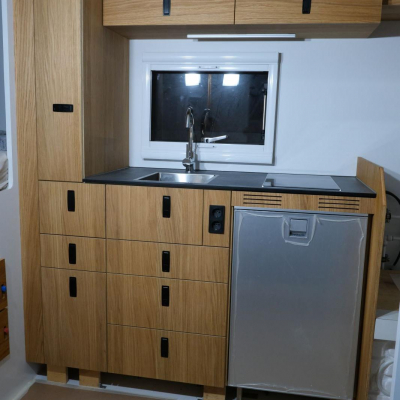

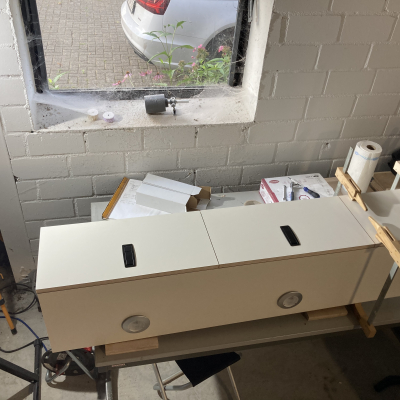

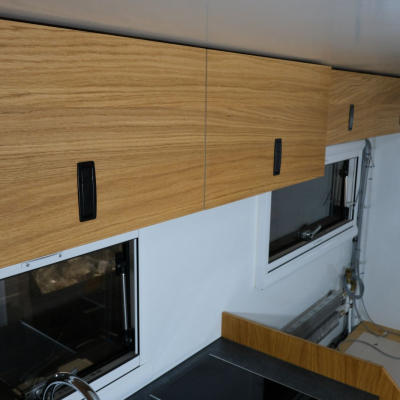

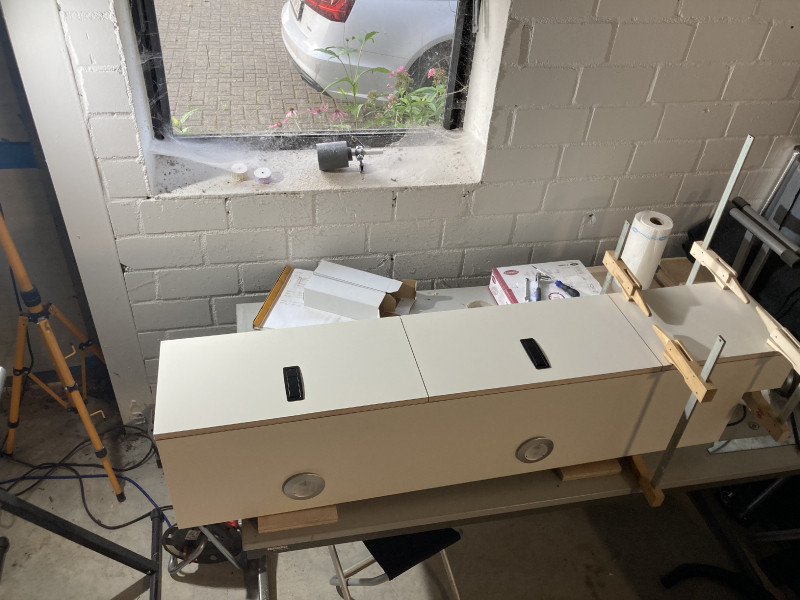

| Material of furniture | Queenply |
|---|---|
| Other | |
| - | |

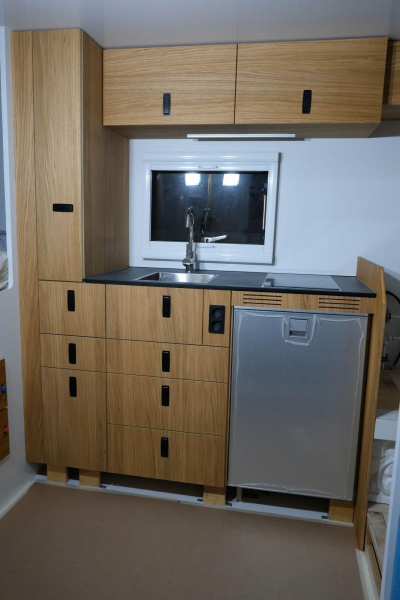

| Cooking stove | Induktion |
|---|---|
| Gas installation | - |
| Other | |
| - | |
| Manufacturer and type of fridge / cooler | Kompressorkühlschrank |
|---|---|
| Other | |
| - | |
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V |
| Charging converter 24V-12V | - |
| 110V / 230V in the cabin? | yes |
| Inverter | Studer XTM 3500-24 |
| Other | |
| - | |
| Capacity of batteries in the cabin | 330Ah |
|---|---|
| Battery type | LiNMC |
| Battery charger for cabin batteries | 2 x Mastervolt Mac Plus 24/24-30A und Studer Vario Track 65, Landstrom über Studer XTM |

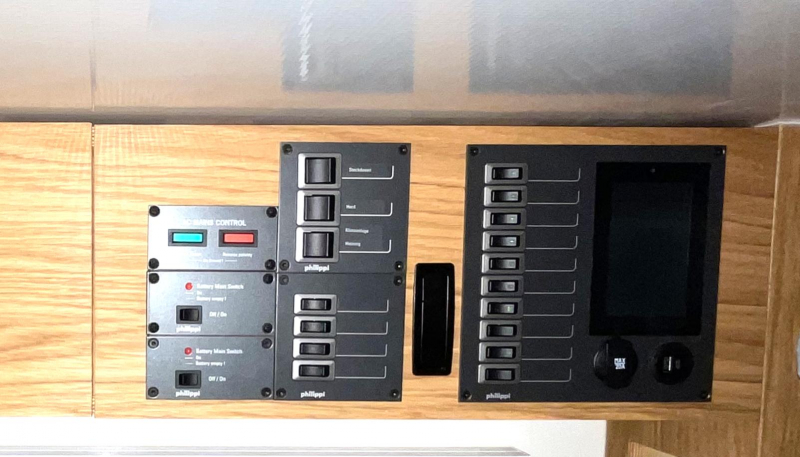

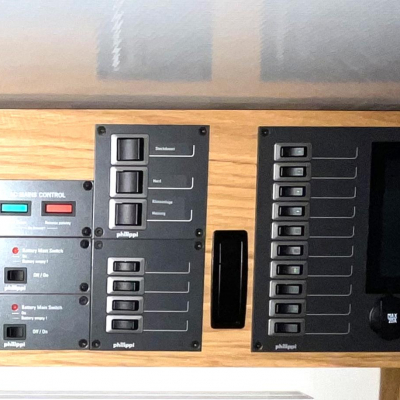

| Battery management | Philippi Shunt SHX-348 (300A) |
| Other | |
| - | |
| Solar capacity | 1125 Wp |
|---|---|
| Solar controller | Studer Vario Track 65 |
| Fuel cell | no |
| Power generator | - |
| Other | |
| - | |

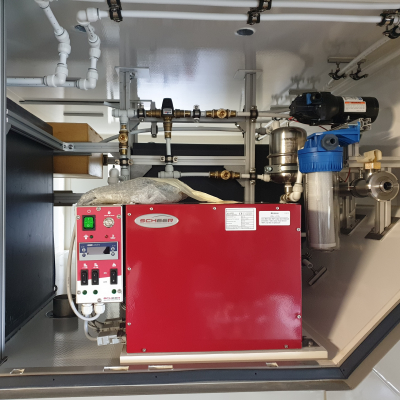

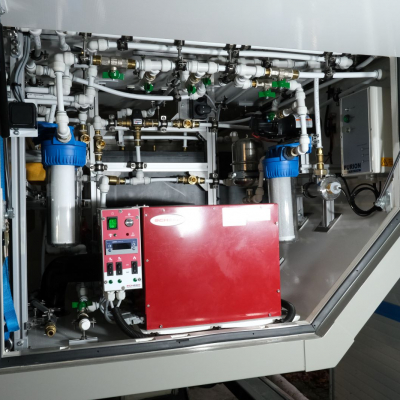

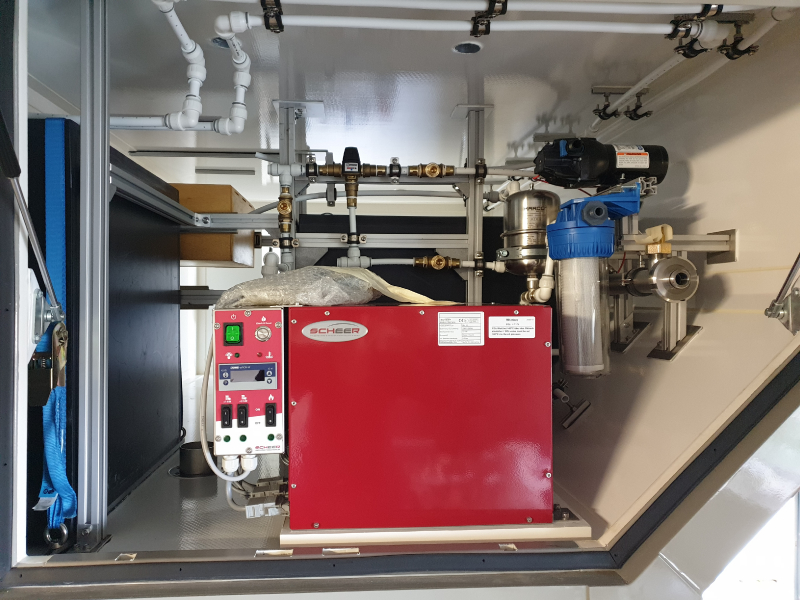

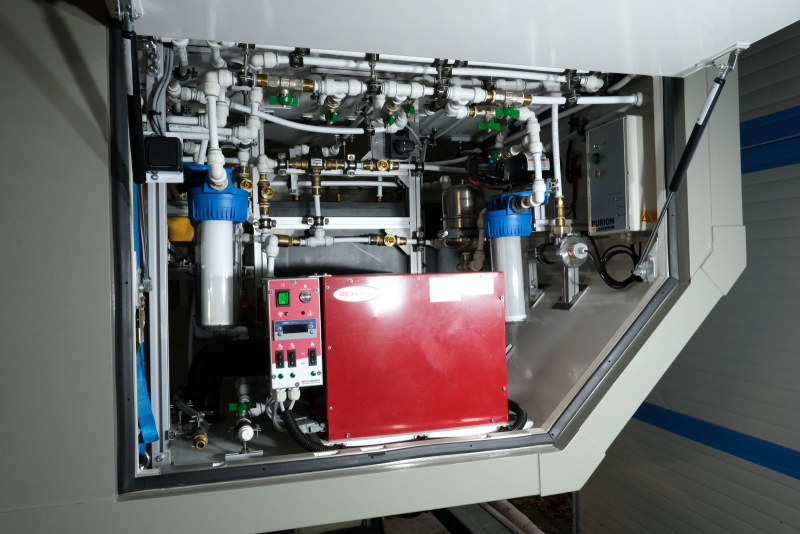

| Manufacturer and type of heating system | Scheer MH10 Micro |
|---|---|
| Warm water processing | Scheer MH10 Micro |
| Cab heating | vom Fahrzeug |
| Other | |
| - | |
| Explanation of gas system | |
|---|---|
| Kein Gas |

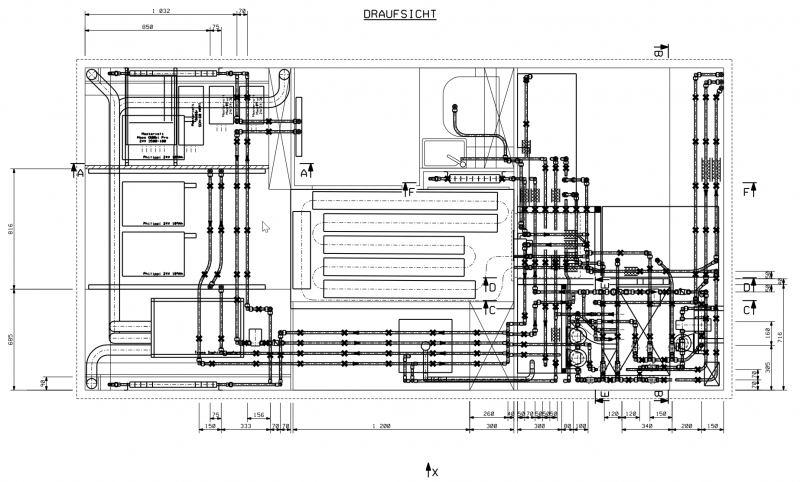

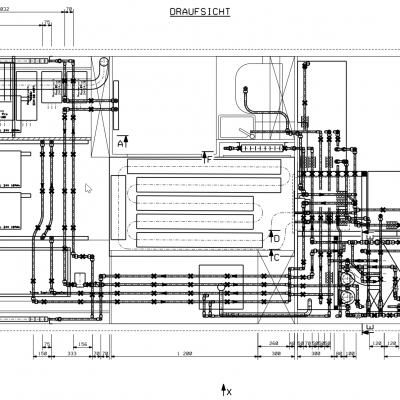

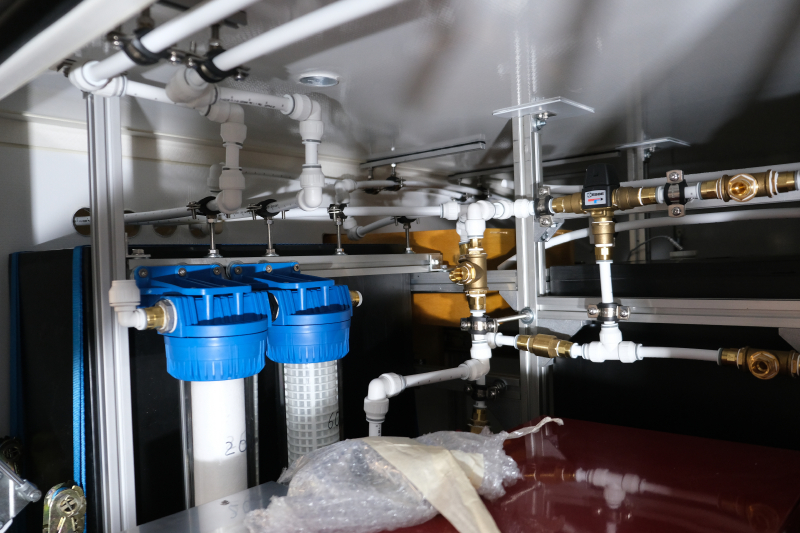

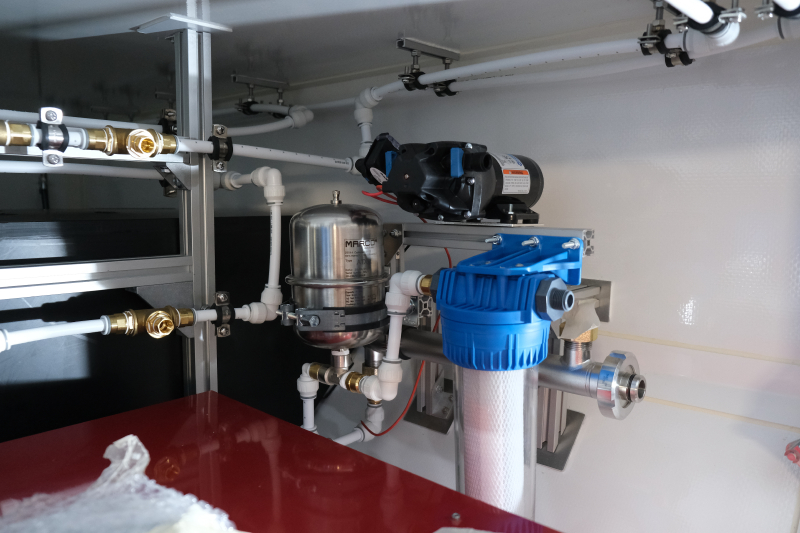

| water flow | John Guest |
|---|---|

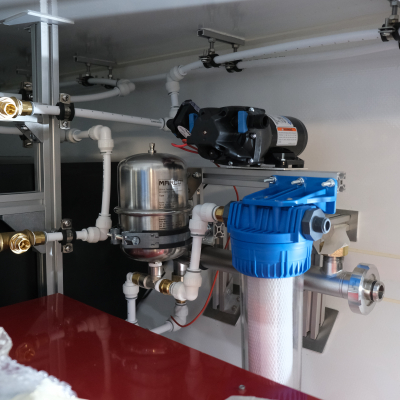

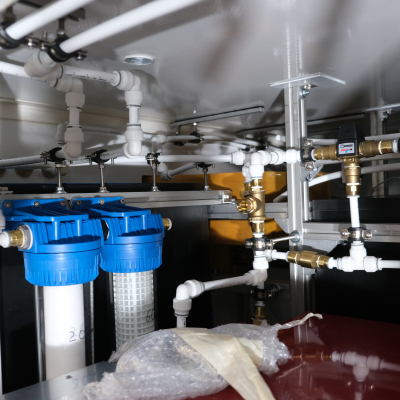

| Water filtration system | Purion Vor- und Aktivkohlefilter, UV-Entkeimung |
| Capacity of fresh water tank(s) | 162l + 123l |
| Capacity of waste water tank(s) | Abwasser: 86l + 92l - Schwarzwasser: 44l |
| Other | |
| 1 x Abwasser innen und 1 x Abwasser aussen isoliert mit Frostwächter | |
| Manufacturer and type of toilet | TTT (Tomtur) |
|---|---|
| Capacity of black water tank | 44l |
| Other | |
| Anbindung von Pipitank an TTT | |
| Rear carrier | für Ersatzrad (Plan) |
|---|---|

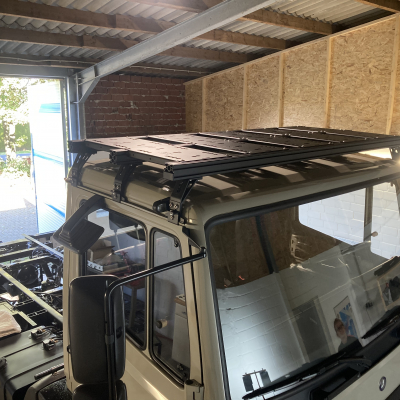

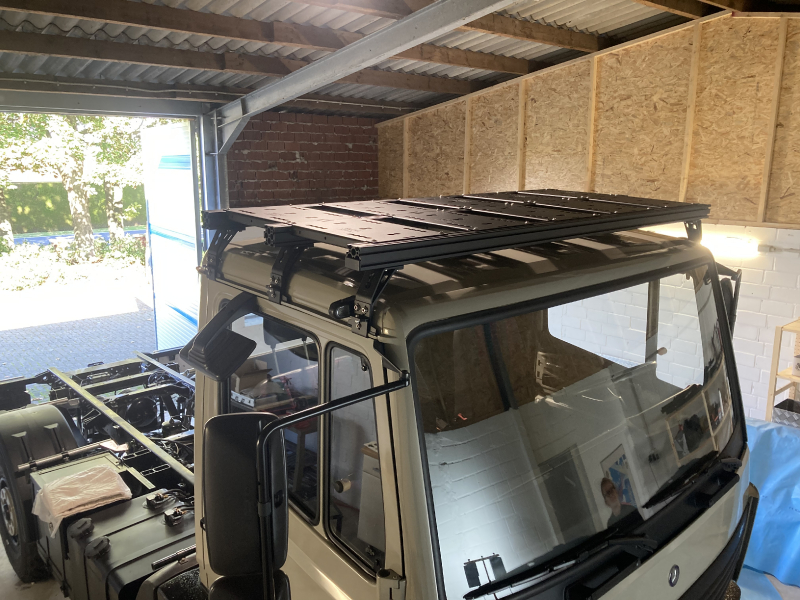

| Roof rack | Rolling Space |
