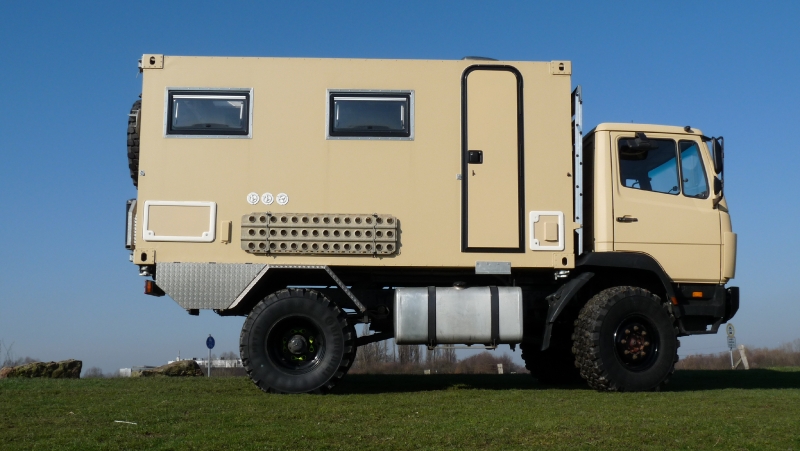

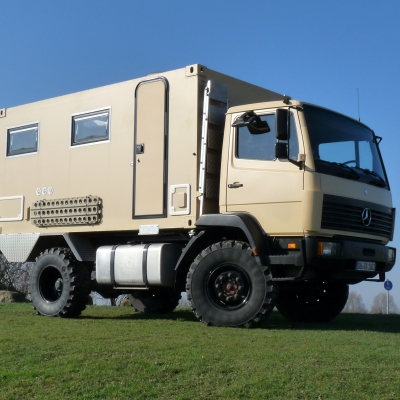

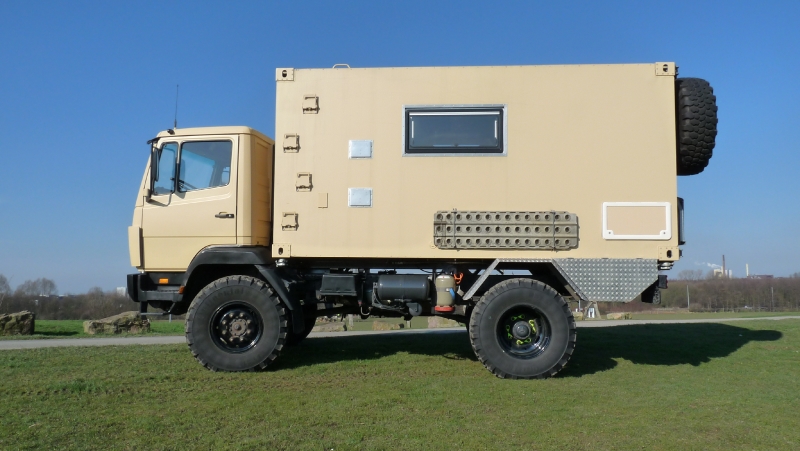

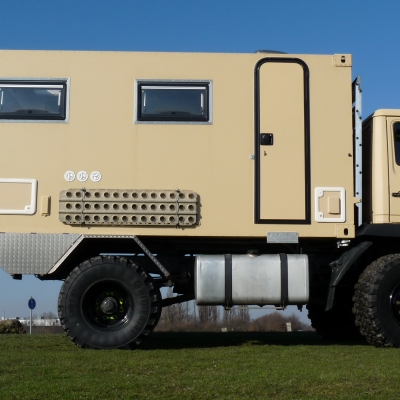

Ausbau FM2 Shelter auf MB 917Ak
| Manufacturer and model | Mercedes Benz 917 AK |
|---|---|
| Name | Ralf & Gabi |
| Country | Deutschland |
| Website | rallesein4x4.blogspot.com |
| Year of manufacture | 1997 |
| For sale? | no |
| Engine type | OM 366 LA |
|---|---|
| Cubic capacity | 5958 |
| Number of cylinders | 6 |
| Horsepower | 170 nach Leistungssteigerung 220 PS |
| Zulässiges Gesamtgewicht | 7,5 t |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 3,05 m |
| Number of seats | 2 |
| Tyre size | 365 / 80R20 |
| Rim size | 11-20 |
| Type of tyre | MPT 81 |
| Tank capacity | 400 |
| Diesel filter | yes |
| Other | |
| Rußpartikelfilter | |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | 2 Sperren |
| Manufacturer of the cabin | BW Fm II Shelter |
|---|---|
| Inner dimensions (LxWxH) | Maße - 60mm Isolierung |
| Outer dimensions (LxWxH) | 2175 x 4230 x 2060 |
| Cabin material | Alu Sandwich |
| Kind and thickness of insulation | 60 mm PU |

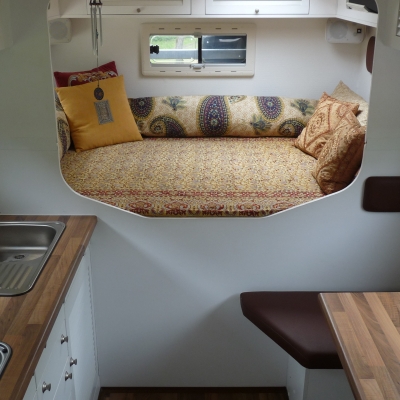

| Number of beds | 2 |
| Windows | 4 |
| Subframe | 4 Pkt Zwischenrahmen / Eigenkonstruktion |
| Material of furniture | TPL Leicht |
|---|
| Cooking stove | 3 Fach |
|---|---|
| Gas installation | Dometic |
| Manufacturer and type of fridge / cooler | 110 ltr. |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12V und 220V |
| Charging converter 24V-12V | Victron energy Orion |
| 110V / 230V in the cabin? | yes |
| Inverter | 3000w-Sinus-Wechselr. |
| Capacity of batteries in the cabin | 300 Ah |
|---|---|
| Battery type | Gel |
| Battery management | Votronic |
| Solar capacity | 400 Wp |
|---|---|
| Solar controller | MPP Duodigital (12V/30A/390Wp) |
| Fuel cell | no |
| Manufacturer and type of heating system | WEBASTO (Dual Top EVO 6) |
|---|---|
| Warm water processing | incl. |
| water flow | Verschlauchung |
|---|---|
| Water filtration system | A-Kohle und Keramik Filter |
| Capacity of fresh water tank(s) | 3 x 100 ltr. |
| Capacity of waste water tank(s) | 1 x 30 ltr. |

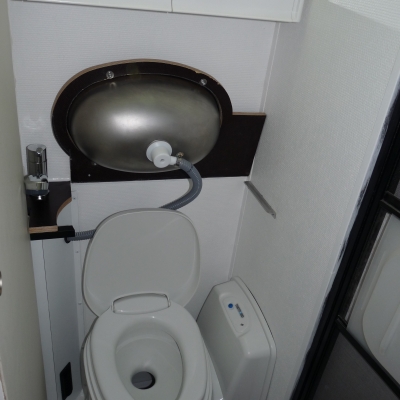

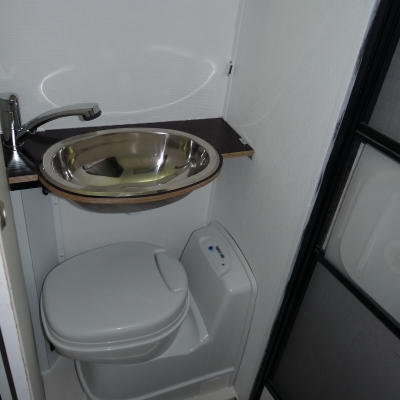

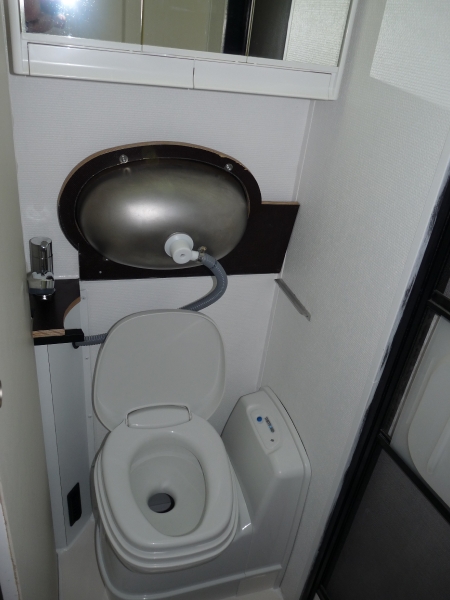

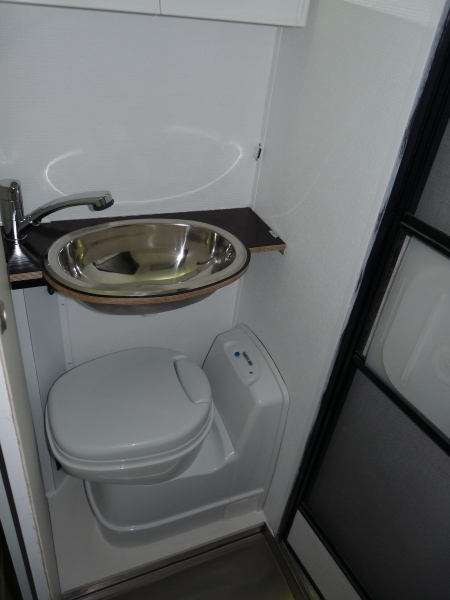

| Manufacturer and type of toilet | Trennto Trenntoilette |
|---|
| Rear carrier | Reserveradhalter für Fahrrad/Motorradhalter |
|---|---|
| Roof rack | Eigenbau |
| Storage boxes | 2 x Alu Hinten |
| Awning | Tarp |
