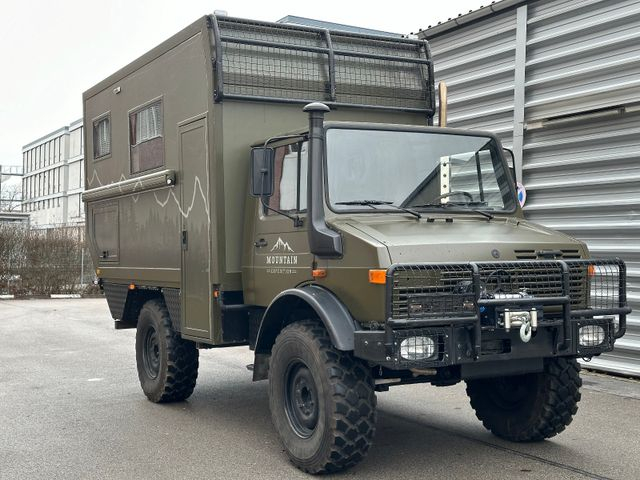

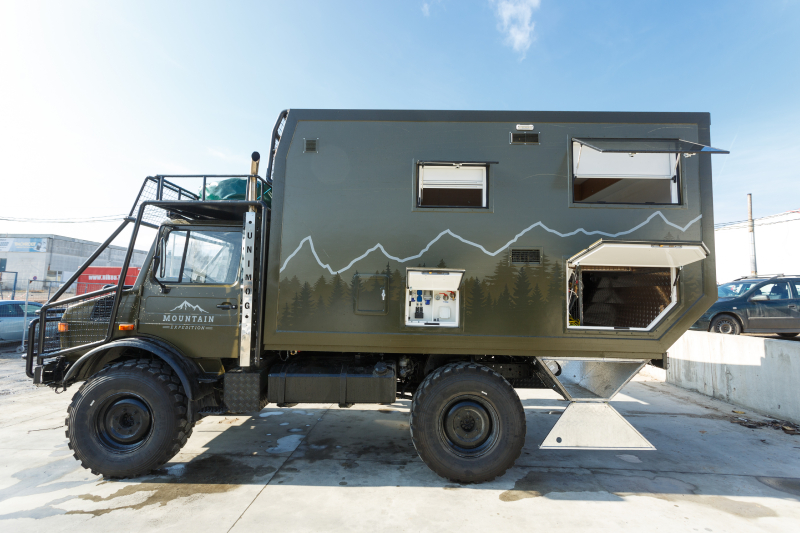

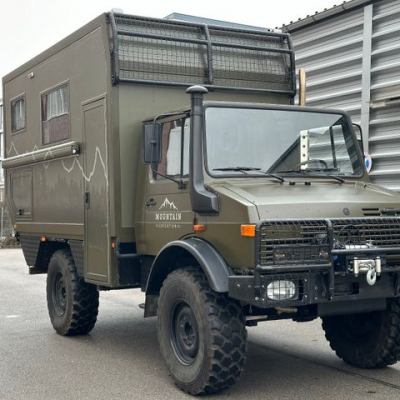

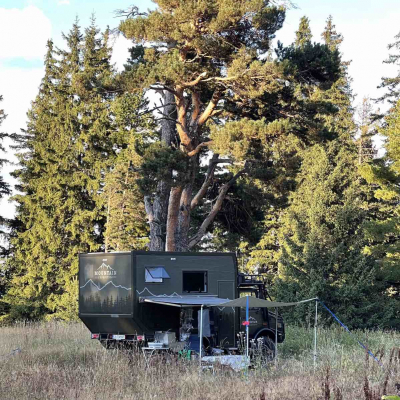

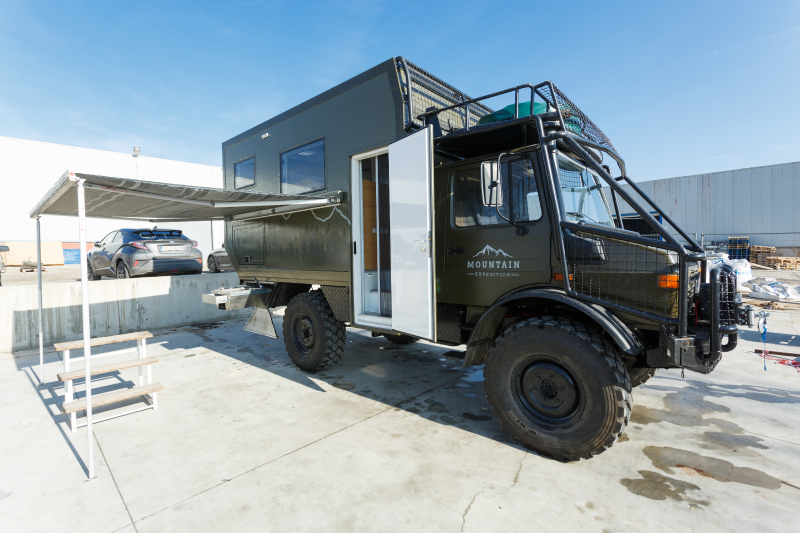

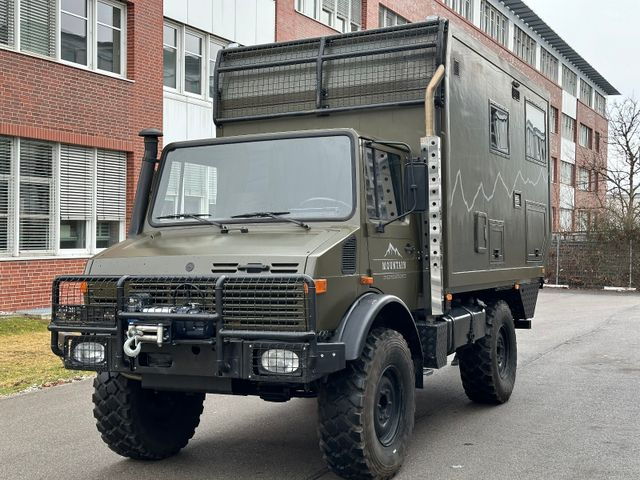

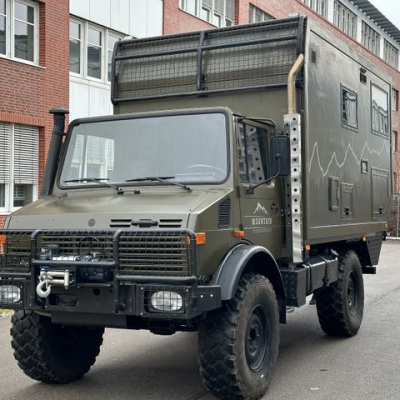

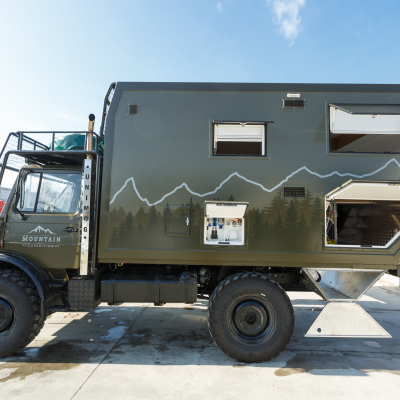

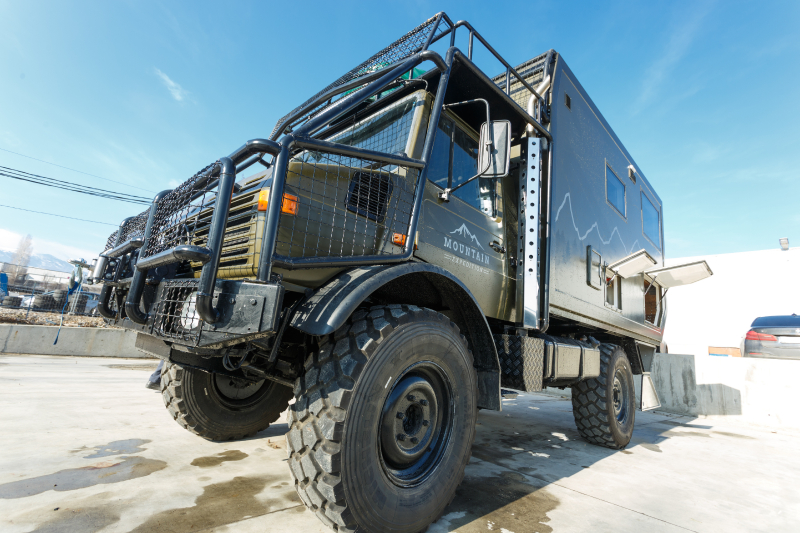

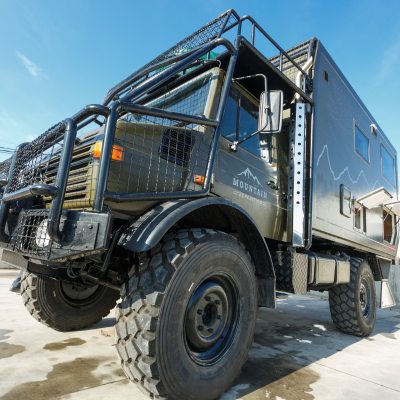

EXPEDITION TRUCK DAIMLER-BENZ UNIMOG 435
| Manufacturer and model | DAIMLER-BENZ |
|---|---|
| Name | Dimitar Angelov |
| Country | German |
| Year of manufacture | 2020 |
| For sale? | yes |
| Asking price? | 107000 euro |
| Engine type | Motor 353.961 |
|---|---|
| Horsepower | 96 kW |
| Torque | 2800 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Number of seats | 2 |
| Tyre size | 365/80 R20 152 K |
| Rim size | yes |
| Type of tyre | Michelin tires |
| Tank capacity | 190 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | no |
| Manufacturer of the cabin | Hegel BG |
|---|---|
| Outer dimensions (LxWxH) | Length – 6700 , Width – 2350, Height – 3600 |
| Cabin material | Sandwich thermal panels with structure: - fiberglass with a thickness of 1.5 mm XPS with a thickness of 50 mm - 6mm thick plywood - fiberglass with a thickness of 1.5 mm |
| Kind and thickness of insulation | 6 sm |
| Number of beds | 3 |
| Windows | thermal glasses, Dutch, made for 6000 m altitude, Blinds and mosquito nets |
| Other | |
|
Hegel BG kept the original 4 point unimog mounting while keeping the production suspension. it has a special lining against mold and condensation, the panels are 6 cm. Each column has 1 cm of insulation. Impact-rated metal construction for security. | |

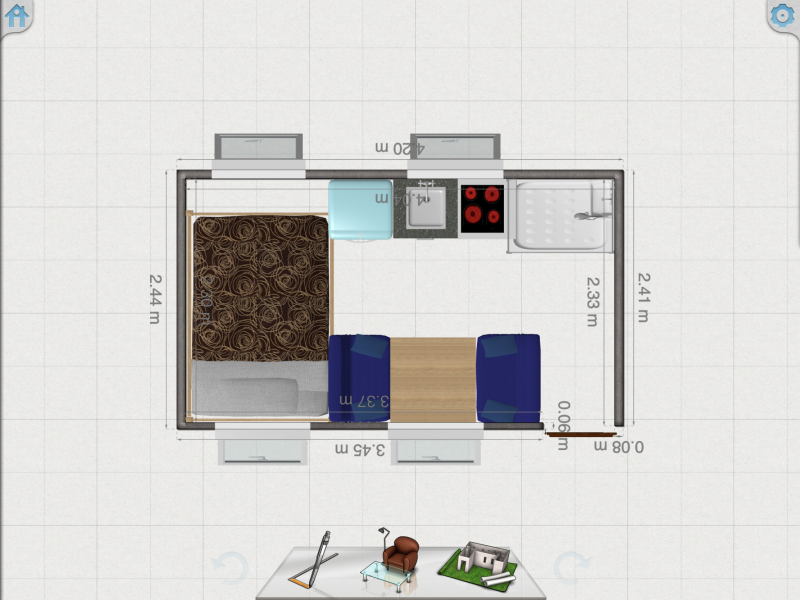

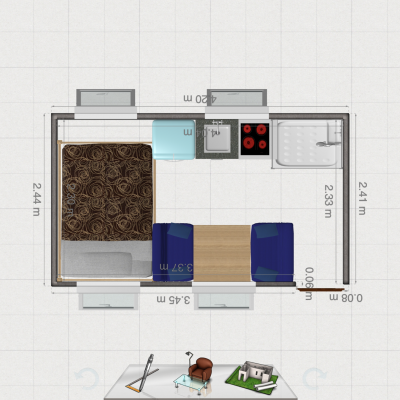

| Explanation of floor plan | |
|---|---|
|

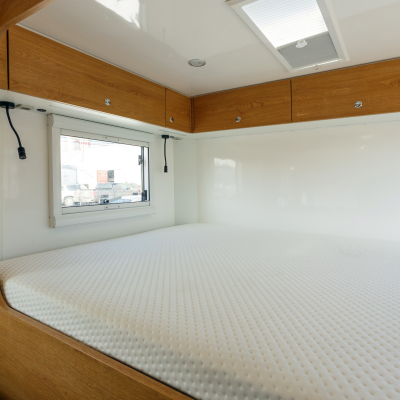

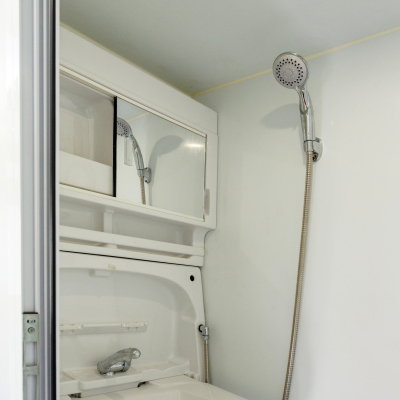

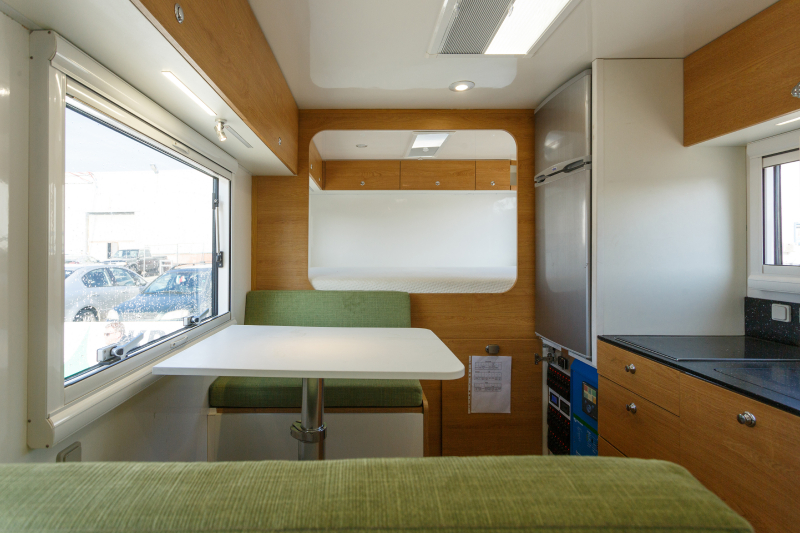

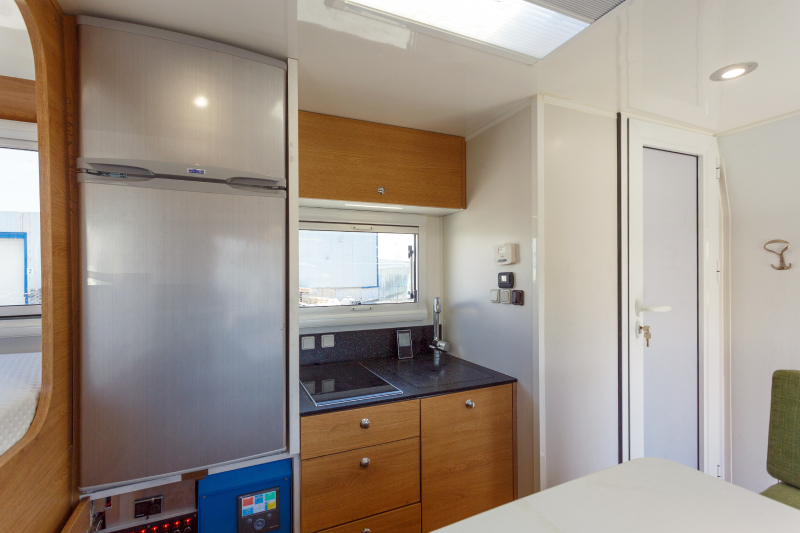

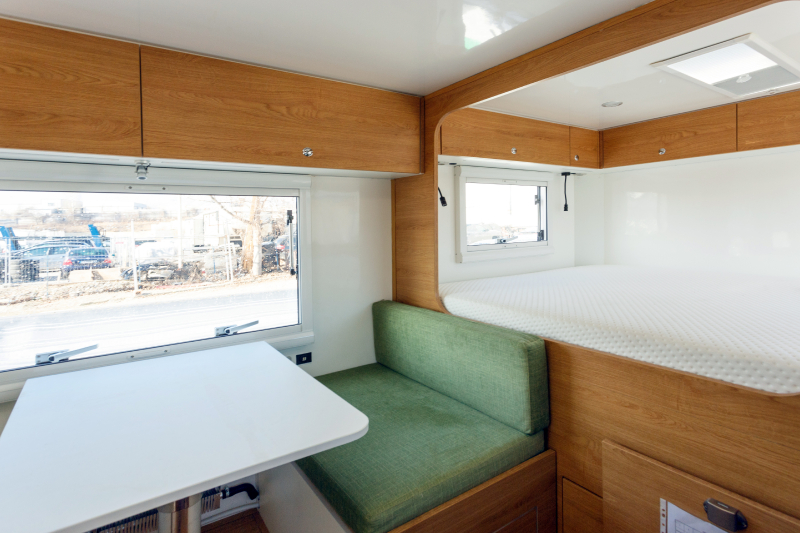

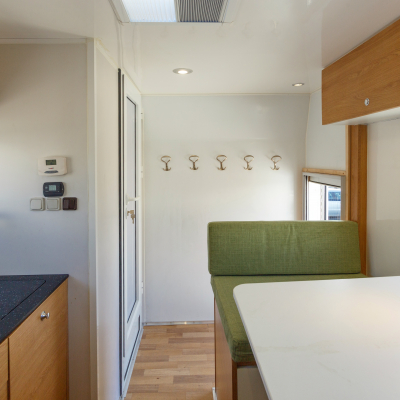

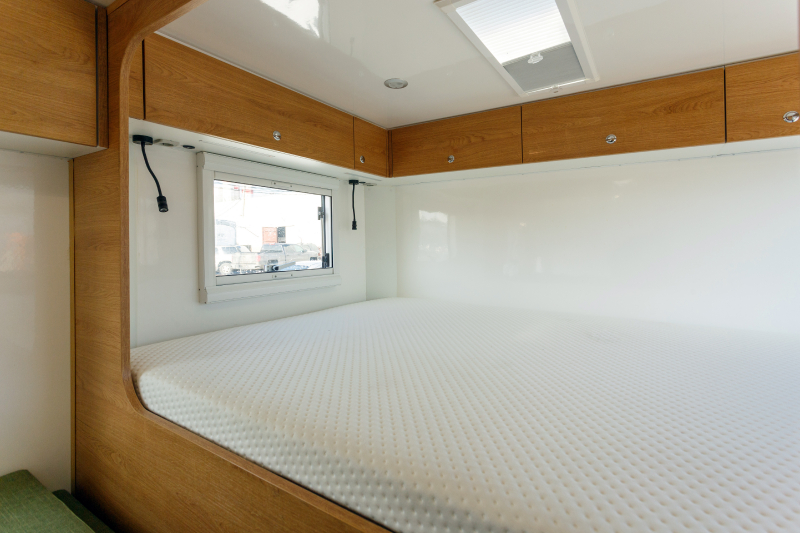

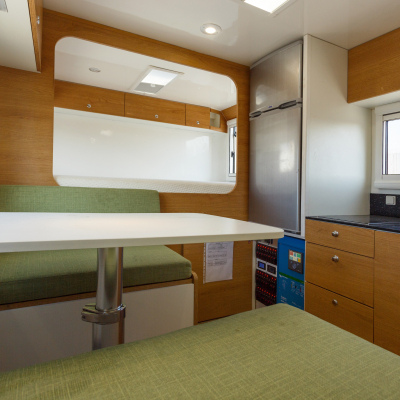

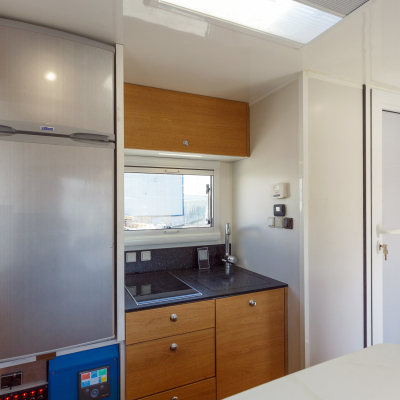

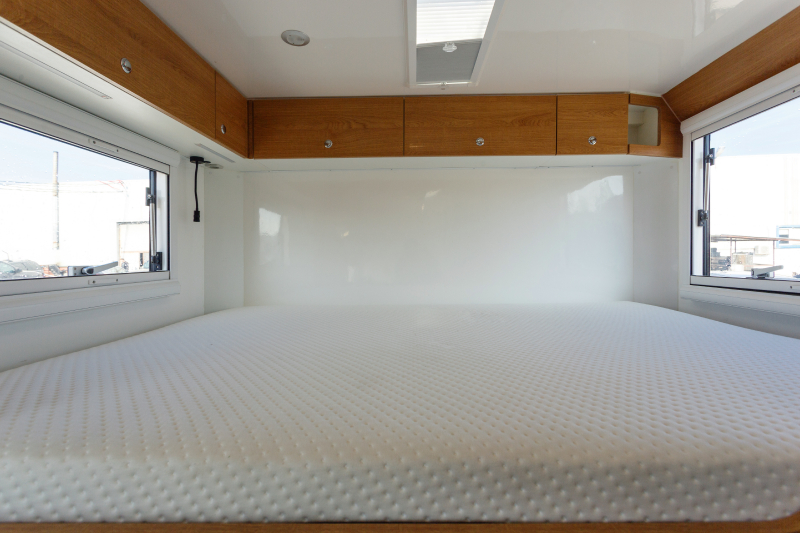

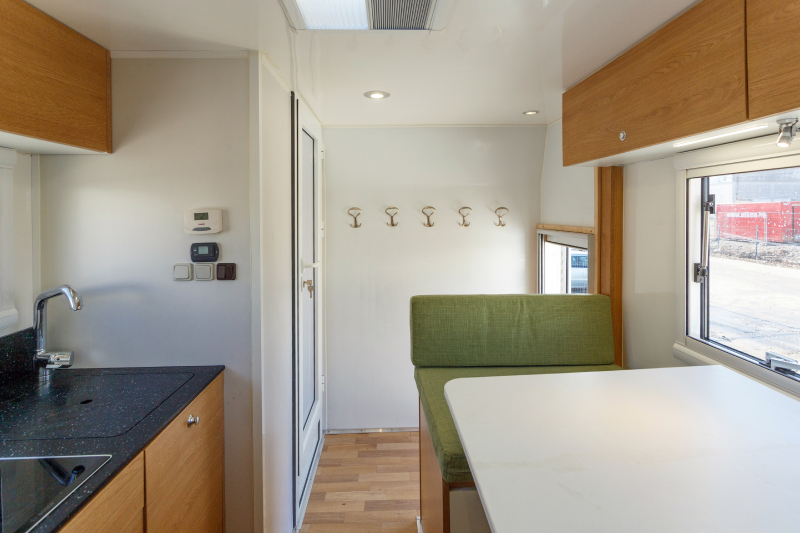

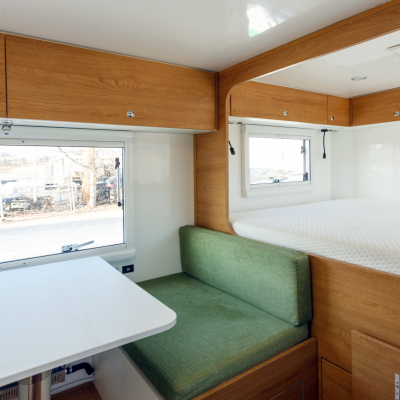

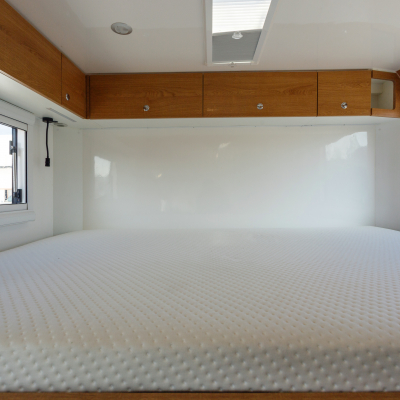

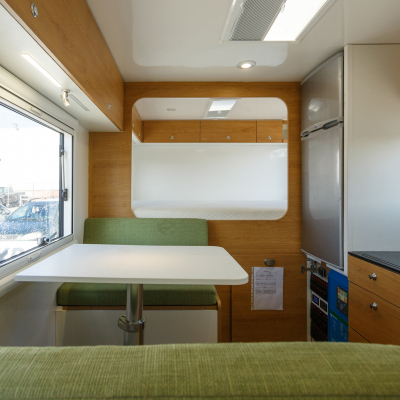

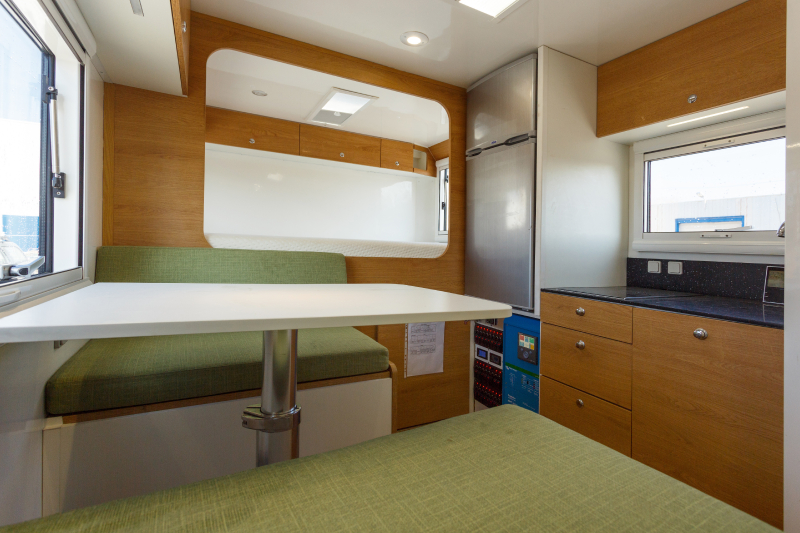

Number of beds – 3, Bathroom, Table\chairs, Laundry room, Kitchen box Dining table and upholstered benches that fold out into a second extra bed Spacious bed with Magniflex mattress - Main bed 140/200; Spare bed 90/180 Kitchen with induction hob |
| Material of furniture | Pappel |
|---|---|
| Other | |
| All furniture is manufactured in a company working for the Laura Ashley brand. | |
| Cooking stove | Webasto |
|---|---|
| Other | |
|
Webasto Termo Pro 90, underfloor heating and radiators. separate electricity radiator and diesel | |

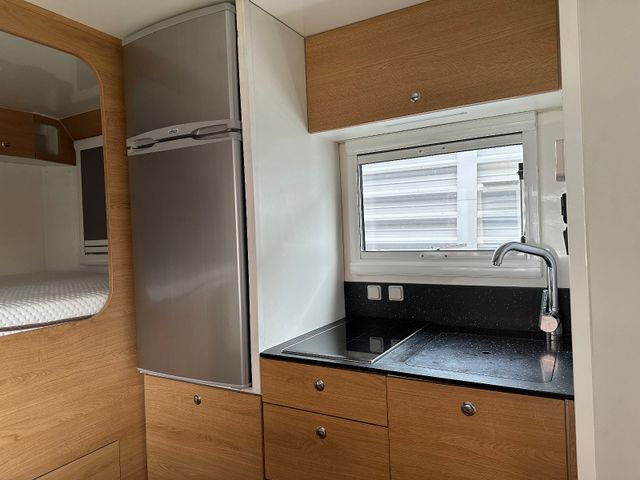

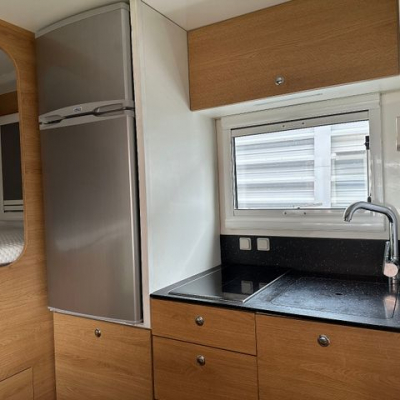

| Manufacturer and type of fridge / cooler | Webasto marine CR - 165, Silver + kit AC-DC |
|---|---|
| Other | |
| Refrigerator Webasto mirine with compressor | |

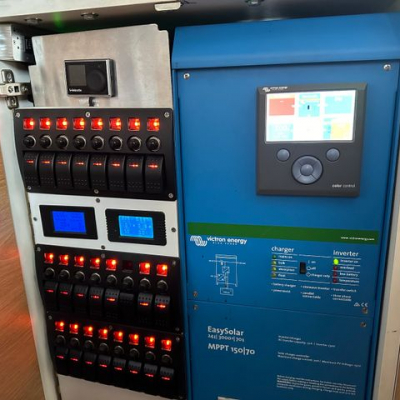

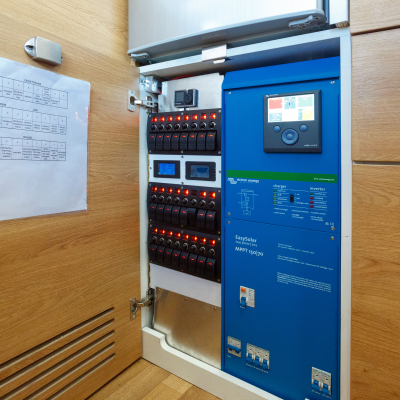

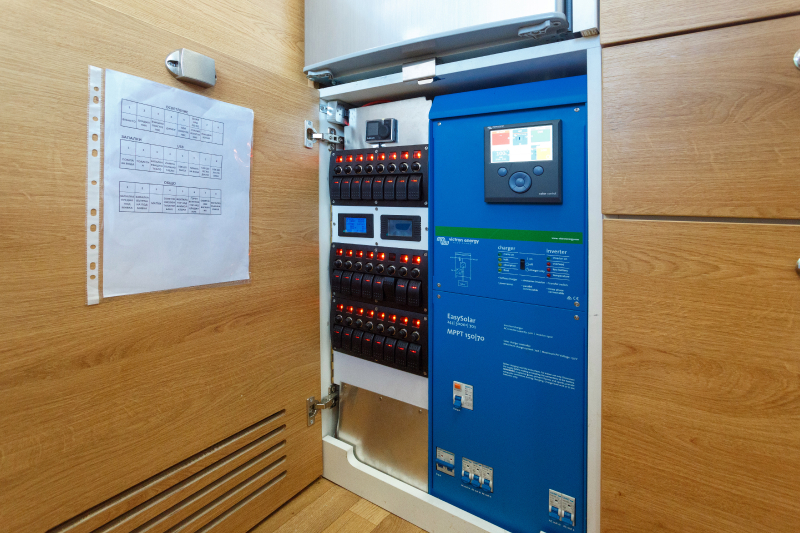

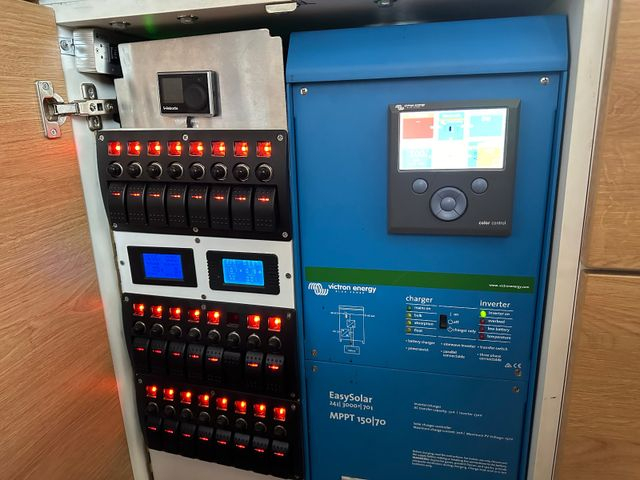

| Voltage in the chassis | Victron Energy Controller 220V 12V 24V |
|---|---|
| Charging converter 24V-12V | yes |
| 110V / 230V in the cabin? | no |
| Other | |
|

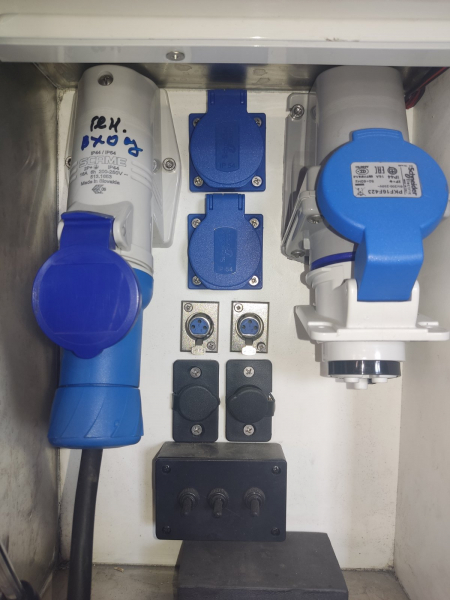

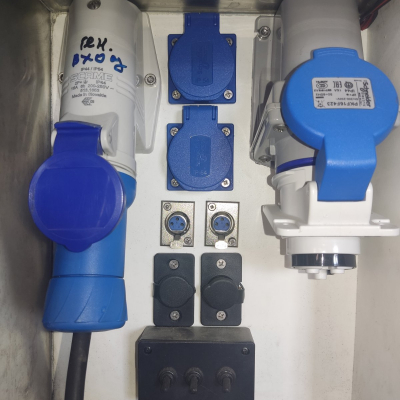

12\220 volts, Heating – Electric, Webasto Termo pro 90 heating and boiler, Fast connection current, Battery charger, Boiler- Indel Webasto Marine, Dynamo / Alternator Bosch 180A | |
| Solar capacity | Solar panel – 9 x Victron Poly 100Wp, Battery – 2 x GEL VRLA Victron 12V / 265Ahm |
|---|---|
| Solar controller | Victron |
| Fuel cell | no |
| Power generator | no |
| Other | |
| Solar panels for power throughout the roof (Solar panel – 9 x Victron Poly 100Wp, Battery – 2 x GEL VRLA Victron 12V / 265Ahm) | |

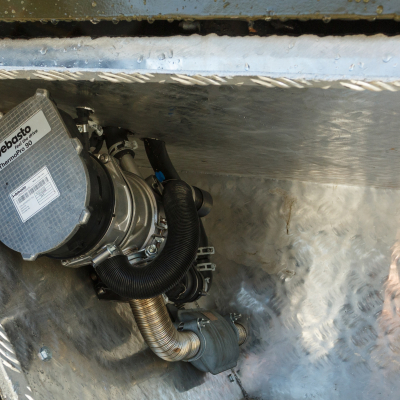

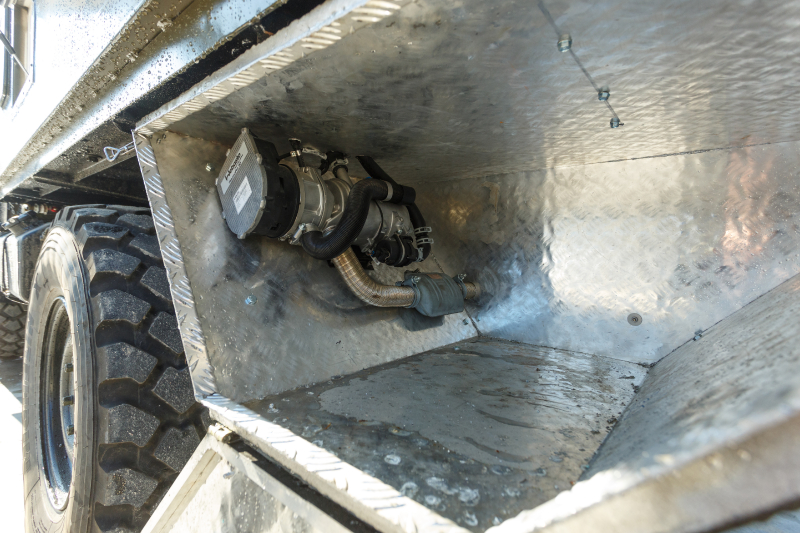

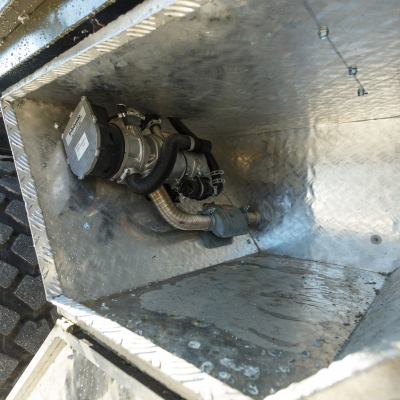

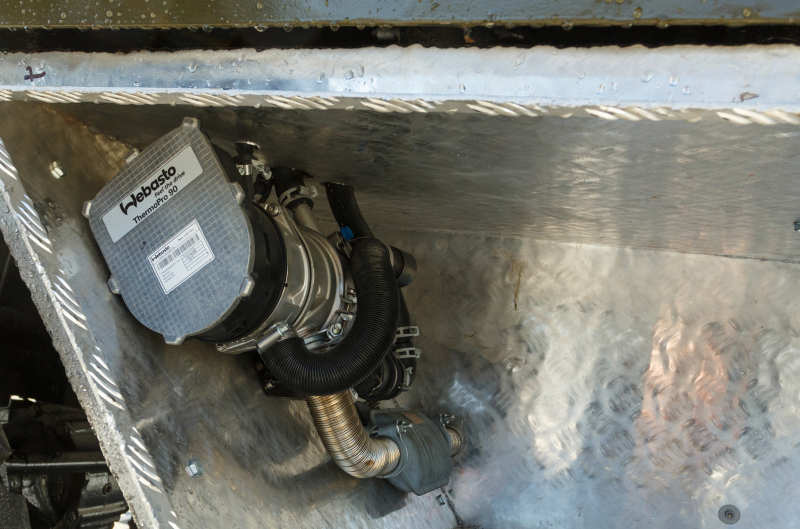

| Manufacturer and type of heating system | Webasto Termo Pro 90, D, 24 V , |
|---|---|
| Warm water processing | Multicontrol - boiler Intel Webasto Marine Square 16 |
| Cab heating | no |
| Other | |
|
Underfloor heating and radiators. Heating is in 3 ways: 1. there is an auto heater, it can also be electric and there is a radiator attached to the unit. It was made for minus 45 degrees\ | |
| Explanation of gas system | |
|---|---|
| outside |
| water flow | Webasto |
|---|---|

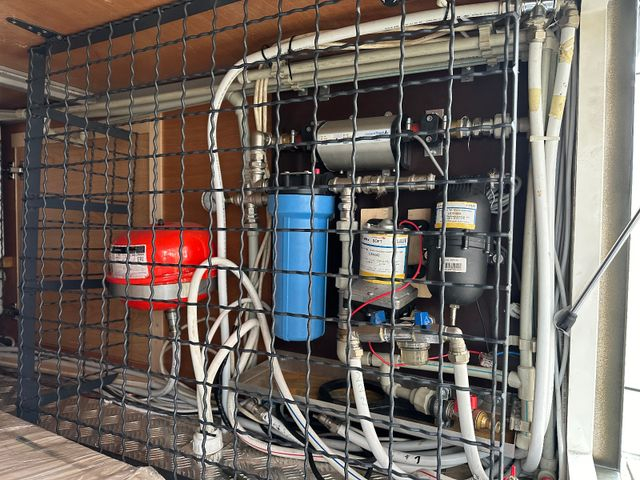

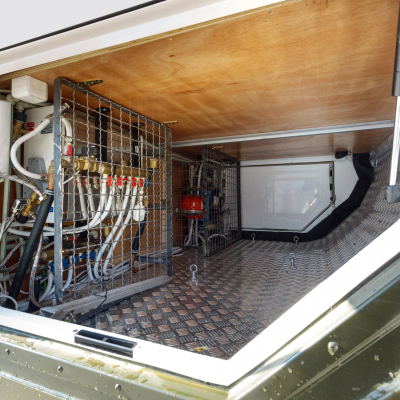

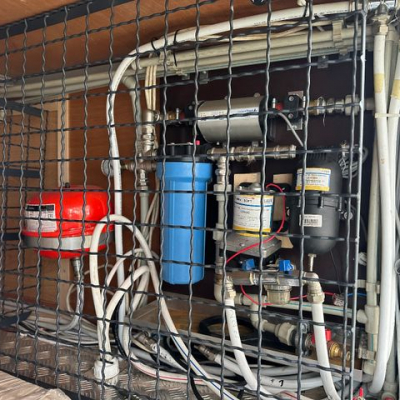

| Water filtration system | Installation with water pump Hydrofor system with 3 bar pressure and UV filter |
| Capacity of fresh water tank(s) | 500 l |
| Capacity of waste water tank(s) | 100 l |
| Other | |
|

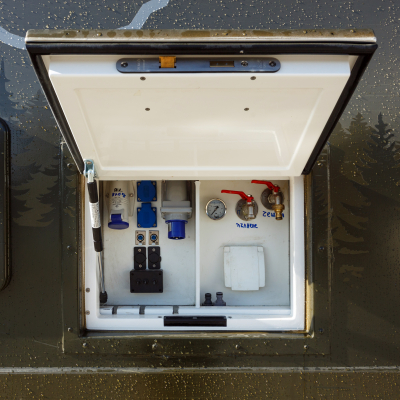

Boiler- Indel Webasto Marine, Fast water connection | |

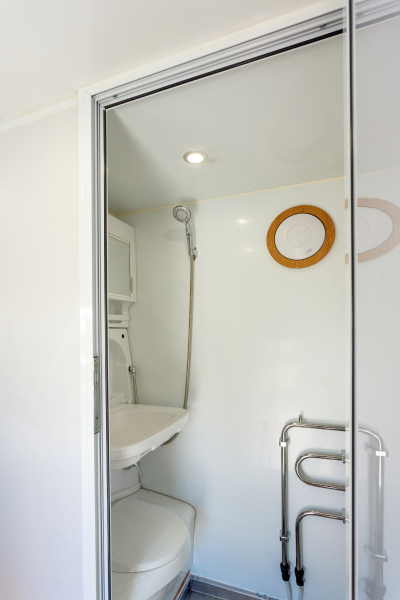

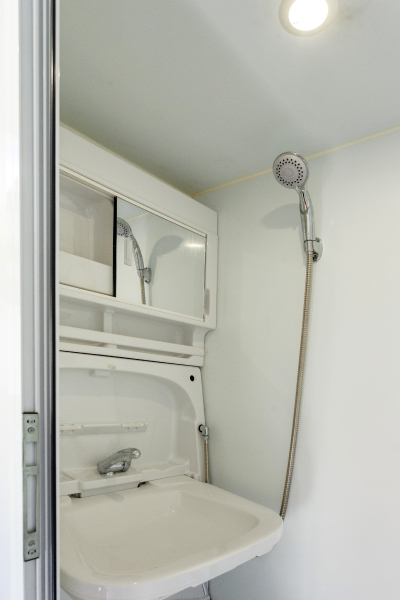

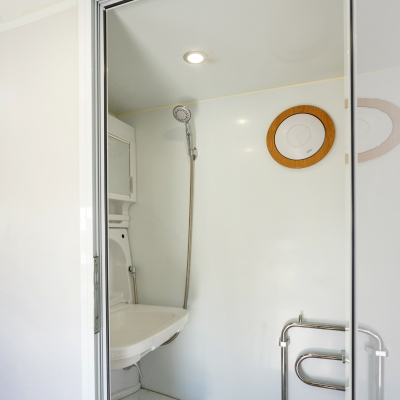

| Manufacturer and type of toilet | Cassette toilet |
|---|---|
| Capacity of black water tank | 100 |
| Other | |
| Inox exhaust system | |
| Rear carrier | new reinforced rear Mercedes springs and air suspension |
|---|---|
| Roof rack | yes |

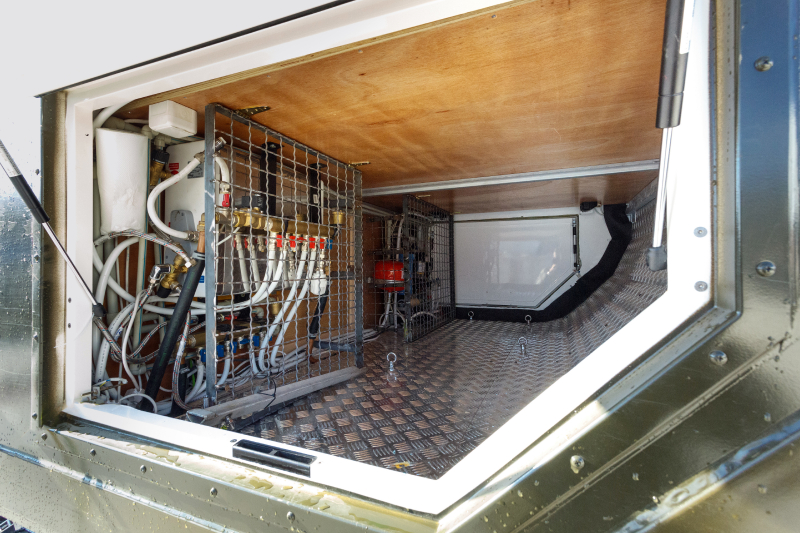

| Storage boxes | Cupboards under the internal steps - 2 pcs • Mudguards, fenders |
| Outside cooking facilities | Second Elektrolux extendable outdoor kitchen |
| Awning | Safari Tent/ Folding awning |
| Other | |
|

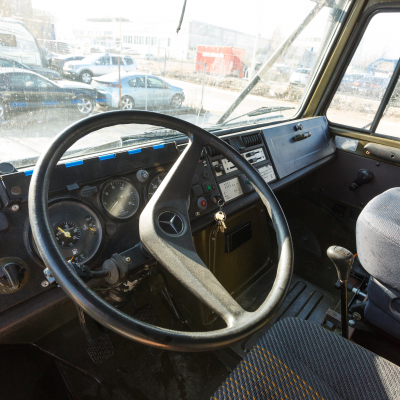

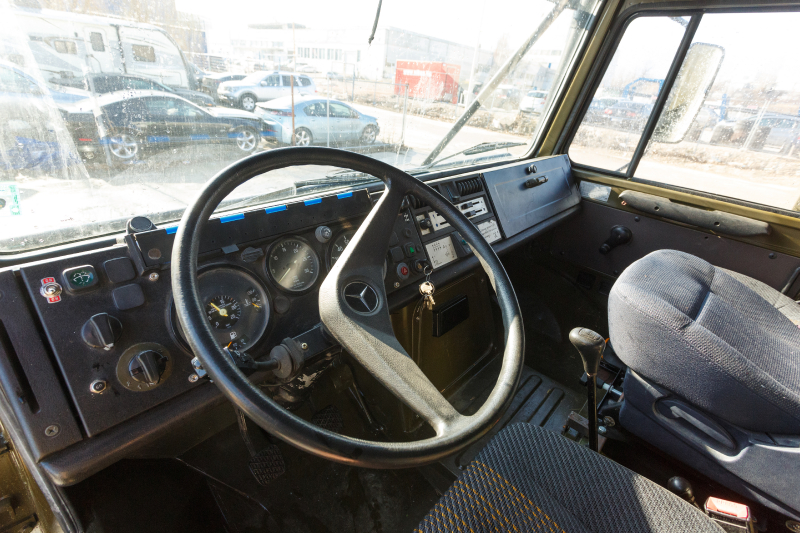

Electric truck winch (Superwinch talon 18000lbs 24V) The cabin is equipped with 2 new pneumatic seats. Alcantara leather cabin | |
